LEVELING JACKS
Most standard items by Vestil Manufacturing, are in stock and ready for immediate shipment.
Custom orders are our specialty and fabrication services are available on most items.

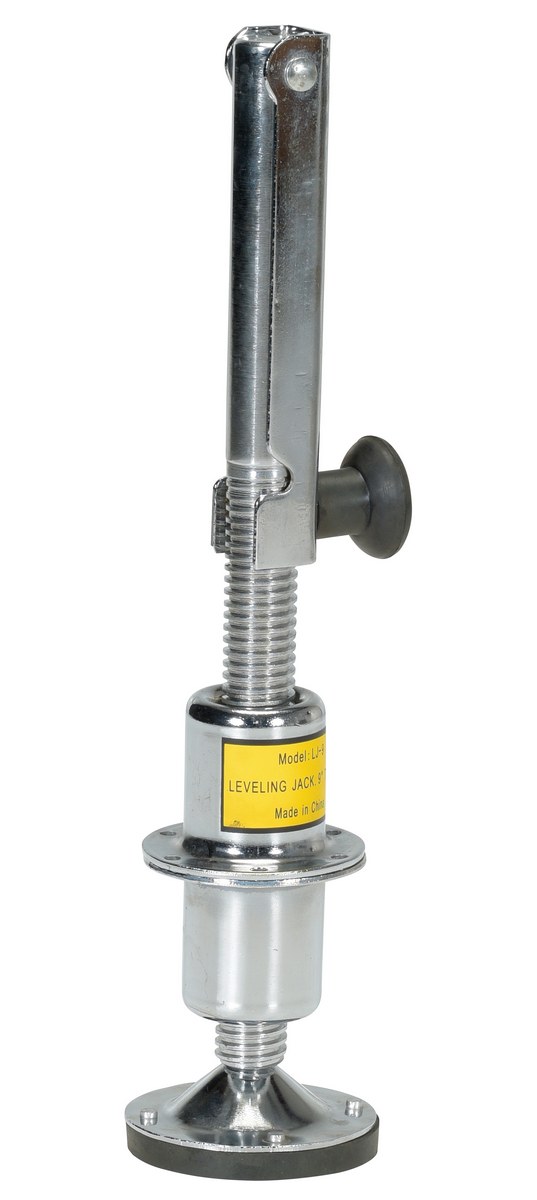

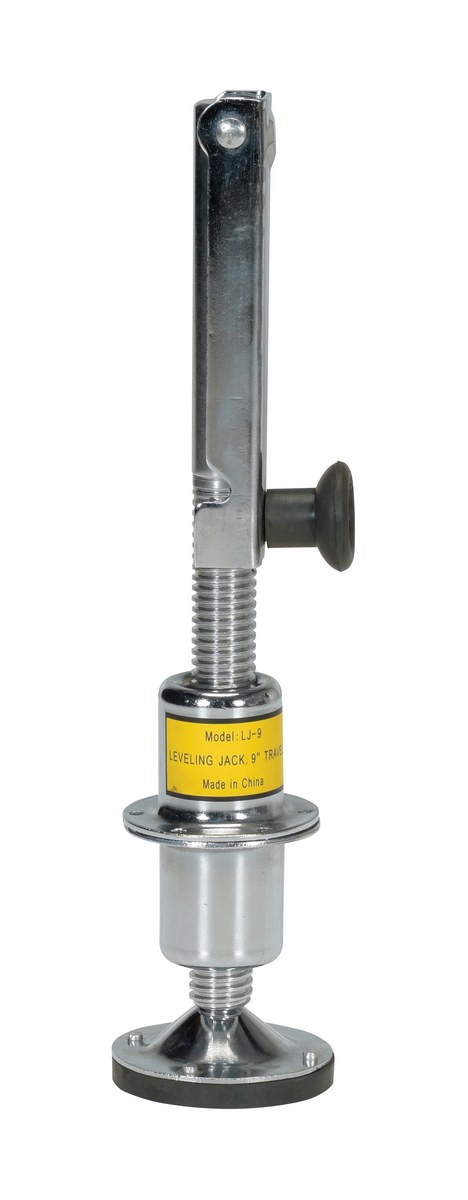

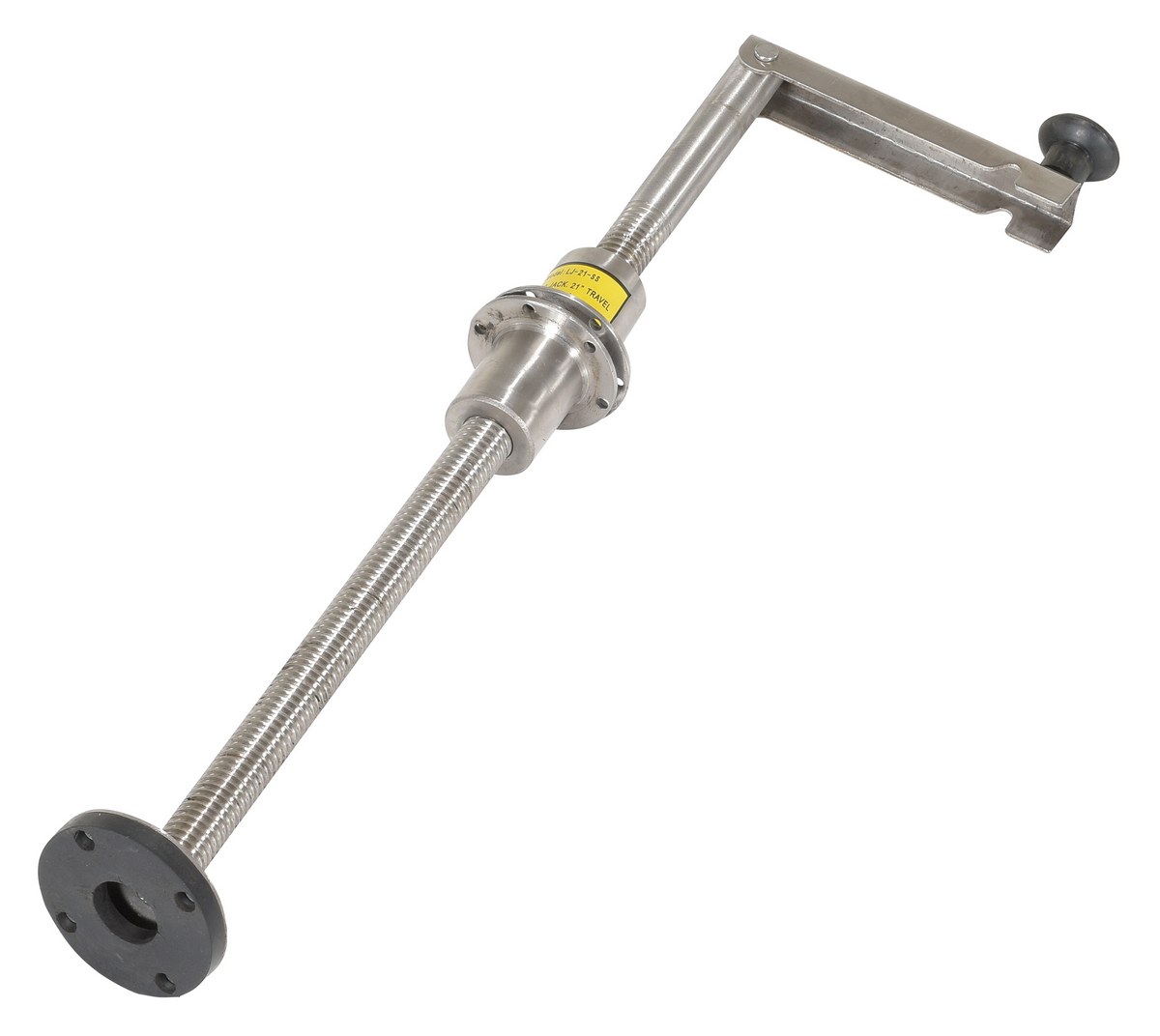

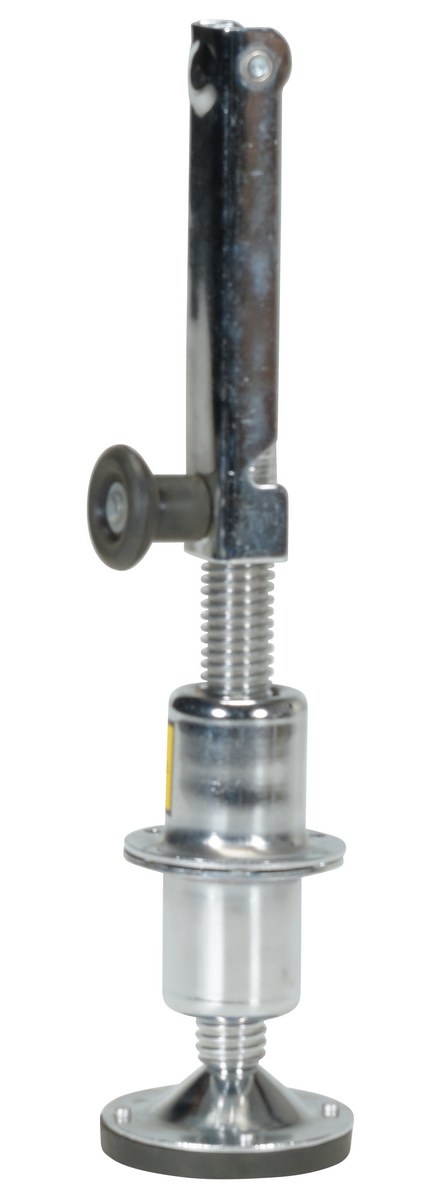

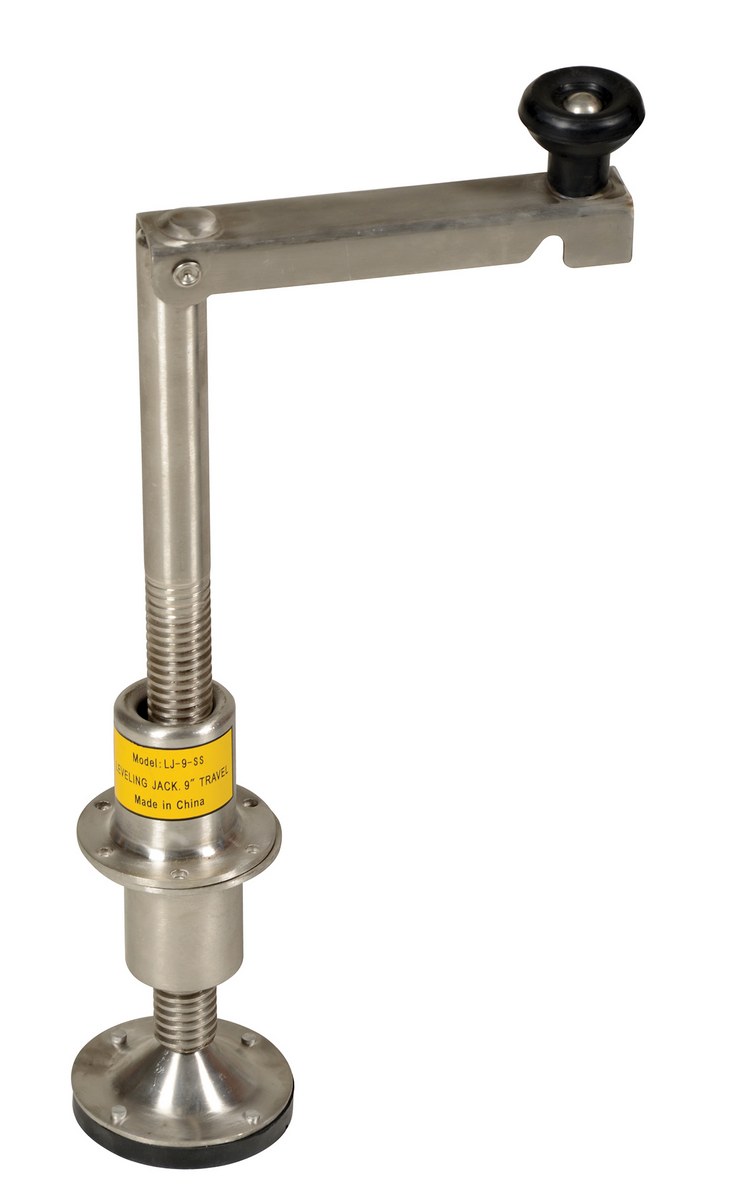

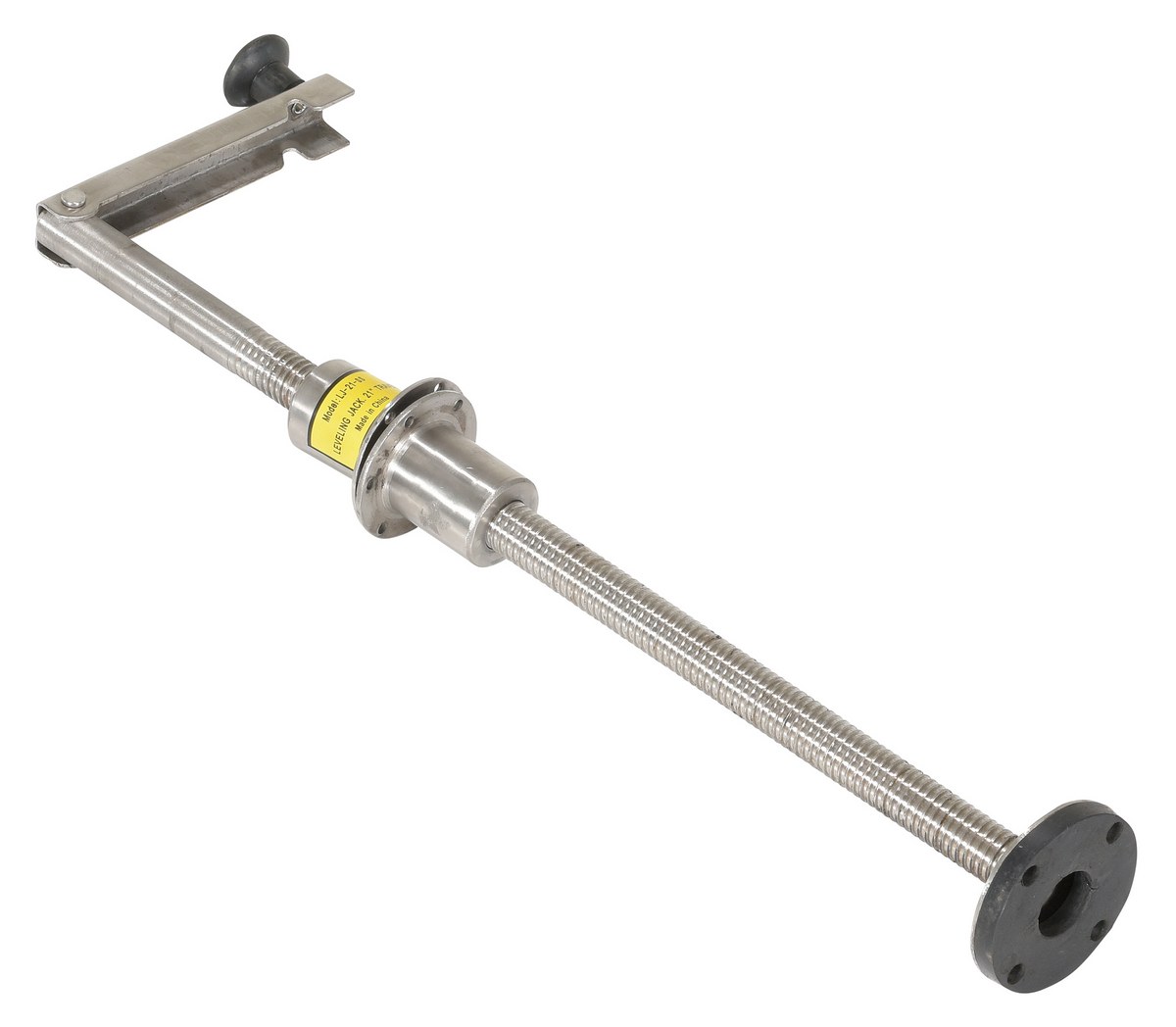

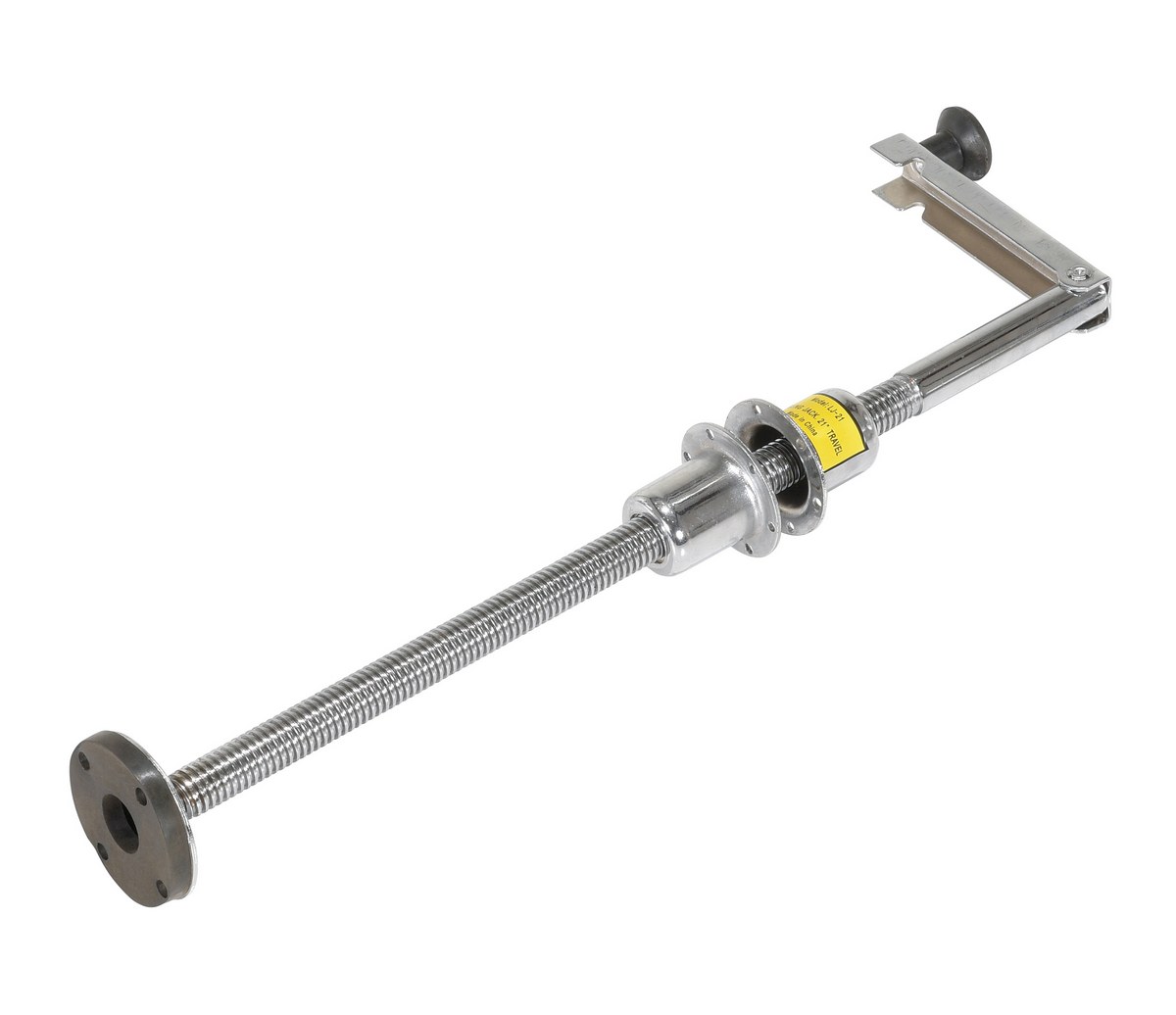

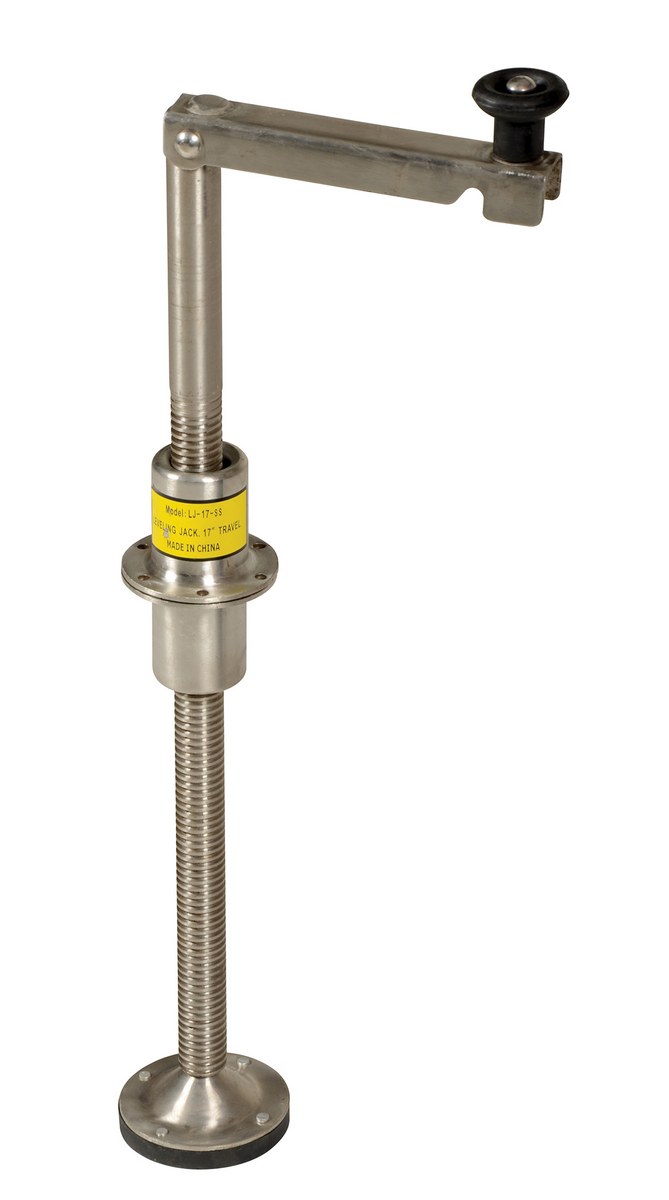

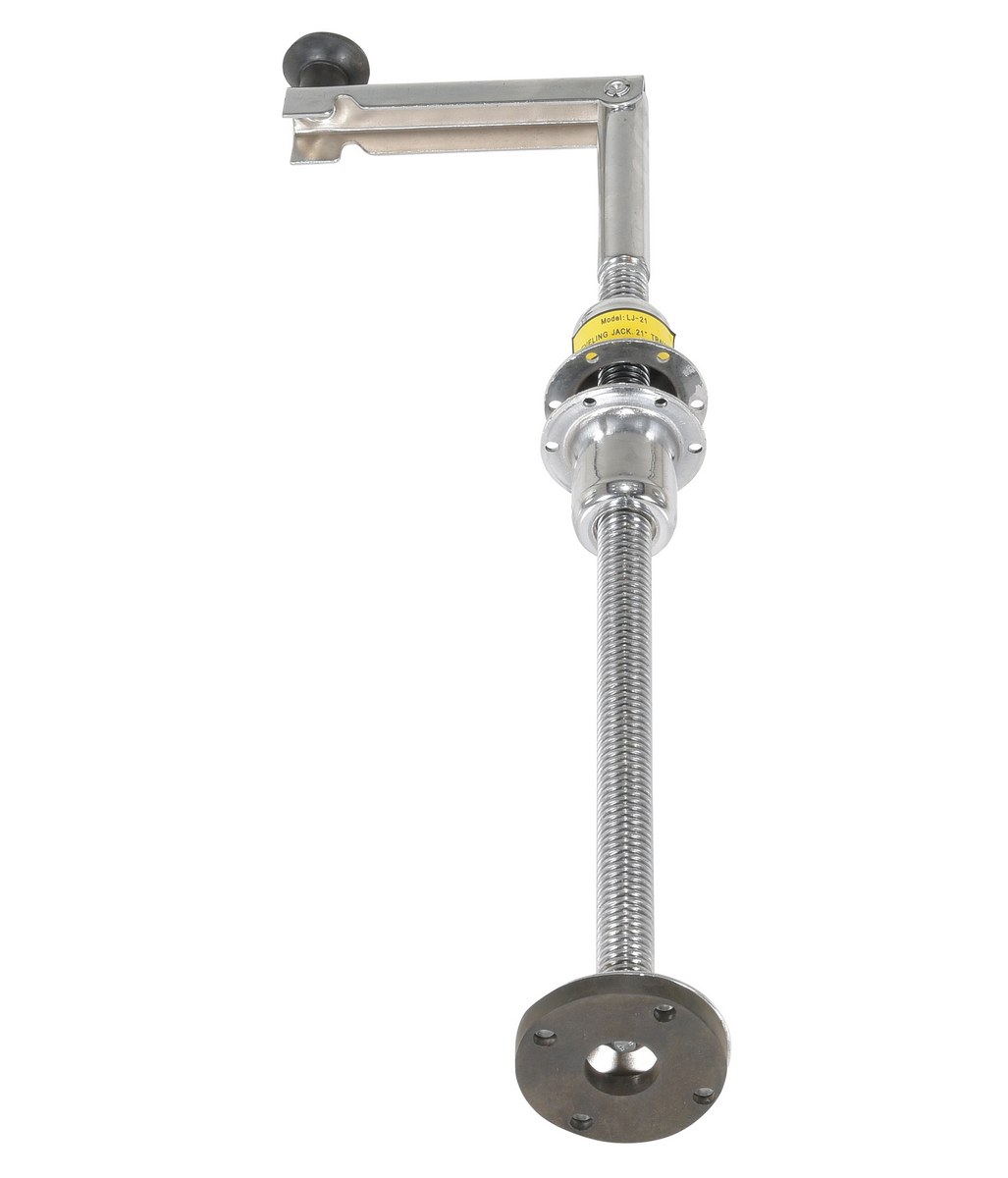

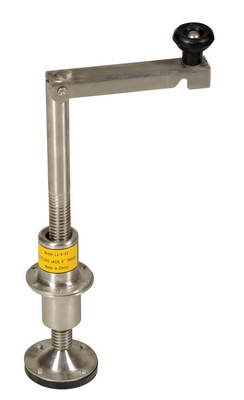

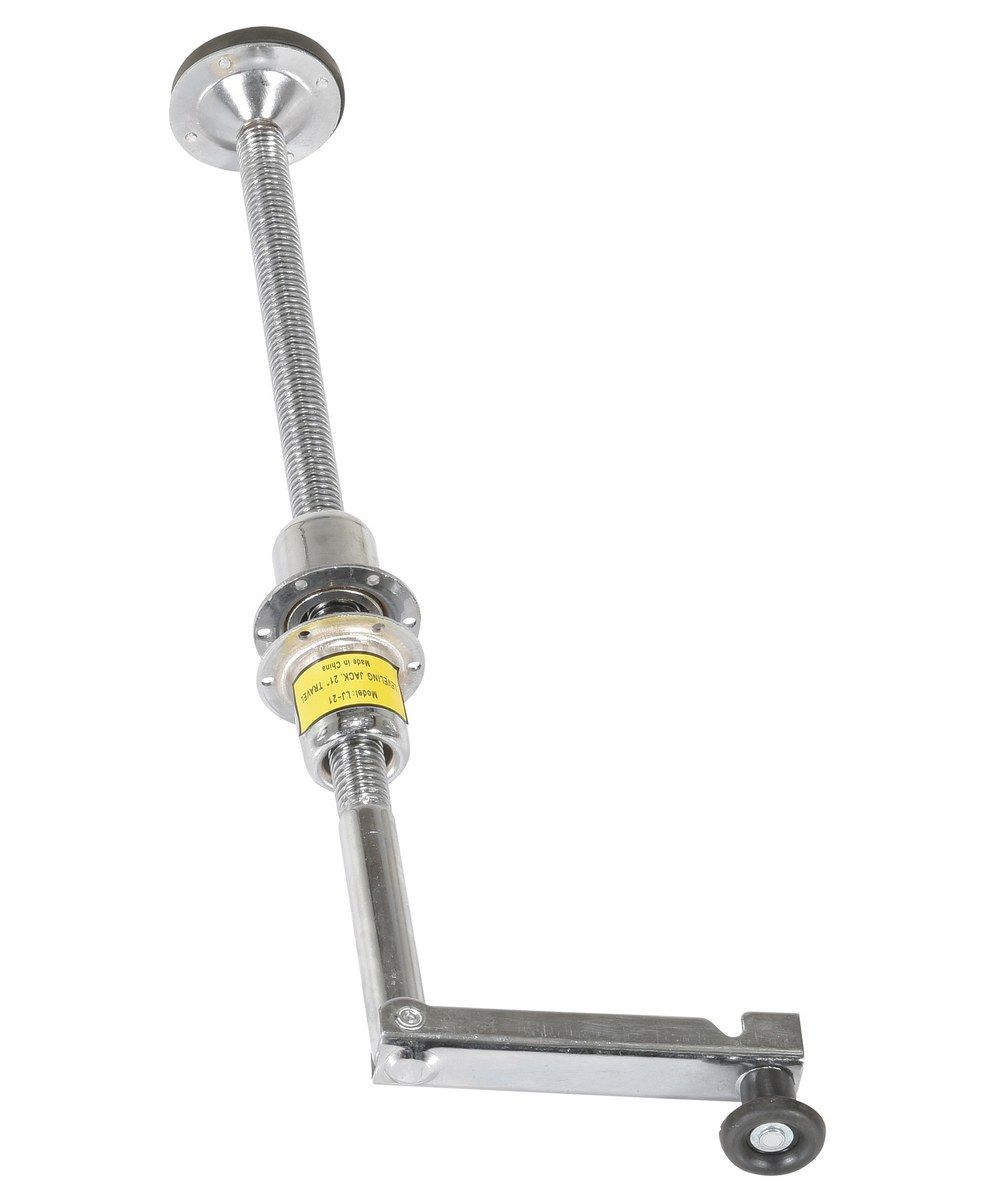

Designed for permanent installation, these screw-style jacks hold platforms and other equipment in place and stabilize them at the required height. Drill a 1-1/4" diamter hole through the platform to be leveled and bolt the platform between the upper and lower flanges of the jack's dividing housing. Flanges are 3-3/8" overall diameter, 1/8" thick, and have (6) 1/4" diameter mounting holes equally spaced on a 3" daimeter hole pattern.

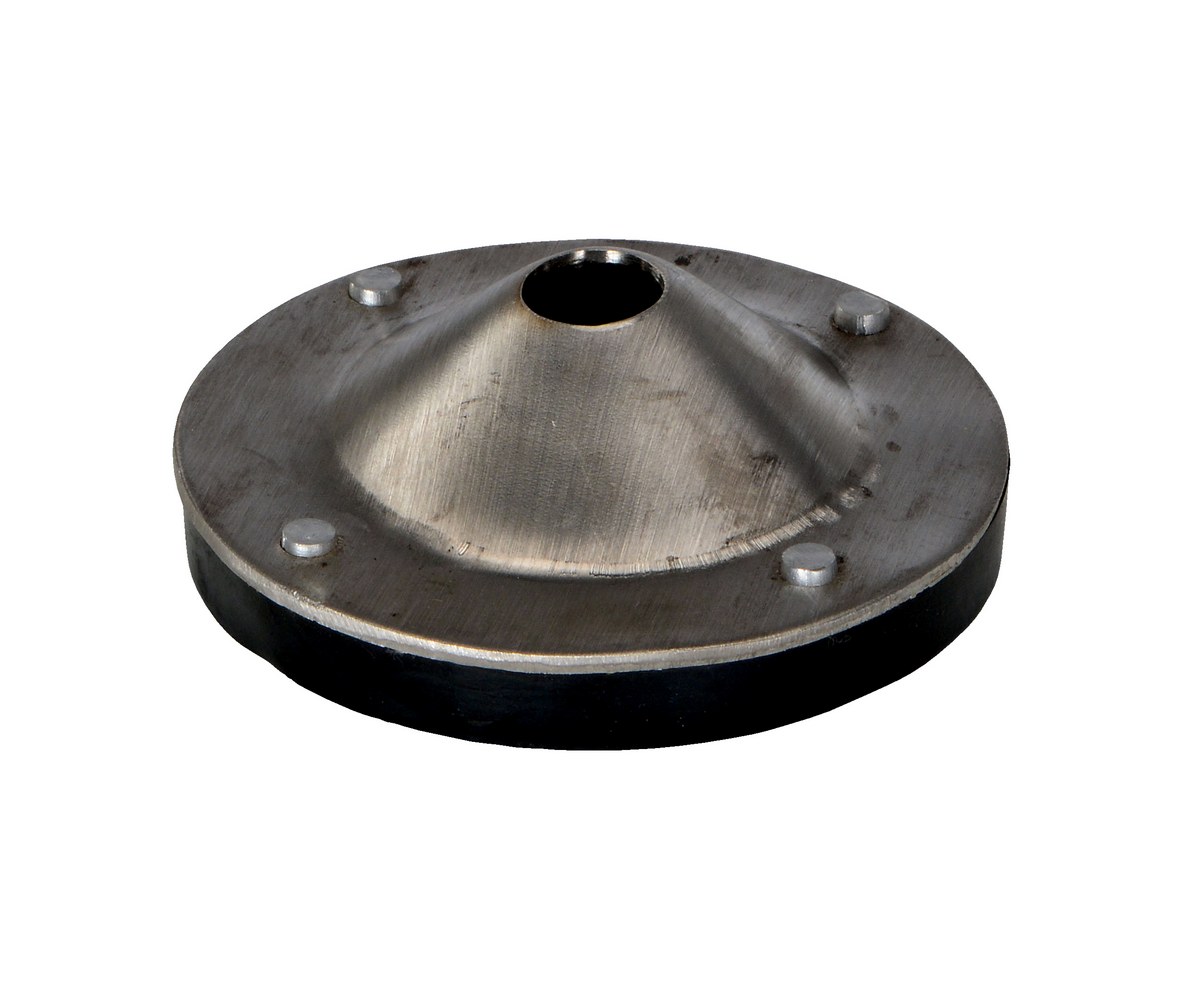

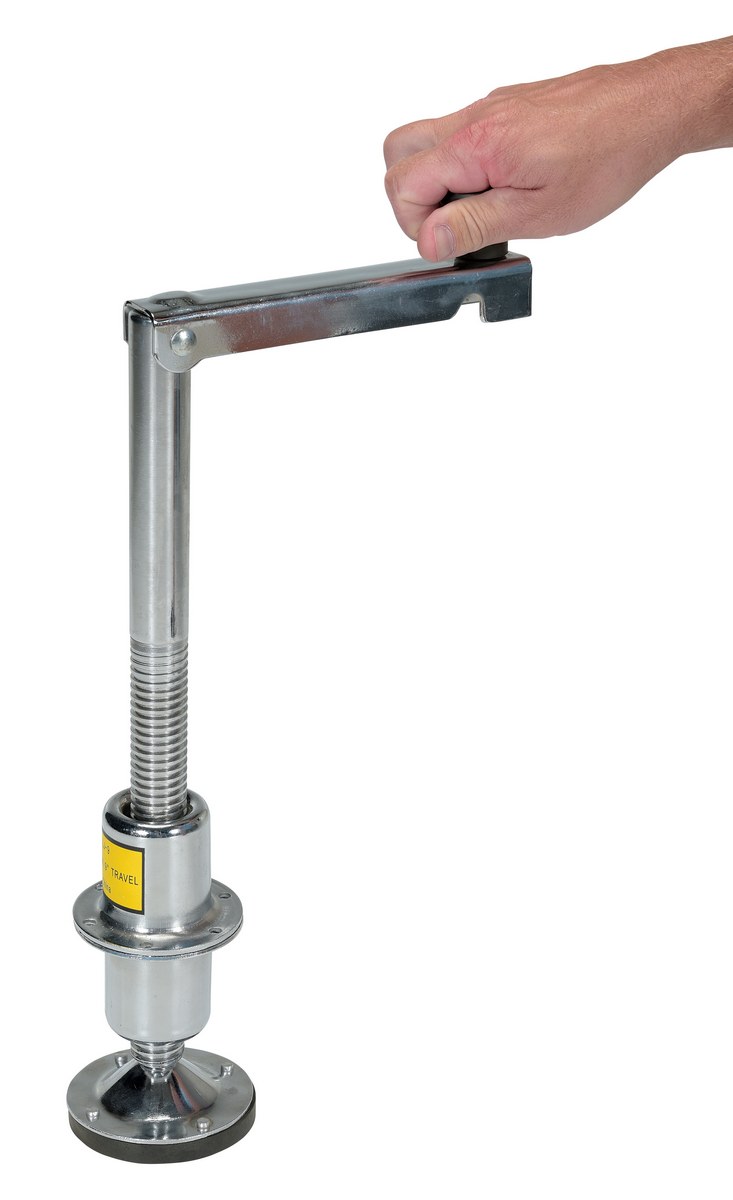

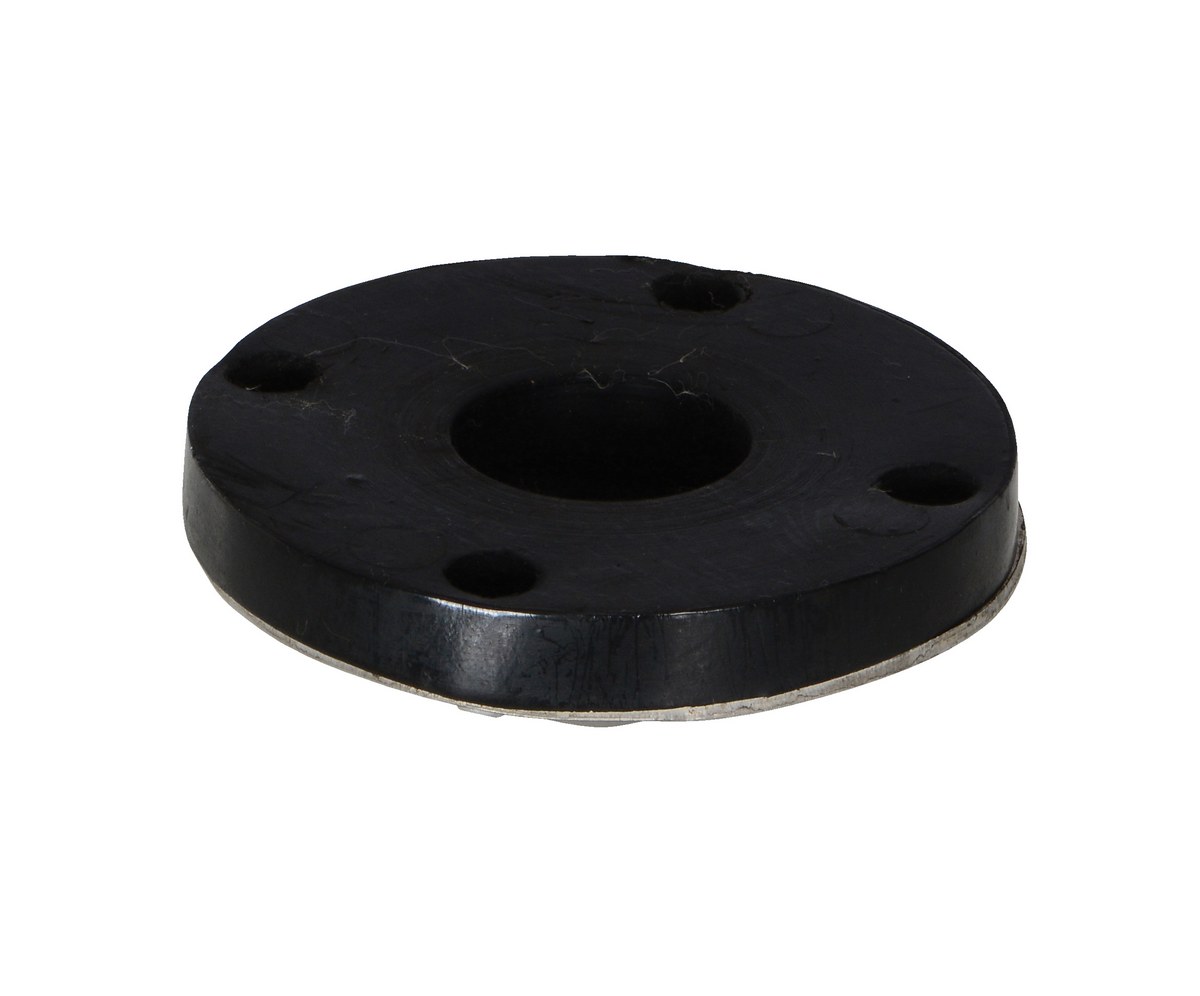

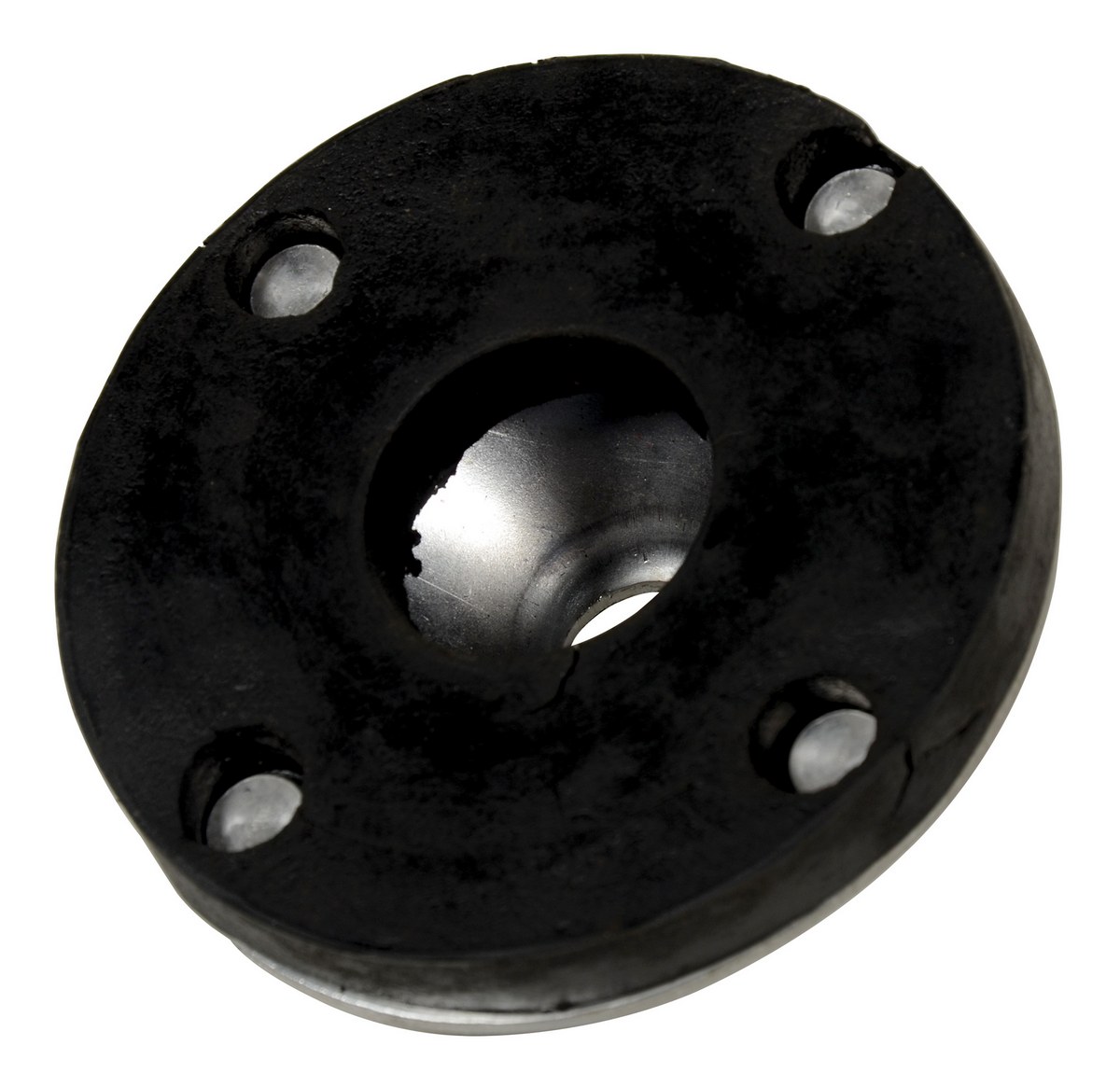

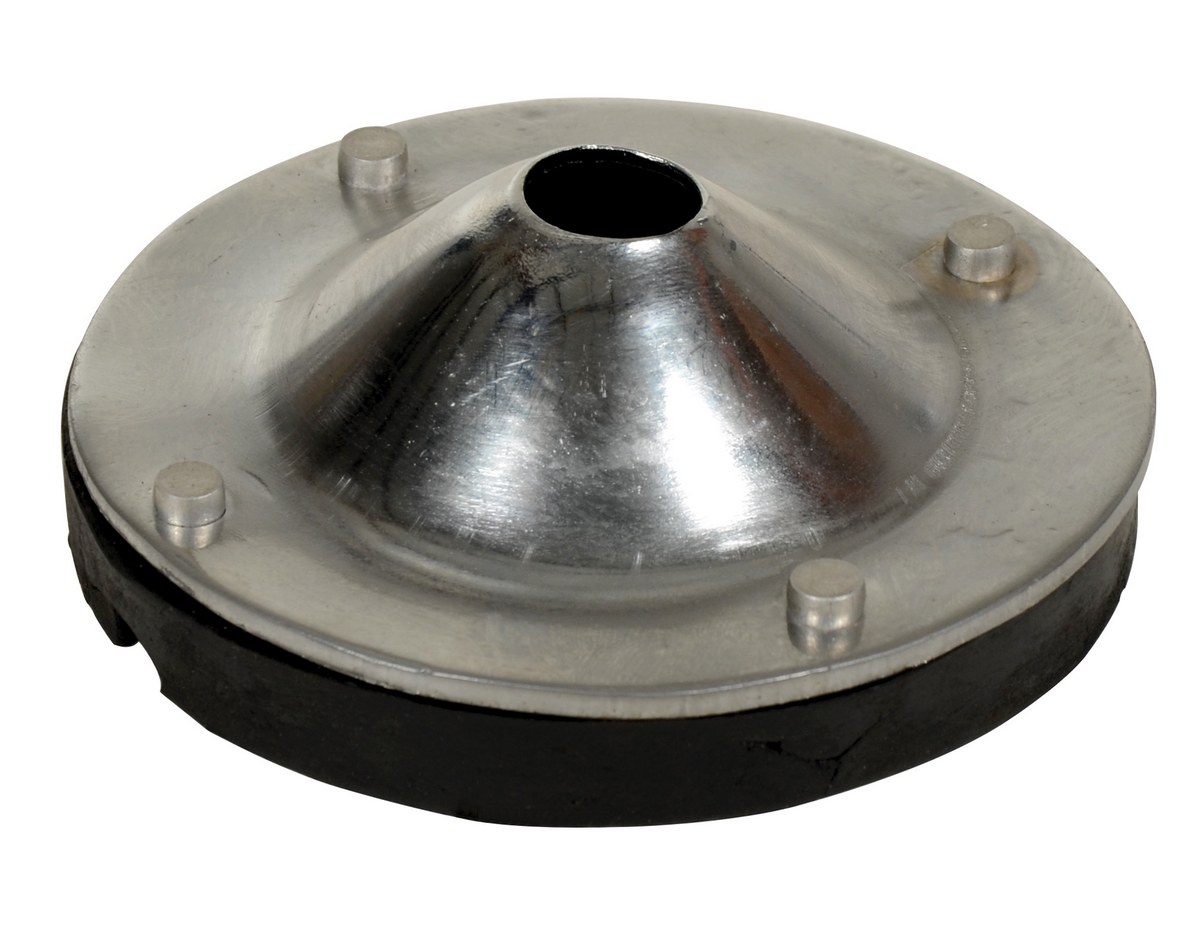

Jacks are made of steel with a polished chrome finish and have an 8-1/2" long handle that folds down when not in use. They stand on a 3-7/8" diameter swivel base that has a slip-resistant rubber pad on the bottom. Screw diamter is 1-1/4". Lift rate is 1/4" per crank revolution.
LEVELING JACKS
| Product No. | Overall Height | Min. Height Below Frame of Equip. | Max Height Below Frame of Equip. | Screw Travel Length | Wt. (lbs.) | price | Quantity |
|---|---|---|---|---|---|---|---|

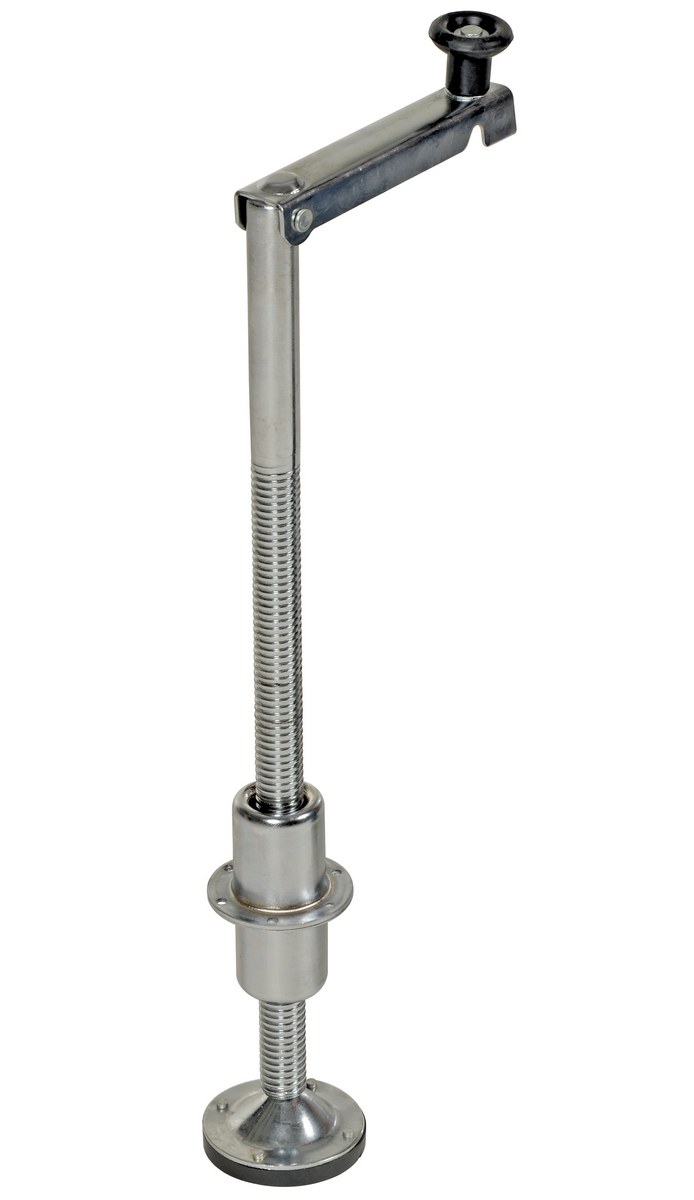

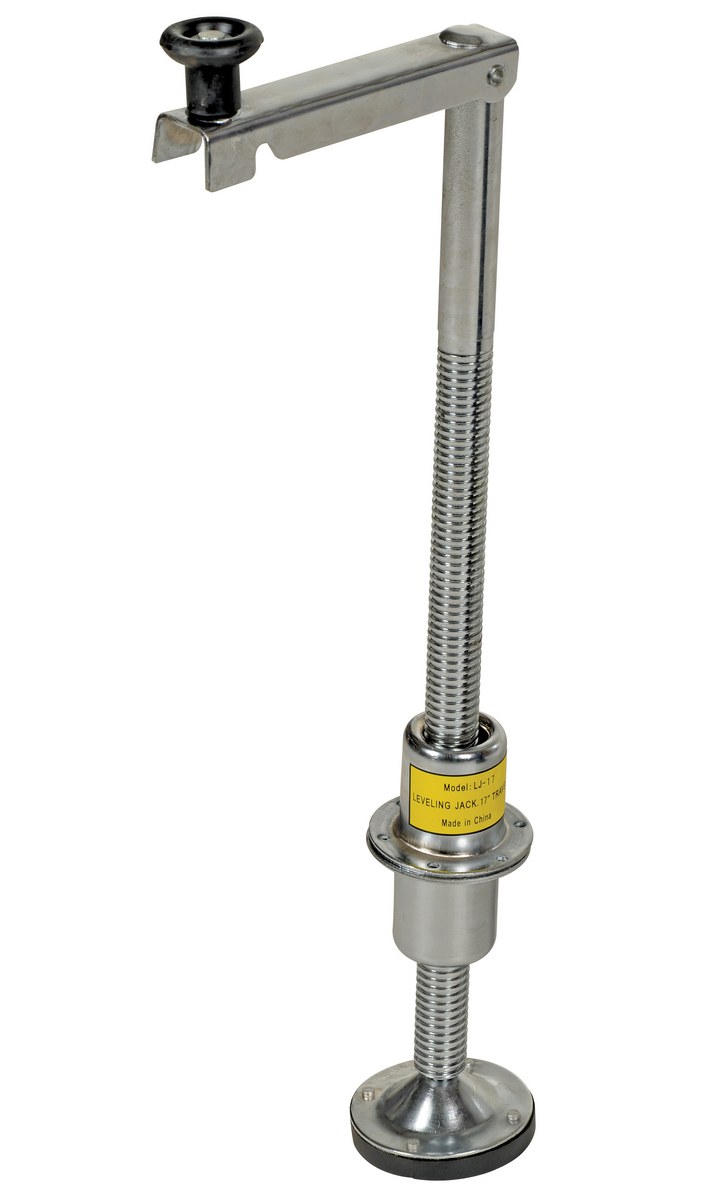

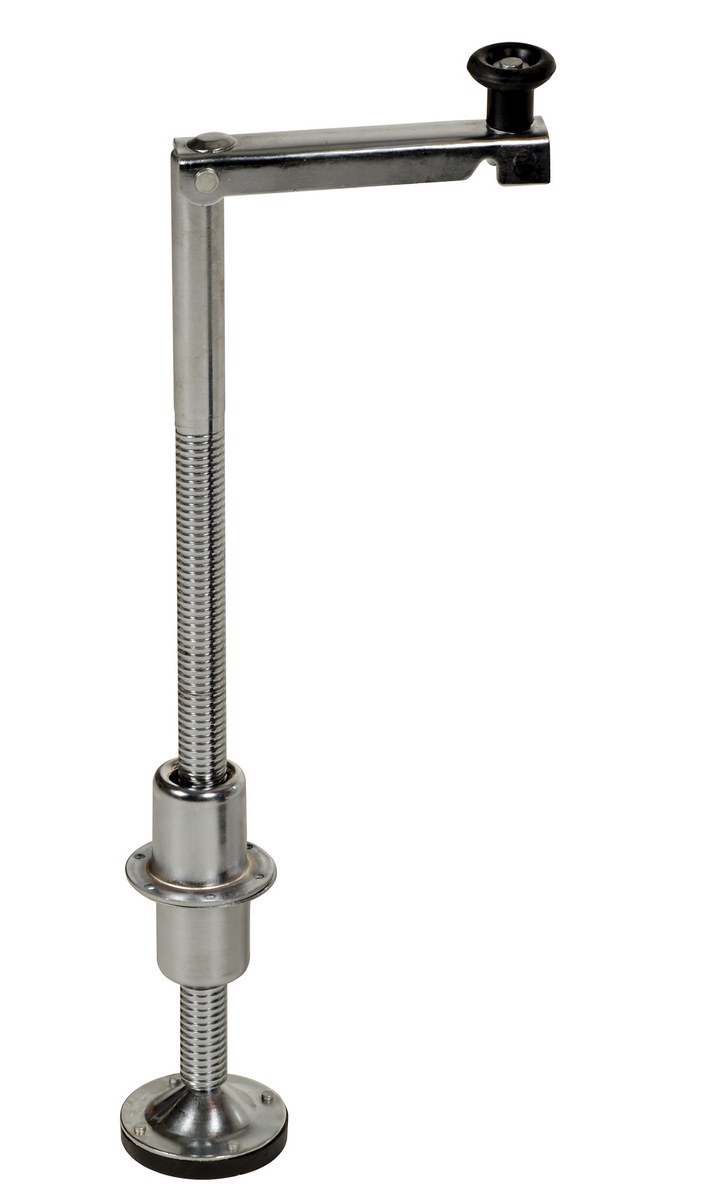

| HLJ-17 | 26 | 4-1/2" | 21-1/2" | 17" | 15 |
TODAY: $0.00 |
X
|

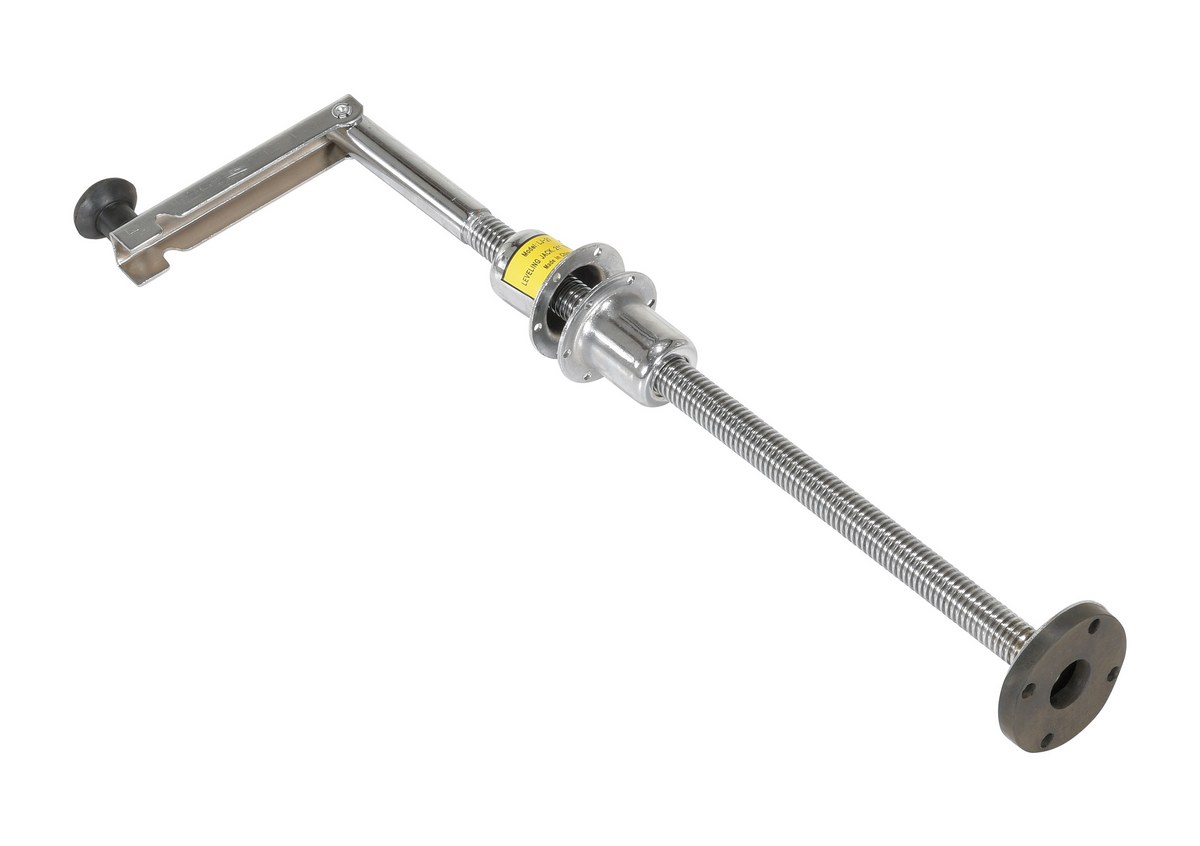

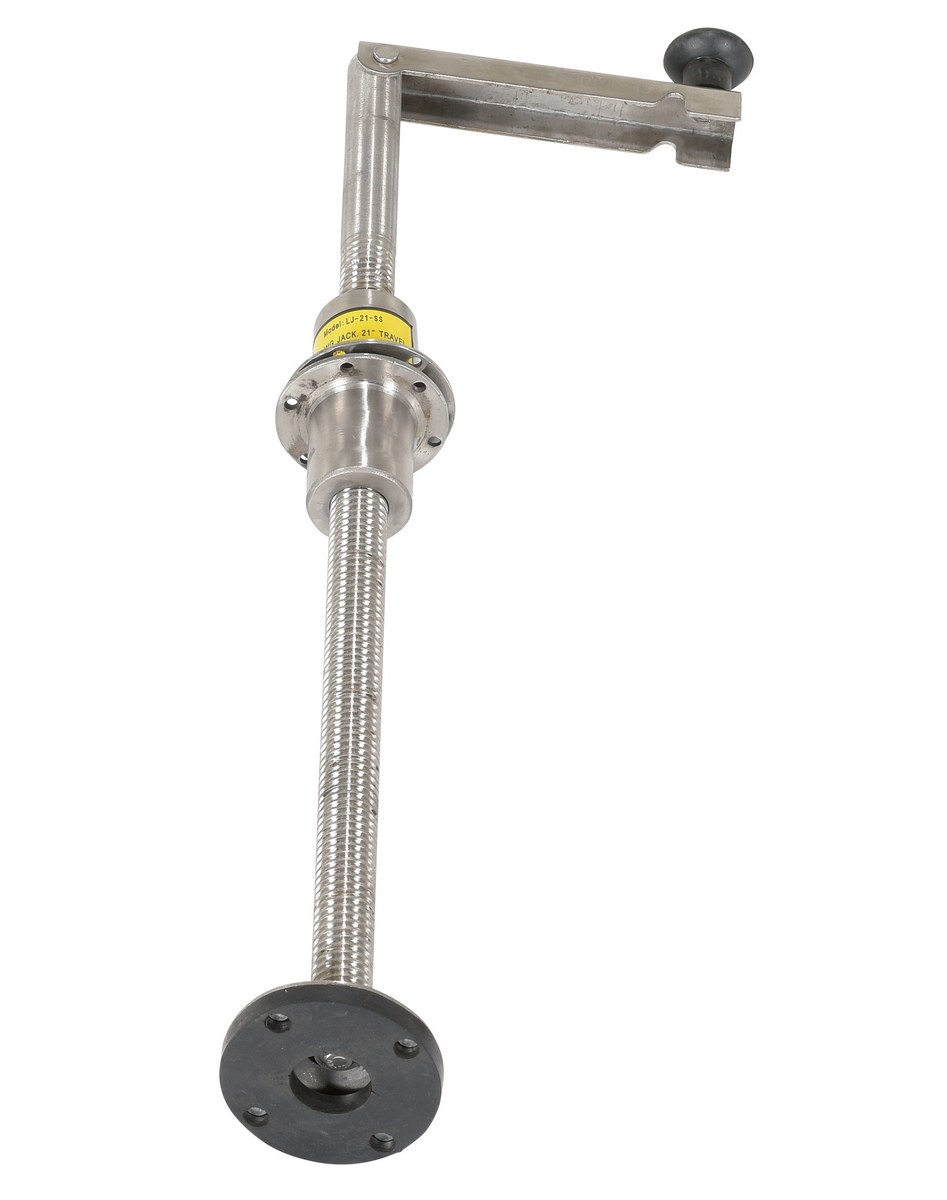

| HLJ-21 | 30 | 4-1/2" | 25-1/2" | 21" | 16 |
TODAY: $0.00 |
X
|
| HLJ-9 | 18 | 4-1/2" | 13-1/2" | 9" | 13 |
TODAY: $0.00 |
X
|
LEVELING JACKS
- Overall Height: 26
- Min. Height Below Frame of Equip.: 4-1/2"
- Max Height Below Frame of Equip.: 21-1/2"
- Screw Travel Length: 17"
- Wt. (lbs.): 15
TODAY: $0.00
- Overall Height: 30
- Min. Height Below Frame of Equip.: 4-1/2"
- Max Height Below Frame of Equip.: 25-1/2"
- Screw Travel Length: 21"
- Wt. (lbs.): 16
TODAY: $0.00
- Overall Height: 18
- Min. Height Below Frame of Equip.: 4-1/2"
- Max Height Below Frame of Equip.: 13-1/2"
- Screw Travel Length: 9"
- Wt. (lbs.): 13
TODAY: $0.00
Nationwide Industrial Supply is a preferred global distributor for Vestil.
