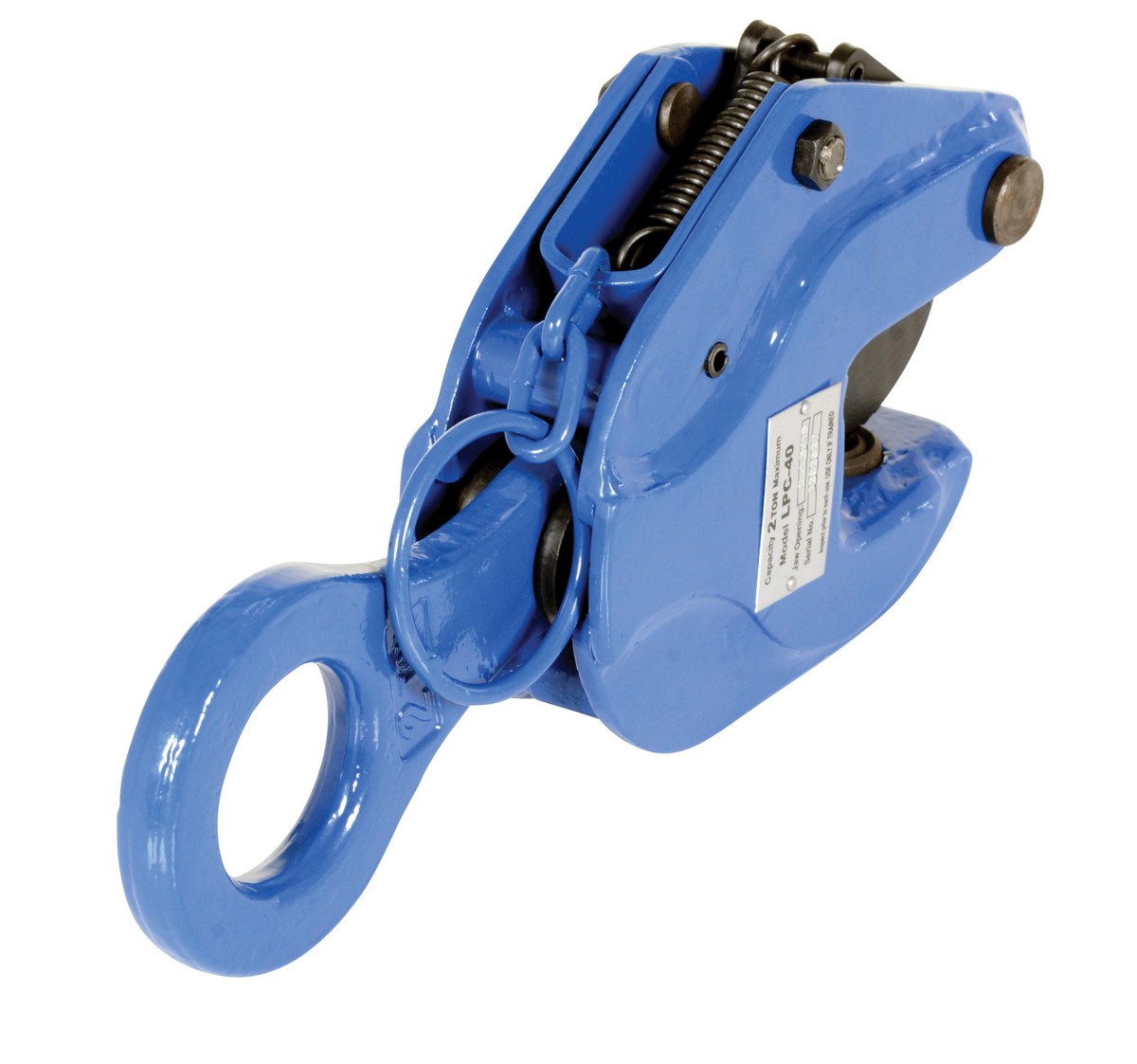

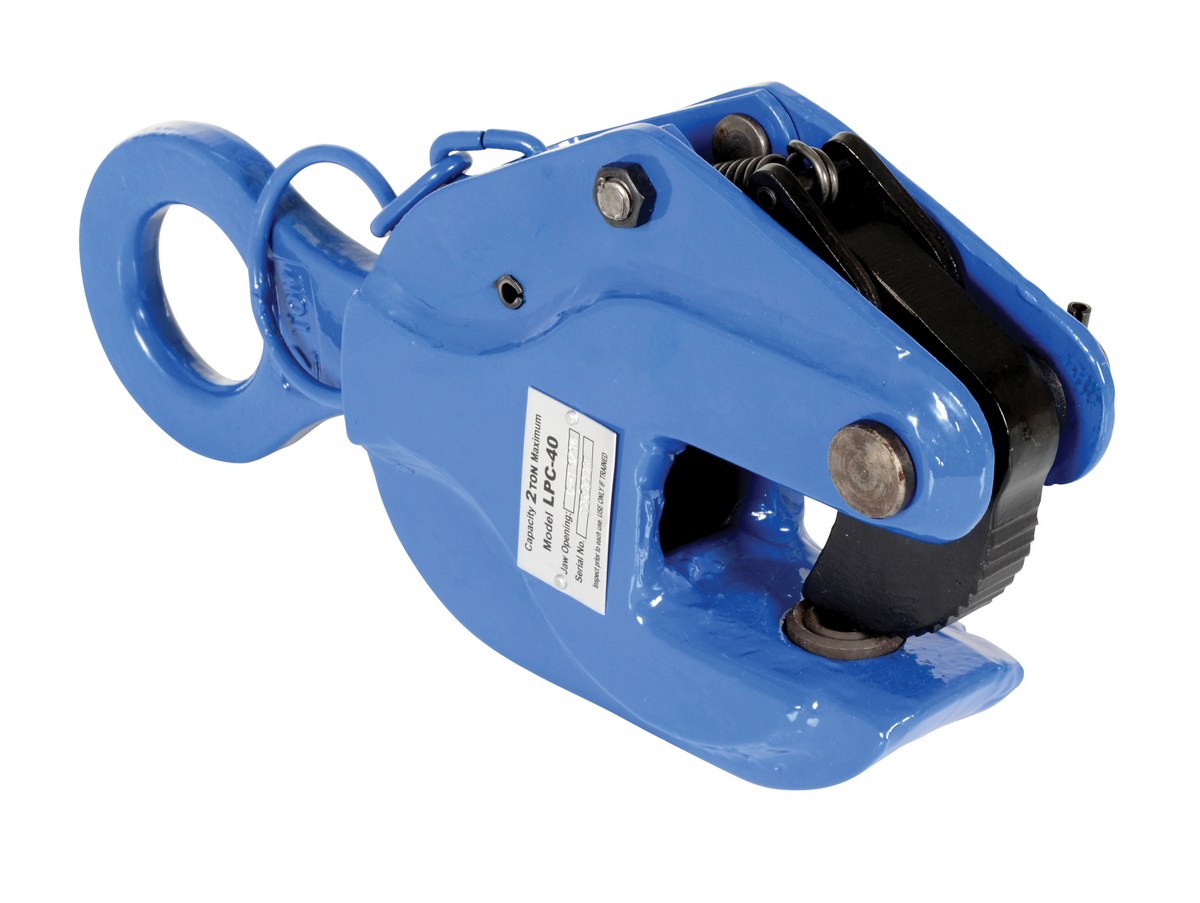

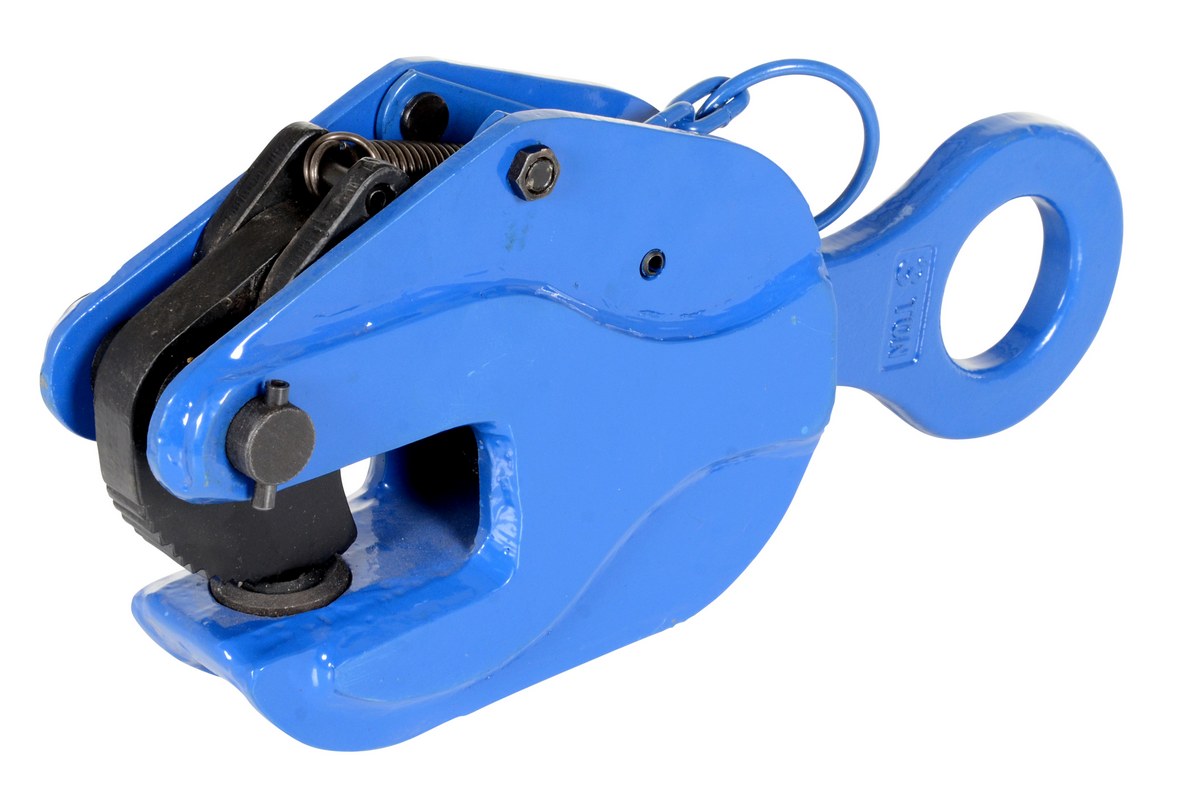

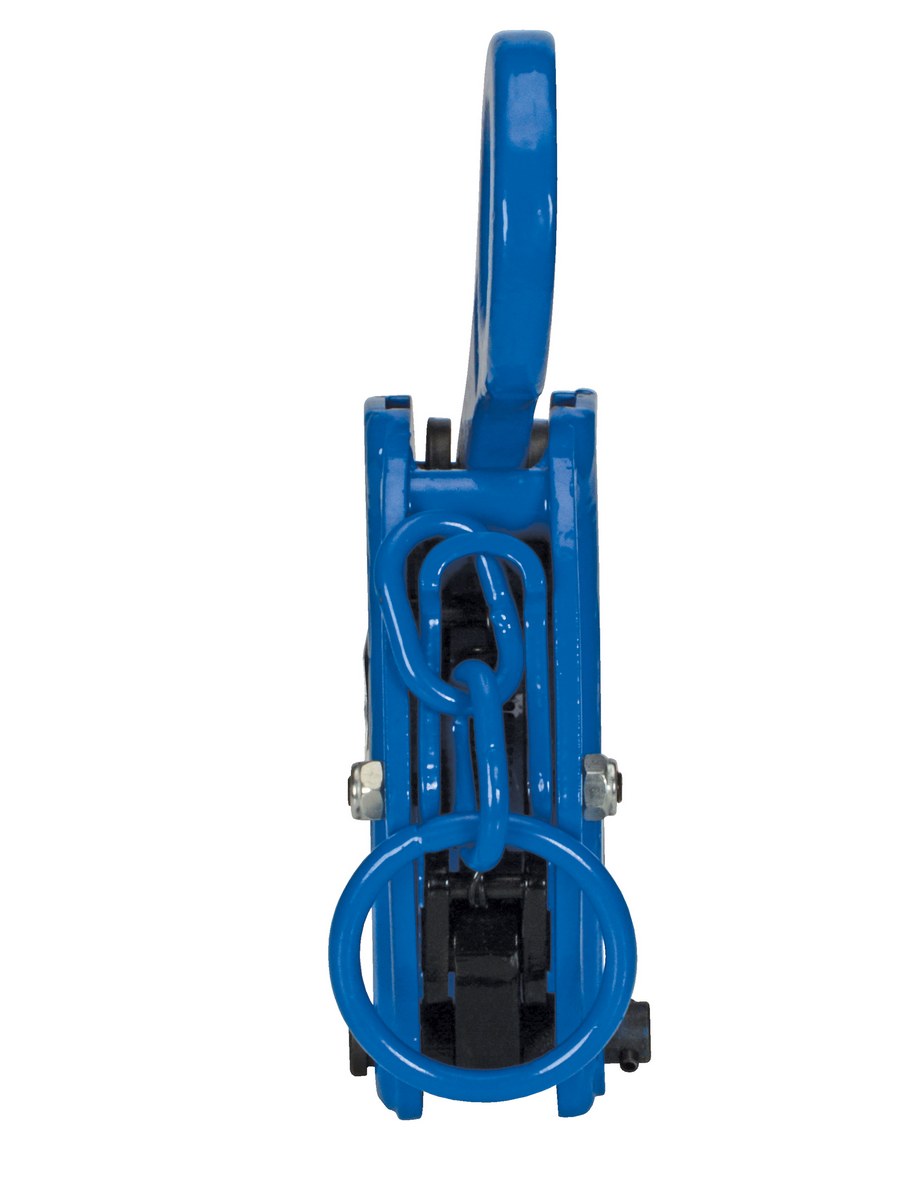

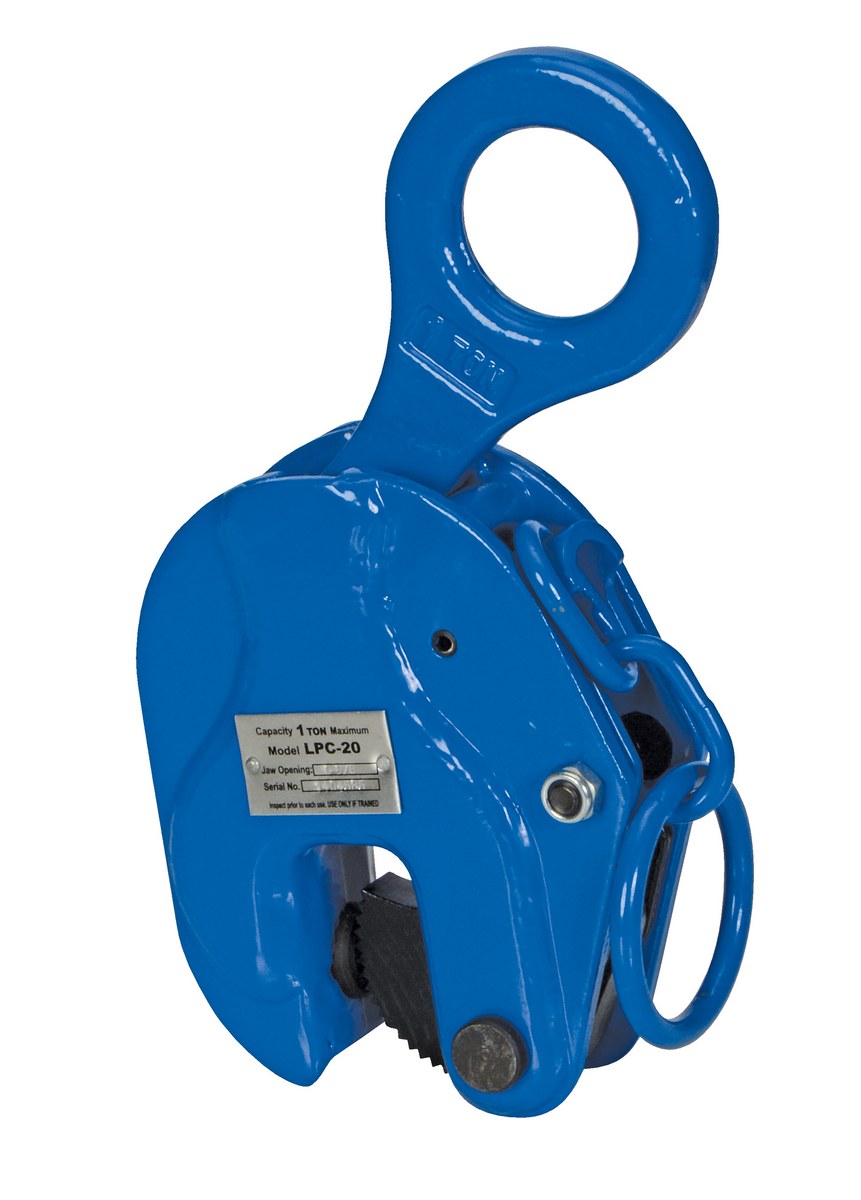

Positive Locking Plate Clamps
The vertical positive locking plate clamp grips a sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and gear. Lift only one (1) clean, oil free plate at a time. Safety factor is 2 to 1. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
- Heavy-duty steel construction offers long lasting reliable use
- Unique design lifts plate material in a vertical position
- Locking mechanism offers maximum safety
- Meets ASME B30.20 specifications
POSITIVE LOCKING PLATE CLAMPS
| Product No. | Material | Color Family | Capacity (lbs) | Assembled Depth (in) | Assembled Width (in) | Assembled Height (in) | price | Quantity |
|---|---|---|---|---|---|---|---|---|

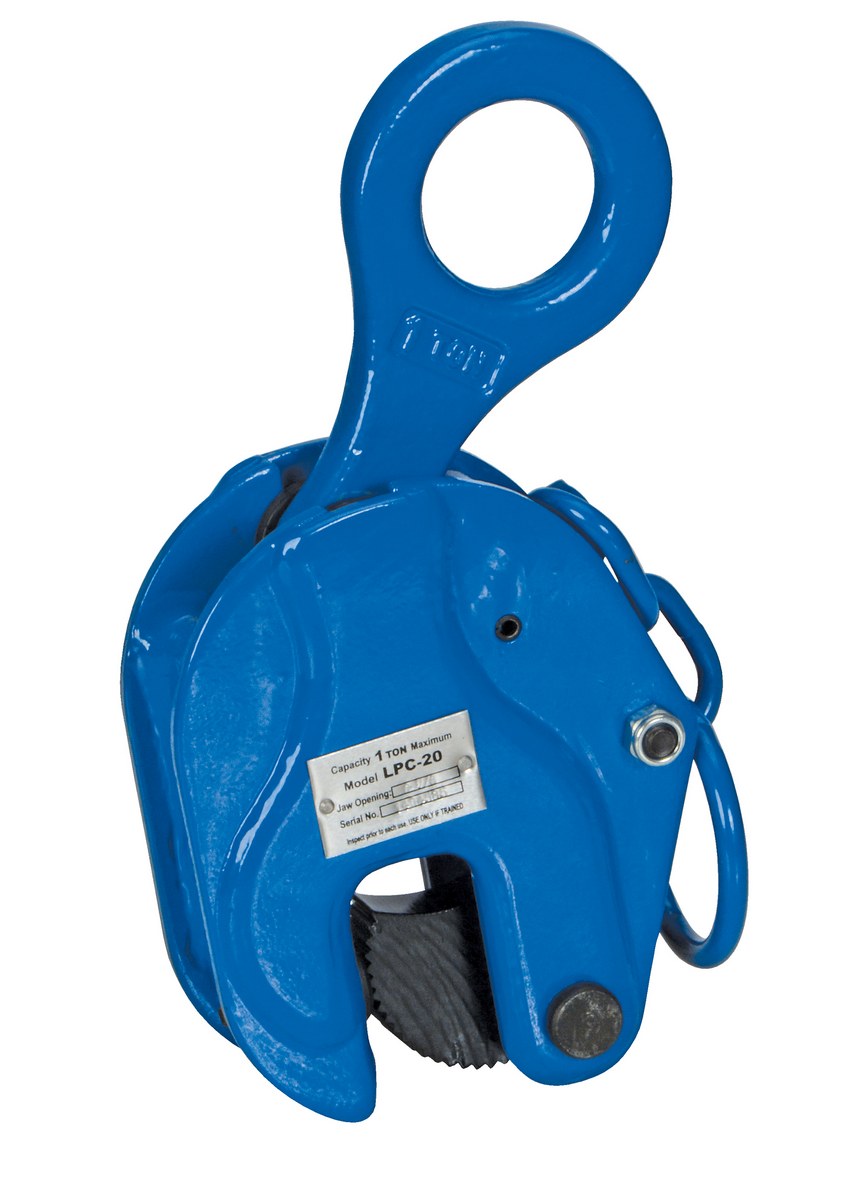

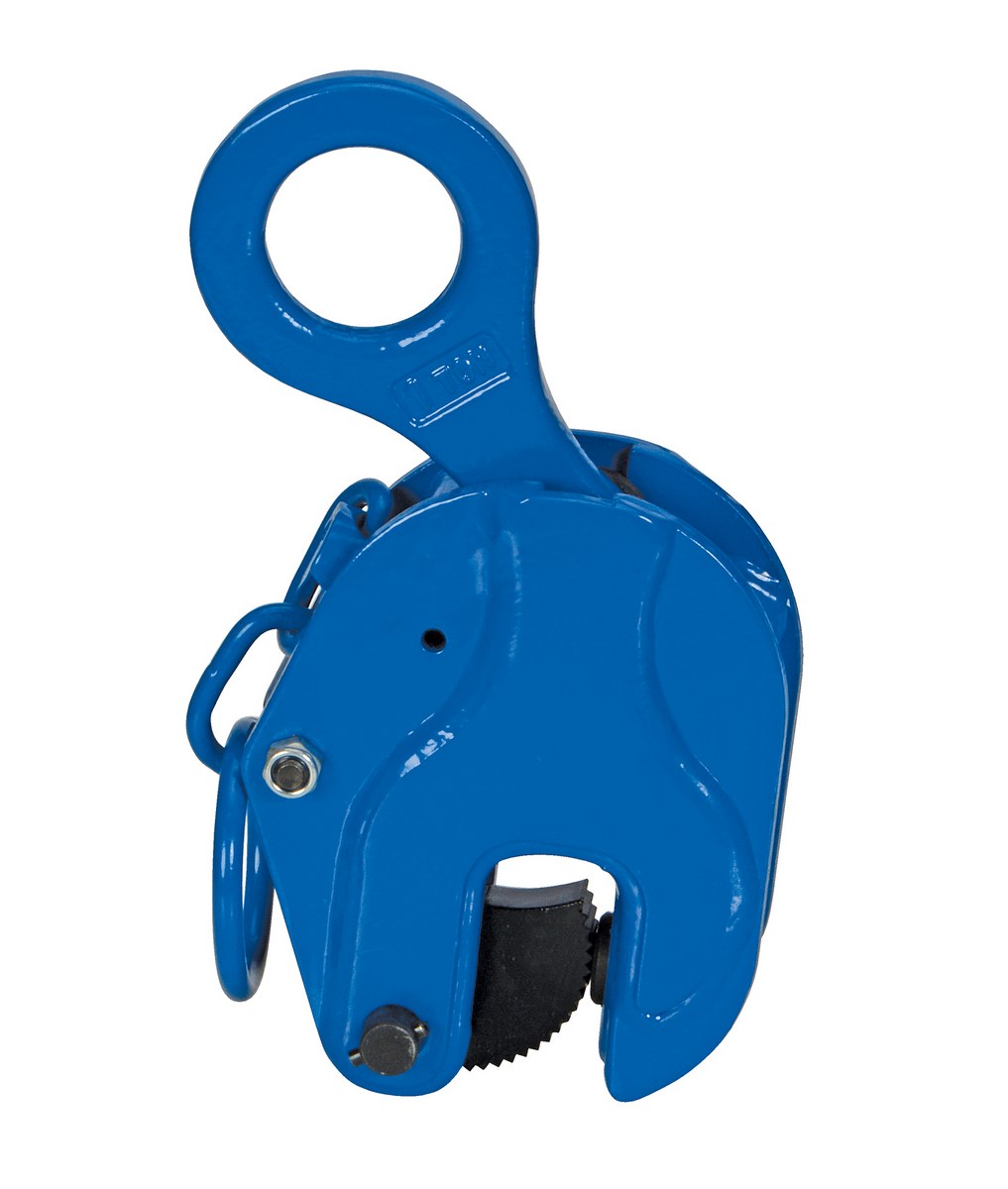

| LPC-20 | Steel | Blue | 2000.0 | 10.0 | 3.0 | 5.0 |
TODAY: $246.07 |
Add to cart |

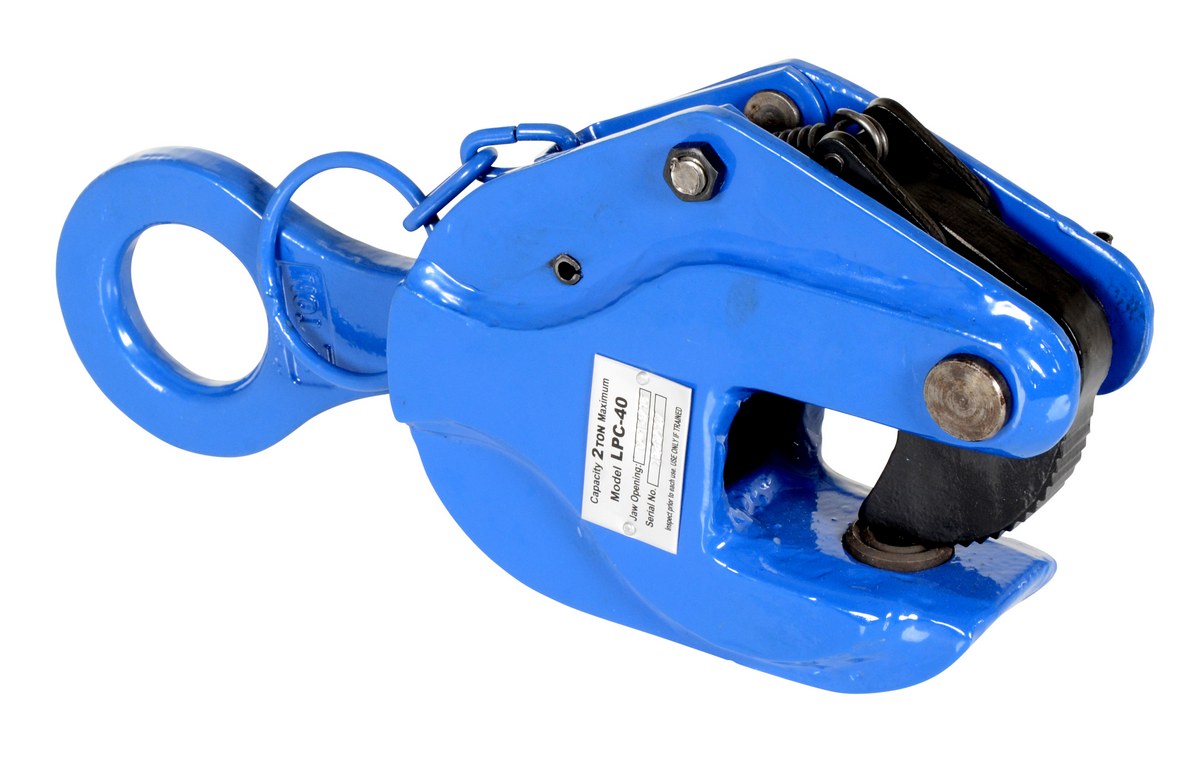

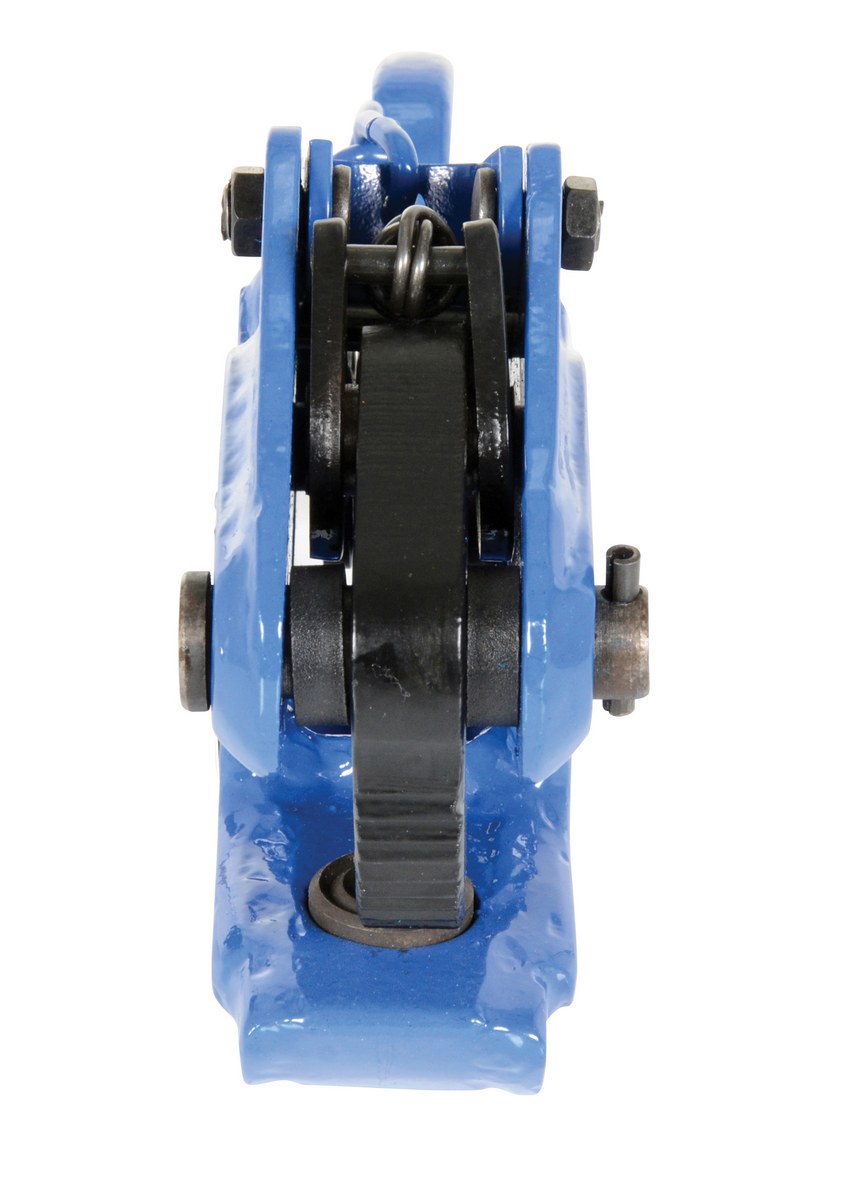

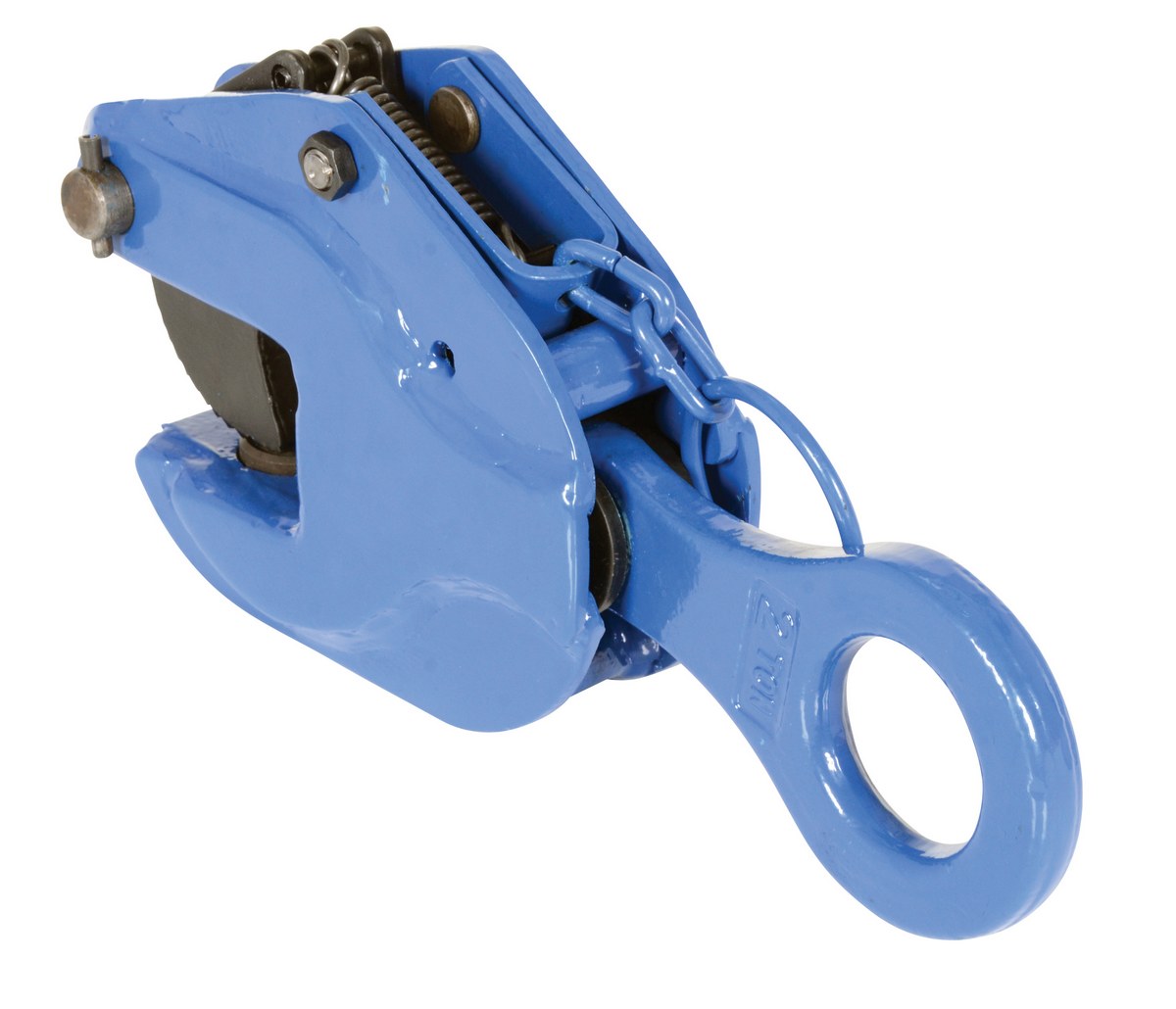

| LPC-40 | Steel | Blue | 4000.0 | 12.0 | 3.5 | 7.5 |
TODAY: $283.40 |
Add to cart |

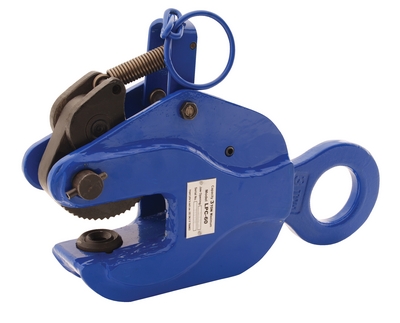

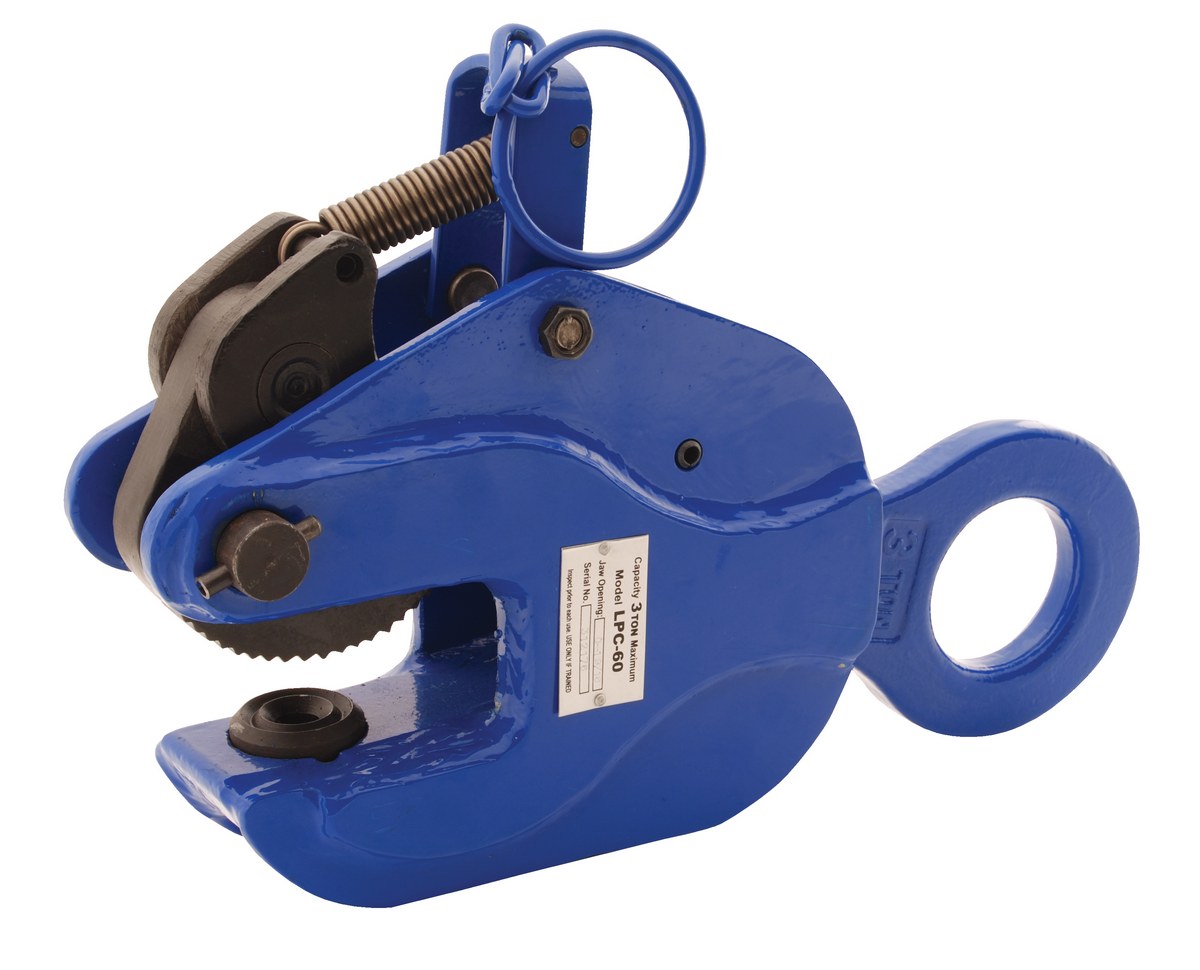

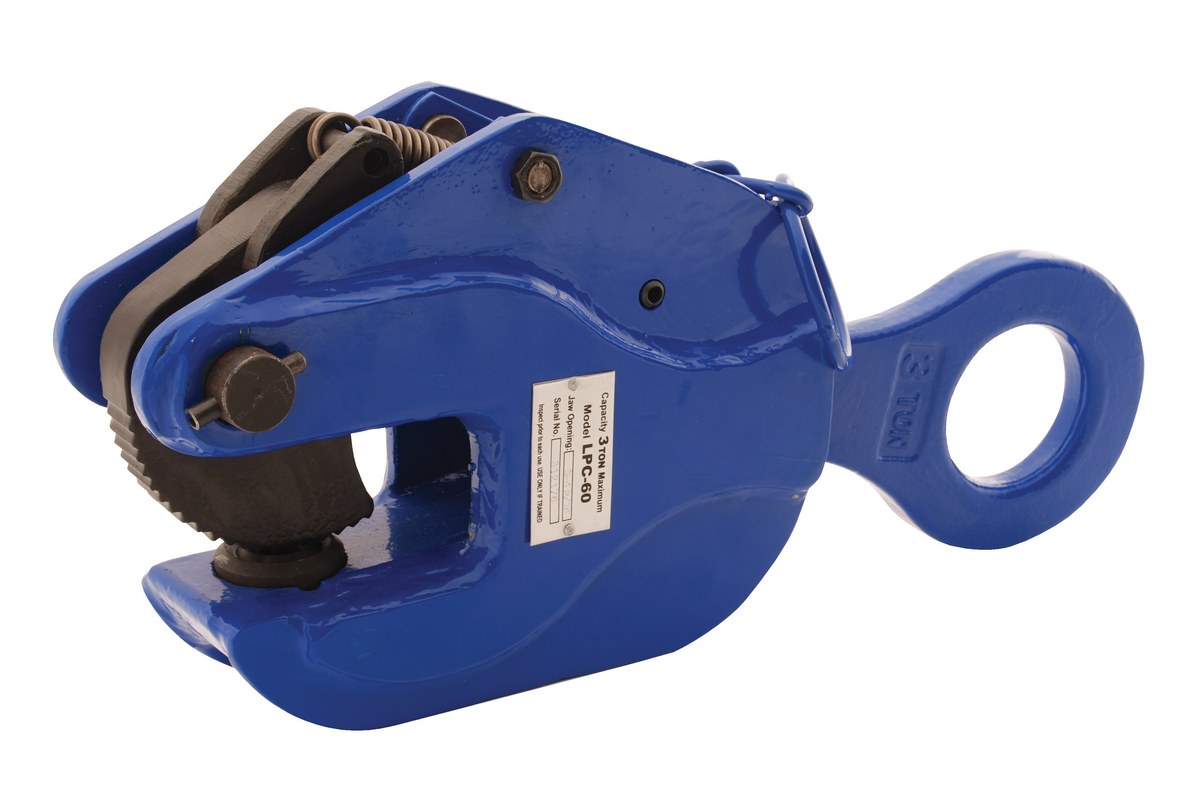

| LPC-60 | Steel | Blue | 6000.0 | 15.0 | 4.0 | 8.0 |
TODAY: $376.52 |
Add to cart |
POSITIVE LOCKING PLATE CLAMPS
- Material: Steel
- Color Family: Blue
- Capacity (lbs): 2000.0
- Assembled Depth (in): 10.0
- Assembled Width (in): 3.0
TODAY: $246.07
- Material: Steel
- Color Family: Blue
- Capacity (lbs): 4000.0
- Assembled Depth (in): 12.0
- Assembled Width (in): 3.5
TODAY: $283.40
- Material: Steel
- Color Family: Blue
- Capacity (lbs): 6000.0
- Assembled Depth (in): 15.0
- Assembled Width (in): 4.0
TODAY: $376.52
