Dixon Valve Safety Shut-Off Valves

Safety Shut-Off Valves, 1 in (NPT) Inlet, Male, Brass
  • Availability: Typically ships in 3-5 days
Availability: Typically ships in 3-5 days
Need a Quote or
Have a question?

  • High flow valve to provide optimum performance
  • Controls excess air flow (SCFM) in only one direction
  • Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
  • Solid brass body and valve
  • Stainless steel spring and roll pin
ORS Nasco - ORS
Dixon Valve Safety Shut-Off Valves
Product No. Body Material Connection Type Designated Fluid Flow [Max] Dia. [Nom] Flow [Min] price Quantity
238-SCVS8 Brass Male Air 320 CFM 1 7/8 in 280 CFM List Price: $0.00
TODAY: $0.00
X

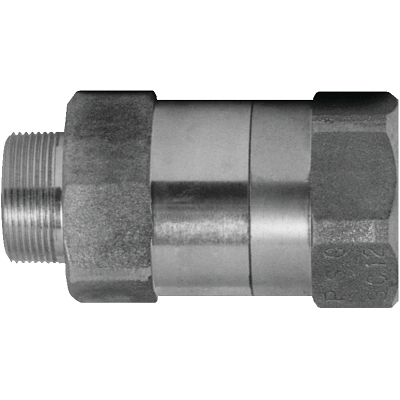

238-SCVS6 Brass Air 180.00 CFM 160.00 CFM List Price: $0.00
TODAY: $0.00
X

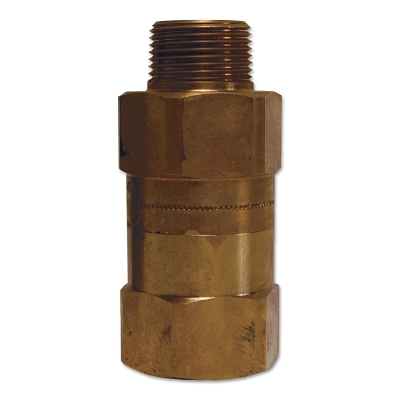

238-SCVR6 Brass Male Air 128 CFM 1 1/2 in 112 CFM List Price: $0.00
TODAY: $0.00
X
Dixon Valve Safety Shut-Off Valves
  • Body Material: Brass
  • Connection Type: Male
  • Designated Fluid: Air
  • Flow [Max]: 320 CFM
  • Dia. [Nom]: 1 7/8 in
TODAY: $0.00

  • Body Material: Brass
  • Connection Type:
  • Designated Fluid: Air
  • Flow [Max]: 180.00 CFM
  • Dia. [Nom]:
TODAY: $0.00

  • Body Material: Brass
  • Connection Type: Male
  • Designated Fluid: Air
  • Flow [Max]: 128 CFM
  • Dia. [Nom]: 1 1/2 in
TODAY: $0.00
