PP76574

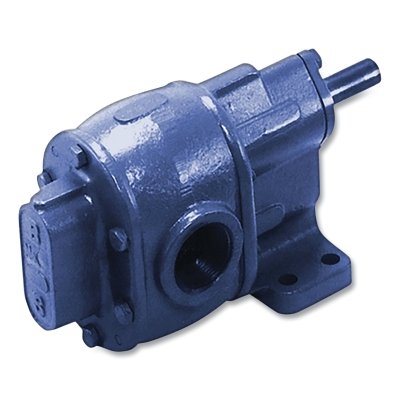

BSM Pump B-Series Flange Mount Gear Pumps

B-Series Flange Mount Gear Pumps, 3/8 in, 4.6 gpm, 200 PSI, Relief Valve, CW/CCW BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications These pumps are available pedestal or flange mounted, with integral relief valve Constructed of cast
  • Availability: Typically ships in 3-5 days
  • SKU: 117-713-901-7
Availability: Typically ships in 3-5 days
List Price: $0.00
Prices and availability subject to Change
Need a Quote or
Have a question?    Click Here
Rotary Pumps
Specifications Description

General

Product No.
117-713-901-7
0 PSI Flow/Power
4.6 gal/min/0.11 hp
100 PSI Flow / Power
4.4 gal/min / 0.54 hp
200 PSI Flow/Power
4.2 gal/min/0.98 hp
50 PSI Flow/Power
4.5 gal/min/0.33 hp
Displacement
0.0052 Gals/Rev
Flow [Max]
4.6 gal/min
Gear Material
Steel
Gear Type
Spur
Housing Material
Iron
Mounting
Flange
Port Size
3/8 in
Pressure [Max]
200 PSI
Rotation
CW or CCW
Shaft Diam
0.56 in
Shaft Height
2.38 in
Slip gpm/psi
0.0022
Speed [Max]
900 rpm
Type
With Relief Valve
Wt.
8.3 lb

Product Description

B-Series Flange Mount Gear Pumps, 3/8 in, 4.6 gpm, 200 PSI, Relief Valve, CW/CCW

  • BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications
  • These pumps are available pedestal or flange mounted, with integral relief valve
  • Constructed of cast iron, ductile iron, or bronze
  • Seal options include compression packing, lip seal, and mechanical seal
  • Standard pumps will operate at 200 psi and 250 deg. F
