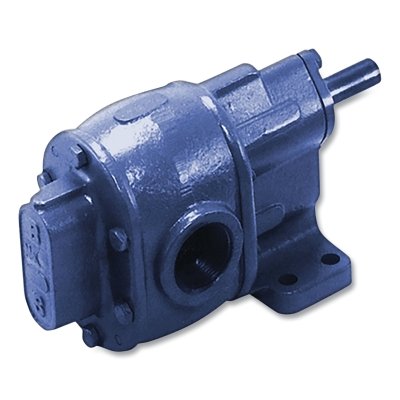

BSM Pump B-Series Flange Mount Gear Pumps
B-Series Flange Mount Gear Pumps, 3/8 in, 4.6 gpm, 200 PSI, Relief Valve, CW/CCW
- BSM 'B' and 'S' series pumps are a good choice for a variety of recirculating, mixing, transfer, hydraulic, and metering applications
- These pumps are available pedestal or flange mounted, with integral relief valve
- Constructed of cast iron, ductile iron, or bronze
- Seal options include compression packing, lip seal, and mechanical seal
- Standard pumps will operate at 200 psi and 250 deg. F
BSM Pump B-Series Flange Mount Gear Pumps
| Product No. | 0 PSI Flow/Power | 100 PSI Flow / Power | 200 PSI Flow/Power | 50 PSI Flow/Power | Displacement | Flow [Max] | price | Quantity |
|---|---|---|---|---|---|---|---|---|
| 117-713-901-7 | 4.6 gal/min/0.11 hp | 4.4 gal/min / 0.54 hp | 4.2 gal/min/0.98 hp | 4.5 gal/min/0.33 hp | 0.0052 Gals/Rev | 4.6 gal/min |
TODAY: $0.00 |
X
|
| 117-713-903-7 | 17.1 gal/min/0.17 hp | 16.8 gal/min / 1.50 hp | 16.5 gal/min/3.20 hp | 17.0 gal/min/0.83 hp | 0.0025 Gals/Rev | 17.1 gal/min |
TODAY: $0.00 |
X
|
| 117-713-902-7 | 9.4 gal/min/0.11 hp | 9.1 gal/min / 0.85 hp | 8.9 gal/min/1.50 hp | 9.3 gal/min/0.48 hp | 0.0104 Gals/Rev | 9.4 gal/min |
TODAY: $0.00 |
X
|
BSM Pump B-Series Flange Mount Gear Pumps
- 0 PSI Flow/Power: 4.6 gal/min/0.11 hp
- 100 PSI Flow / Power: 4.4 gal/min / 0.54 hp
- 200 PSI Flow/Power: 4.2 gal/min/0.98 hp
- 50 PSI Flow/Power: 4.5 gal/min/0.33 hp
- Displacement: 0.0052 Gals/Rev
TODAY: $0.00
- 0 PSI Flow/Power: 17.1 gal/min/0.17 hp
- 100 PSI Flow / Power: 16.8 gal/min / 1.50 hp
- 200 PSI Flow/Power: 16.5 gal/min/3.20 hp
- 50 PSI Flow/Power: 17.0 gal/min/0.83 hp
- Displacement: 0.0025 Gals/Rev
TODAY: $0.00
- 0 PSI Flow/Power: 9.4 gal/min/0.11 hp
- 100 PSI Flow / Power: 9.1 gal/min / 0.85 hp
- 200 PSI Flow/Power: 8.9 gal/min/1.50 hp
- 50 PSI Flow/Power: 9.3 gal/min/0.48 hp
- Displacement: 0.0104 Gals/Rev
TODAY: $0.00
