PP58819

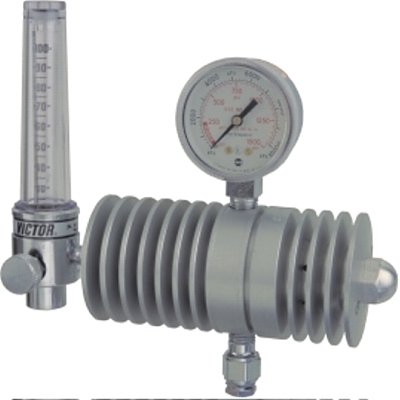

Victor High Flow CO2 Flowmeters/Flowgauges

High Flow CO2 Flowmeters/Flowgauges, CO2, 100 psig, CGA 320, 1,500 psig inlet
  • Availability: Typically ships in 3-5 days
  • SKU: 341-0781-0355
Availability: Typically ships in 3-5 days
List Price: $0.00
Prices and availability subject to Change
Need a Quote or
Have a question?    Click Here
Regulators & Flowmeters
Specifications Description

General

Product No.
341-0781-0355
Body Material
Aluminum
Depth [Nom]
2 1/2 in
Diaphragm Material
Fabric-Reinforced Neoprene
Filter Material
Bronze; Sintered
Flow Cap. [Max]
10-150 PSI
Gas Type
Carbon Dioxide
Gauge Size
2 in
Height [Nom]
7 1/4 in
Inlet Connection
CGA 320
Inlet Pressure [Max]
1
Outlet Connection
5/8 in - 18 RH(F)
Outlet Pressure [Max]
100 psig
Outlet Pressure [Min]
10 psig
Width [Nom]
8 3/8 in
Wt.
2 15/16 lb

Product Description

  • Designed for CO2 application (non-siphoned tube cylinders) High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
  • Designed for core wire applications
  • Machined body and housing cap
  • Stem type seat mechanism
  • Self reseating relief valve (not designed to protect downstream apparatus)
