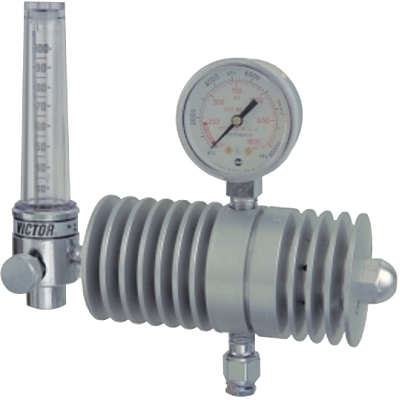

Victor High Flow CO2 Flowmeters/Flowgauges

Designed for CO2 application (non-siphoned tube cylinders) High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source|Designed for core wire applications|Machined body and housing cap|Stem type seat mechanism|Self reseating relief valve (not designed to protect downstream apparatus)

Availability: Typically ships in 3-5 days
SKU: 341-0781-0354

Availability: Typically ships in 3-5 days

List Price: $0.00

Quantity

Prices and availability subject to Change

Specifications Description

General

Product No.

341-0781-0354

Body Material

Aluminum

Depth [Nom]

2 1/2 in

Diaphragm Material

Fabric-Reinforced Neoprene

Filter Material

Bronze; Sintered

Flow Cap. [Max]

100 SCFH

Flow Cap. [Min]

0 SCFH

Flow Range

25 - 100 PSIG

Gas Type

Carbon Dioxide

Gauge Size

2 in

Height [Nom]

7 1/4 in

Inlet Connection

CGA 320

Inlet Pressure [Max]

500 psig,Length [Nom]

8.38 in

Outlet Connection

5/8 in - 18 RH(F)

Width [Nom]

8 3/8 in

Wt.

2 15/16 lb

Product Description

None

High Flow CO2 Flowmeters/Flowgauges, CO2, 100 psig, CGA 320, 1,500 psig inlet
