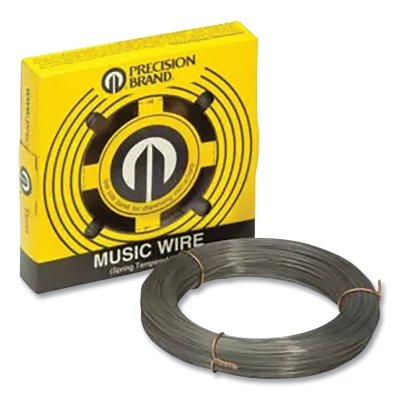

Precision Brand Music Wires
Music Wire, Round, 0.014 in Wire dia, +/-0.0003 in, Approximate 1911 ft per lb, 1 lb Coil
- Spring tempered wire made from high carbon steel alloy
- High tensile strength and high fatigue resistance
- Applications include springs, wire forms, control linkages, armature binding, ceramic cutting, and a variety of industrial uses
- Available in 1/4-pound and 1-pound coils
Precision Brand Music Wires
Precision Brand Music Wires
- Dia. [Nom]: 0.014 in
- Length @ Wt.: Approximate 1911 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 408 ksi
- Tensile Strength [Min]: 369 ksi
TODAY: $0.00
- Dia. [Nom]: 0.020 in
- Length @ Wt.: Approximate 937 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 387 ksi
- Tensile Strength [Min]: 350 ksi
TODAY: $0.00
- Dia. [Nom]: 0.075 in
- Length @ Wt.: Approximate 67 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 316 ksi
- Tensile Strength [Min]: 285 ksi
TODAY: $0.00
- Dia. [Nom]: 0.031 in
- Length @ Wt.: Approximate 390 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 363 ksi
- Tensile Strength [Min]: 328 ksi
TODAY: $0.00
- Dia. [Nom]: 0.125 in
- Length @ Wt.: Approximate 24 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 288 ksi
- Tensile Strength [Min]: 261 ksi
TODAY: $0.00
- Dia. [Nom]: 0.026 in
- Length @ Wt.: Approximate 555 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 373 ksi
- Tensile Strength [Min]: 337 ksi
TODAY: $0.00
- Dia. [Nom]: 0.033 in
- Length @ Wt.: Approximate 344 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 360 ksi
- Tensile Strength [Min]: 325 ksi
TODAY: $0.00
- Dia. [Nom]: 0.035 in
- Length @ Wt.: Approximate 306 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 357 ksi
- Tensile Strength [Min]: 322 ksi
TODAY: $0.00
- Dia. [Nom]: 0.018 in
- Length @ Wt.: Approximate 1156 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 393 ksi
- Tensile Strength [Min]: 356 ksi
TODAY: $0.00
- Dia. [Nom]: 0.010 in
- Length @ Wt.: Approximate 3746 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 428 ksi
- Tensile Strength [Min]: 387 ksi
TODAY: $0.00
- Dia. [Nom]: 0.029 in
- Length @ Wt.: Approximate 446 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 367 ksi
- Tensile Strength [Min]: 331 ksi
TODAY: $0.00
- Dia. [Nom]: 0.031 in
- Length @ Wt.: Approximate 390 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 363 ksi
- Tensile Strength [Min]: 328 ksi
TODAY: $0.00
- Dia. [Nom]: 0.033 in
- Length @ Wt.: Approximate 344 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 360 ksi
- Tensile Strength [Min]: 325 ksi
TODAY: $0.00
- Dia. [Nom]: 0.029 in
- Length @ Wt.: Approximate 446 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 367 ksi
- Tensile Strength [Min]: 331 ksi
TODAY: $0.00
- Dia. [Nom]: 0.037 in
- Length @ Wt.: Approximate 274 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 354 ksi
- Tensile Strength [Min]: 319 ksi
TODAY: $0.00
- Dia. [Nom]: 0.035 in
- Length @ Wt.: Approximate 306 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 357 ksi
- Tensile Strength [Min]: 322 ksi
TODAY: $0.00
- Dia. [Nom]: 0.039 in
- Length @ Wt.: Approximate 247 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 351 ksi
- Tensile Strength [Min]: 316 ksi
TODAY: $0.00
- Dia. [Nom]: 0.063 in
- Length @ Wt.: Approximate 95 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 324 ksi
- Tensile Strength [Min]: 293 ksi
TODAY: $0.00
- Dia. [Nom]: 0.016 in
- Length @ Wt.: Approximate 1464 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 400 ksi
- Tensile Strength [Min]: 362 ksi
TODAY: $0.00
- Dia. [Nom]: 0.085 in
- Length @ Wt.: Approximate 52 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 308 ksi
- Tensile Strength [Min]: 279 ksi
TODAY: $0.00
- Dia. [Nom]: 0.106 in
- Length @ Wt.: Approximate 33 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 298 ksi
- Tensile Strength [Min]: 269 ksi
TODAY: $0.00
- Dia. [Nom]: 0.012 in
- Length @ Wt.: Approximate 2601 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 417 ksi
- Tensile Strength [Min]: 377 ksi
TODAY: $0.00
- Dia. [Nom]: 0.043 in
- Length @ Wt.: Approximate 203 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 344 ksi
- Tensile Strength [Min]: 311 ksi
TODAY: $0.00
- Dia. [Nom]: 0.051 in
- Length @ Wt.: Approximate 144 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 335 ksi
- Tensile Strength [Min]: 303 ksi
TODAY: $0.00
- Dia. [Nom]: 0.059 in
- Length @ Wt.: Approximate 108 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 327 ksi
- Tensile Strength [Min]: 296 ksi
TODAY: $0.00
- Dia. [Nom]: 0.010 in
- Length @ Wt.: Approximate 3746 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 428 ksi
- Tensile Strength [Min]: 387 ksi
TODAY: $0.00
- Dia. [Nom]: 0.022 in
- Length @ Wt.: Approximate 774 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 382 ksi
- Tensile Strength [Min]: 345 ksi
TODAY: $0.00
- Dia. [Nom]: 0.024 in
- Length @ Wt.: Approximate 651 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 377 ksi
- Tensile Strength [Min]: 341 ksi
TODAY: $0.00
- Dia. [Nom]: 0.055 in
- Length @ Wt.: Approximate 124 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 331 ksi
- Tensile Strength [Min]: 300 ksi
TODAY: $0.00
- Dia. [Nom]: 0.024 in
- Length @ Wt.: Approximate 651 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 377 ksi
- Tensile Strength [Min]: 341 ksi
TODAY: $0.00
- Dia. [Nom]: 0.067 in
- Length @ Wt.: Approximate 84 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 321 ksi
- Tensile Strength [Min]: 290 ksi
TODAY: $0.00
- Dia. [Nom]: 0.045 in
- Length @ Wt.: Approximate 185 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 342 ksi
- Tensile Strength [Min]: 309 ksi
TODAY: $0.00
- Dia. [Nom]: 0.016 in
- Length @ Wt.: Approximate 1464 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 400 ksi
- Tensile Strength [Min]: 362 ksi
TODAY: $0.00
- Dia. [Nom]: 0.045 in
- Length @ Wt.: Approximate 185 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 342 ksi
- Tensile Strength [Min]: 309 ksi
TODAY: $0.00
- Dia. [Nom]: 0.022 in
- Length @ Wt.: Approximate 774 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 382 ksi
- Tensile Strength [Min]: 345 ksi
TODAY: $0.00
- Dia. [Nom]: 0.047 in
- Length @ Wt.: Approximate 170 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 340 ksi
- Tensile Strength [Min]: 307 ksi
TODAY: $0.00
- Dia. [Nom]: 0.020 in
- Length @ Wt.: Approximate 937 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 387 ksi
- Tensile Strength [Min]: 350 ksi
TODAY: $0.00
- Dia. [Nom]: 0.041 in
- Length @ Wt.: Approximate 223 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 348 ksi
- Tensile Strength [Min]: 314 ksi
TODAY: $0.00
- Dia. [Nom]: 0.095 in
- Length @ Wt.: Approximate 42 ft per lb
- Material: High Carbon Spring Tempered C1085 Steel
- Tensile Strength [Max]: 303 ksi
- Tensile Strength [Min]: 274 ksi
TODAY: $0.00
