P840

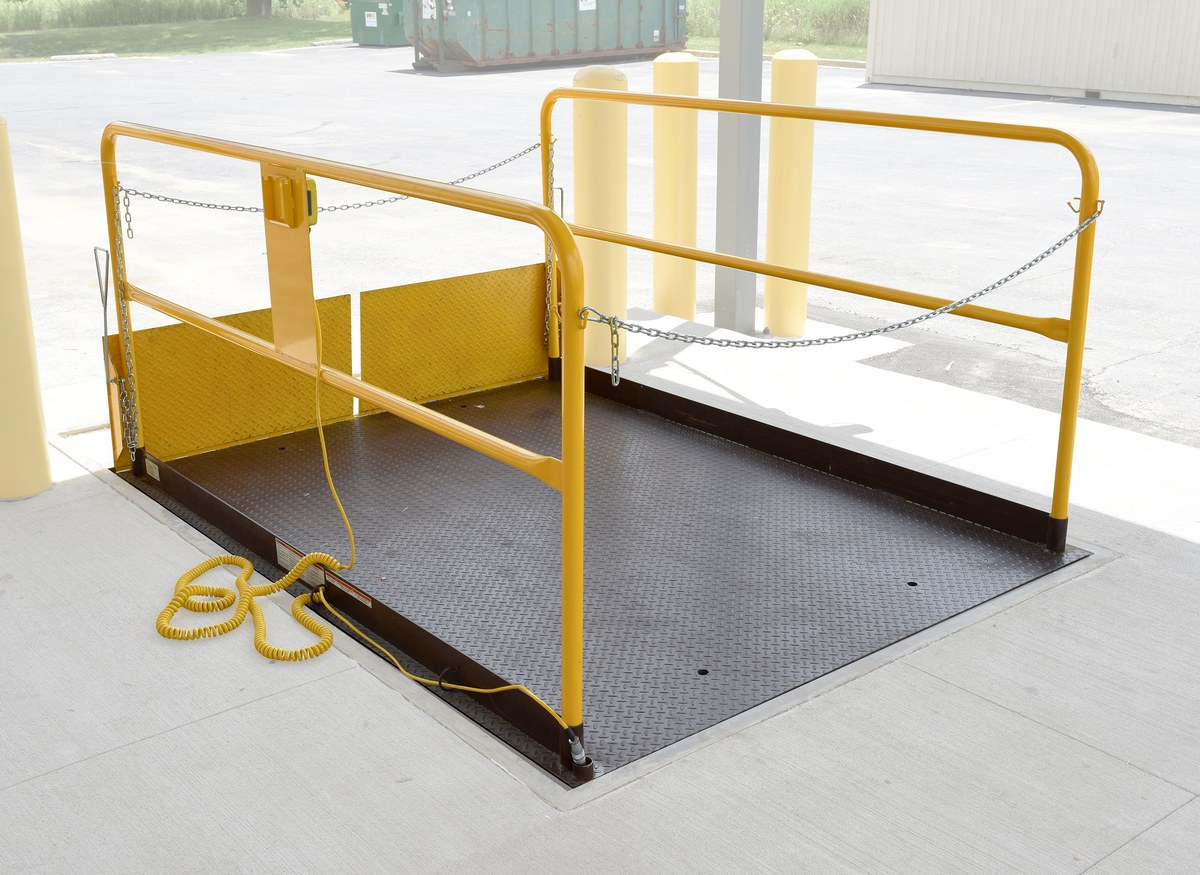

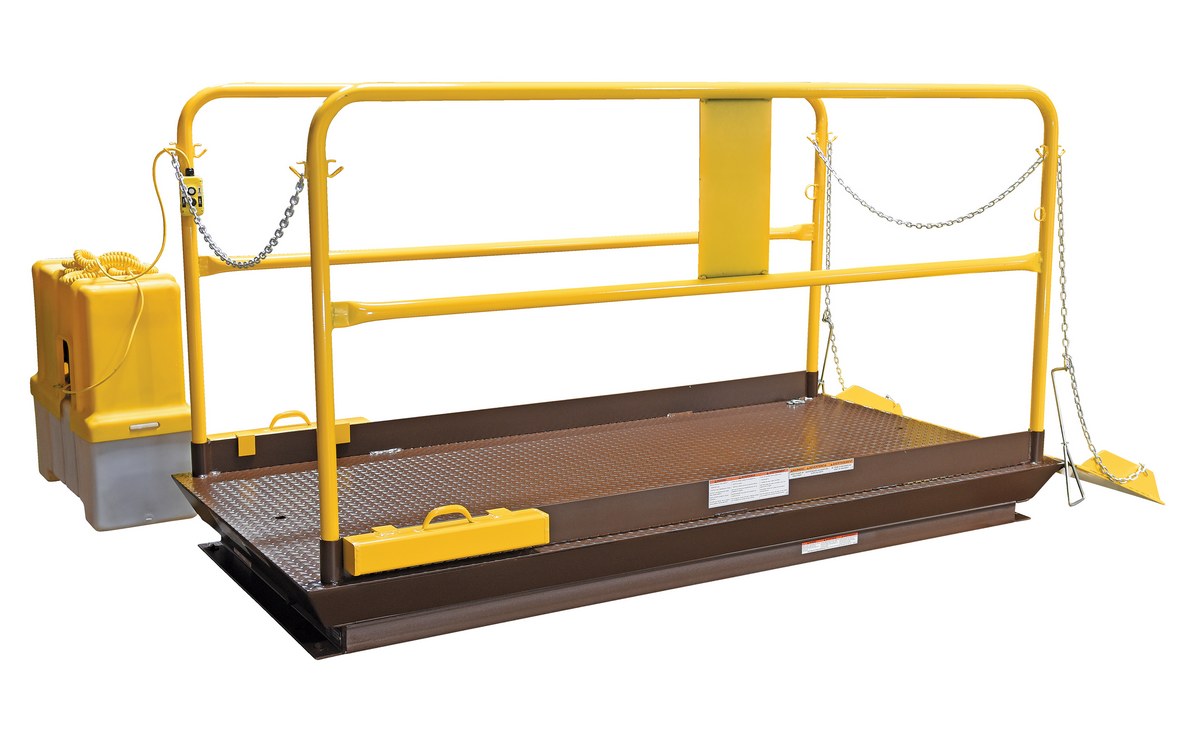

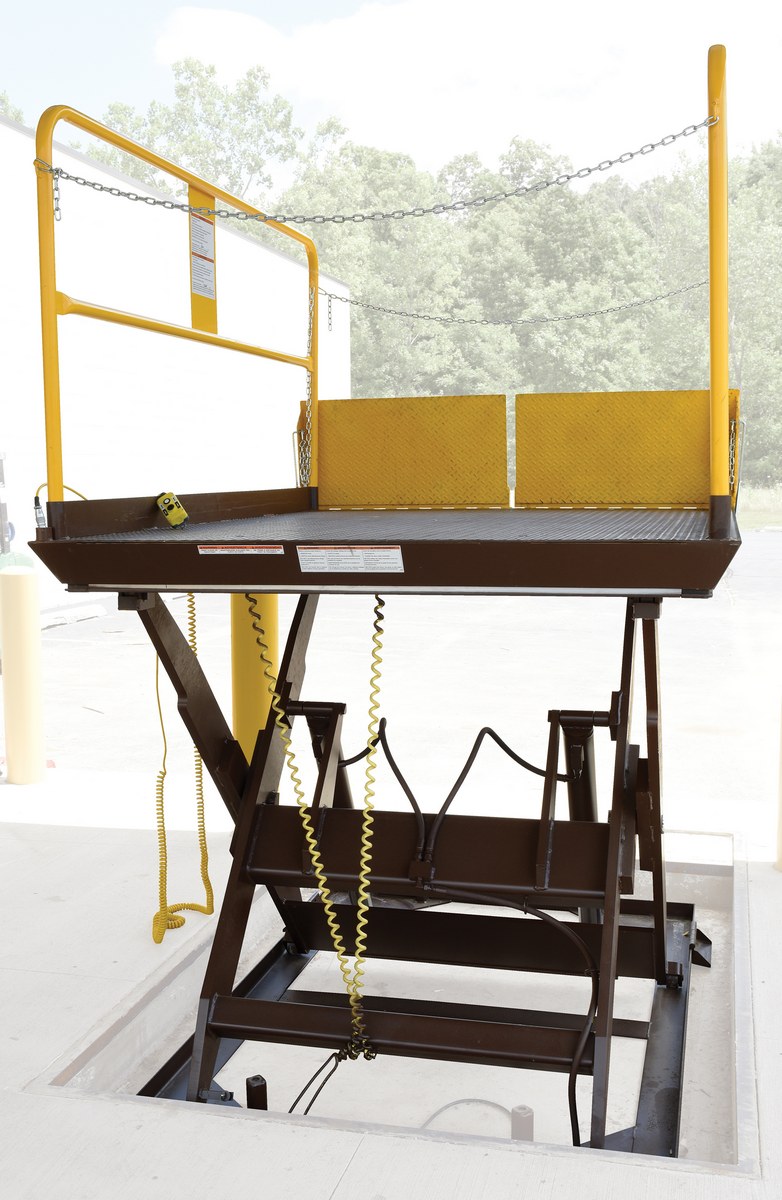

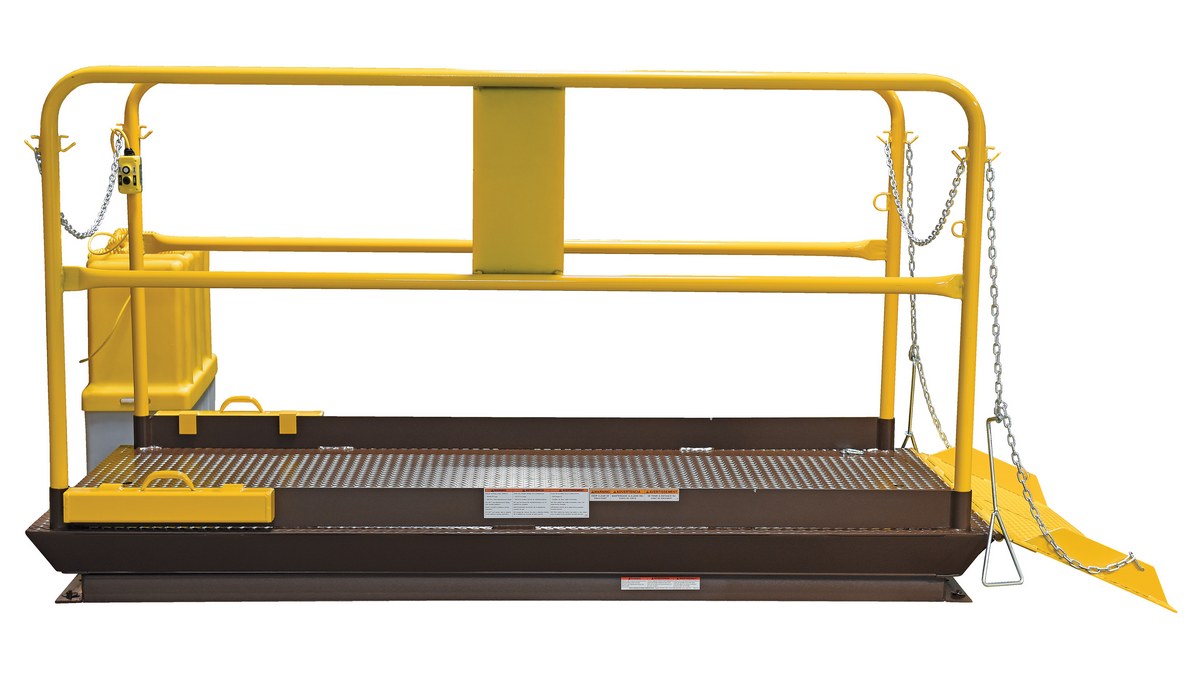

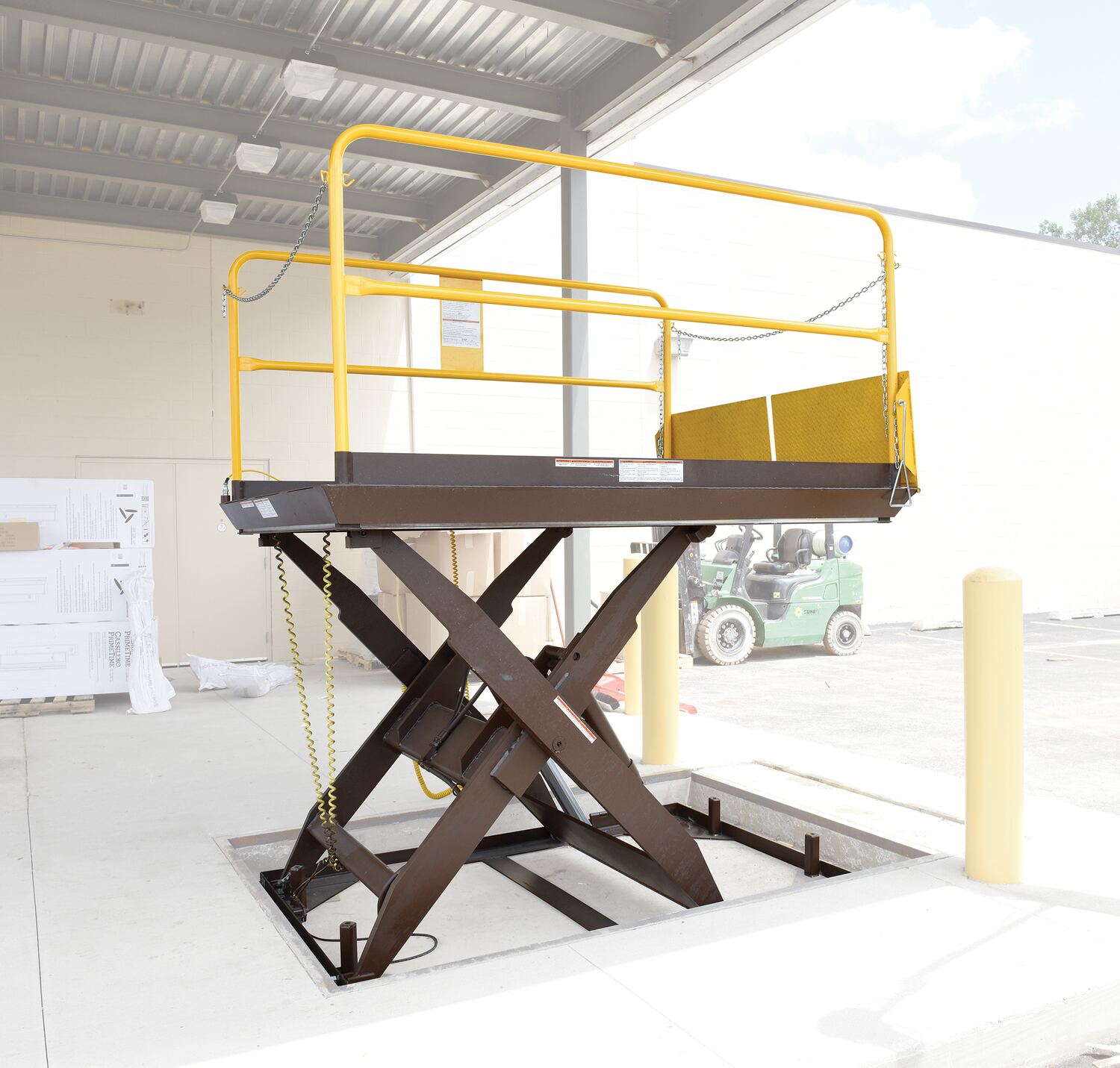

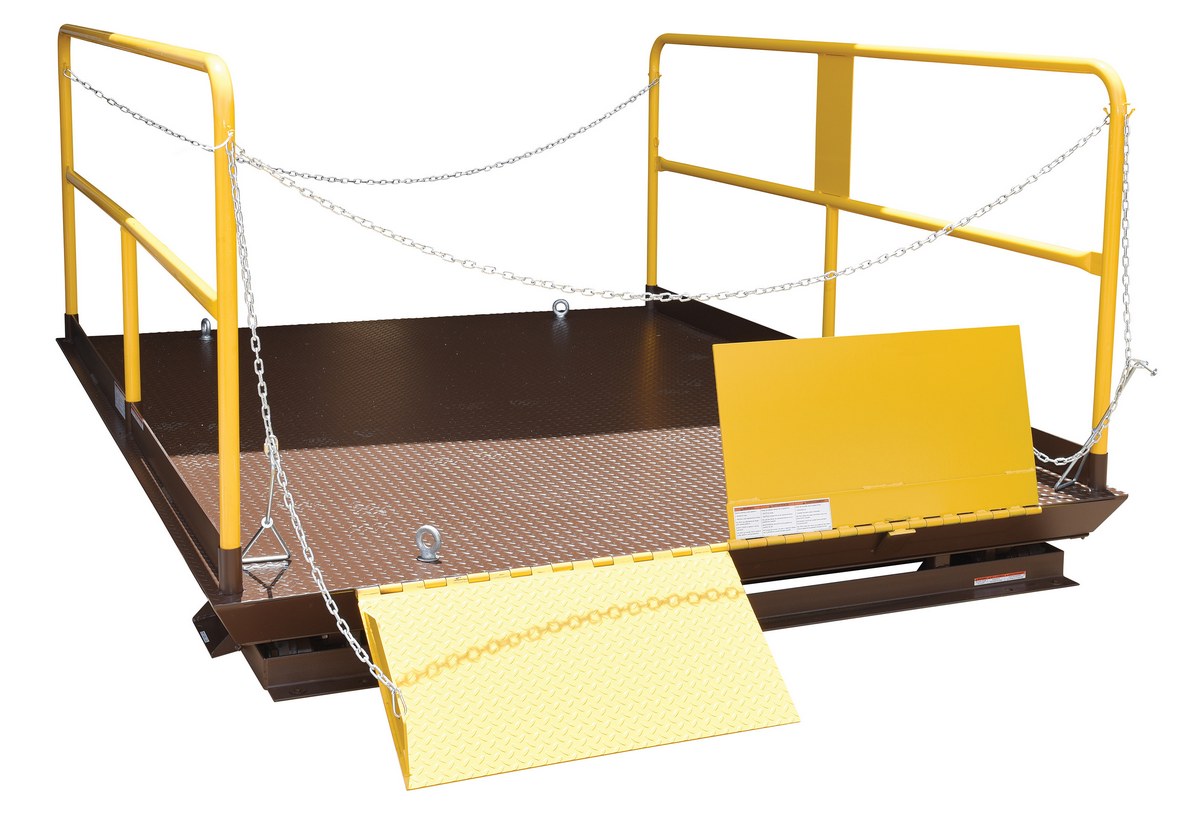

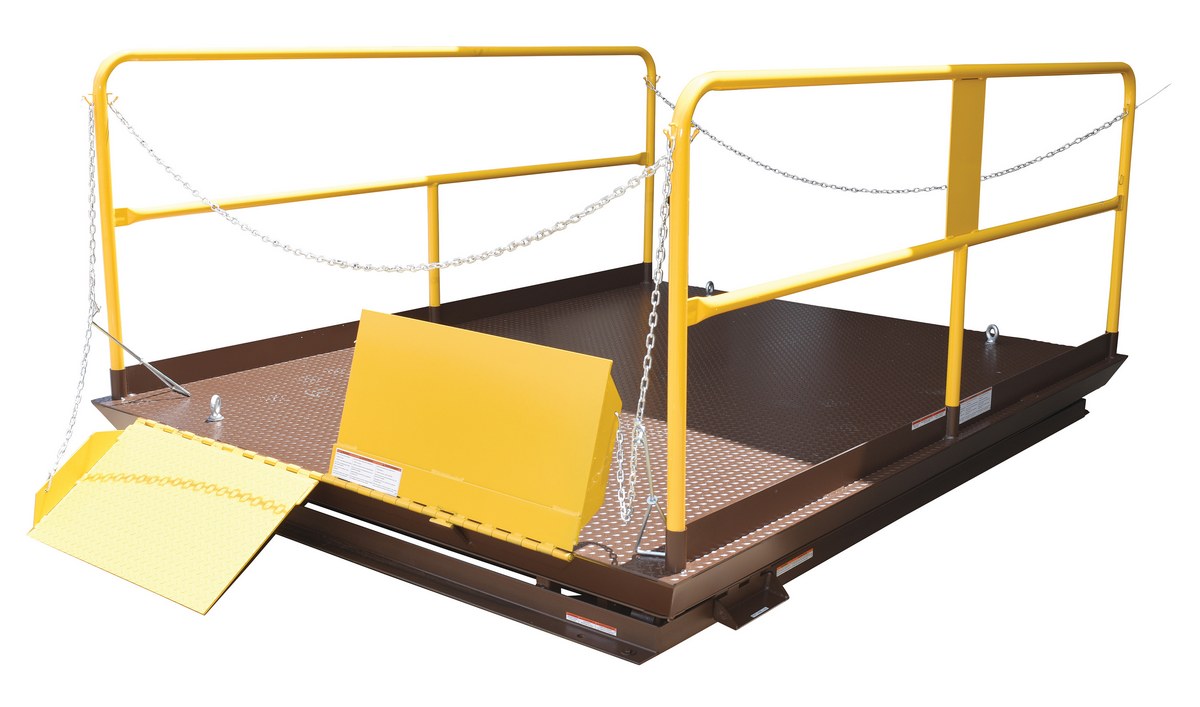

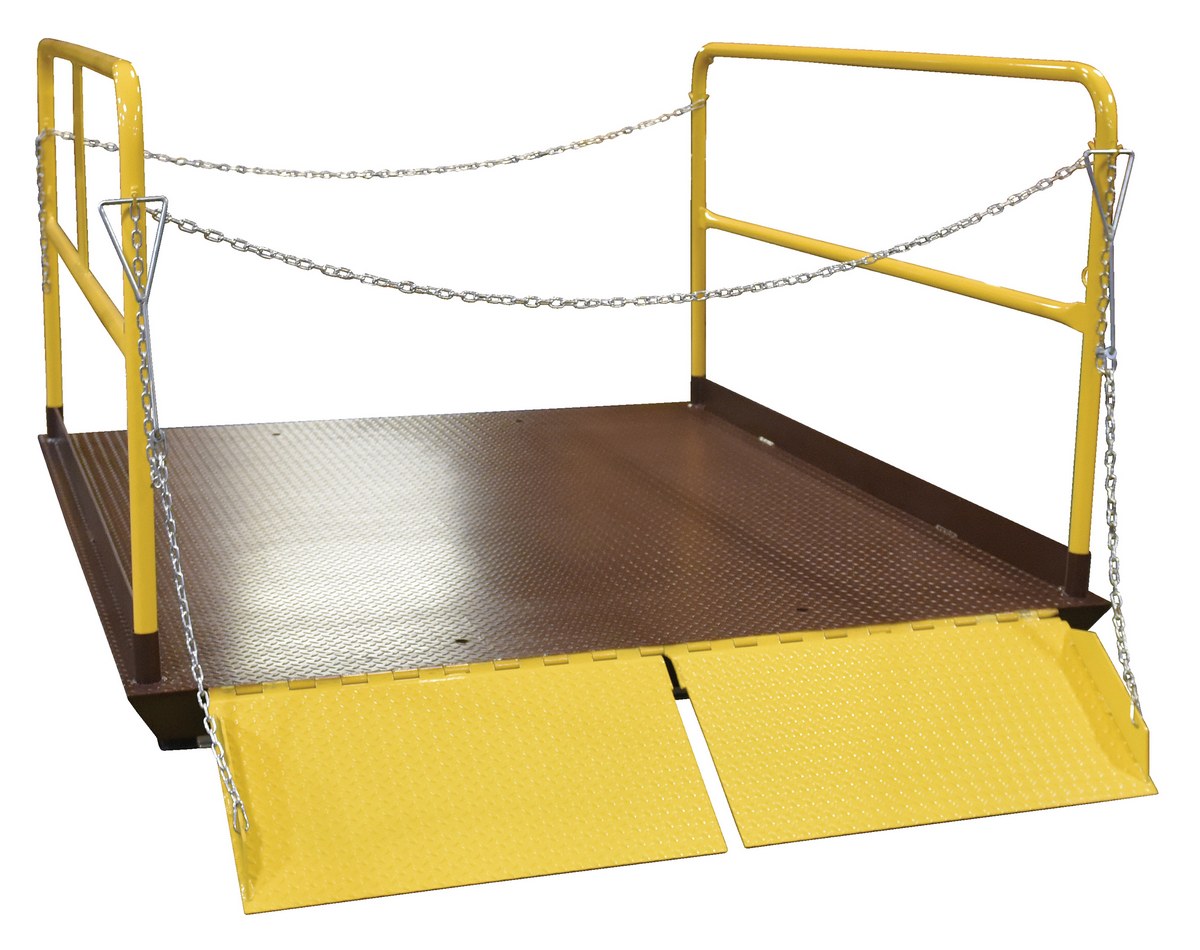

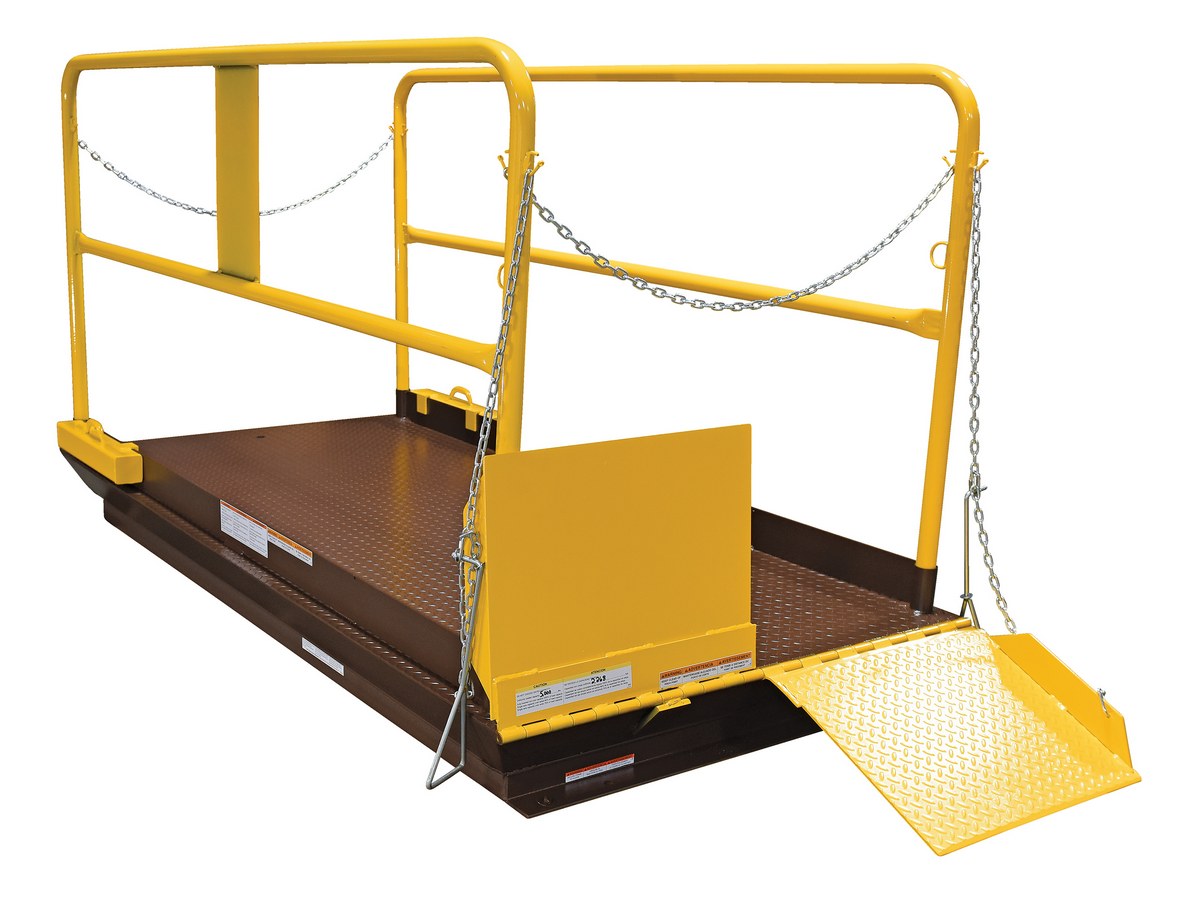

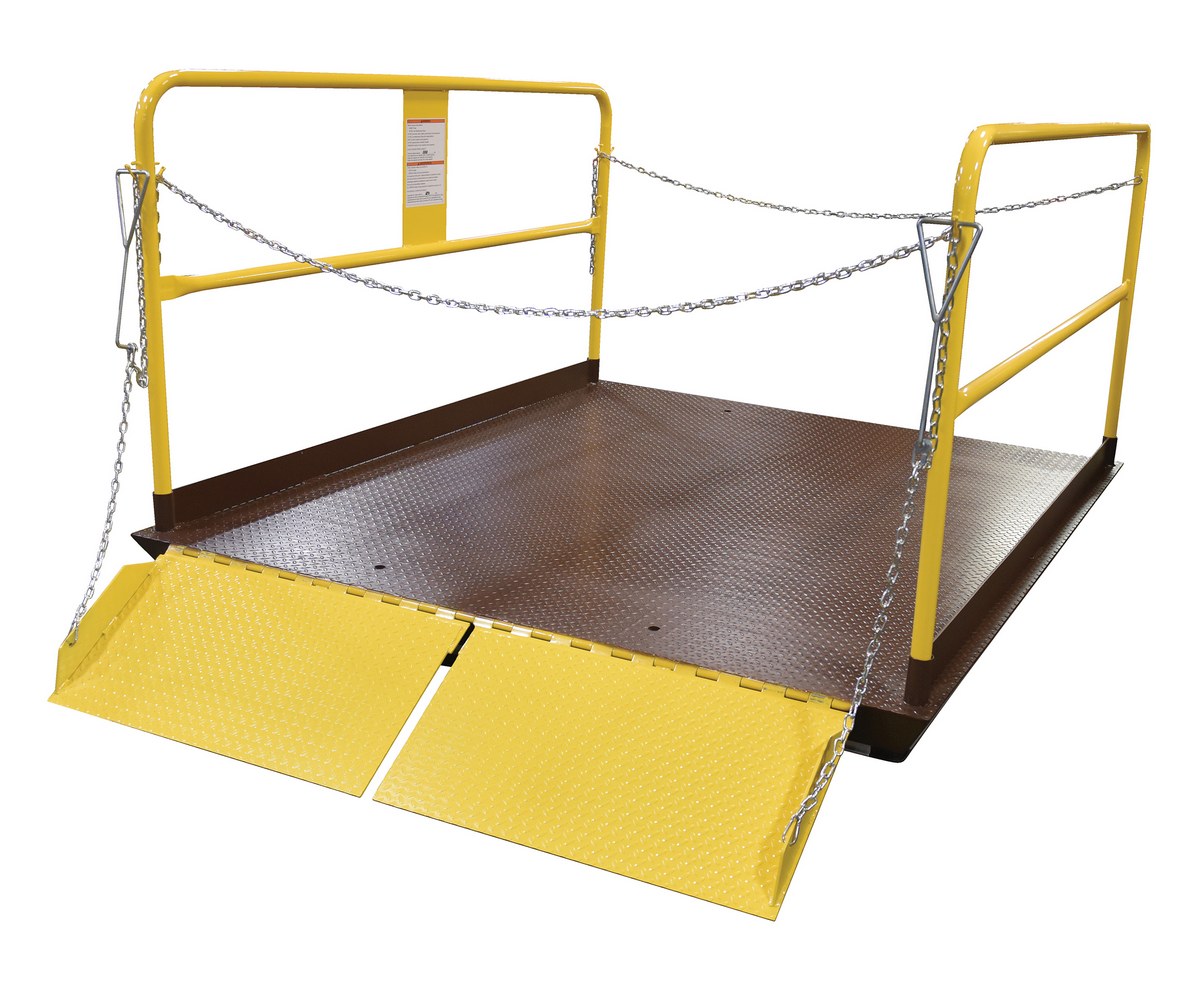

VESTIL SCISSOR DOCK LIFT

  • Load and unload trucks without a dock with this hefty scissors lift.
  • Engineered for maximum safety and efficiency.

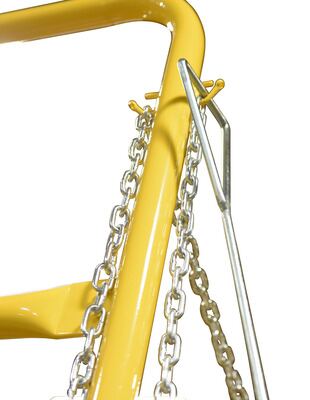

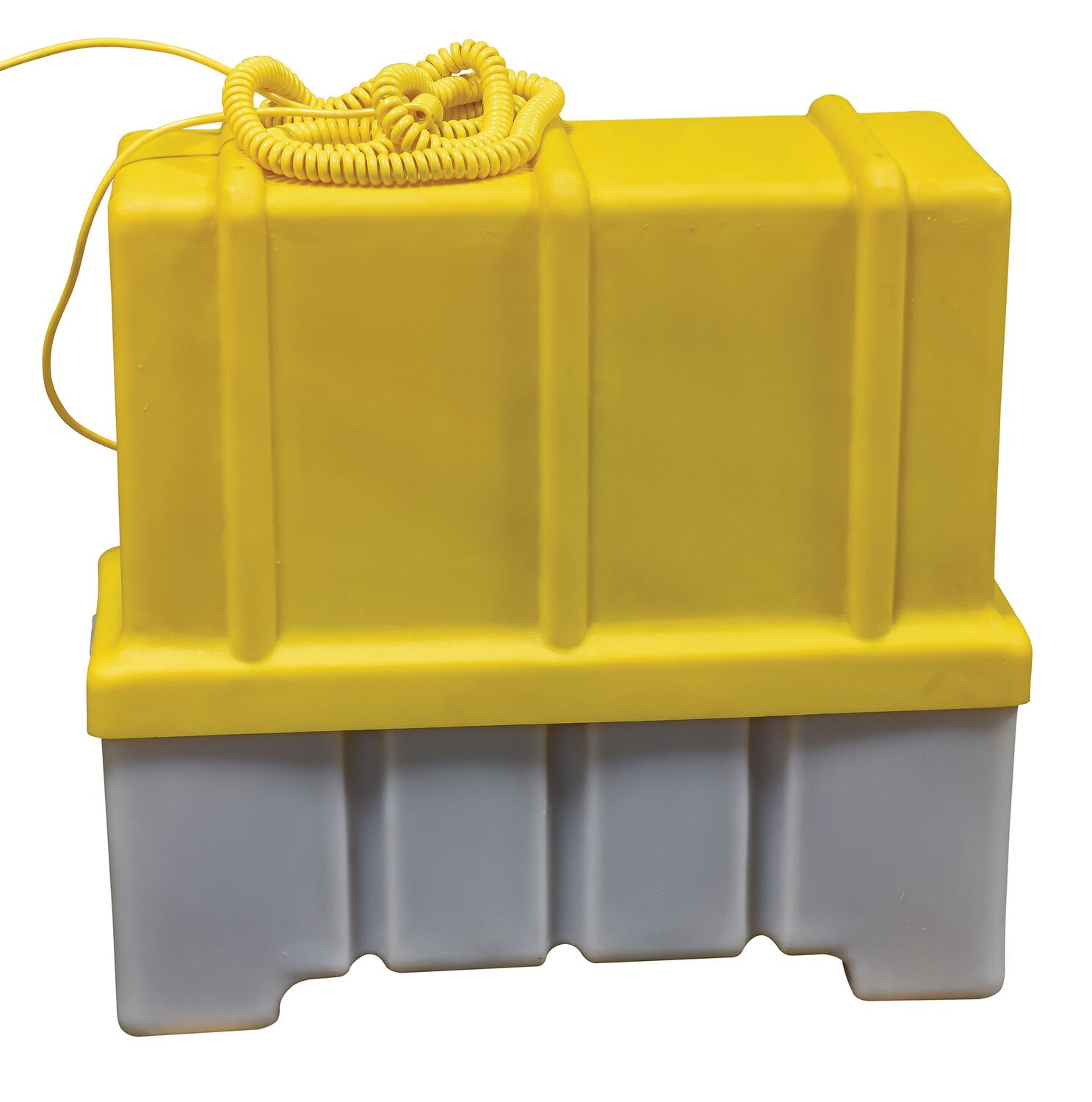

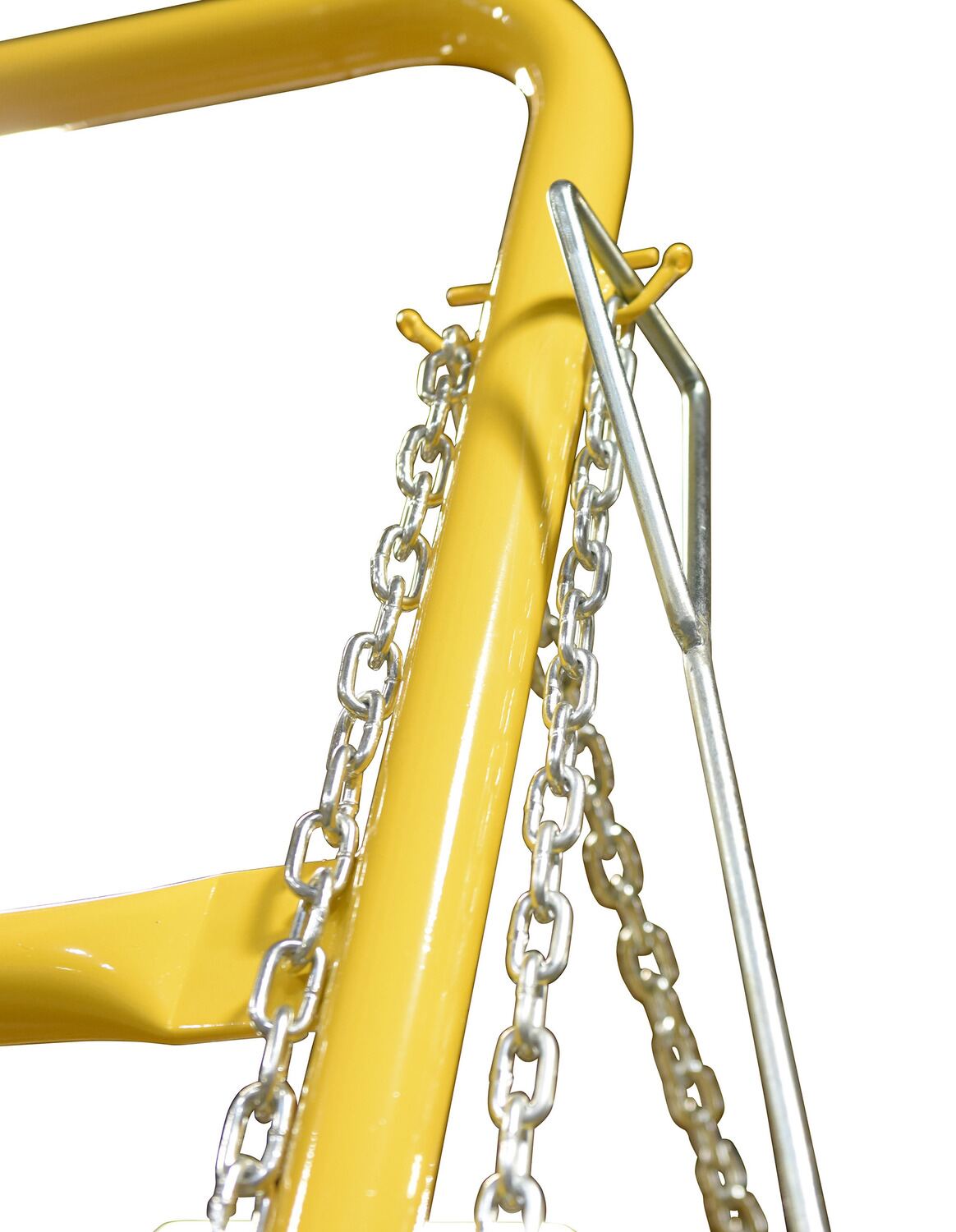

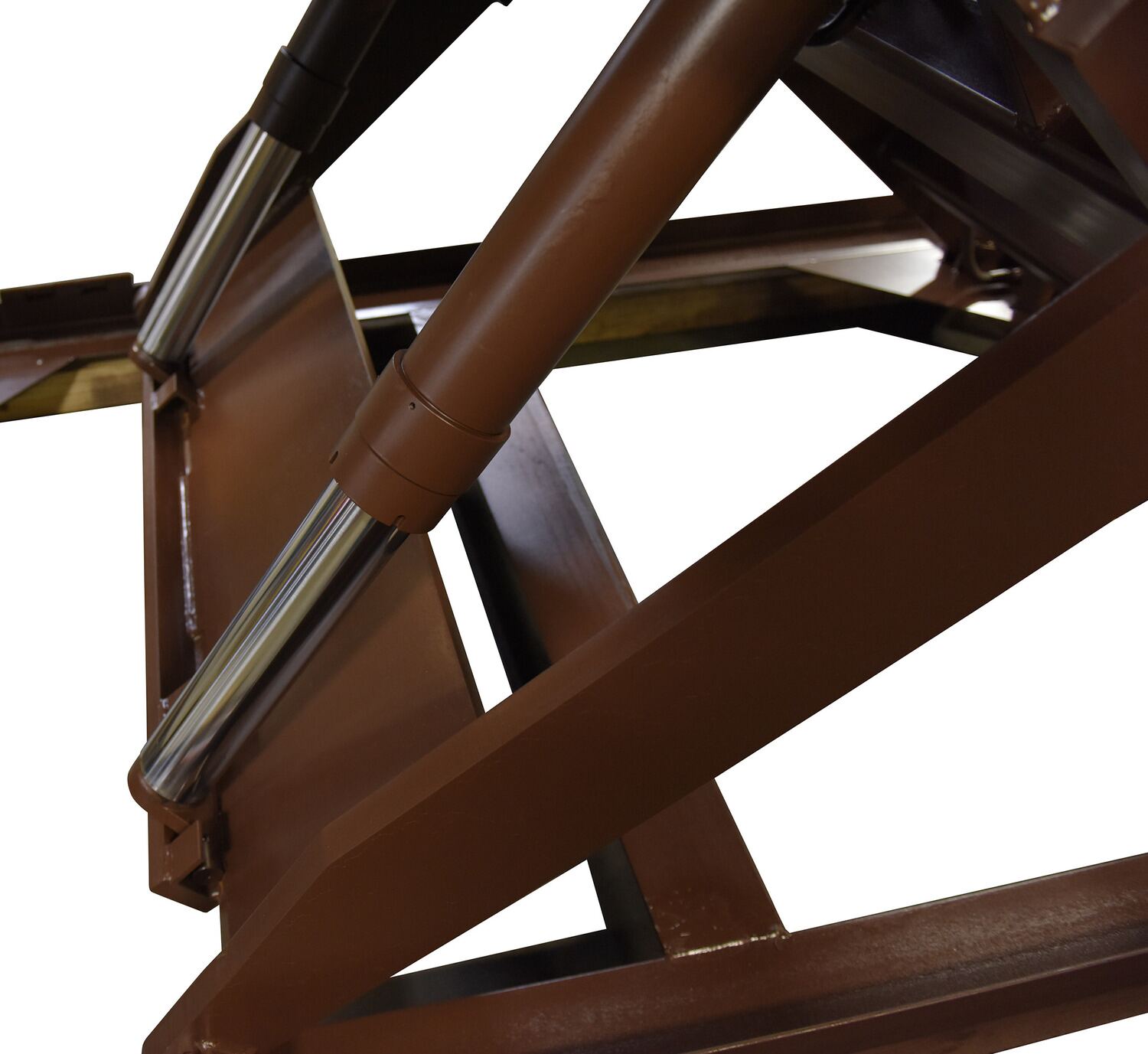

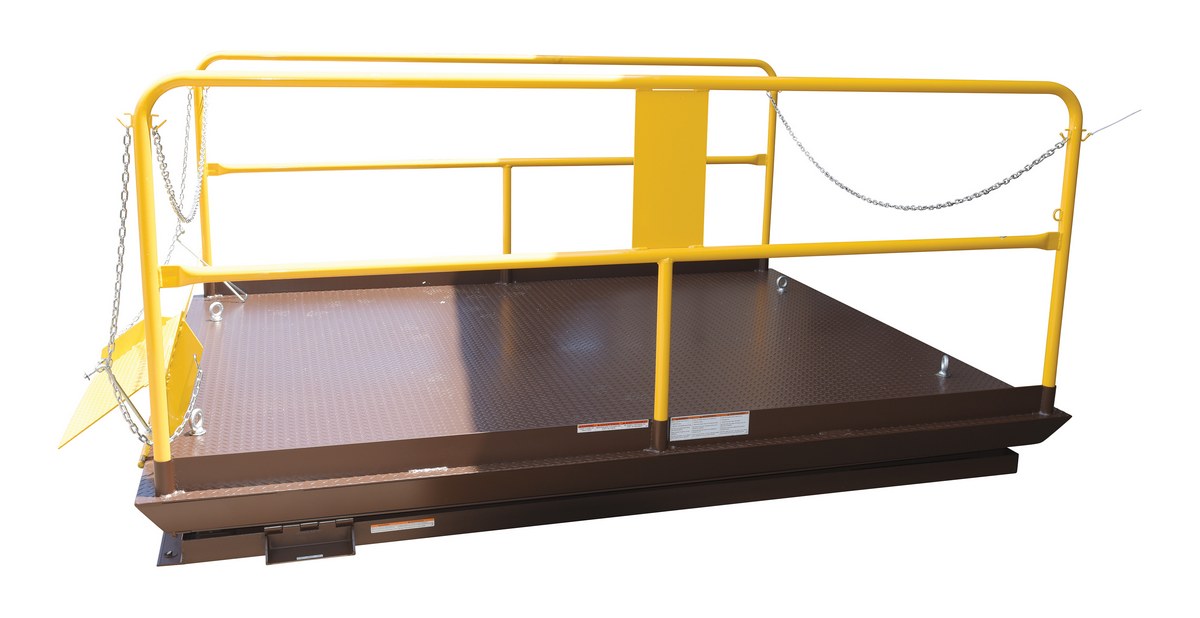

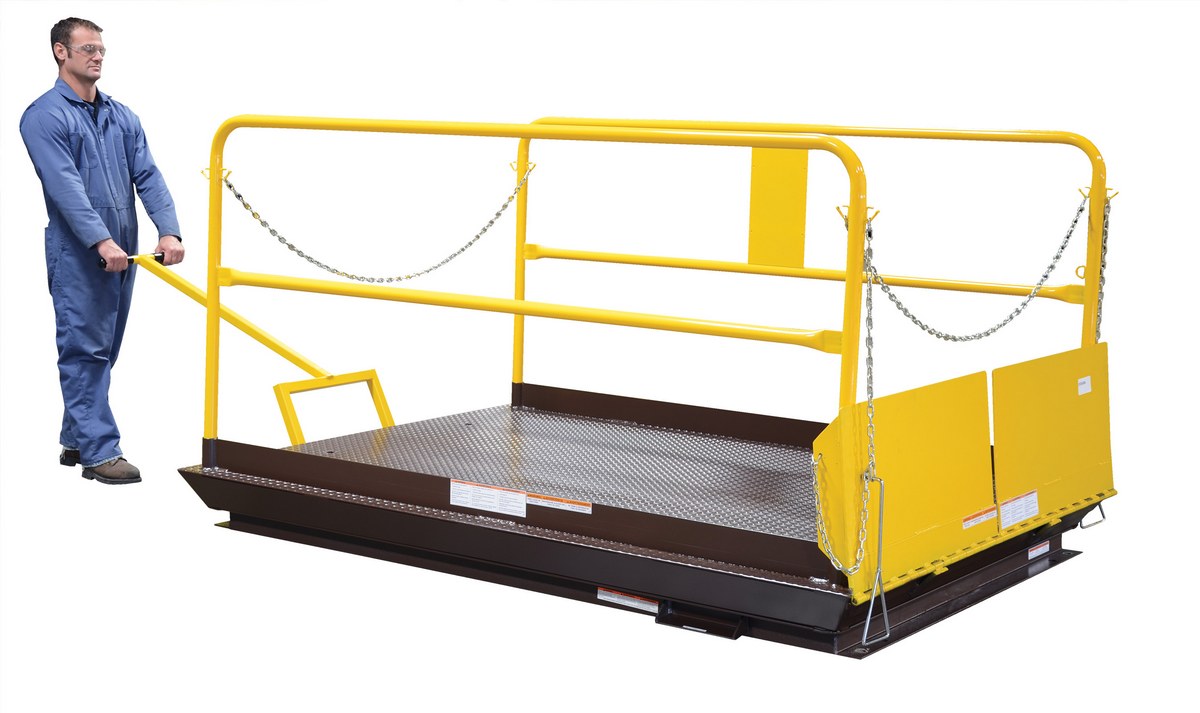

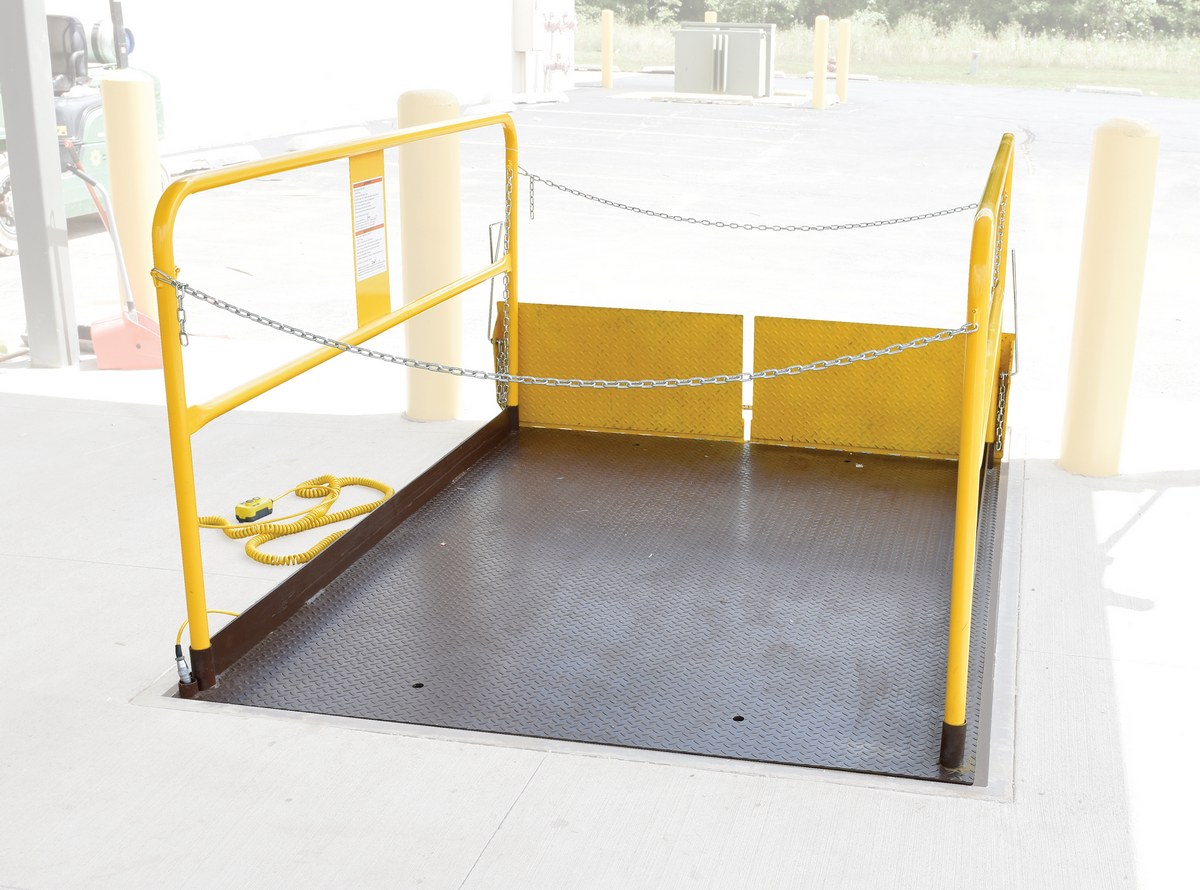

The Vestil Scissor Dock LiftSaves time and reduces manhours where there are no docks. Checkered plate deck is made of heavy gauge steel for hard use. Hydraulic unit features emergency automatic stop if line breaks. Complete with upper travel limit switch, and overload relief. Push-button control is 24 volt on 20' coiled cord. Prewired control box includes Magnetic Starter and overload fuse. High visible hand rails are removable. Built for years of daily use, with minimum maintenance. Standard external 6.5 HP 460 V, 3-phase, 60 Hz motor. FOB Shipping Point.

Two Speed Pump
Replace standard pump with 2 speed and increase lifting speed by 55% when lift is unloaded.

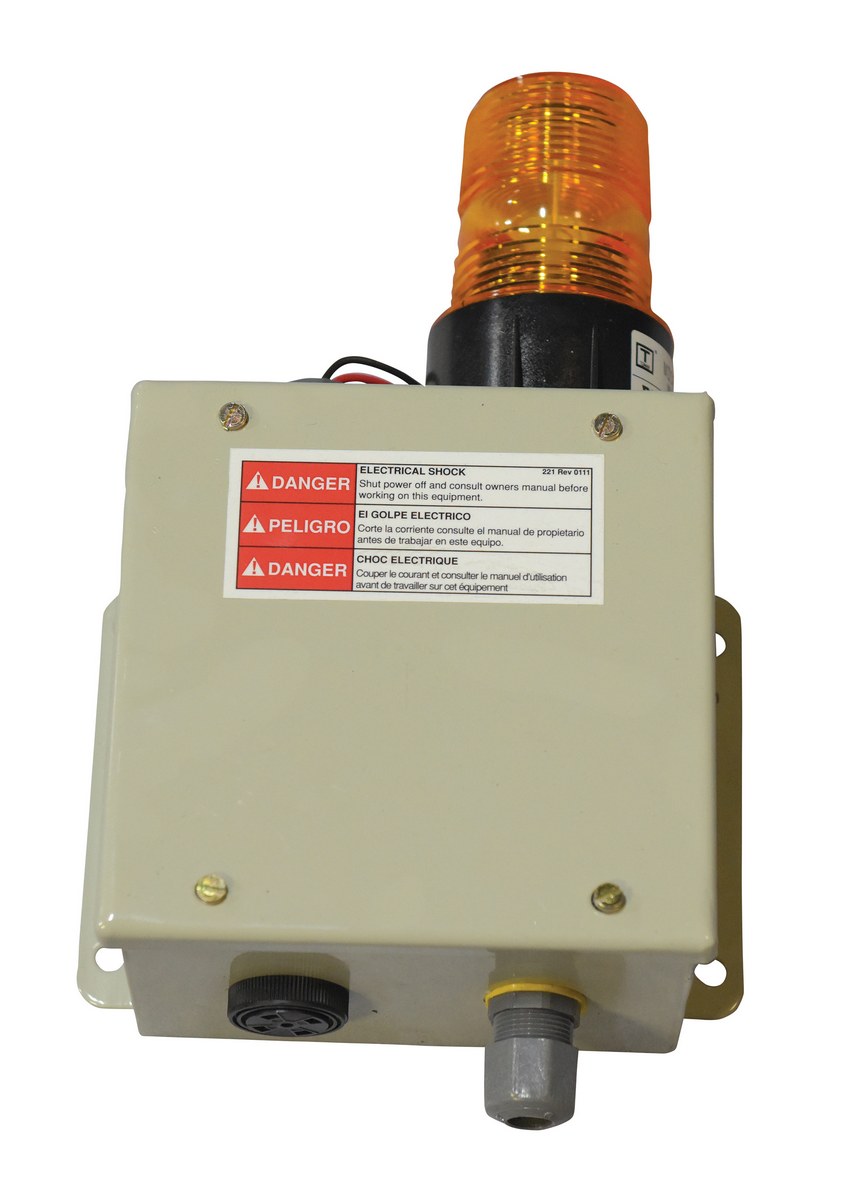

Warning Beeper & Strobe

Sounds during the lift and lowering operation. 80 decibels.

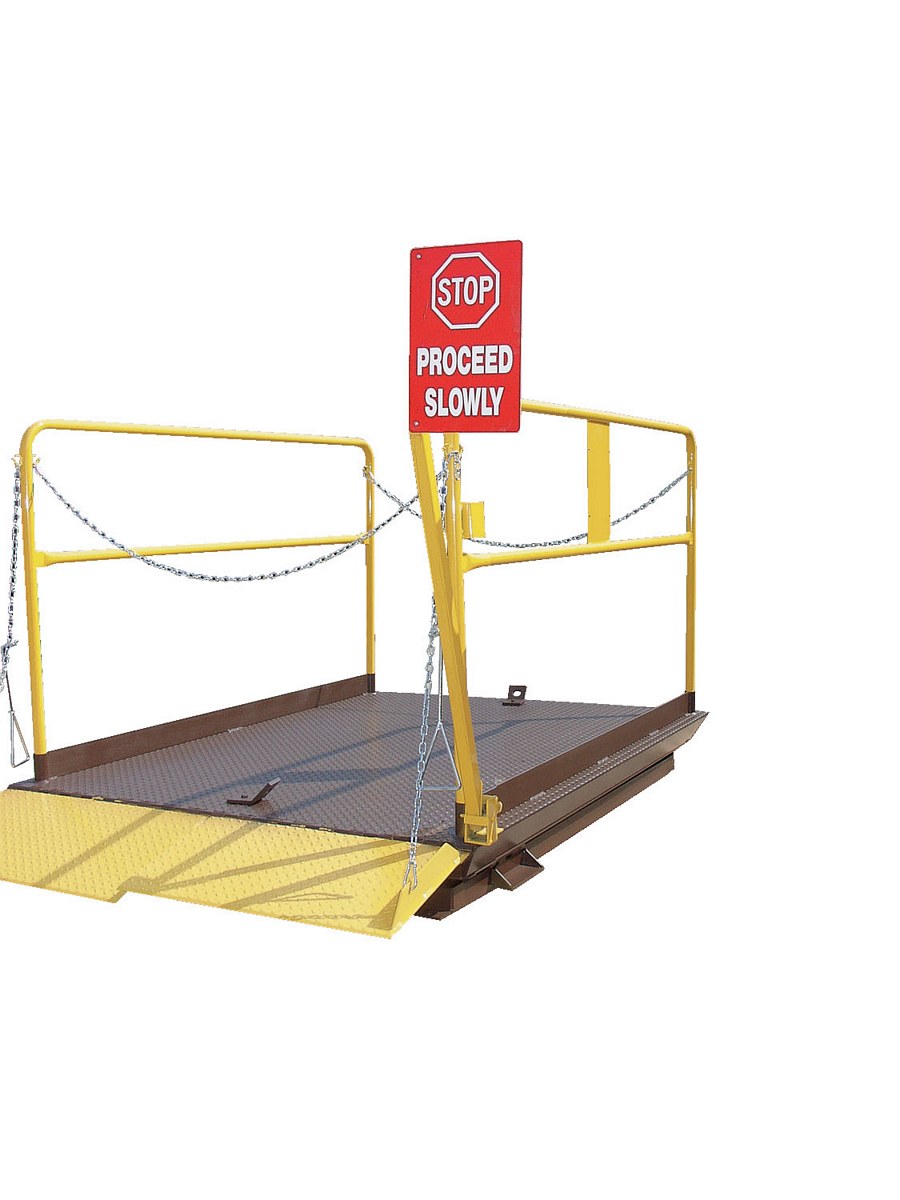

Stop Signal Sign
Guides driver so truck will be properly positioned. Prevents damage to the truck door and scissor lift. Driver backs up until truck touches signal arm. Adjustable height and projection for different truck-to-dock requirements.

Call 800-757-1064 for pricing, availability and quantity discounts.

HYDRAULIC TRUCK DOCK SCISSOR LIFT
Product No. Cap.
(lbs.)		 Platform
W x L		 End Load Axle
Cap. (lbs.)		 Lowered
Height		 Lift Raised
Height		 Wt. (lbs.) price Quantity
HWL-100-5-68 5000 72 x 96" 3750 8" 68" 3501 Discontinued Discontinued
HWL-100-10-78 10000 84 x 96" 8250 14" 72" 6035 Discontinued Discontinued
HWL-100-10-610 10000 72 x 120" 8250 14" 72" 6081 Discontinued Discontinued
HWL-100-10-710 10000 84 x 120" 8250 14" 72" 6268 Discontinued Discontinued
HWL-100-10-612 10000 72 x 144" 8250 14" 72" 6548 Discontinued Discontinued
HWL-100-10-712 10000 84 x 144" 8250 14" 72" 6734 Discontinued Discontinued
HWL-100-12-68 12000 72 x 96" 9750 14" 72" 6431 Discontinued Discontinued
HWL-100-12-78 12000 84 x 96" 9750 14" 72" 6617 Discontinued Discontinued
HWL-100-12-710 12000 84 x 120" 9750 14" 72" 6851 Discontinued Discontinued
HWL-100-12-810 12000 96 x 120" 9750 14" 72" 7037 Discontinued Discontinued
HWL-100-12-612 12000 72 x 144" 9750 14" 72" 7142 Discontinued Discontinued
HWL-100-10-68 10000 72 x 96" 8250 14" 72" 5848 Discontinued Discontinued
HWL-100-8-710 8000 84 x 120" 6250 10" 70" 4957 Discontinued Discontinued
HWL-100-5-78 5000 84 x 96" 3750 8" 68" 3750 Discontinued Discontinued
HWL-100-5-610 5000 72 x 120" 3250 8" 68" 3867 Discontinued Discontinued
HWL-100-5-710 5000 84 x 120" 3250 8" 68" 4071 Discontinued Discontinued
HWL-100-6-68 6000 72 x 96" 4500 10" 70" 3415 Discontinued Discontinued
HWL-100-6-78 6000 84 x 96" 4500 10" 70" 3616 Discontinued Discontinued
HWL-100-6-610 6000 72 x 120" 4000 10" 70" 3983 Discontinued Discontinued
HWL-100-6-710 6000 84 x 120" 4000 10" 70" 4082 Discontinued Discontinued
HWL-100-8-68 8000 72 x 96" 6750 10" 70" 4440 Discontinued Discontinued
HWL-100-8-78 8000 84 x 96" 6750 10" 70" 4636 Discontinued Discontinued
HWL-100-8-610 8000 72 x 120" 6250 10" 70" 4851 Discontinued Discontinued
HWL-100-12-712 12000 84 x 144" 9750 14" 72" 7269 Discontinued Discontinued
HYDRAULIC TRUCK DOCK SCISSOR LIFT ACCESSORIES
Product No. Wt. (lbs.) Description price Quantity
HWL-WB - Warning Beeper and Strobe List Price: $642.68
TODAY: $642.68 		Add to cart

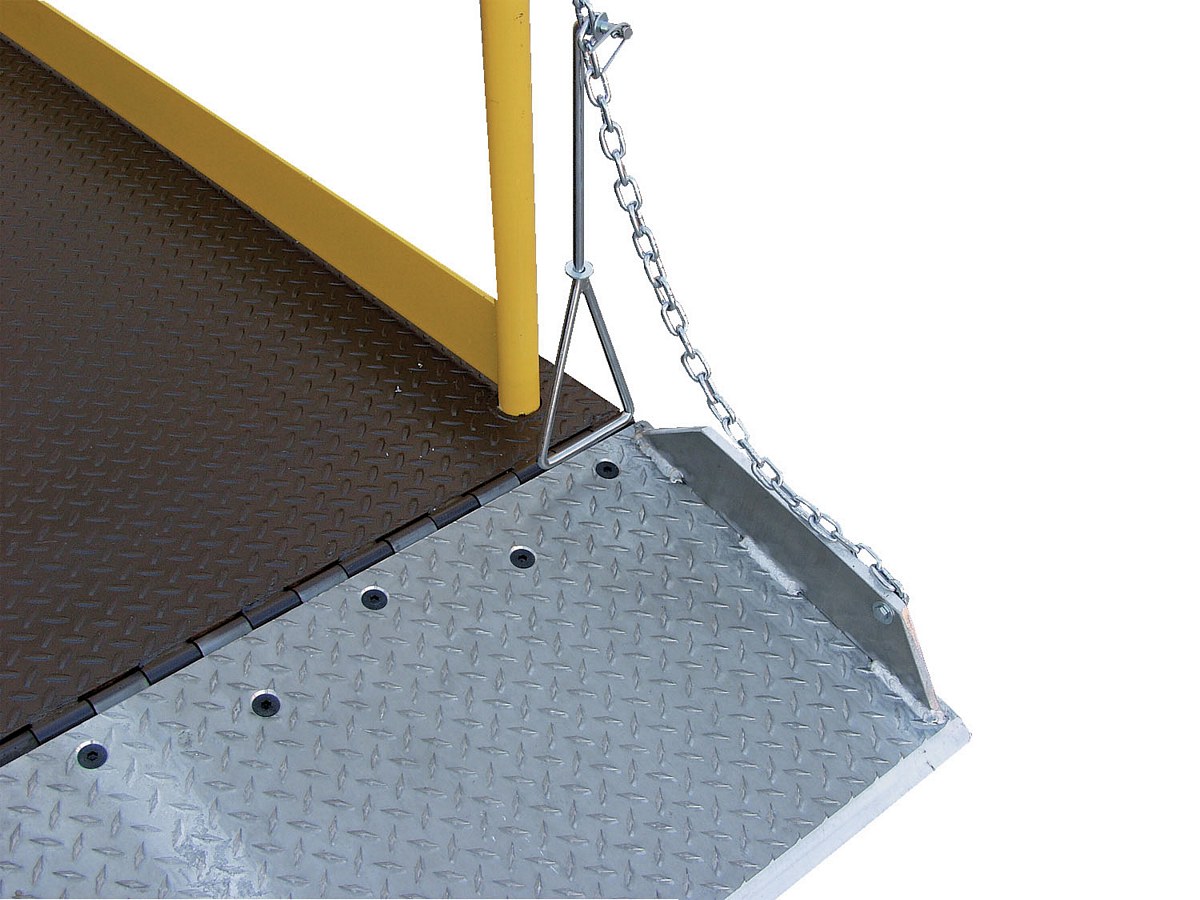

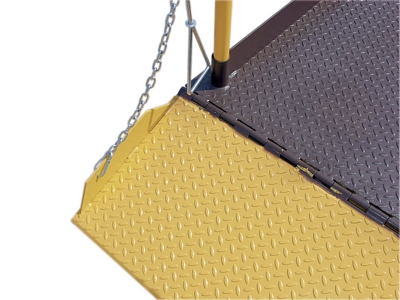

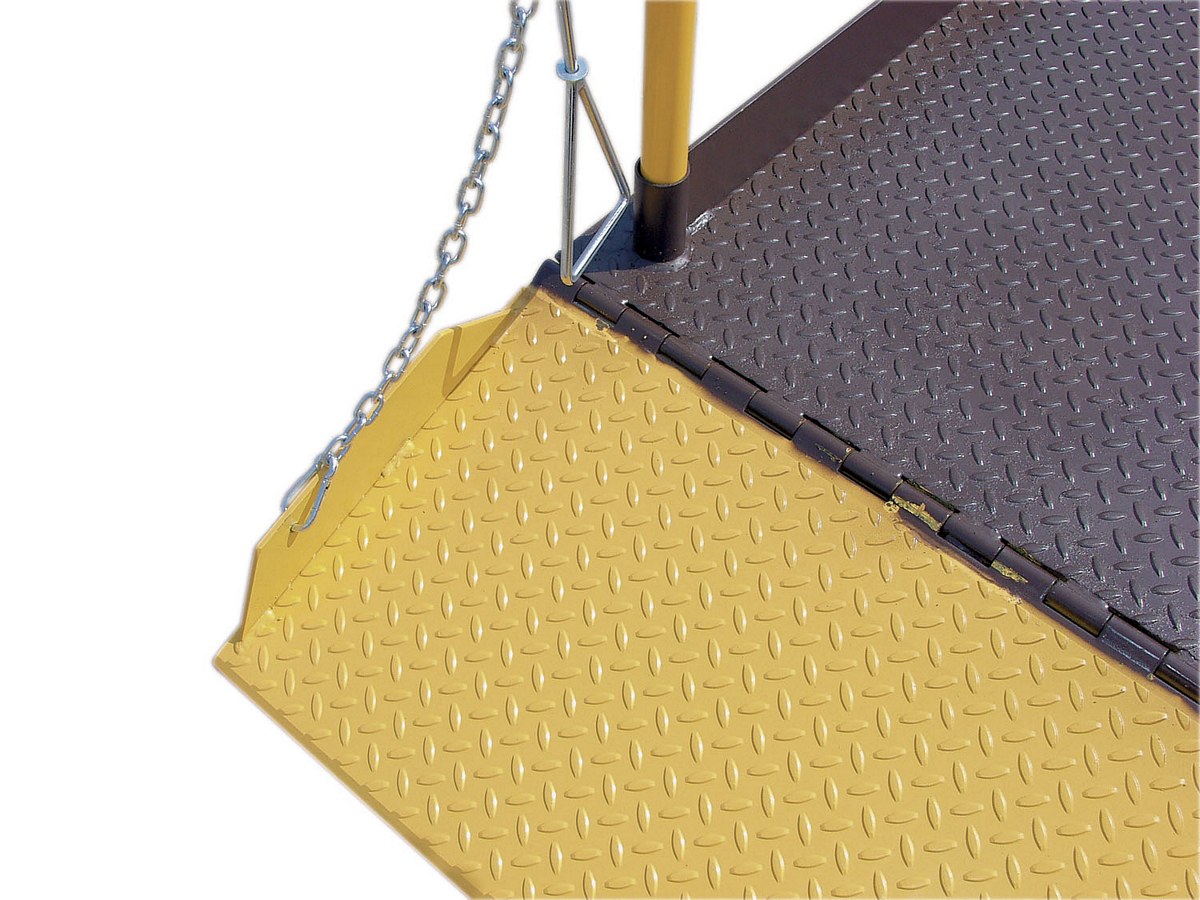

HWL-SSTB 180 Split Steel Bridge (Additional) List Price: $709.52
TODAY: $709.52 		Add to cart

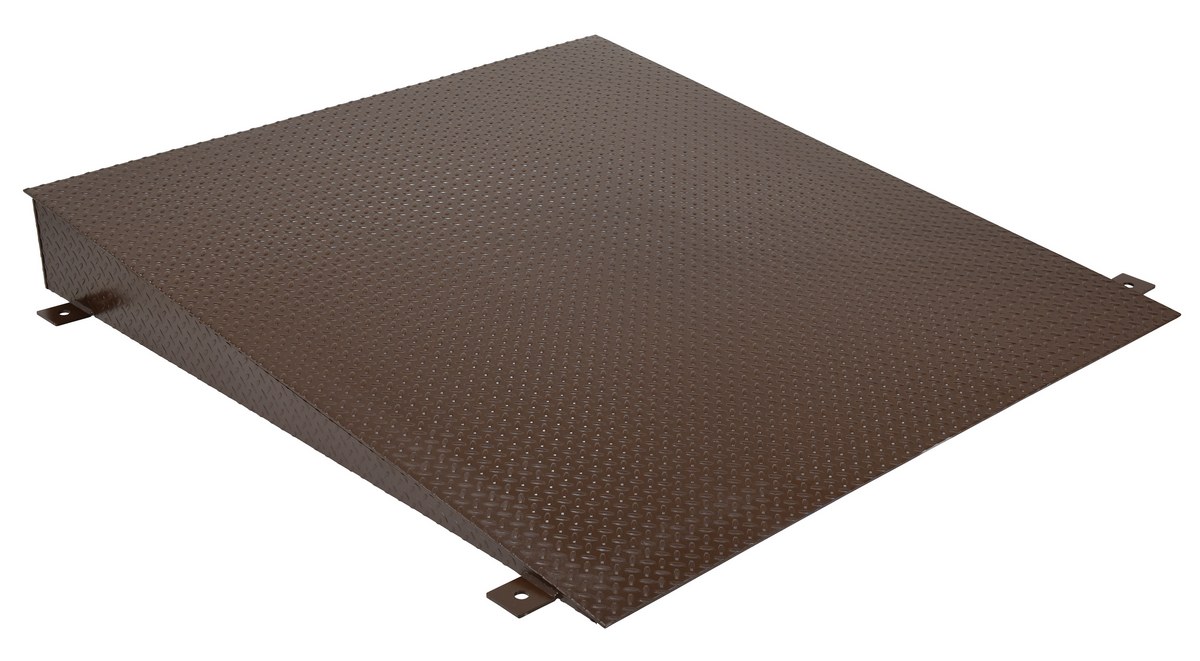

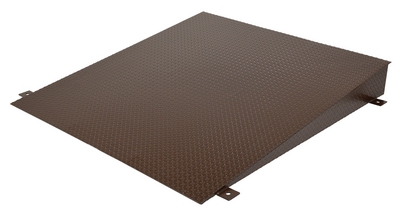

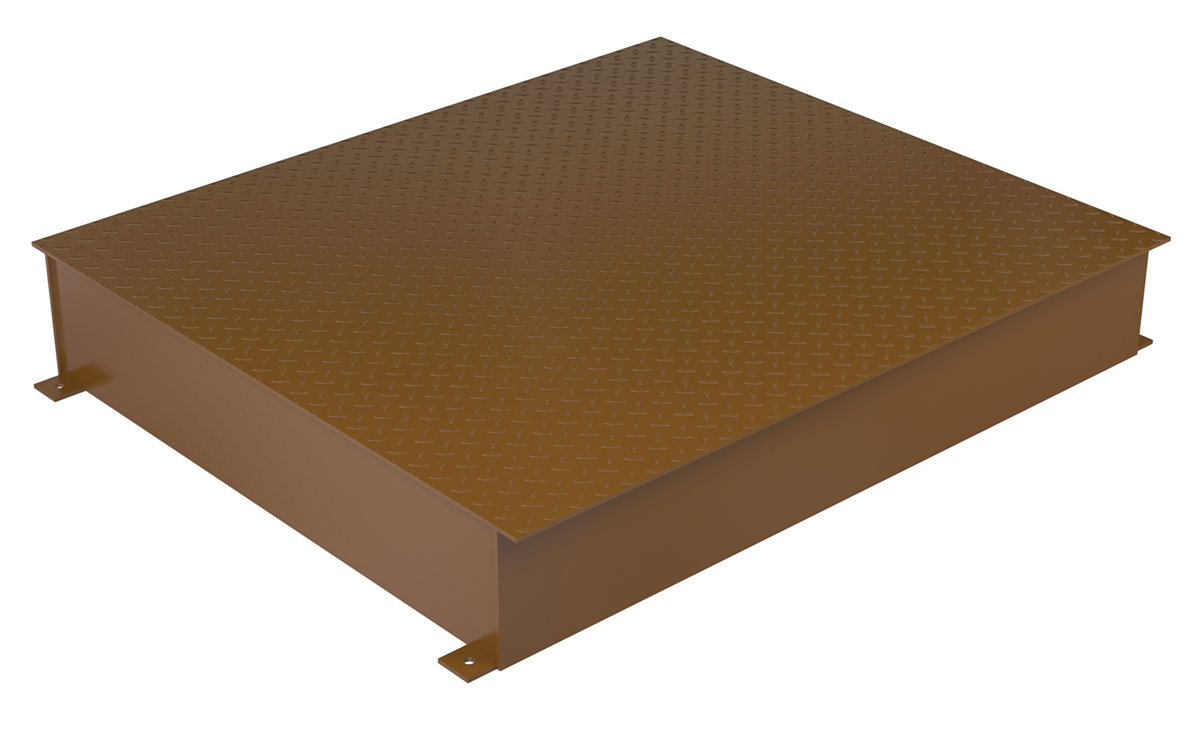

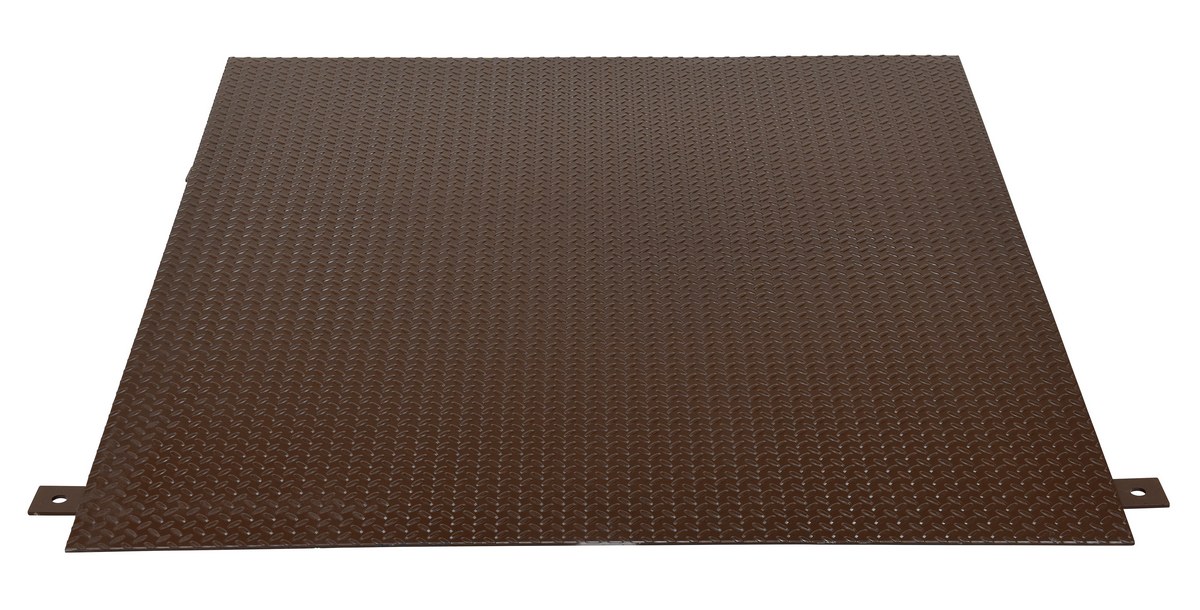

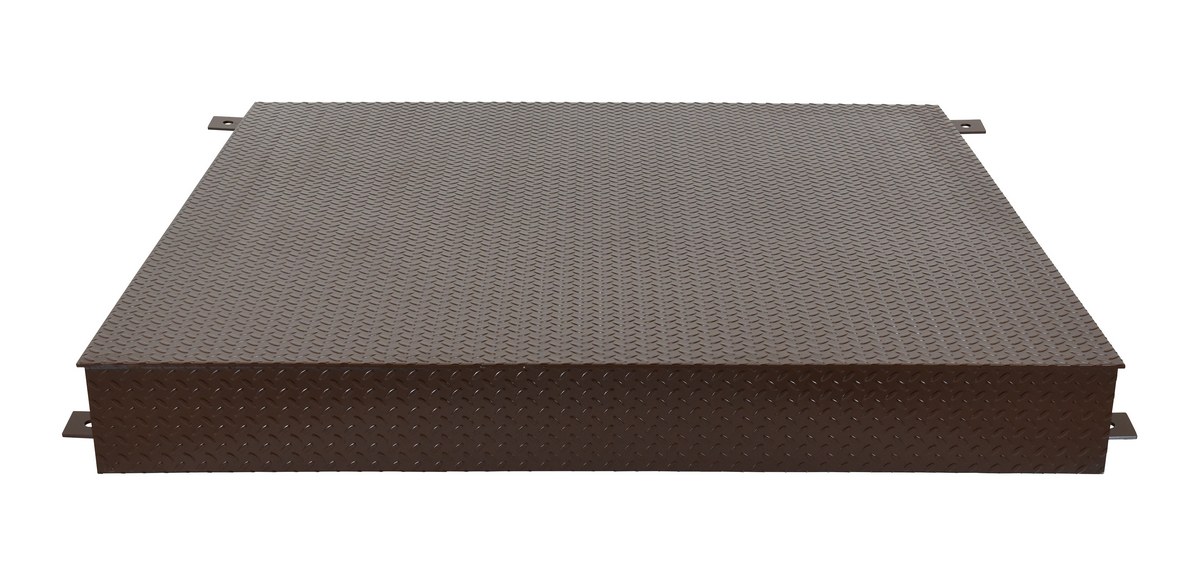

HWL-AR8-48 386 Approach Ramp for 8" Lowered Ht. 48"W x 65"L" List Price: $1352.35
TODAY: $1352.35 		Add to cart

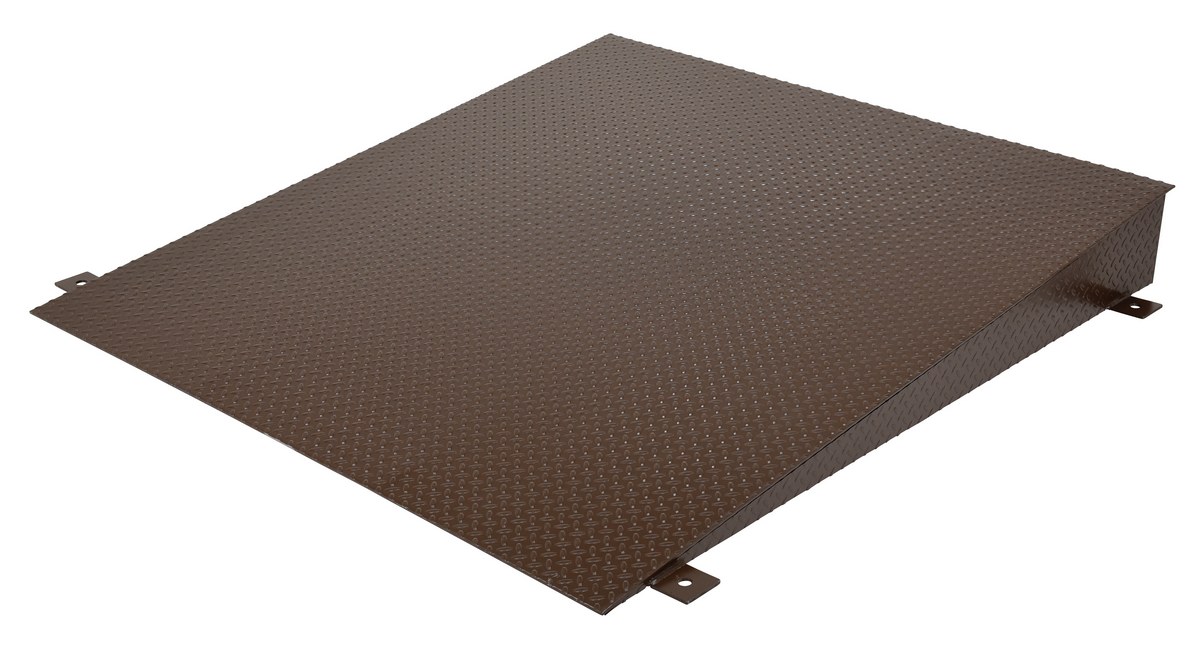

HWL-AR8 397 Approach Ramp for 8" Lowered Ht. 60"W x 65"L" List Price: $1242.05
TODAY: $1242.05 		Add to cart
HWL-AR10 517 Approach Ramp for 10" Lowered Ht. 60"W x 82"L" List Price: $1548.05
TODAY: $1548.05 		Add to cart
HWL-AR14 788 Approach Ramp for 14" Lowered Ht. 60"W x 116"L" List Price: $2515.14
TODAY: $2515.14 		Add to cart
HWL-TSP Two Speed Pump Discontinued Discontinued
HWL-SSS 19 Stop Signal Sign Discontinued Discontinued
HYDRAULIC TRUCK DOCK SCISSOR LIFT
Product No.: HWL-100-5-68
  • Cap. (lbs.): 5000
  • Platform W x L: 72 x 96"
  • End Load Axle Cap. (lbs.): 3750
  • Lowered Height: 8"
  • Lift Raised Height: 68"
TODAY: $13662.78
Product No.: HWL-100-10-78
  • Cap. (lbs.): 10000
  • Platform W x L: 84 x 96"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $22653.72
Product No.: HWL-100-10-610
  • Cap. (lbs.): 10000
  • Platform W x L: 72 x 120"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $23306.69
Product No.: HWL-100-10-710
  • Cap. (lbs.): 10000
  • Platform W x L: 84 x 120"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $23651.85
Product No.: HWL-100-10-612
  • Cap. (lbs.): 10000
  • Platform W x L: 72 x 144"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $24720.93
Product No.: HWL-100-10-712
  • Cap. (lbs.): 10000
  • Platform W x L: 84 x 144"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $24927.92
Product No.: HWL-100-12-68
  • Cap. (lbs.): 12000
  • Platform W x L: 72 x 96"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $22985.36
Product No.: HWL-100-12-78
  • Cap. (lbs.): 12000
  • Platform W x L: 84 x 96"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $24220.32
Product No.: HWL-100-12-710
  • Cap. (lbs.): 12000
  • Platform W x L: 84 x 120"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $25152.58
Product No.: HWL-100-12-810
  • Cap. (lbs.): 12000
  • Platform W x L: 96 x 120"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $25799.33
Product No.: HWL-100-12-612
  • Cap. (lbs.): 12000
  • Platform W x L: 72 x 144"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $25593.38
Product No.: HWL-100-10-68
  • Cap. (lbs.): 10000
  • Platform W x L: 72 x 96"
  • End Load Axle Cap. (lbs.): 8250
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $21461.98
Product No.: HWL-100-8-710
  • Cap. (lbs.): 8000
  • Platform W x L: 84 x 120"
  • End Load Axle Cap. (lbs.): 6250
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $19788.23

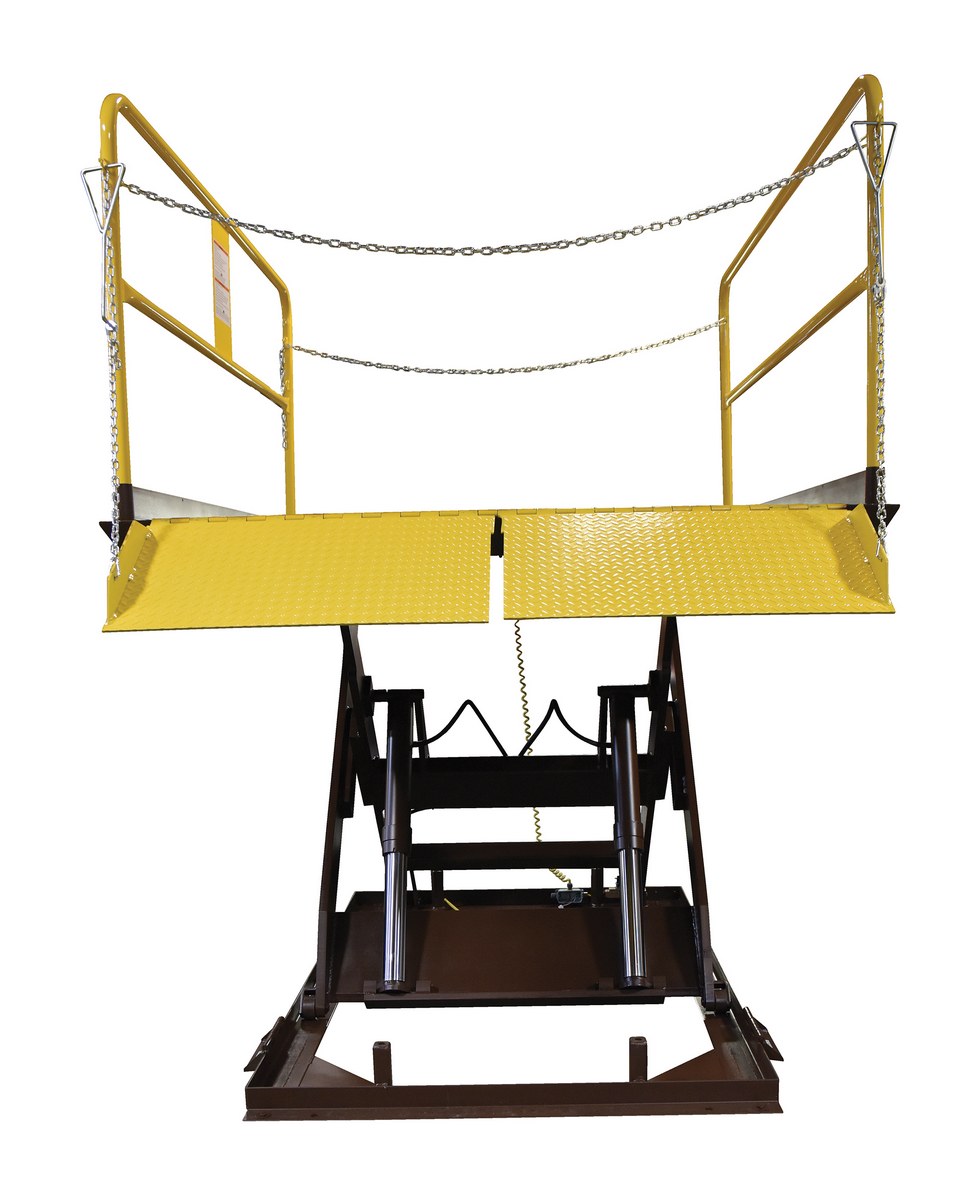

Product No.: HWL-100-5-78
  • Cap. (lbs.): 5000
  • Platform W x L: 84 x 96"
  • End Load Axle Cap. (lbs.): 3750
  • Lowered Height: 8"
  • Lift Raised Height: 68"
TODAY: $13365.21
Product No.: HWL-100-5-610
  • Cap. (lbs.): 5000
  • Platform W x L: 72 x 120"
  • End Load Axle Cap. (lbs.): 3250
  • Lowered Height: 8"
  • Lift Raised Height: 68"
TODAY: $13901.87
Product No.: HWL-100-5-710
  • Cap. (lbs.): 5000
  • Platform W x L: 84 x 120"
  • End Load Axle Cap. (lbs.): 3250
  • Lowered Height: 8"
  • Lift Raised Height: 68"
TODAY: $14514.63
Product No.: HWL-100-6-68
  • Cap. (lbs.): 6000
  • Platform W x L: 72 x 96"
  • End Load Axle Cap. (lbs.): 4500
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $13301.36
Product No.: HWL-100-6-78
  • Cap. (lbs.): 6000
  • Platform W x L: 84 x 96"
  • End Load Axle Cap. (lbs.): 4500
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $14525.94
Product No.: HWL-100-6-610
  • Cap. (lbs.): 6000
  • Platform W x L: 72 x 120"
  • End Load Axle Cap. (lbs.): 4000
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $14710.41
Product No.: HWL-100-6-710
  • Cap. (lbs.): 6000
  • Platform W x L: 84 x 120"
  • End Load Axle Cap. (lbs.): 4000
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $15082.27
Product No.: HWL-100-8-68
  • Cap. (lbs.): 8000
  • Platform W x L: 72 x 96"
  • End Load Axle Cap. (lbs.): 6750
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $17785.97
Product No.: HWL-100-8-78
  • Cap. (lbs.): 8000
  • Platform W x L: 84 x 96"
  • End Load Axle Cap. (lbs.): 6750
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $18698.48
Product No.: HWL-100-8-610
  • Cap. (lbs.): 8000
  • Platform W x L: 72 x 120"
  • End Load Axle Cap. (lbs.): 6250
  • Lowered Height: 10"
  • Lift Raised Height: 70"
TODAY: $19200.14

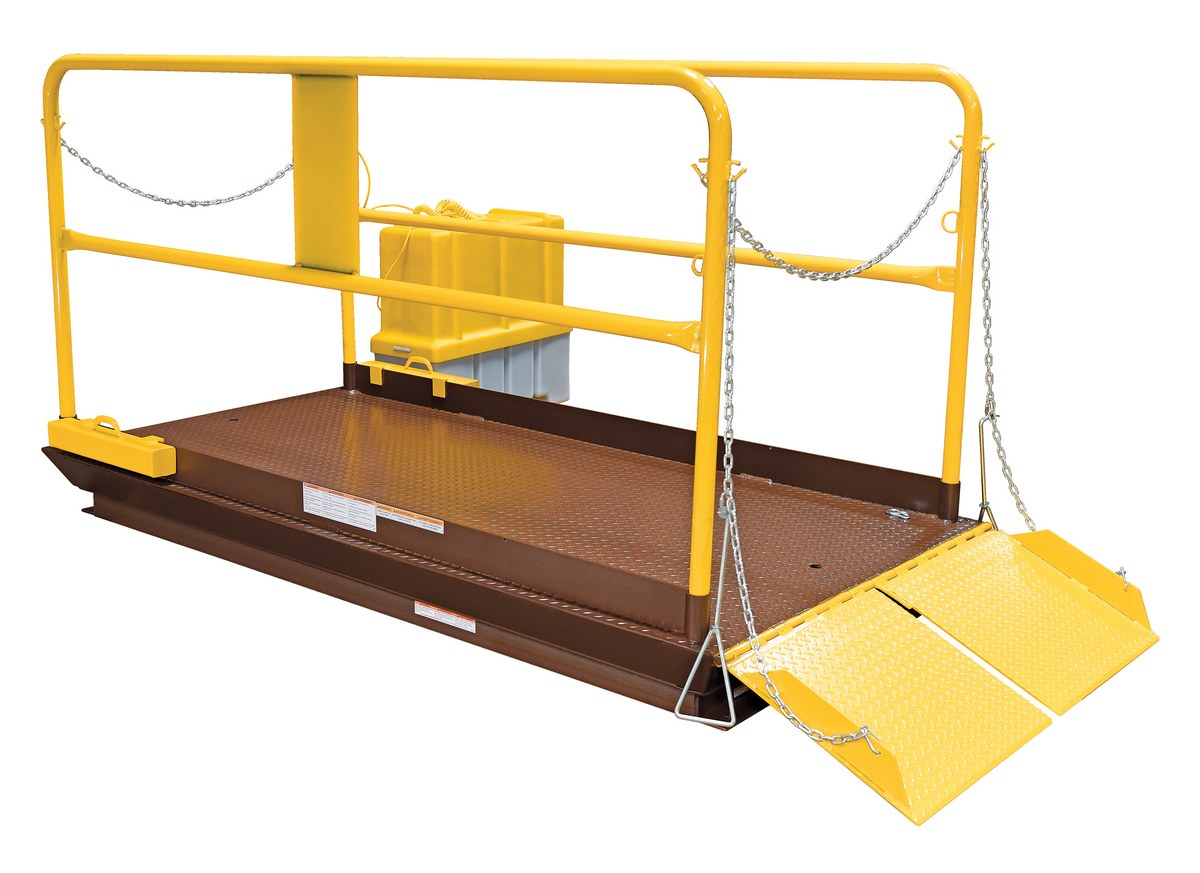

Product No.: HWL-100-12-712
  • Cap. (lbs.): 12000
  • Platform W x L: 84 x 144"
  • End Load Axle Cap. (lbs.): 9750
  • Lowered Height: 14"
  • Lift Raised Height: 72"
TODAY: $26068.13
HYDRAULIC TRUCK DOCK SCISSOR LIFT ACCESSORIES
Product No.: HWL-WB
  • Wt. (lbs.): -
  • Description: Warning Beeper and Strobe
  • :
  • :
TODAY: $642.68
Product No.: HWL-SSTB
  • Wt. (lbs.): 180
  • Description: Split Steel Bridge (Additional)
  • :
  • :
TODAY: $709.52
Product No.: HWL-AR8-48
  • Wt. (lbs.): 386
  • Description: Approach Ramp for 8" Lowered Ht. 48"W x 65"L"
  • :
  • :
TODAY: $1352.35
Product No.: HWL-AR8
  • Wt. (lbs.): 397
  • Description: Approach Ramp for 8" Lowered Ht. 60"W x 65"L"
  • :
  • :
TODAY: $1242.05
Product No.: HWL-AR10
  • Wt. (lbs.): 517
  • Description: Approach Ramp for 10" Lowered Ht. 60"W x 82"L"
  • :
  • :
TODAY: $1548.05
Product No.: HWL-AR14
  • Wt. (lbs.): 788
  • Description: Approach Ramp for 14" Lowered Ht. 60"W x 116"L"
  • :
  • :
TODAY: $2515.14
Product No.: HWL-TSP
  • Wt. (lbs.):
  • Description: Two Speed Pump
  • :
  • :
TODAY: $770.31
Product No.: HWL-SSS
  • Wt. (lbs.): 19
  • Description: Stop Signal Sign
  • :
  • :
TODAY: $162.67
