P950

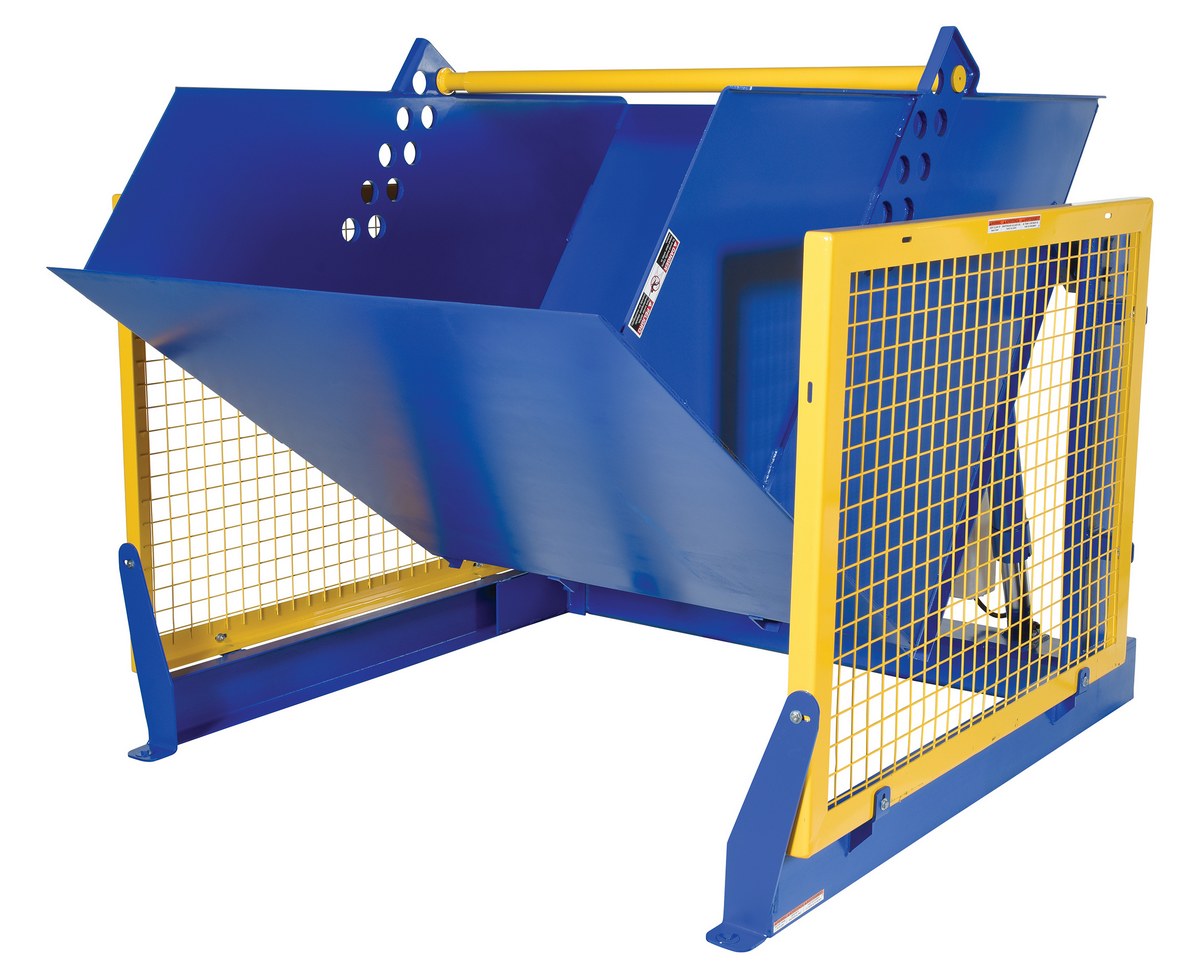

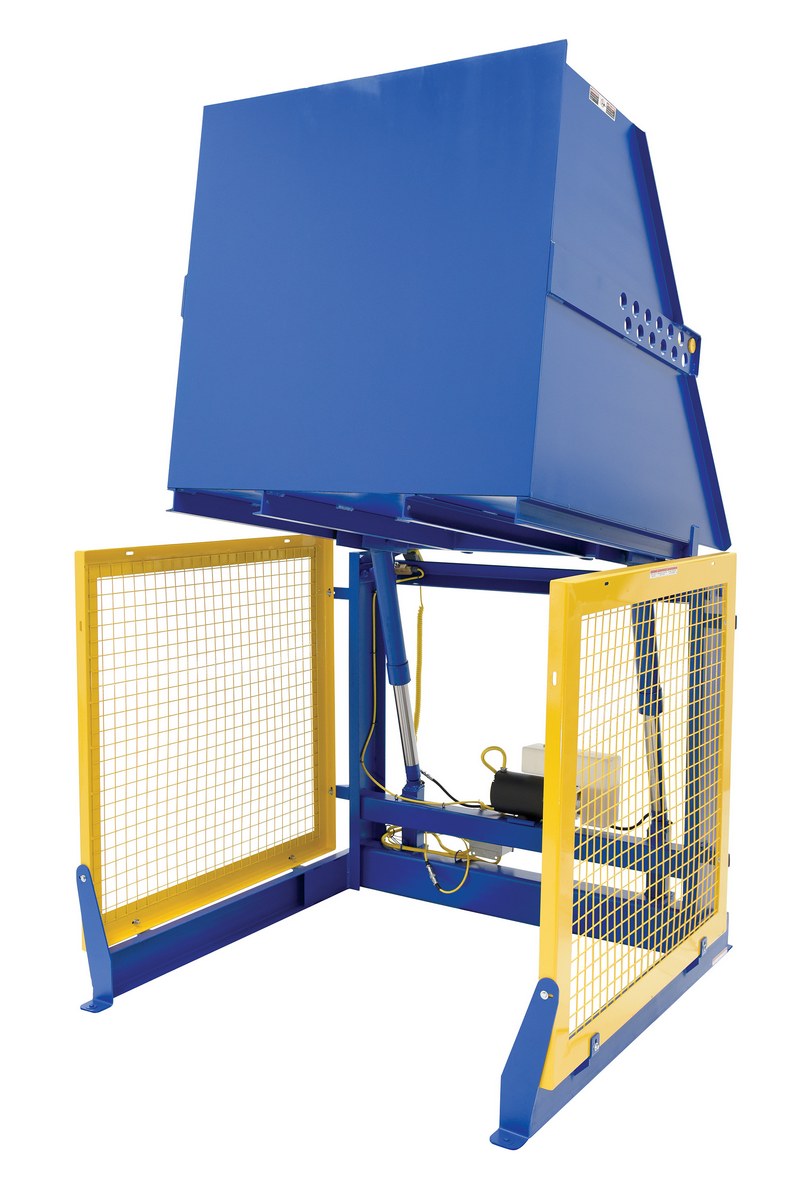

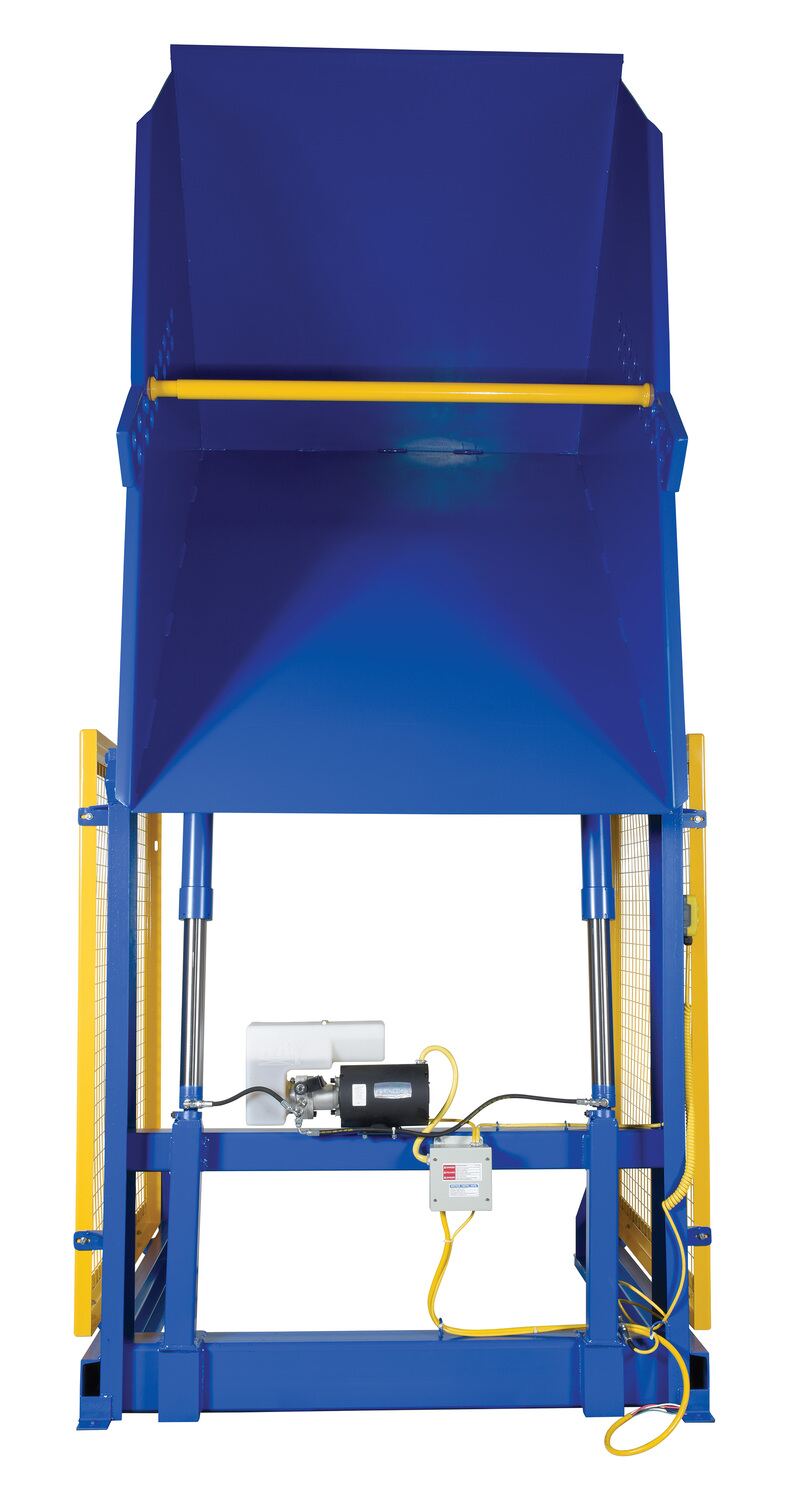

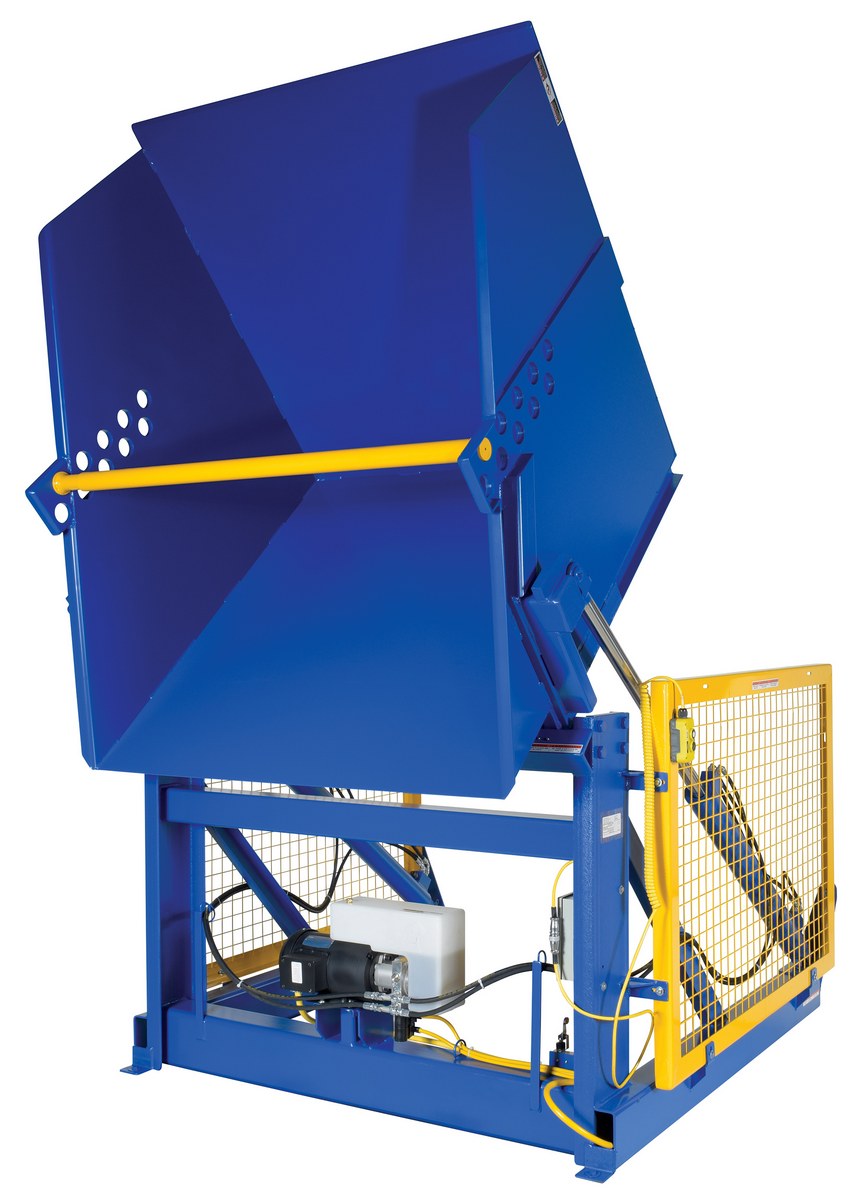

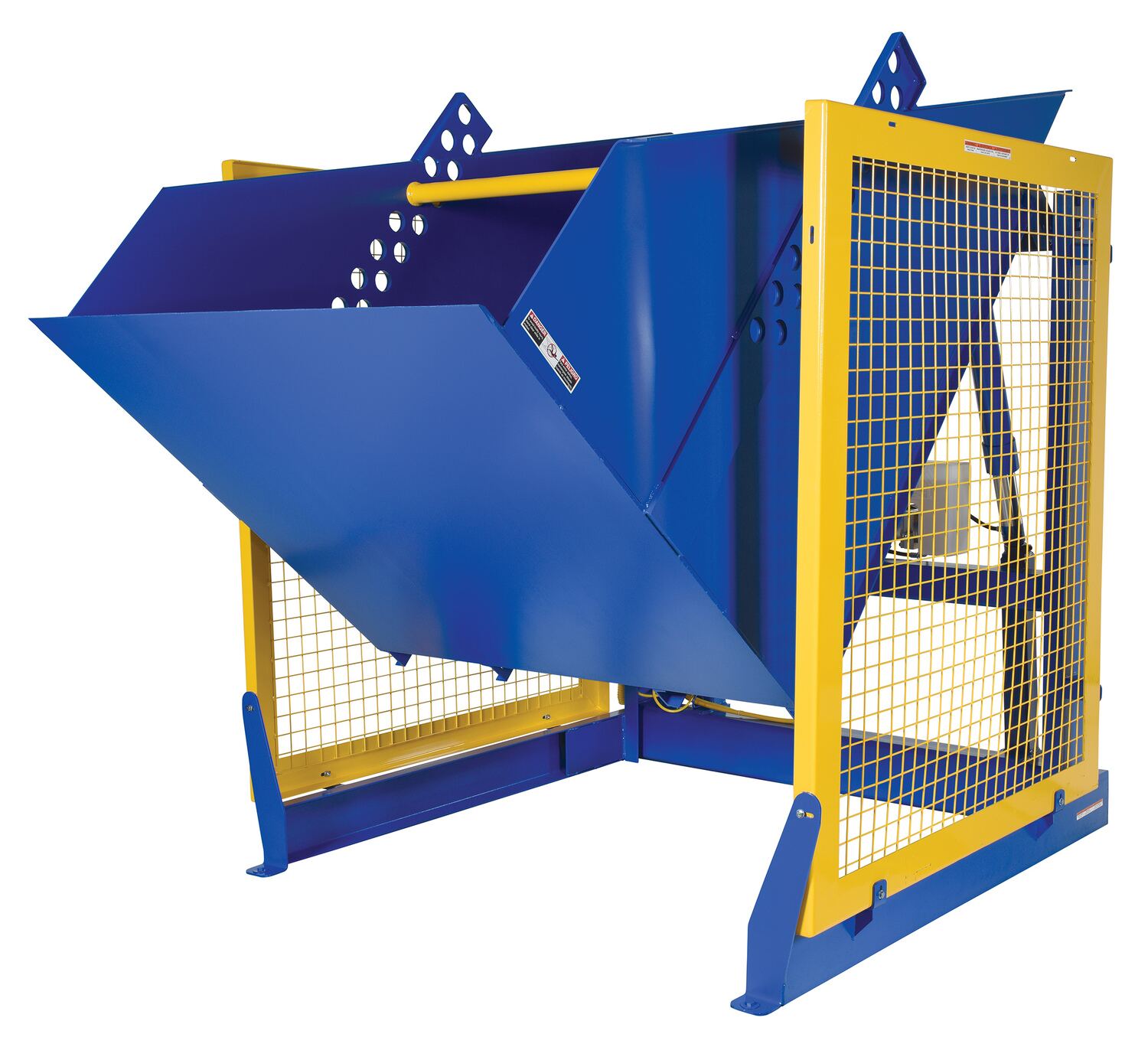

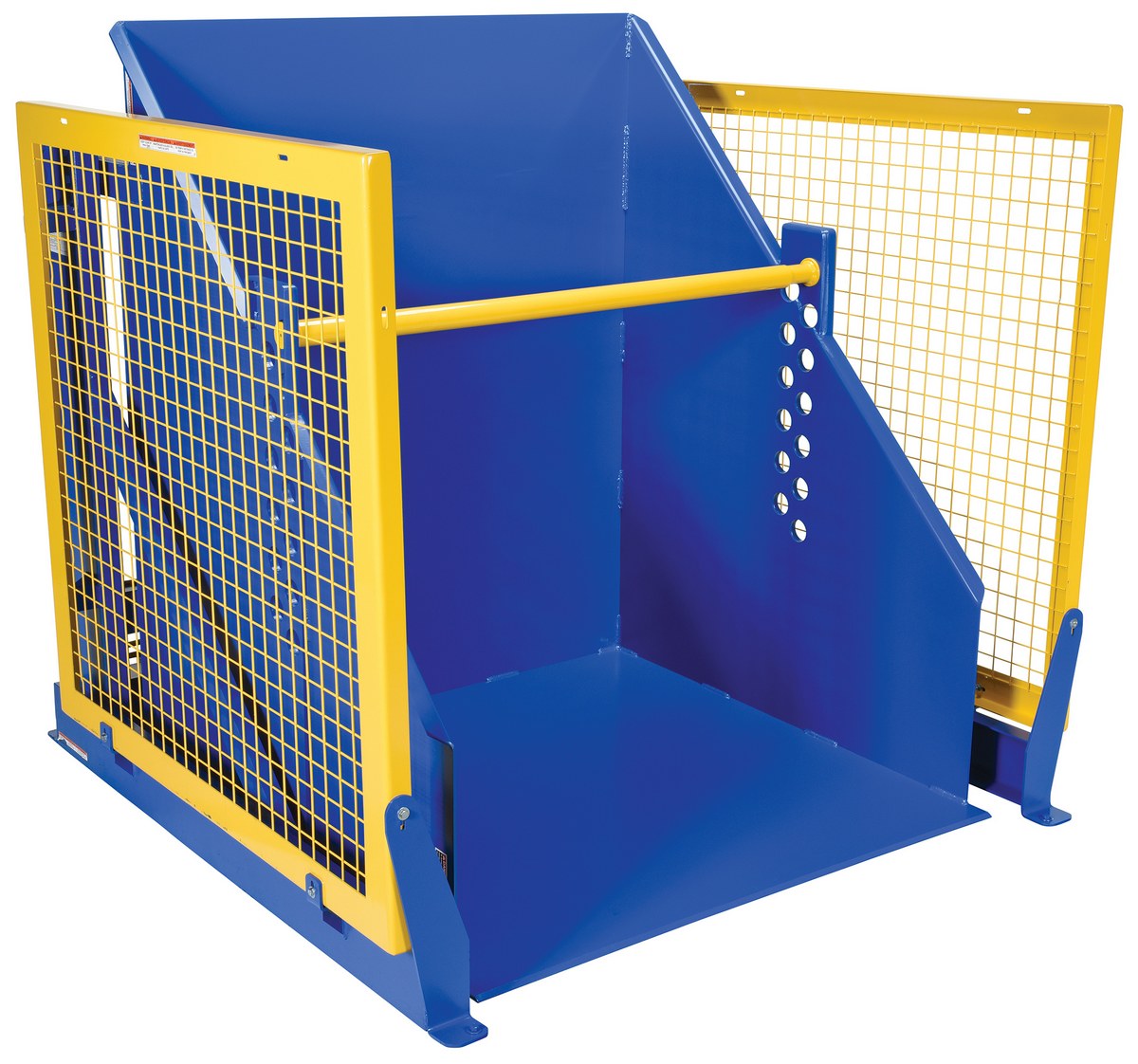

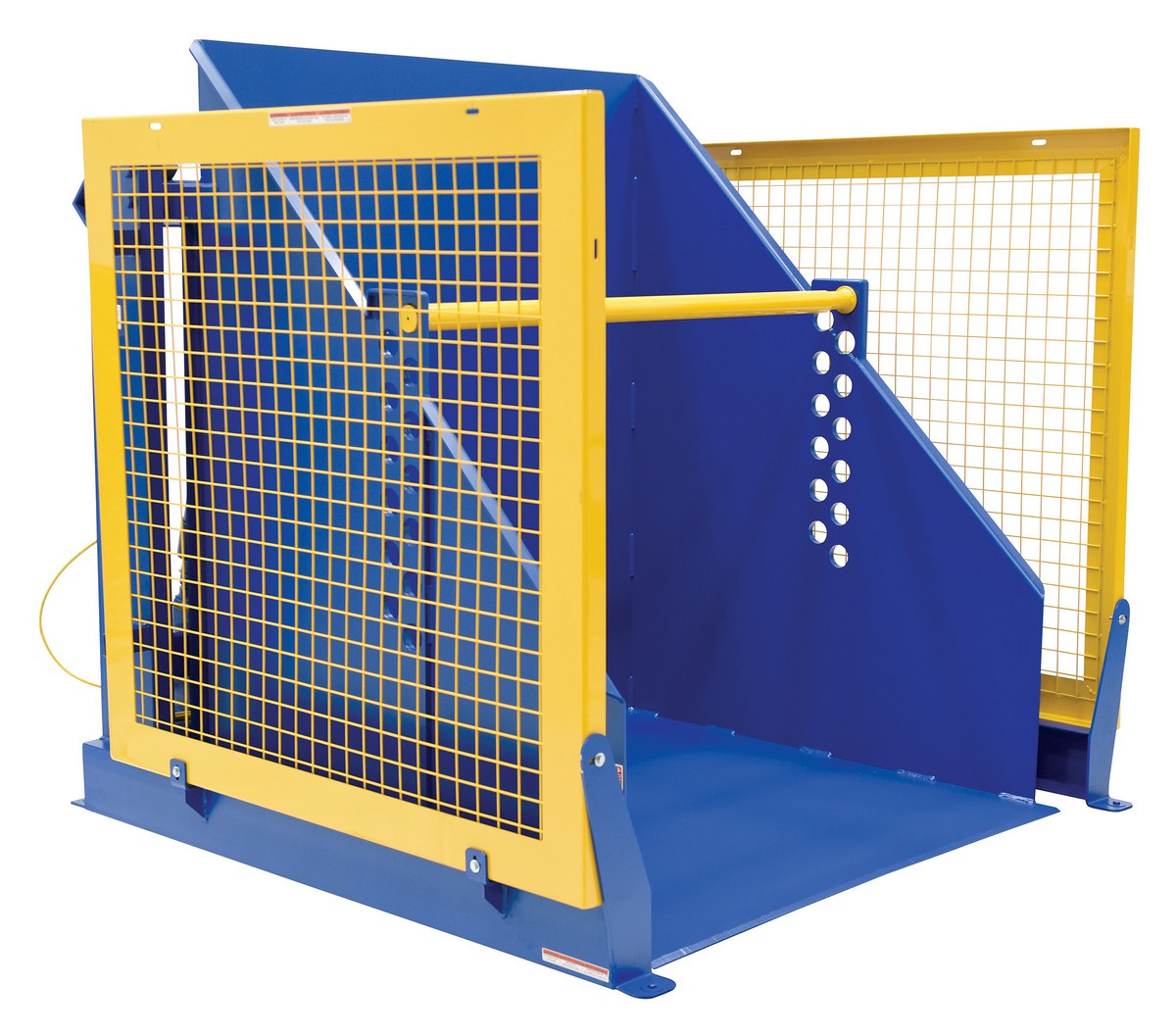

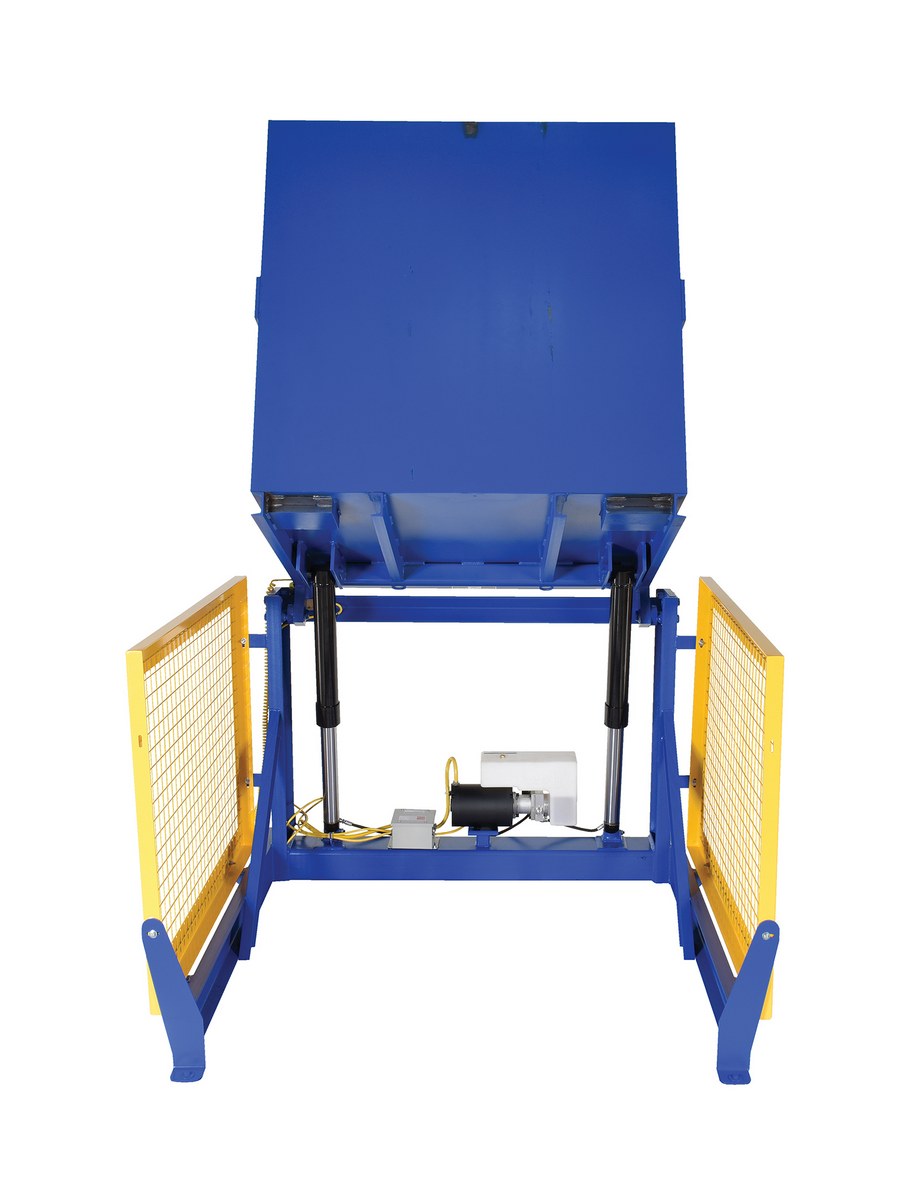

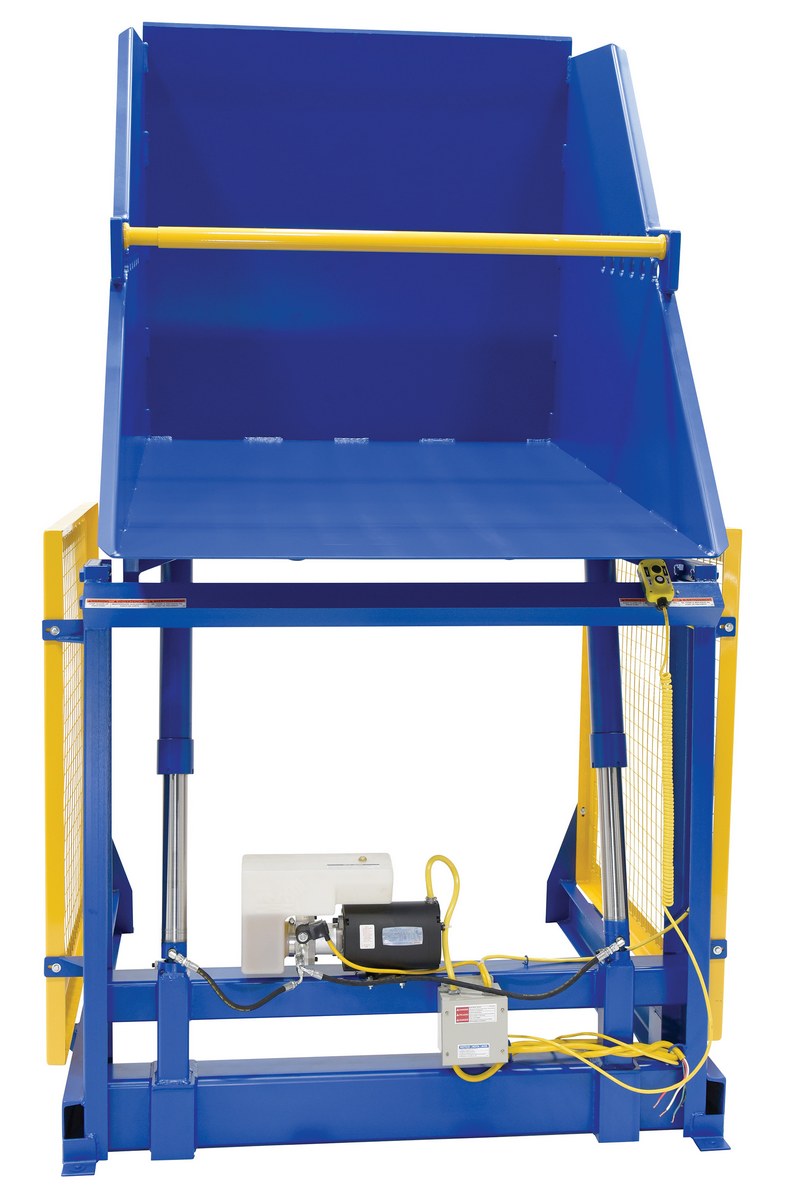

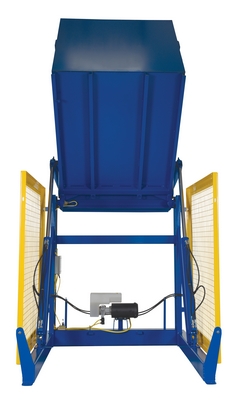

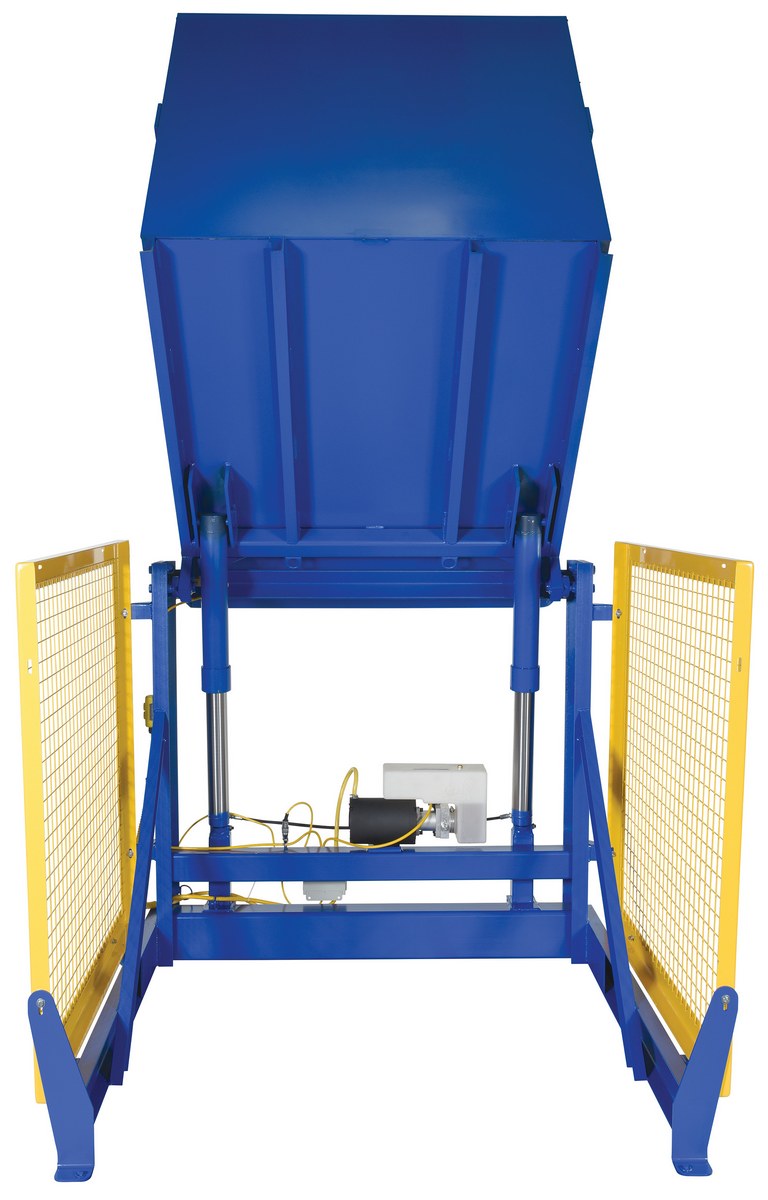

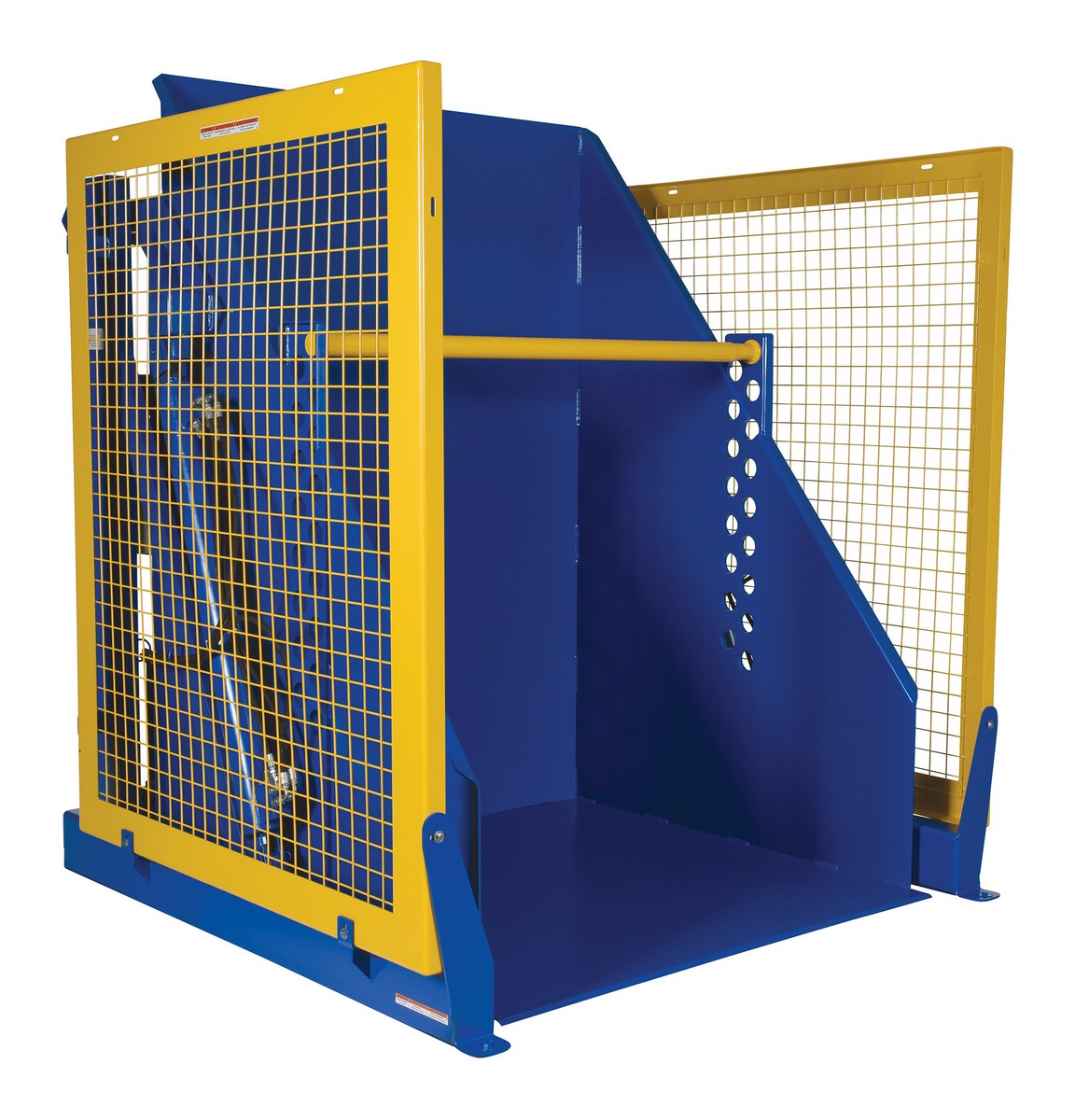

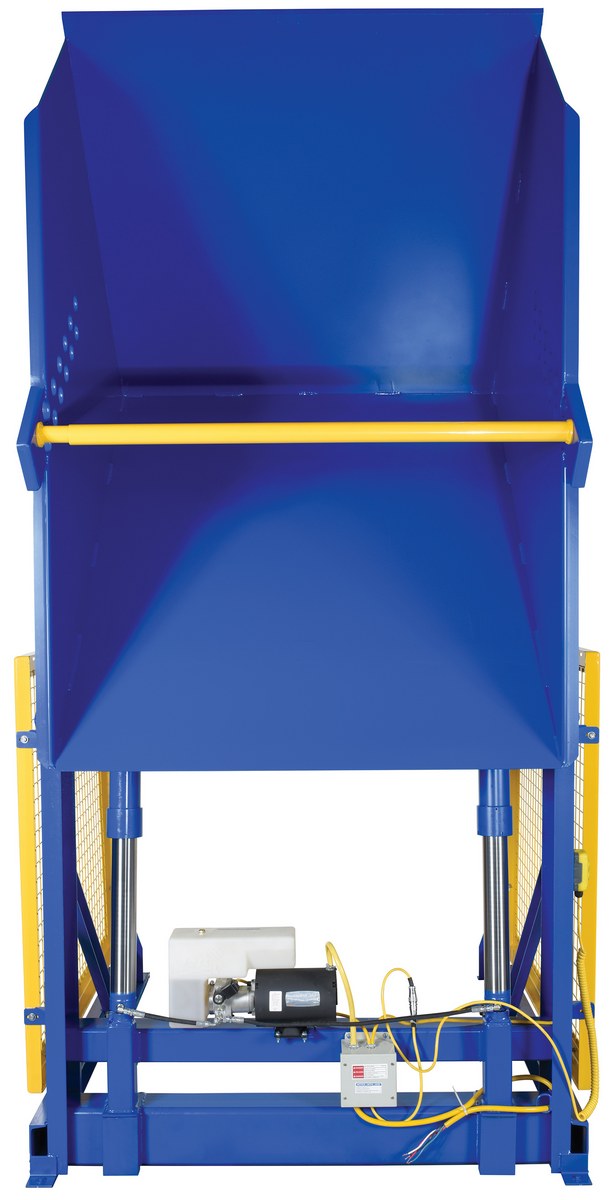

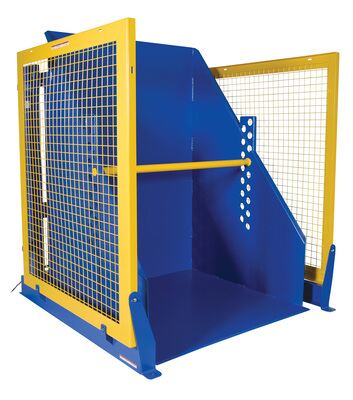

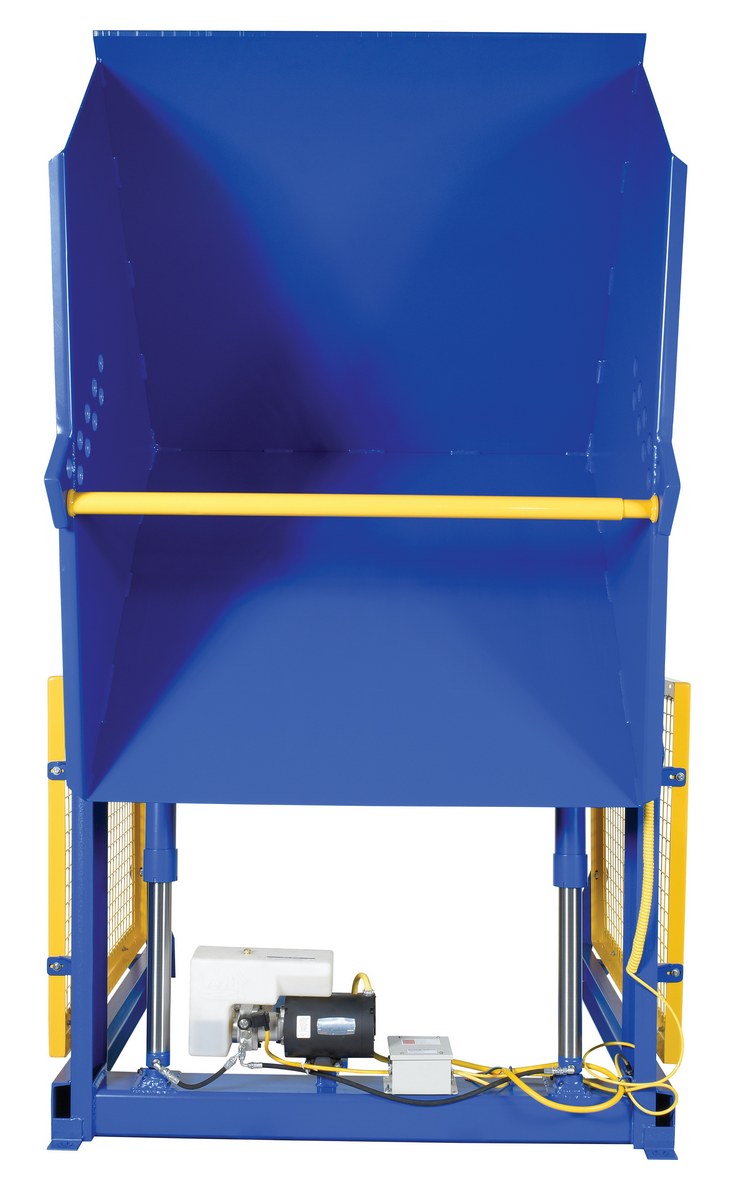

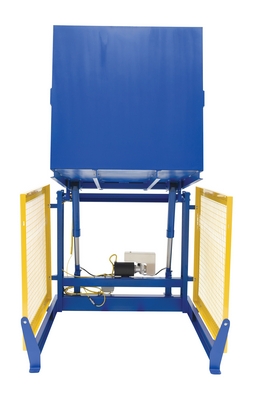

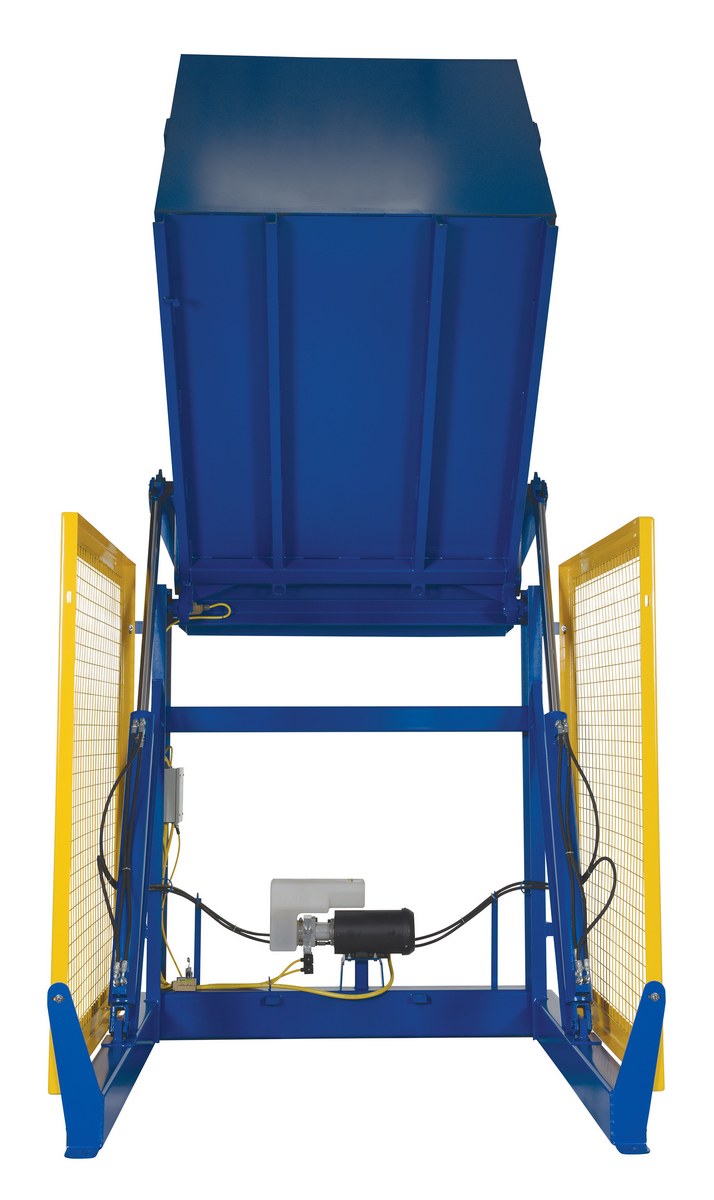

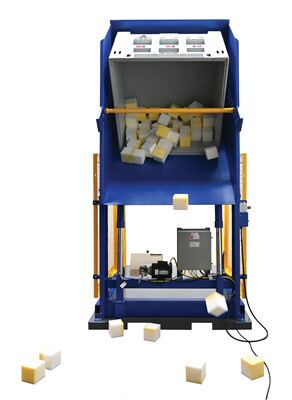

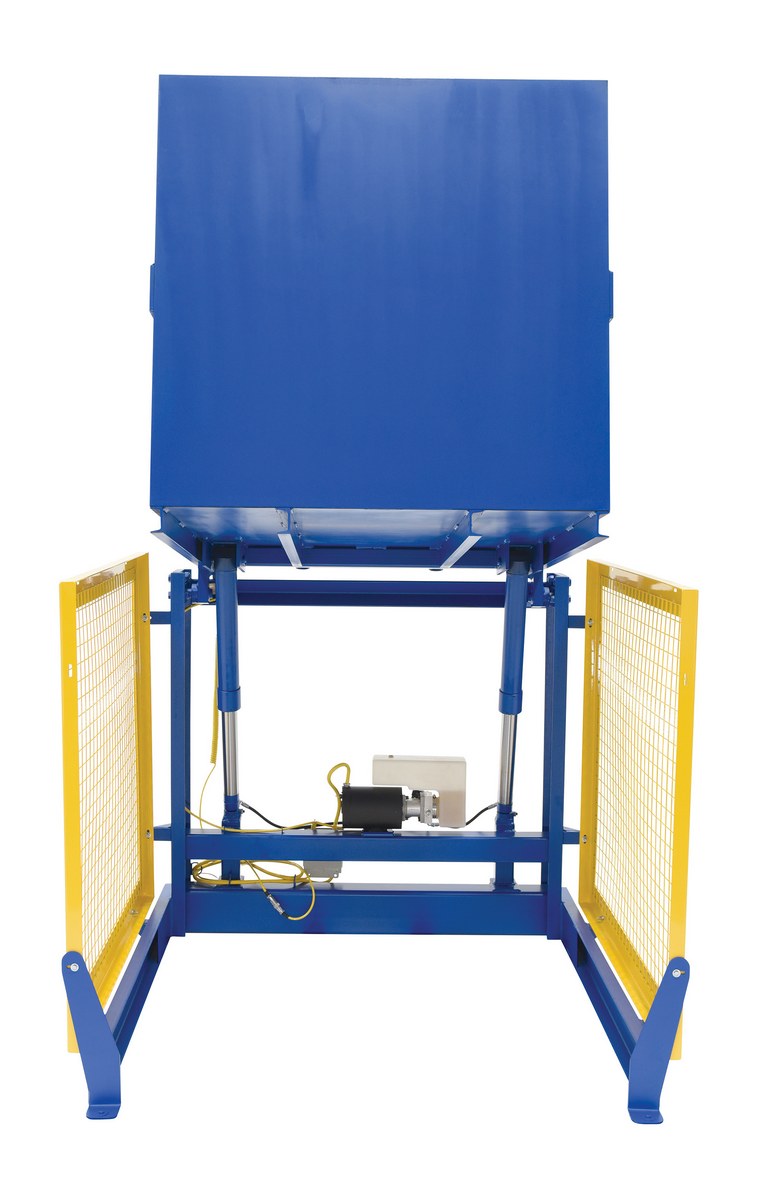

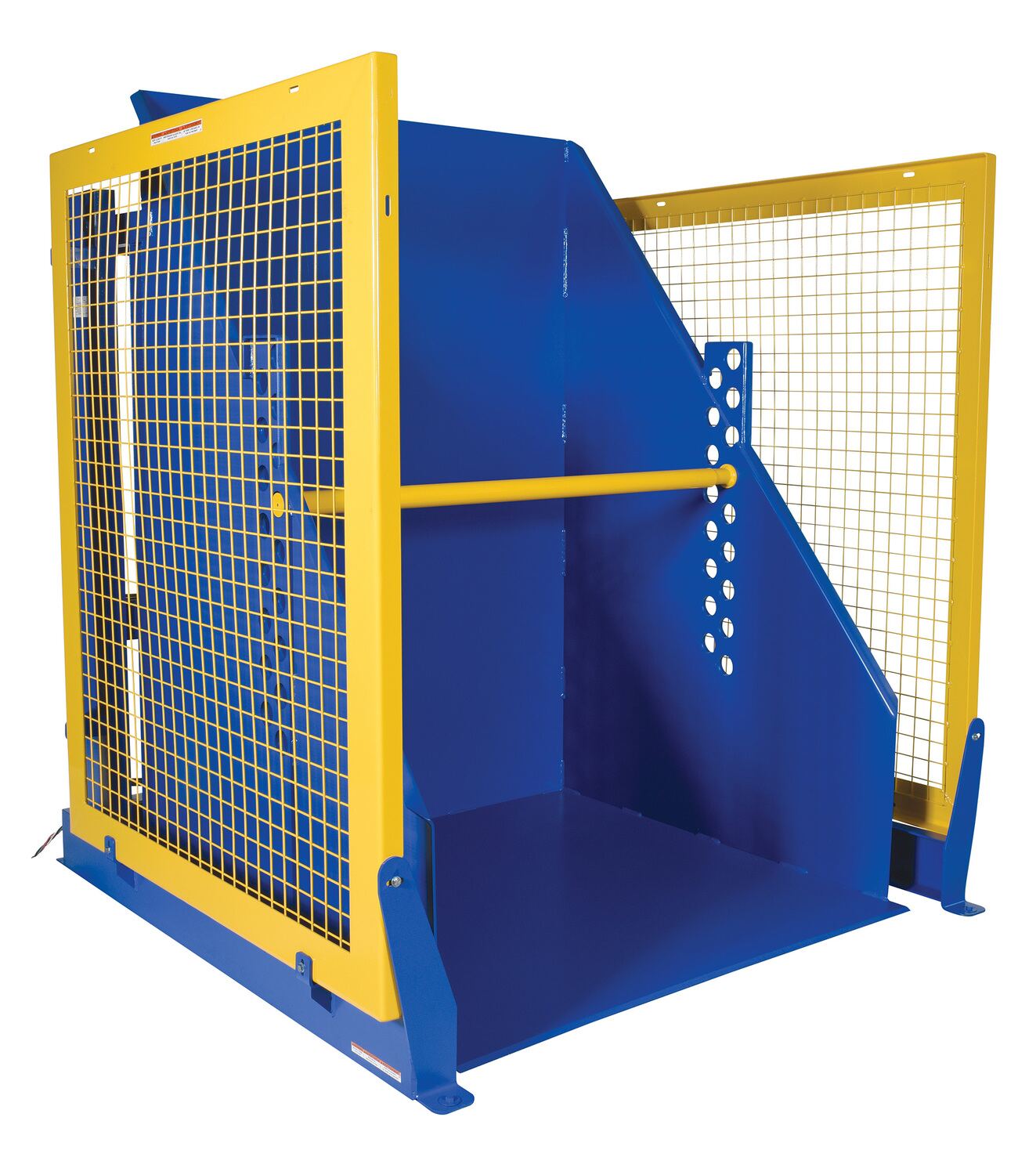

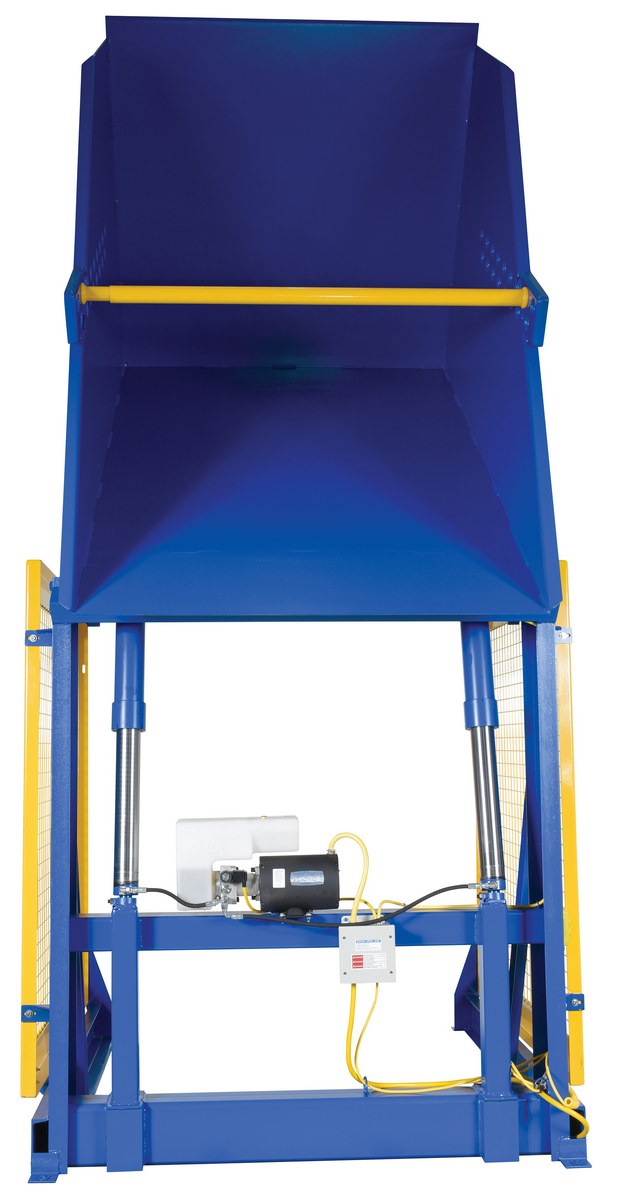

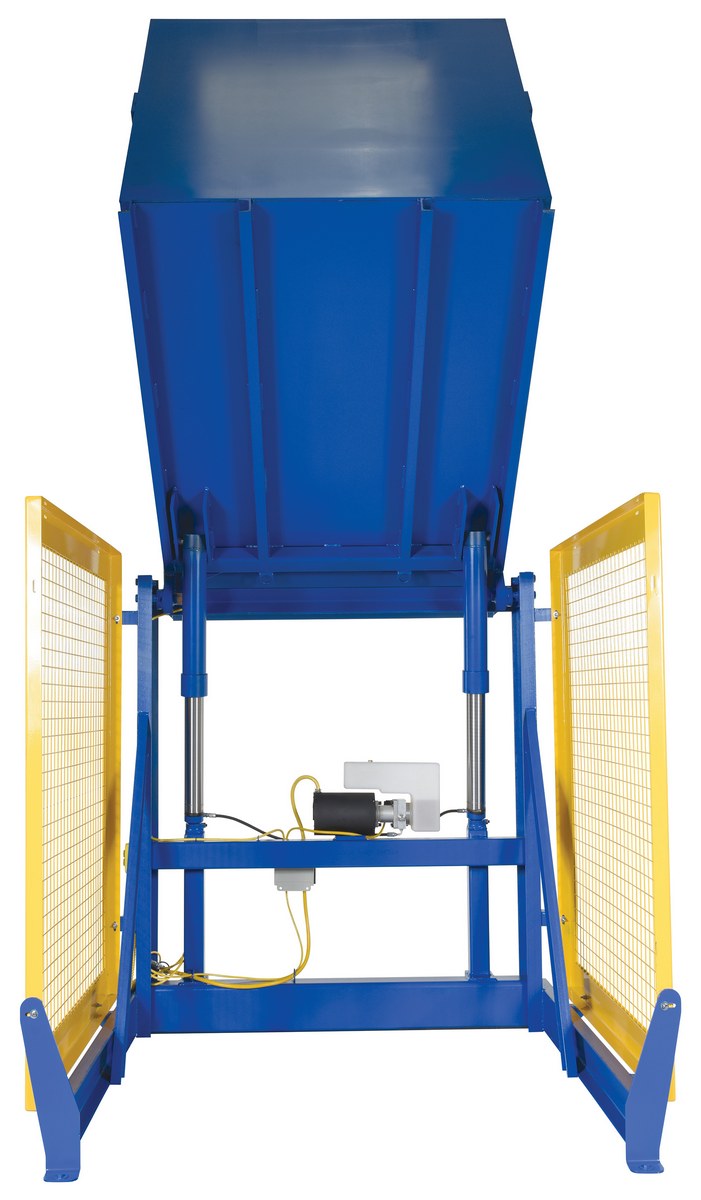

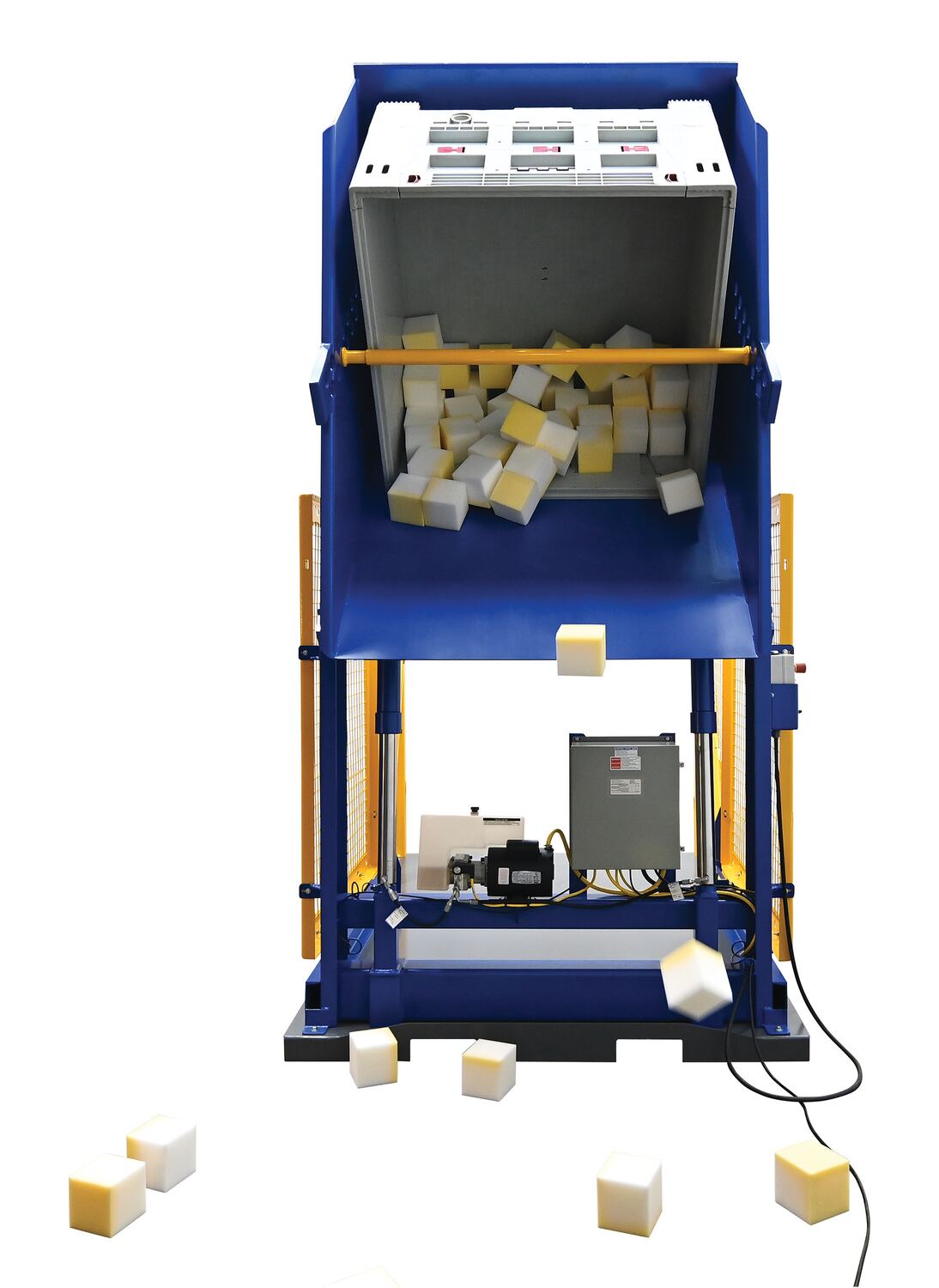

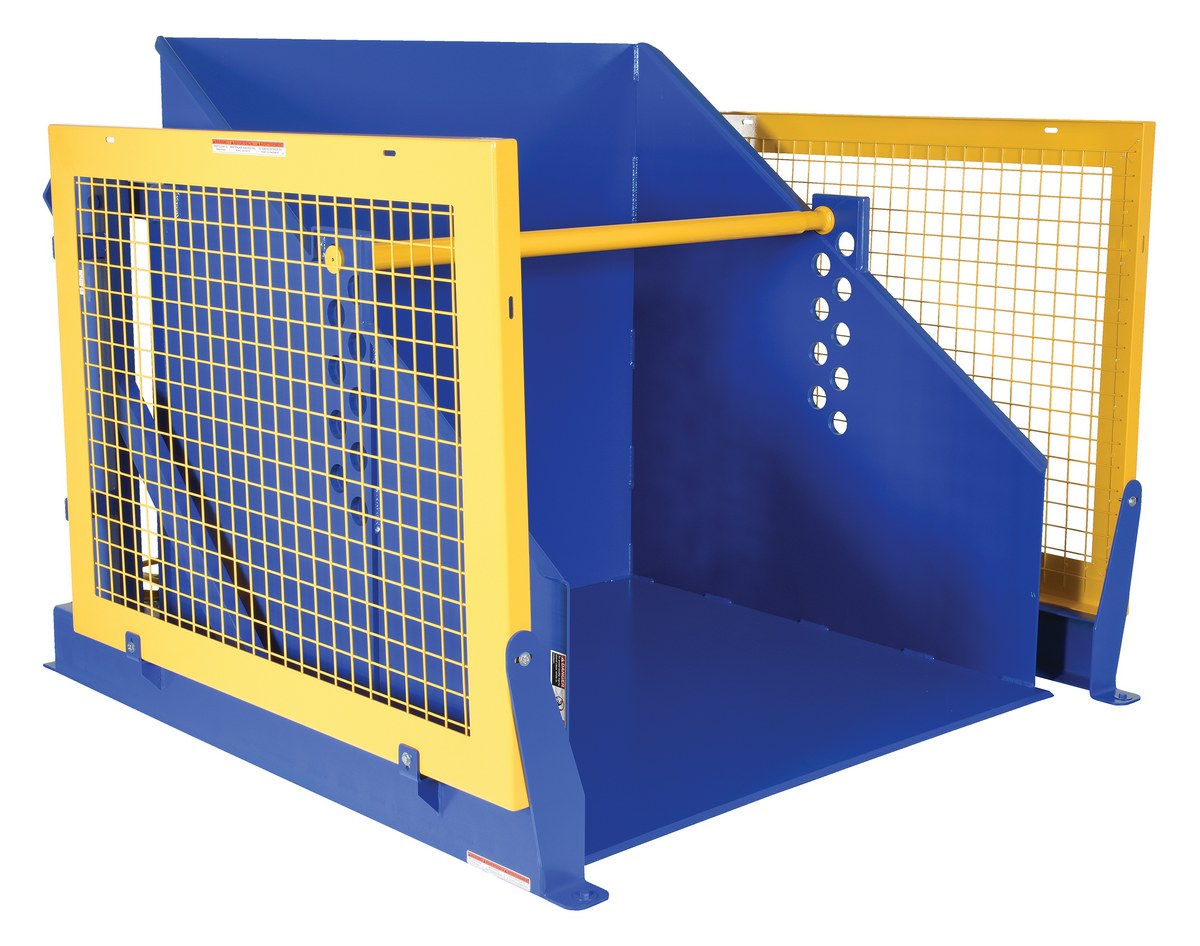

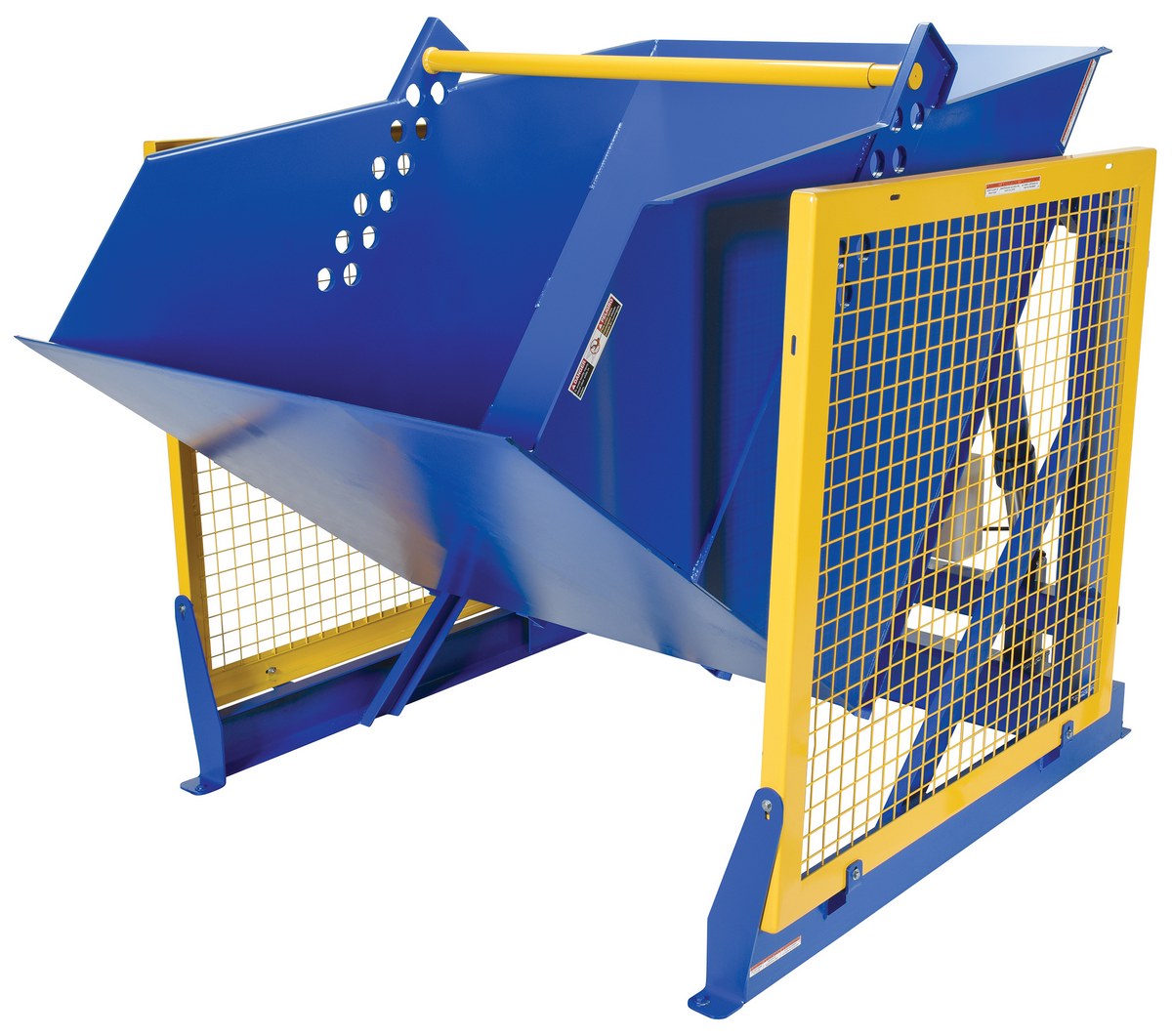

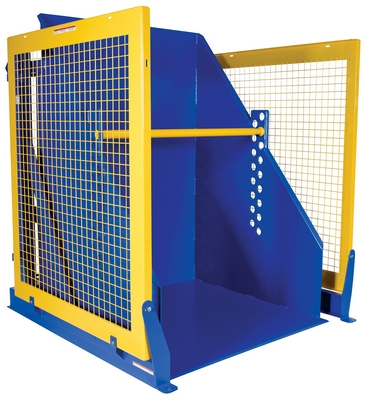

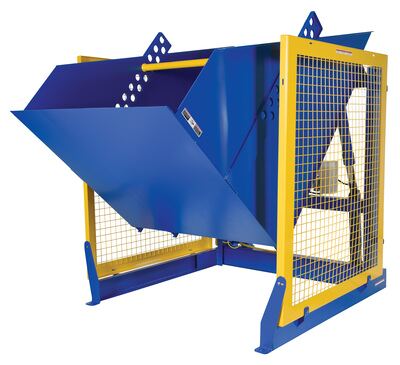

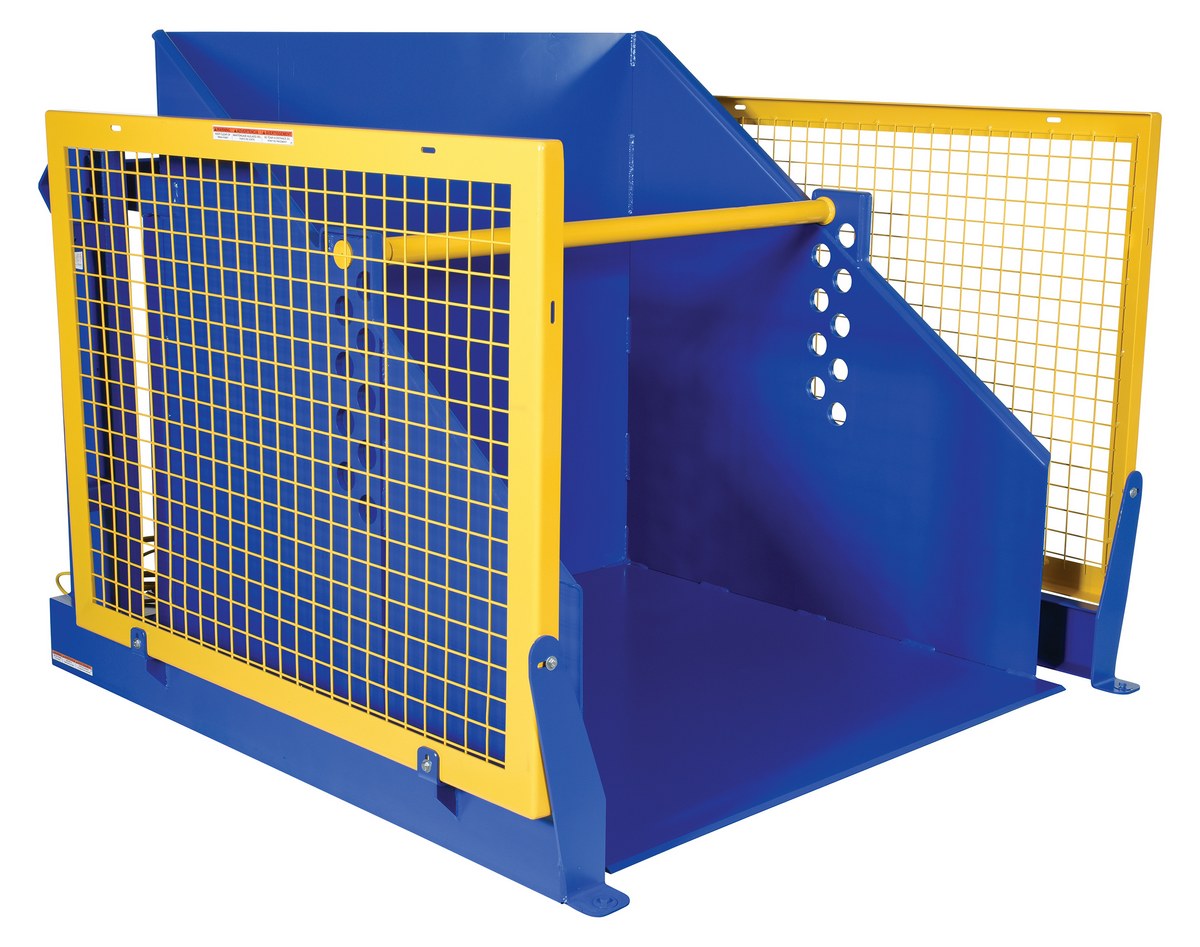

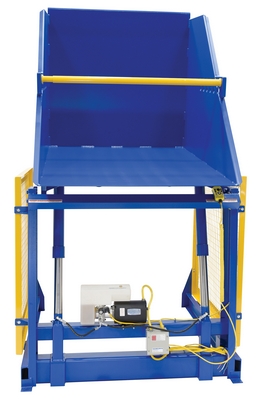

HYDRAULIC BASKET/BOX DUMPER

The next generation of dumpers to revolutionize the industry.

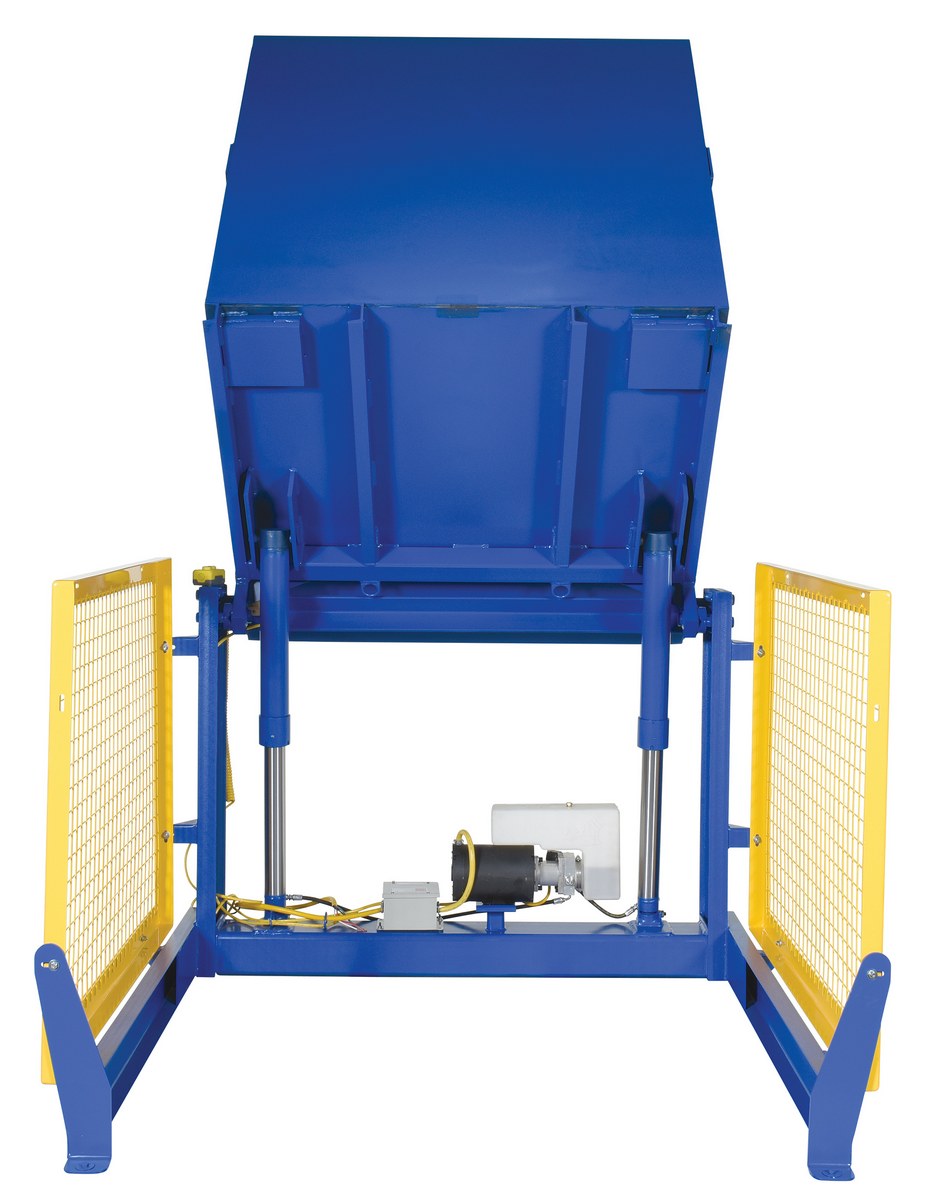

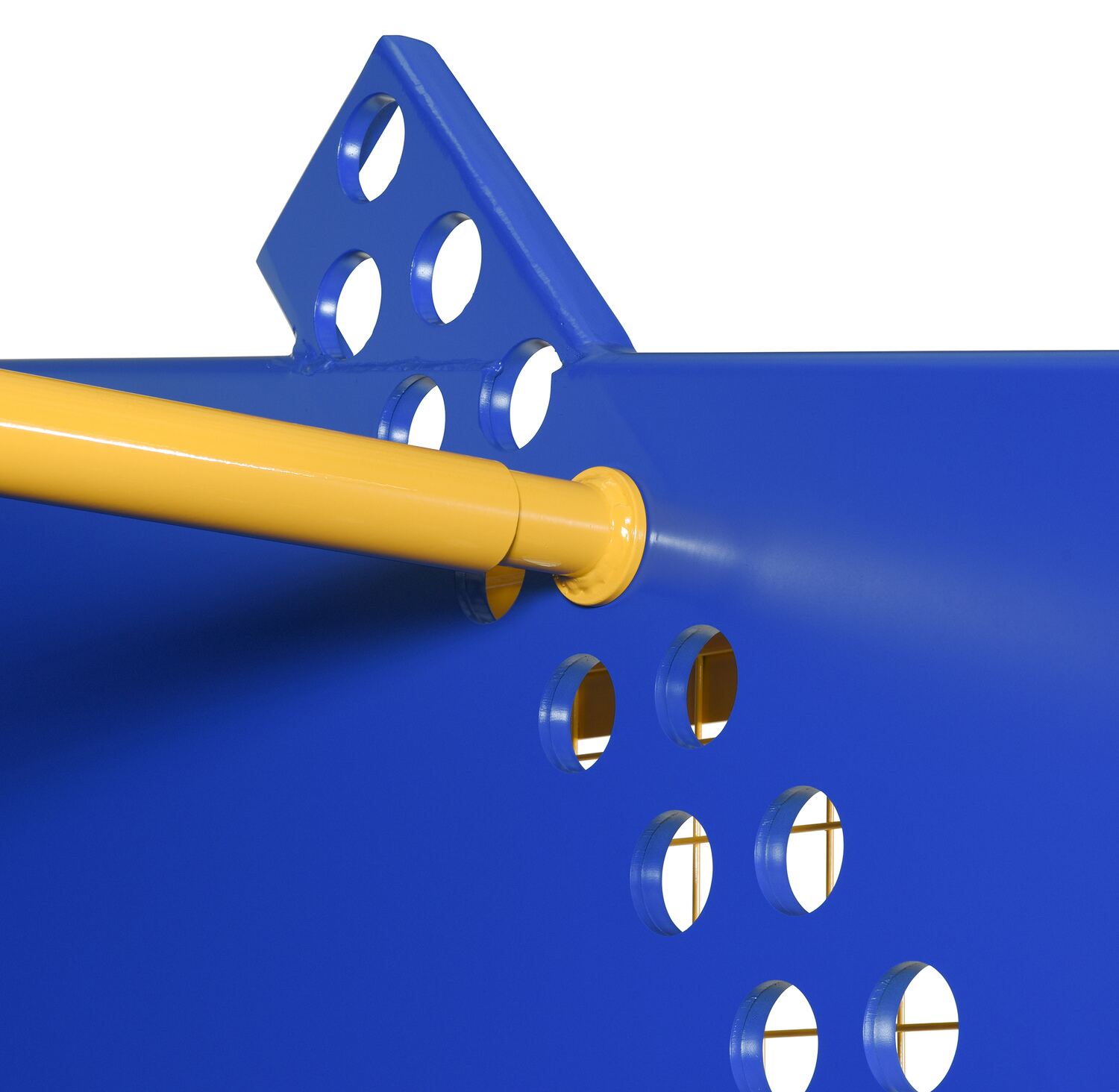

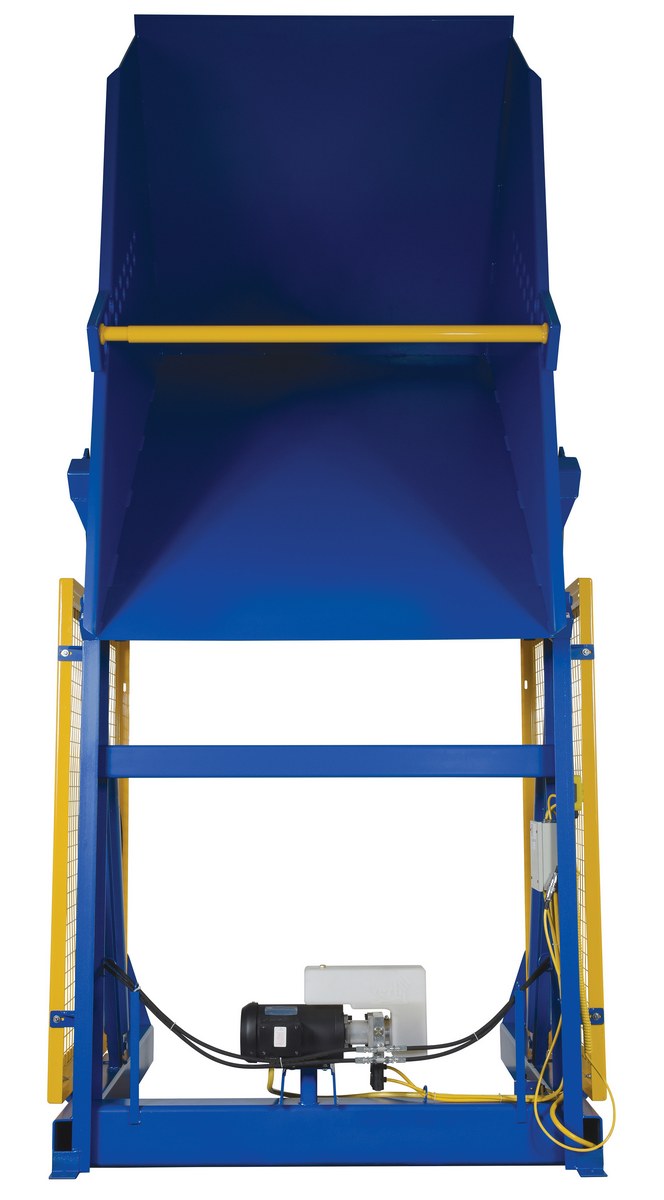

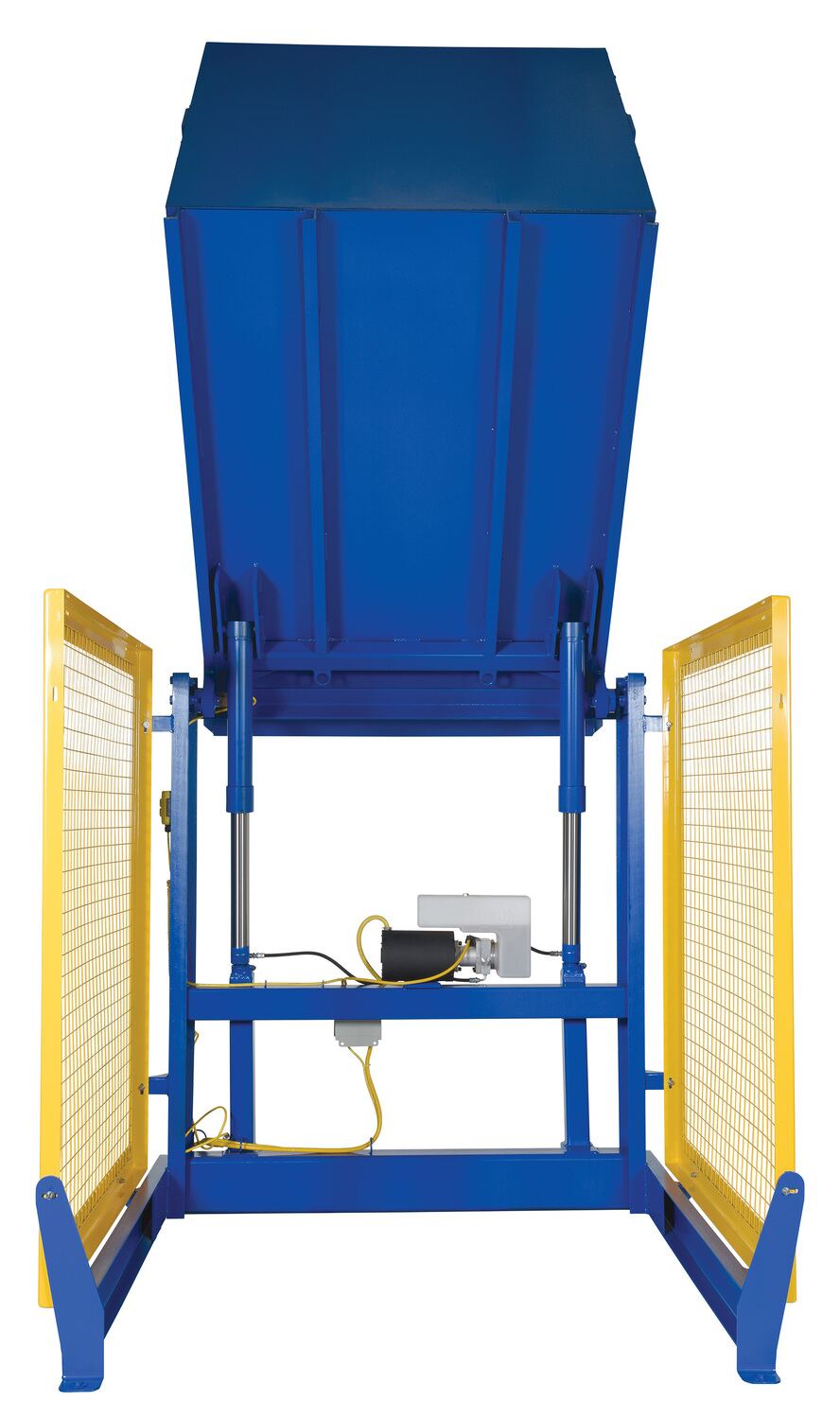

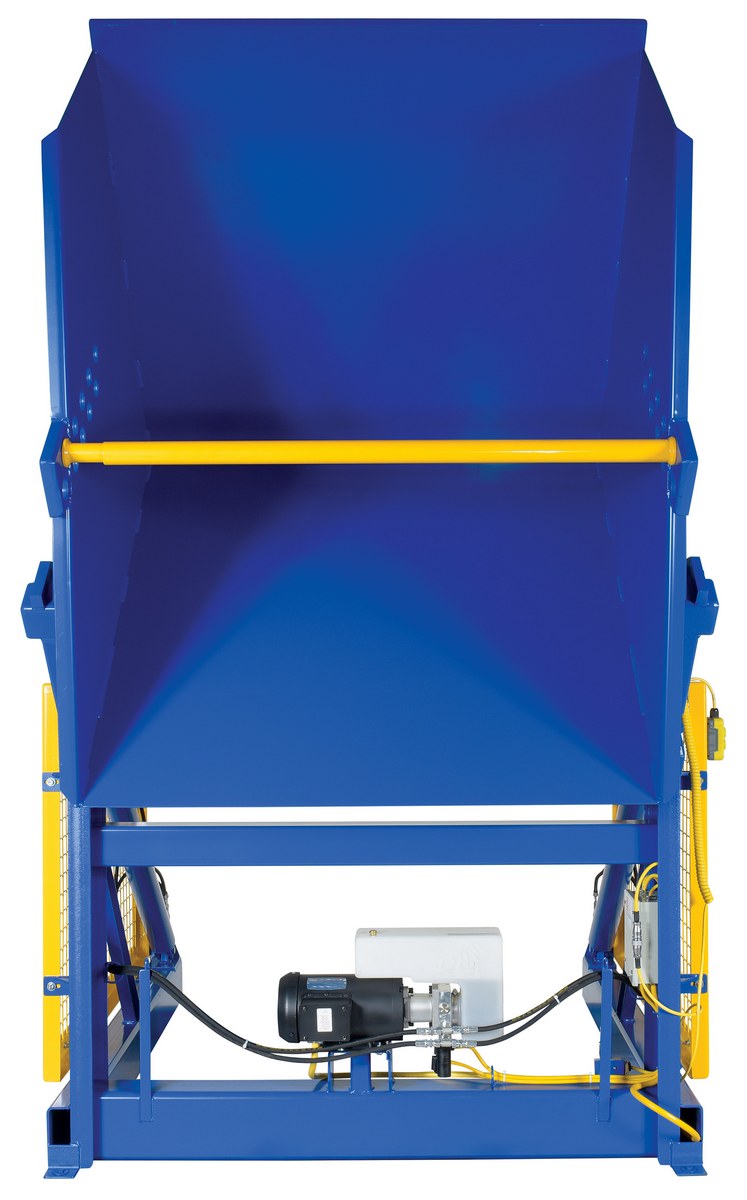

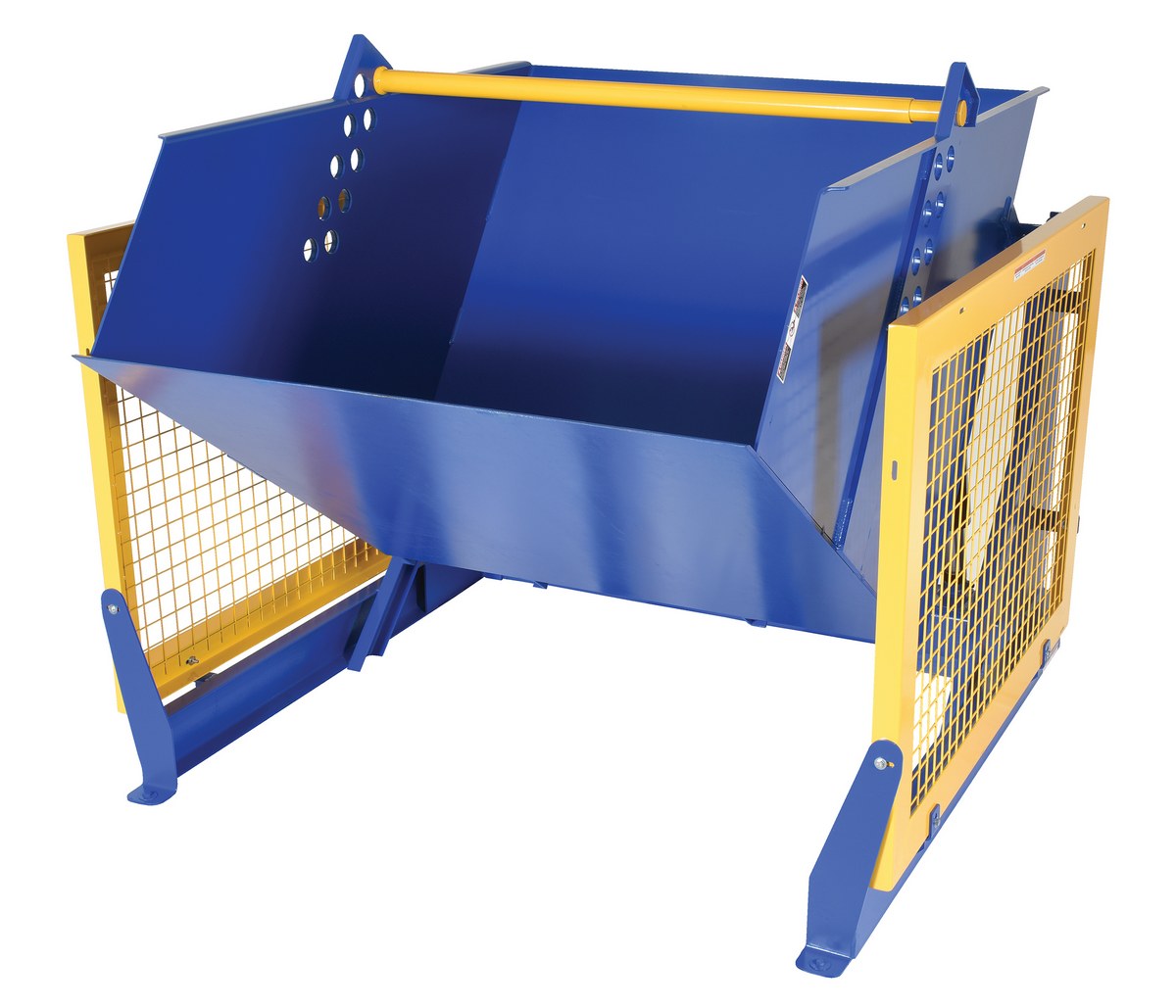

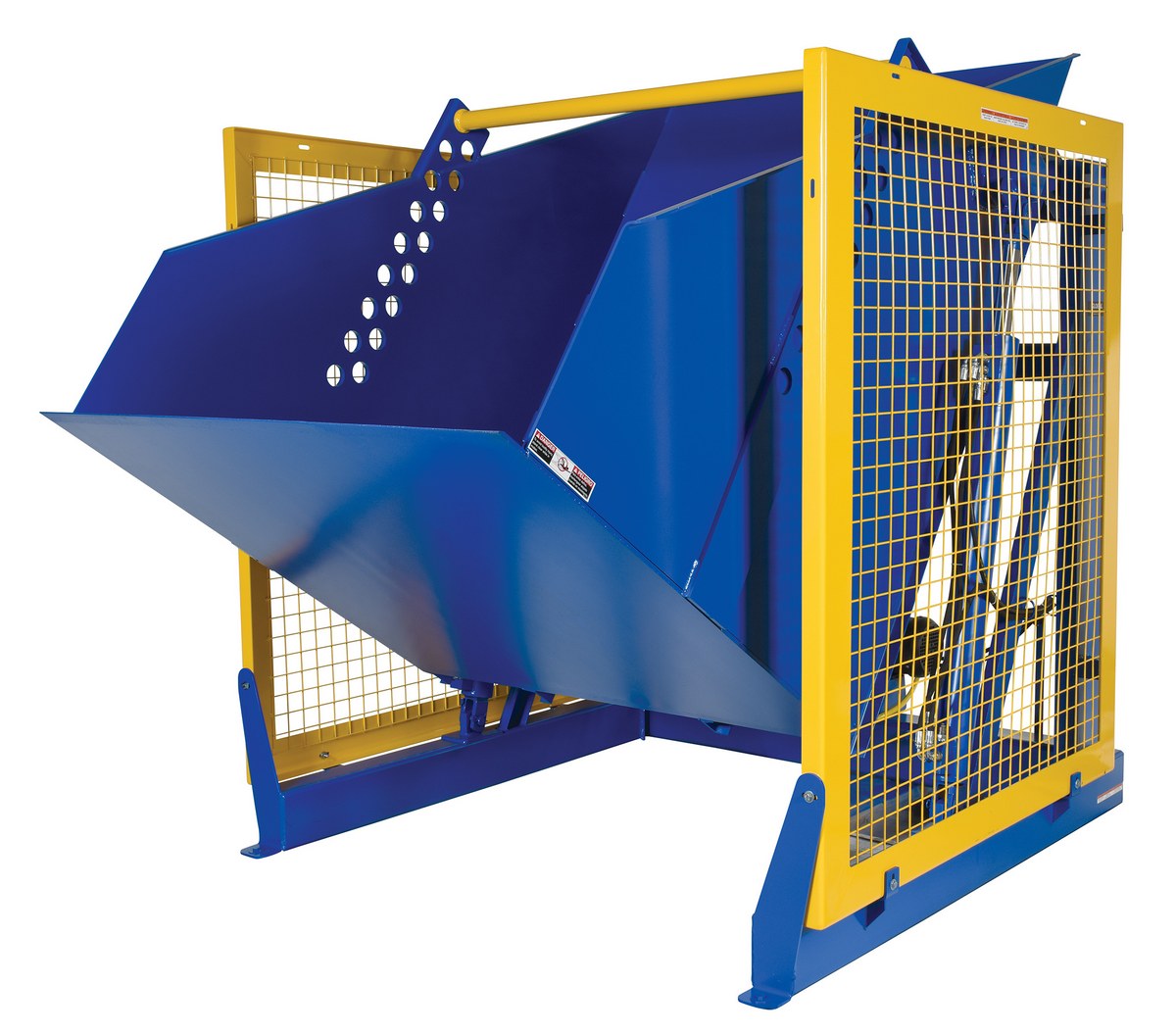

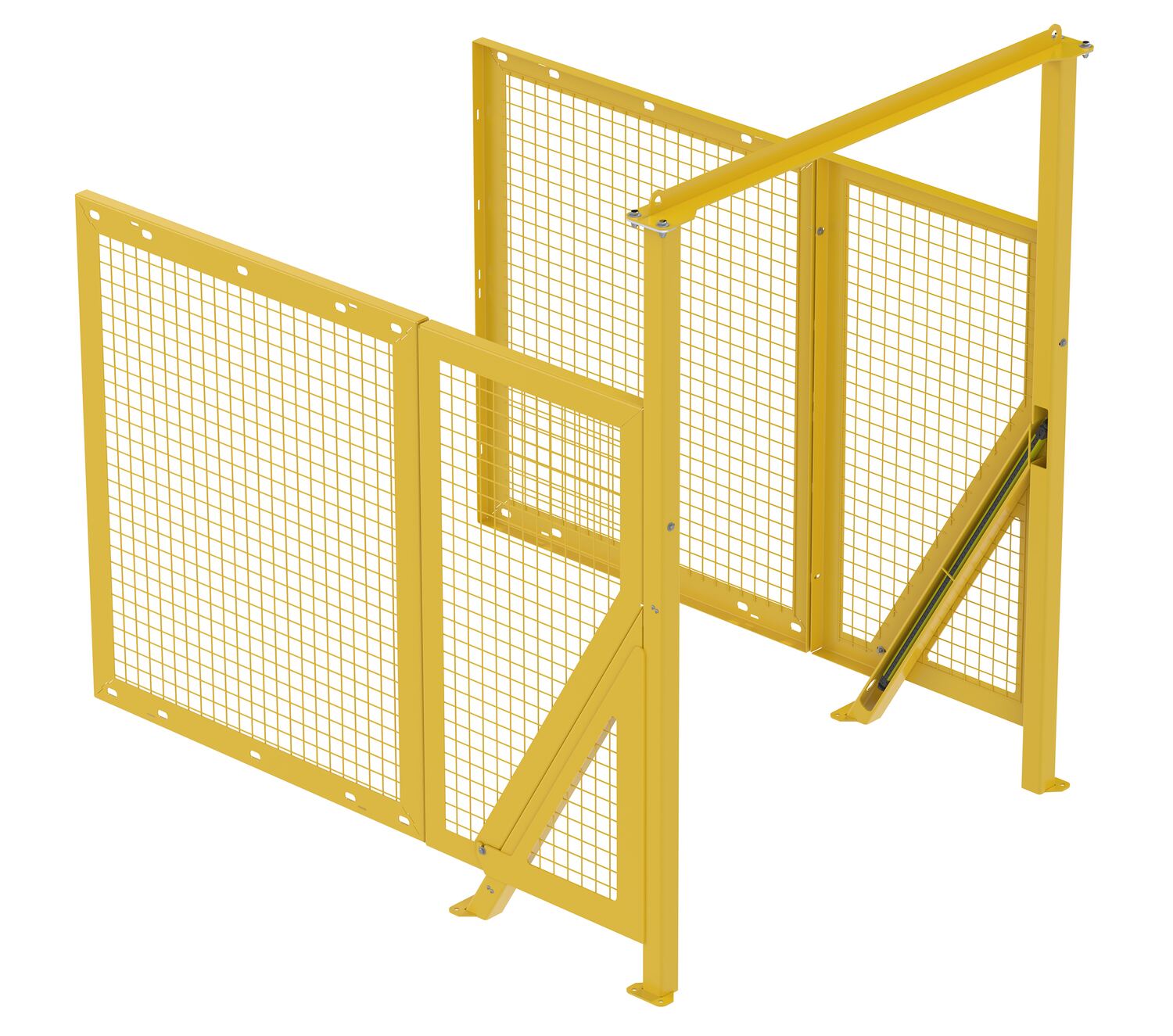

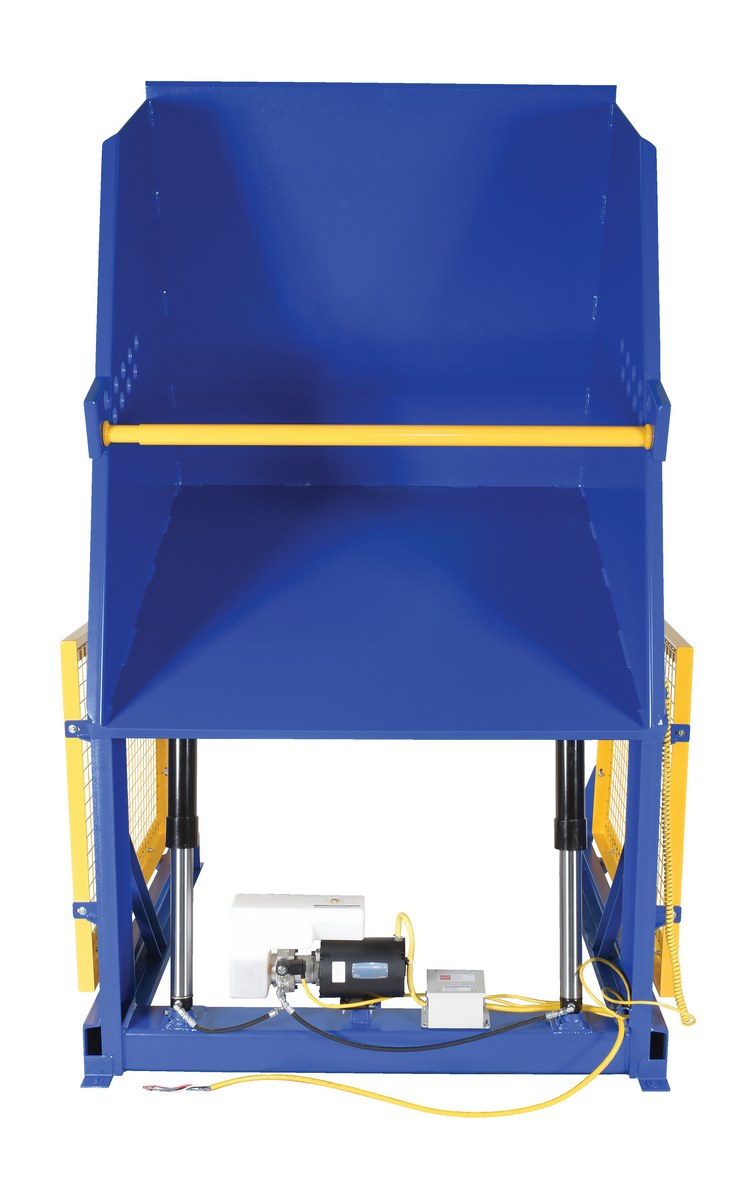

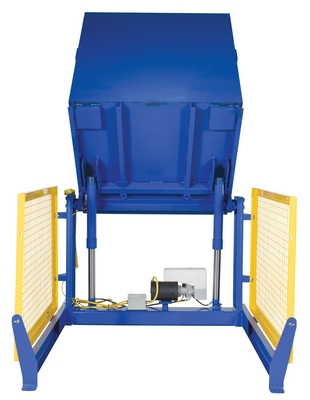

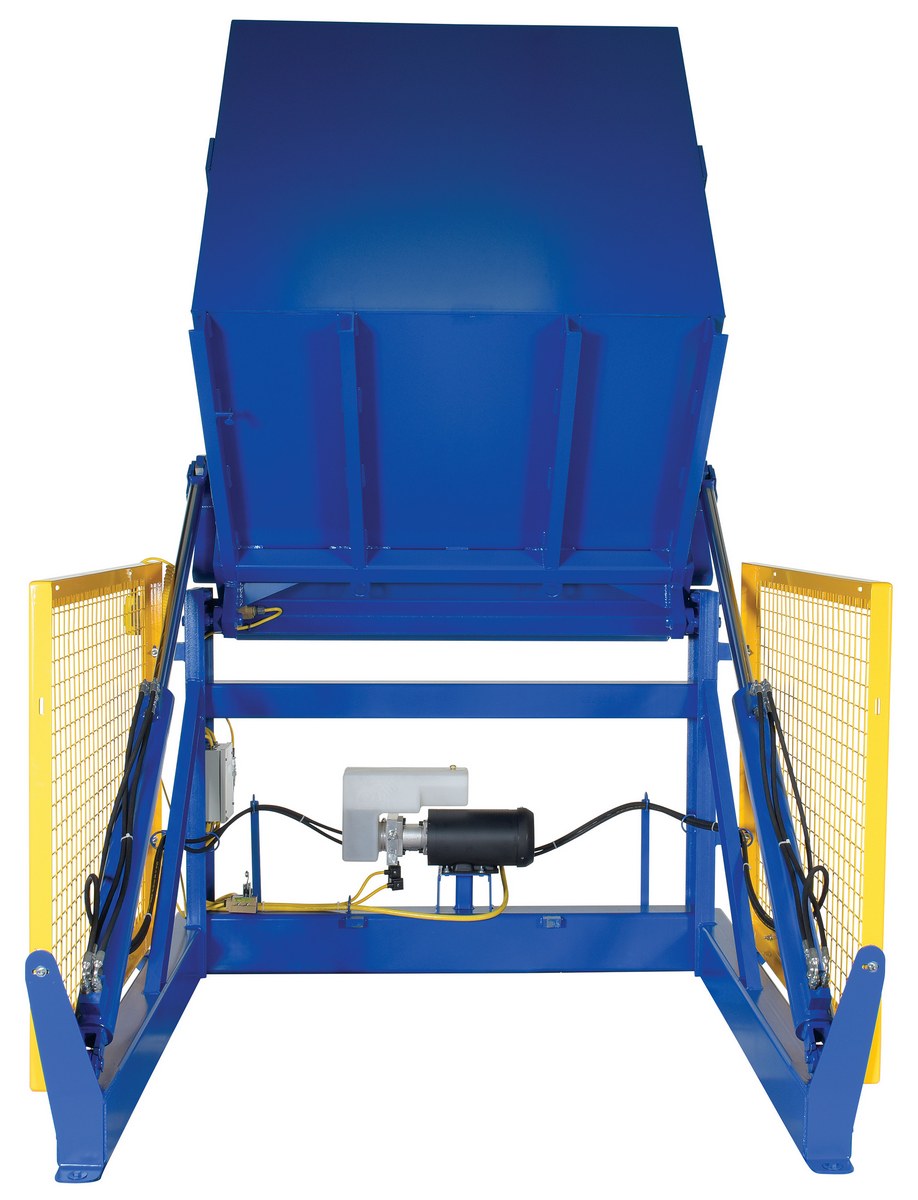

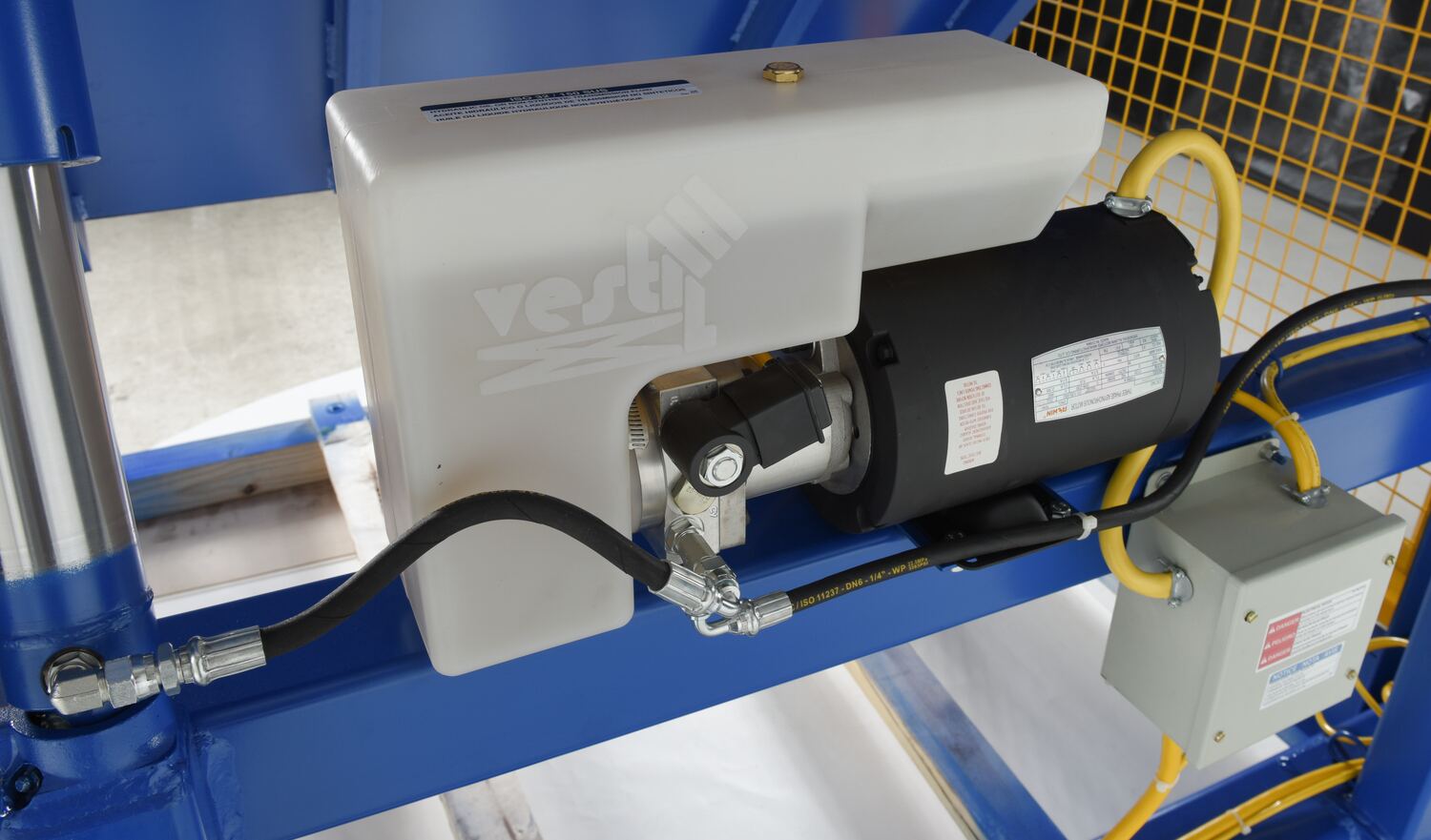

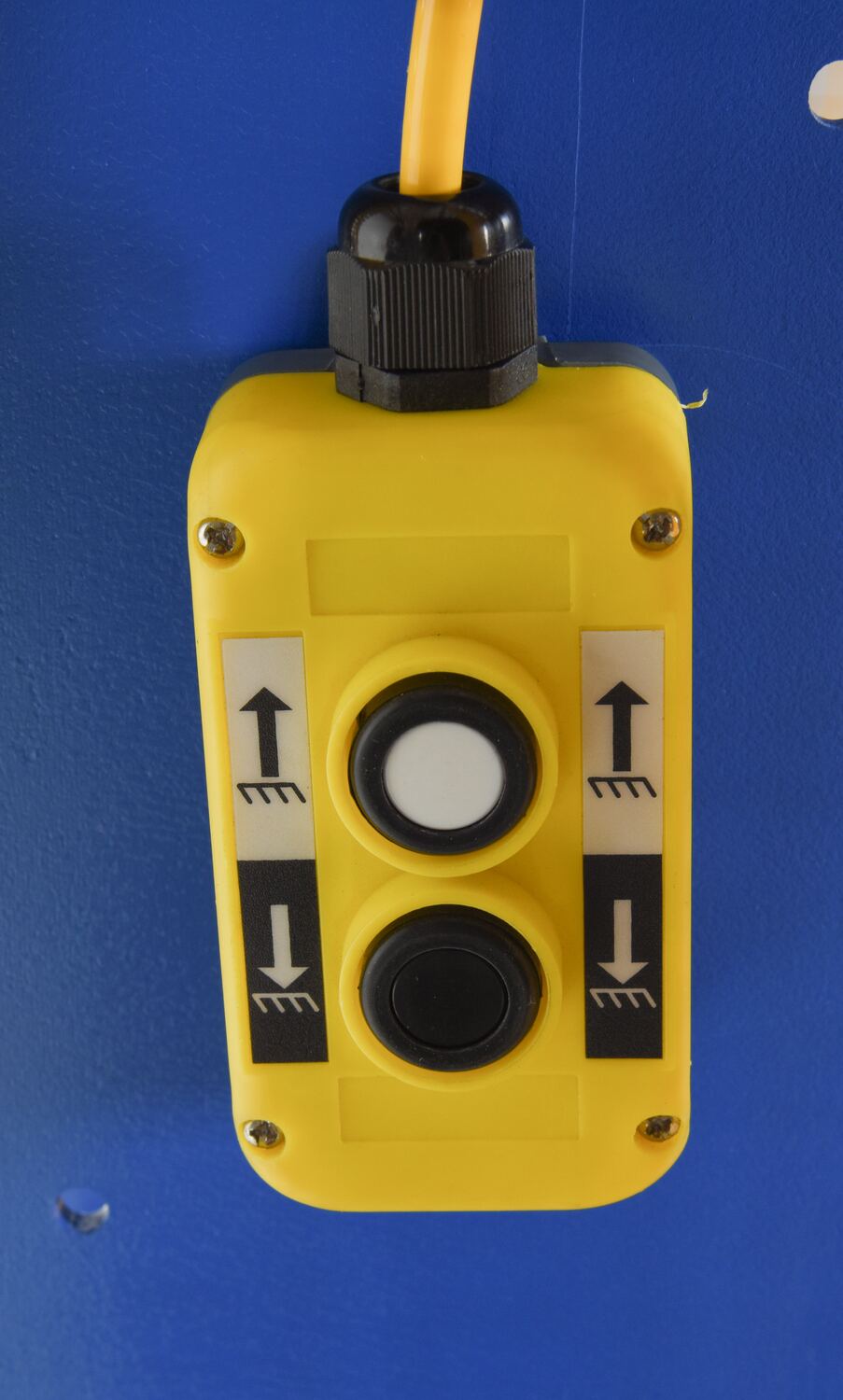

This ultimate dumper has advanced features from solid all welded steel construction to the Emergency Brass Velocity fuse in the cylinder. Main components include a 24V hand held pendant control, 56 frame motor, upper travel limit switch to reduce wear on the components. Safety features include: side rail guards, floor hold down brackets, adjustable hold down bar, 3,000 psi hydraulic component rating, integrated brass velocity fuse mounted inside the cylinder. Maximum rotation is 135°, yielding a 45° dump angle. Painted Royal Blue. FOB Shipping Point.

Other voltage options available, contact us for details.

Most standard items by Vestil Manufacturing, are in stock and ready for immediate shipment.

Custom orders are our specialty and fabrication services are available on most items.

Dump Hoppers





'HYDRAULIC BASKET/BOX DUMPER'
Product No. Cap. (lbs.) Dump
Height		 Reach Level
Height		 Usable Chute
W x L		 Rotated
Height		 price Quantity
HHBD-2-48 2000 48" 10" 65" 52 x 50" 129-1/2" List Price: $7688.92
TODAY: $6054.27 		Add to cart
HHBD-2-60 2000 60" 10" 77" 52 x 50" 149-1/2" List Price: $8294.29
TODAY: $6530.94 		Add to cart
HHBD-4-36 4000 36" 10" 53-1/2" 52 x 50" 111" List Price: $8336.92
TODAY: $6564.50 		Add to cart
HHBD-6-48 6000 48" 10" 66" 52 x 50" 129-1/2" List Price: $8997.54
TODAY: $7084.68 		Add to cart
HHBD-6-60 6000 60" 10" 77" 52 x 50" 149-1/2" List Price: $9642.04
TODAY: $7592.16 		Add to cart
HHBD-2-36 2000 36" 10" 53-1/2" 52 x 50" 111" List Price: $6759.87
TODAY: $5322.73 		Add to cart
HHBD-4-48 4000 48" 10" 65" 52 x 50" 129-1/2" List Price: $8600.08
TODAY: $6771.72 		Add to cart
HHBD-4-60 4000 60" 10" 77" 52 x 50" 149-1/2" List Price: $9176.16
TODAY: $7225.32 		Add to cart
HHBD-6-36 6000 36" 10" 53-1/2" 52 x 50" 111" List Price: $8774.37
TODAY: $6908.95 		Add to cart
'HYDRAULIC BASKET/BOX DUMPER'
Product No.: HHBD-2-48
  • Cap. (lbs.): 2000
  • Dump Height: 48"
  • Reach: 10"
  • Level Height: 65"
  • Usable Chute W x L: 52 x 50"
TODAY: $6054.27
Product No.: HHBD-2-60
  • Cap. (lbs.): 2000
  • Dump Height: 60"
  • Reach: 10"
  • Level Height: 77"
  • Usable Chute W x L: 52 x 50"
TODAY: $6530.94
Product No.: HHBD-4-36
  • Cap. (lbs.): 4000
  • Dump Height: 36"
  • Reach: 10"
  • Level Height: 53-1/2"
  • Usable Chute W x L: 52 x 50"
TODAY: $6564.50
Product No.: HHBD-6-48
  • Cap. (lbs.): 6000
  • Dump Height: 48"
  • Reach: 10"
  • Level Height: 66"
  • Usable Chute W x L: 52 x 50"
TODAY: $7084.68
Product No.: HHBD-6-60
  • Cap. (lbs.): 6000
  • Dump Height: 60"
  • Reach: 10"
  • Level Height: 77"
  • Usable Chute W x L: 52 x 50"
TODAY: $7592.16
Product No.: HHBD-2-36
  • Cap. (lbs.): 2000
  • Dump Height: 36"
  • Reach: 10"
  • Level Height: 53-1/2"
  • Usable Chute W x L: 52 x 50"
TODAY: $5322.73
Product No.: HHBD-4-48
  • Cap. (lbs.): 4000
  • Dump Height: 48"
  • Reach: 10"
  • Level Height: 65"
  • Usable Chute W x L: 52 x 50"
TODAY: $6771.72
Product No.: HHBD-4-60
  • Cap. (lbs.): 4000
  • Dump Height: 60"
  • Reach: 10"
  • Level Height: 77"
  • Usable Chute W x L: 52 x 50"
TODAY: $7225.32
Product No.: HHBD-6-36
  • Cap. (lbs.): 6000
  • Dump Height: 36"
  • Reach: 10"
  • Level Height: 53-1/2"
  • Usable Chute W x L: 52 x 50"
TODAY: $6908.95
