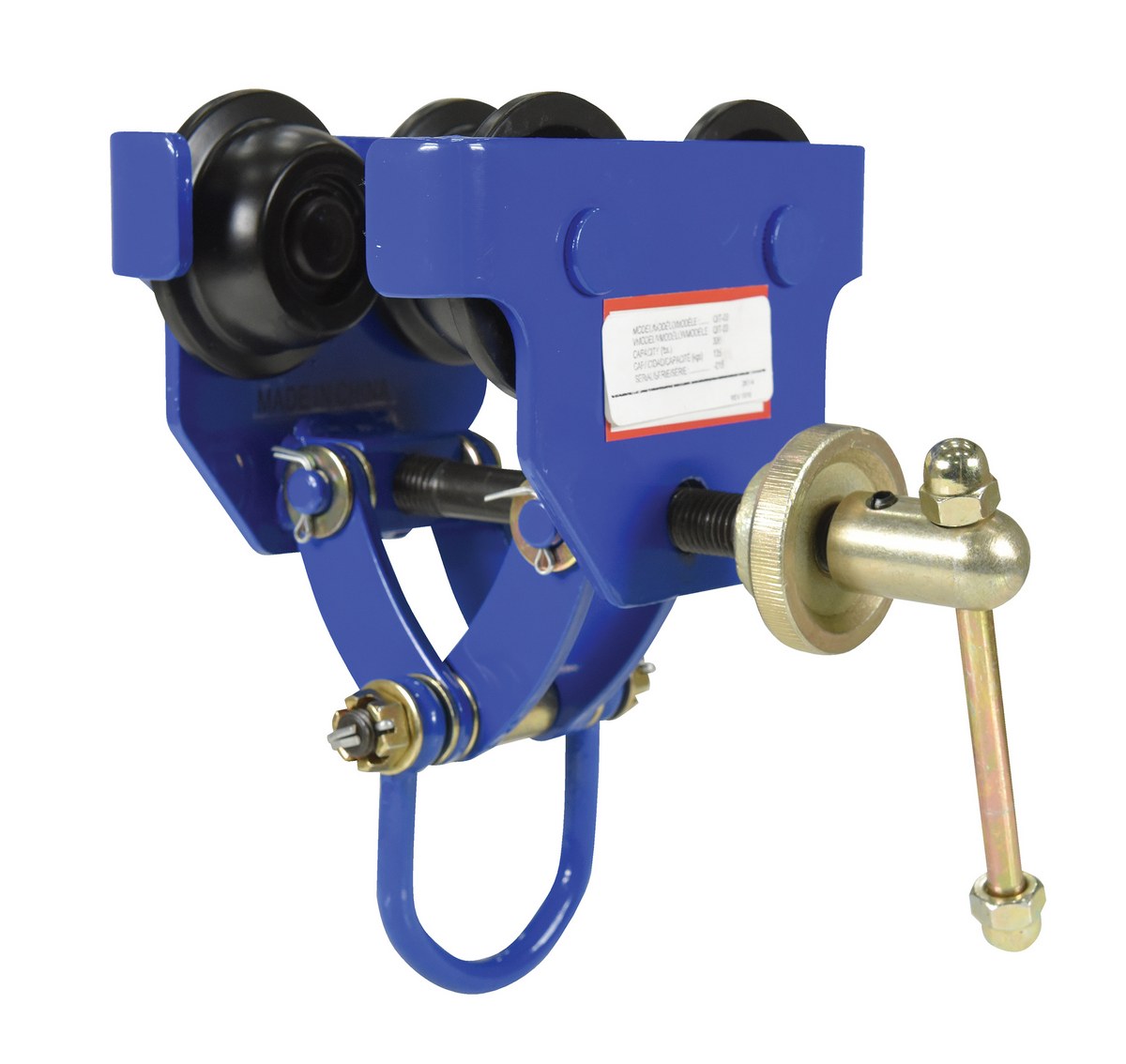

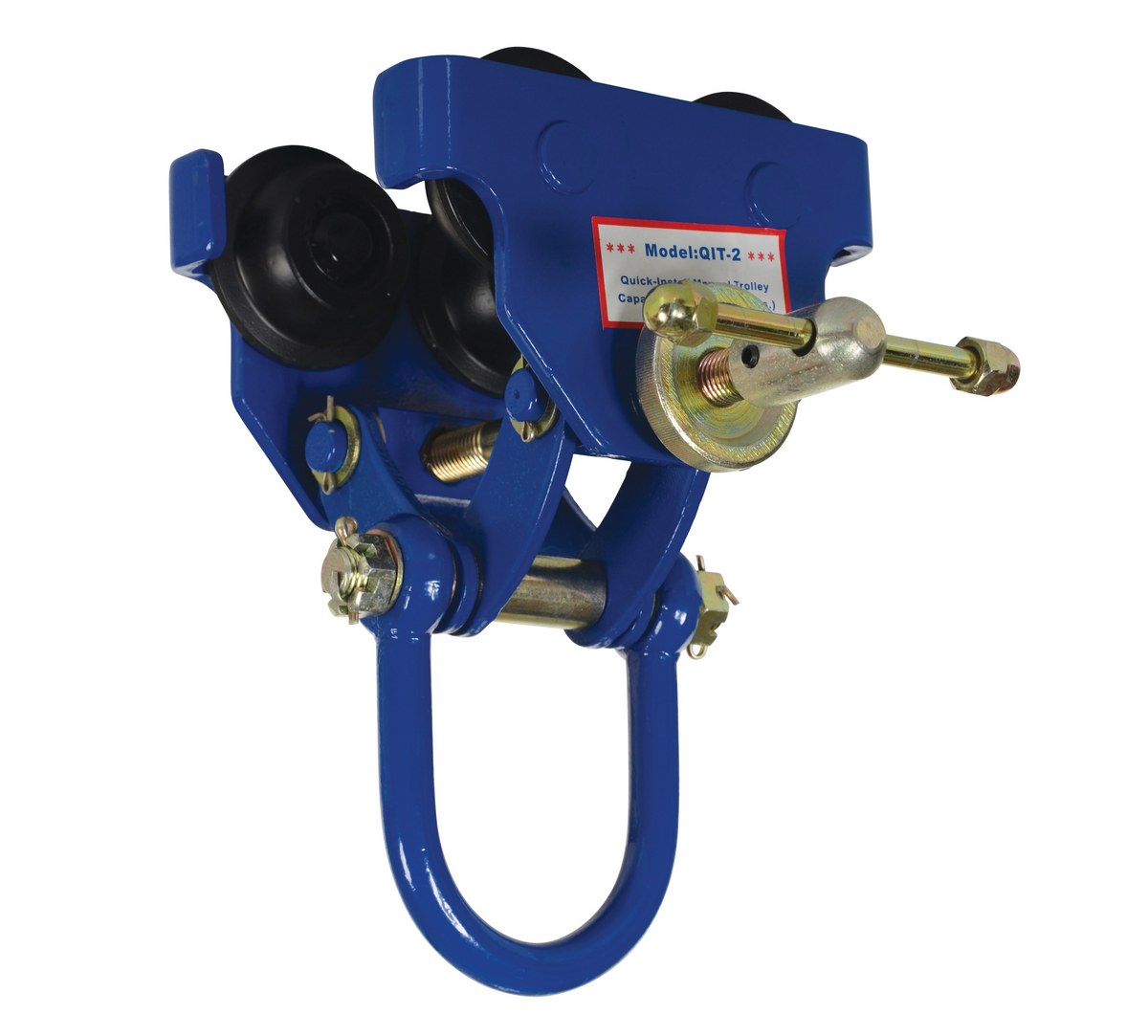

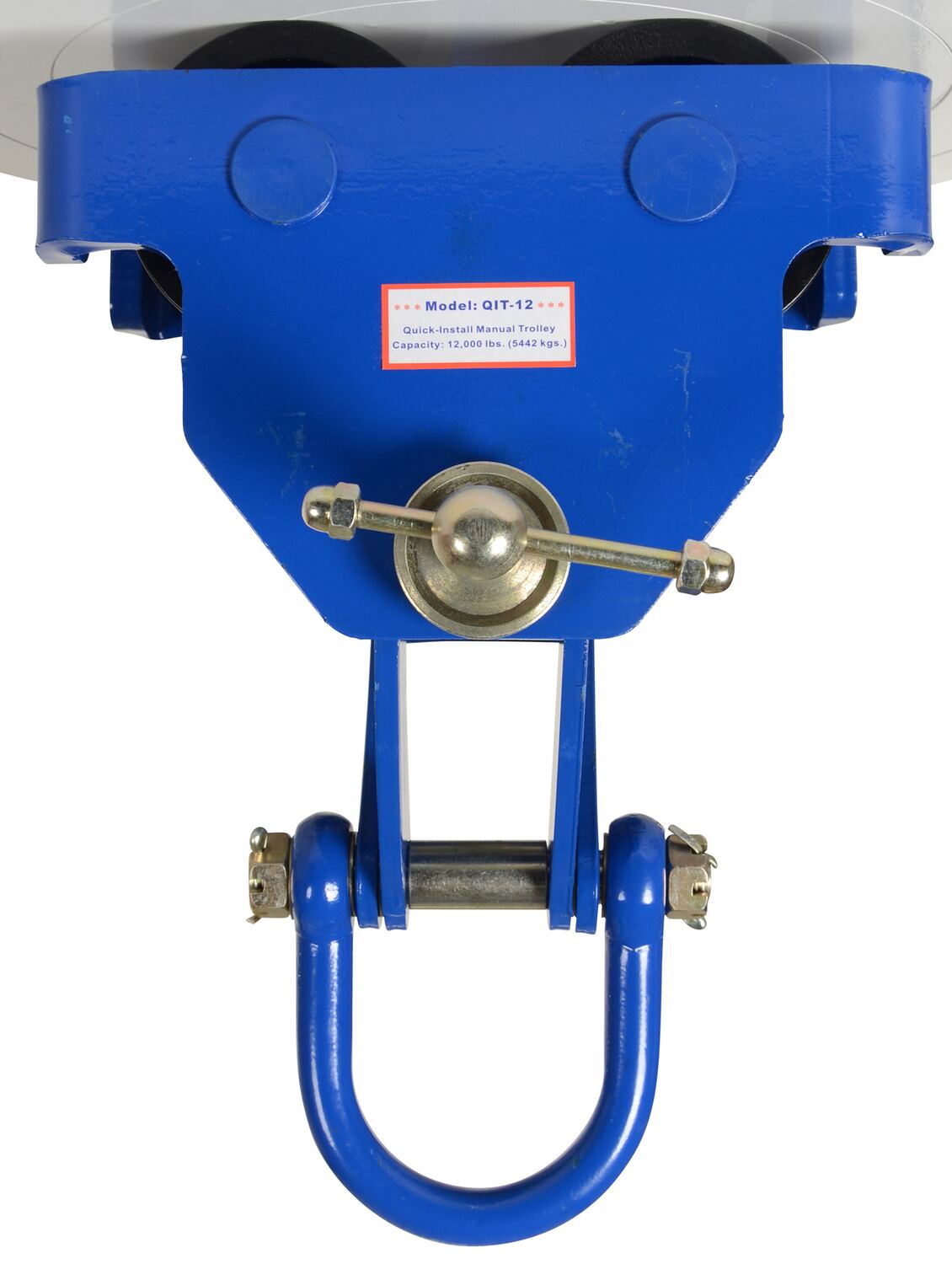

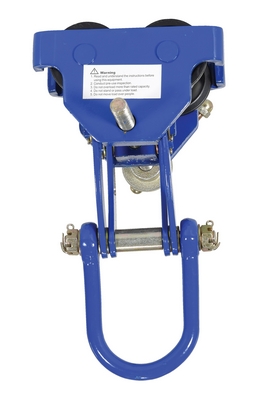

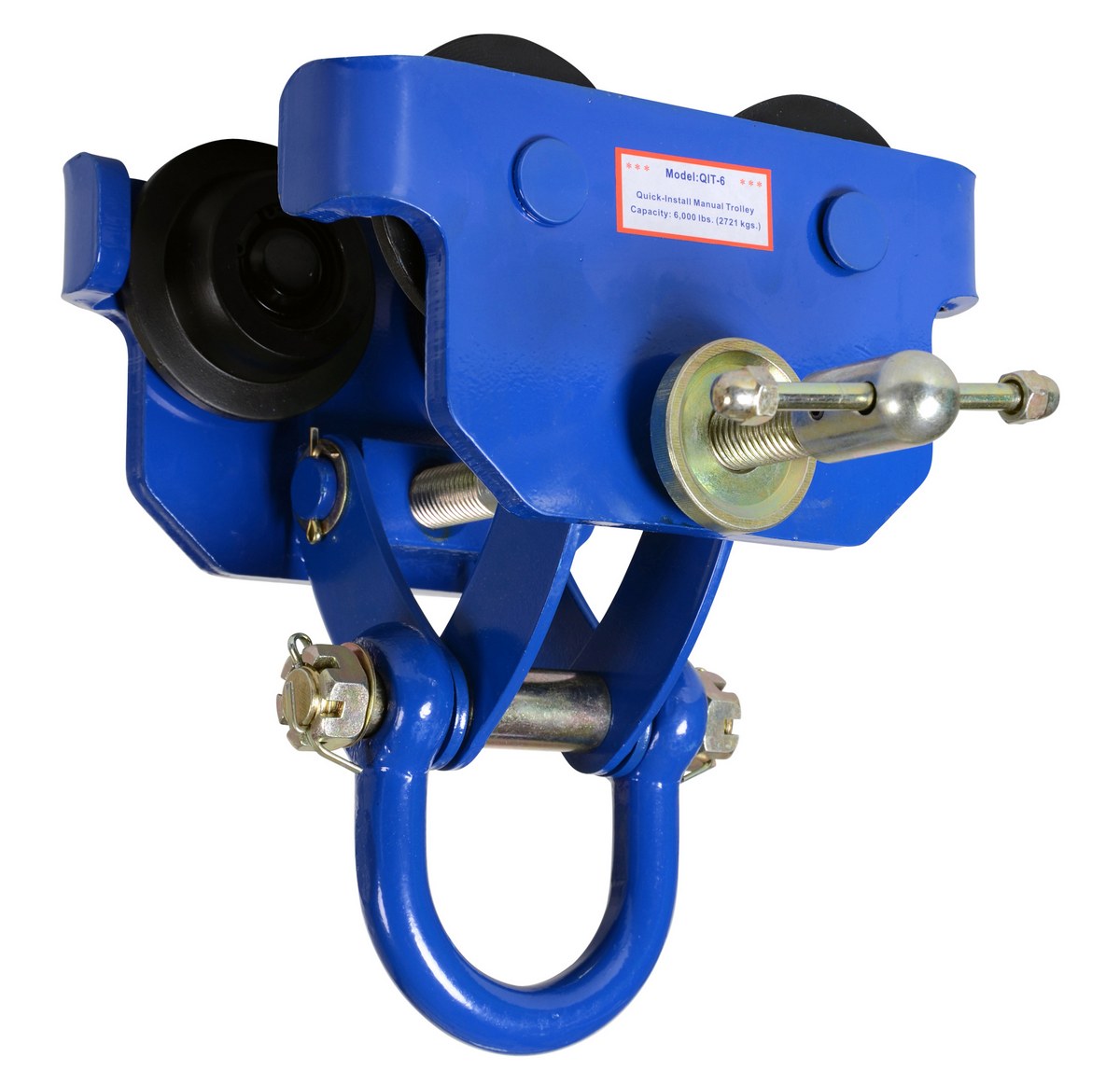

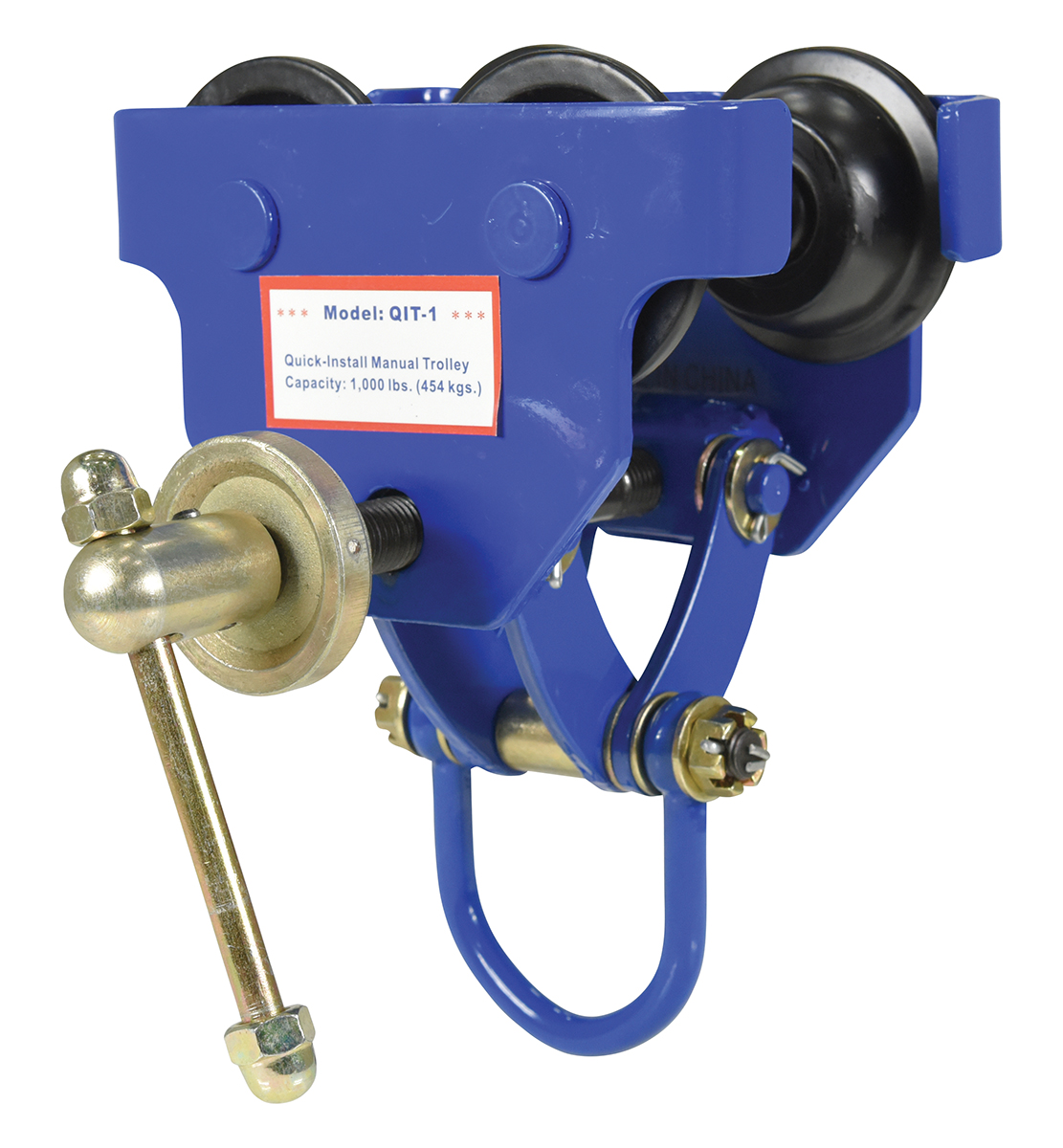

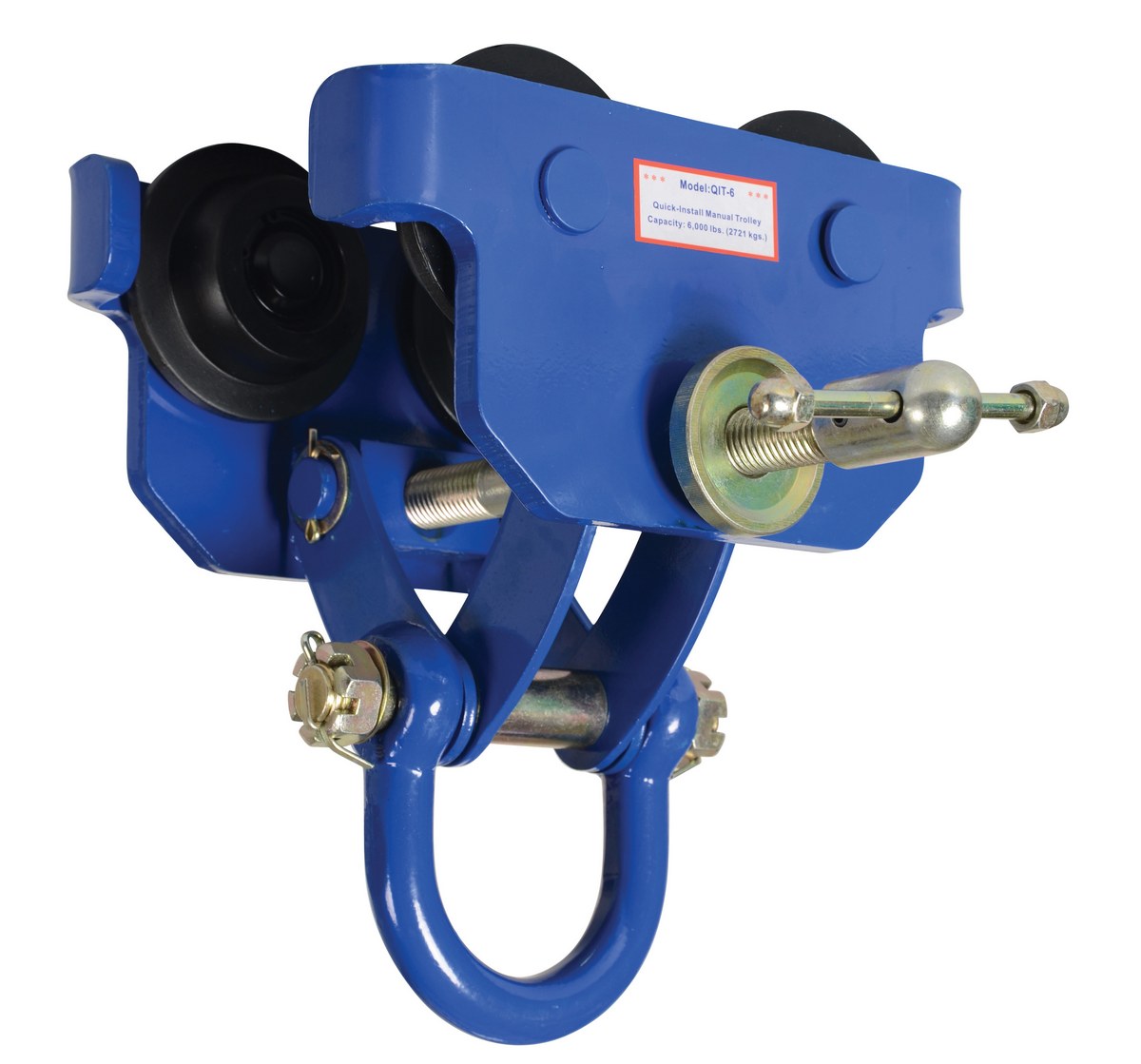

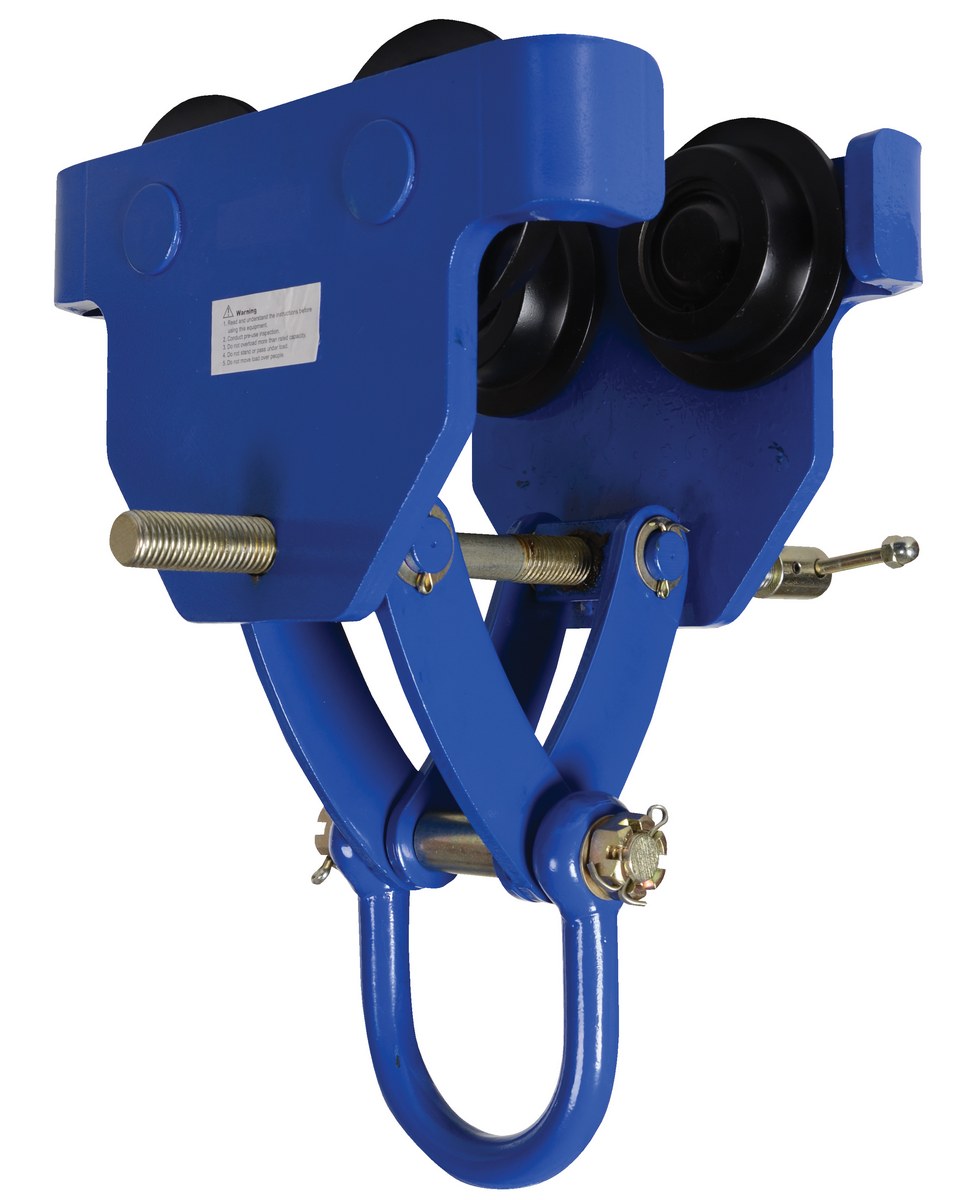

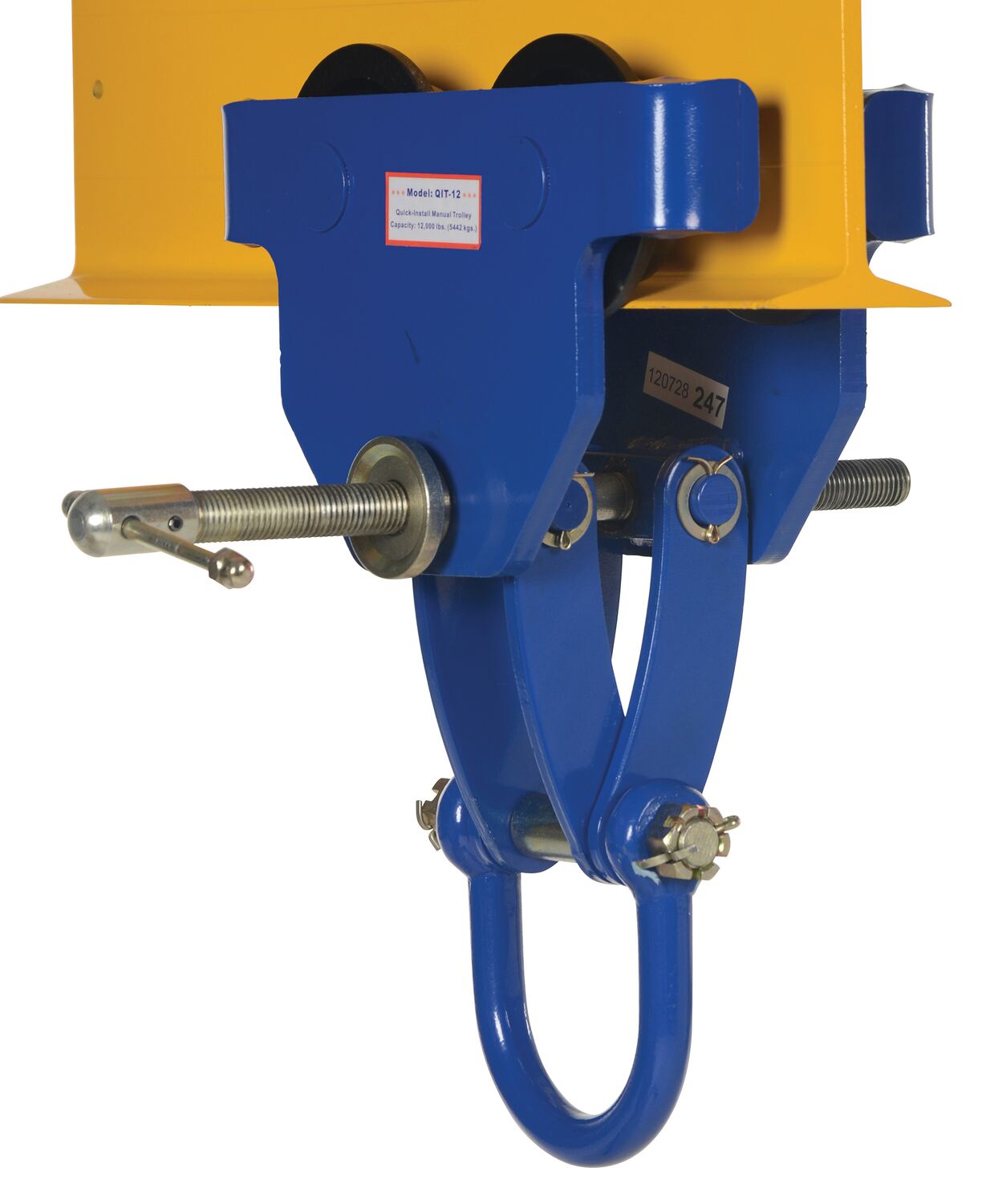

QUICK INSTALL MANUAL TROLLEY
Quick installing trolley is dependable, easy and safe to use.

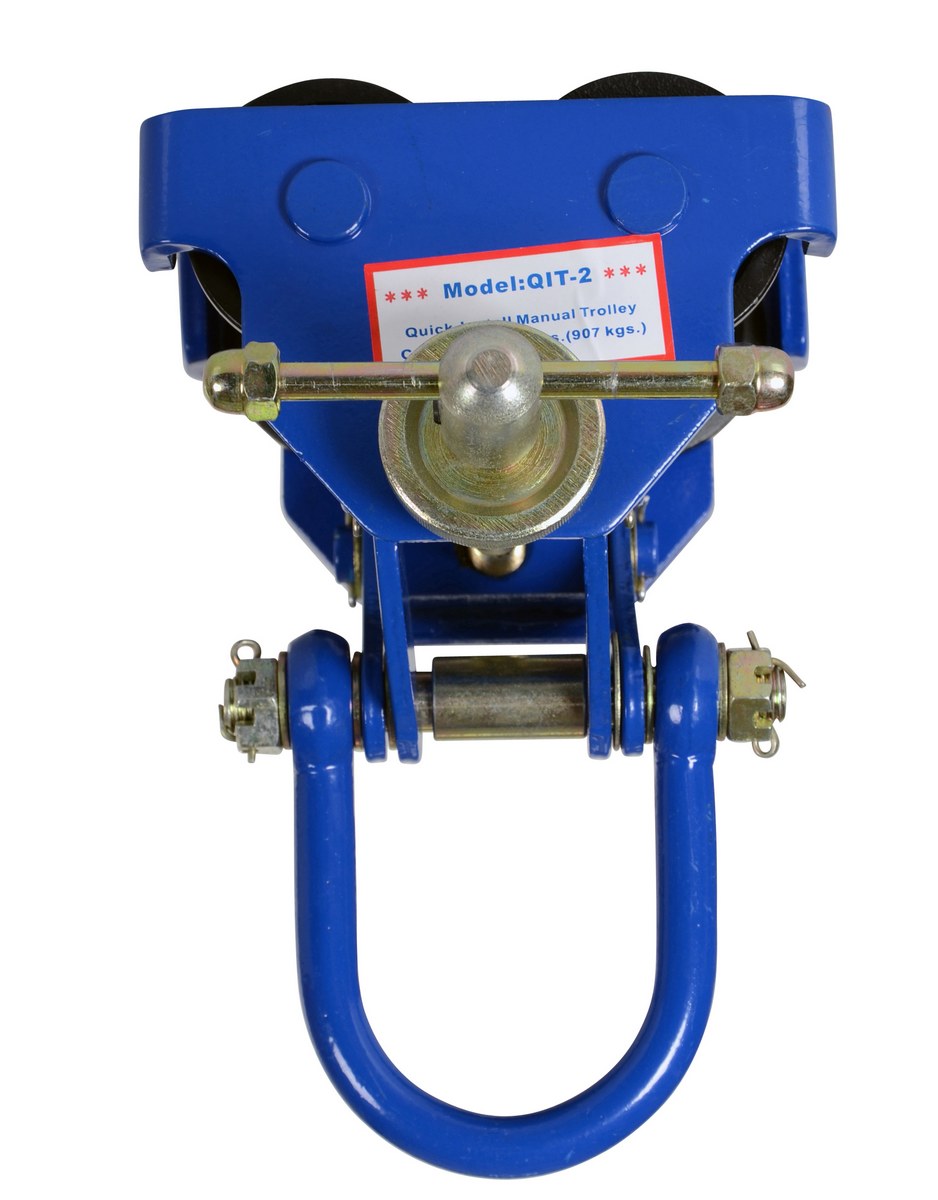

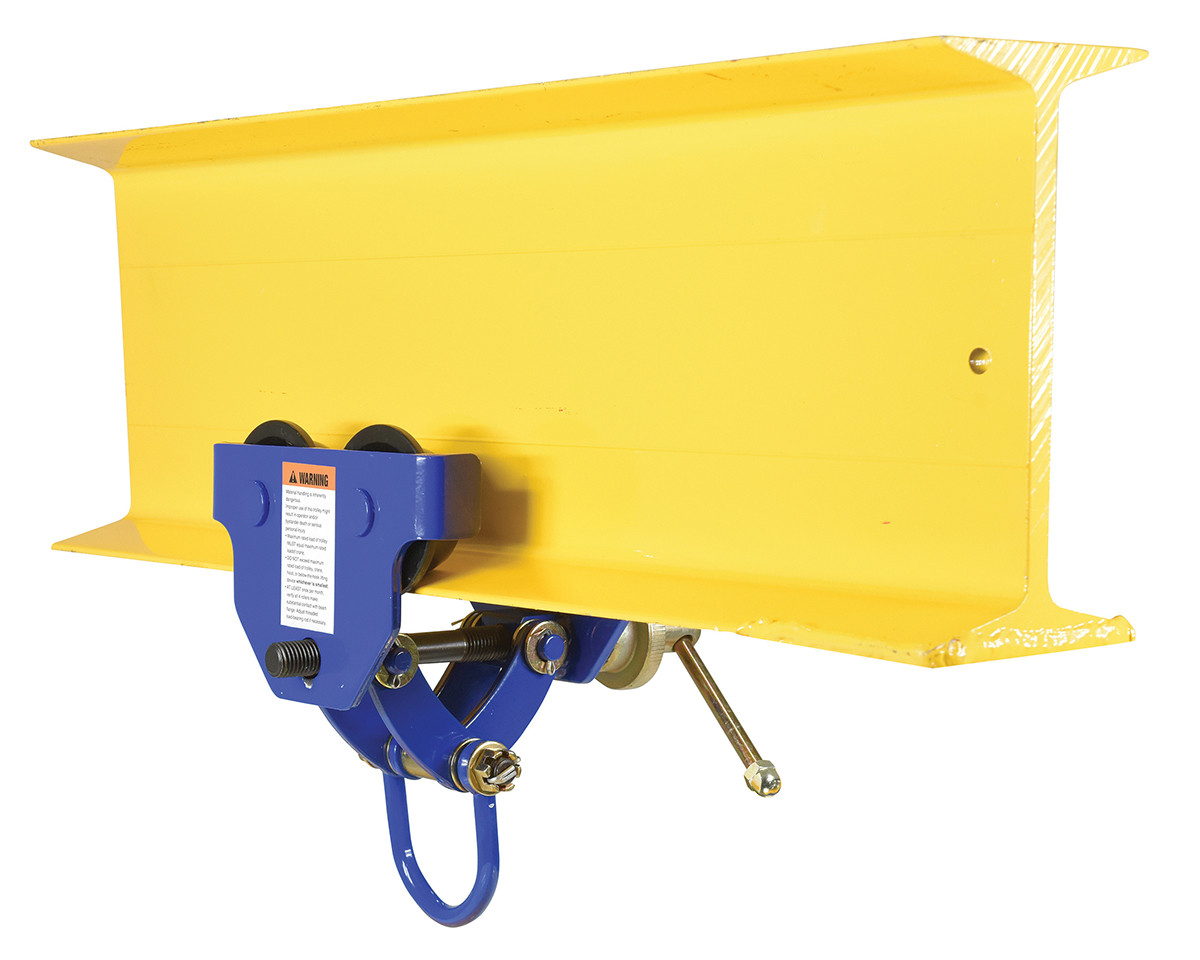

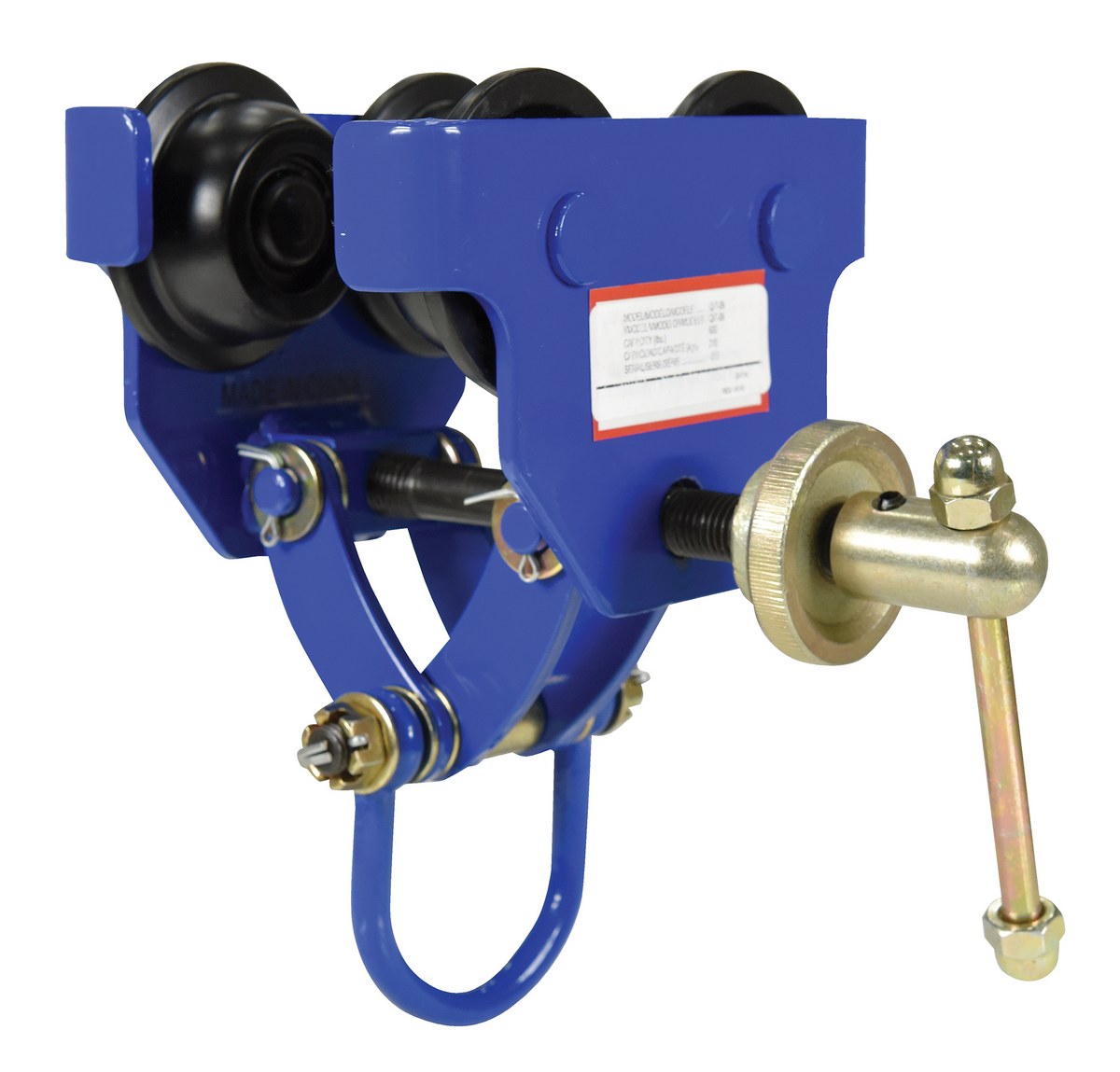

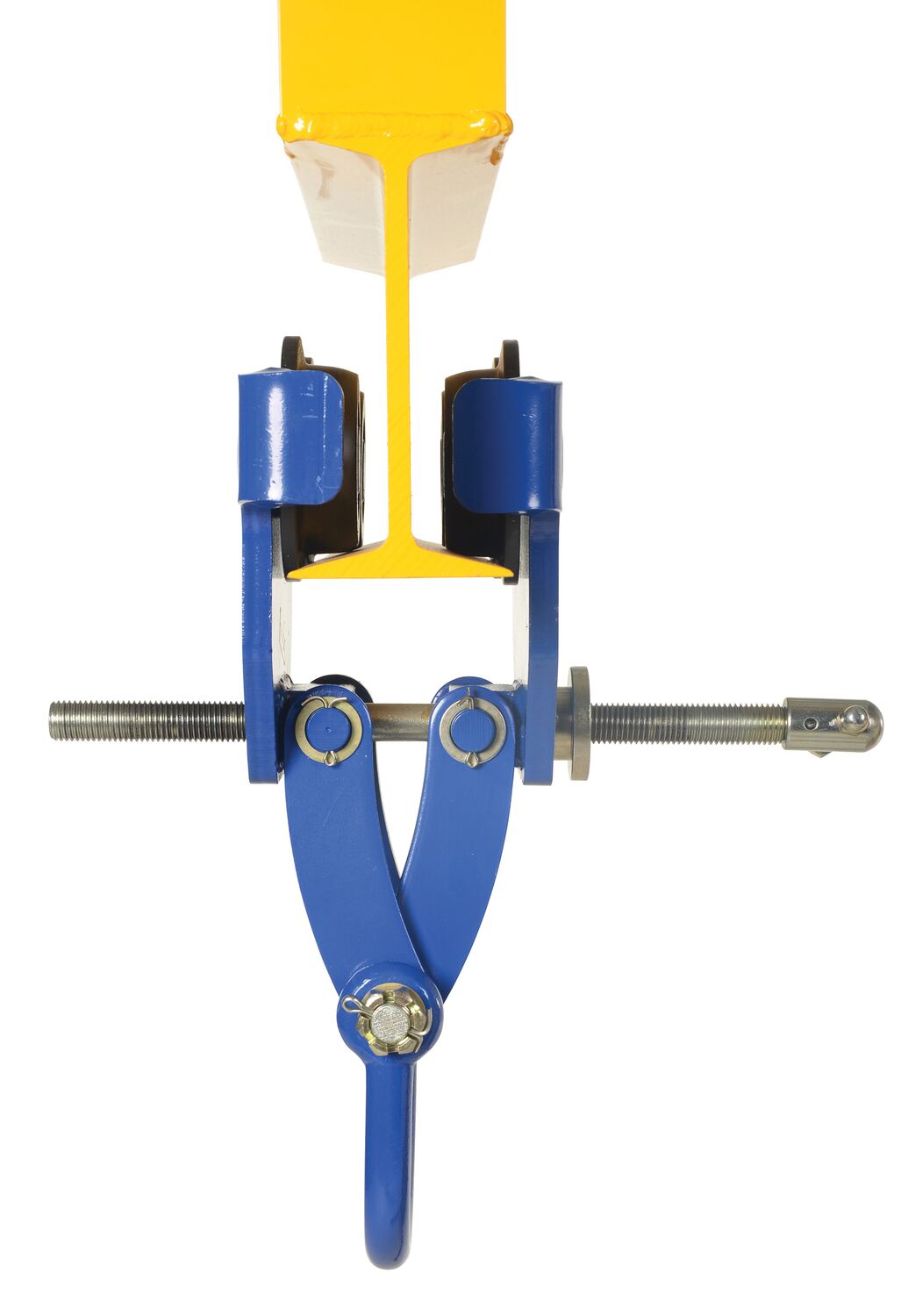

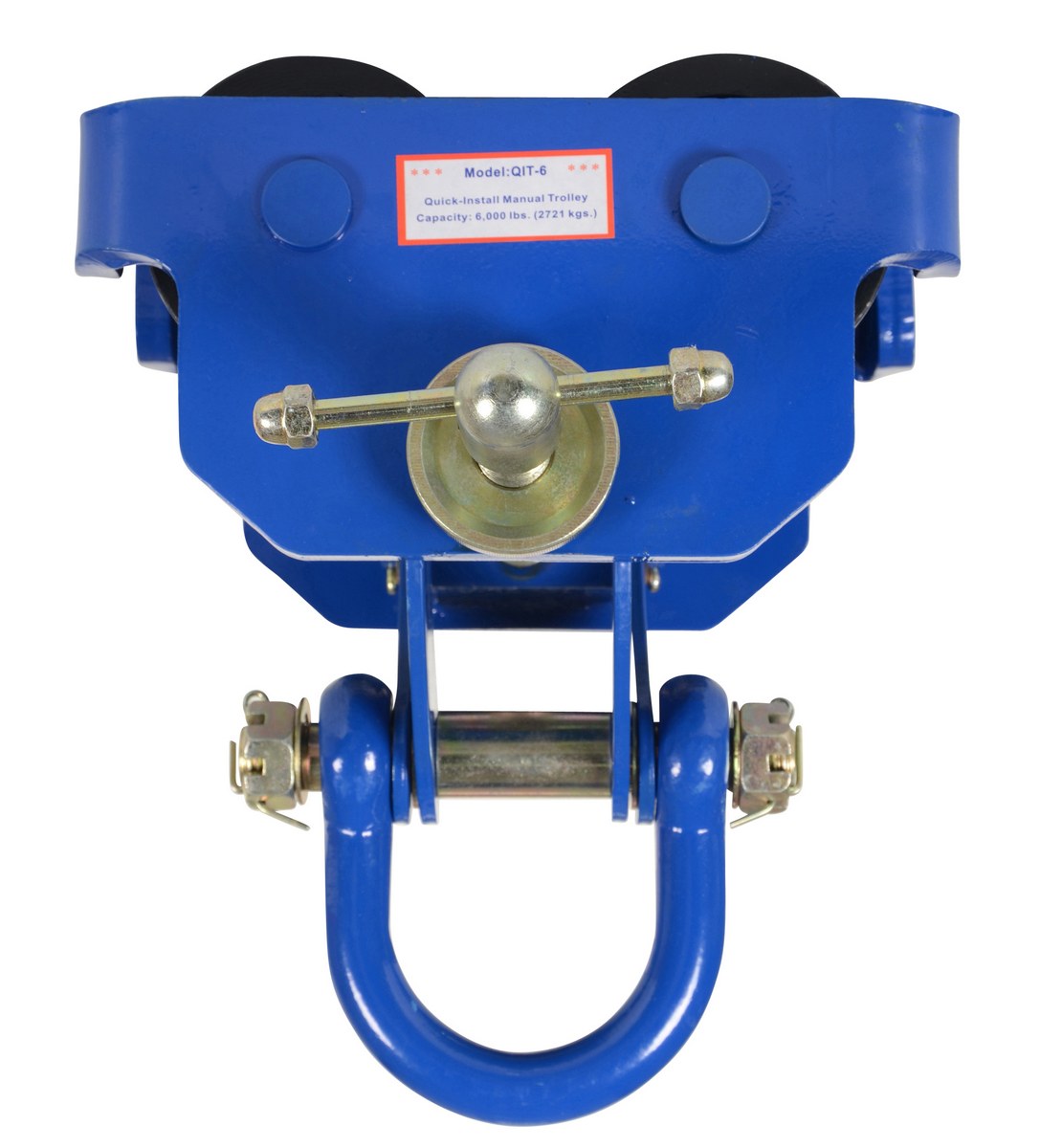

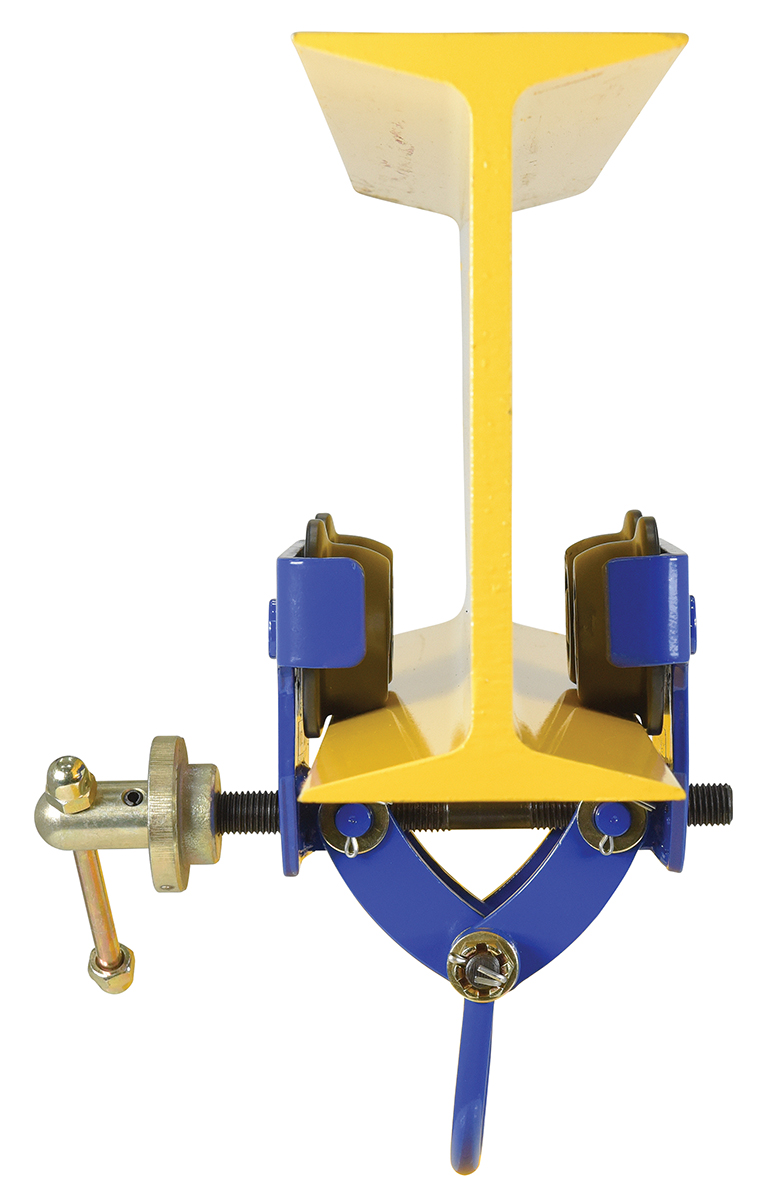

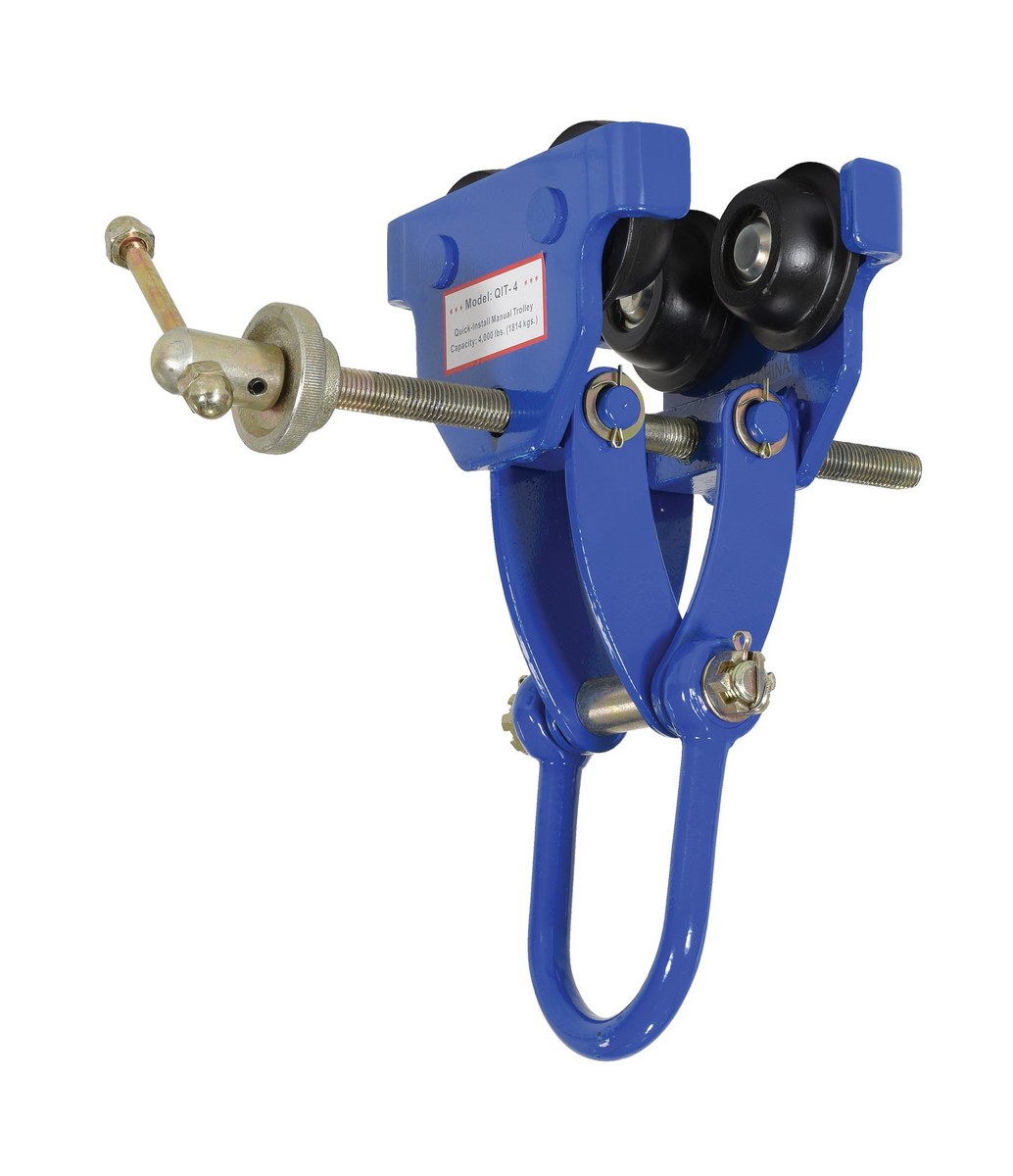

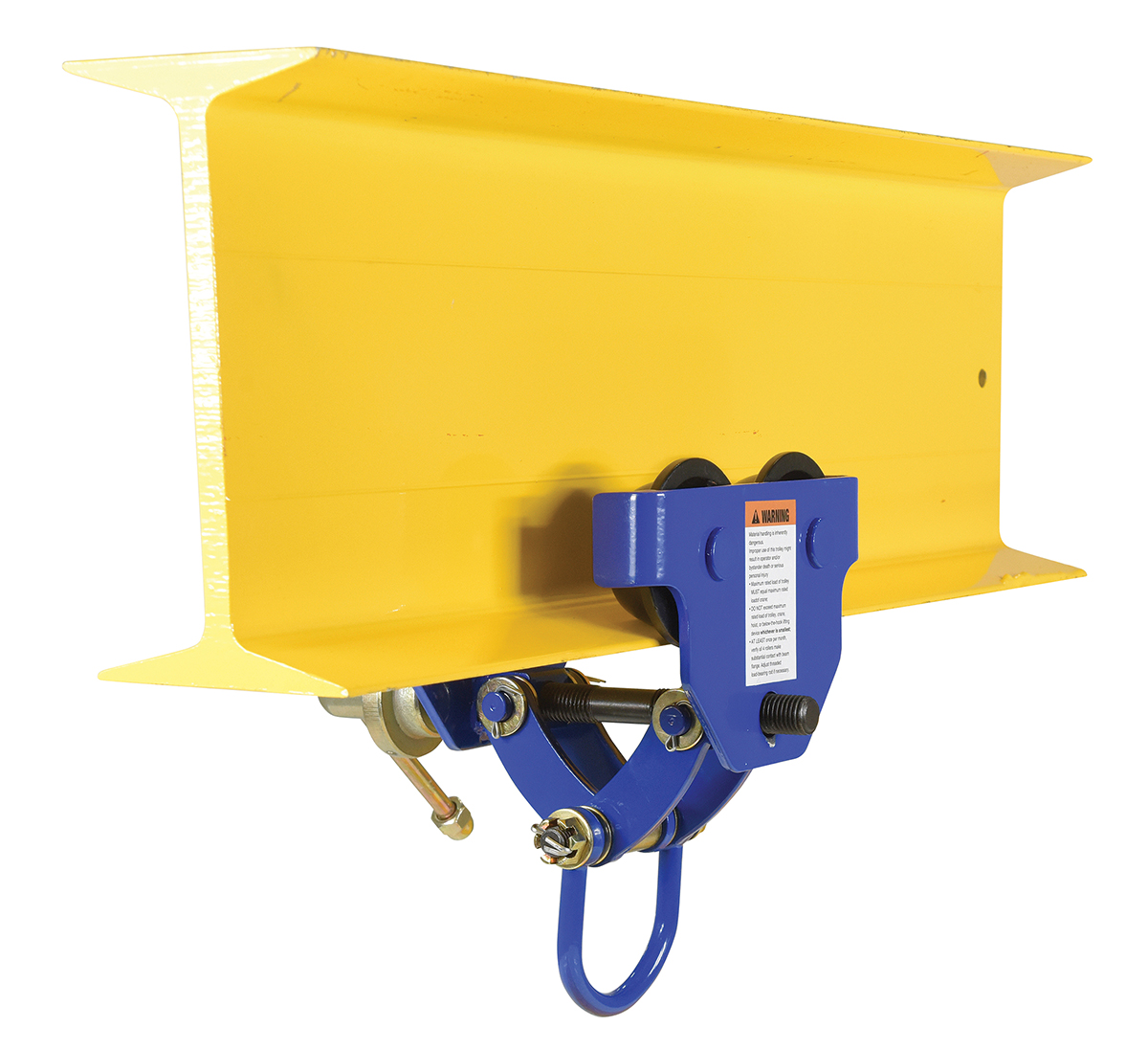

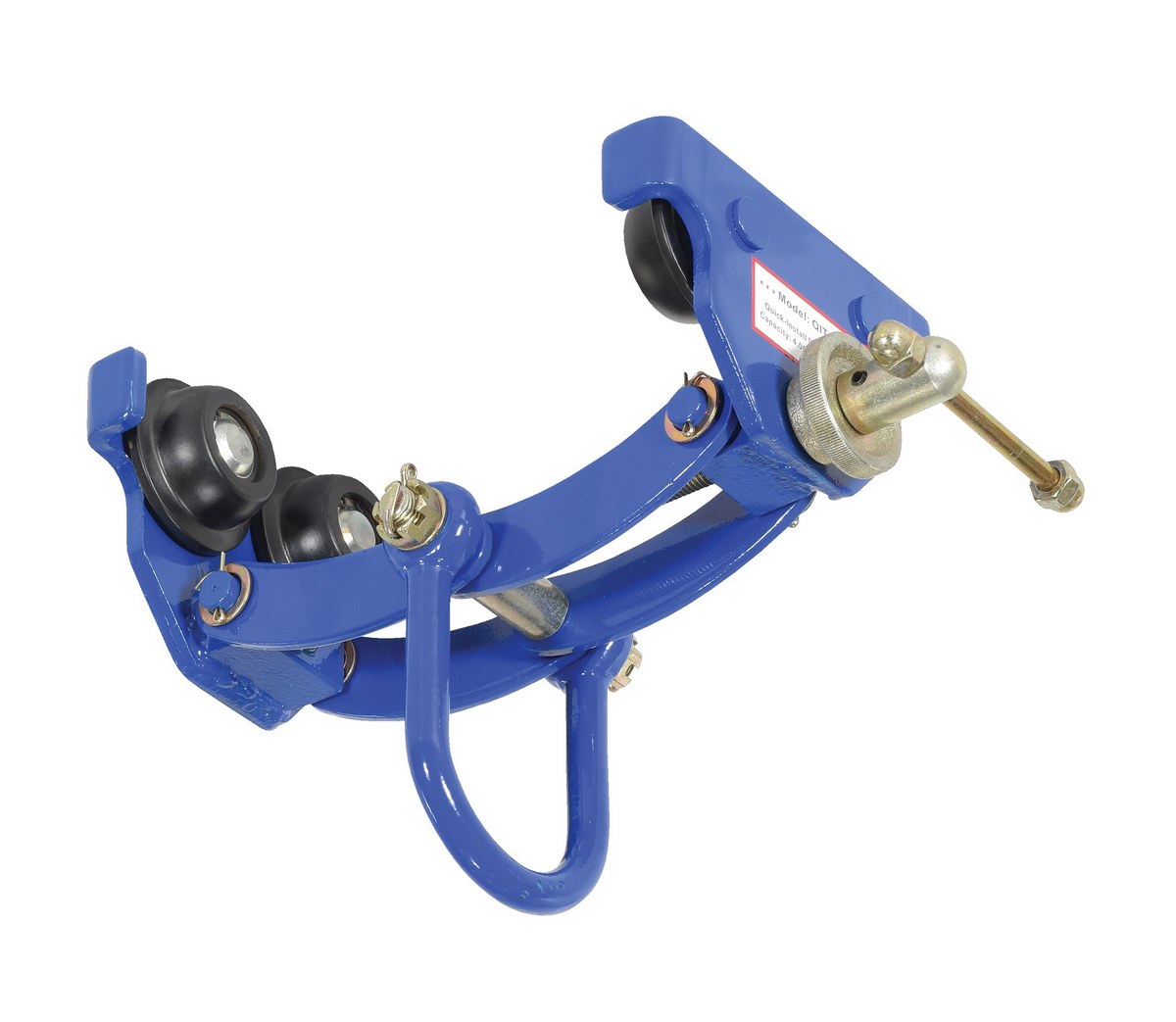

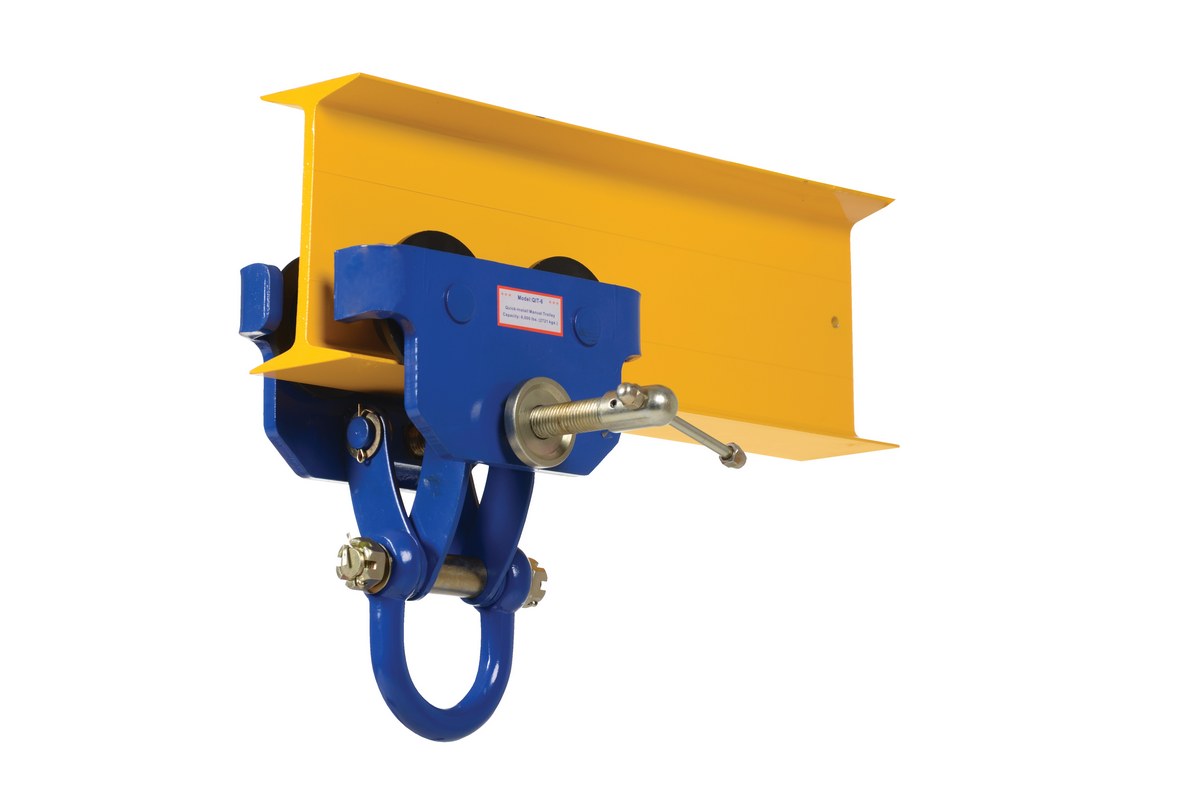

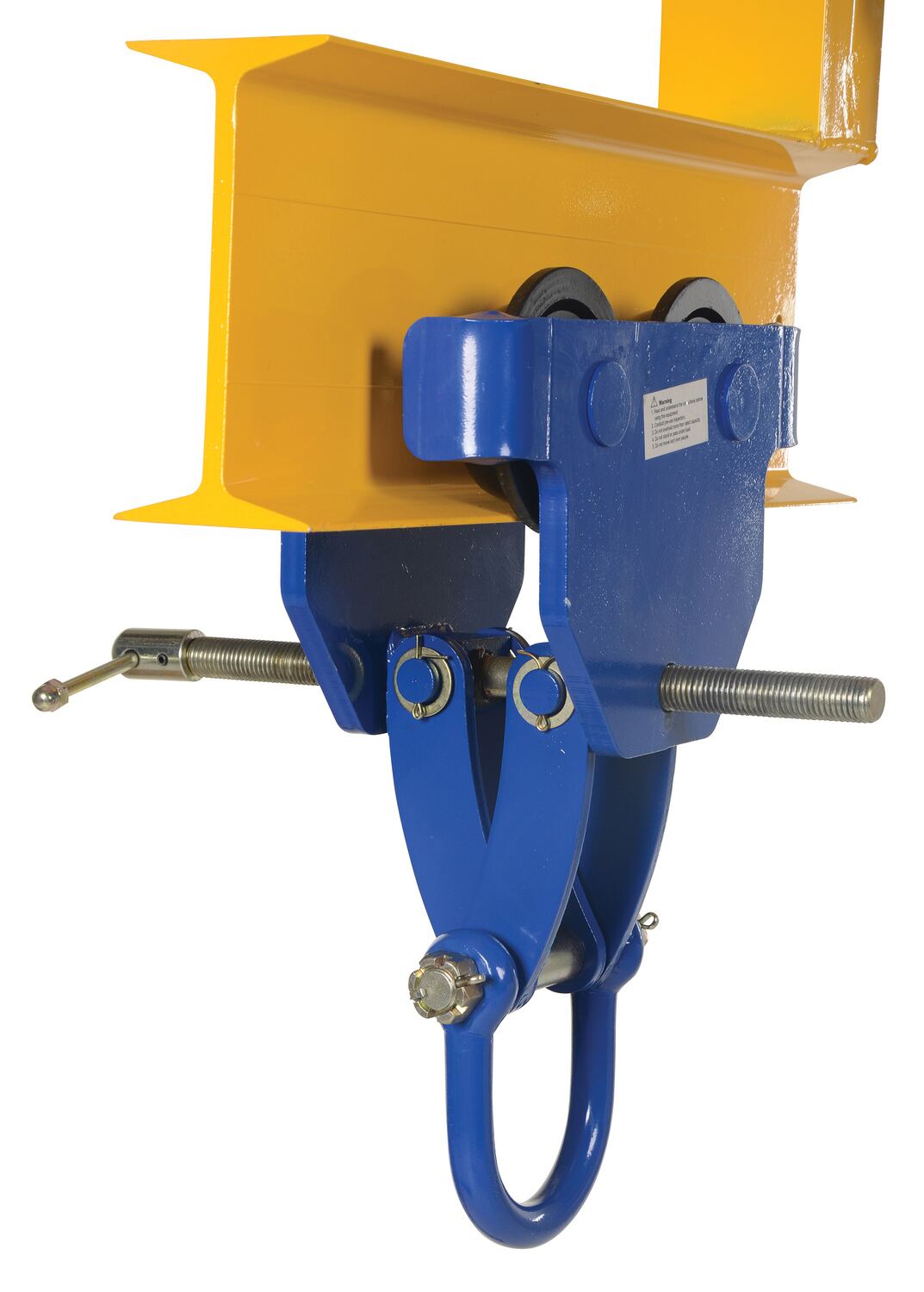

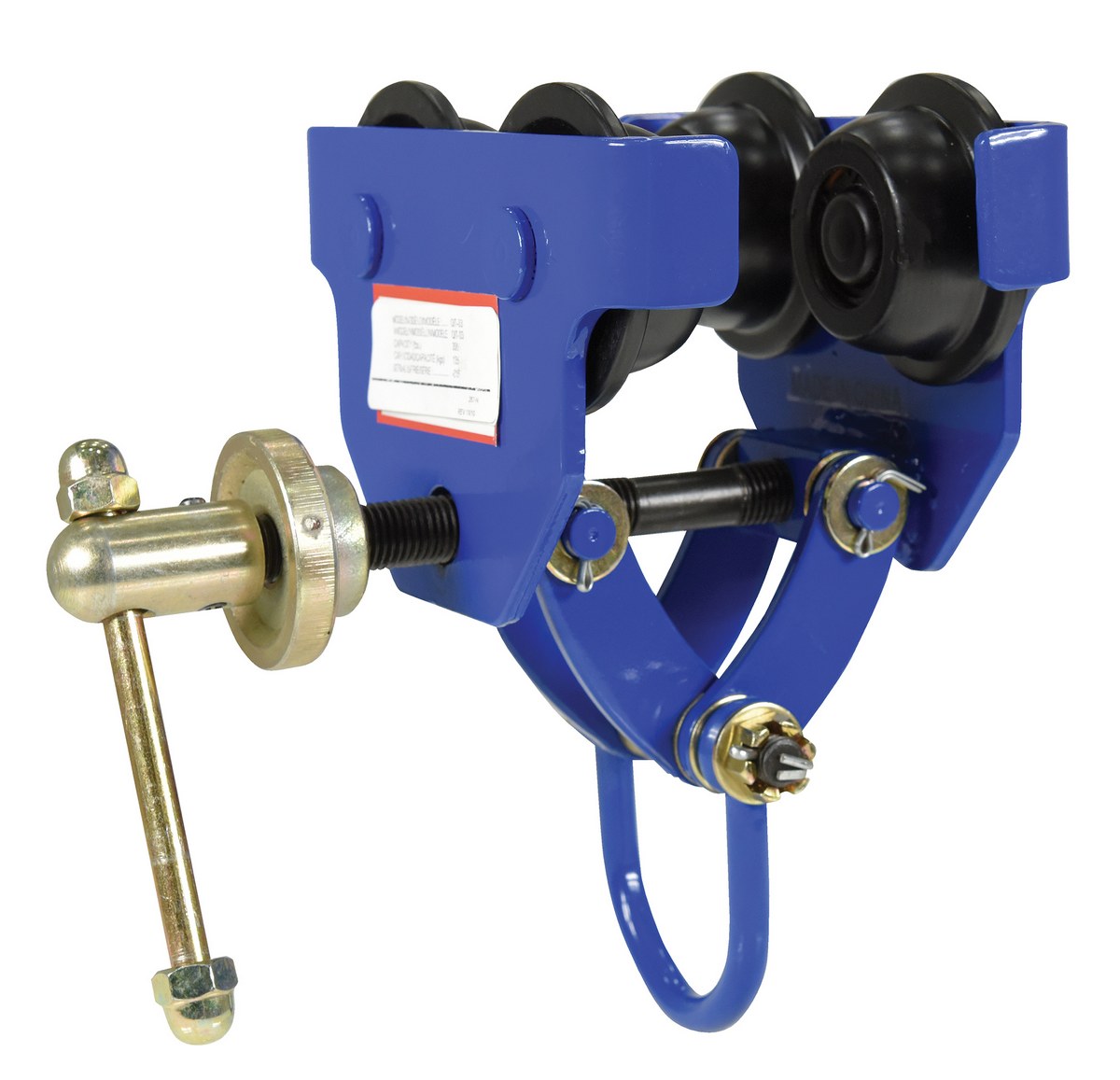

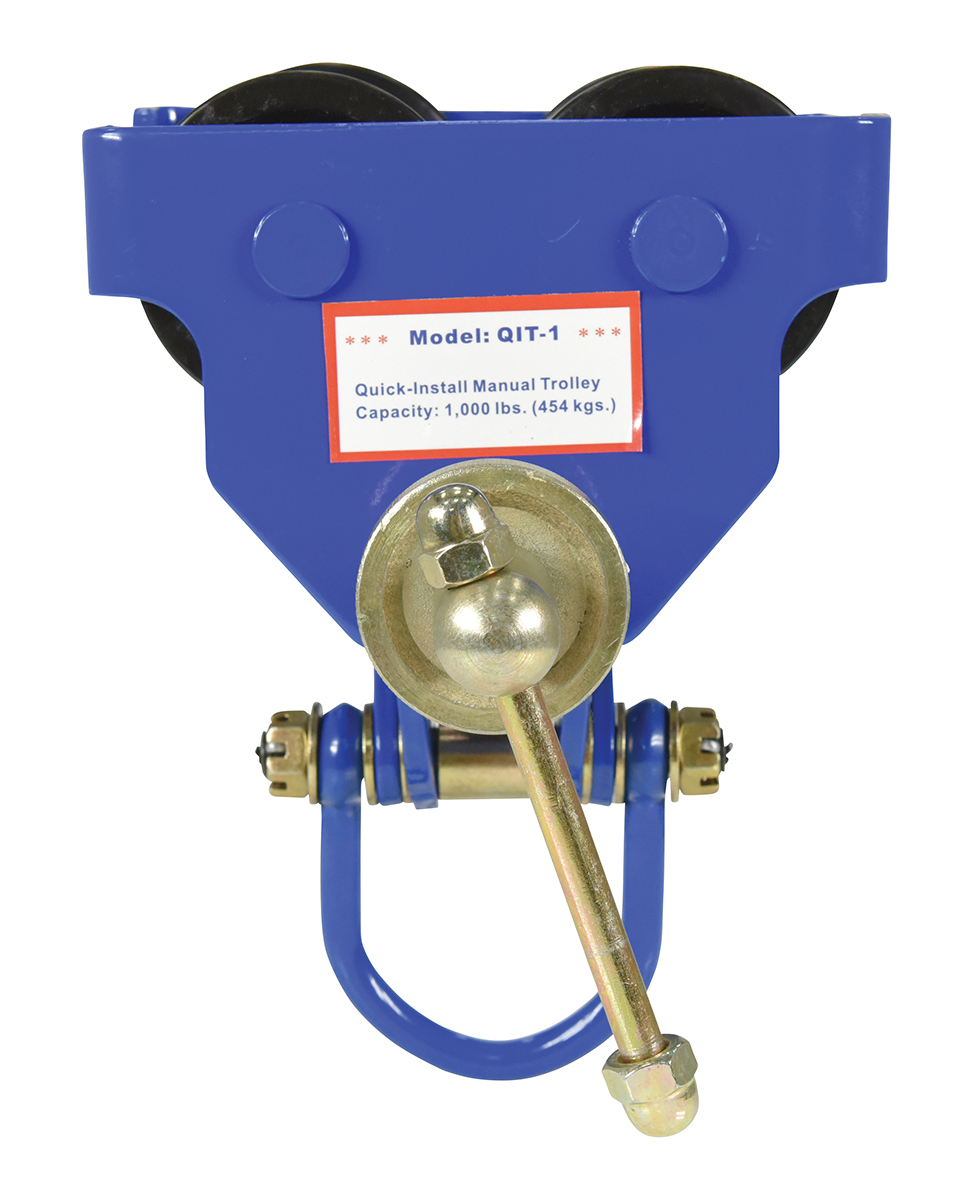

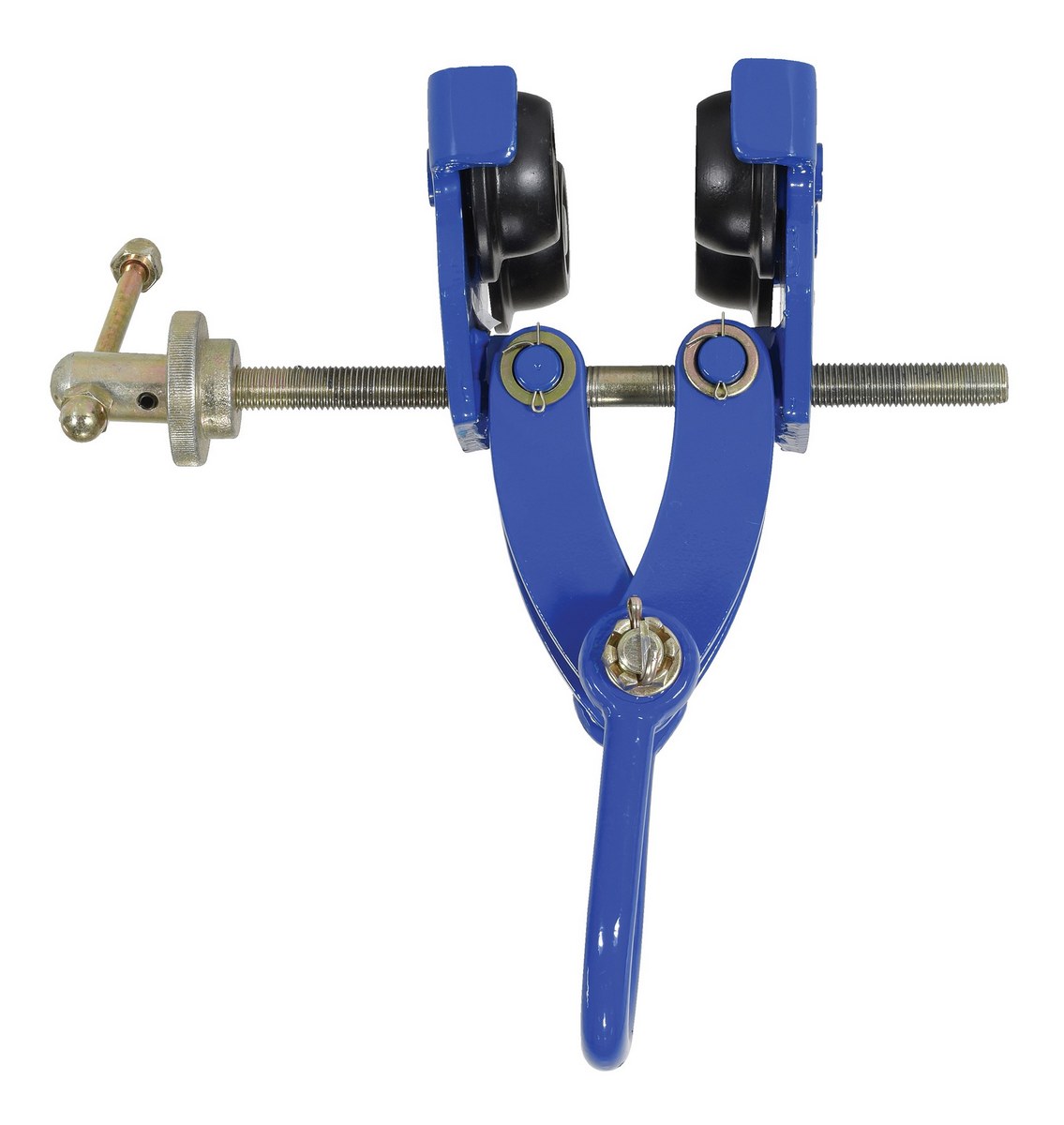

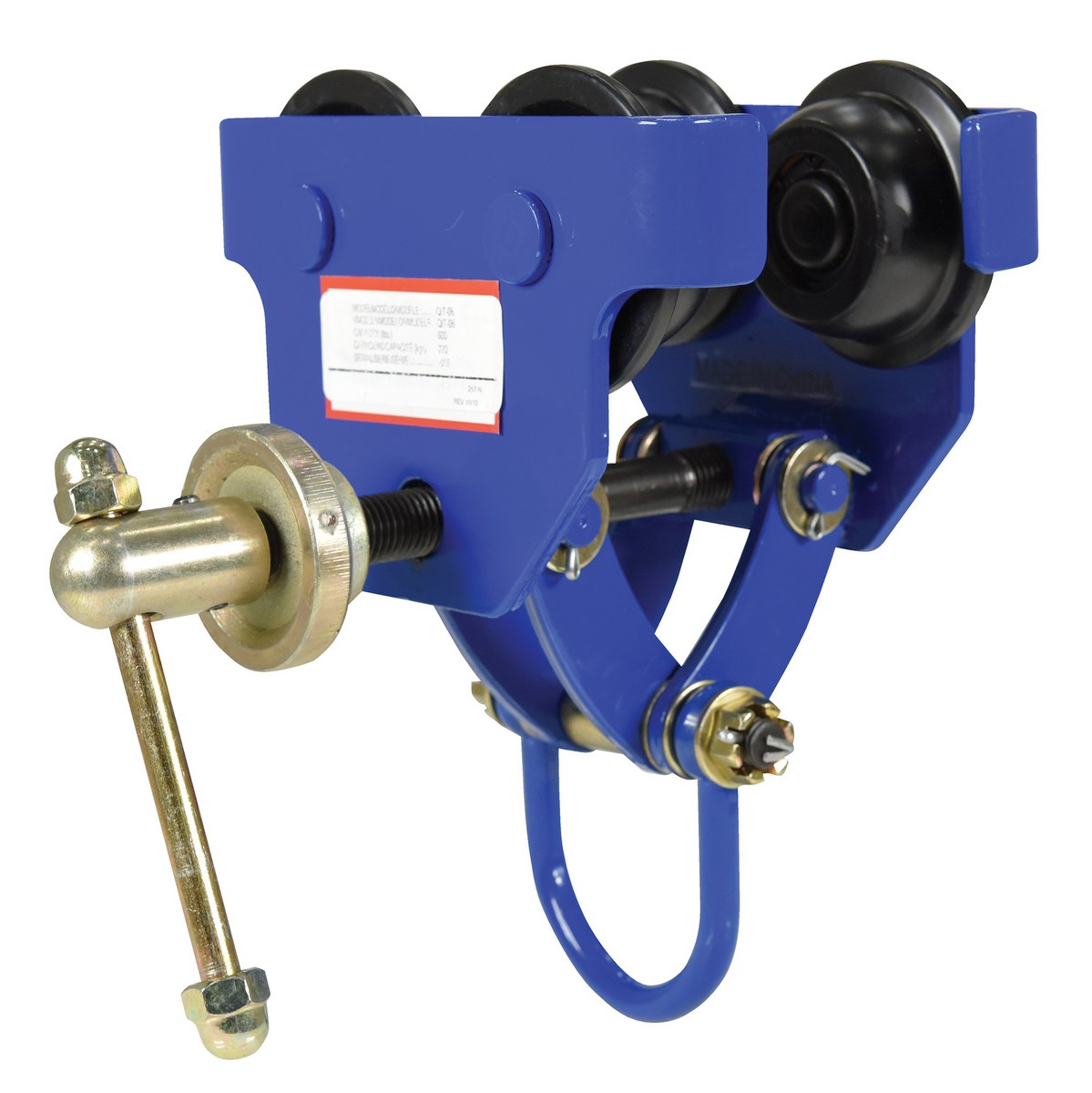

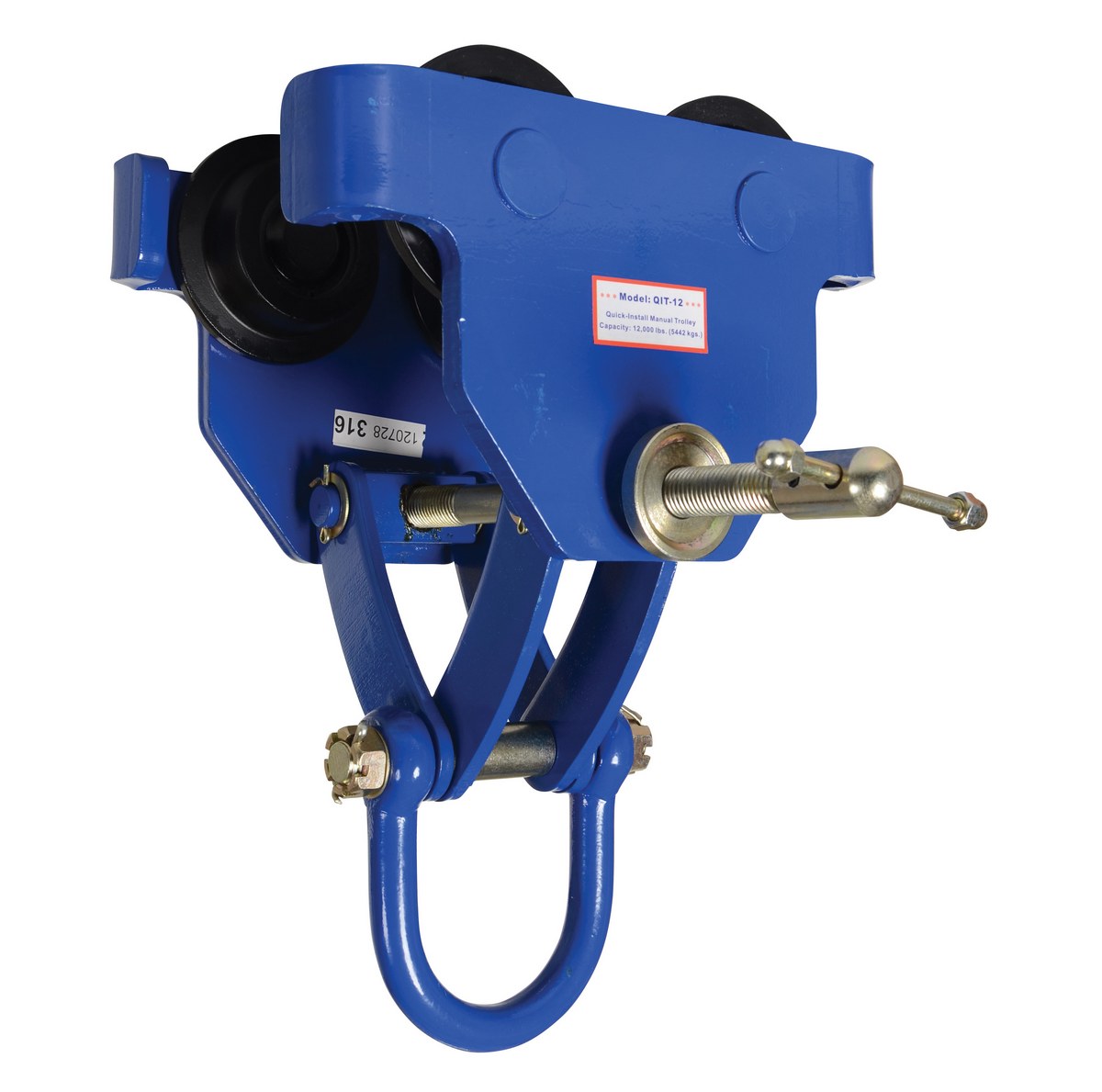

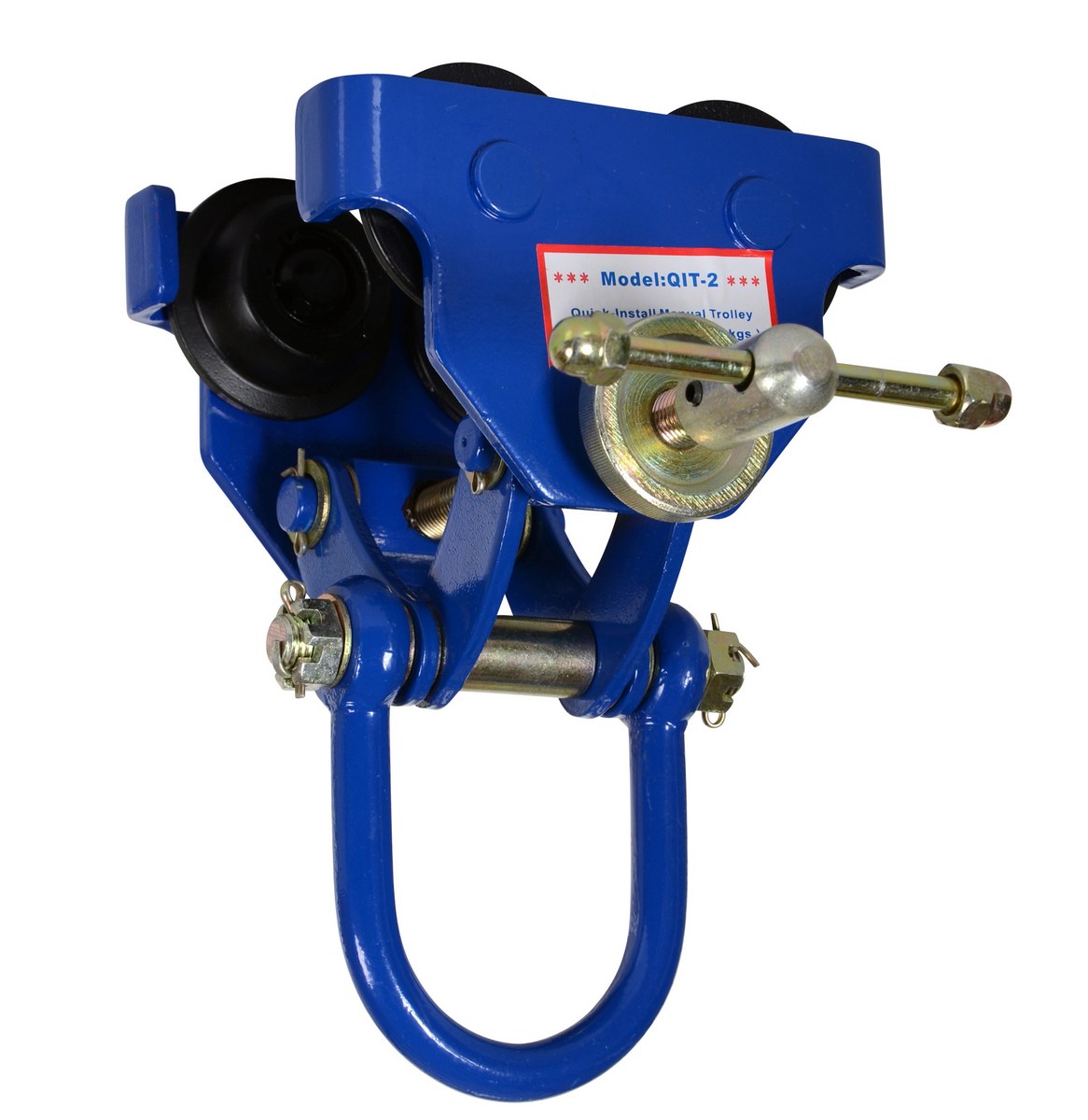

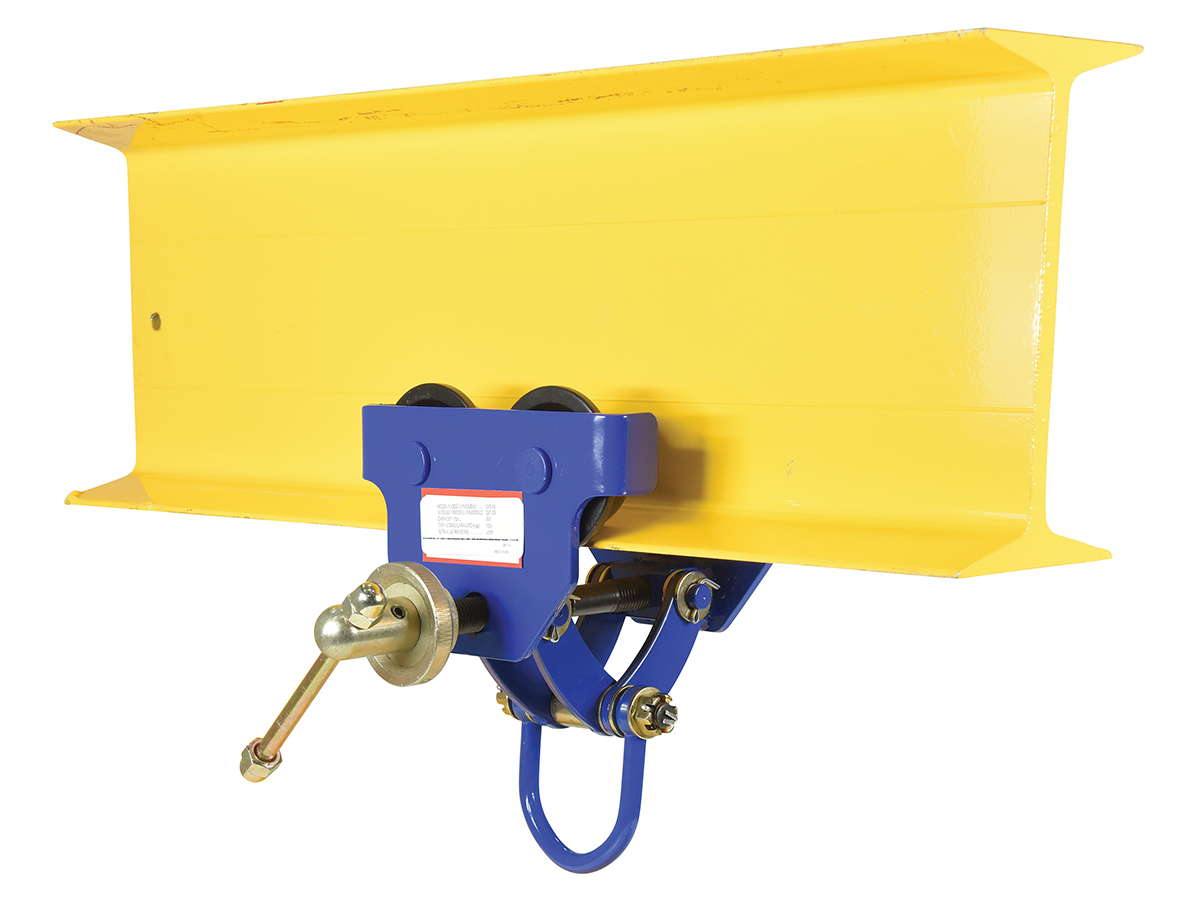

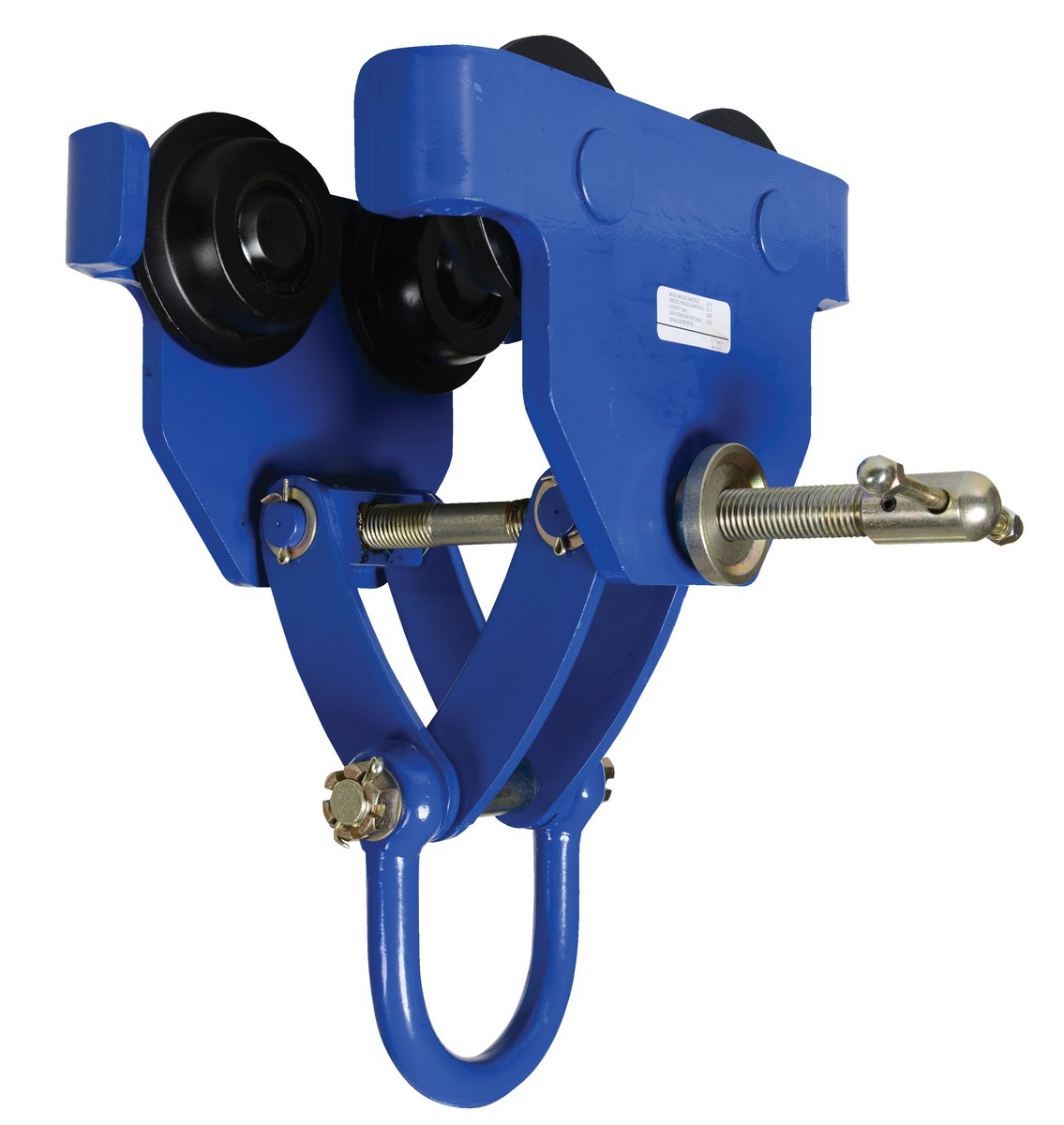

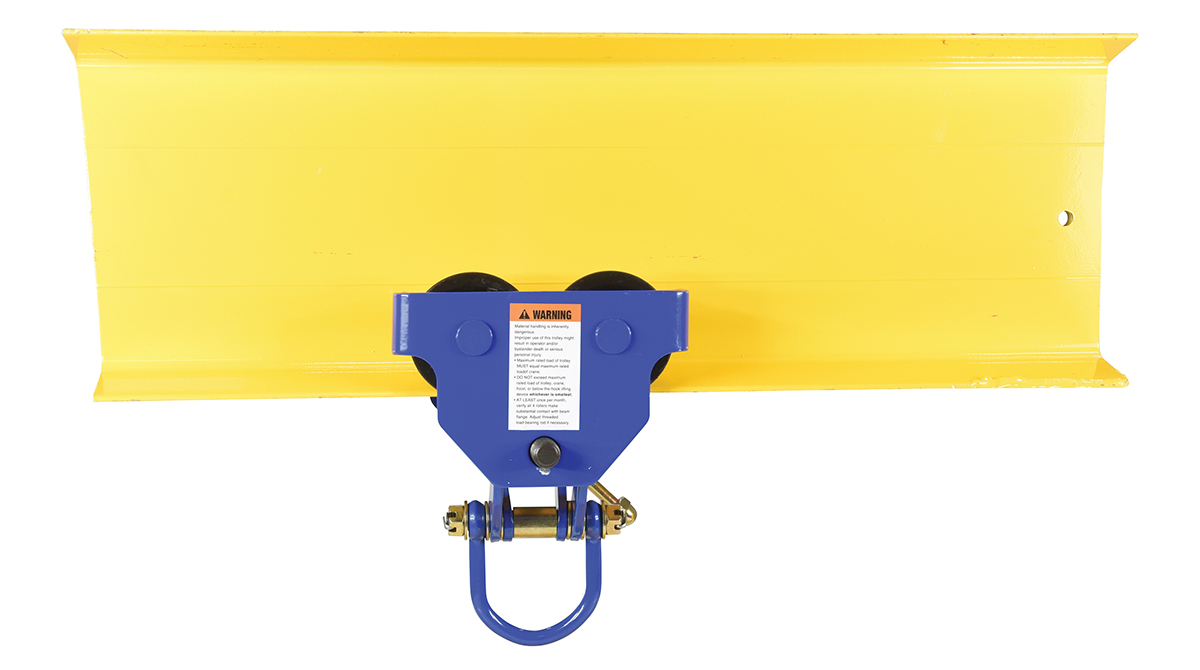

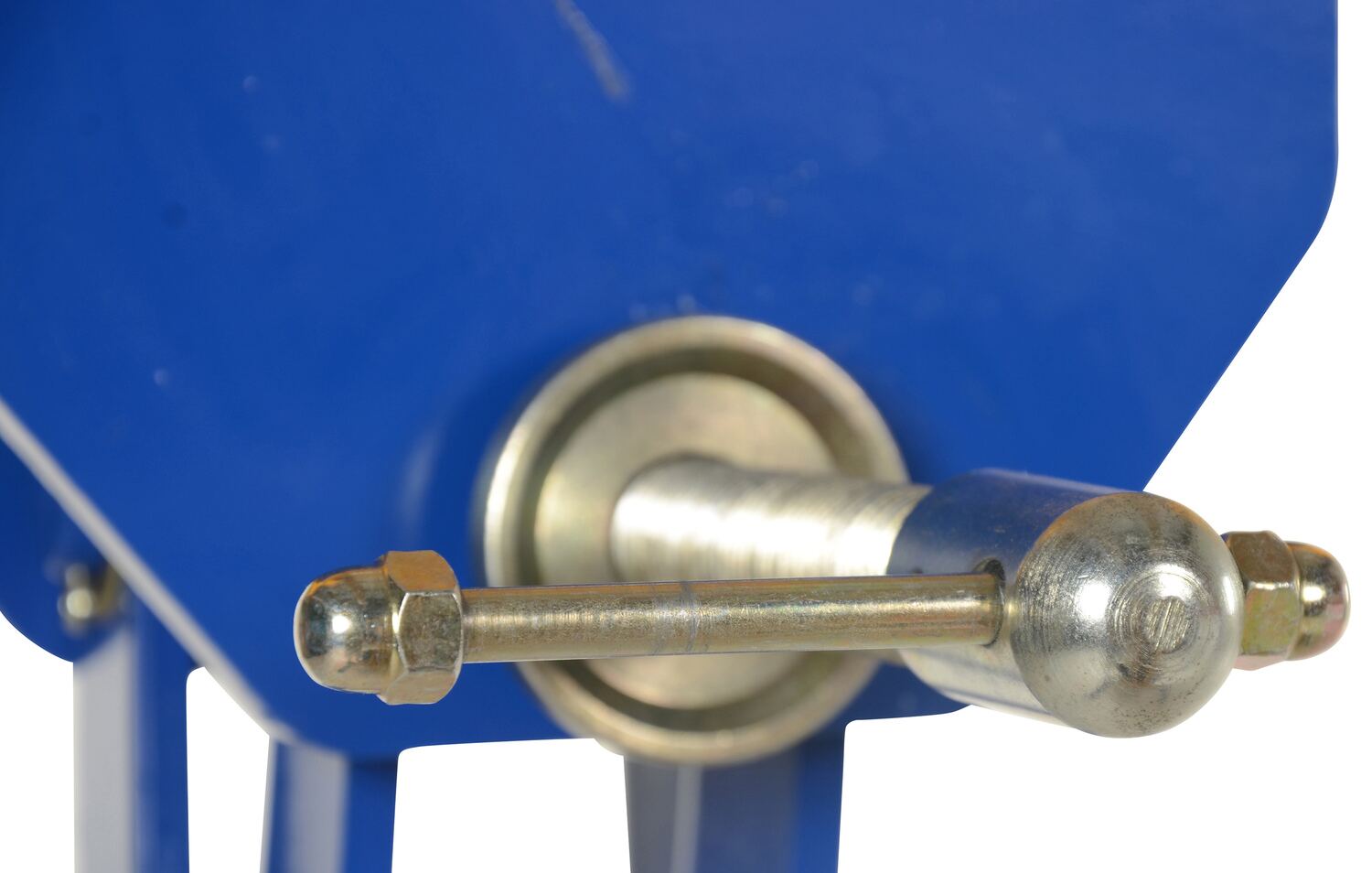

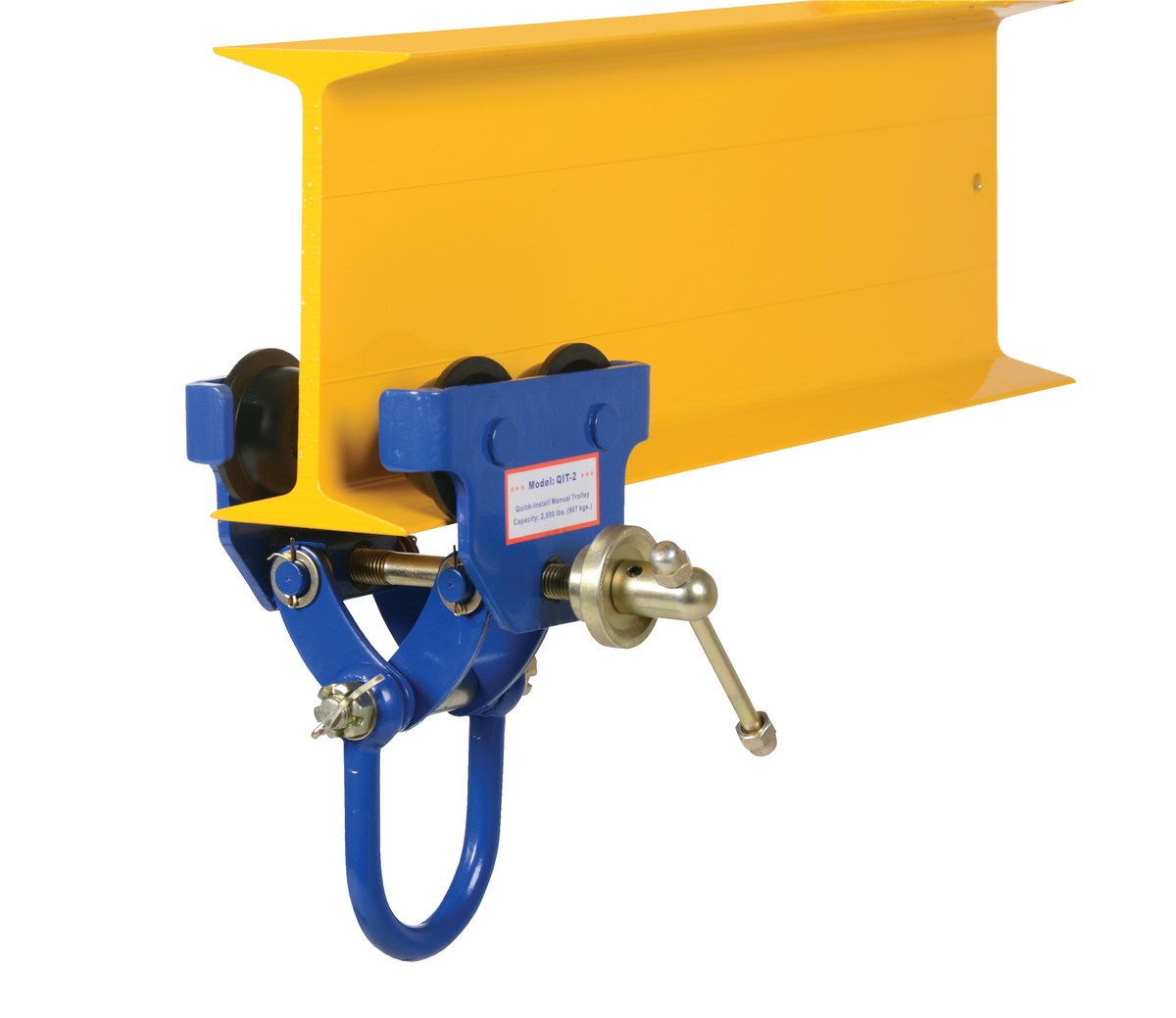

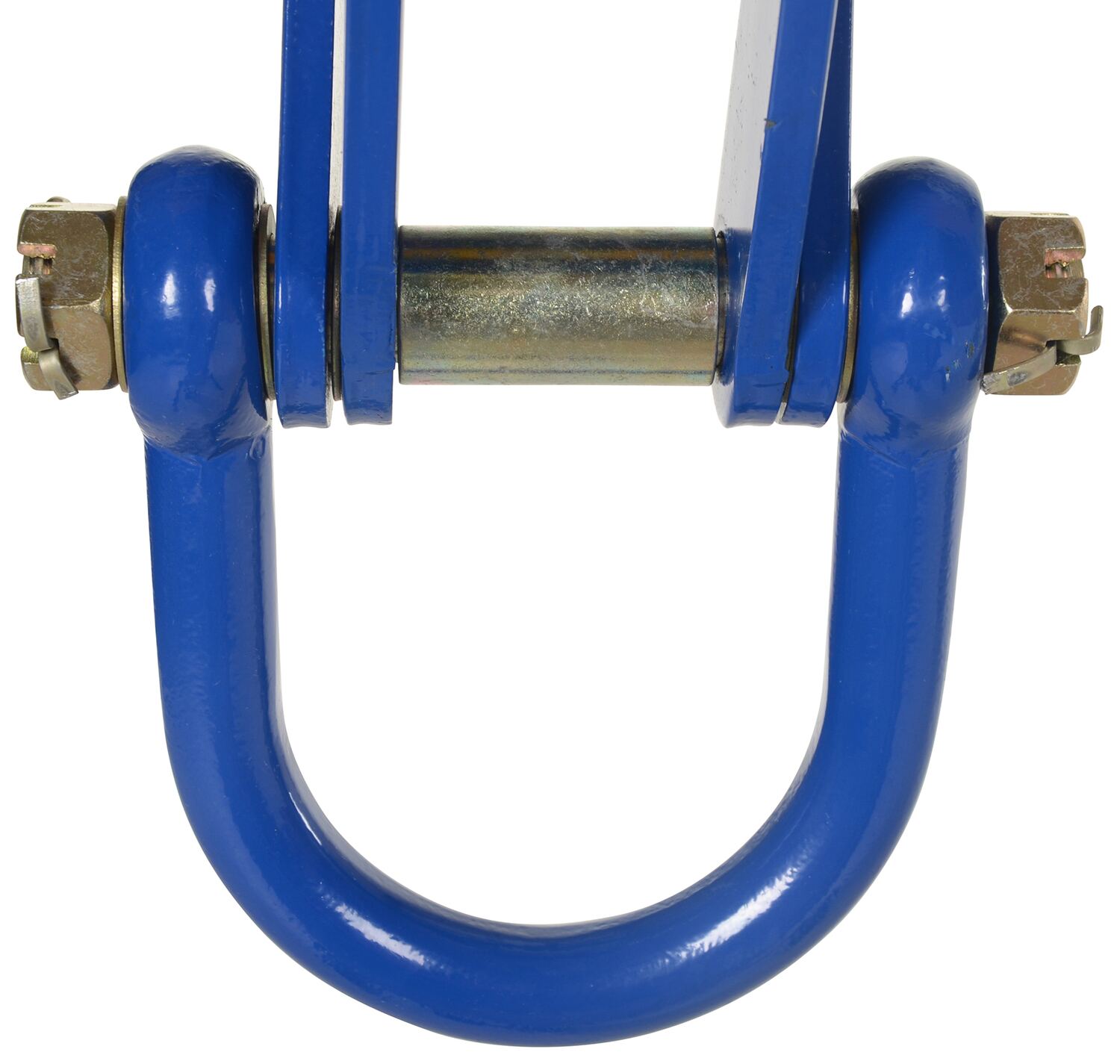

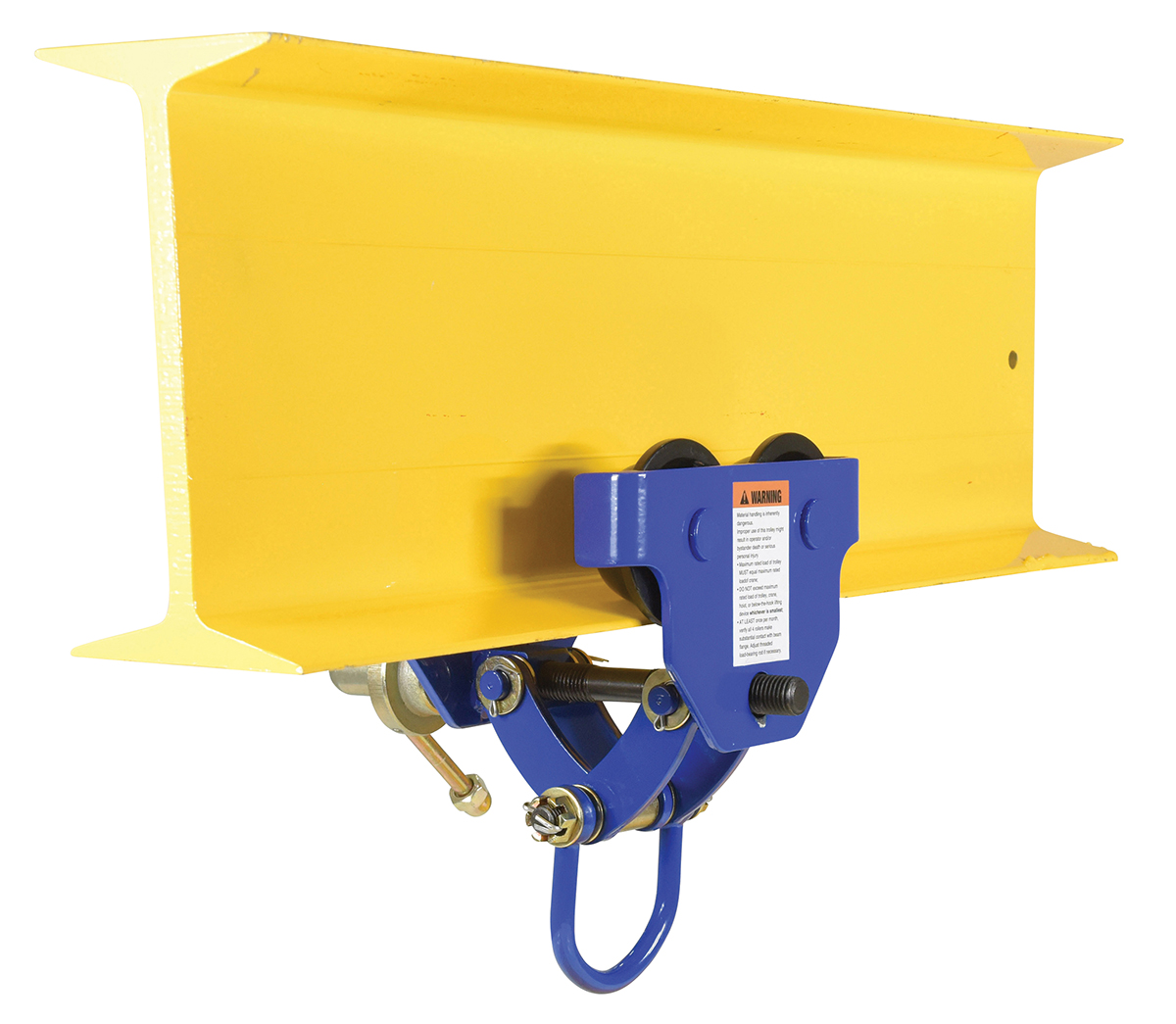

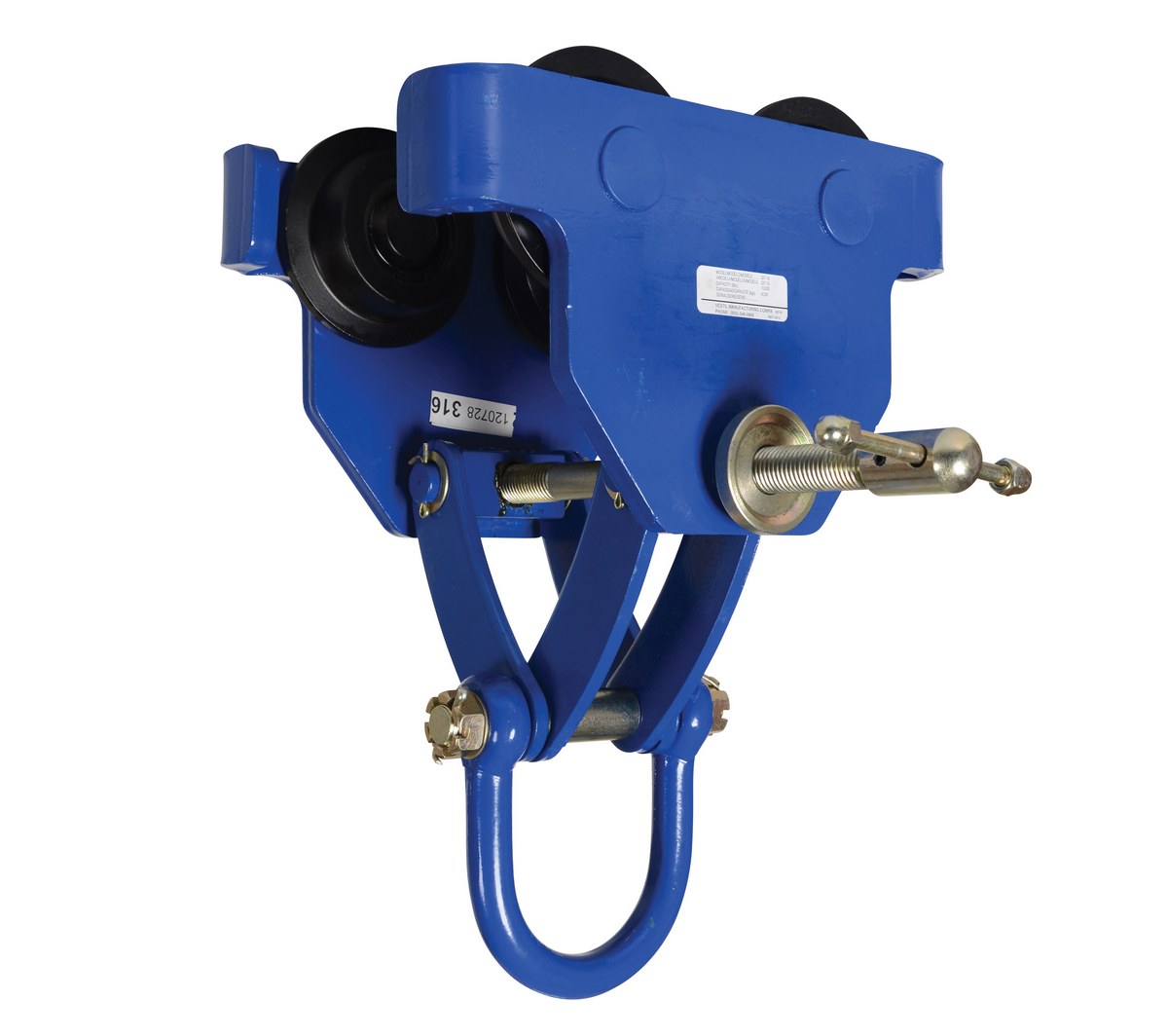

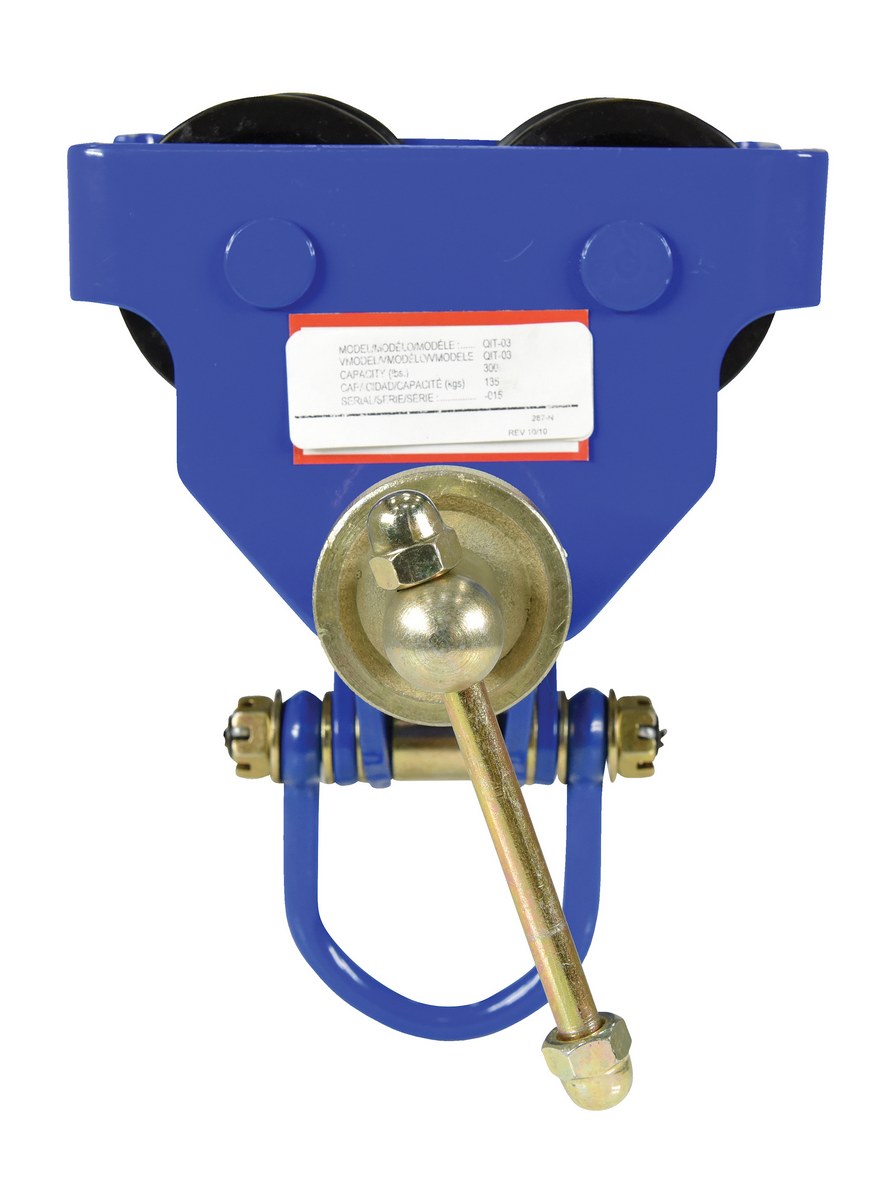

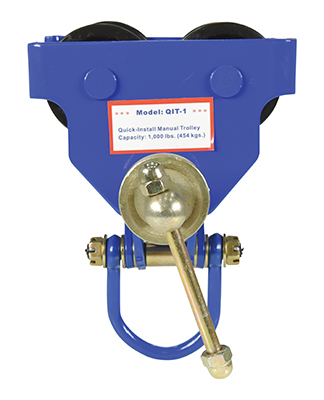

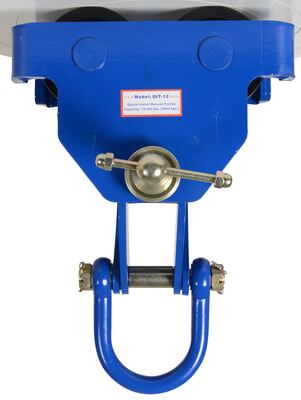

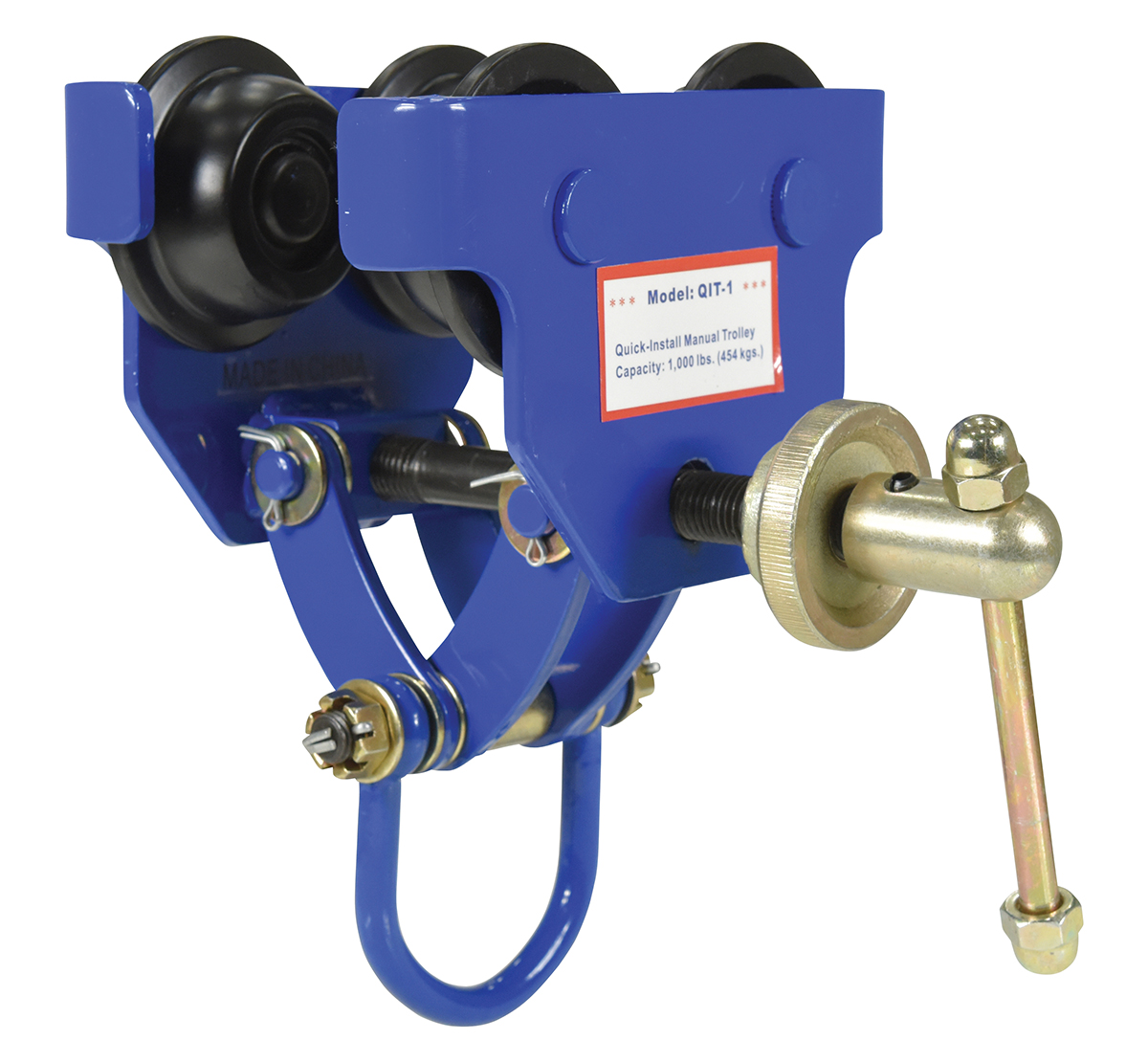

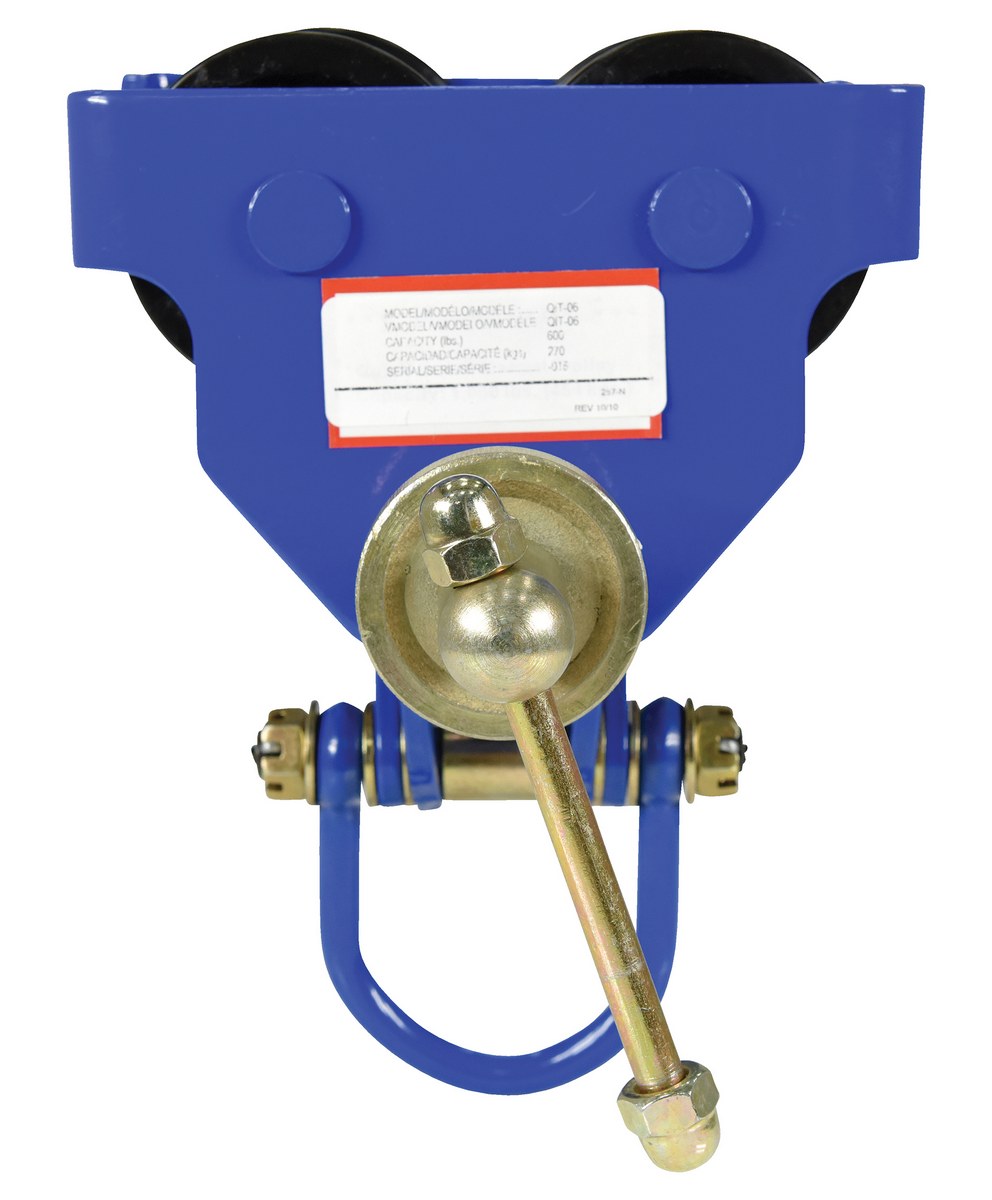

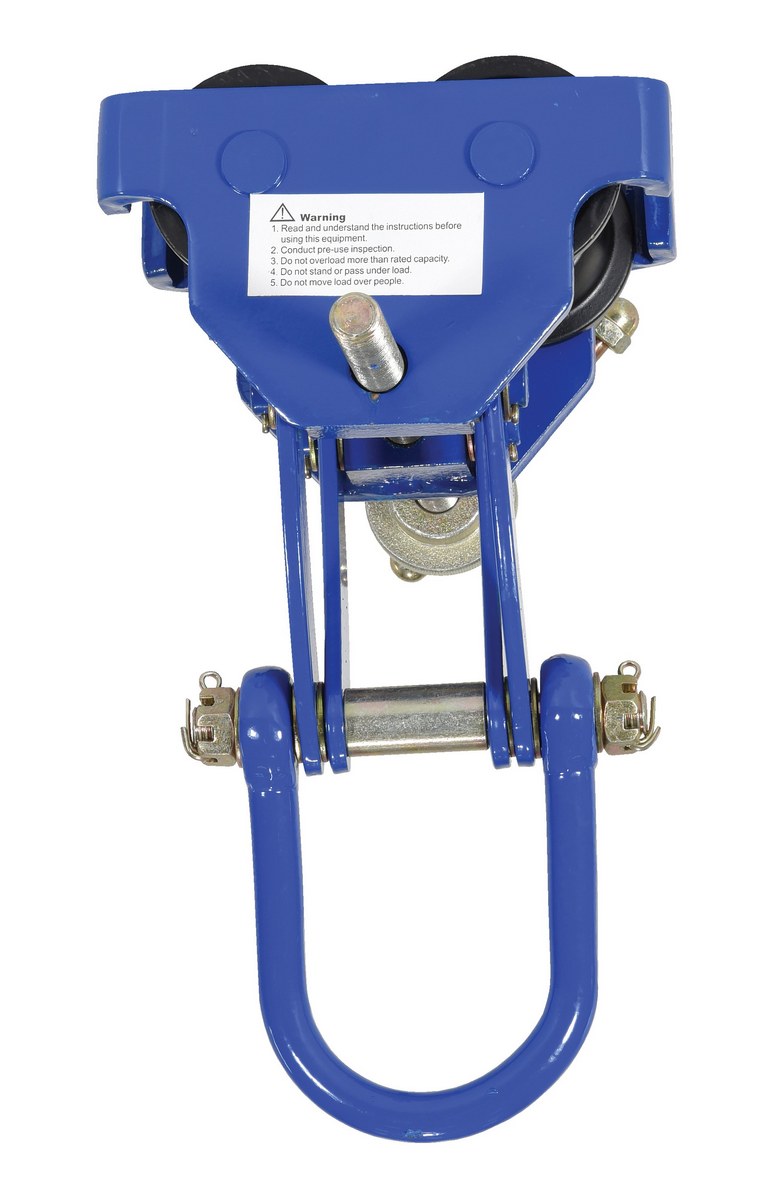

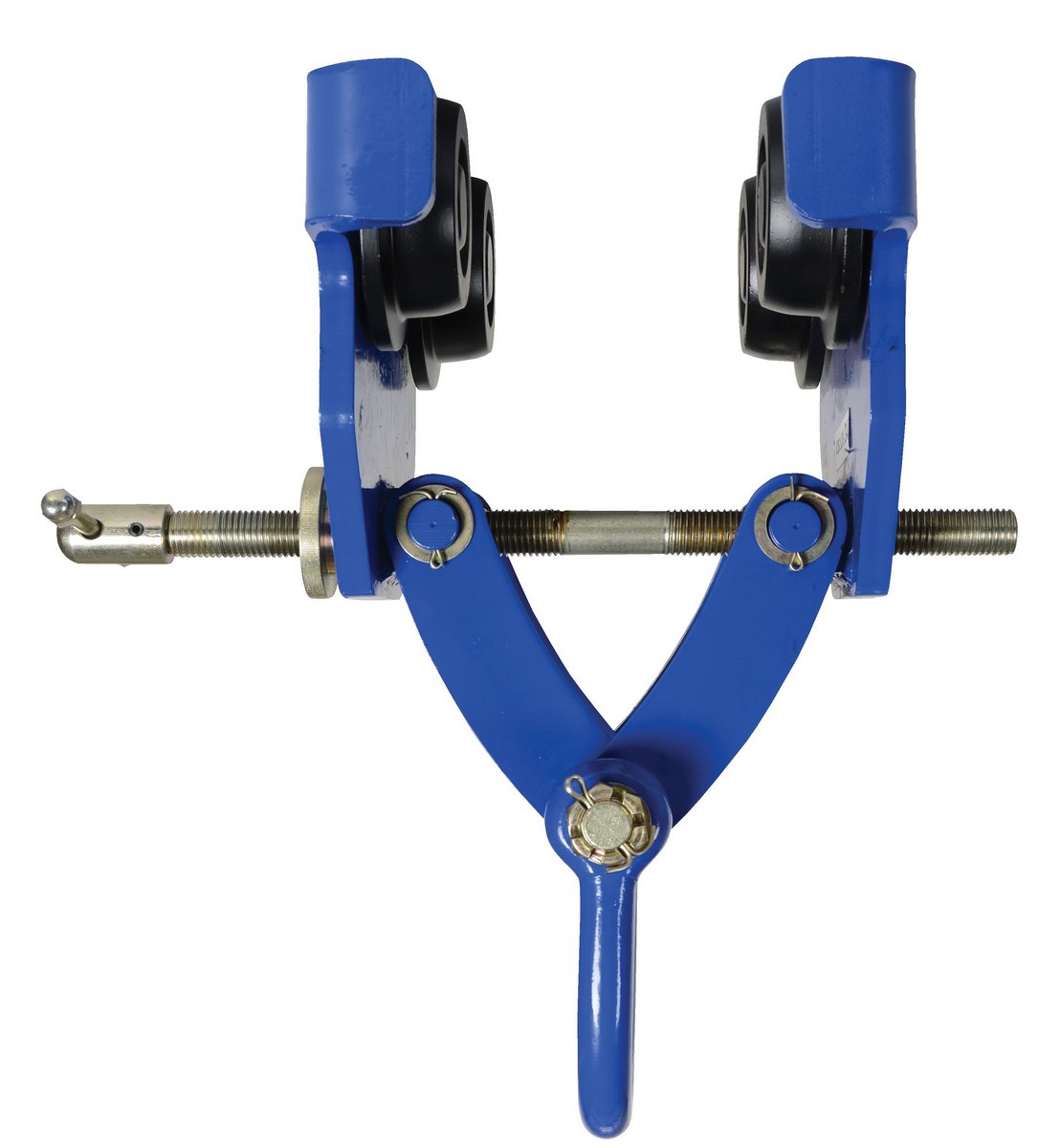

Designed to easily adjust to the width of virtually any S, H, W, and M type I-beam. Width is adjusted with manual screw mechanism. Includes locking ring to prevent trolley width from changing accidentally. Manual screw mechanism may also be tightened to prevent trolley from moving (similar to a Beam Clamp). Each trolley includes four rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (sold separately). Steel construction and painted finish. FOB Shipping Point.
Most standard items by Vestil Manufacturing, are in stock and ready for immediate shipment.
Custom orders are our specialty and fabrication services are available on most items.
QUICK INSTALL MANUAL TROLLEY
| Product No. | Cap. (lbs.) | Fits Beam Flange Width |
Headroom | Wt. (lbs.) | price | Quantity |
|---|---|---|---|---|---|---|
| HQIT-1 | 1000 | 3 to 5" | 6-3/4" | 13 |
TODAY: $104.27 |
Add to cart |
| HQIT-10 | 10000 | 4 to 11-3/4 " | 13-7/8" | 68 |
TODAY: $324.70 |
Add to cart |
| HQIT-2 | 2000 | 3 to 5" | 8-1/8" | 14 |
TODAY: $114.70 |
Add to cart |
| HQIT-4 | 4000 | 3 to 7-1/2" | 10" | 17 |
TODAY: $159.53 |
Add to cart |
| HQIT-6 | 6000 | 3 to 7-1/2" | 10-3/8" | 40 |
TODAY: $207.81 |
Add to cart |
| HQIT-8 | 8000 | 4 to 11-3/4 " | 13-7/8" | 68 |
TODAY: $261.75 |
Add to cart |
QUICK INSTALL MANUAL TROLLEY
- Cap. (lbs.): 1000
- Fits Beam Flange Width: 3 to 5"
- Headroom: 6-3/4"
- Wt. (lbs.): 13
- :
- Cap. (lbs.): 10000
- Fits Beam Flange Width: 4 to 11-3/4 "
- Headroom: 13-7/8"
- Wt. (lbs.): 68
- :
- Cap. (lbs.): 2000
- Fits Beam Flange Width: 3 to 5"
- Headroom: 8-1/8"
- Wt. (lbs.): 14
- :
- Cap. (lbs.): 4000
- Fits Beam Flange Width: 3 to 7-1/2"
- Headroom: 10"
- Wt. (lbs.): 17
- :
- Cap. (lbs.): 6000
- Fits Beam Flange Width: 3 to 7-1/2"
- Headroom: 10-3/8"
- Wt. (lbs.): 40
- :
- Cap. (lbs.): 8000
- Fits Beam Flange Width: 4 to 11-3/4 "
- Headroom: 13-7/8"
- Wt. (lbs.): 68
- :
