EXTRA TRAVEL TRI-POST JIB
- Place over the top workbench for maximum efficiency.
- Designed for use in workstations.

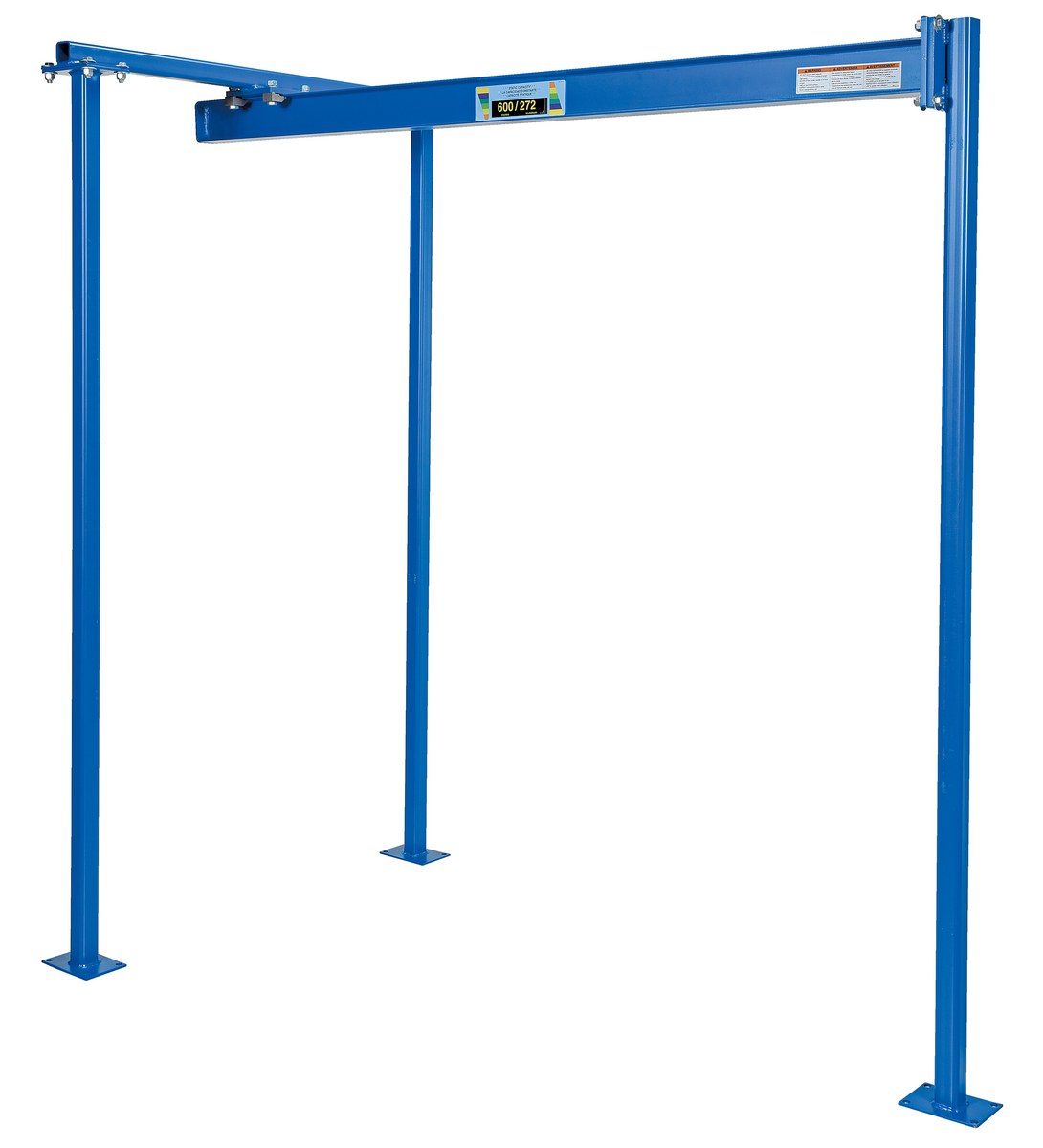

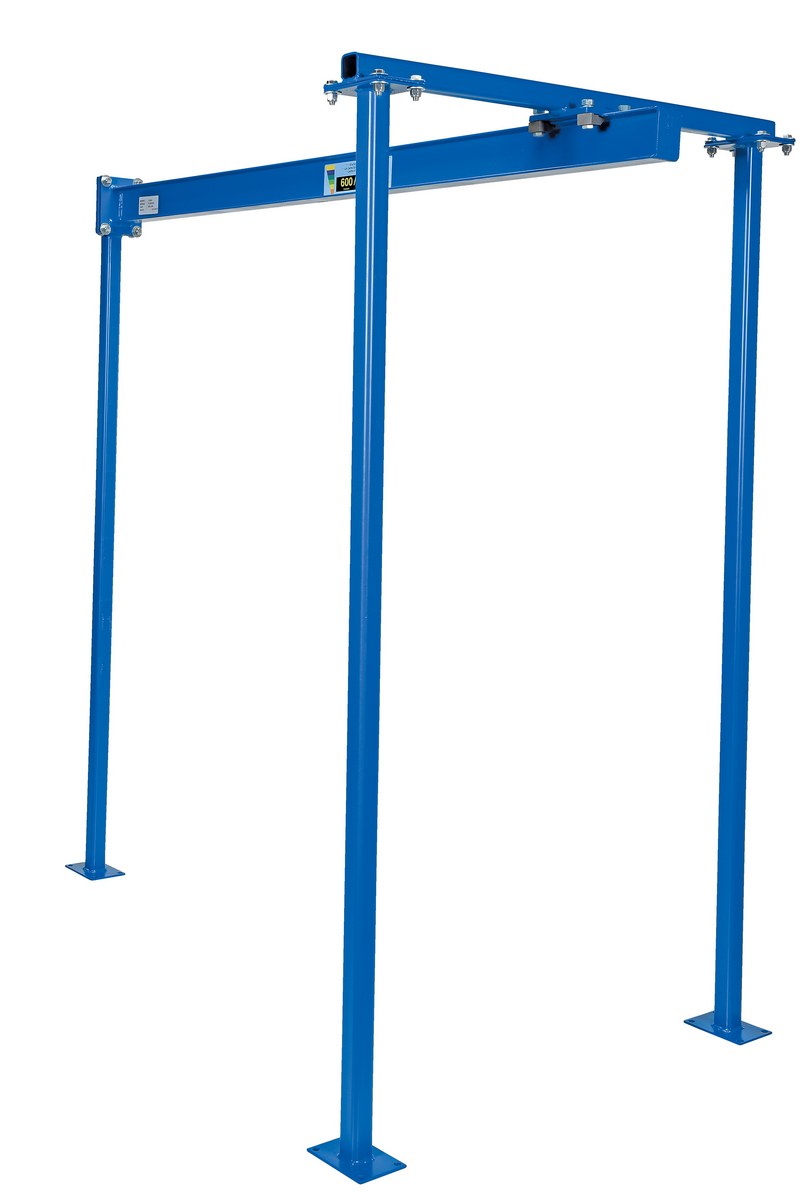

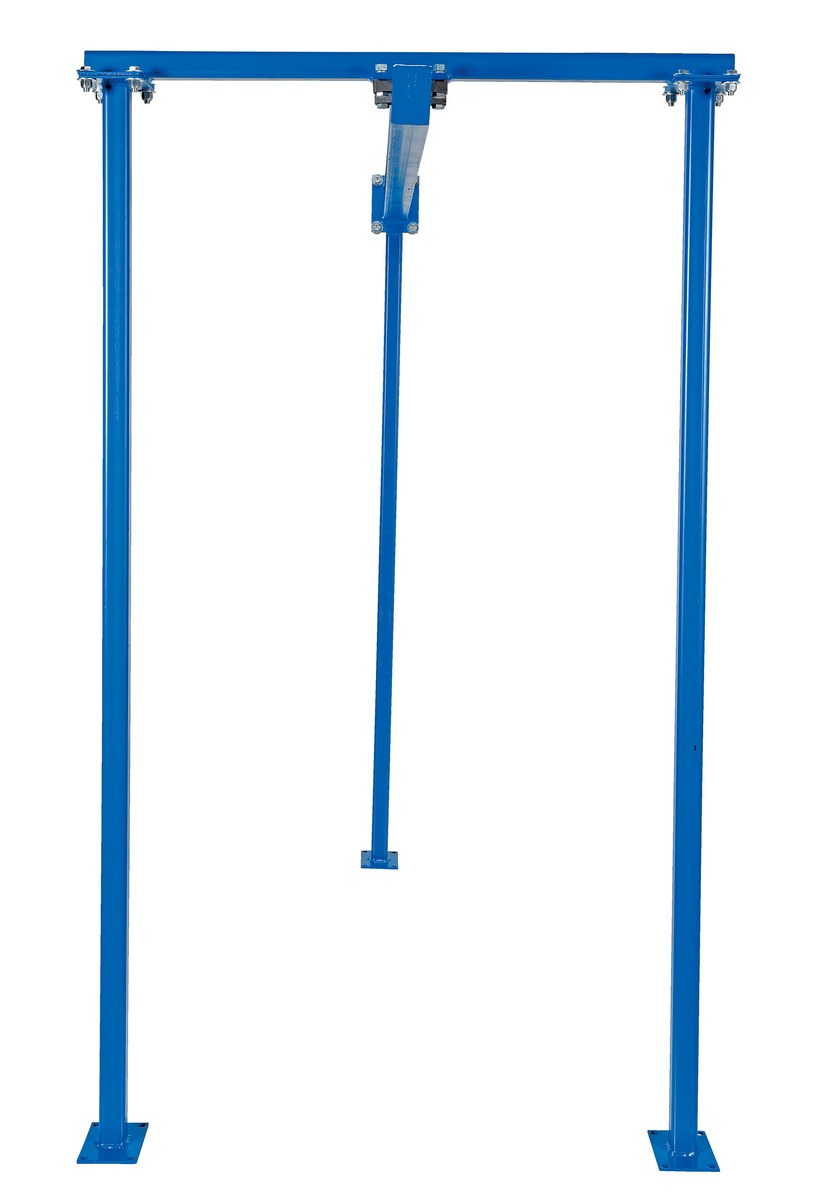

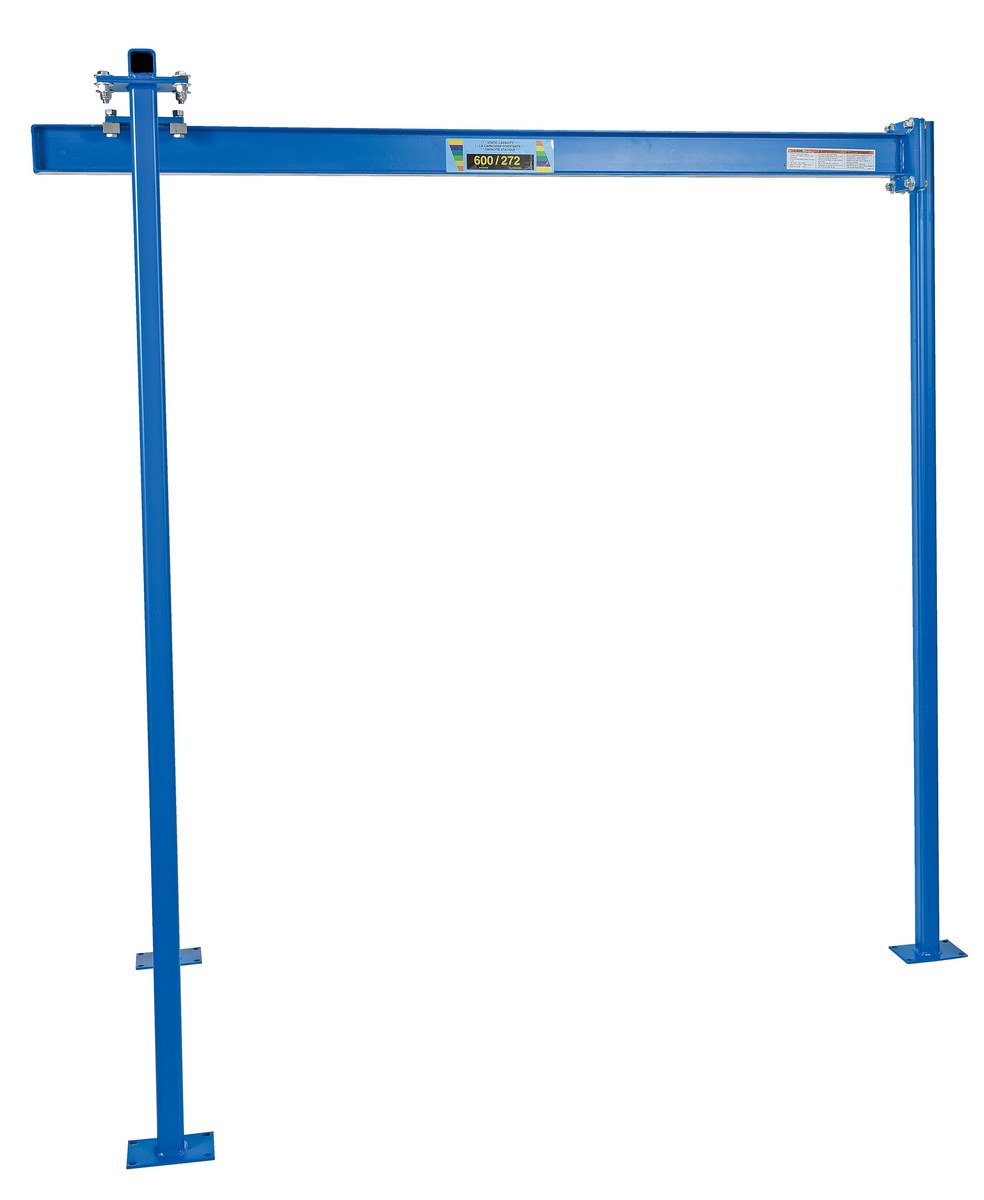

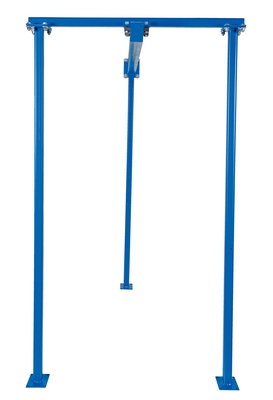

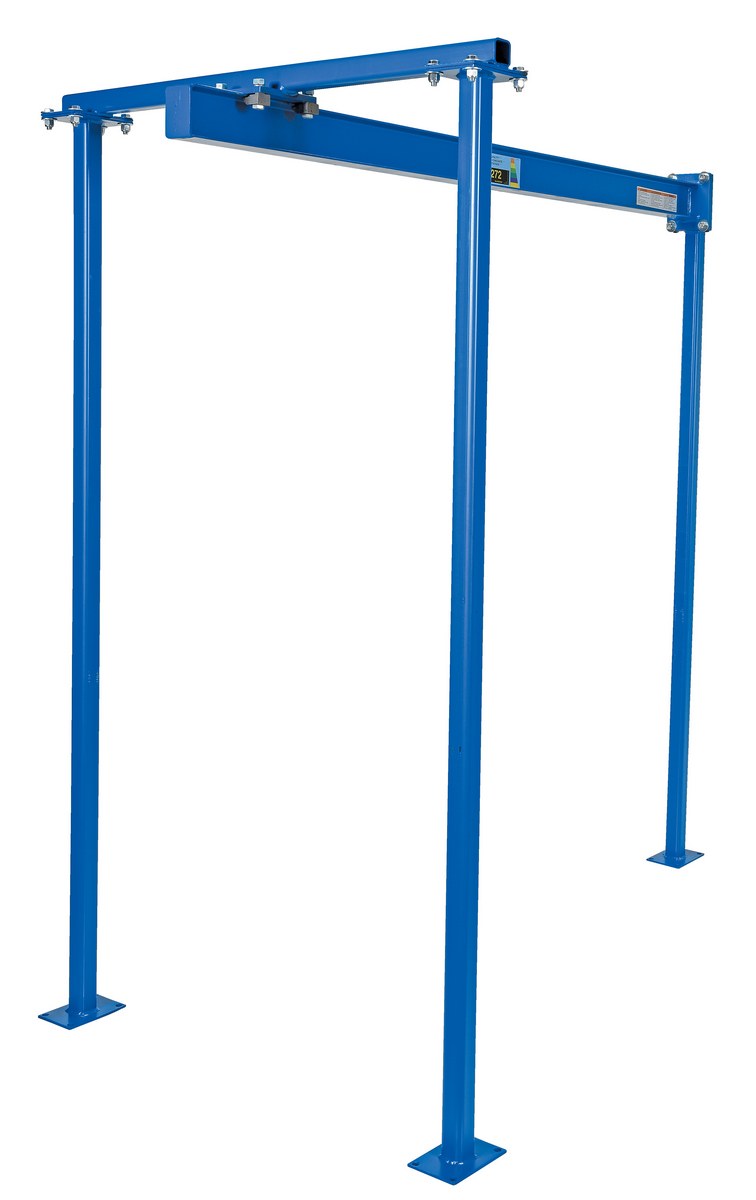

Extra travel I-Beam overhangs workbench to allow lifting of items from cart to bench. Straddle width is 39" I.D. I -Beam usable length is 80". Hoist and trolley is sold separately. Rugged all steel construction. Will not work with eye manual trollies. Blue powder coat finish. FOB Shipping Point.
EXTRA TRAVEL TRI-POST JIB
| Product No. | Under I-Beam to Ground |
I-Beam Flange X Height | Cap. (lbs.) | Wt. (lbs.) | price | Quantity |
|---|---|---|---|---|---|---|
| HTJIB-10 | 76" | 2.66 x 4" | 1000 | 299 |
TODAY: $0.00 |
X
|
| HTJIB-20 | 76" | 2.66 x 4" | 2000 | 414 |
TODAY: $0.00 |
X
|
| HTJIB-3 | 76" | 2.66 x 4" | 300 | 204 |
TODAY: $0.00 |
X
|
| HTJIB-6 | 76" | 2.66 x 4" | 600 | 216 |
TODAY: $0.00 |
X
|
EXTRA TRAVEL TRI-POST JIB
- Under I-Beam to Ground: 76"
- I-Beam Flange X Height: 2.66 x 4"
- Cap. (lbs.): 1000
- Wt. (lbs.): 299
- :
TODAY: $0.00
- Under I-Beam to Ground: 76"
- I-Beam Flange X Height: 2.66 x 4"
- Cap. (lbs.): 2000
- Wt. (lbs.): 414
- :
TODAY: $0.00
- Under I-Beam to Ground: 76"
- I-Beam Flange X Height: 2.66 x 4"
- Cap. (lbs.): 300
- Wt. (lbs.): 204
- :
TODAY: $0.00
- Under I-Beam to Ground: 76"
- I-Beam Flange X Height: 2.66 x 4"
- Cap. (lbs.): 600
- Wt. (lbs.): 216
- :
TODAY: $0.00
Vestil Manufacturing: Nationwide Industrial Supply is a preferred global distributor for Vestil Mfg.
