Dixon Valve Boss Ground Joint Spuds
1 GJ BOSS M SPUD
- The spud part of the coupling serves as one half of the Boss Ground Joint connection and is usually fixed to the equipment
- The stem part that is clamped to the hose is the other half
- The two halves are connected or disconnected by rotating the wing nut on the spud
- When connected they achieve both a mechanical and a pressure seal
- Leakproof and easy to seal
Dixon Valve Boss Ground Joint Spuds
| Product No. | Body Material | Connection Type | Female Thread | Male Thread | Length [Nom] | Operating Temp. [Max] | price | Quantity |
|---|---|---|---|---|---|---|---|---|

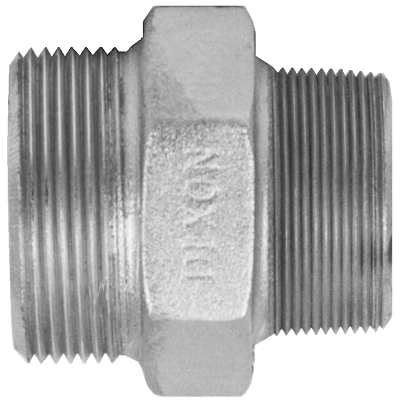

| 238-GM13 | Plated Steel | Male/Male Spud | 1 in | 450 F |
TODAY: $0.00 |
X
|
||
| 238-GB28 | Plated Steel | Male/Female | 2 in | 2 1/2 in | 2 3/32 in | 450 F |
TODAY: $0.00 |
X
|
| 238-GM38 | Plated Steel | Male/Male | 3 in | 4 7/16 in | 450 F |
TODAY: $0.00 |
X
|
|

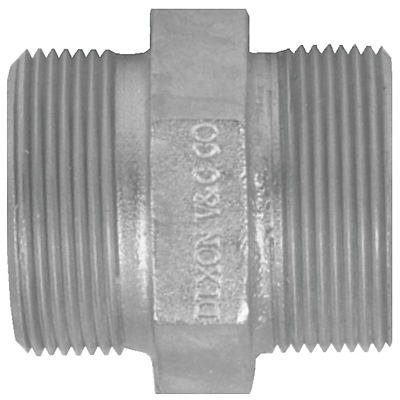

| 238-GDB28 | Plated Steel | Male Spud/Male Spud | 2 in | 450 F |
TODAY: $0.00 |
X
|
||
| 238-GB8 | Plated Steel | Male/Female | 3/4 in | 1 1/2 in | 1 3/8 in | 450 F |
TODAY: $0.00 |
X
|

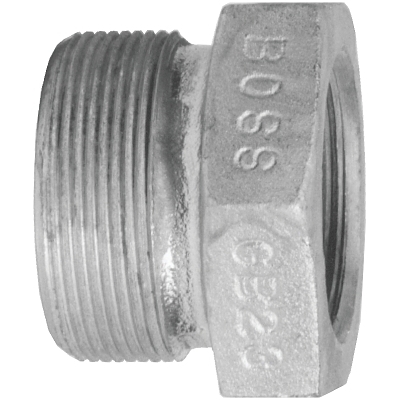

| 238-GB13 | Plated Steel | Male/Female Spud | 1 in | 450 F |
TODAY: $0.00 |
X
|
||
| 238-GM28 | Plated Steel | Male/Male | 2 in | 3 5/32 in | 450 F |
TODAY: $0.00 |
X
|
|
| 238-GB38 | Plated Steel | Male/Female | 3 in | 4 in | 2 7/16 in | 450 F |
TODAY: $0.00 |
X
|
| 238-GDB38 | Plated Steel | Male/Male | 3 in | 4 1/8 in | 450 F |
TODAY: $0.00 |
X
|
Dixon Valve Boss Ground Joint Spuds
- Body Material: Plated Steel
- Connection Type: Male/Male Spud
- Female Thread:
- Male Thread: 1 in
- Length [Nom]:
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Female
- Female Thread: 2 in
- Male Thread: 2 1/2 in
- Length [Nom]: 2 3/32 in
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Male
- Female Thread:
- Male Thread: 3 in
- Length [Nom]: 4 7/16 in
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male Spud/Male Spud
- Female Thread:
- Male Thread: 2 in
- Length [Nom]:
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Female
- Female Thread: 3/4 in
- Male Thread: 1 1/2 in
- Length [Nom]: 1 3/8 in
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Female Spud
- Female Thread: 1 in
- Male Thread:
- Length [Nom]:
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Male
- Female Thread:
- Male Thread: 2 in
- Length [Nom]: 3 5/32 in
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Female
- Female Thread: 3 in
- Male Thread: 4 in
- Length [Nom]: 2 7/16 in
TODAY: $0.00
- Body Material: Plated Steel
- Connection Type: Male/Male
- Female Thread:
- Male Thread: 3 in
- Length [Nom]: 4 1/8 in
TODAY: $0.00
