P381

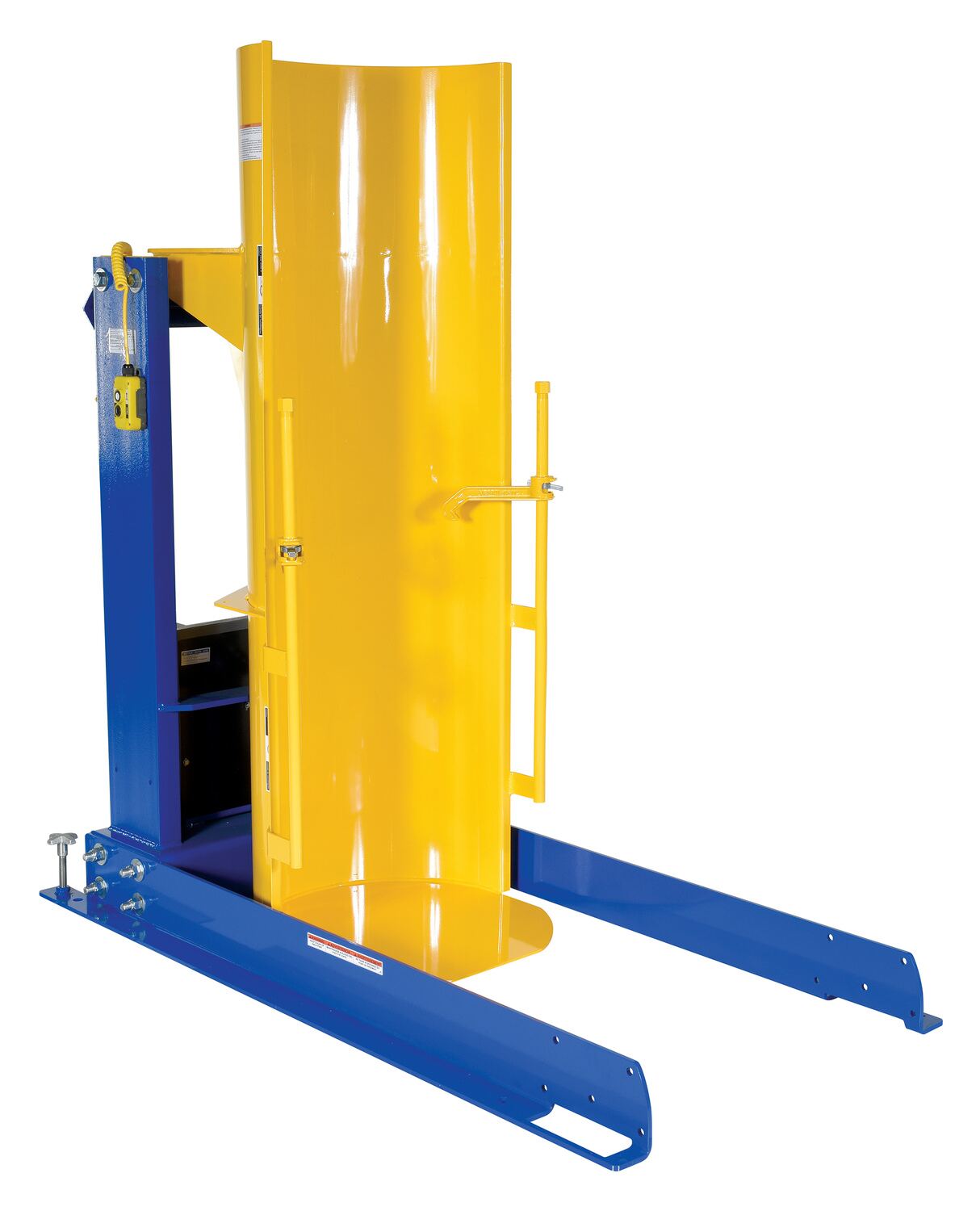

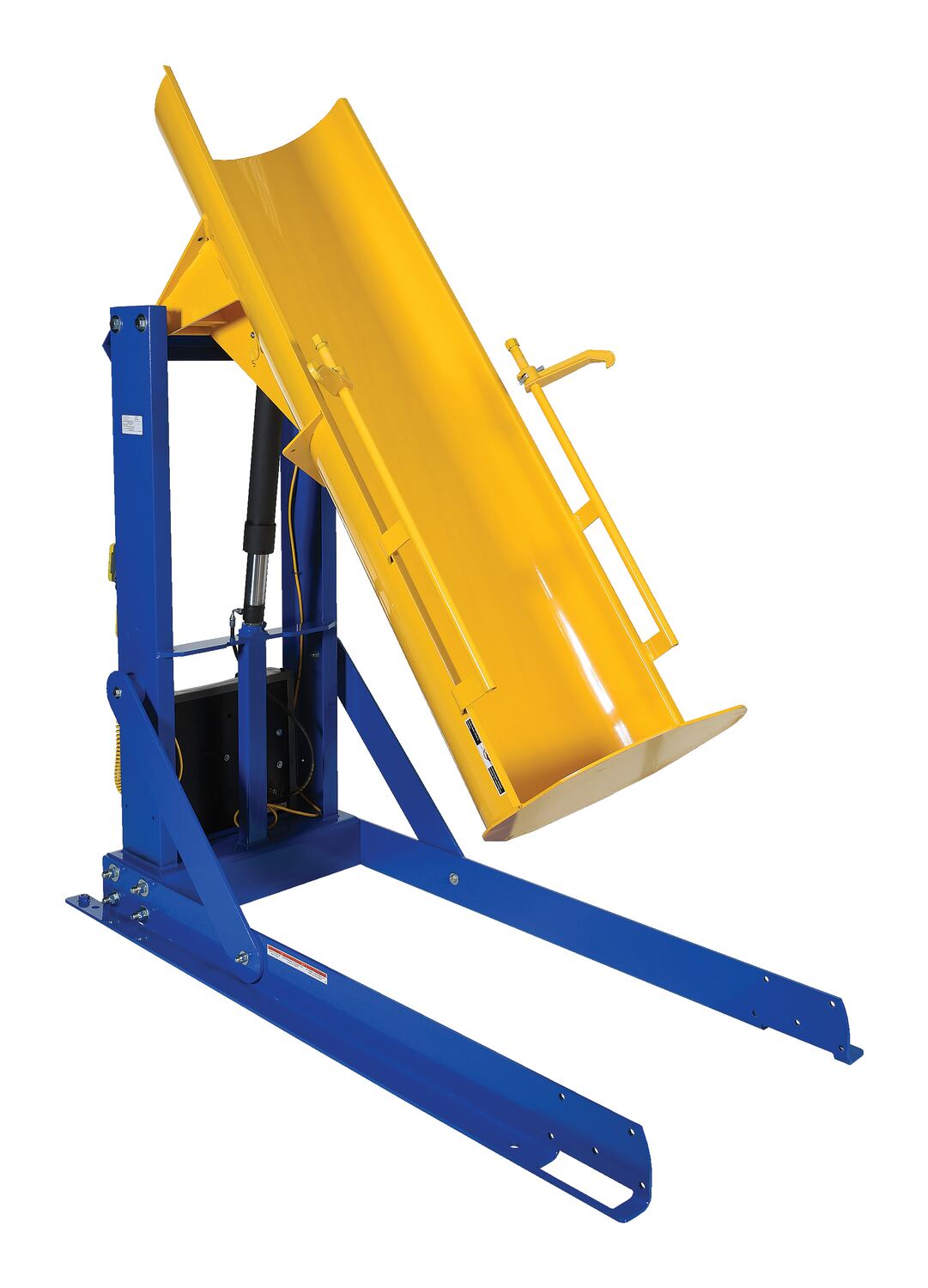

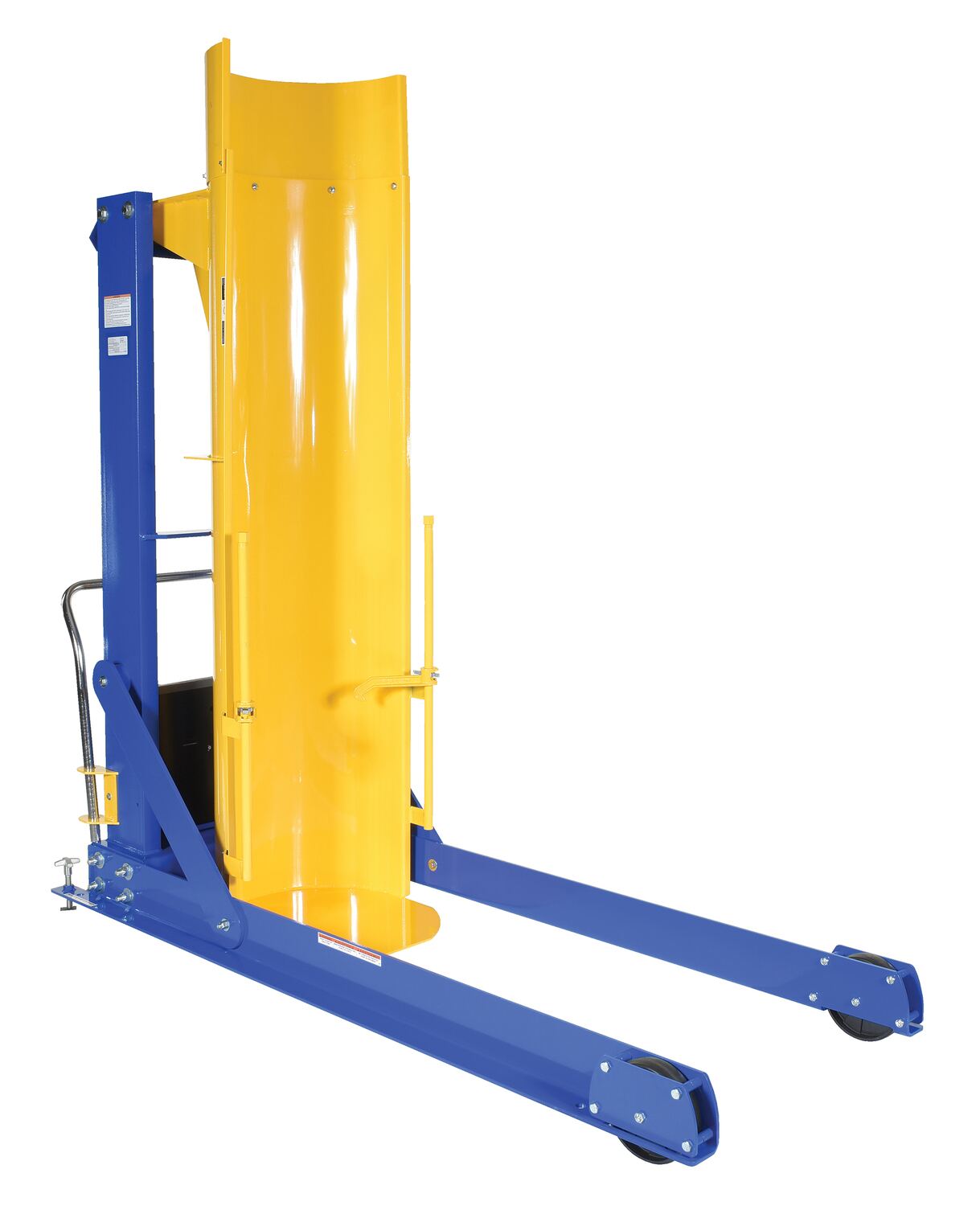

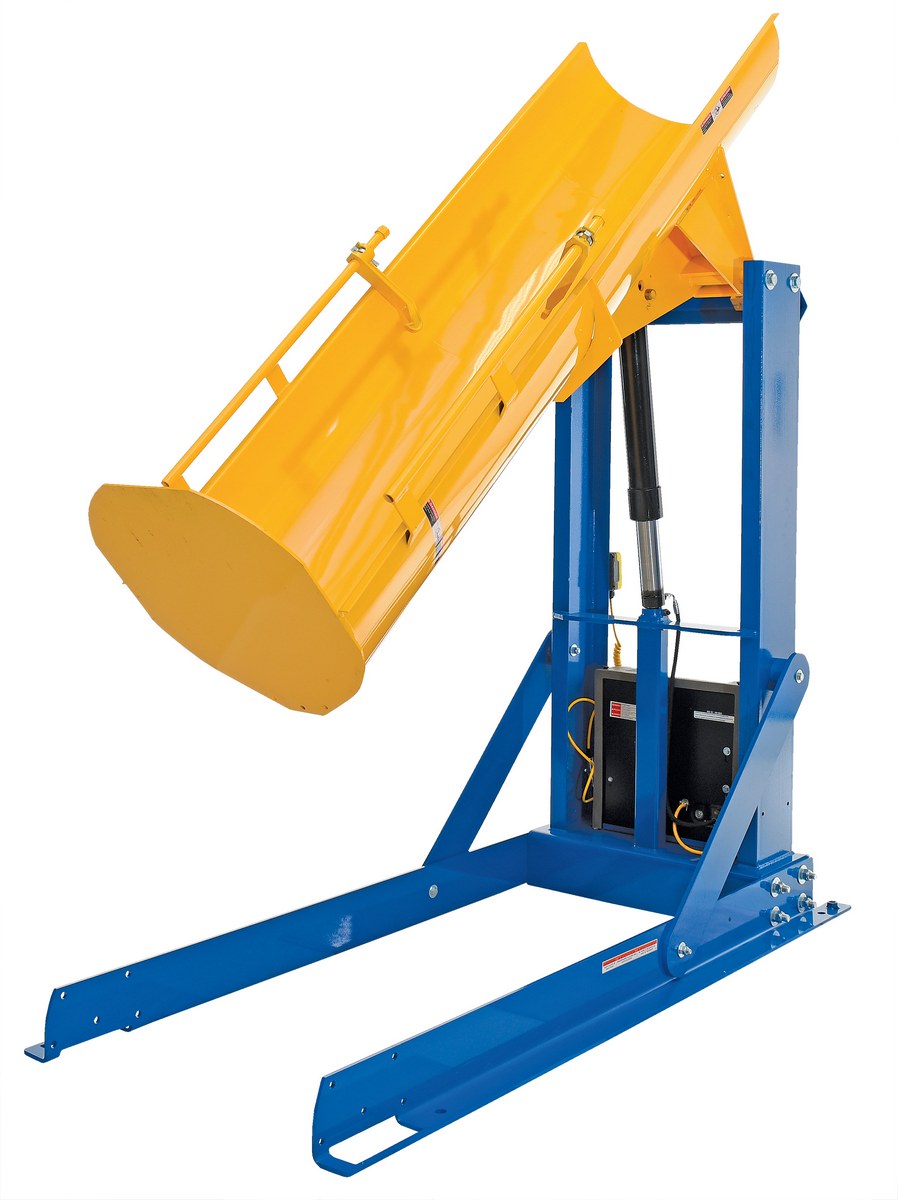

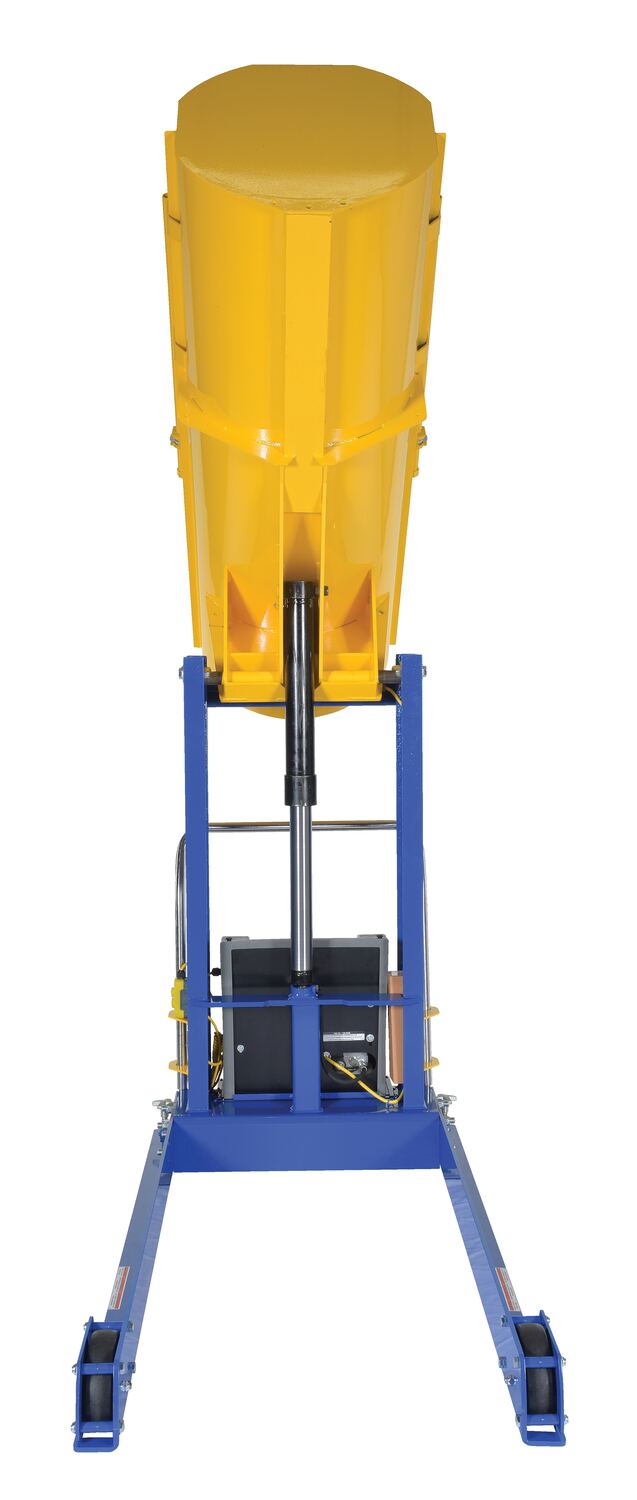

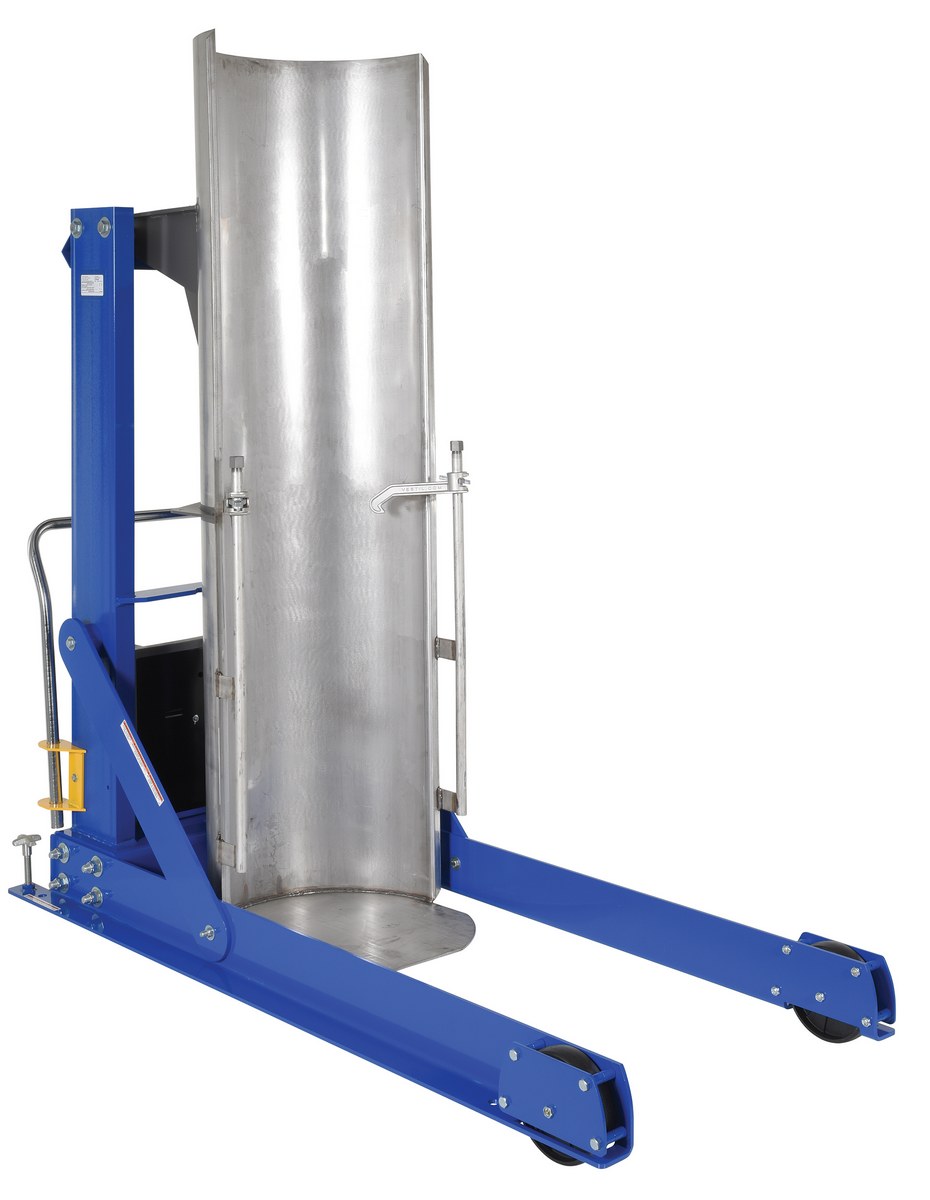

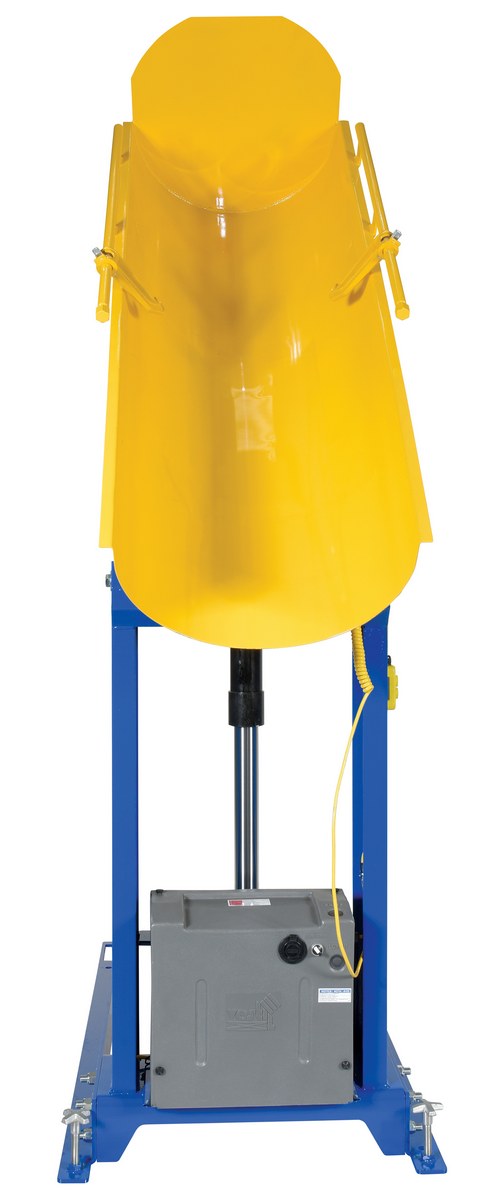

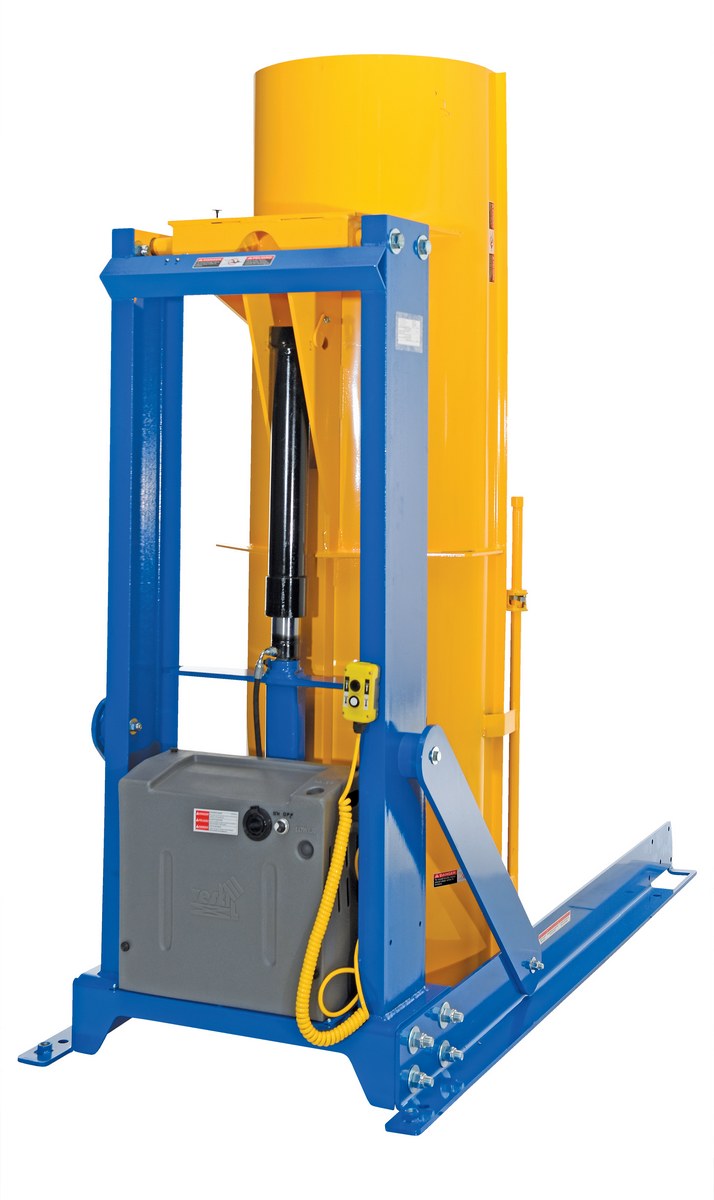

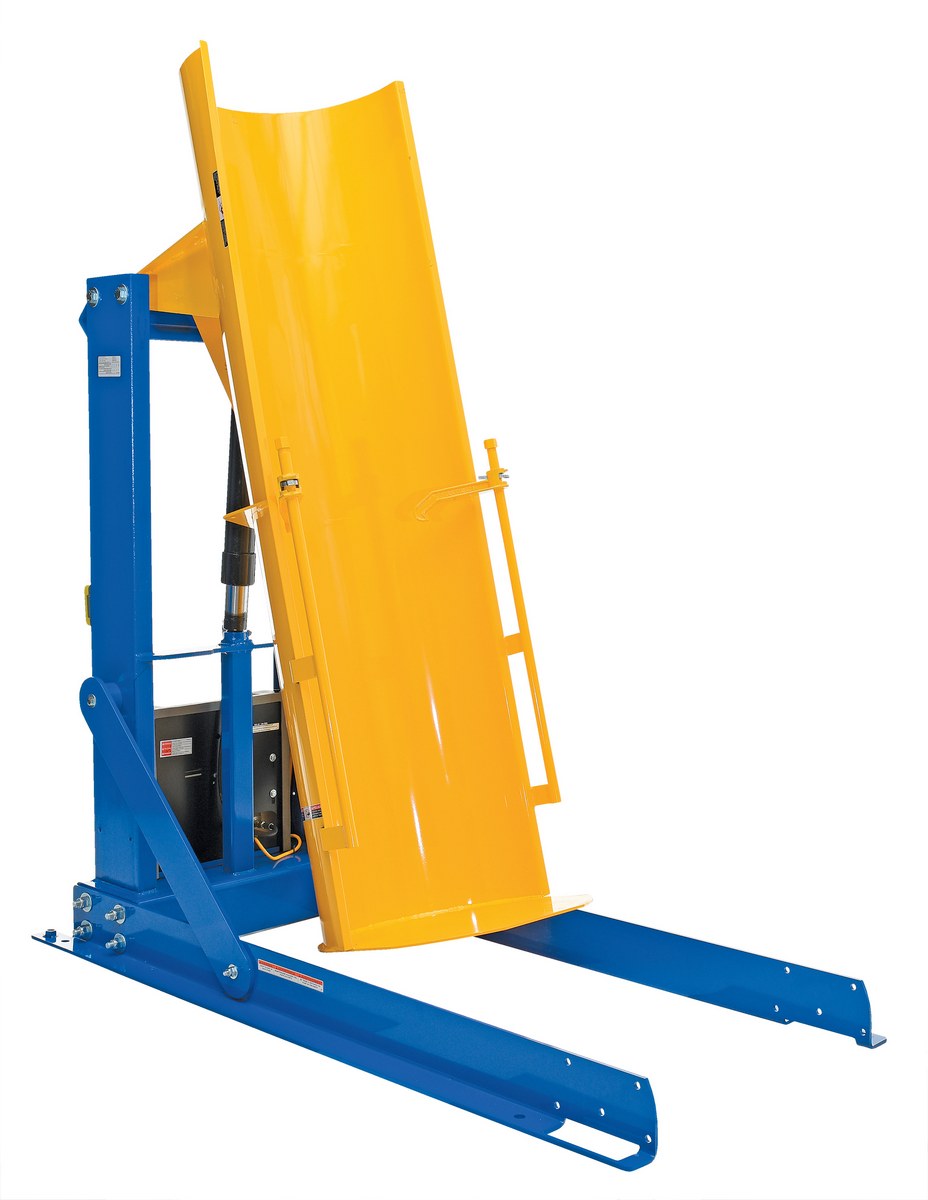

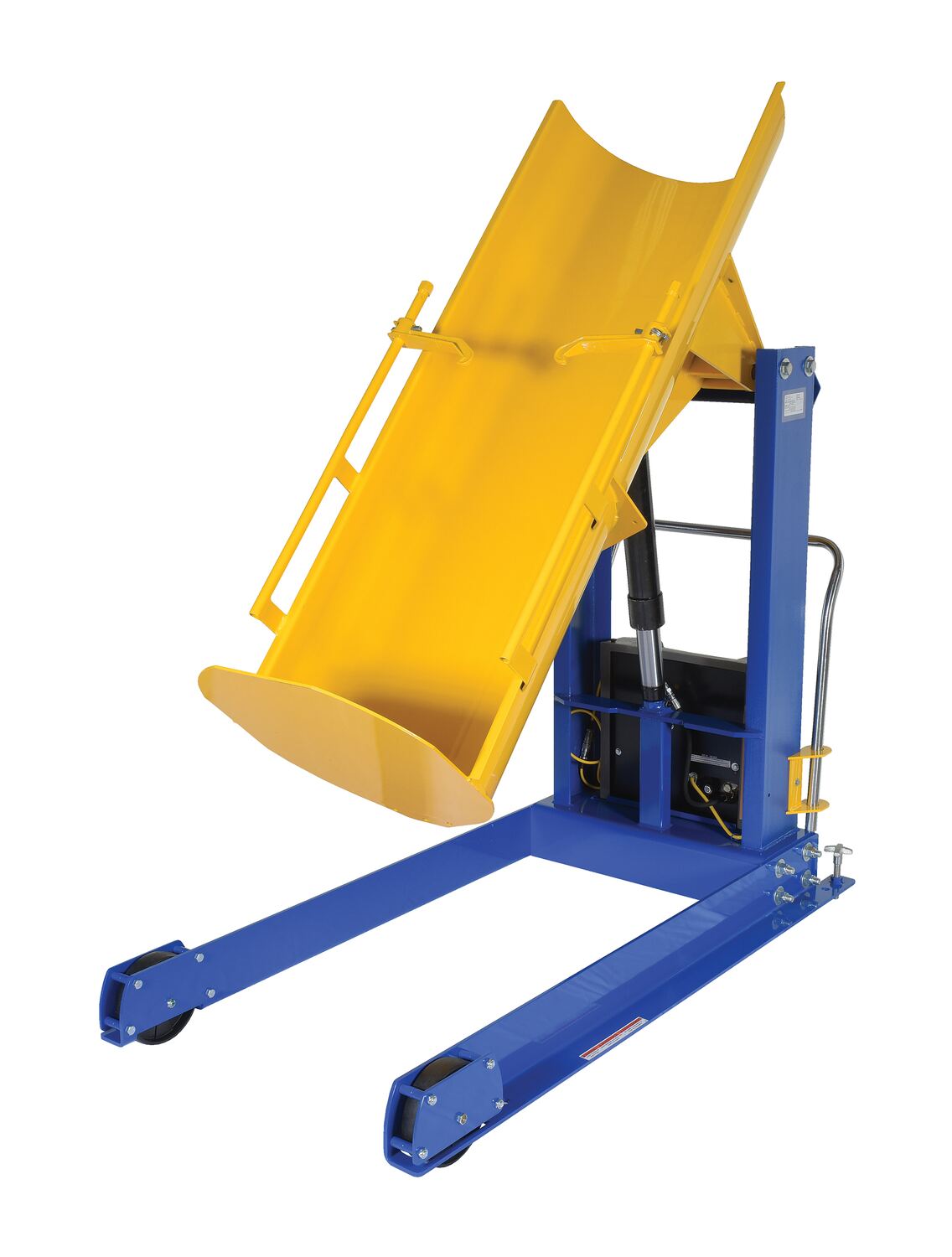

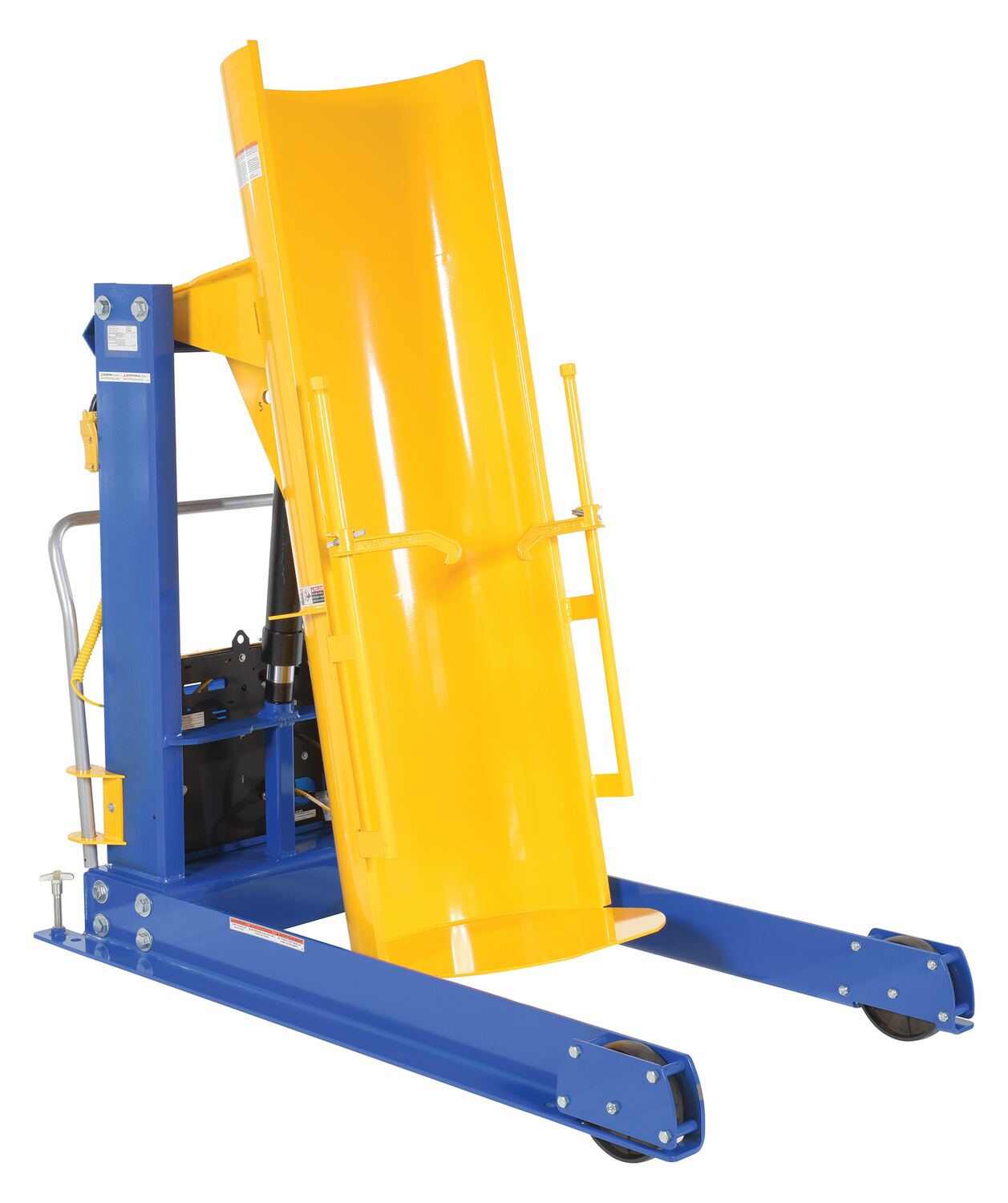

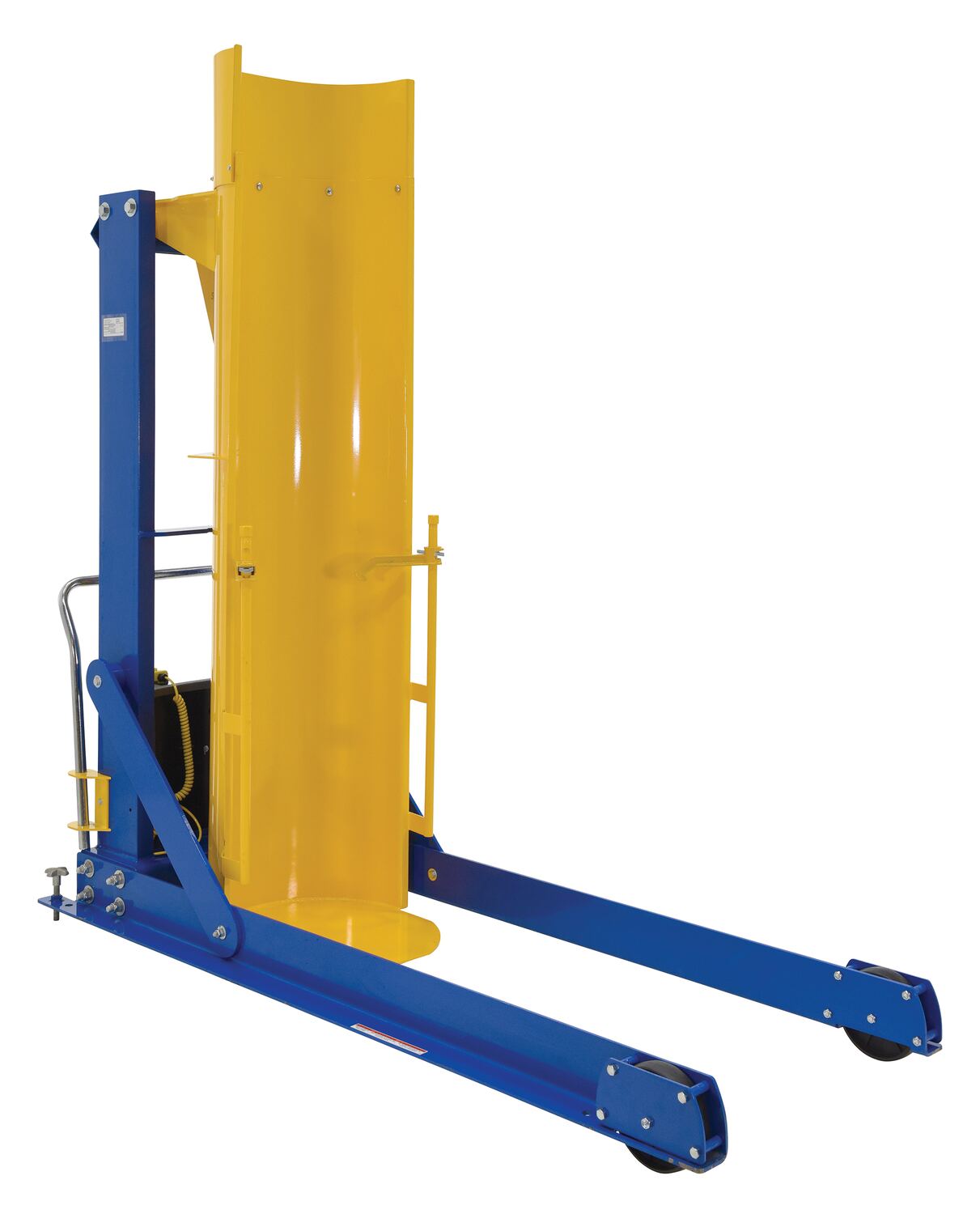

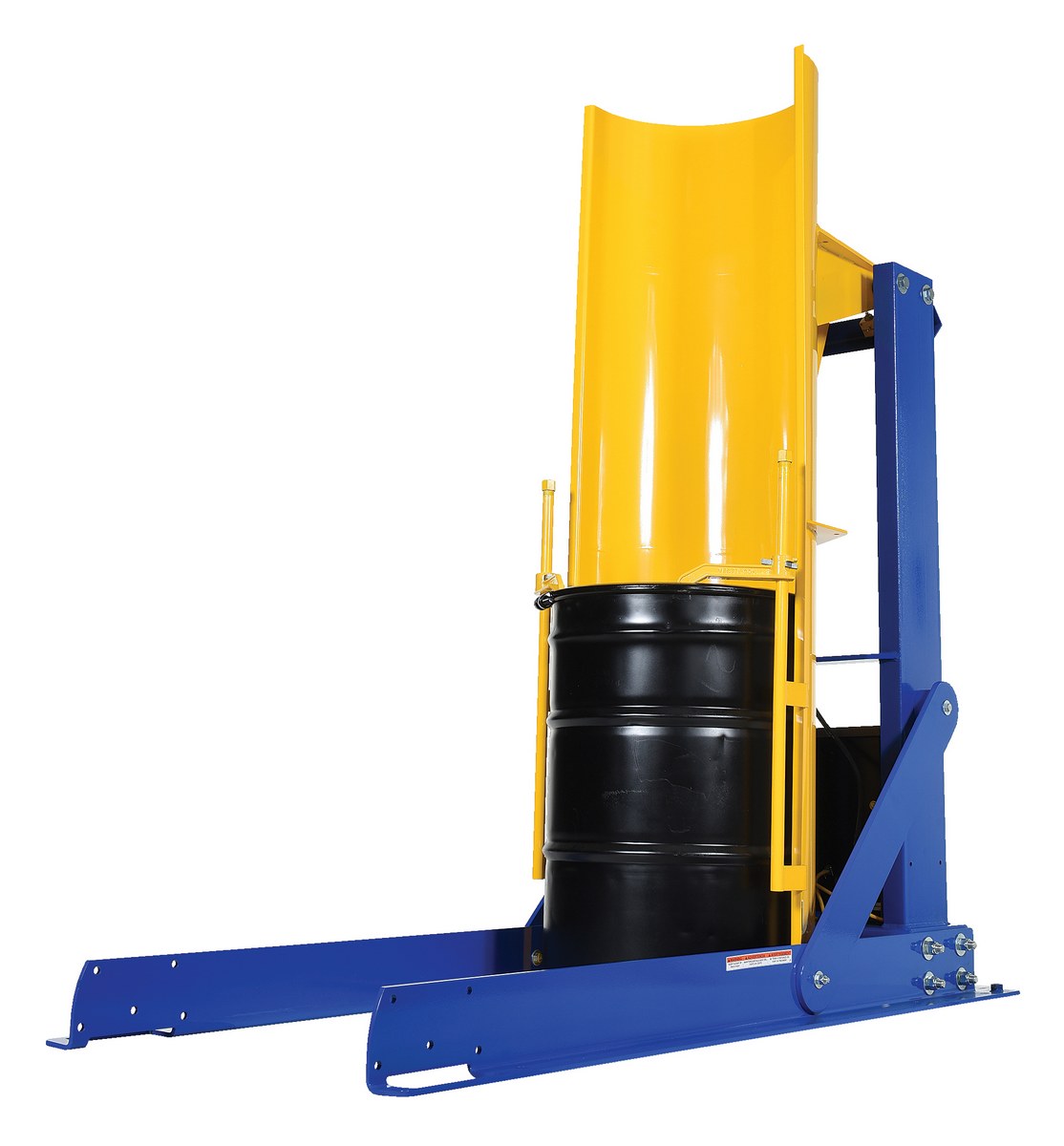

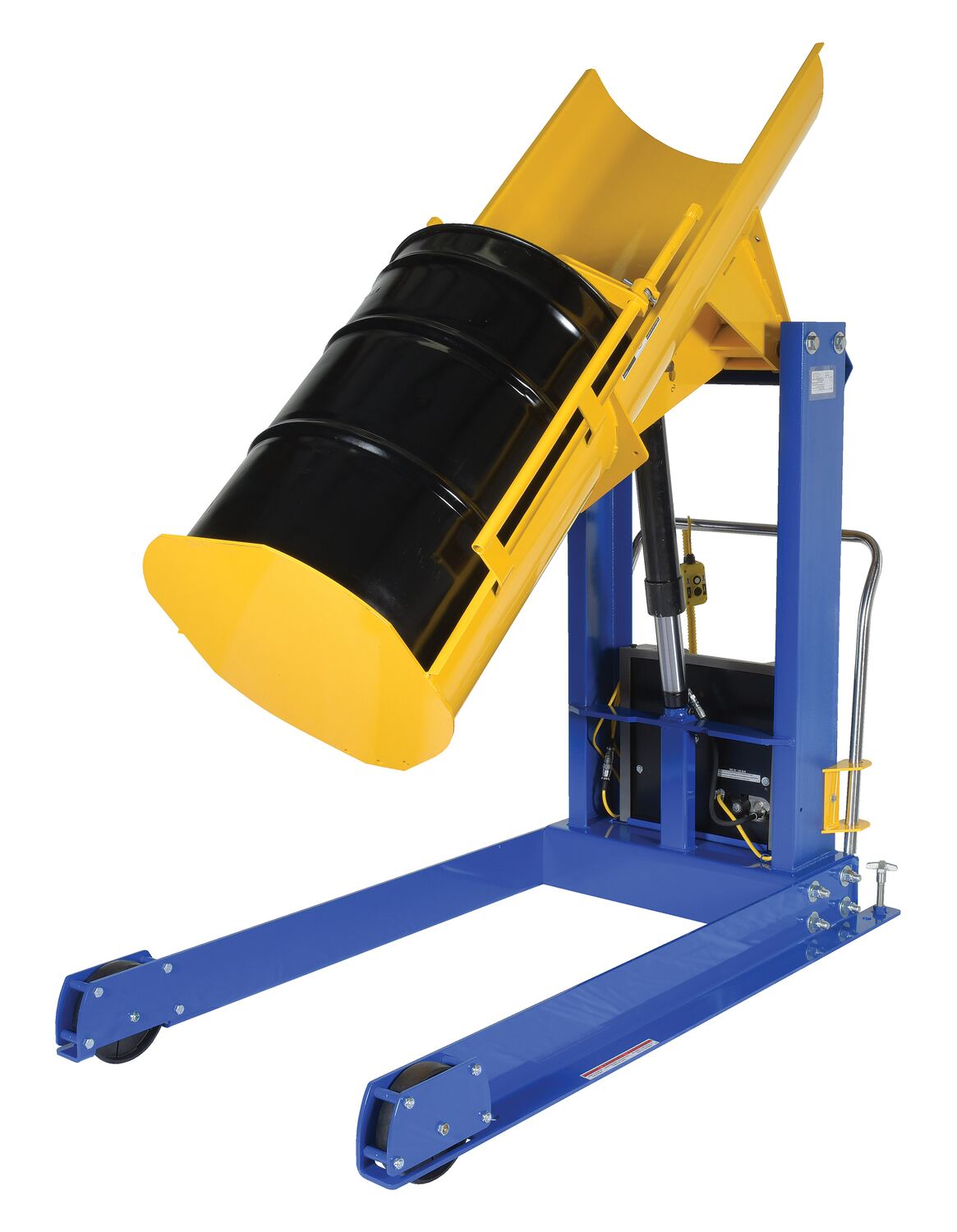

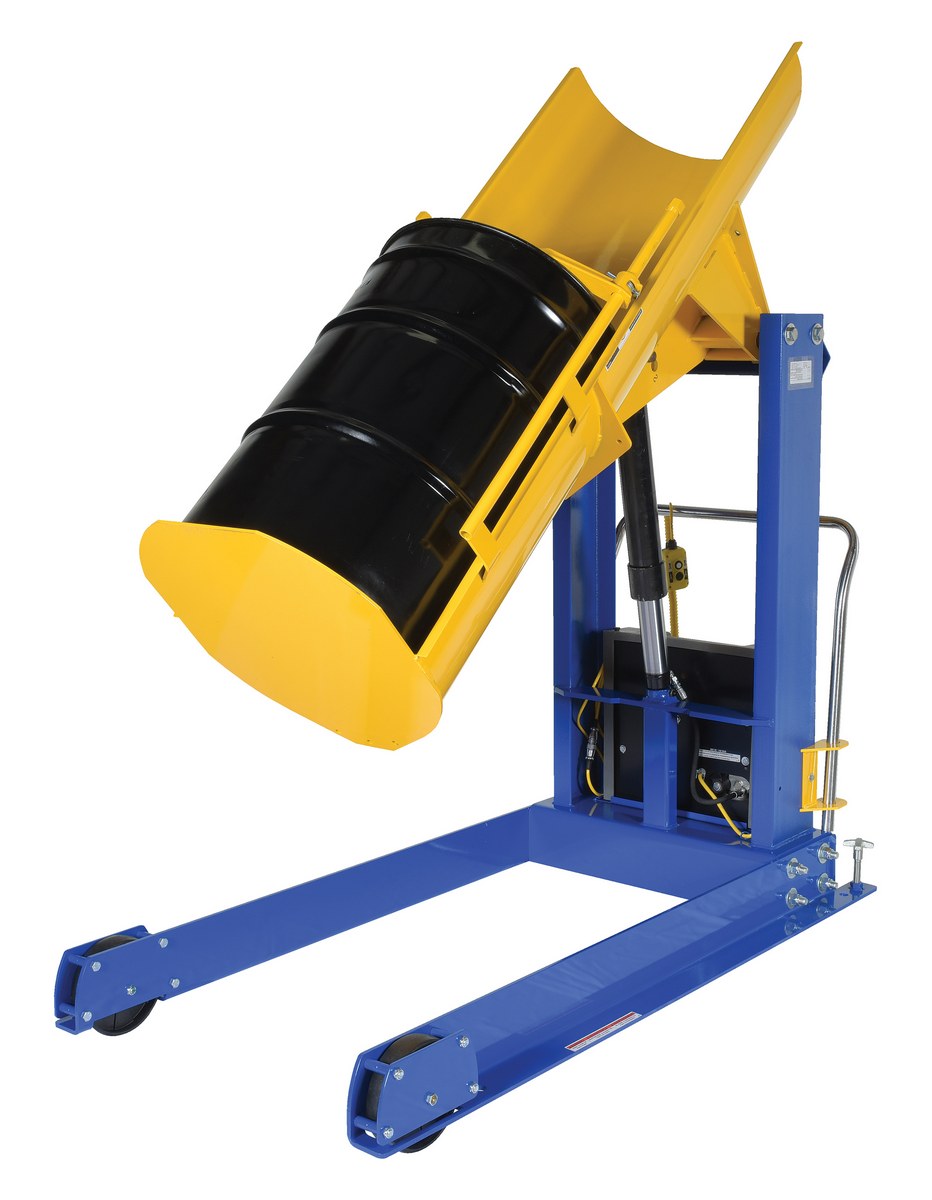

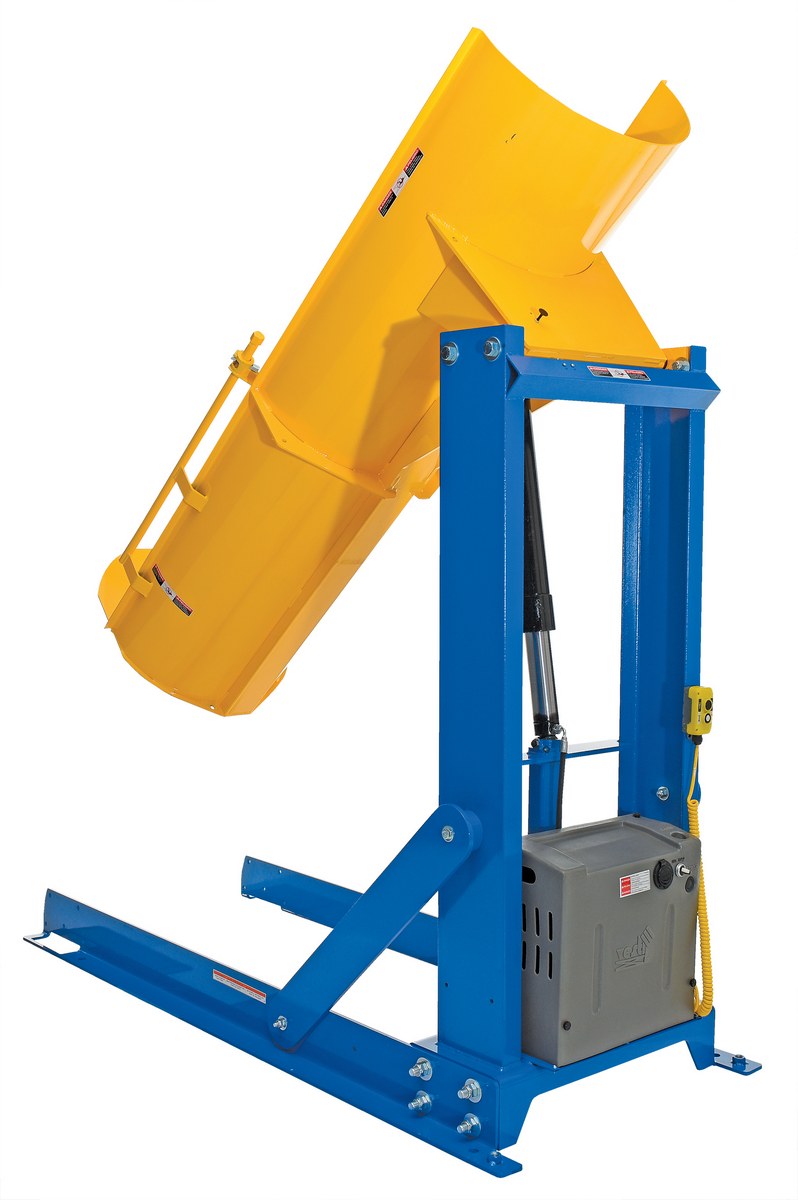

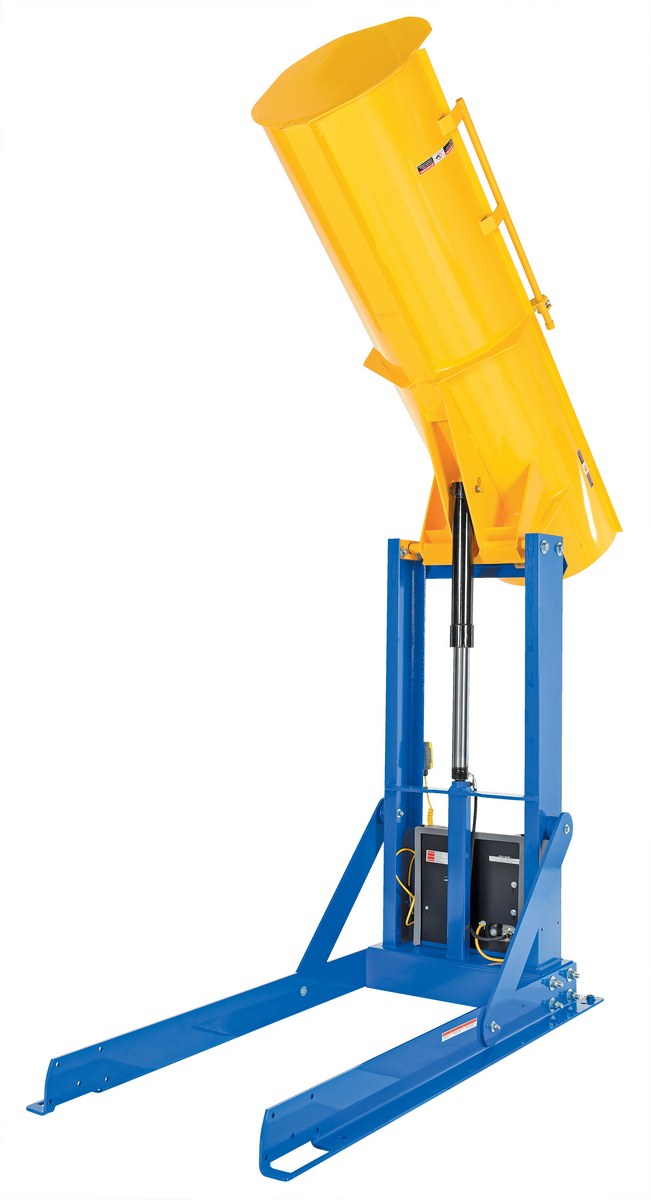

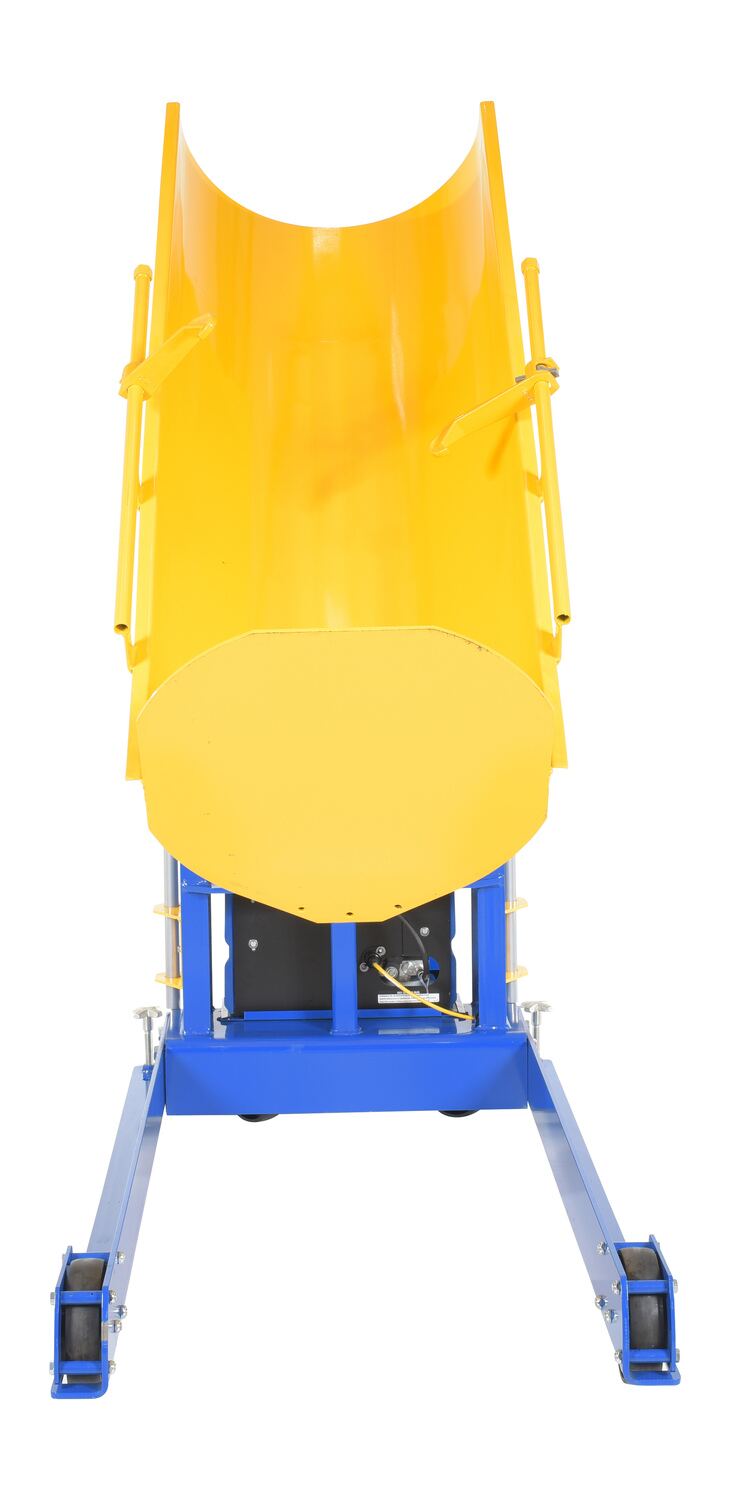

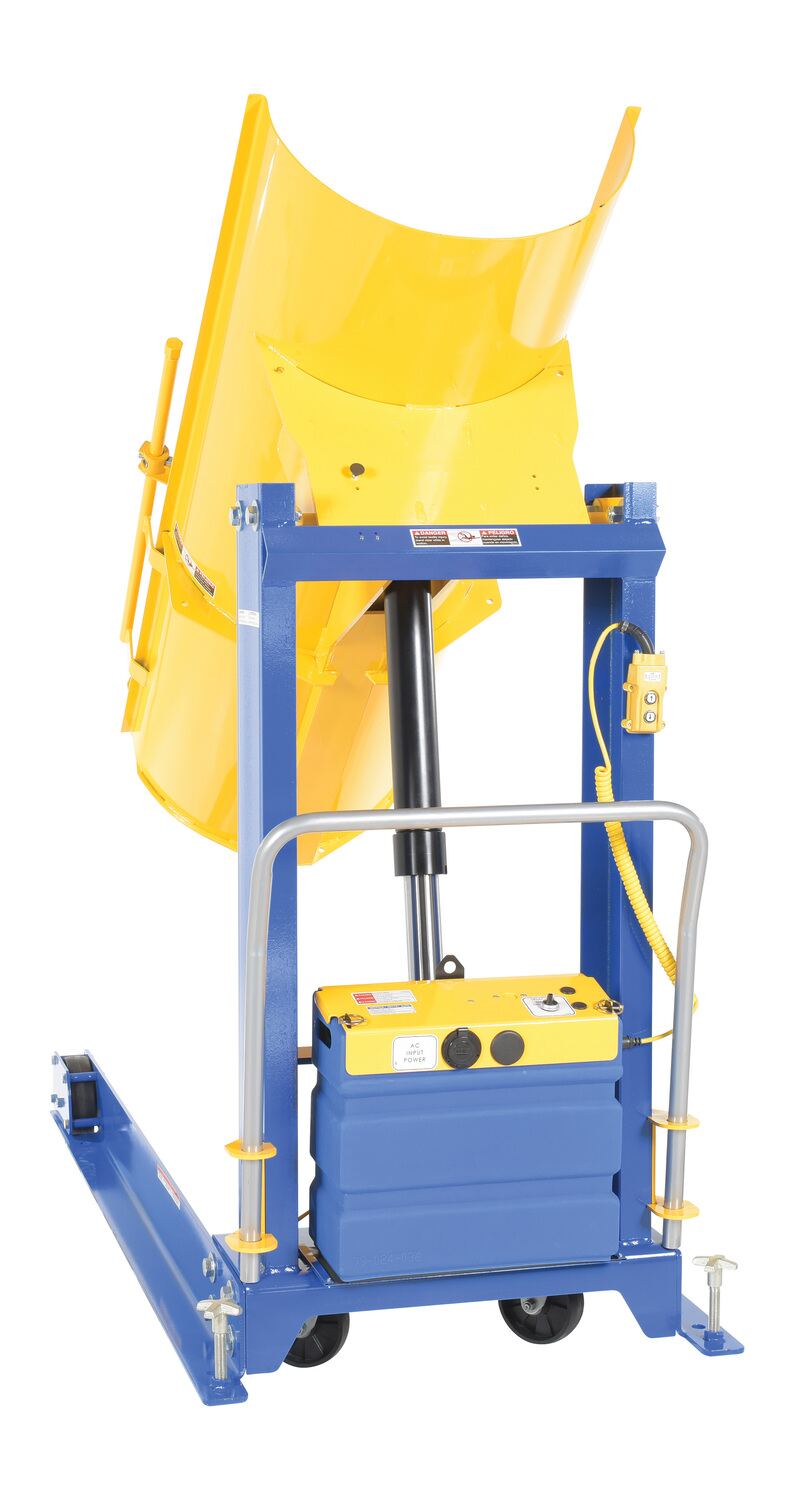

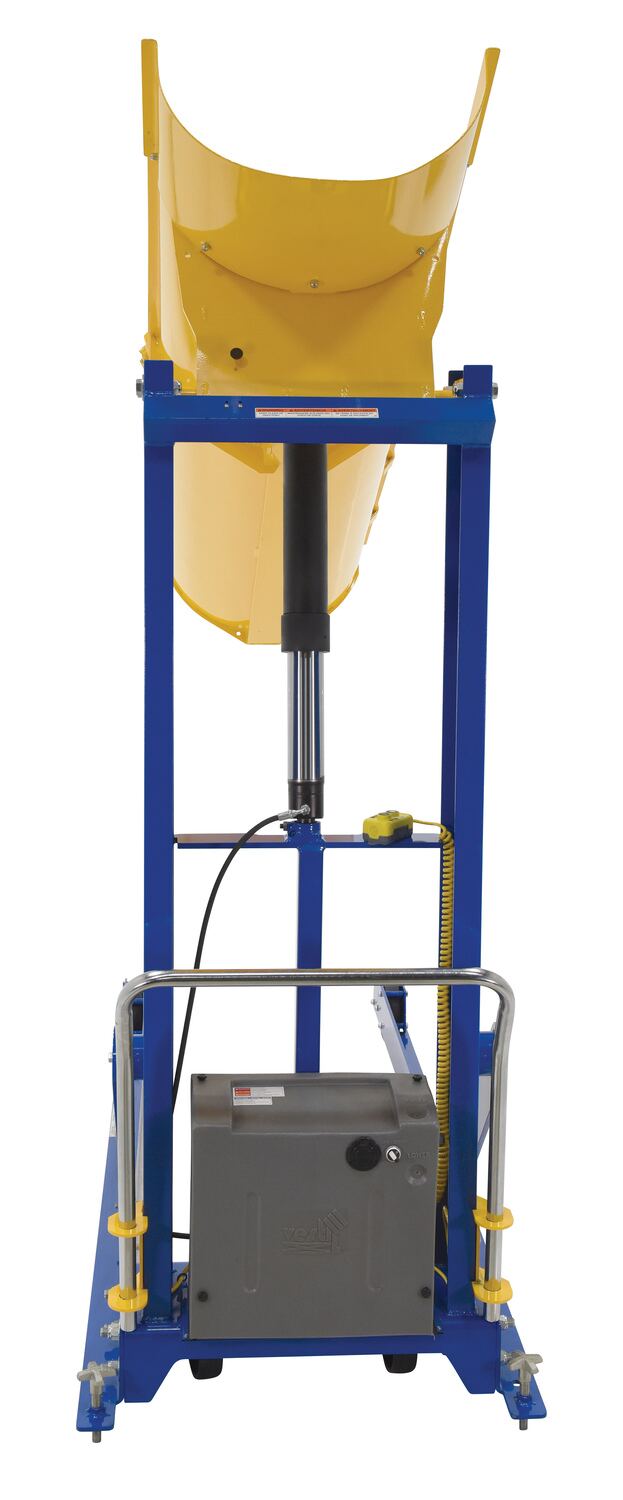

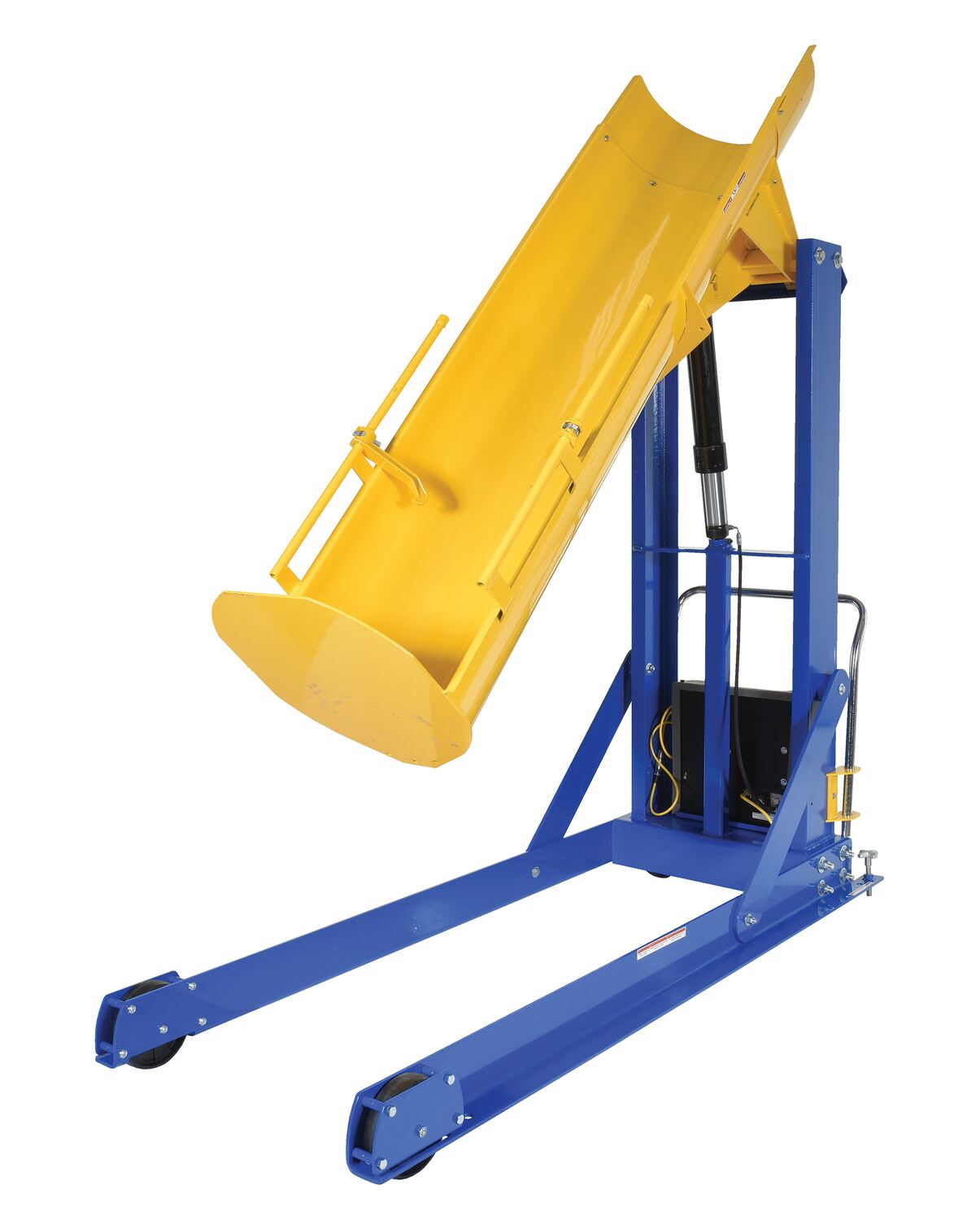

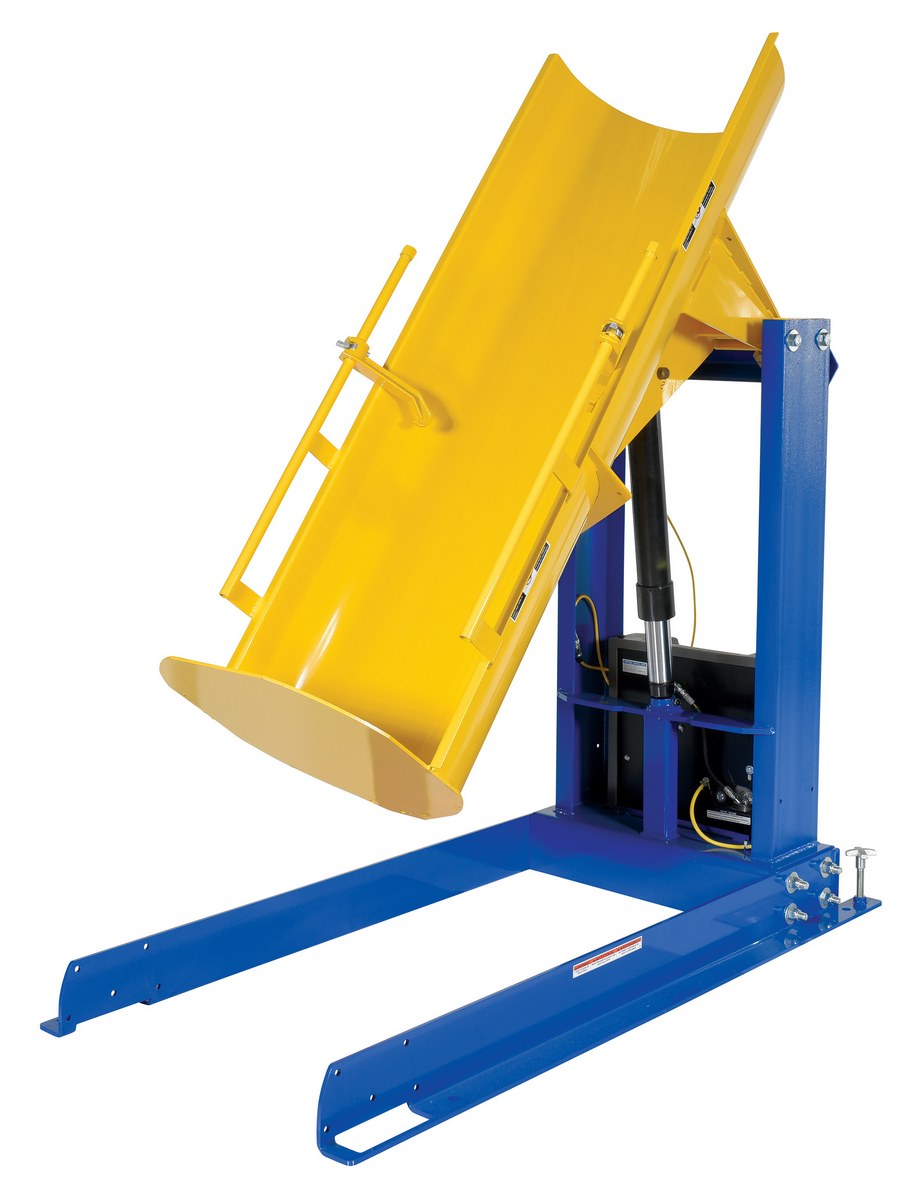

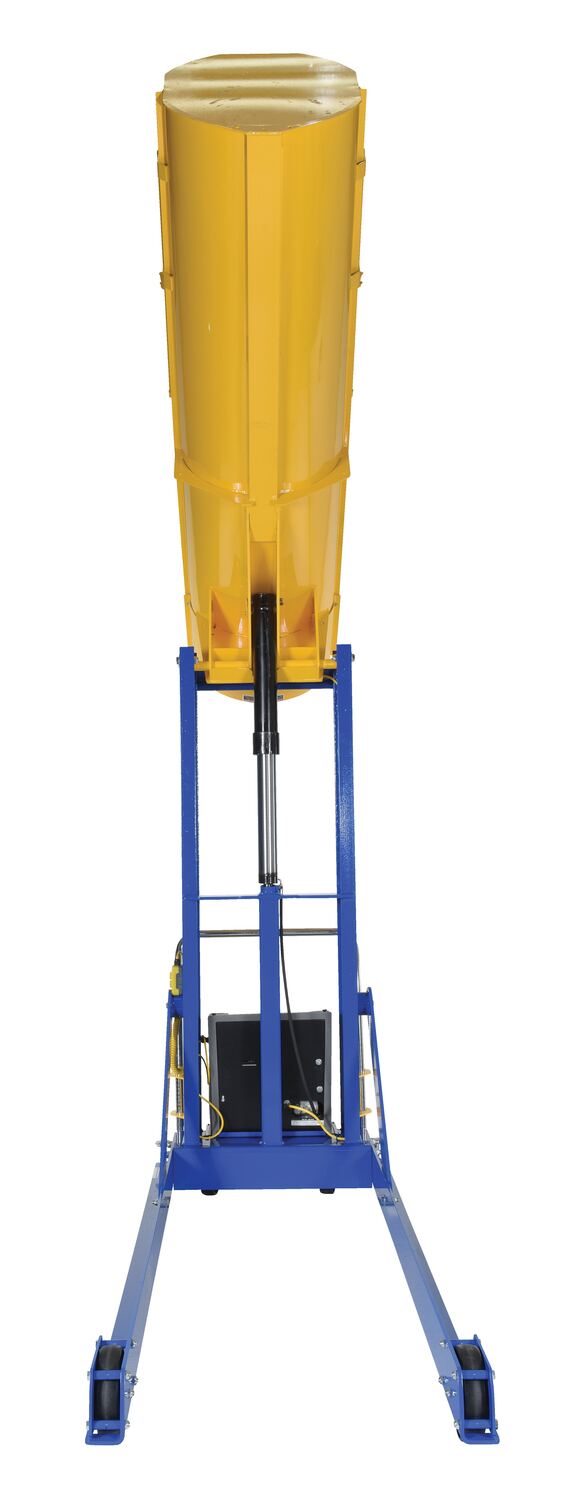

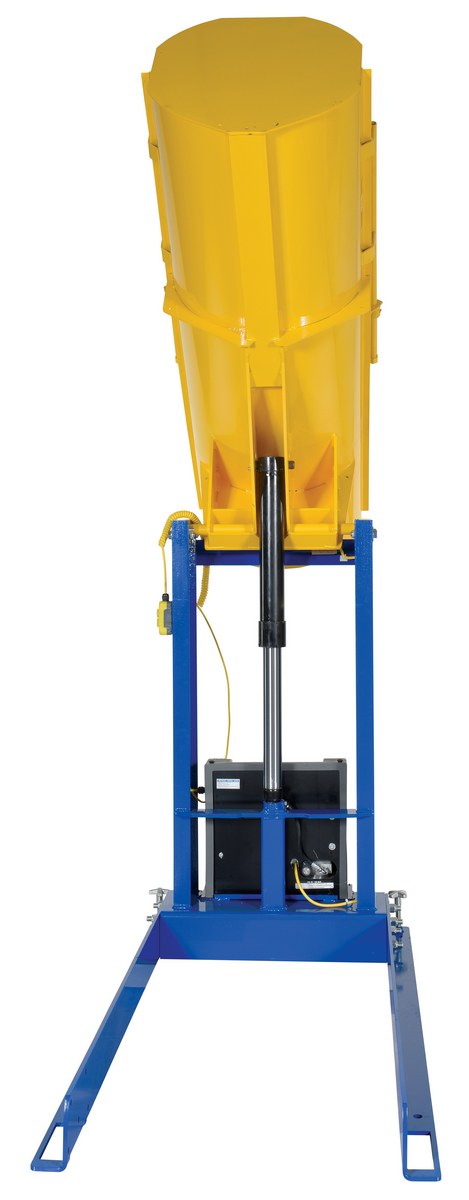

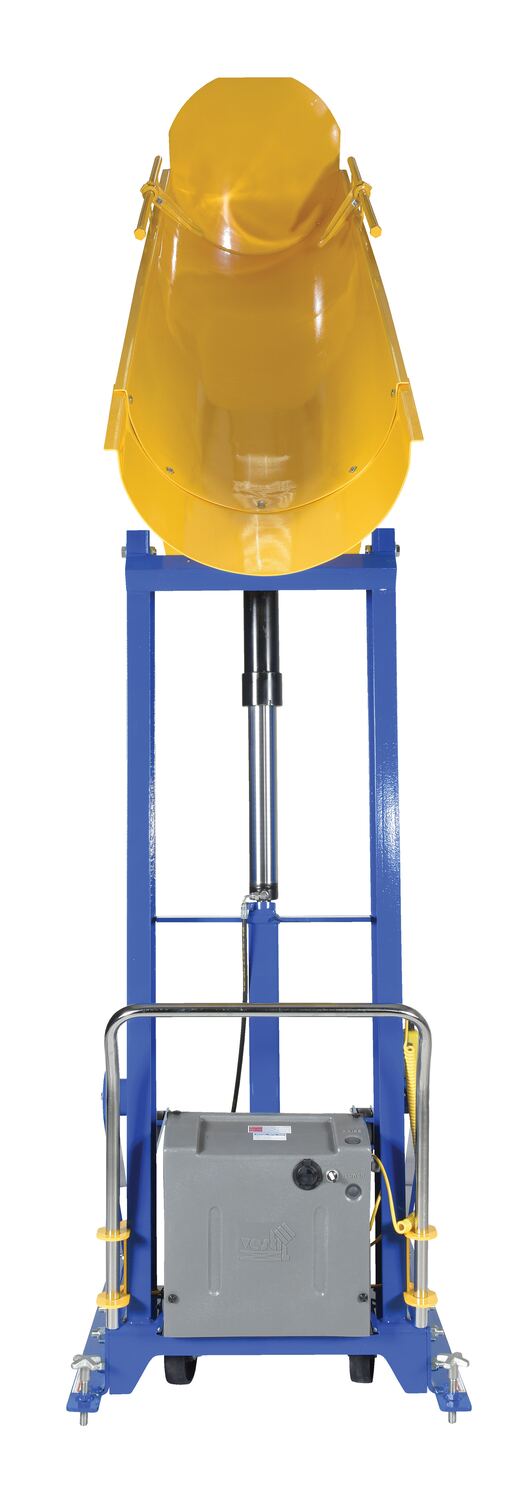

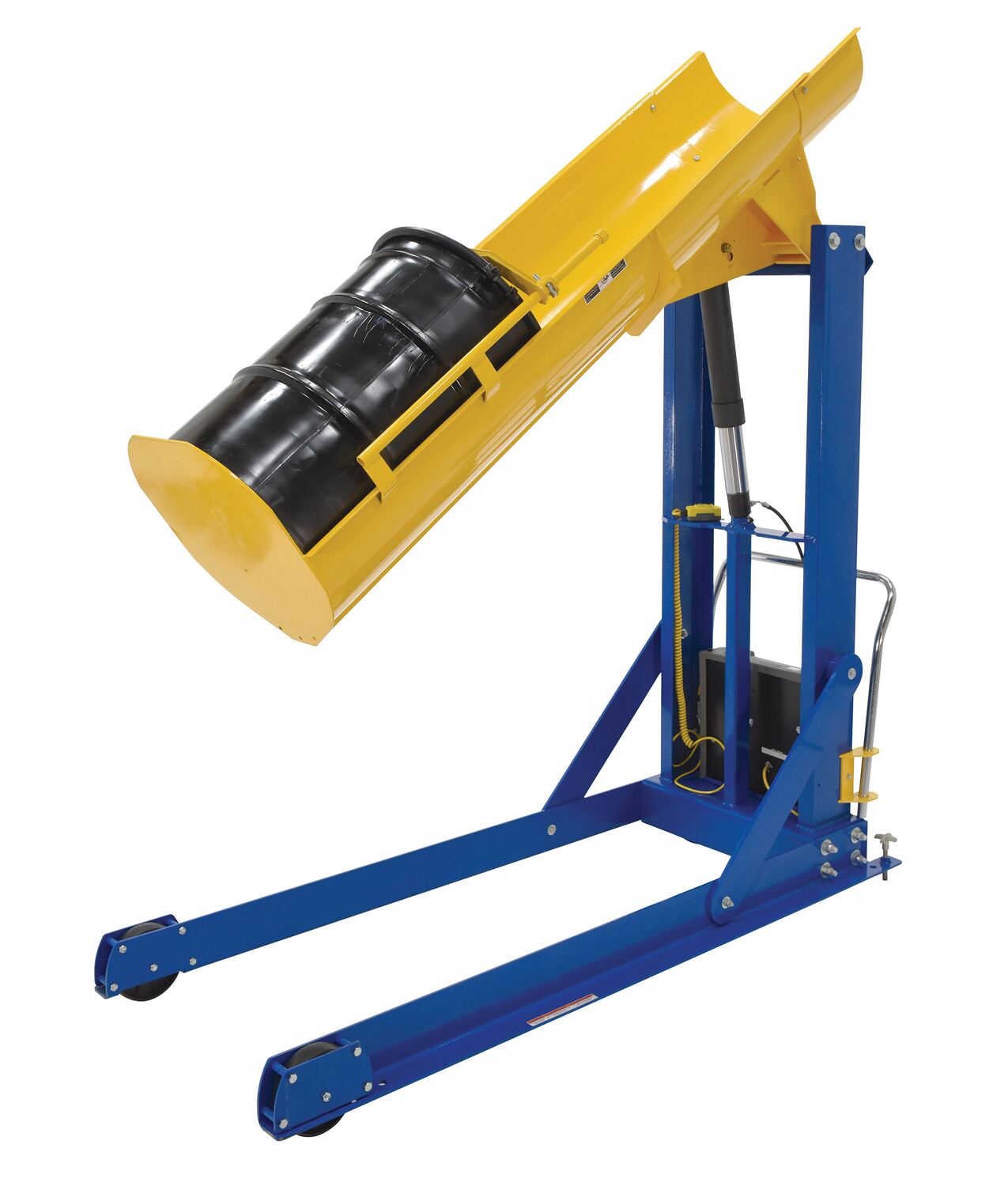

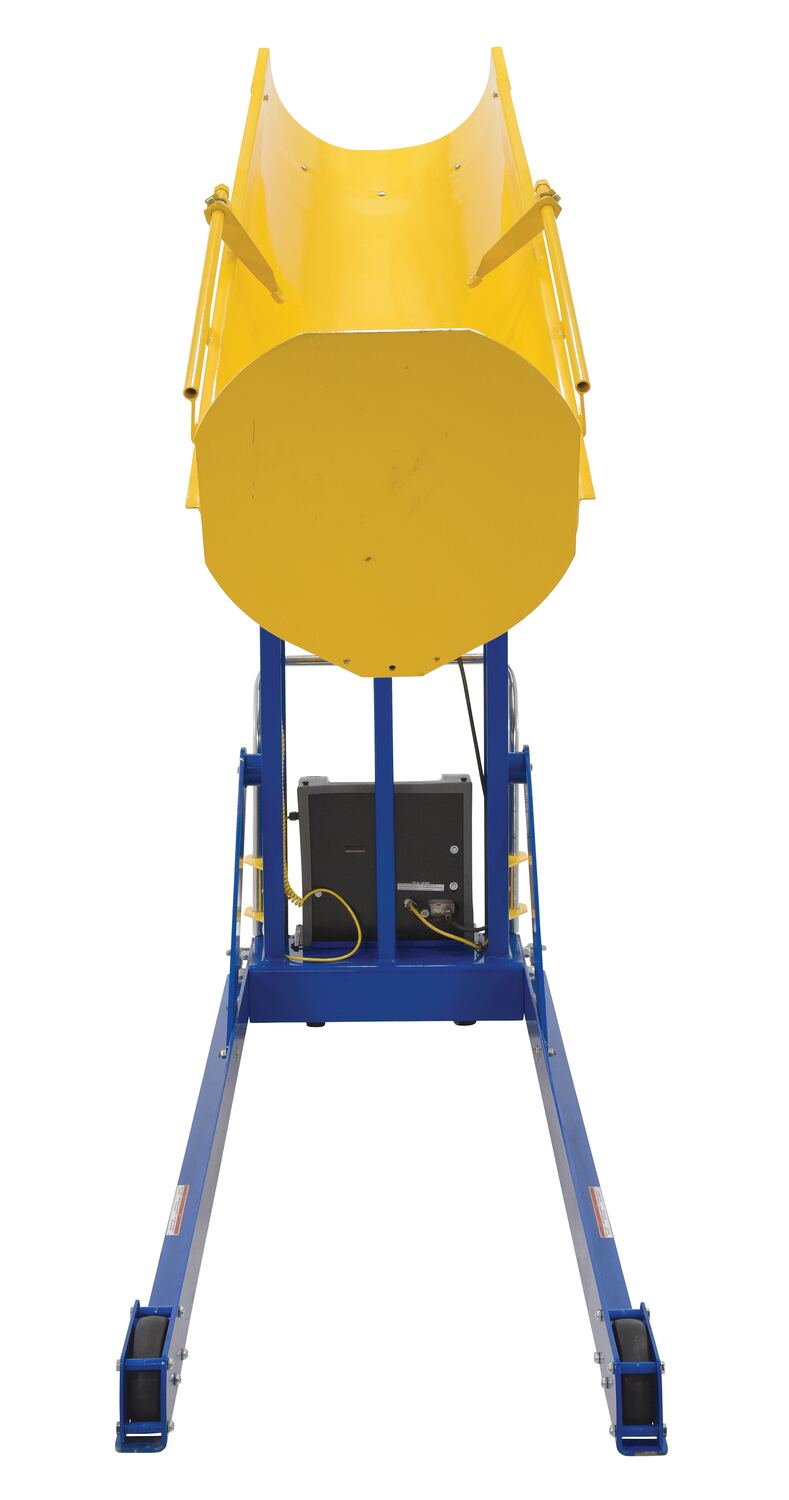

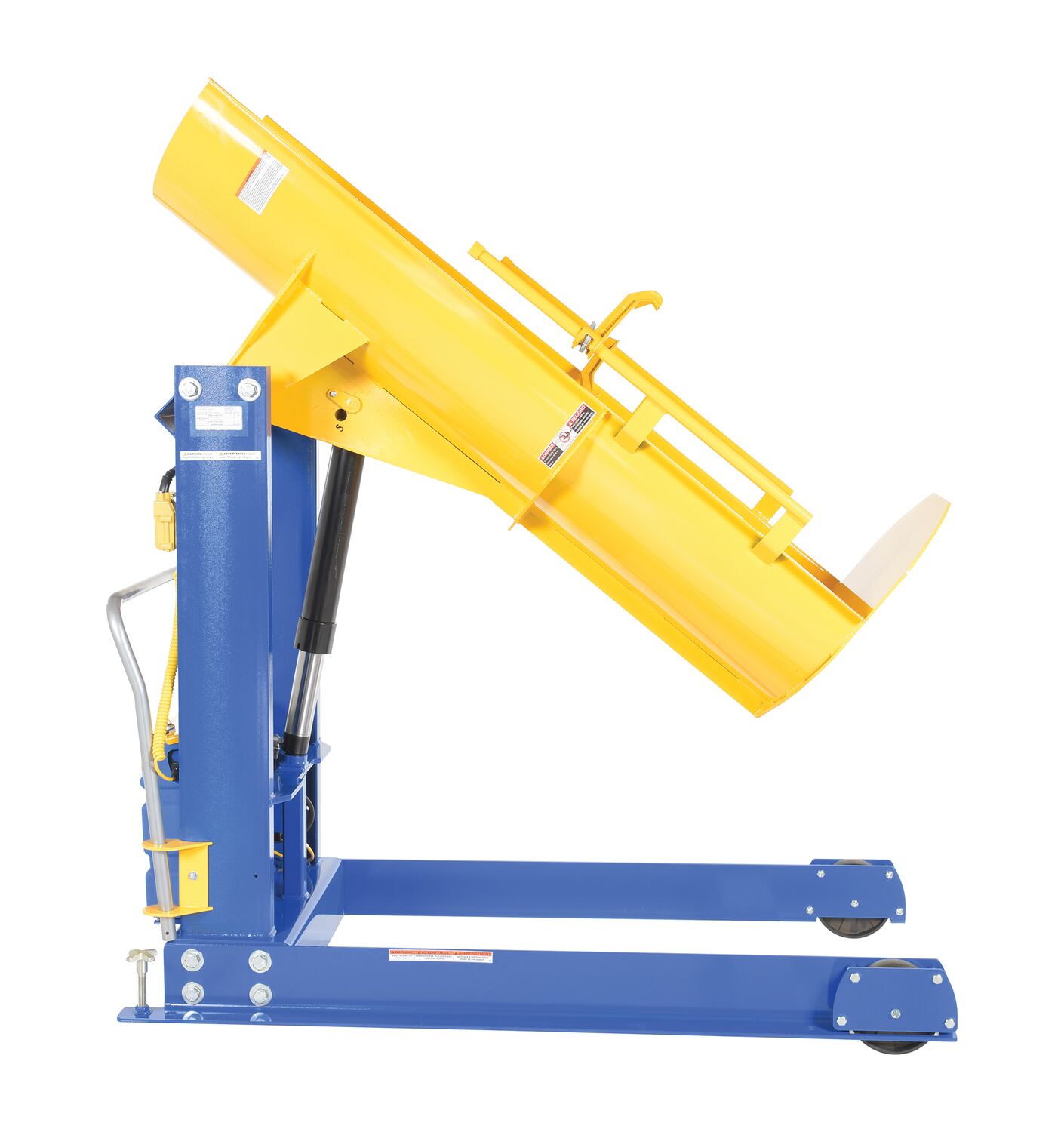

PORTABLE HYDRAULIC DRUM DUMPER

  • All hydraulic lifting and controlled tilting for efficient one-man operation.
  • Precision engineered hydraulic system for smooth, maintenance-free use.

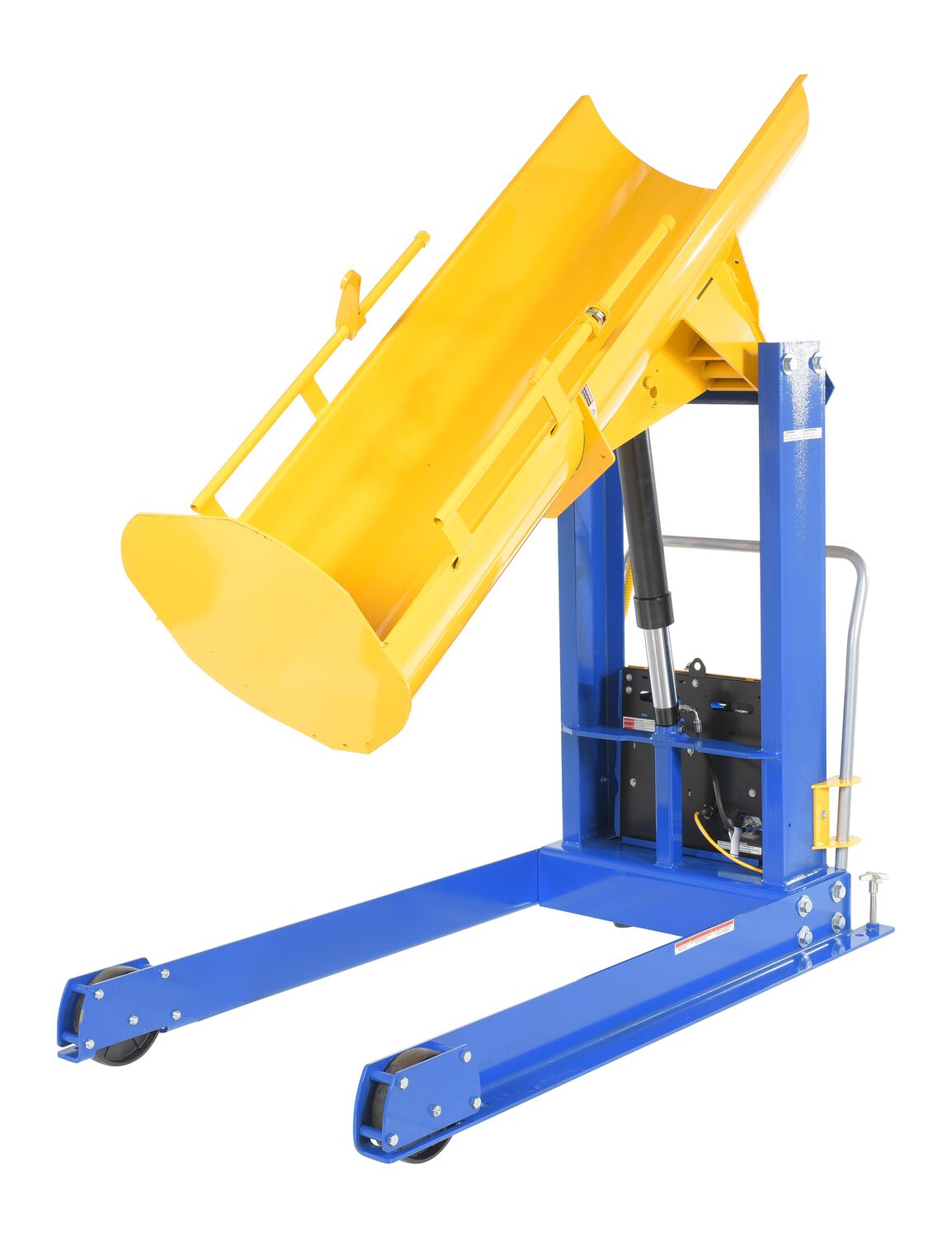

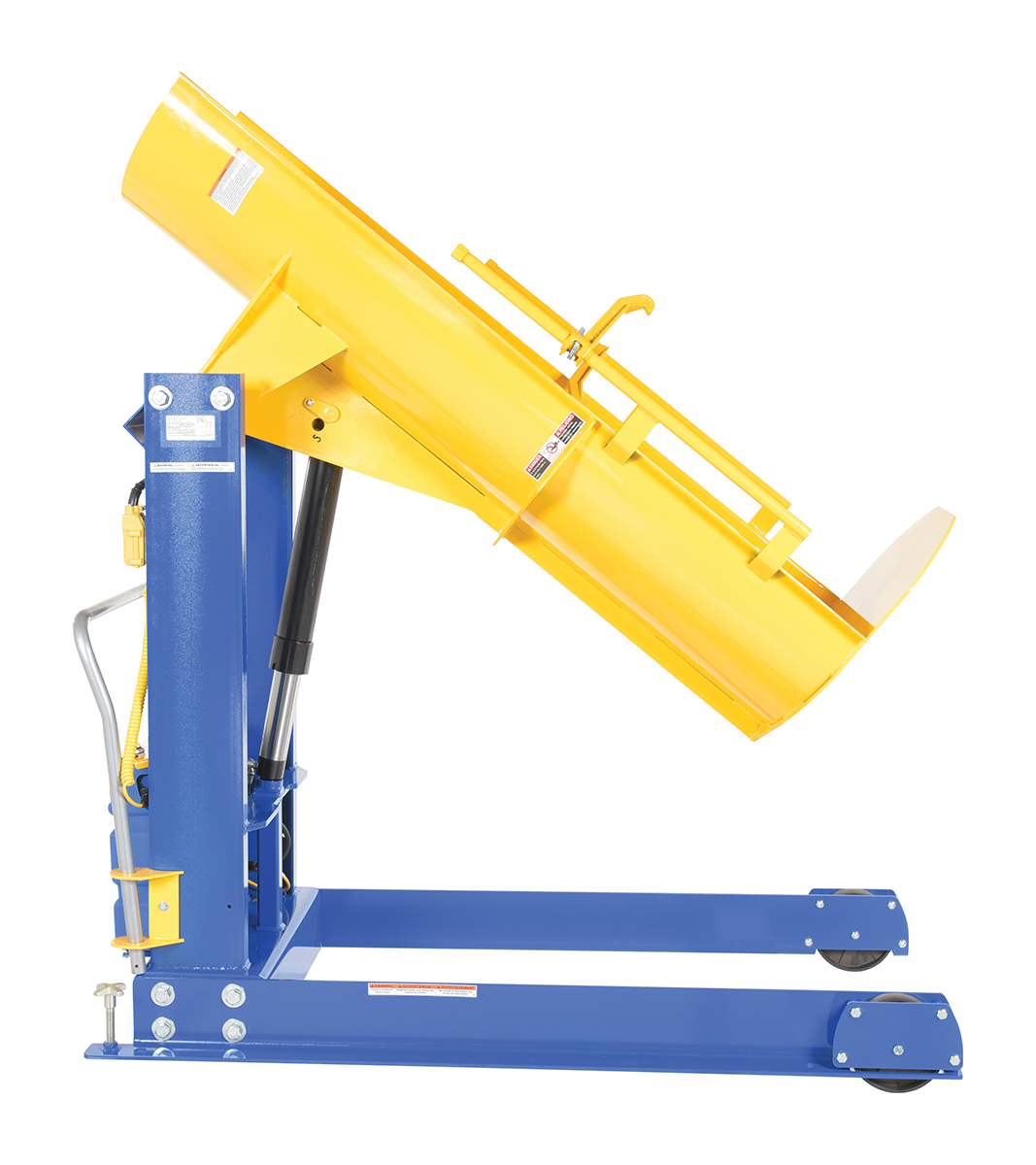

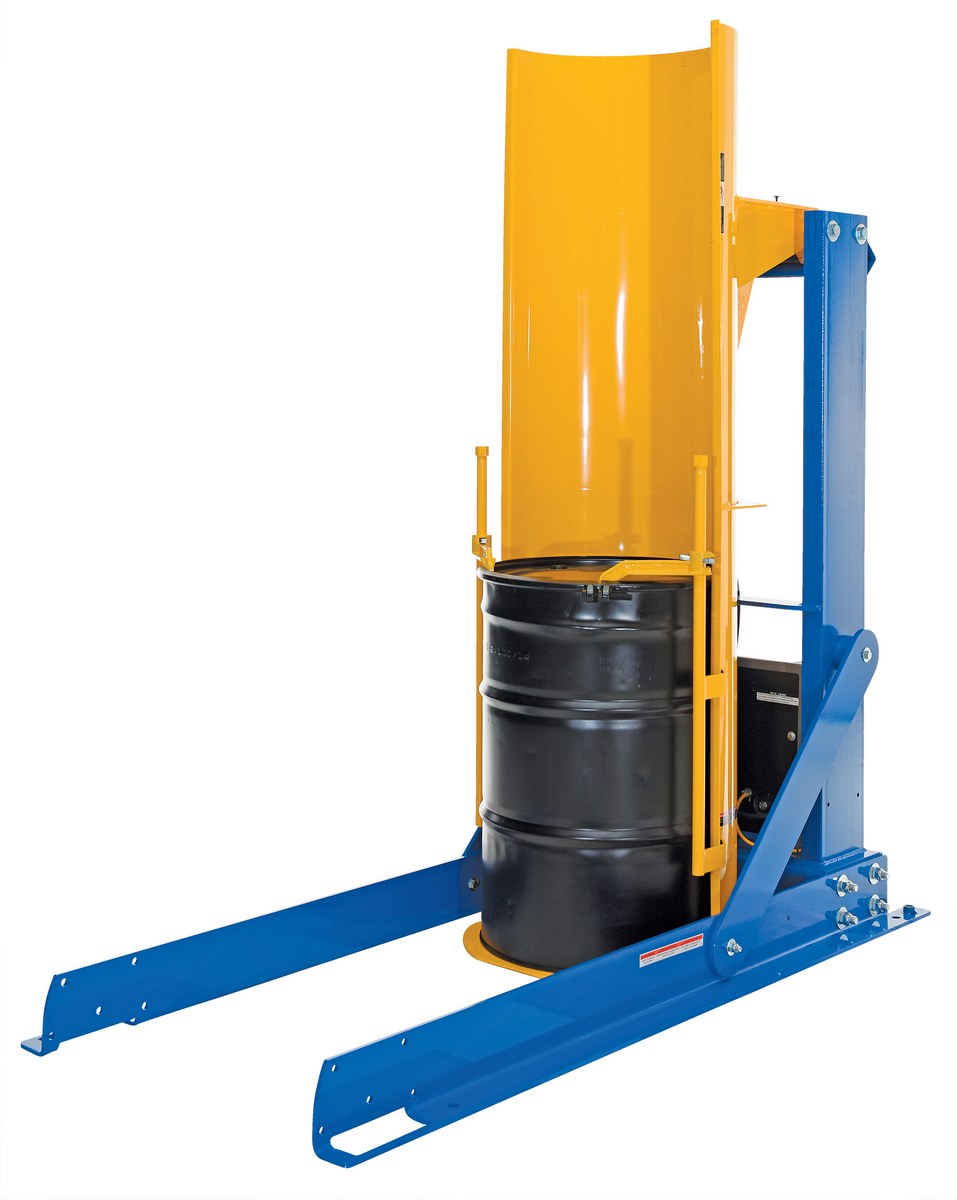

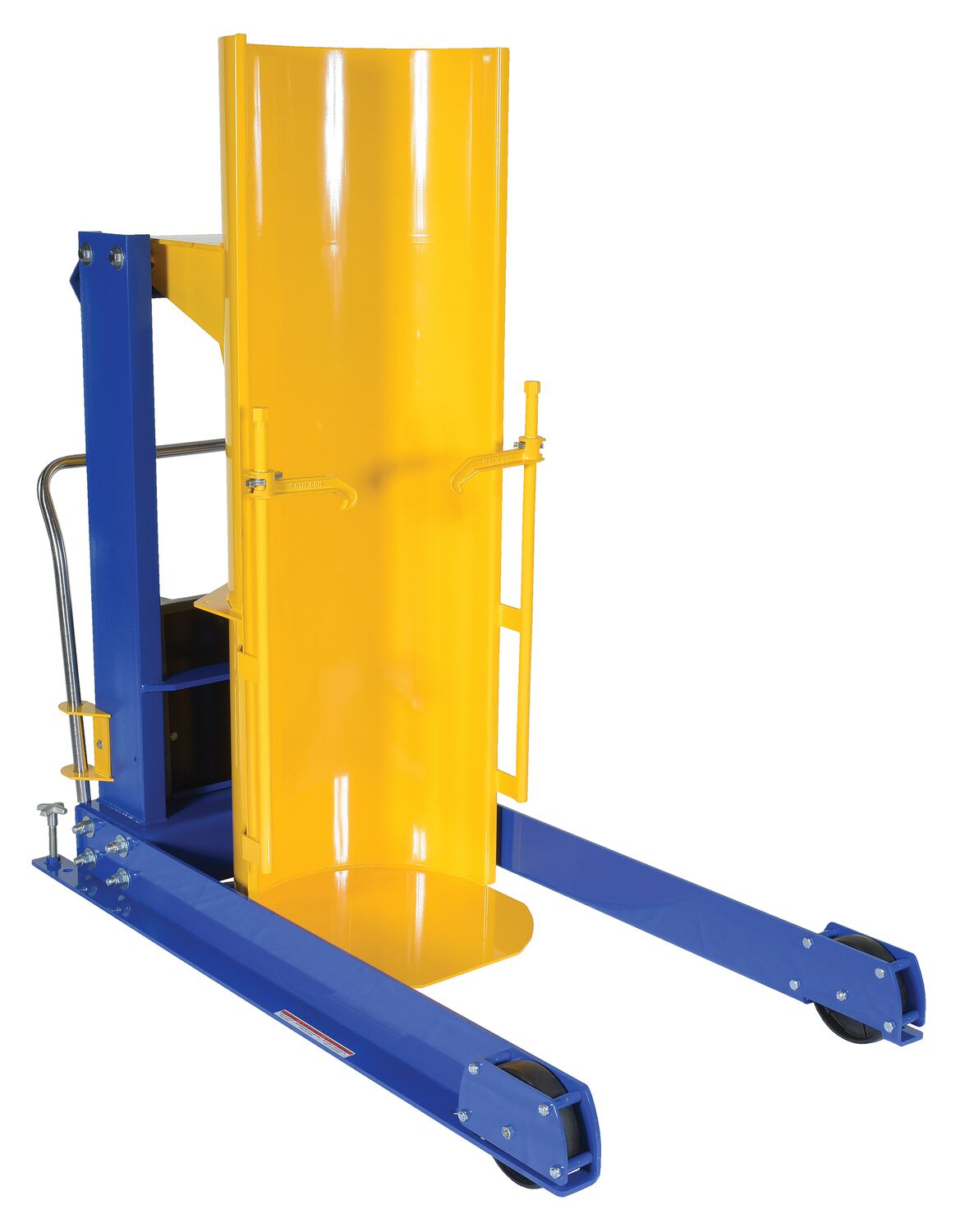

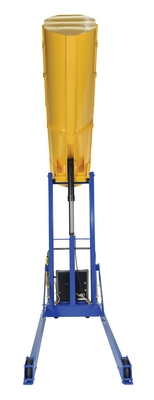

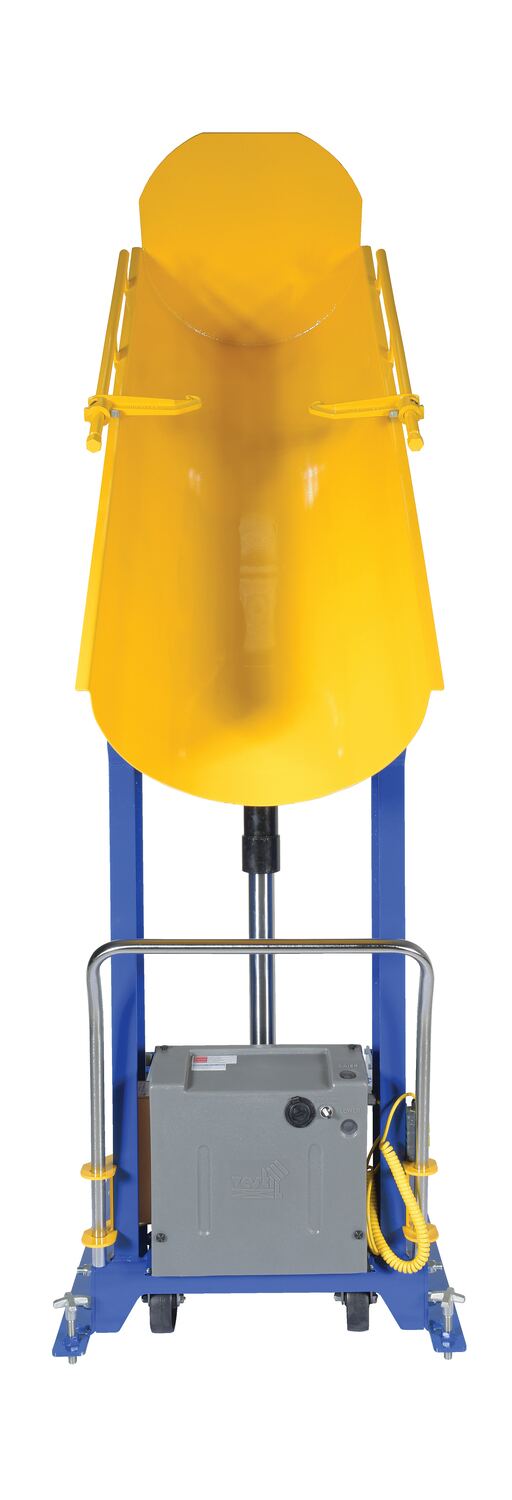

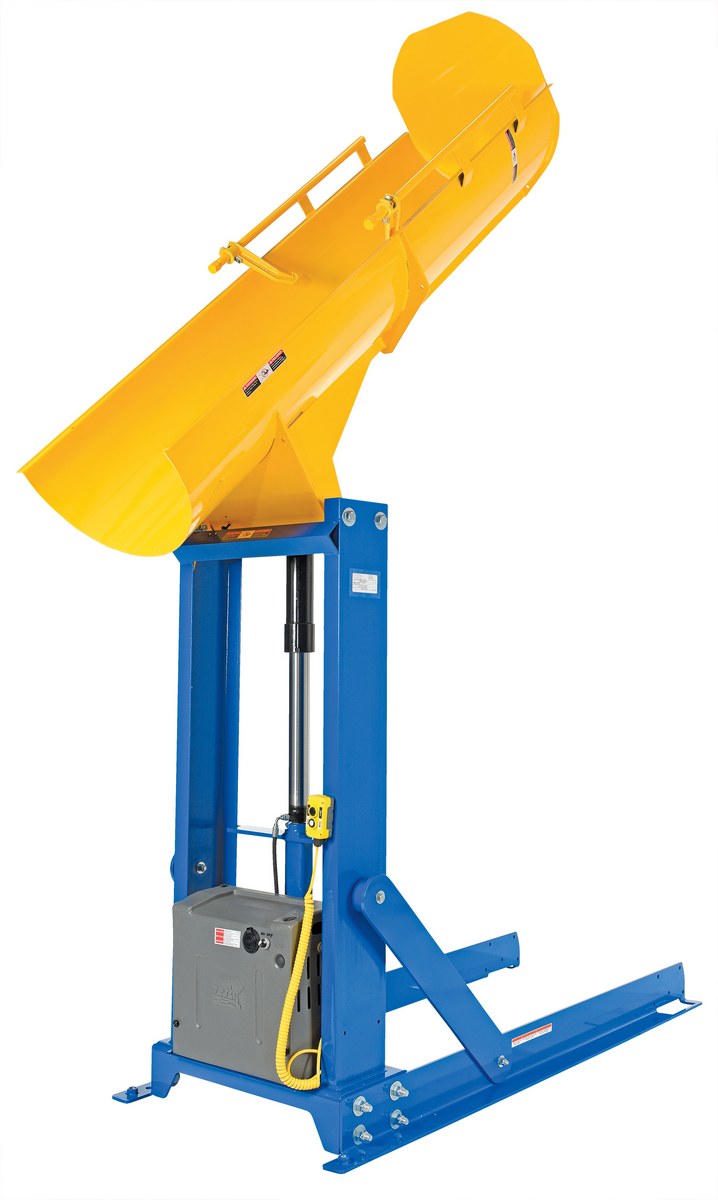

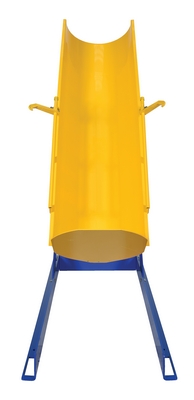

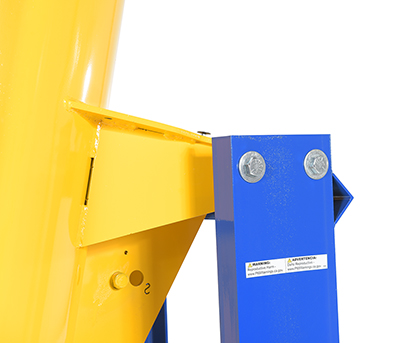

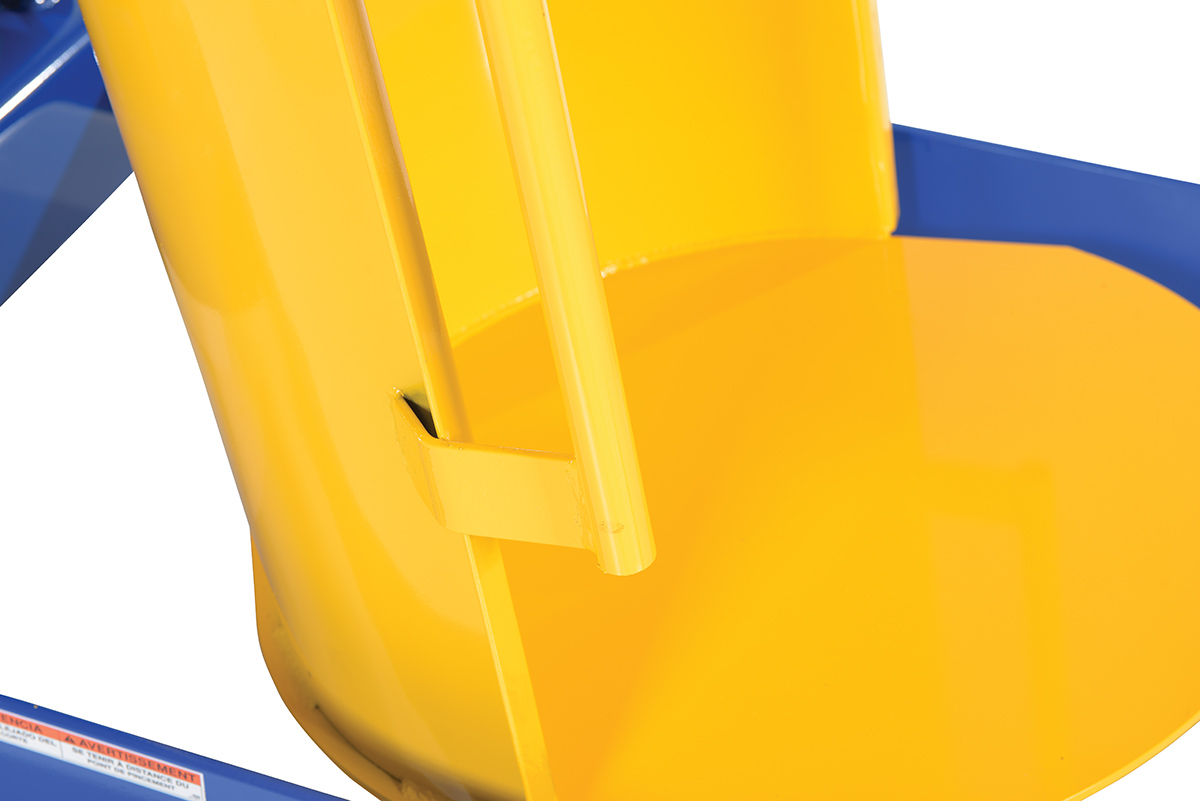

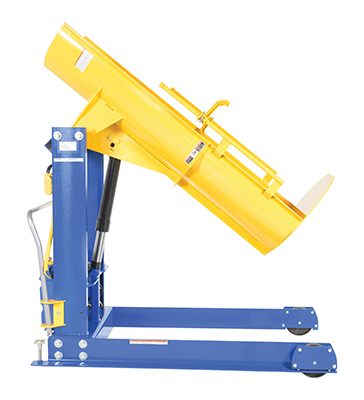

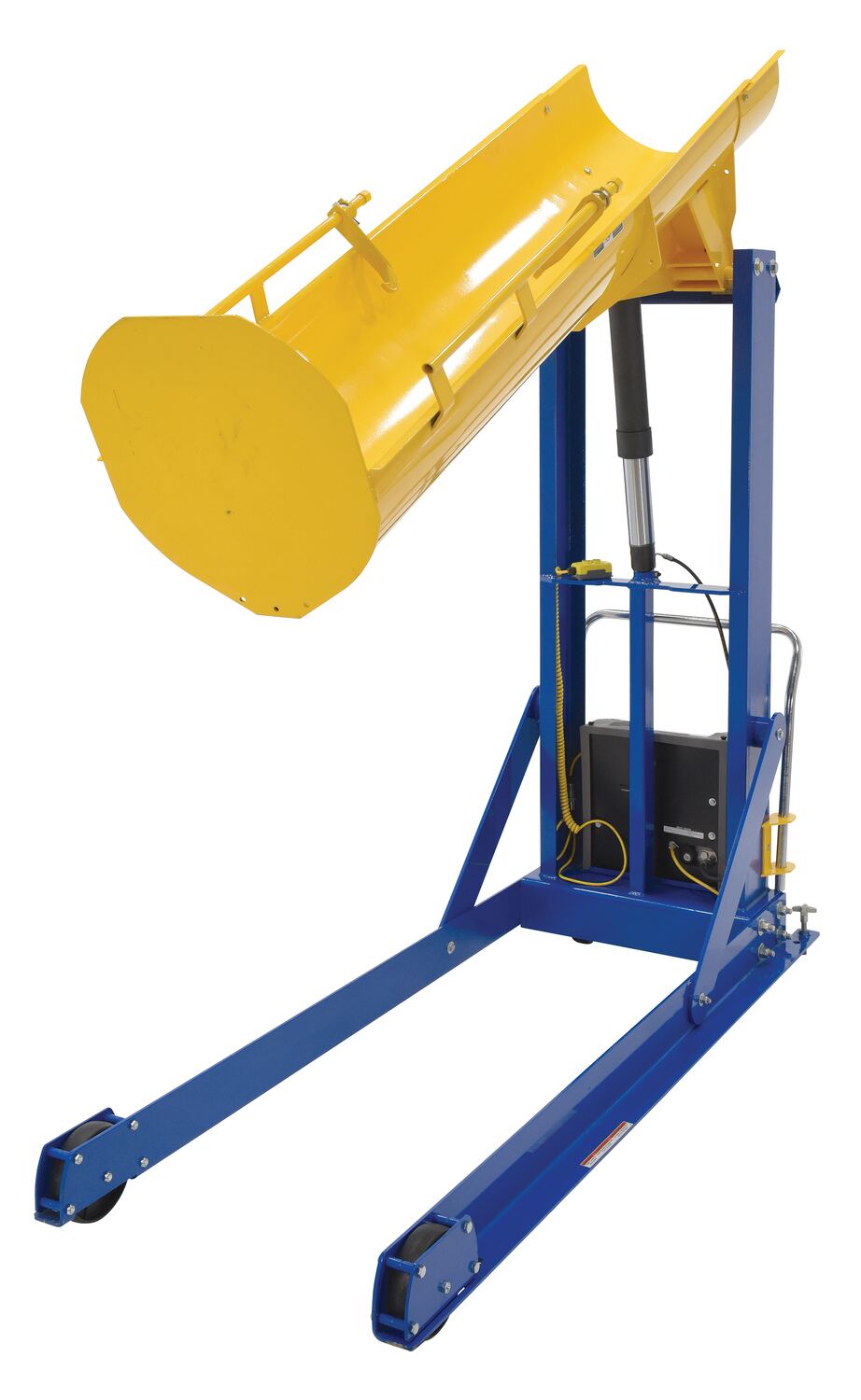

The Hydraulic Drum Dumper is what you need to dump drums that weigh up to 1,500 lbs. Works with 55 and 30-gallon plastic, steel and fiber drums. The unit has a solid steel chute. Portable units have two rigid and two swivel casters with floor lock screws. All steel construction.

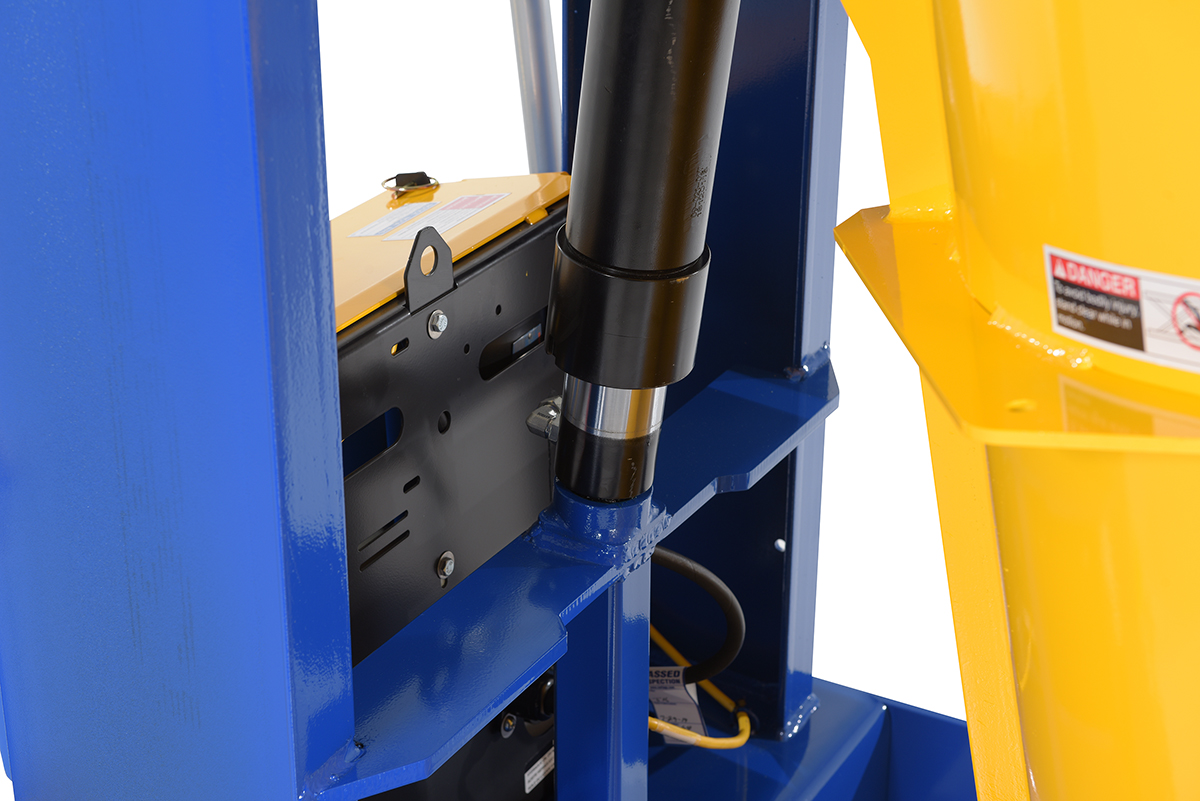

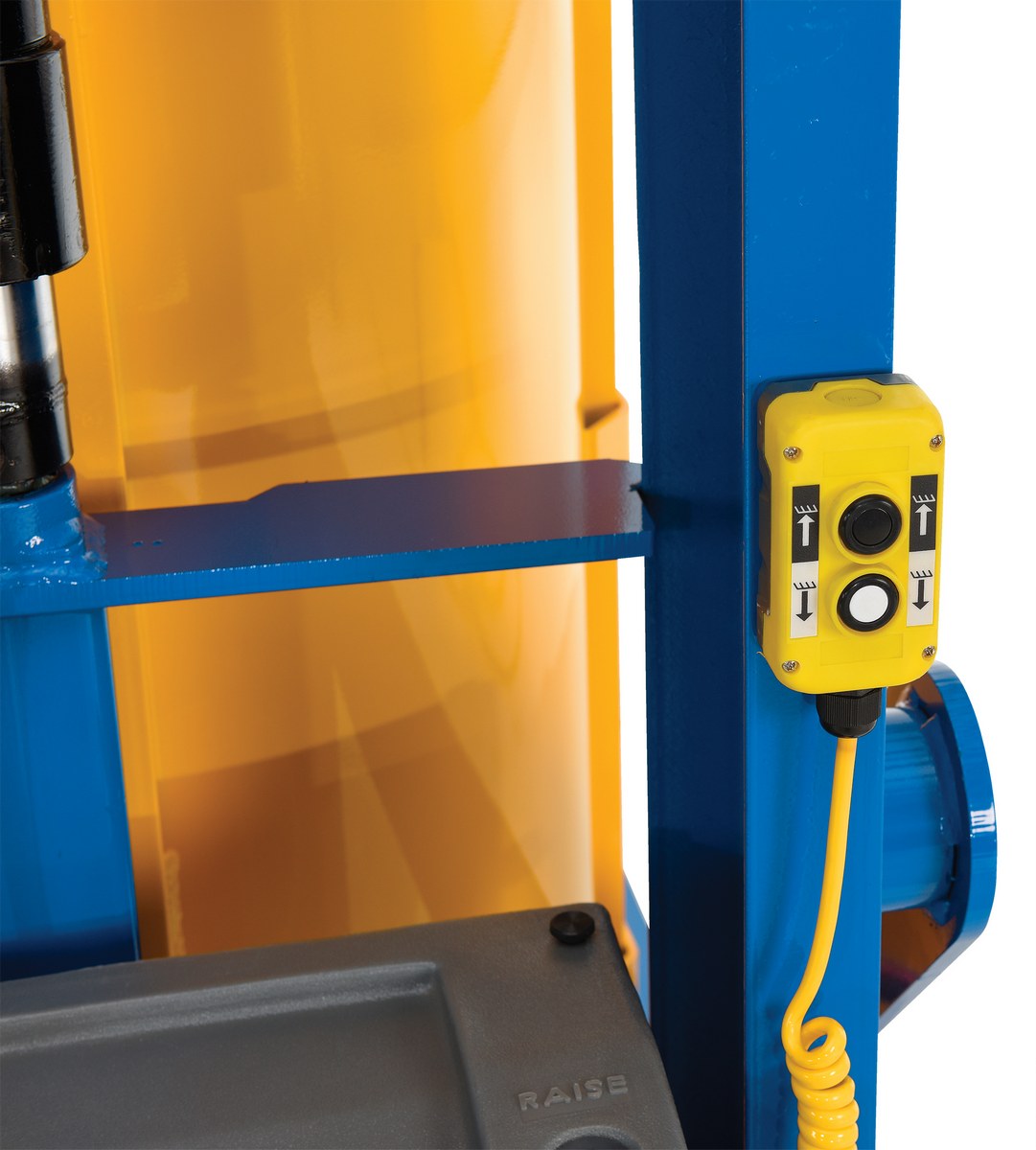

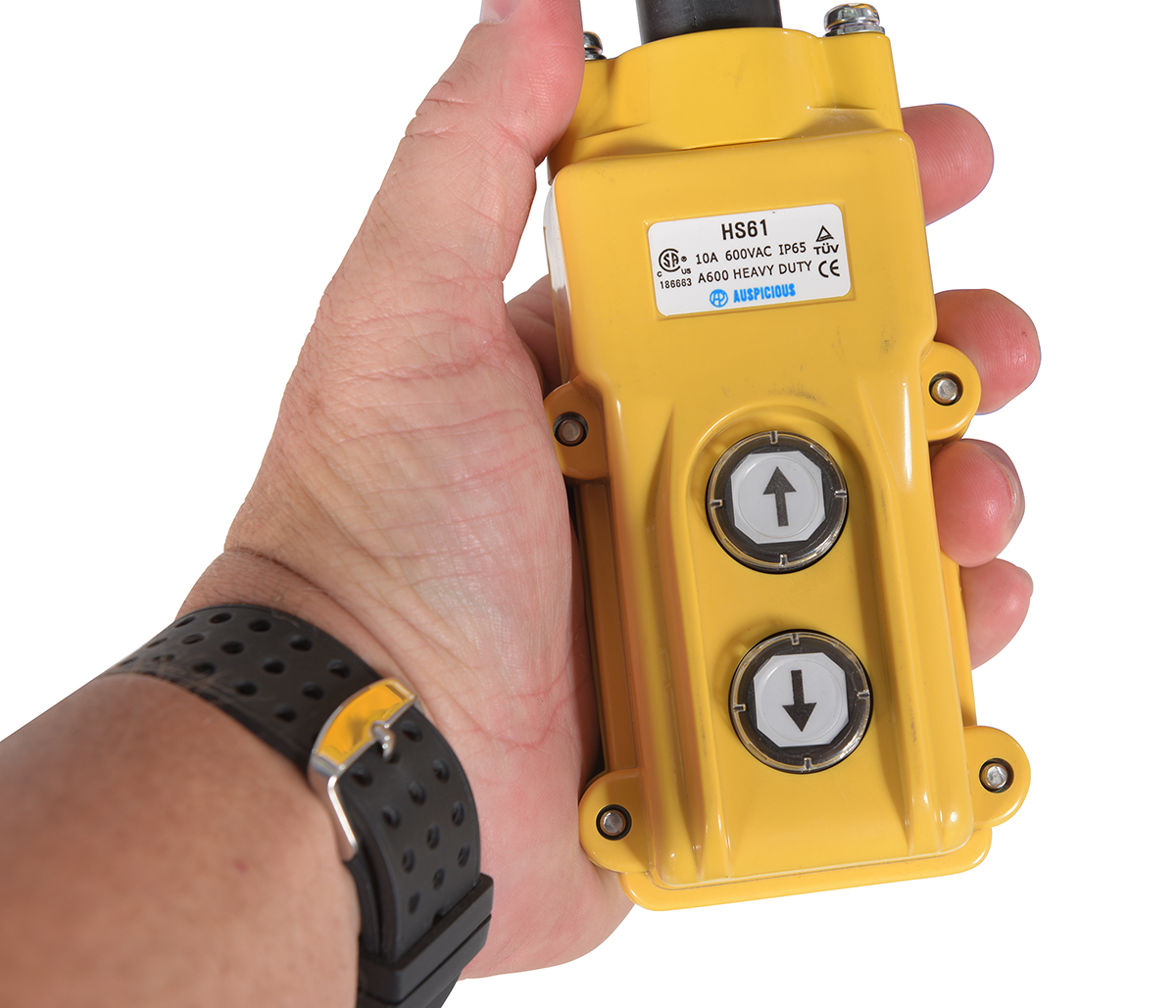

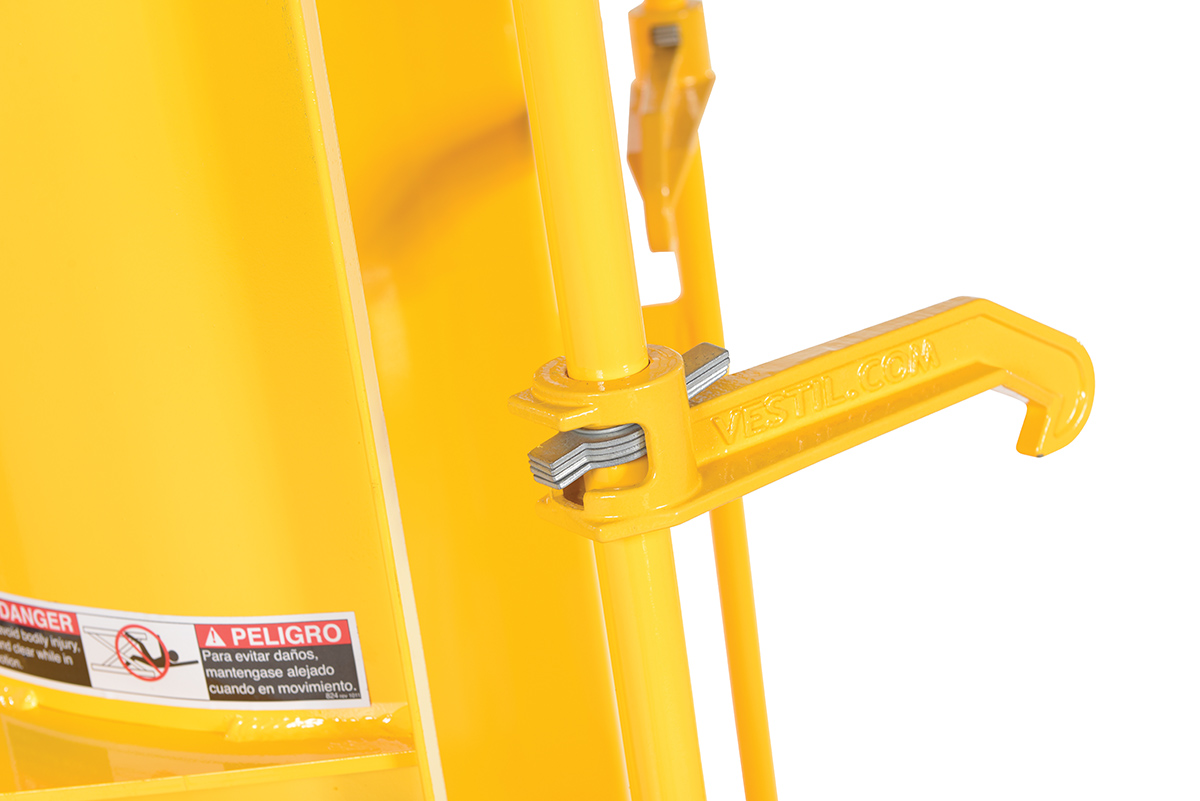

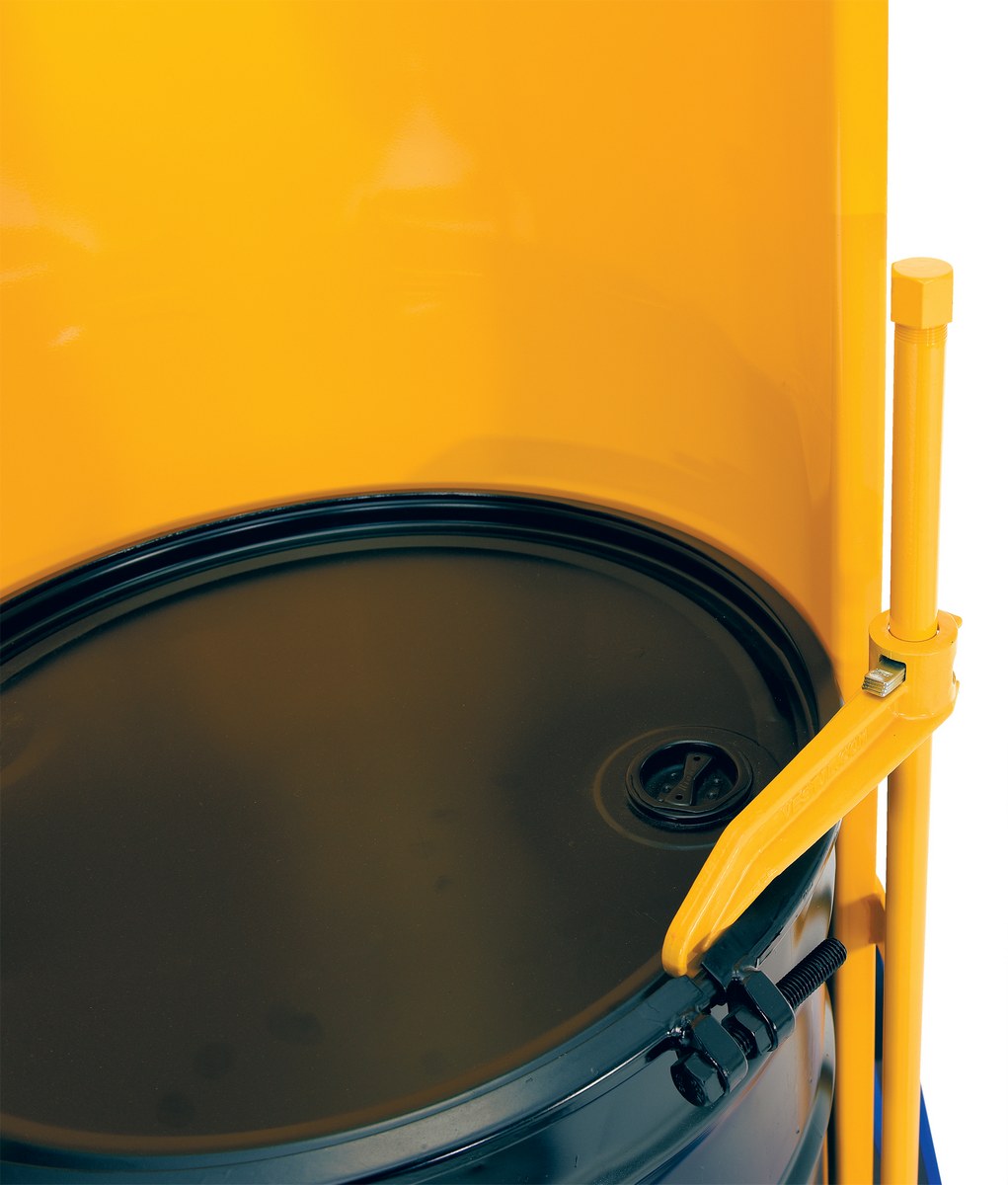

Standard features inclued: 56 frame, 3/4 HP motor, 120V single phase, 60 Hz with an 8 foot long power cord and plug. Upper travel limit switch, emergency brass safety velocity fuse in cylinder and vertical adjustment drum restraints are standard. Chute is rotated with a hand held control on an 8 ft. long coil cord standard.

Call 800-757-1064 for pricing, availability and quantity discounts.

PORTABLE HYDRAULIC DRUM DUMPER
Product No. Chute Type Dump Height Rotation Height Level Height Uniform Cap. (lbs.) Wt. (lbs.) price Quantity
HHDD-60-7-P Yellow baked-in powder-coated 60" 137-1/4" 84-1/2" 750 1019 Discontinued Discontinued
HHDD-36-10-P Yellow baked-in powder-coated 36" 96" 63-3/4" 1000 763 Discontinued Discontinued
HHDD-48-15-P Yellow baked-in powder-coated 48" 116-3/4" 72-1/2" 1500 880 Discontinued Discontinued
HHDD-60-15-P Yellow baked-in powder-coated 60" 137-1/4" 84-1/2" 1500 1026 Discontinued Discontinued
HHDD-36-7-P Yellow baked-in powder-coated 36" 96" 63-3/4" 750 788 Discontinued Discontinued
HHDD-48-7-P Yellow baked-in powder-coated 48" 116-3/4" 72-1/2" 750 864 Discontinued Discontinued
HHDD-48-10-P Yellow baked-in powder-coated 48" 116-3/4" 72-1/2" 1000 862 Discontinued Discontinued
HHDD-60-10-P Yellow baked-in powder-coated 60" 137-1/4" 84-1/2" 1000 1042 Discontinued Discontinued
HHDD-36-15-P Yellow baked-in powder-coated 36" 96" 63-3/4" 1500 776 Discontinued Discontinued
HHDD-72-7-P Yellow baked-in powder-coated 72" 157-1/2" 96" 750 1034 Discontinued Discontinued
HHDD-72-10-P Yellow baked-in powder-coated 72" 157-1/2" 96" 1000 1100 Discontinued Discontinued
HHDD-72-15-P Yellow baked-in powder-coated 72" 157-1/2" 96" 1500 1115 Discontinued Discontinued

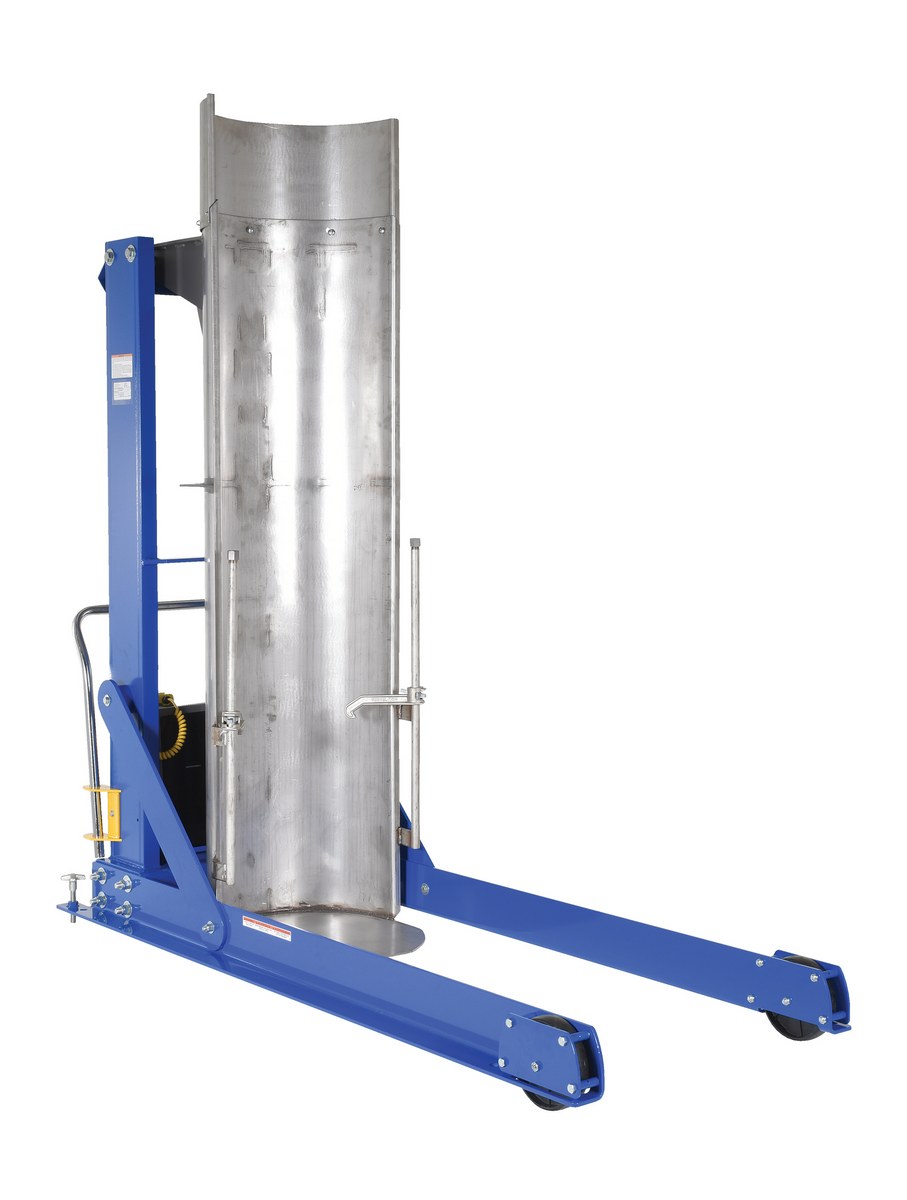

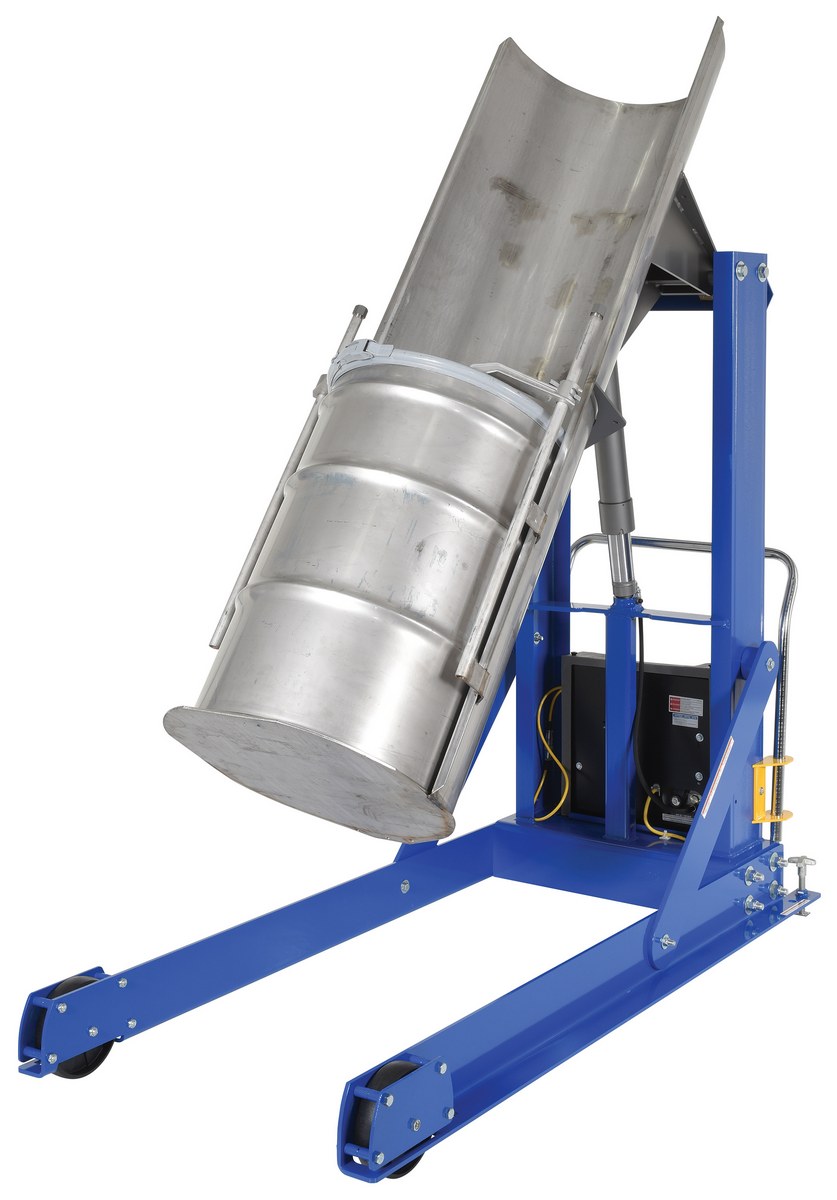

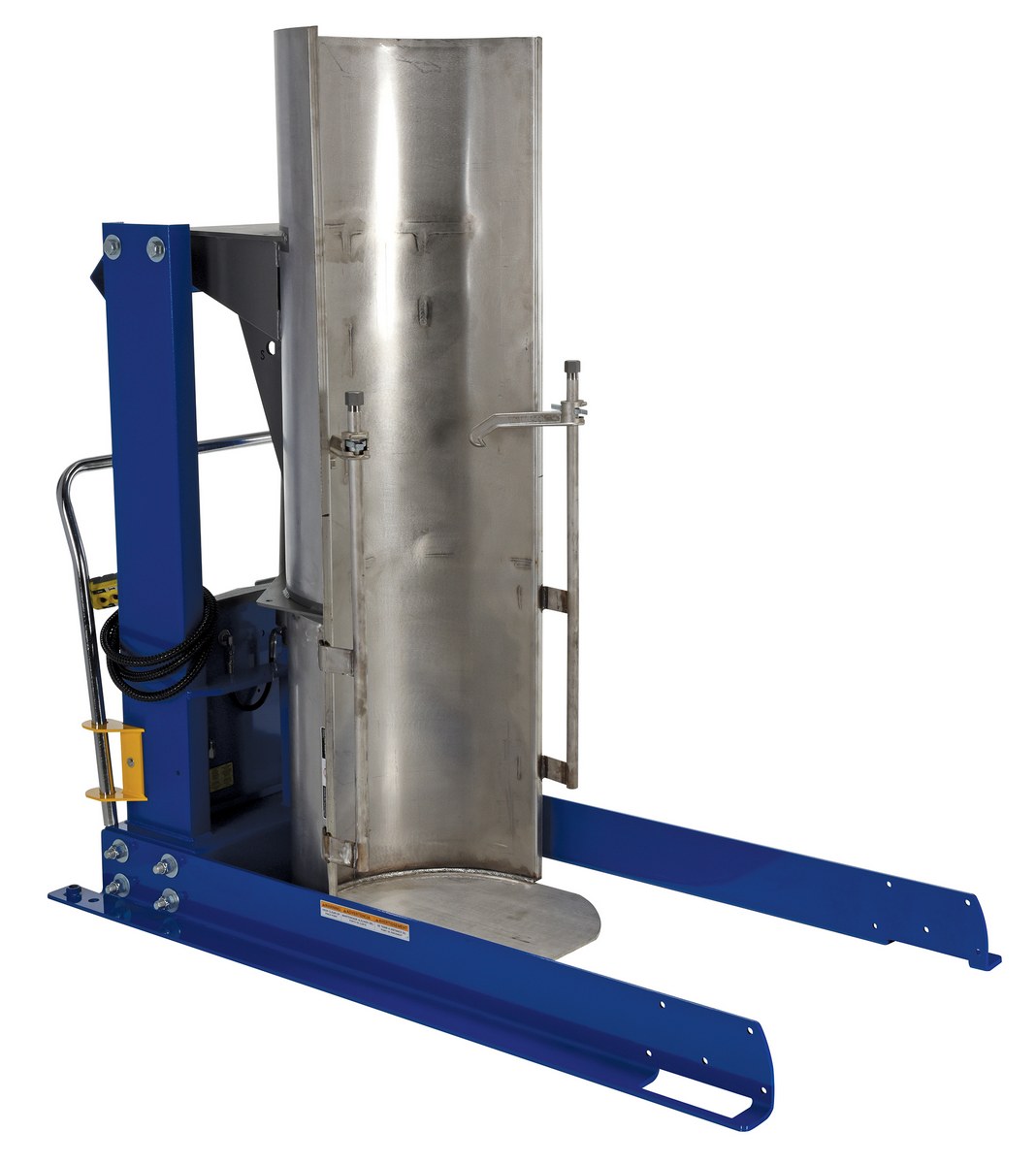

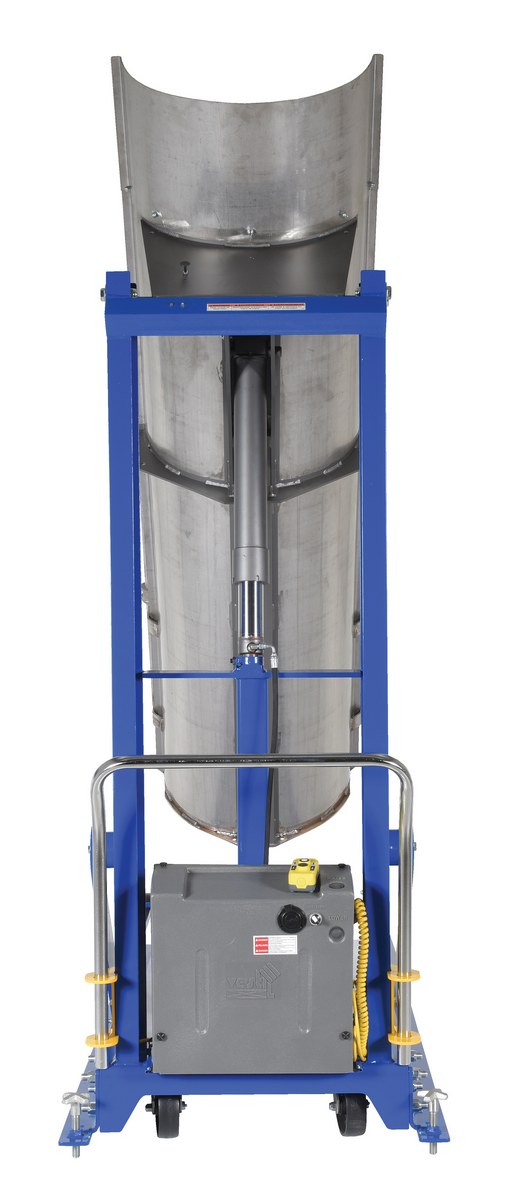

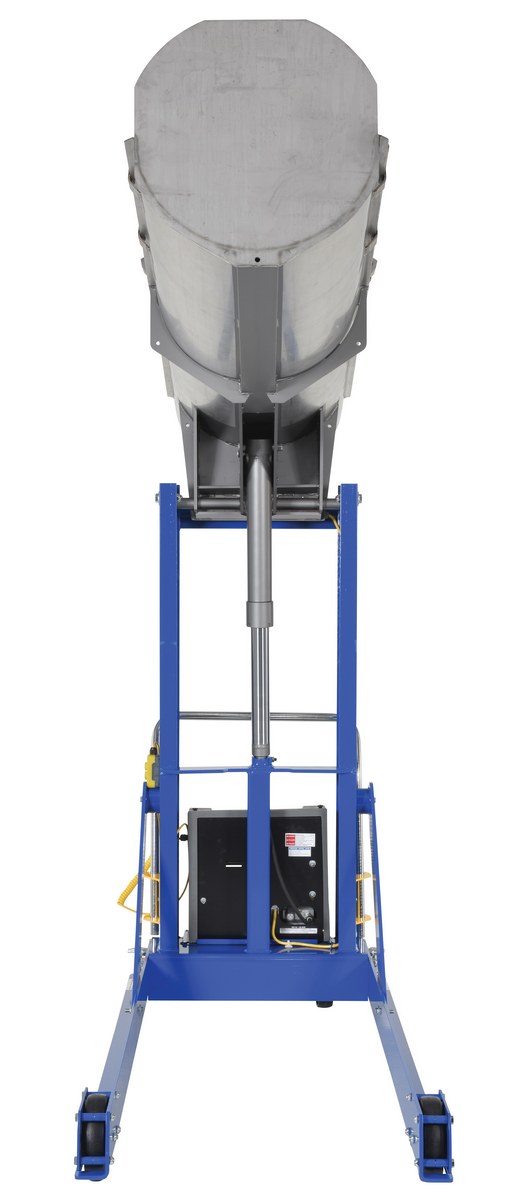

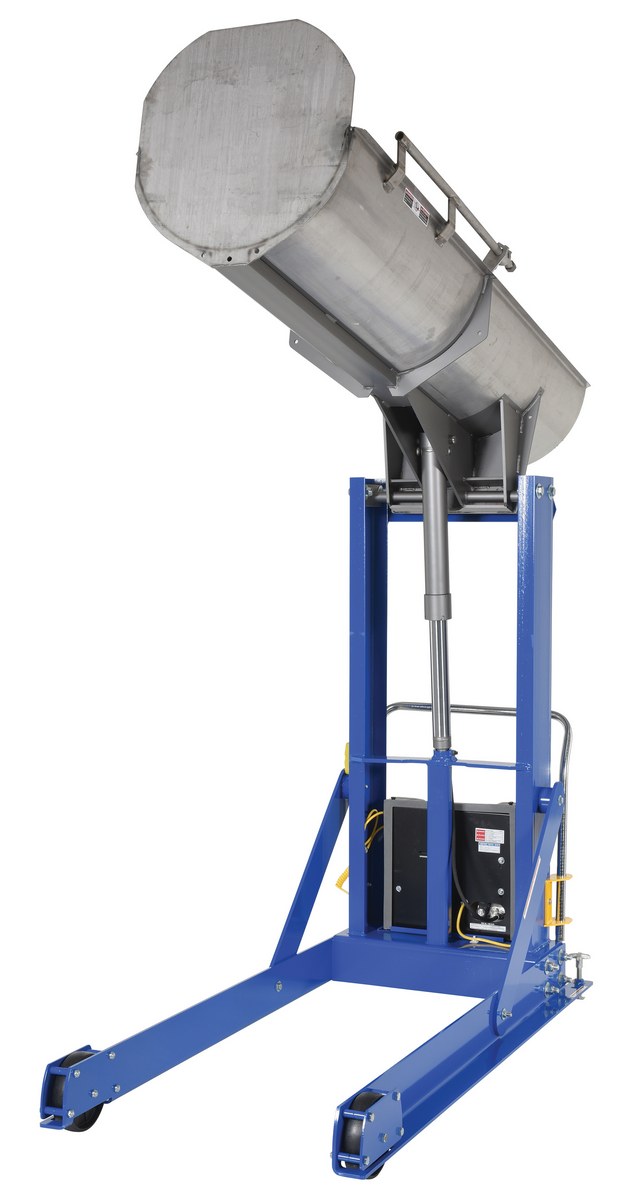

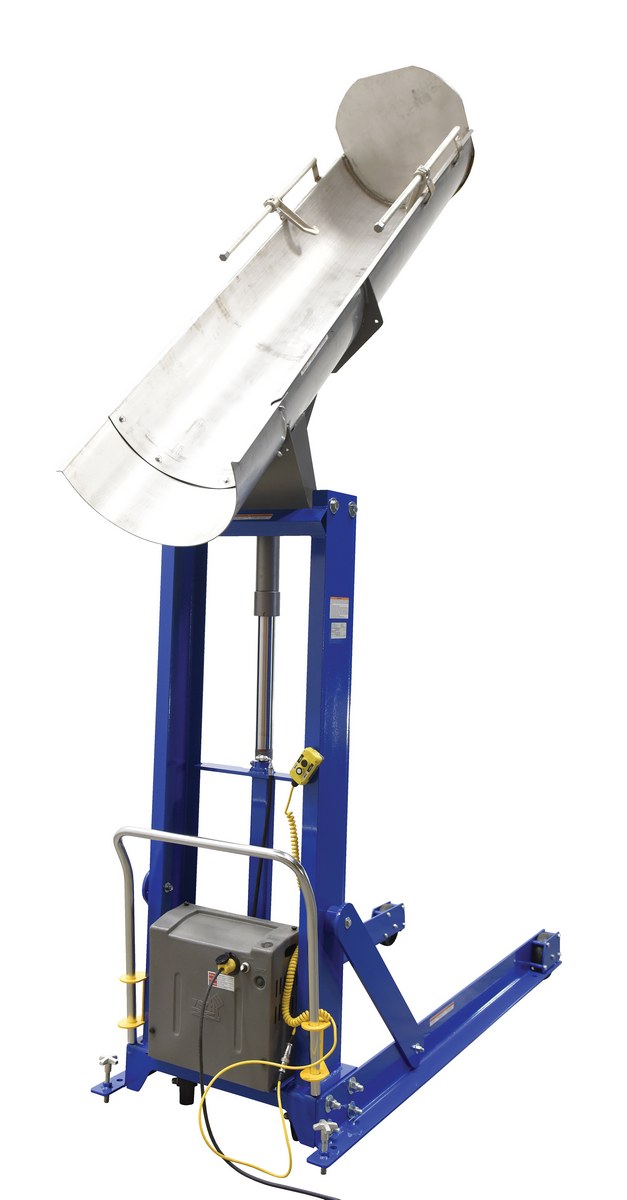

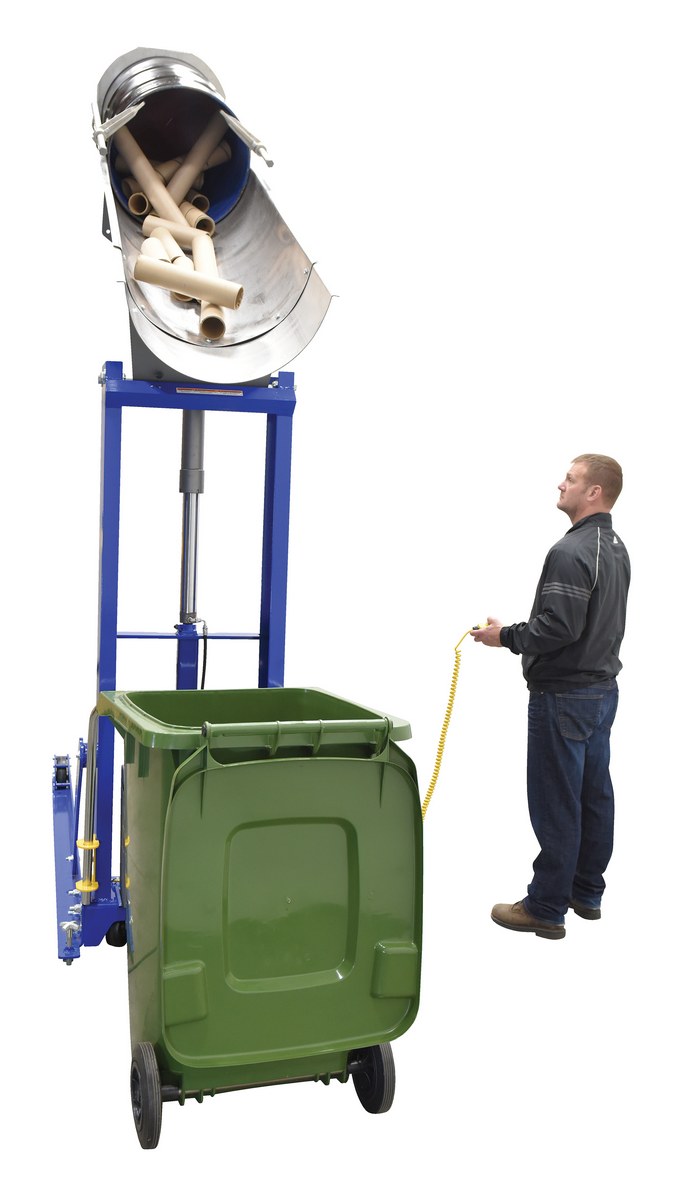

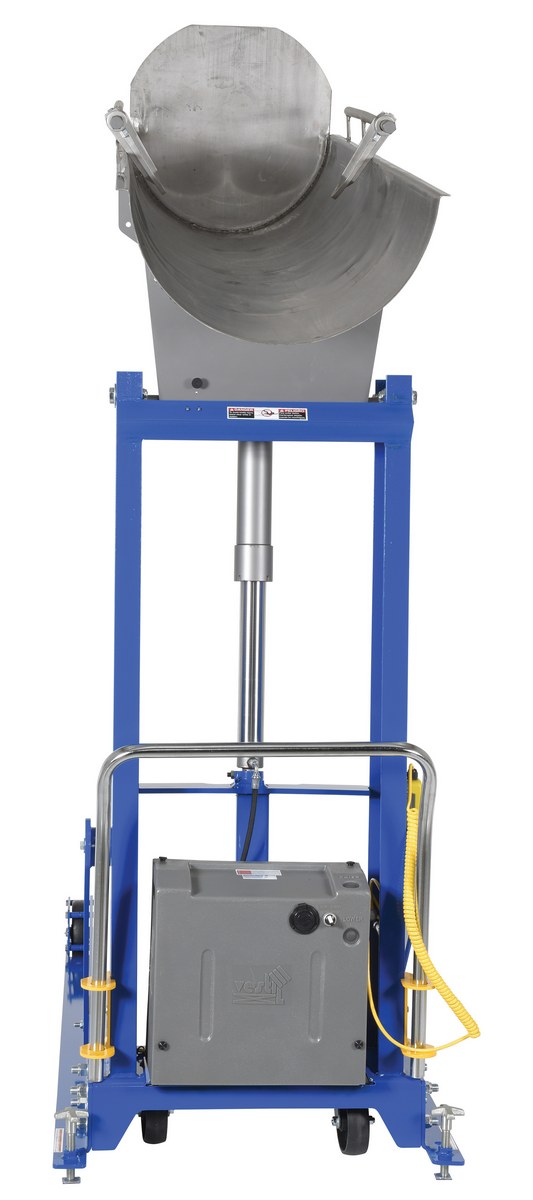

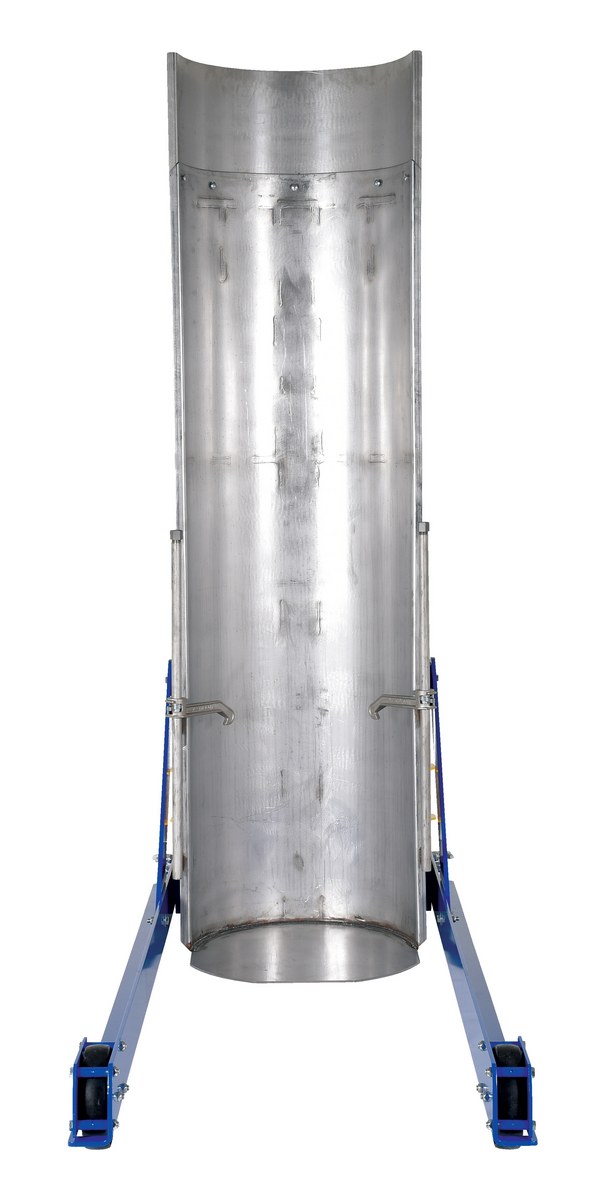

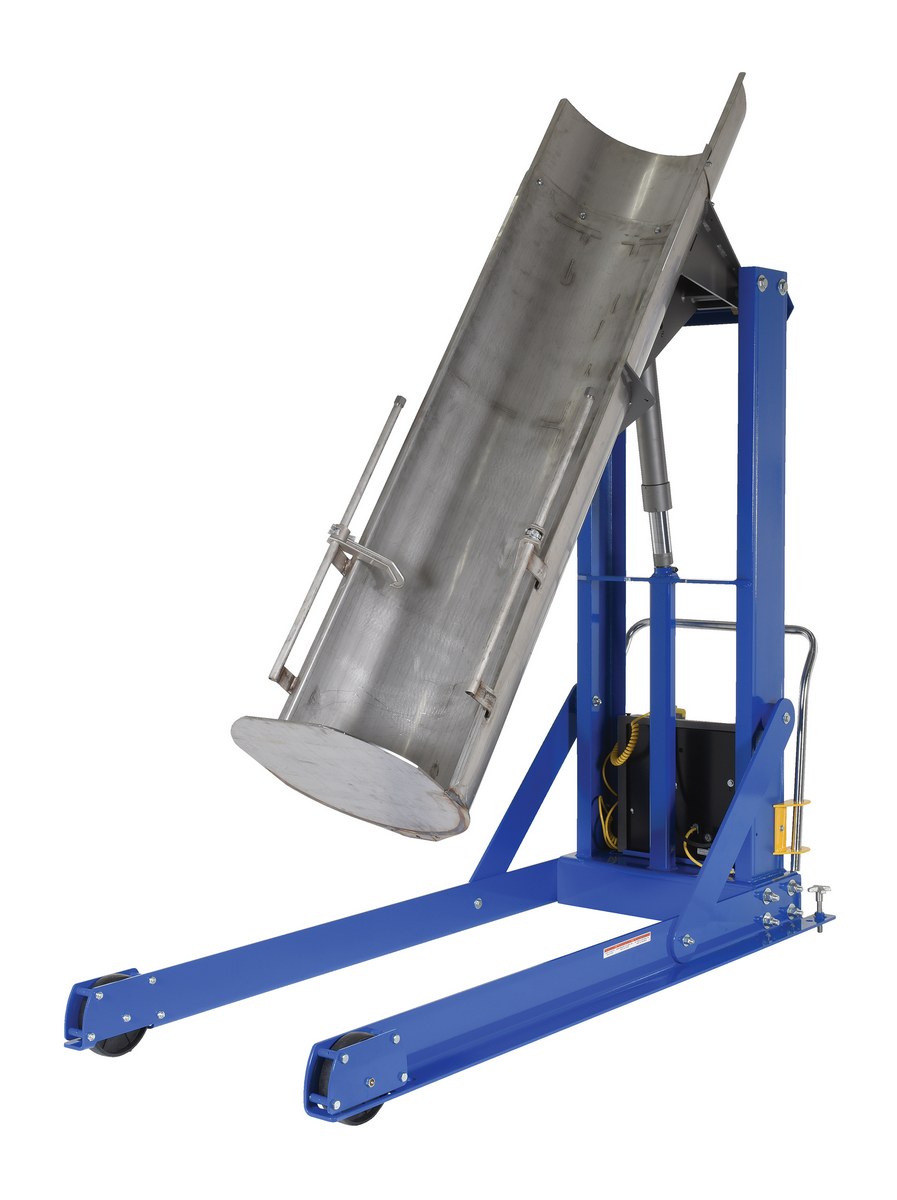

HHDD-36-7-P-SSC Stainless Steel 36" 96" 63-3/4" 750 788 Discontinued Discontinued
HHDD-48-7-P-SSC Stainless Steel 48" 116-3/4" 72-1/2" 750 864 Discontinued Discontinued
HHDD-60-7-P-SSC Stainless Steel 60" 137-1/4" 84-1/2" 750 1019 Discontinued Discontinued
HHDD-72-7-P-SSC Stainless Steel 72" 157-1/2" 96" 750 1034 Discontinued Discontinued
HHDD-36-10-P-SSC Stainless Steel 36" 96" 63-3/4" 1000 763 Discontinued Discontinued
HHDD-48-10-P-SSC Stainless Steel 48" 116-3/4" 72-1/2" 1000 862 Discontinued Discontinued
HHDD-60-10-P-SSC Stainless Steel 60" 137-1/4" 84-1/2" 1000 1042 Discontinued Discontinued
HHDD-72-10-P-SSC Stainless Steel 72" 157-1/2" 96" 1000 1100 Discontinued Discontinued
HHDD-36-15-P-SSC Stainless Steel 36" 96" 63-3/4" 1500 776 Discontinued Discontinued
HHDD-48-15-P-SSC Stainless Steel 48" 116-3/4" 72-1/2" 1500 880 Discontinued Discontinued
HHDD-60-15-P-SSC Stainless Steel 60" 137-1/4" 84-1/2" 1500 1026 Discontinued Discontinued
HHDD-72-15-P-SSC Stainless Steel 72" 157-1/2" 96" 1500 1115 Discontinued Discontinued
PORTABLE HYDRAULIC DRUM DUMPER
Product No.: HHDD-60-7-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 750
TODAY: $5102.21
Product No.: HHDD-36-10-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 1000
TODAY: $4760.01
Product No.: HHDD-48-15-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 1500
TODAY: $5562.89
Product No.: HHDD-60-15-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 1500
TODAY: $5792.74
Product No.: HHDD-36-7-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 750
TODAY: $4643.56
Product No.: HHDD-48-7-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 750
TODAY: $5268.59
Product No.: HHDD-48-10-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 1000
TODAY: $5069.85
Product No.: HHDD-60-10-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 1000
TODAY: $5435.94
Product No.: HHDD-36-15-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 1500
TODAY: $5308.02
Product No.: HHDD-72-7-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 750
TODAY: $5296.64
Product No.: HHDD-72-10-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 1000
TODAY: $5523.33
Product No.: HHDD-72-15-P
  • Chute Type: Yellow baked-in powder-coated
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 1500
TODAY: $5996.53
Product No.: HHDD-36-7-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 750
TODAY: $6965.82
Product No.: HHDD-48-7-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 750
TODAY: $7376.63
Product No.: HHDD-60-7-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 750
TODAY: $7785.36
Product No.: HHDD-72-7-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 750
TODAY: $8465.48
Product No.: HHDD-36-10-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 1000
TODAY: $7324.69
Product No.: HHDD-48-10-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 1000
TODAY: $7700.06
Product No.: HHDD-60-10-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 1000
TODAY: $8099.47
Product No.: HHDD-72-10-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 1000
TODAY: $8682.88
Product No.: HHDD-36-15-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 36"
  • Rotation Height: 96"
  • Level Height: 63-3/4"
  • Uniform Cap. (lbs.): 1500
TODAY: $8205.51
Product No.: HHDD-48-15-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 48"
  • Rotation Height: 116-3/4"
  • Level Height: 72-1/2"
  • Uniform Cap. (lbs.): 1500
TODAY: $8667.28
Product No.: HHDD-60-15-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 60"
  • Rotation Height: 137-1/4"
  • Level Height: 84-1/2"
  • Uniform Cap. (lbs.): 1500
TODAY: $9077.00
Product No.: HHDD-72-15-P-SSC
  • Chute Type: Stainless Steel
  • Dump Height: 72"
  • Rotation Height: 157-1/2"
  • Level Height: 96"
  • Uniform Cap. (lbs.): 1500
TODAY: $9636.56
