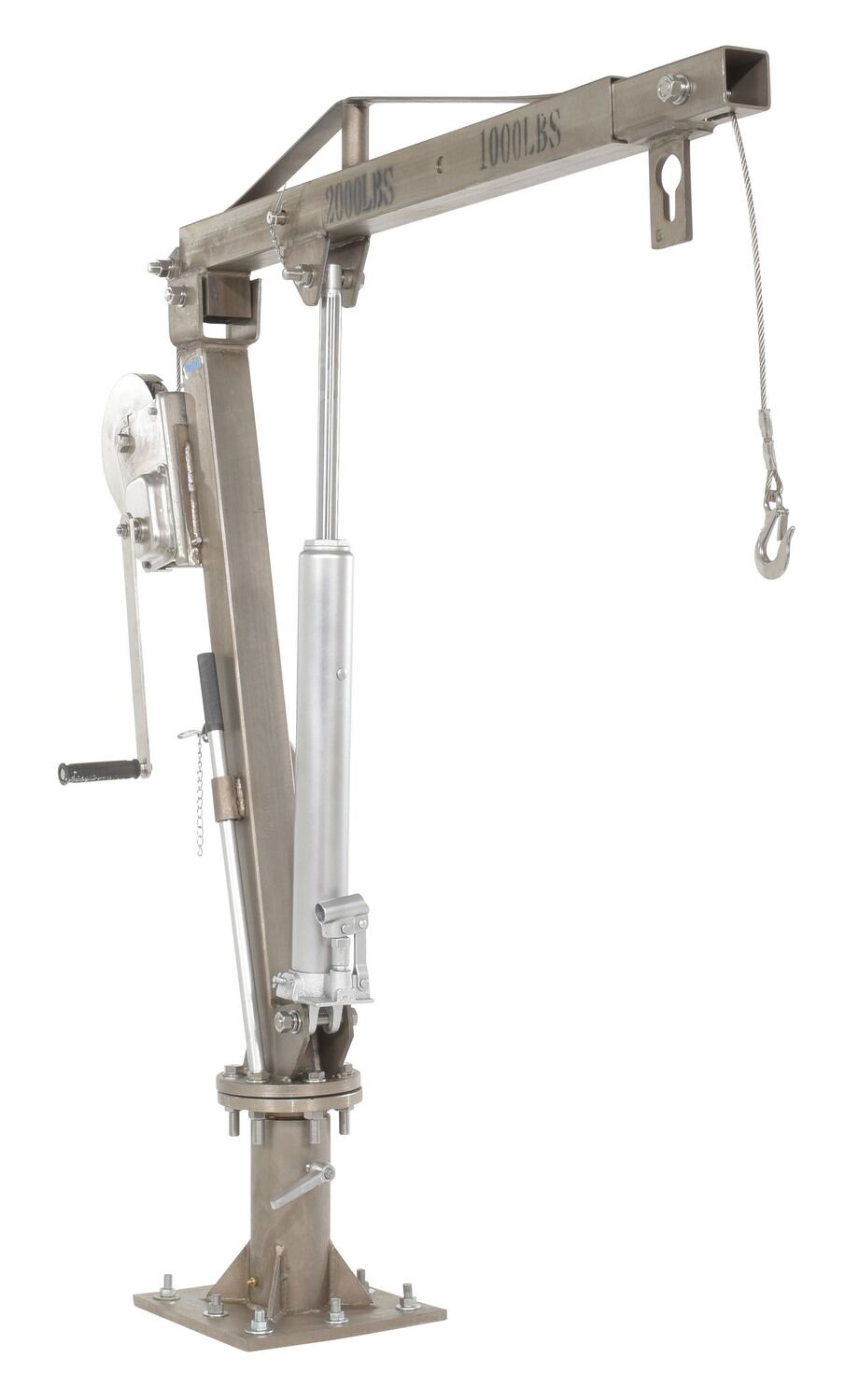

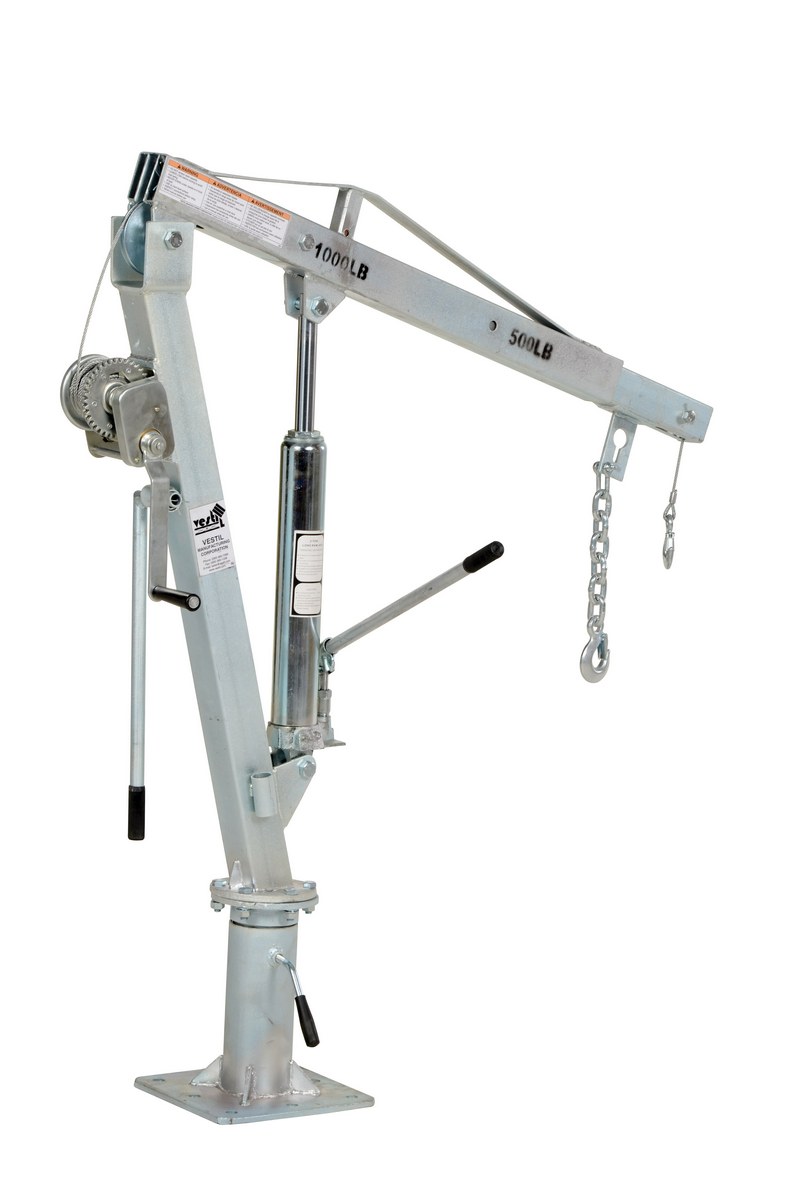

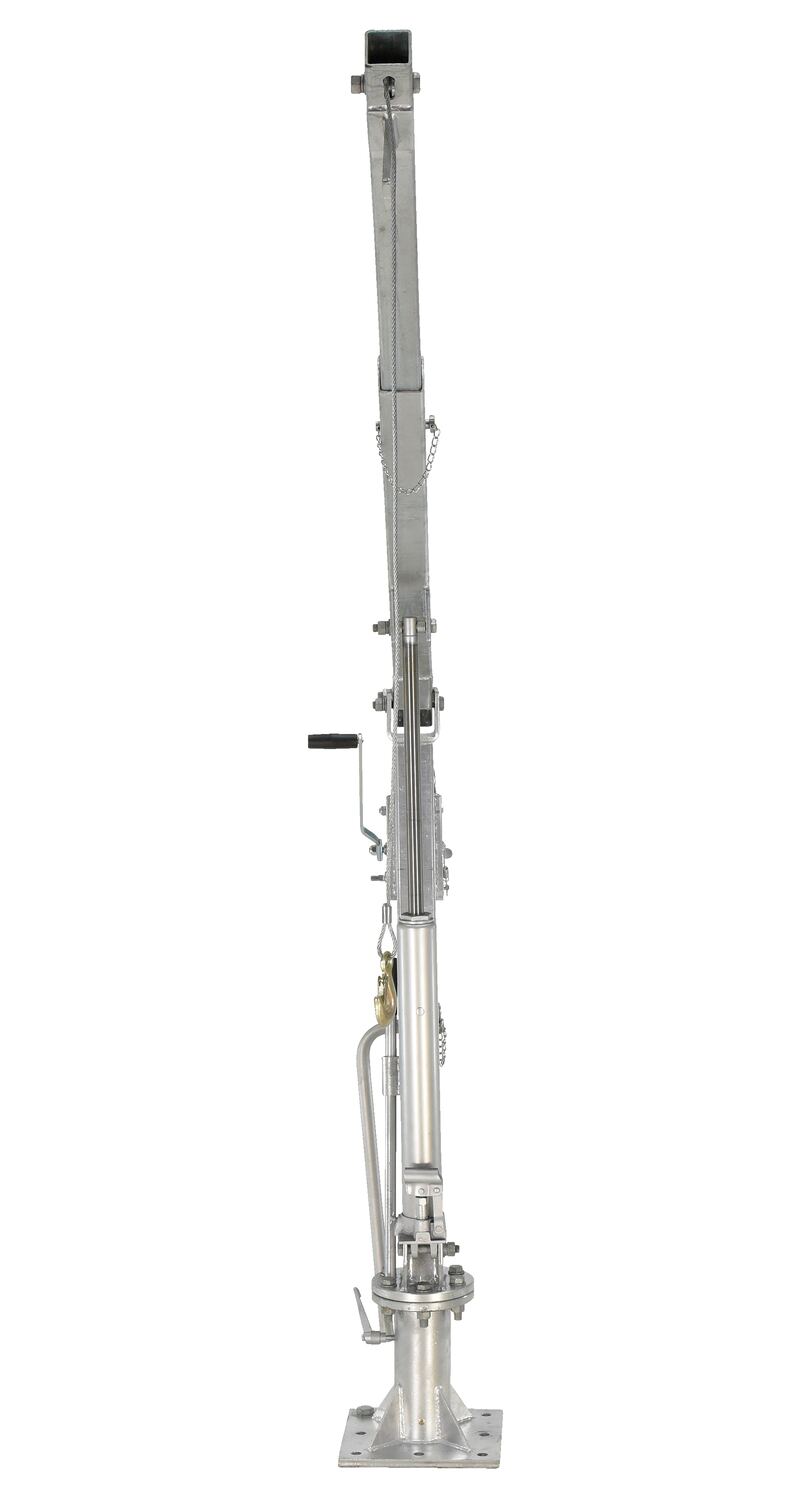

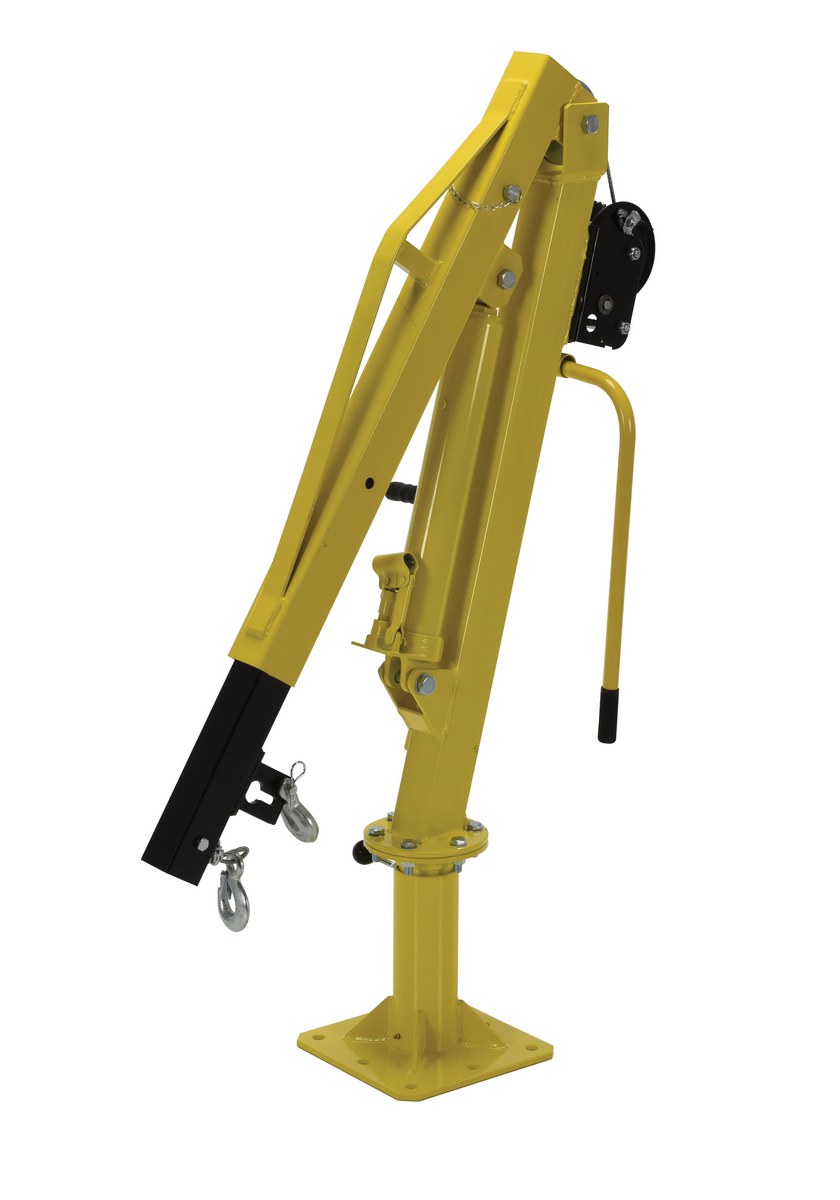

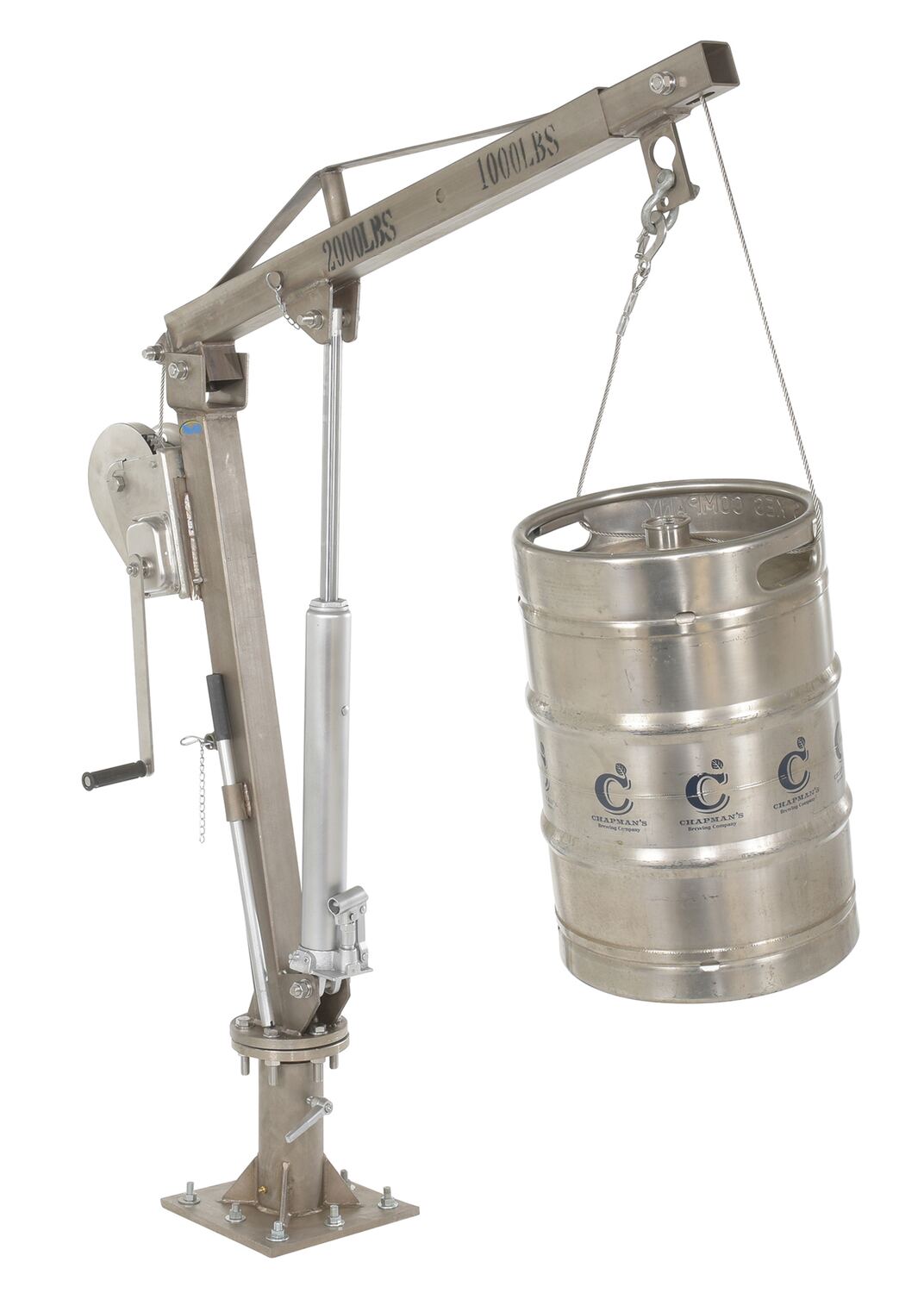

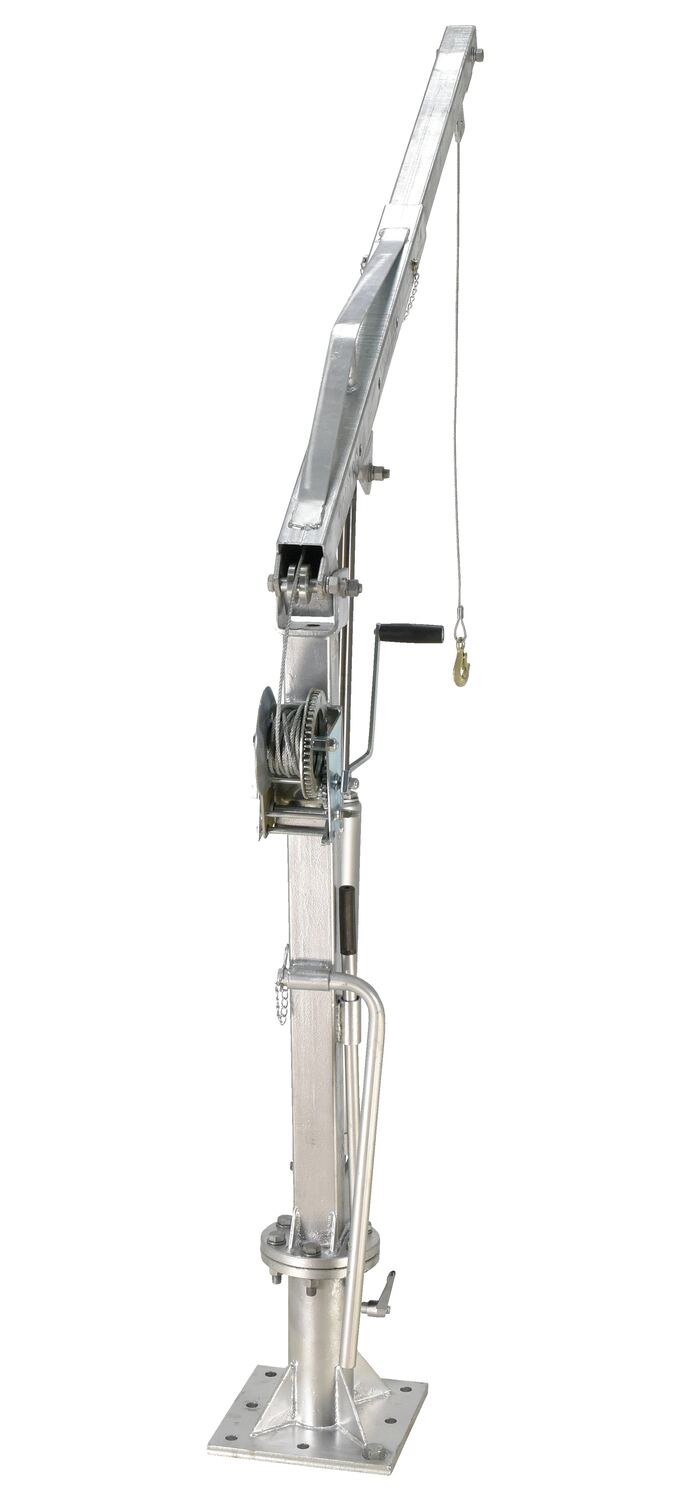

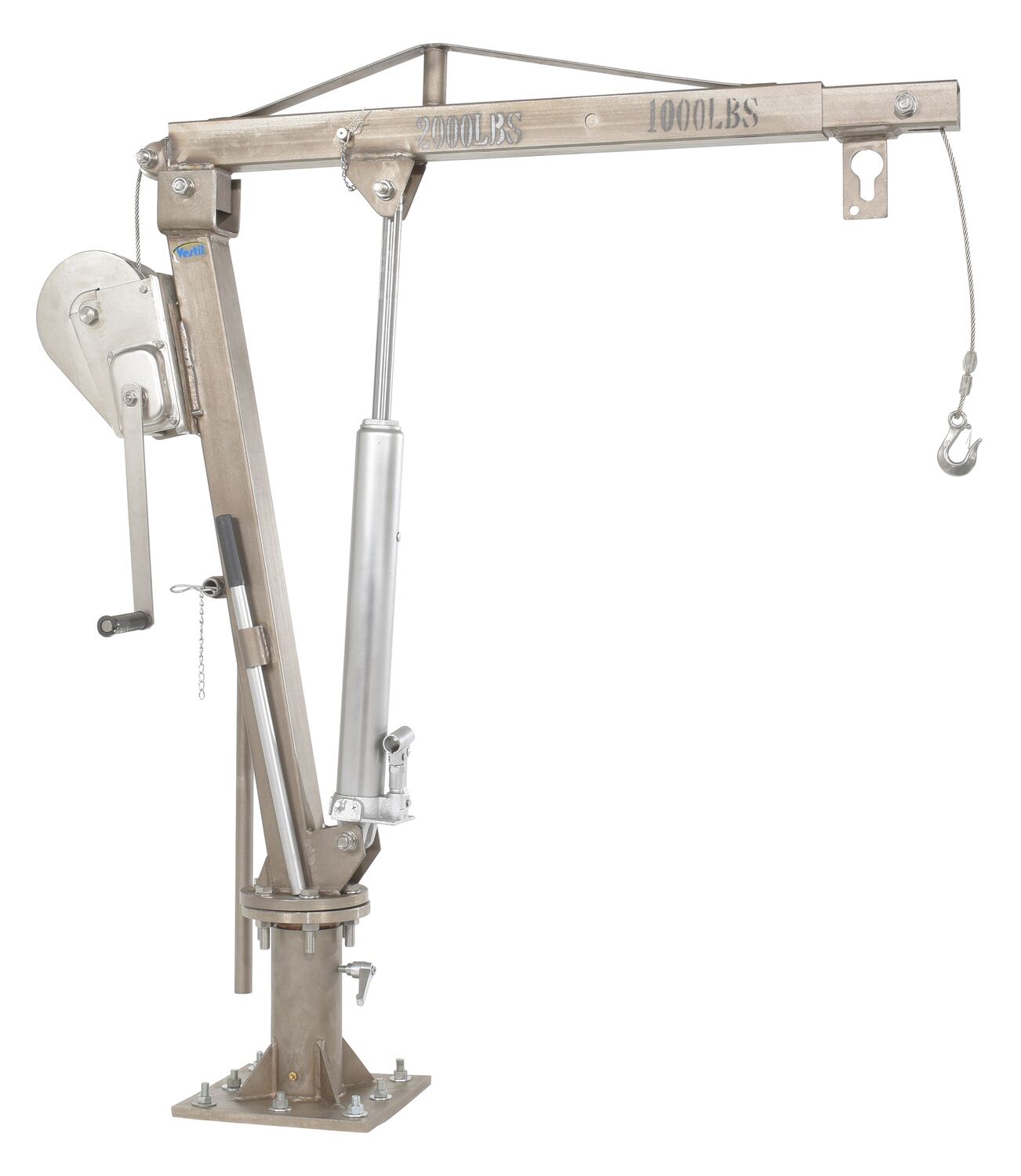

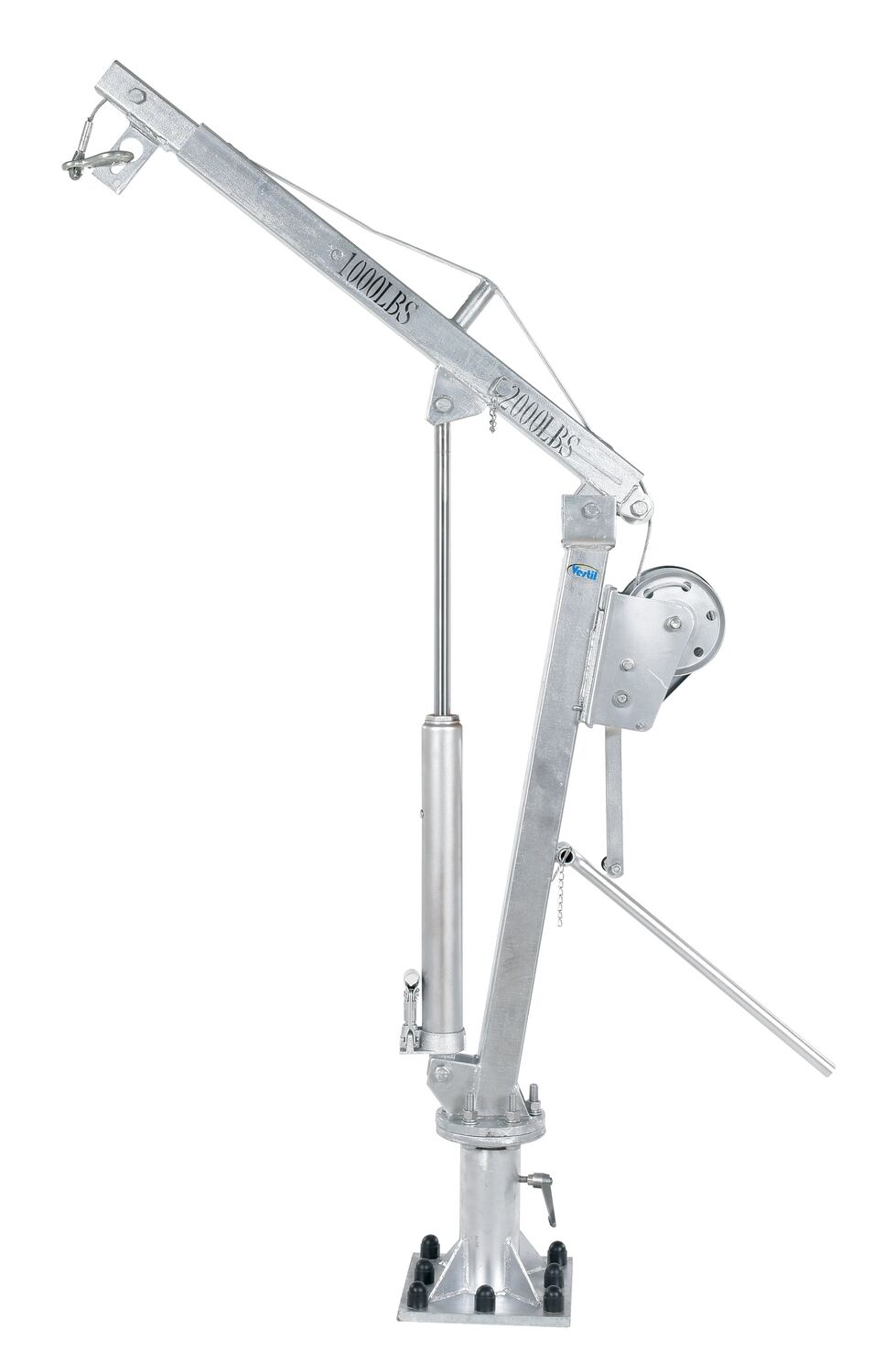

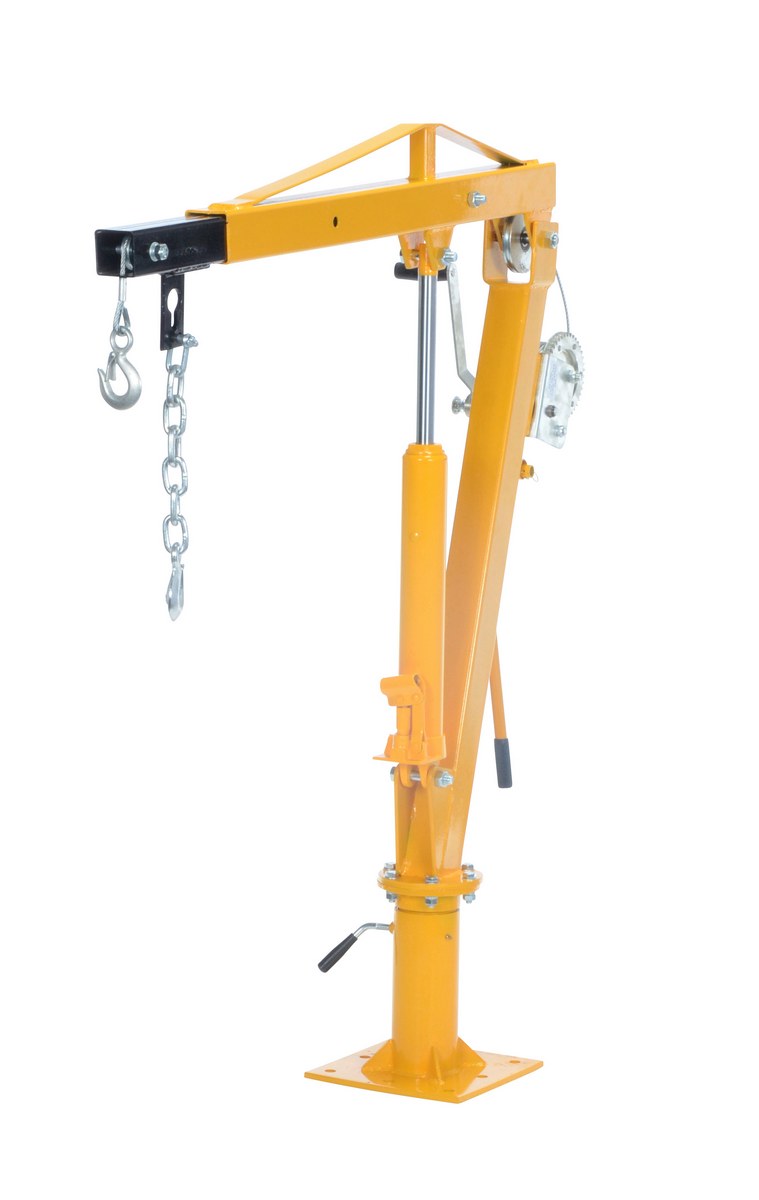

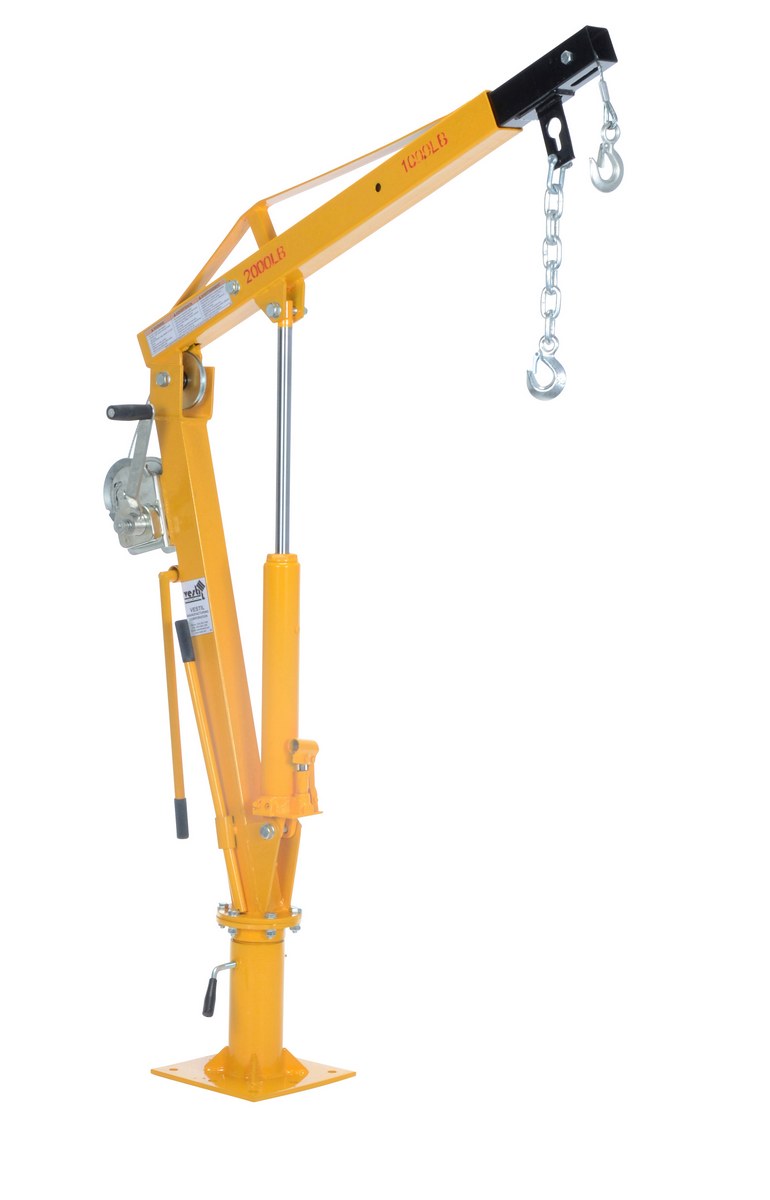

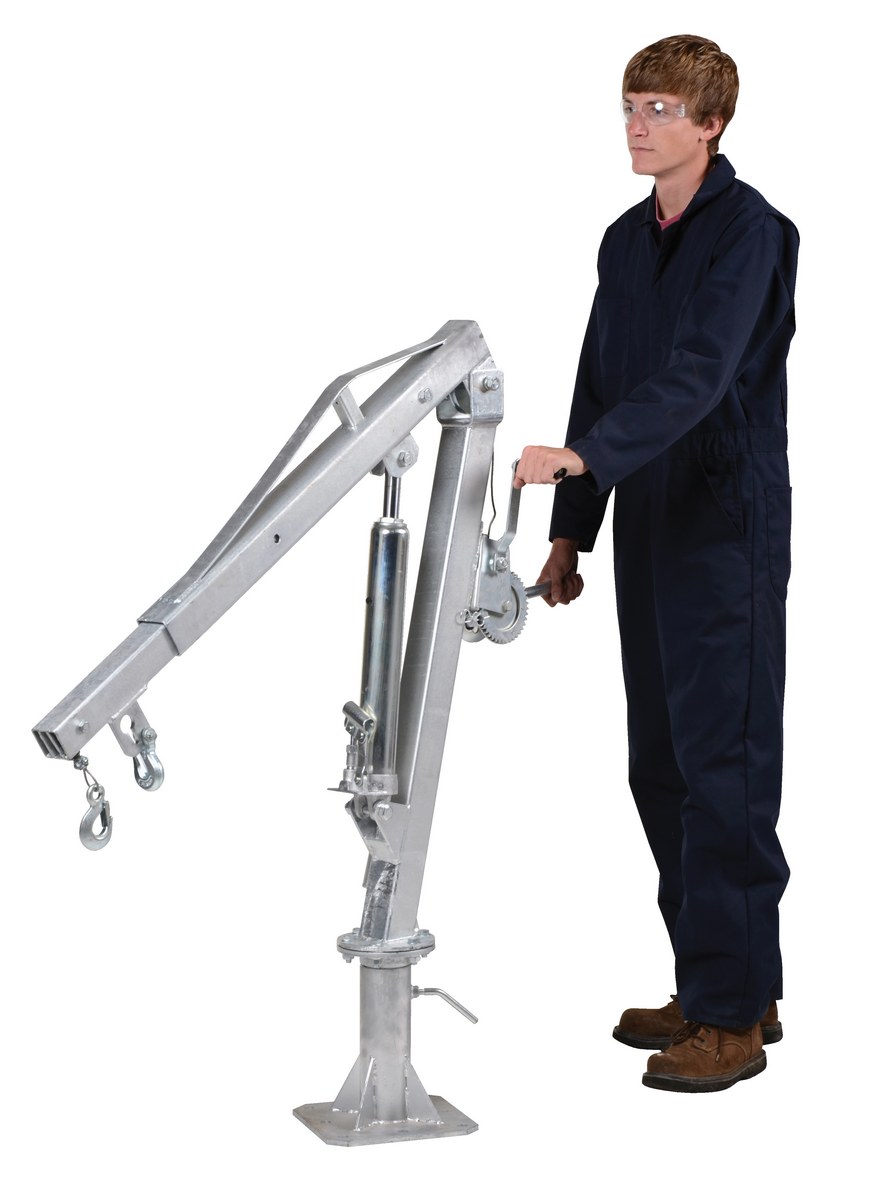

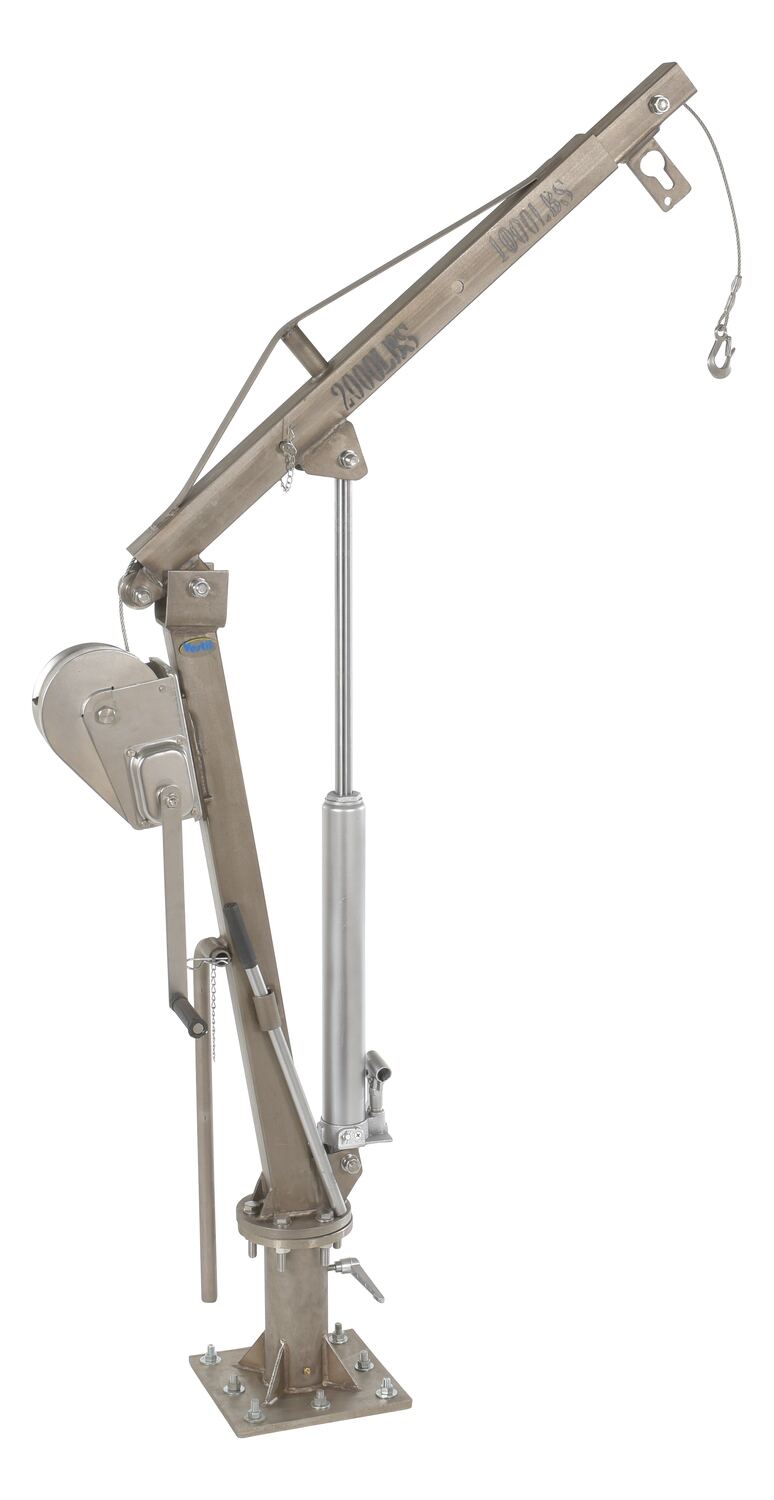

WINCH OPERATED TRUCK JIB CRANE

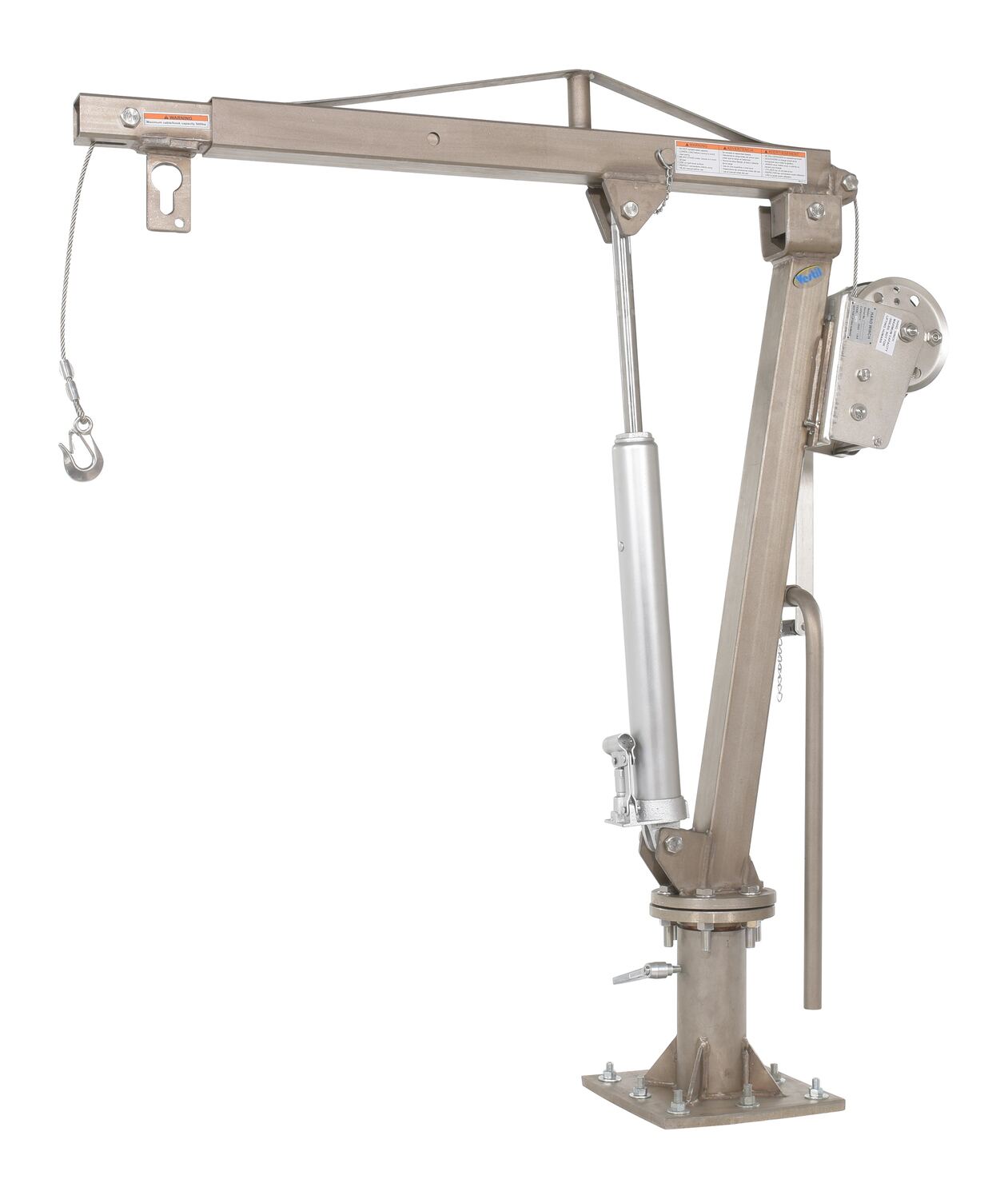

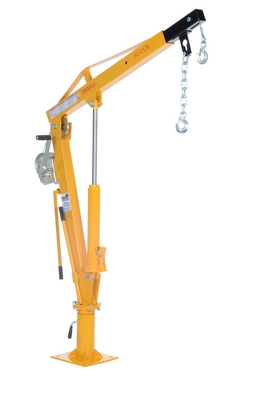

Installed in pick up truck box, this winch operated jib crane lifts loads up to 2,000 lbs. Lift items from the ground to truck bed height, then rotate into cargo area.

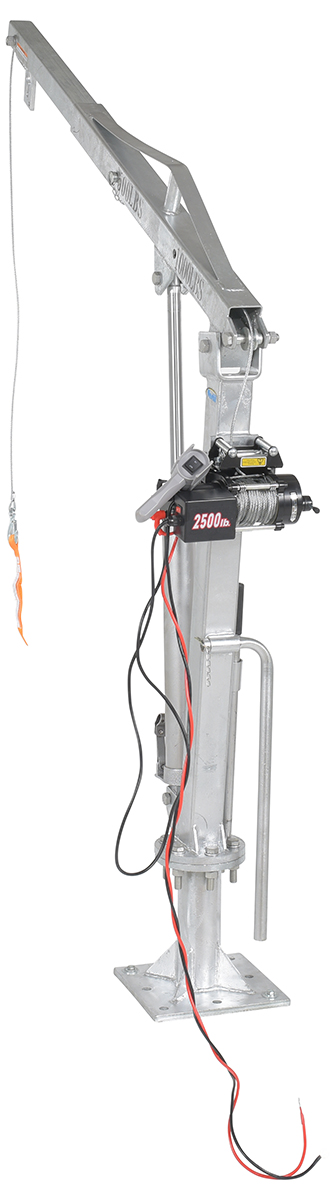

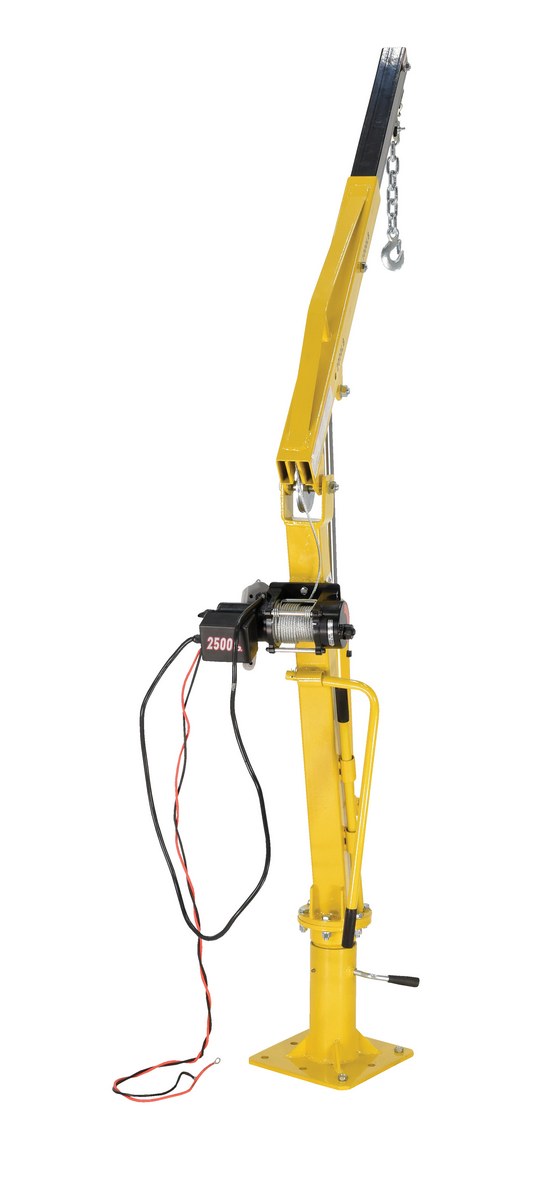

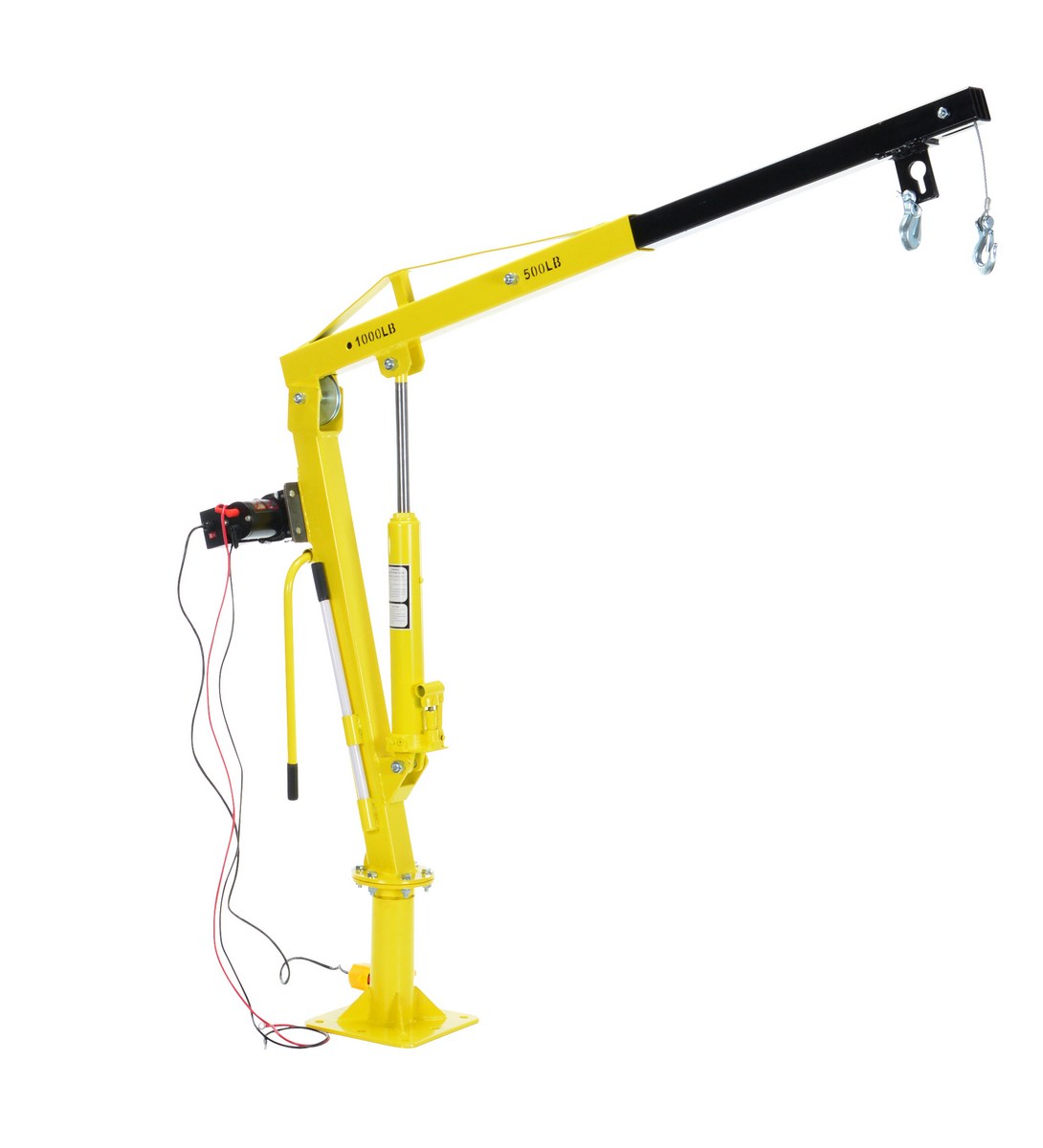

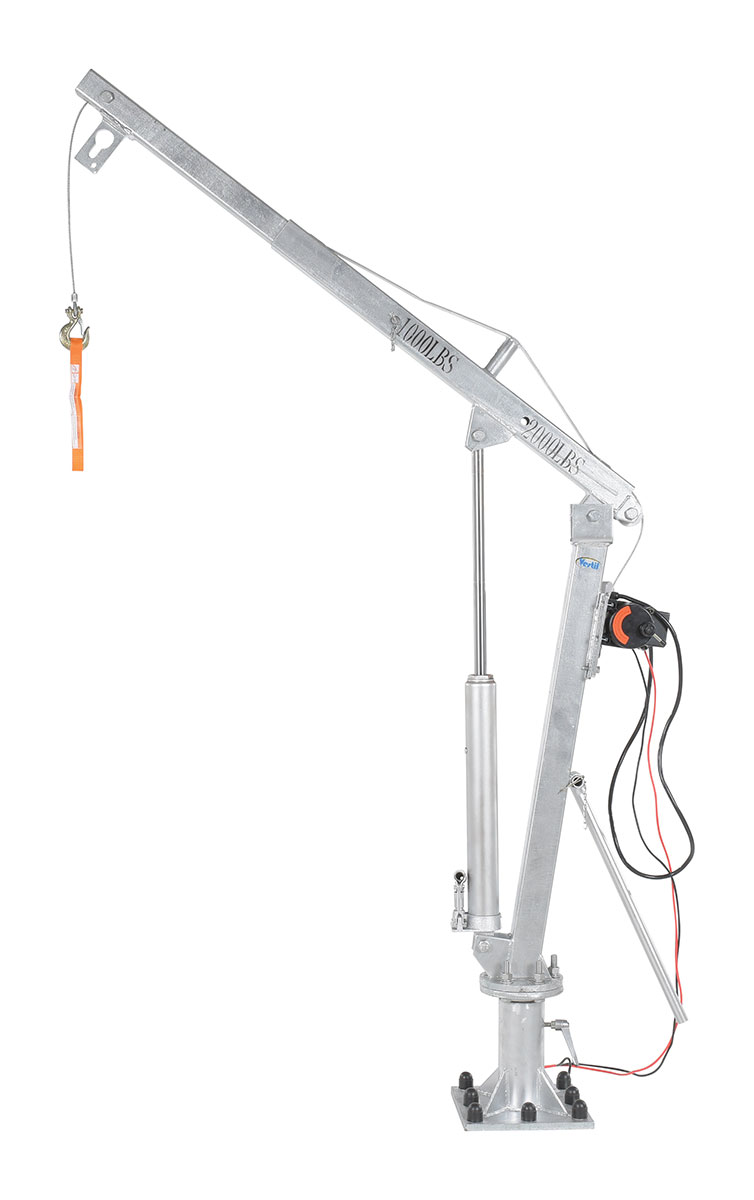

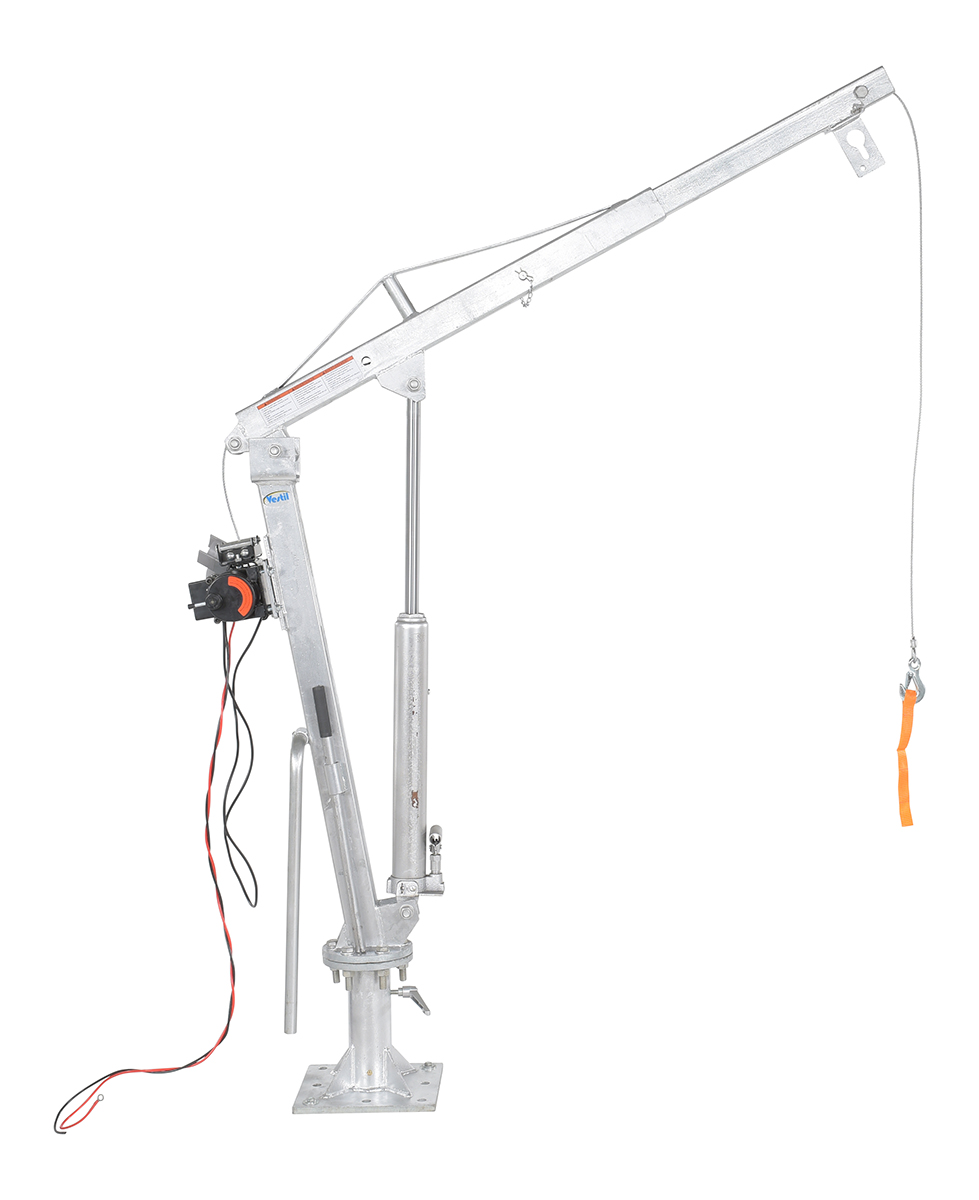

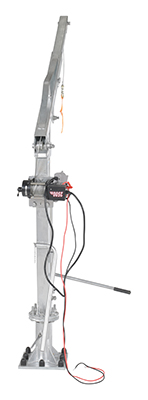

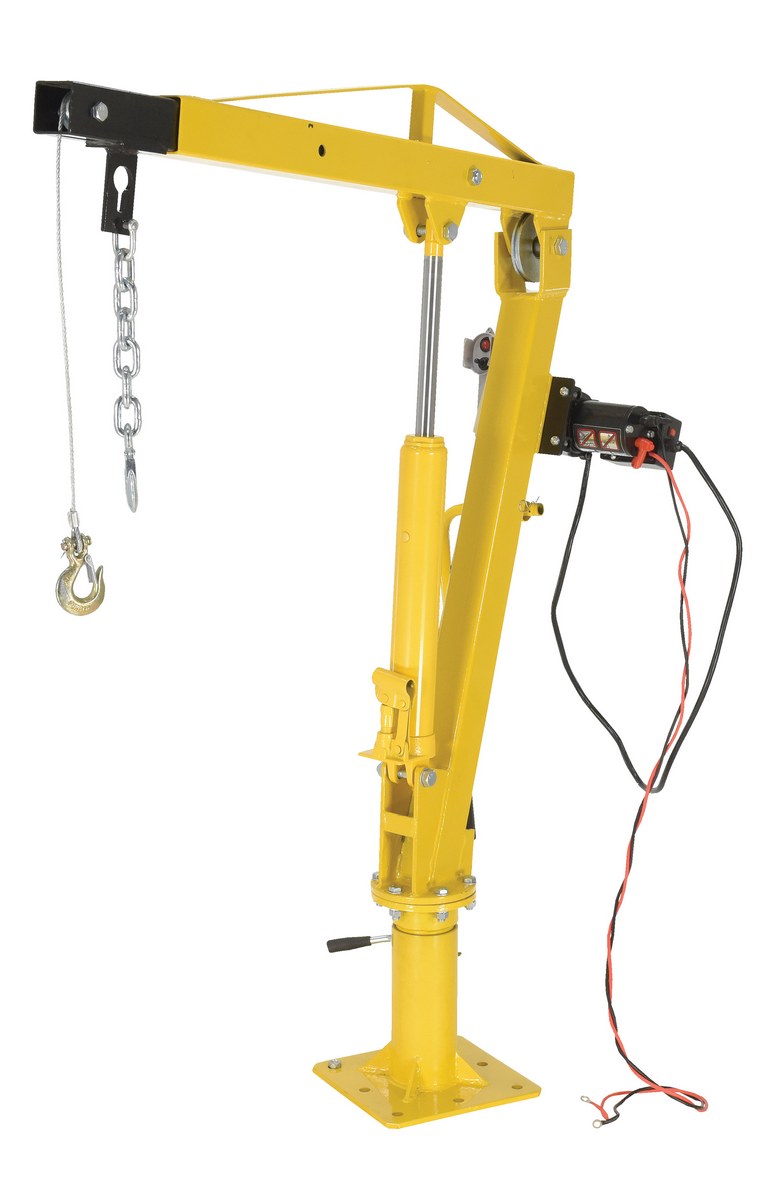

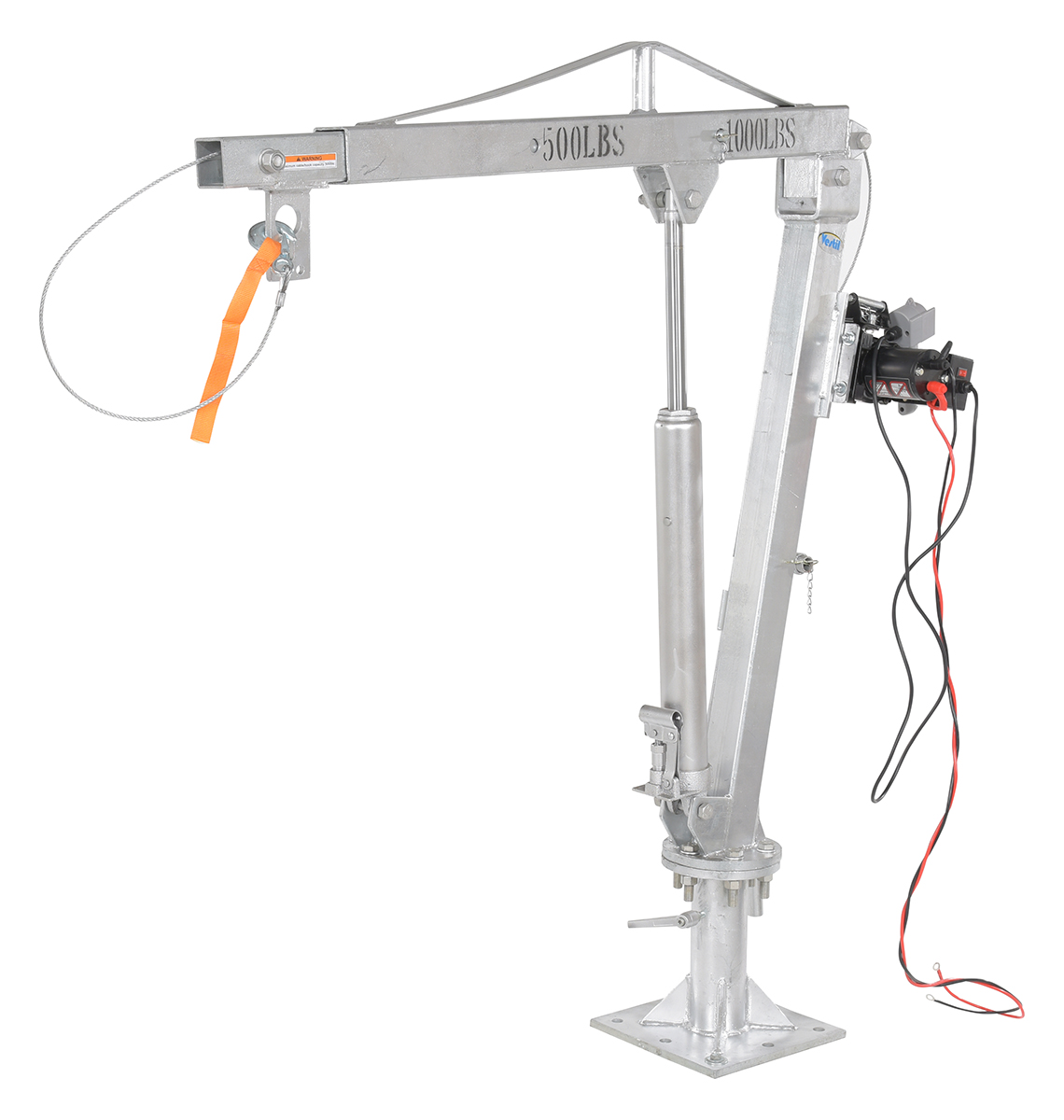

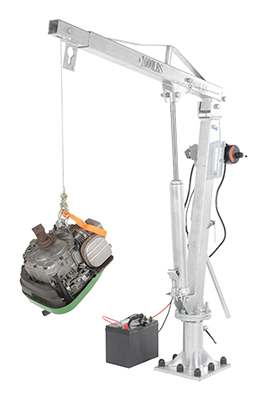

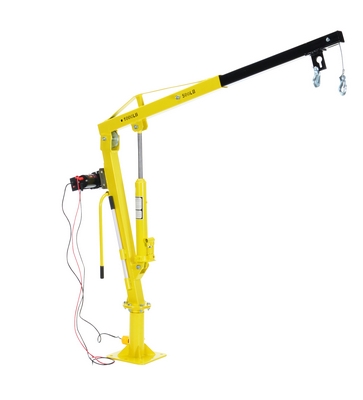

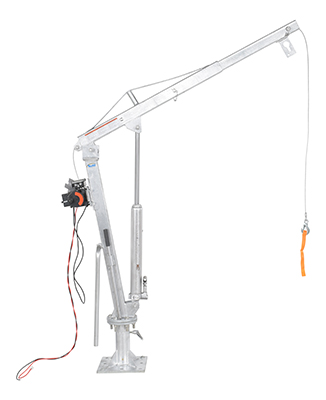

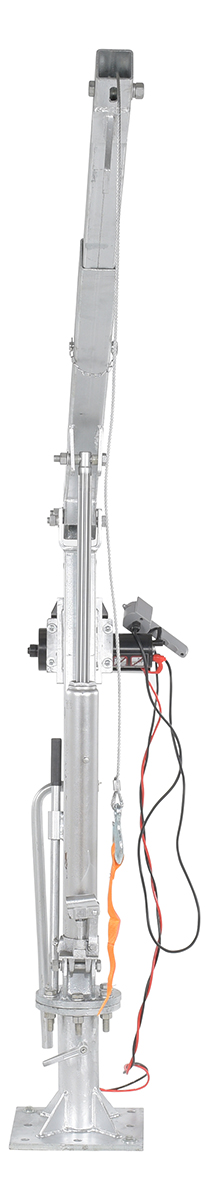

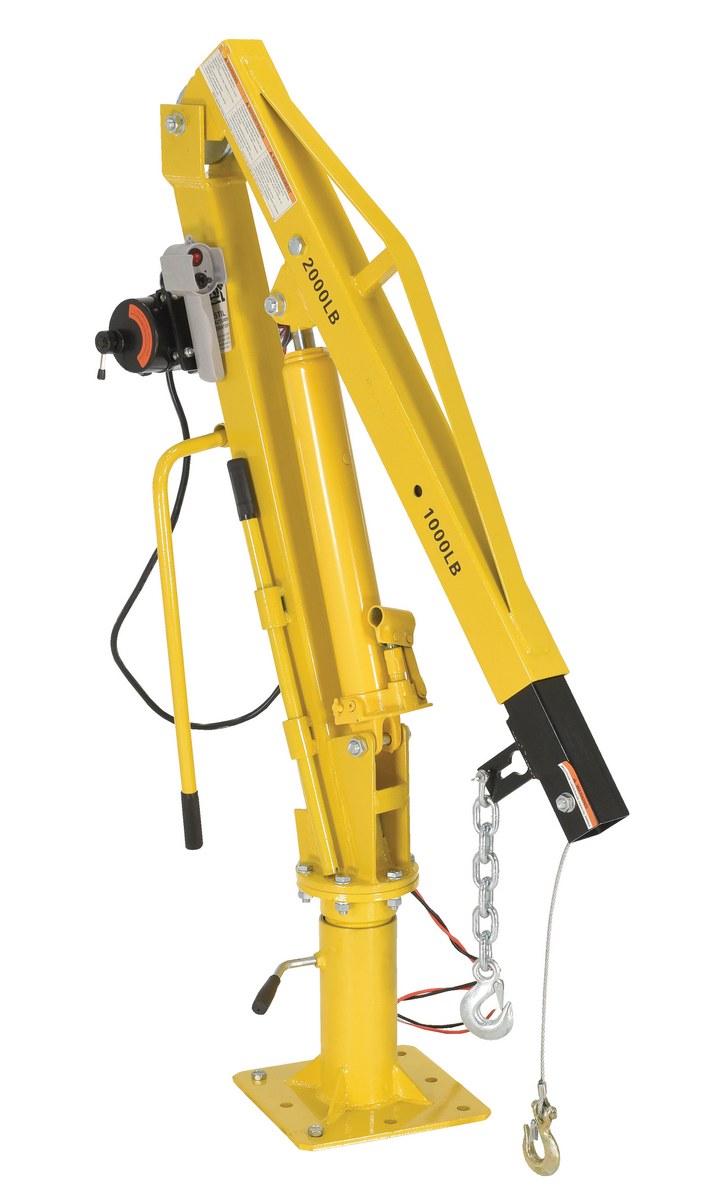

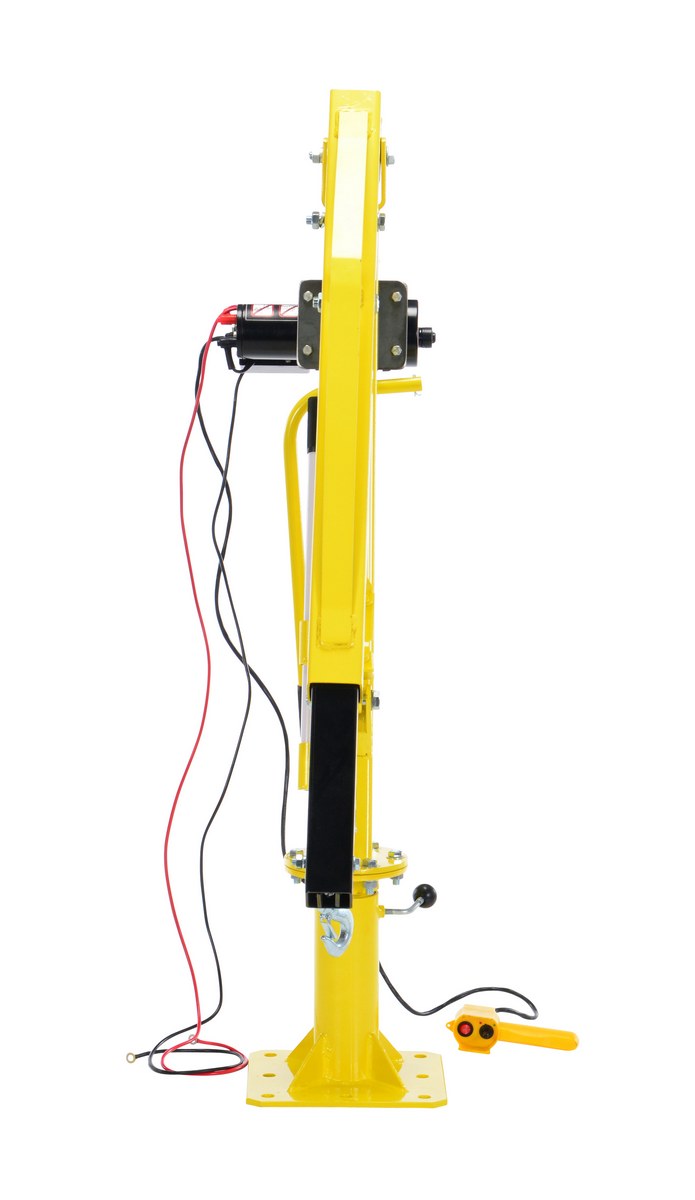

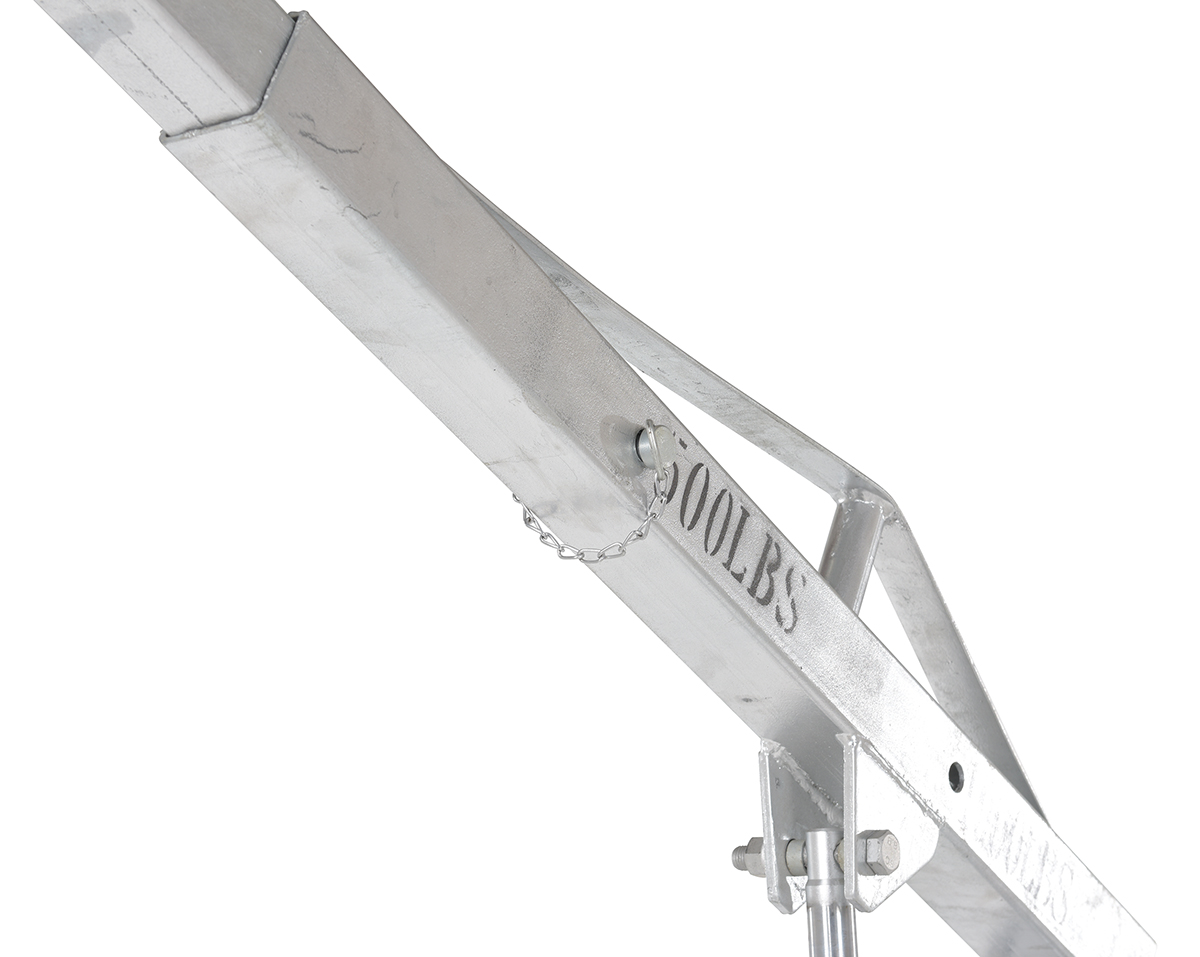

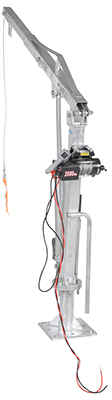

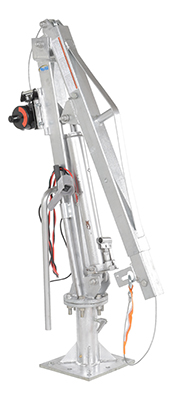

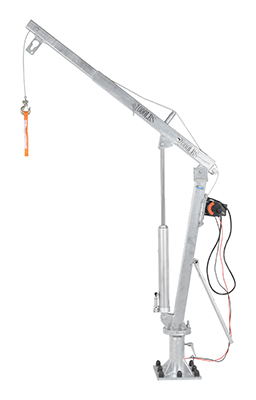

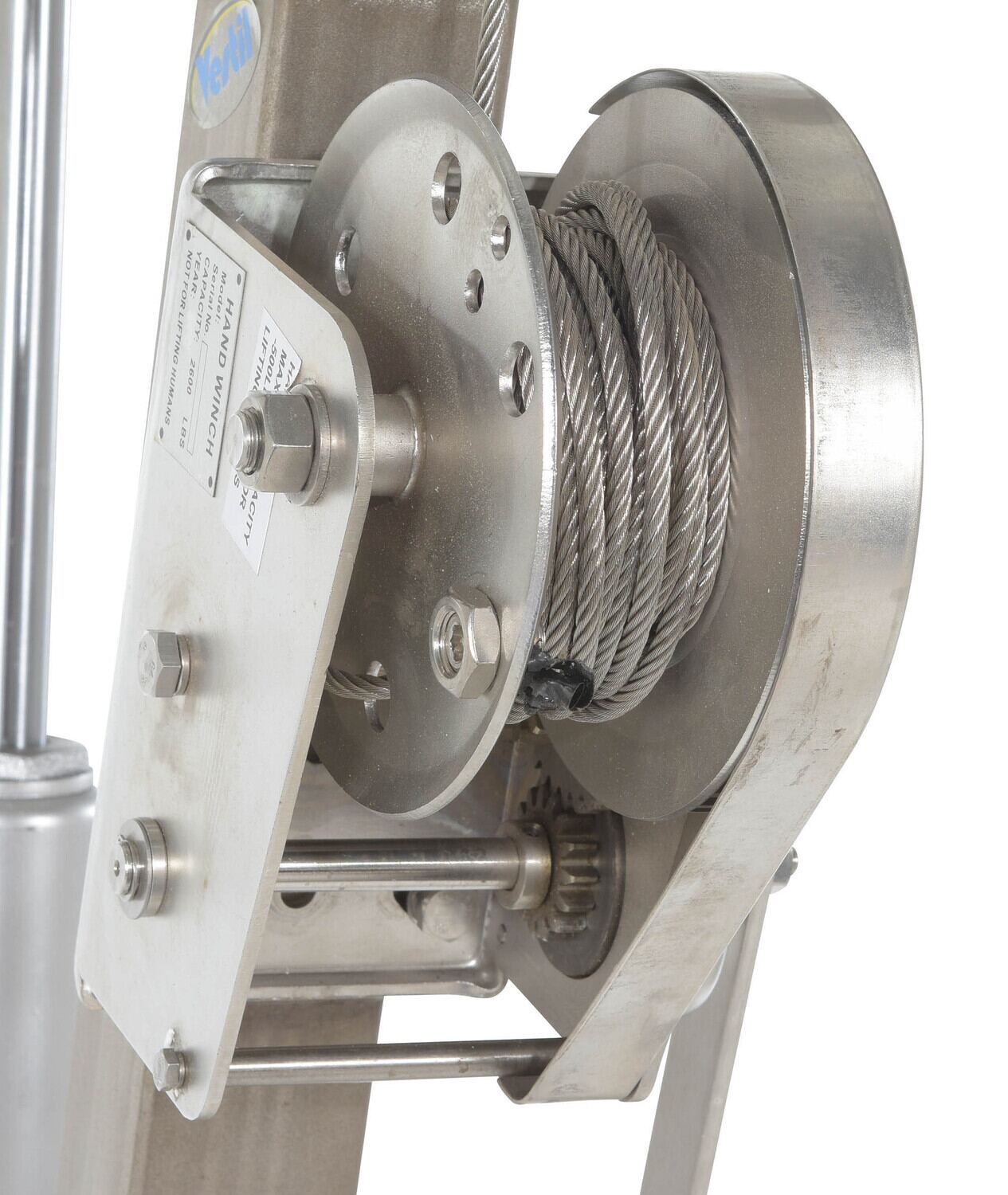

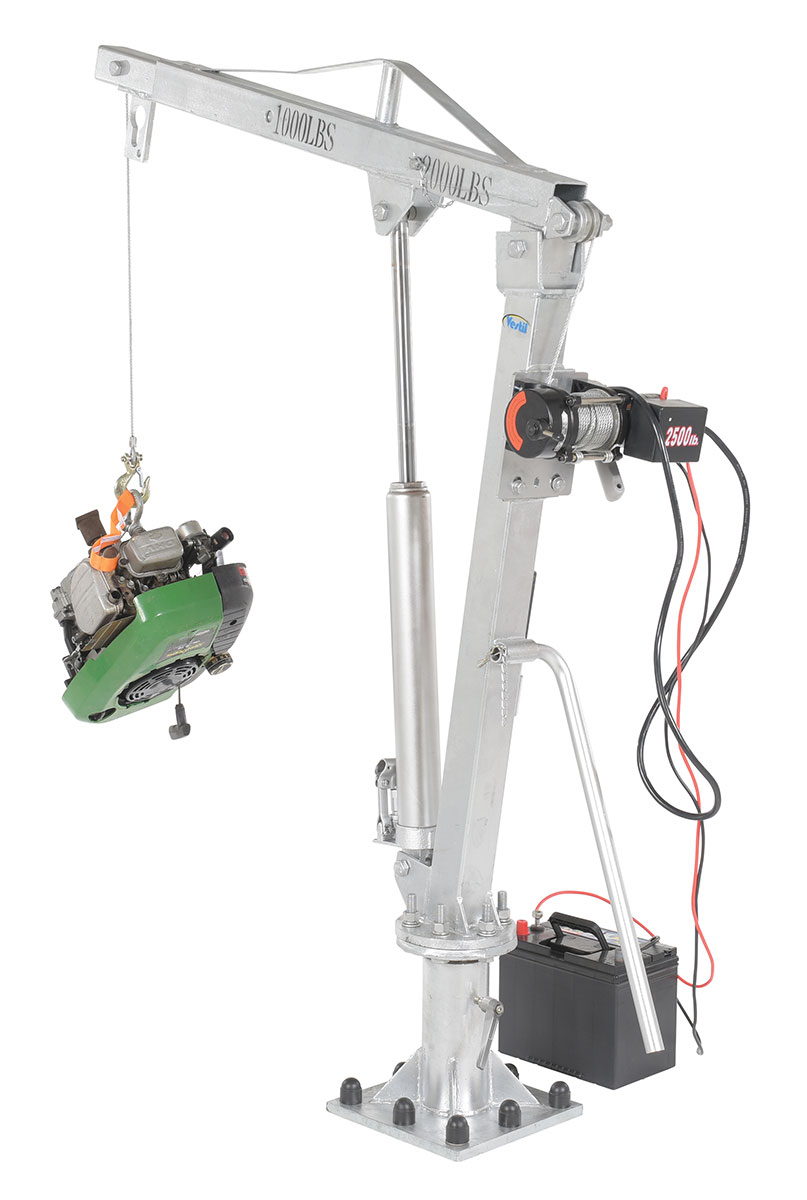

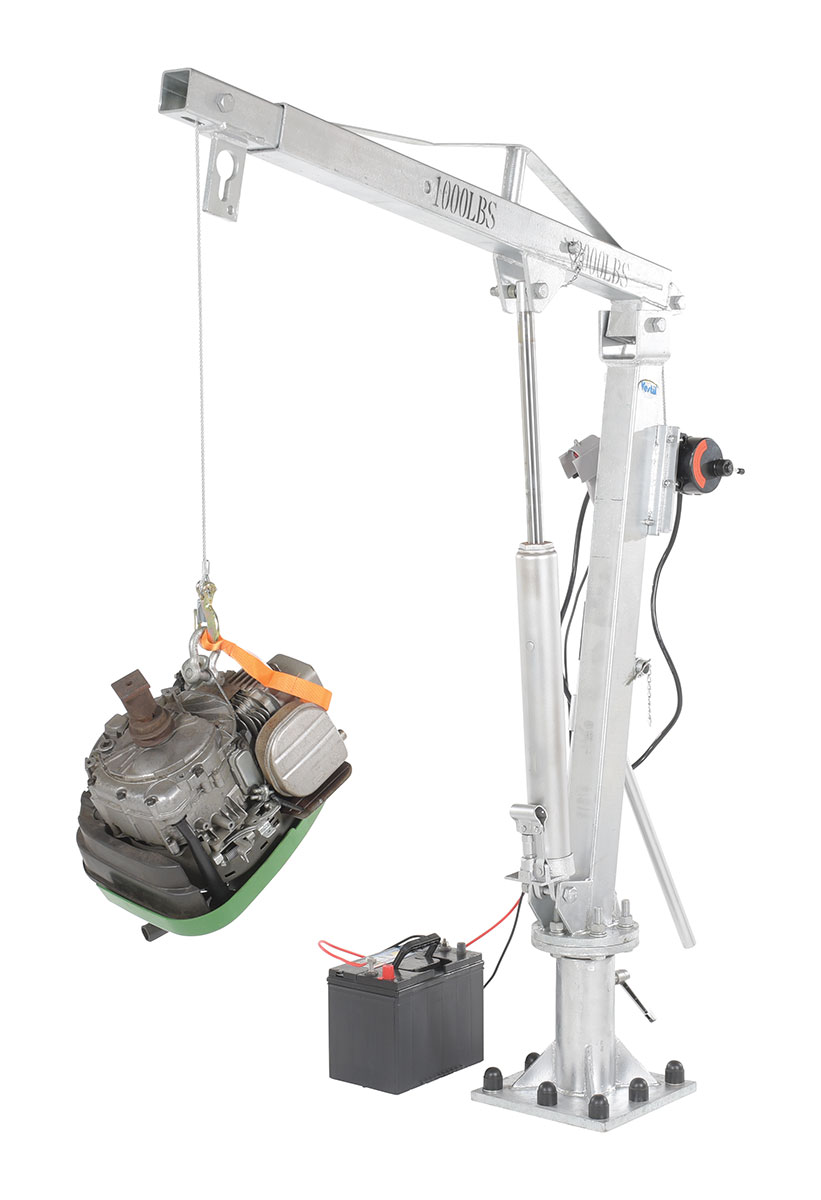

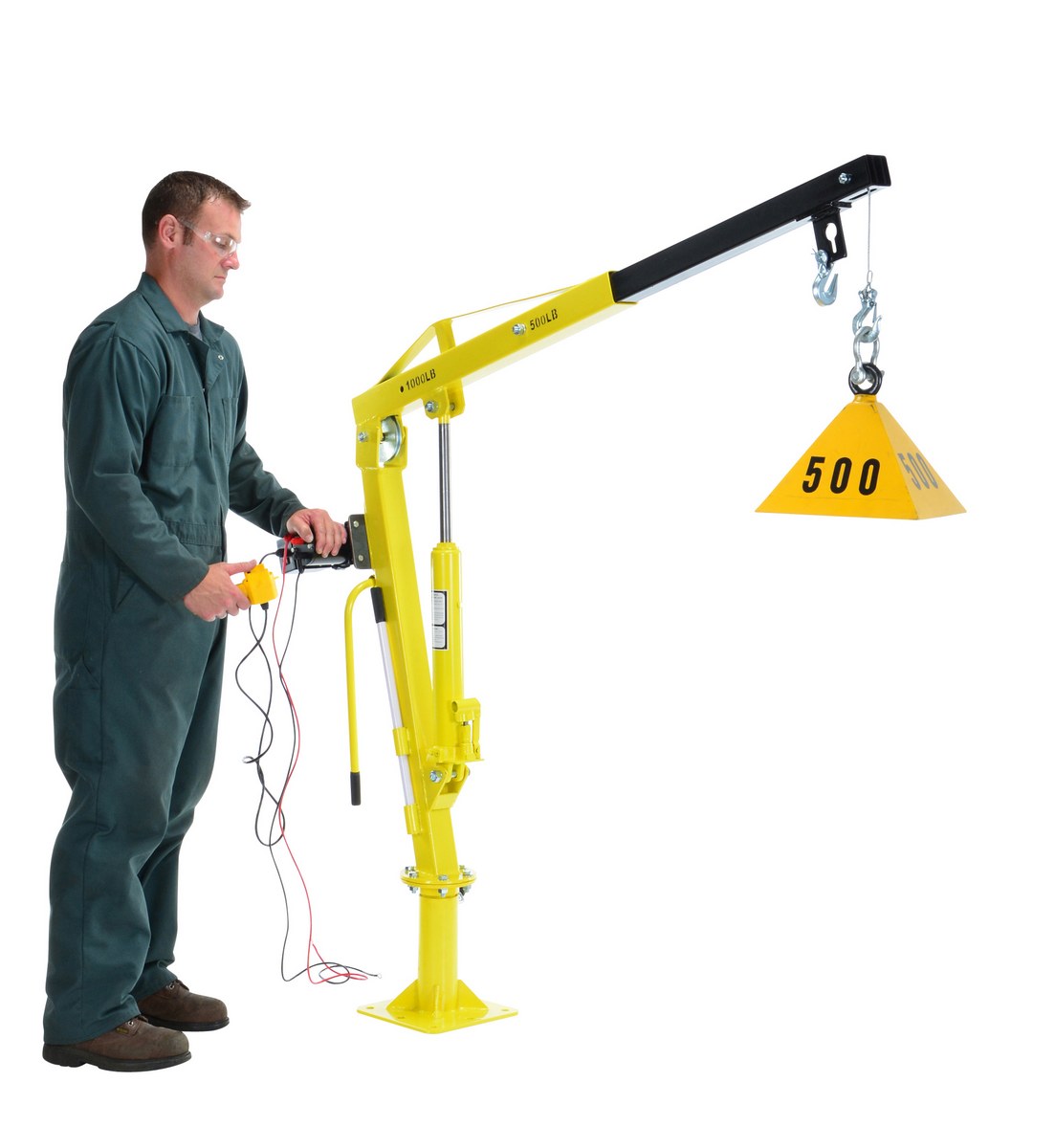

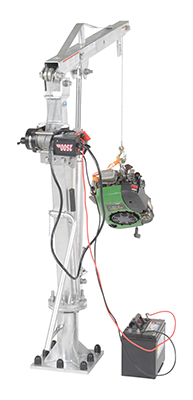

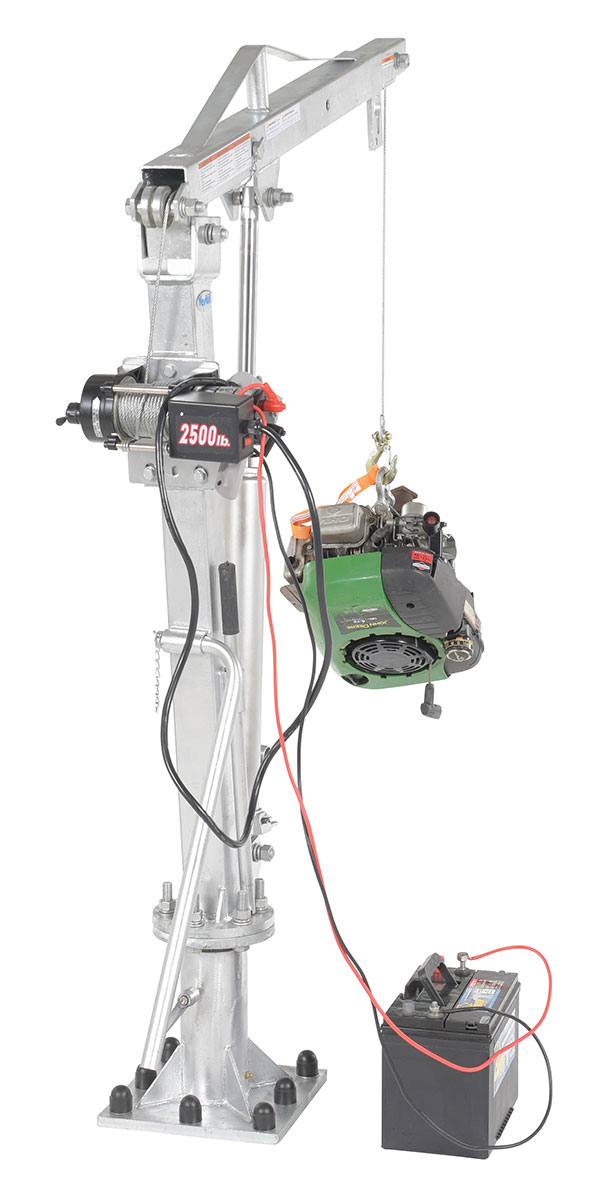

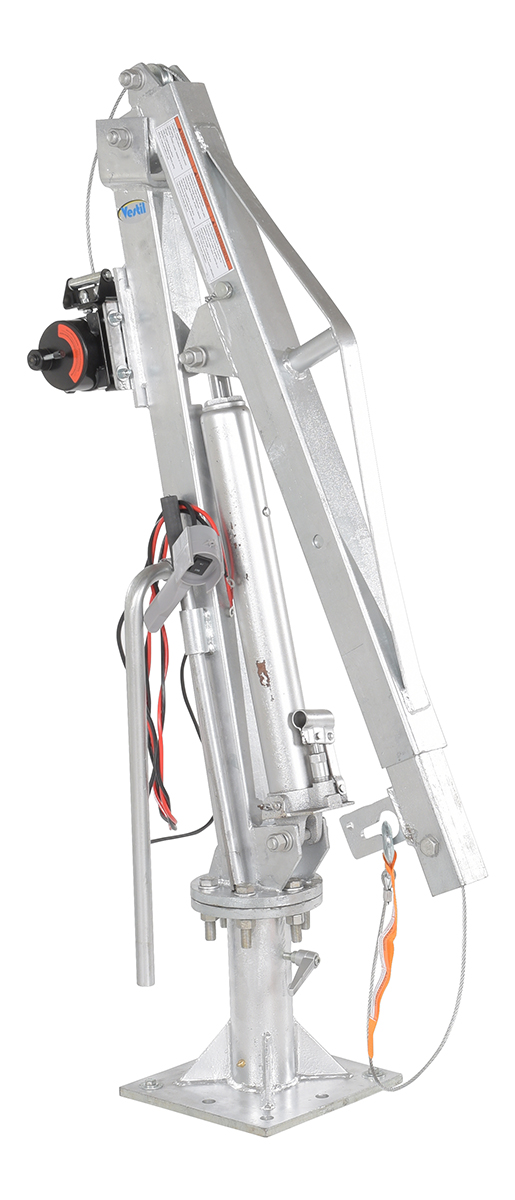

Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads. Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. DC powered option available. FOB Shipping Point.
'WINCH OPERATED TRUCK JIB CRANE'
| Product No. | Finish | Boom | Cap. (lbs.) | Boom Reach | Lift Range | Wt. (lbs.) | price | Quantity |
|---|---|---|---|---|---|---|---|---|

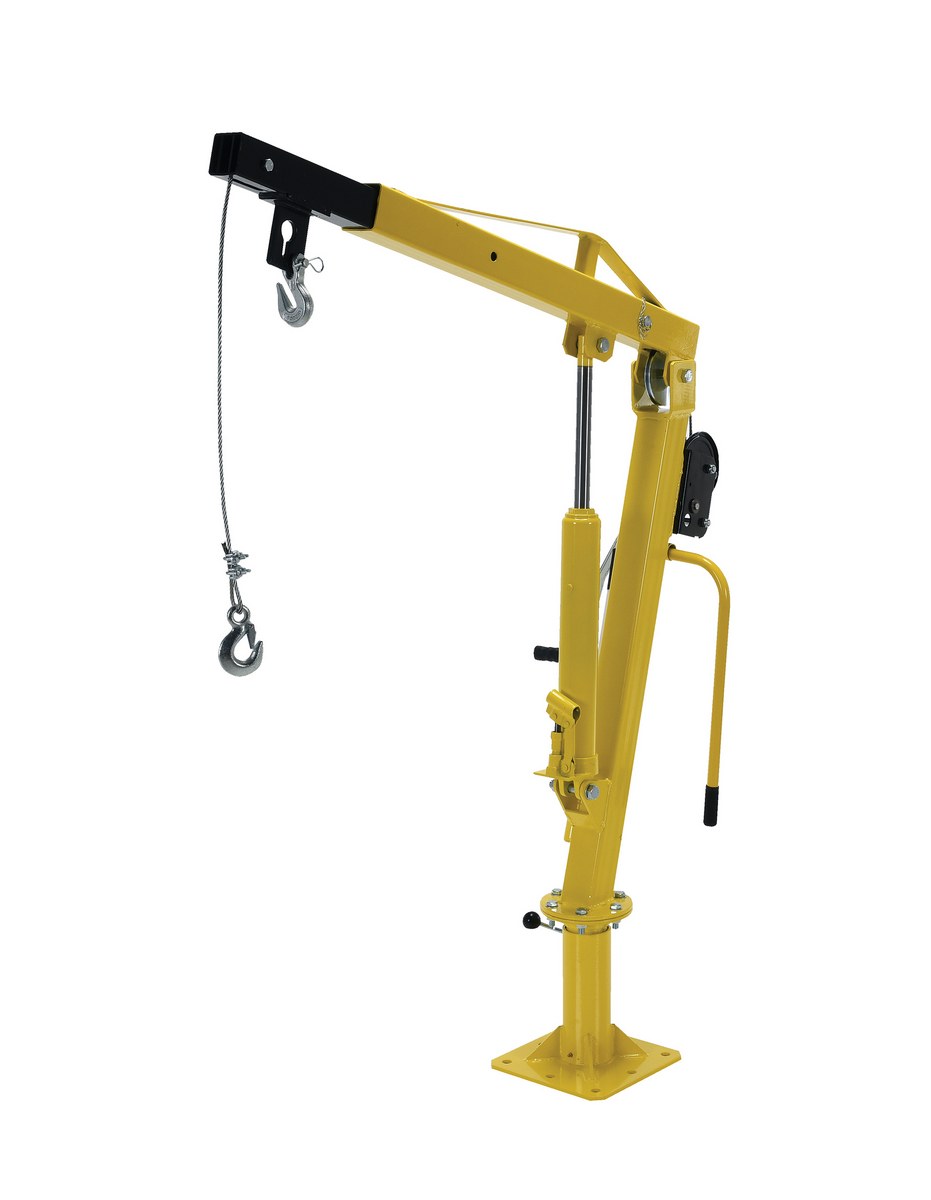

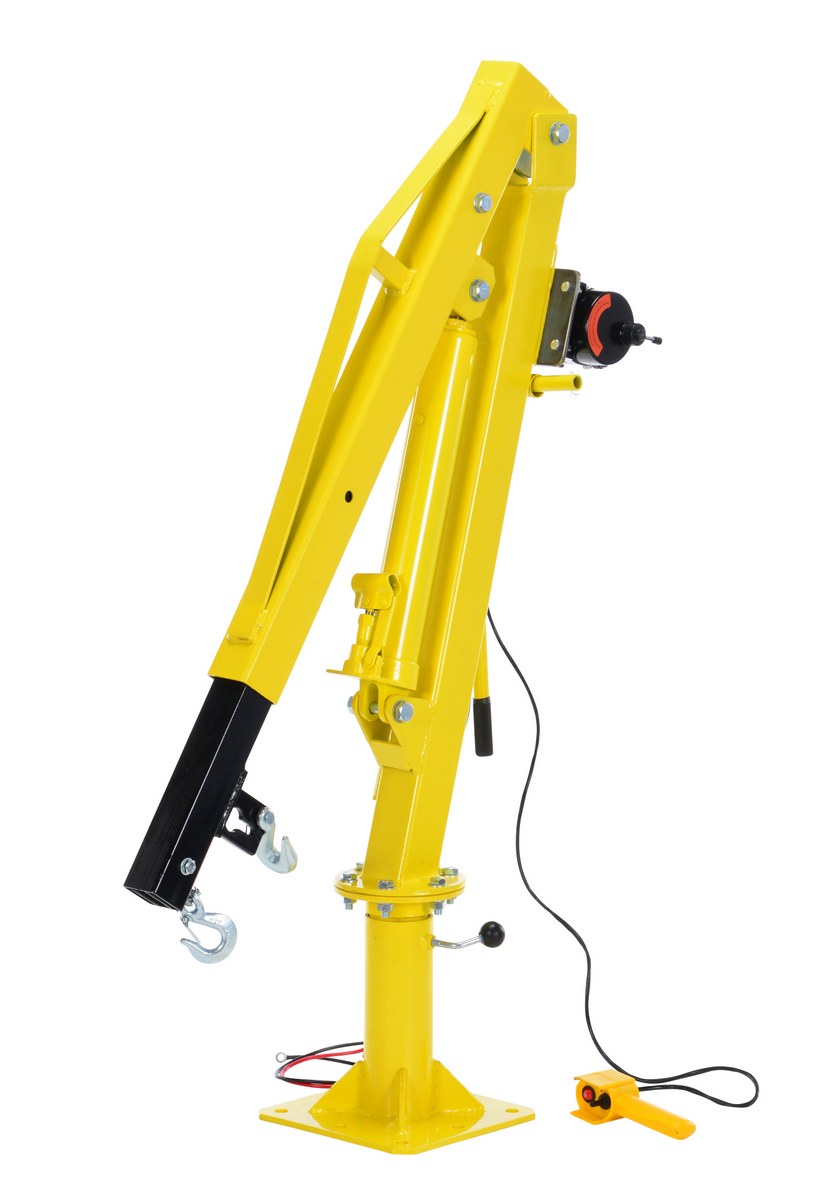

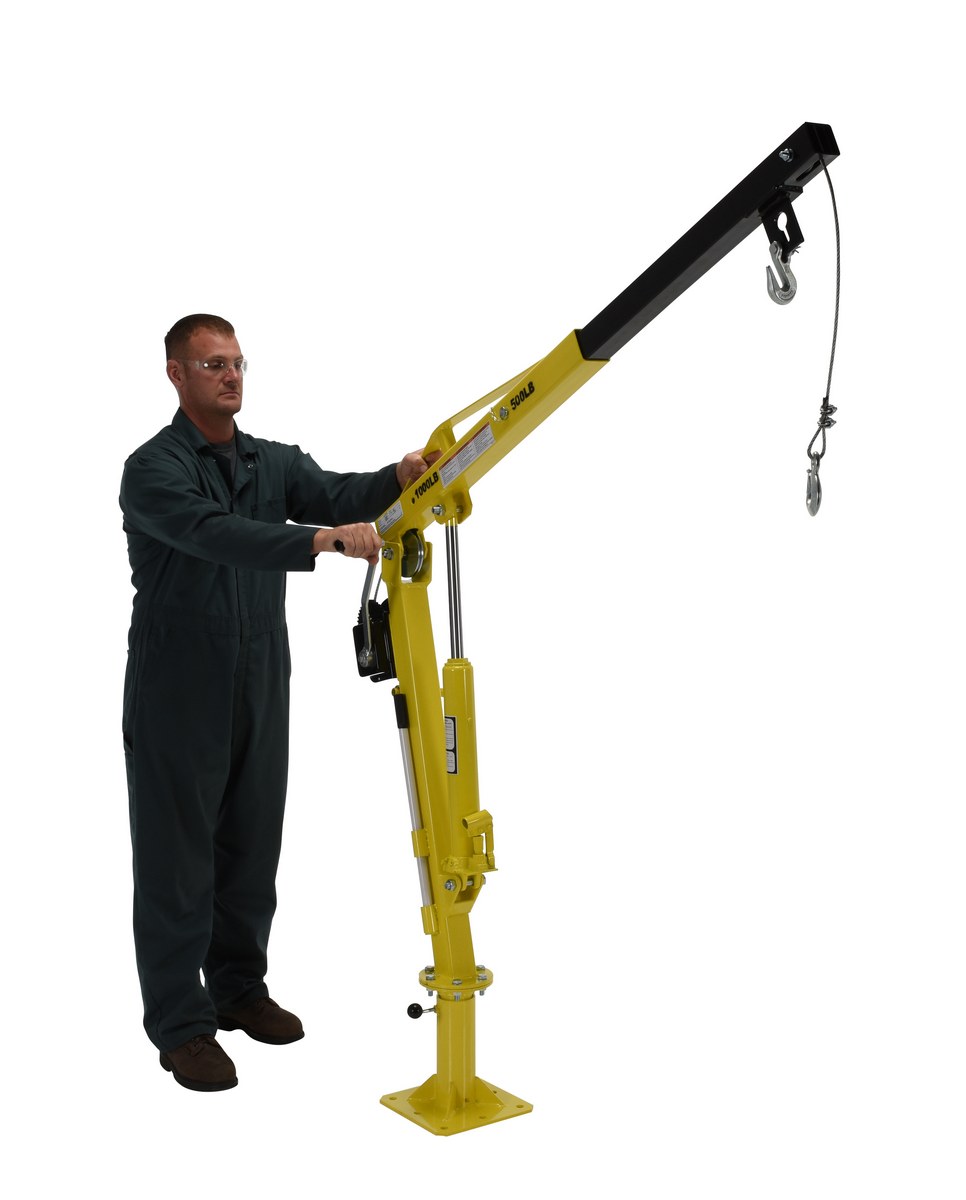

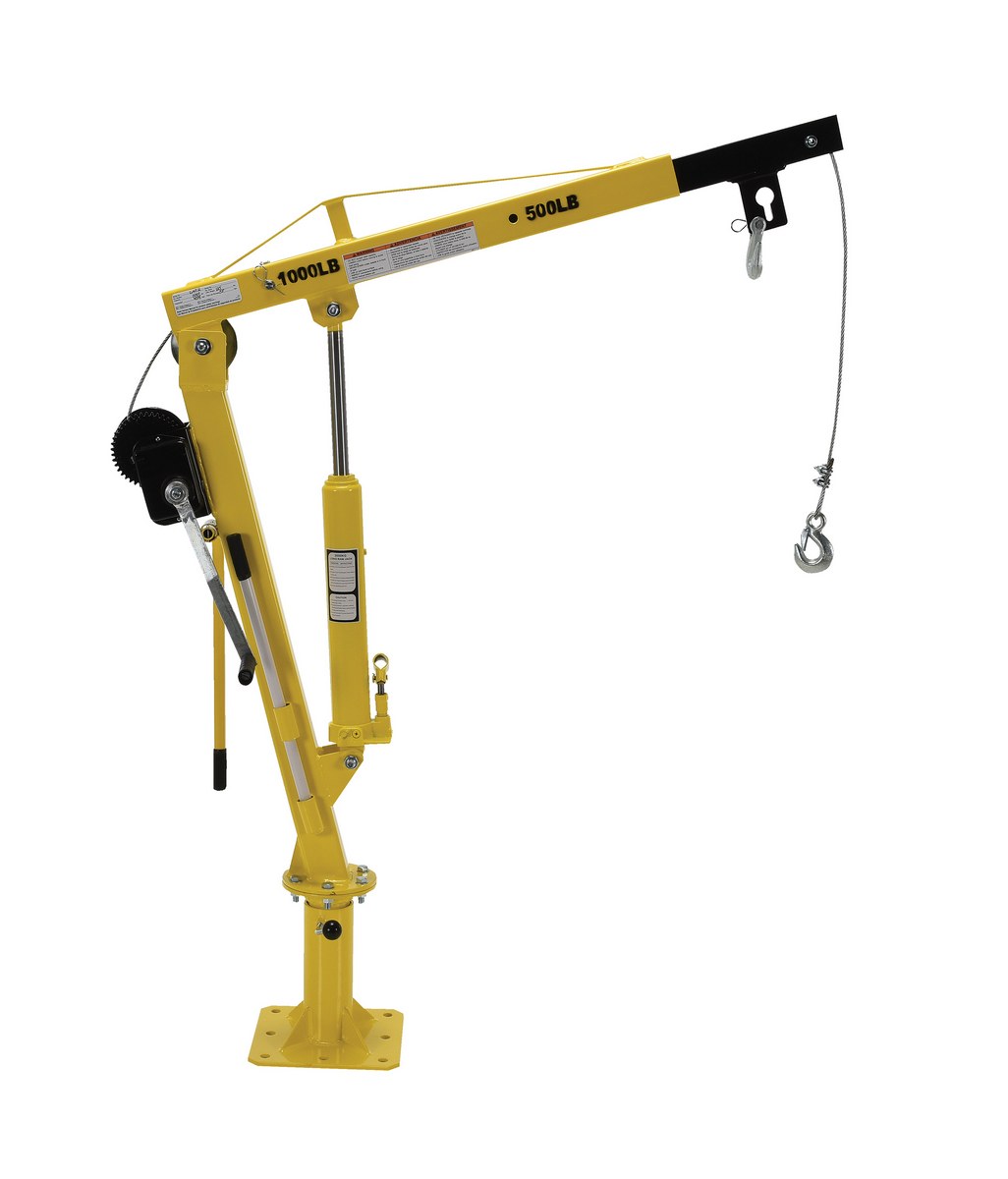

| HWTJ-2 | Painted Safety Yellow |
Extended Retracted |
500 1000 |
54" 30-1/4" |
0 to 102" 10 to 89-1/2" |
135 |
TODAY: $0.00 |
X
|

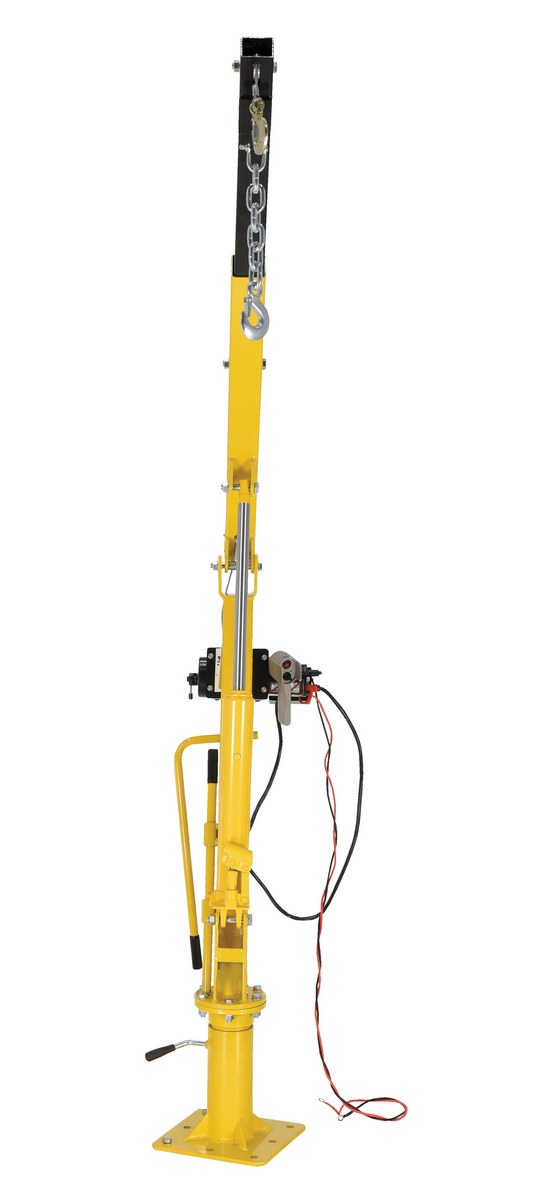

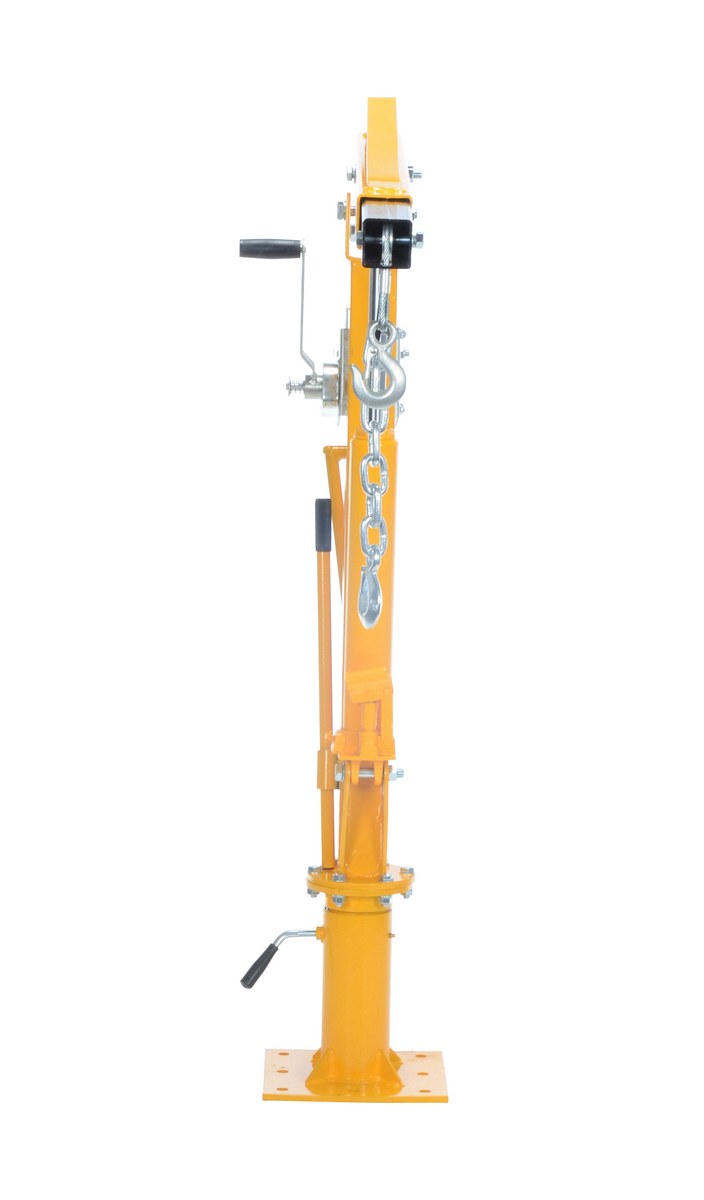

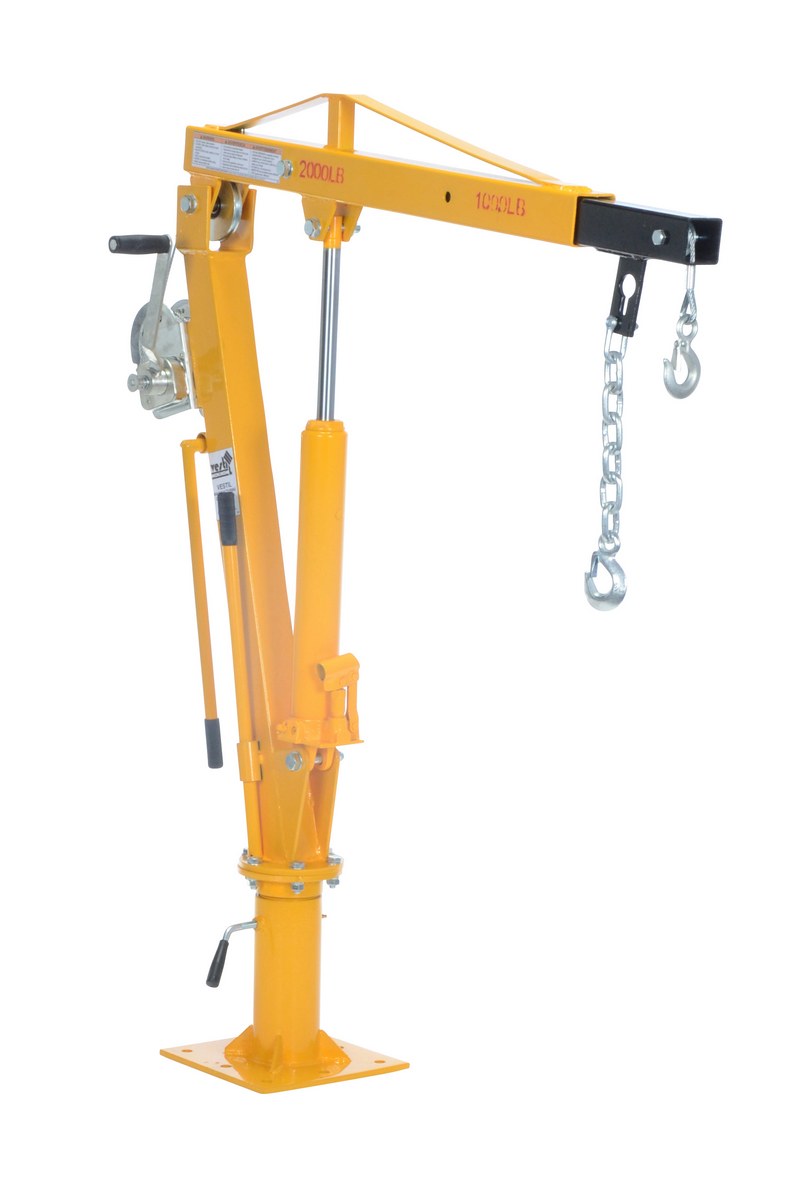

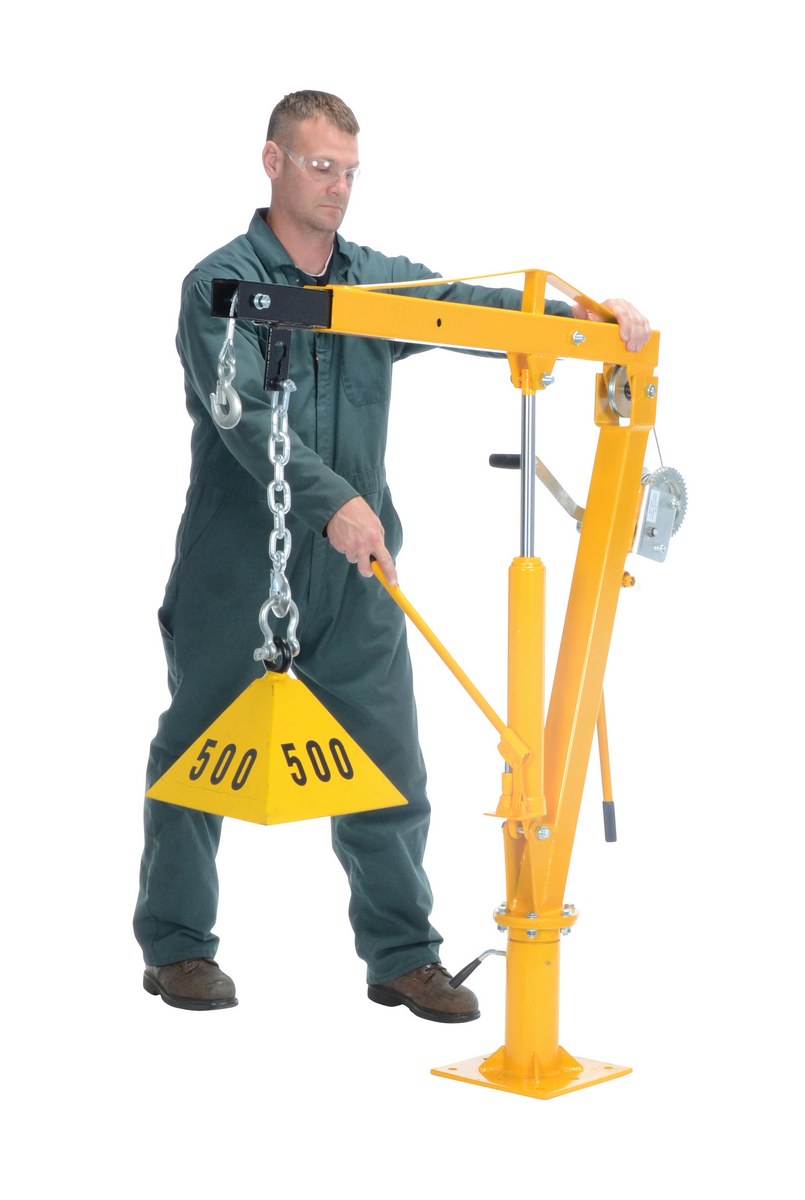

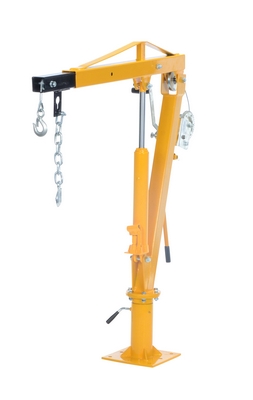

| HWTJ-4 | Painted Safety Yellow |
Extended Retracted |
1000 2000 |
44" 30" |
0 to 86-12" 13-1/2 to 77-1/2" |
145 |
TODAY: $0.00 |
X
|

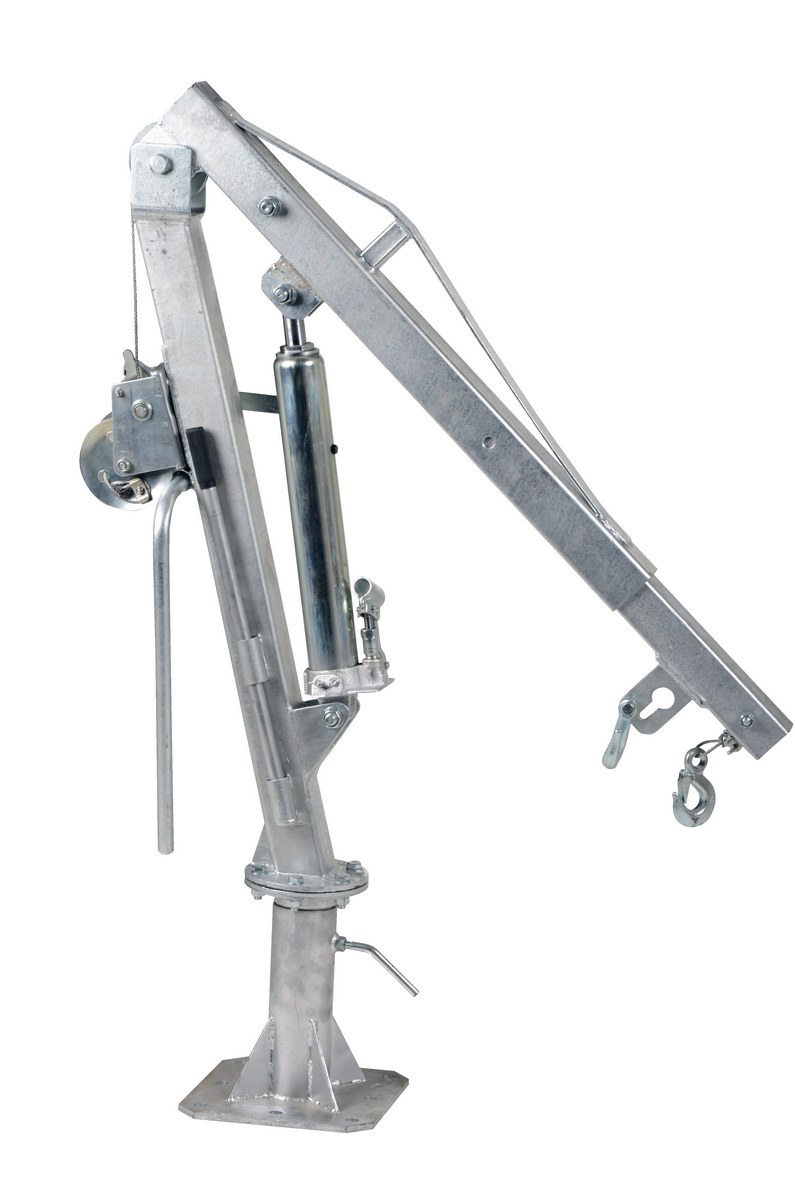

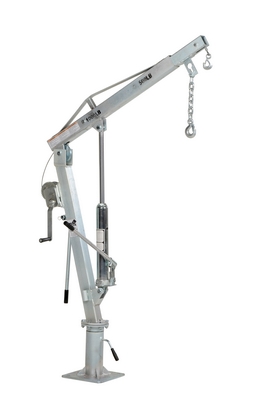

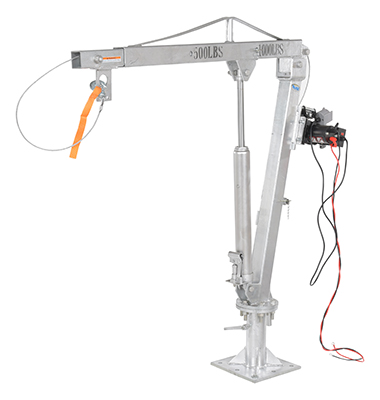

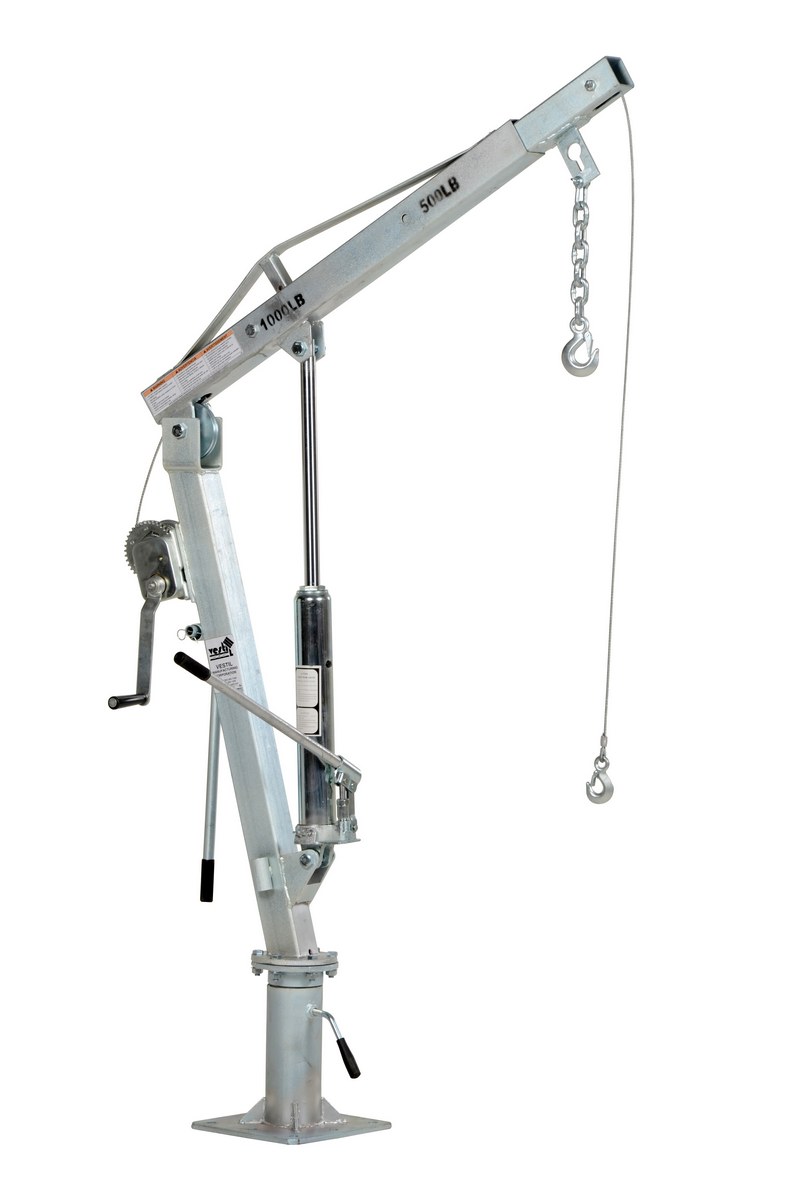

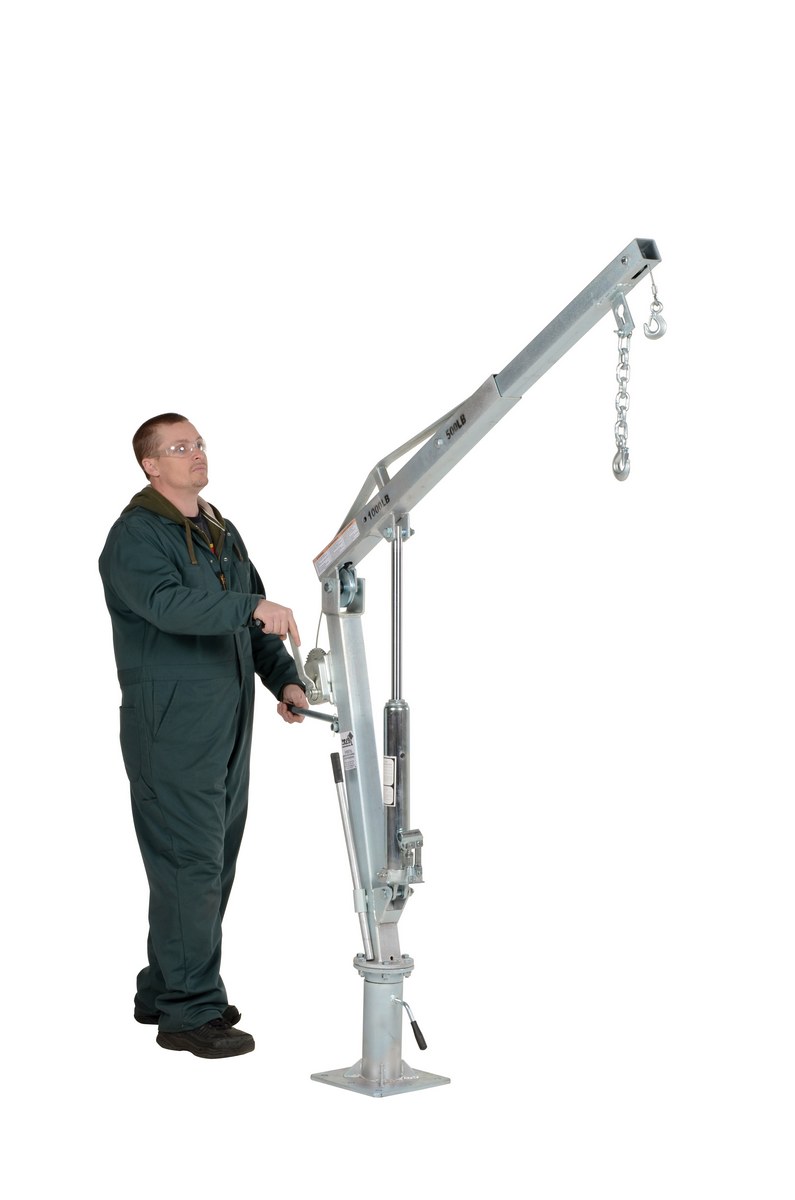

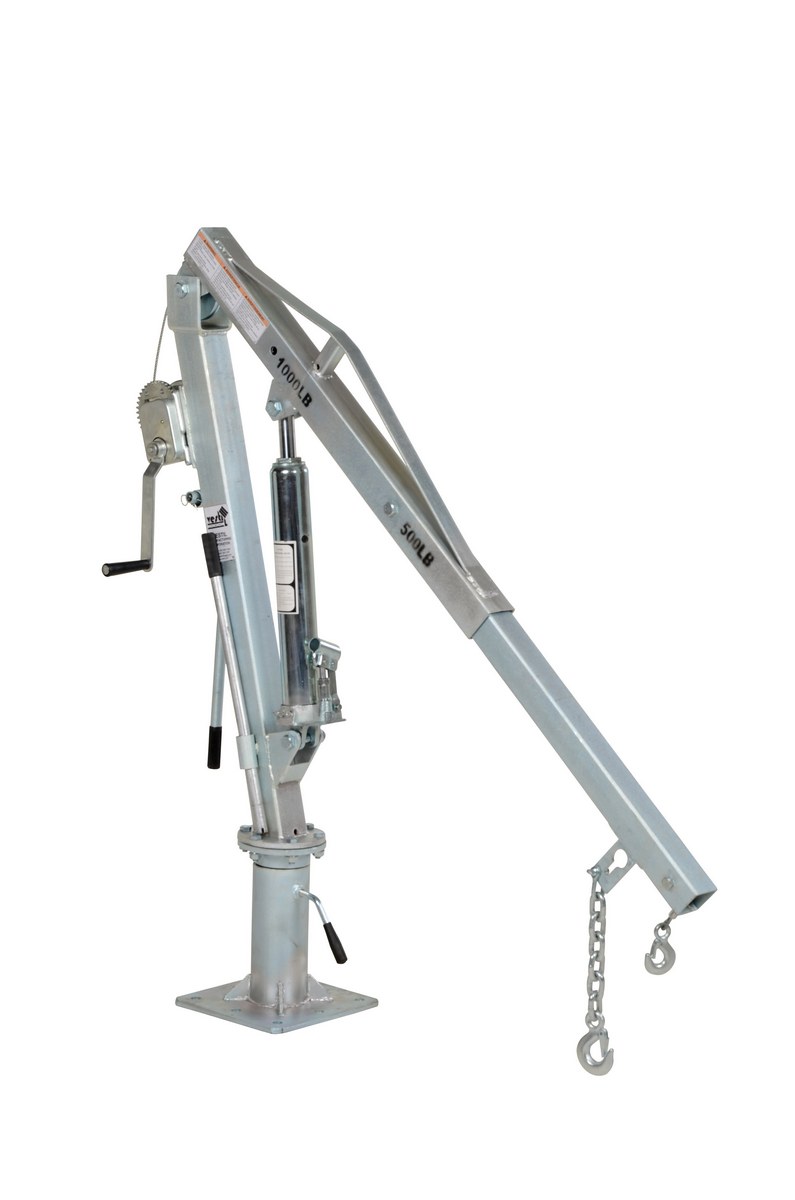

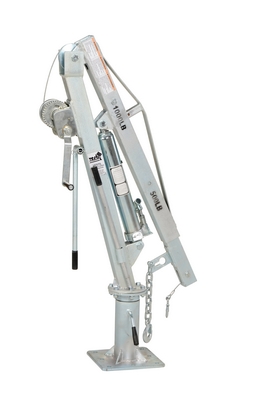

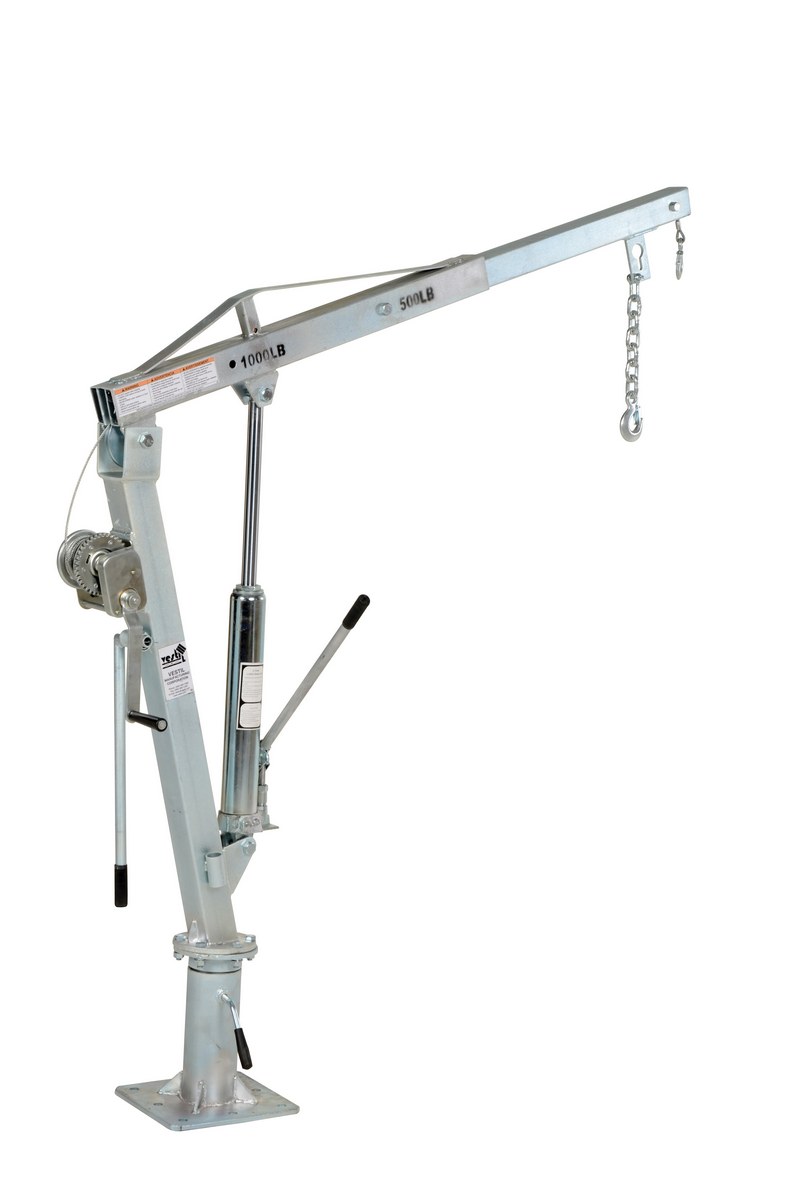

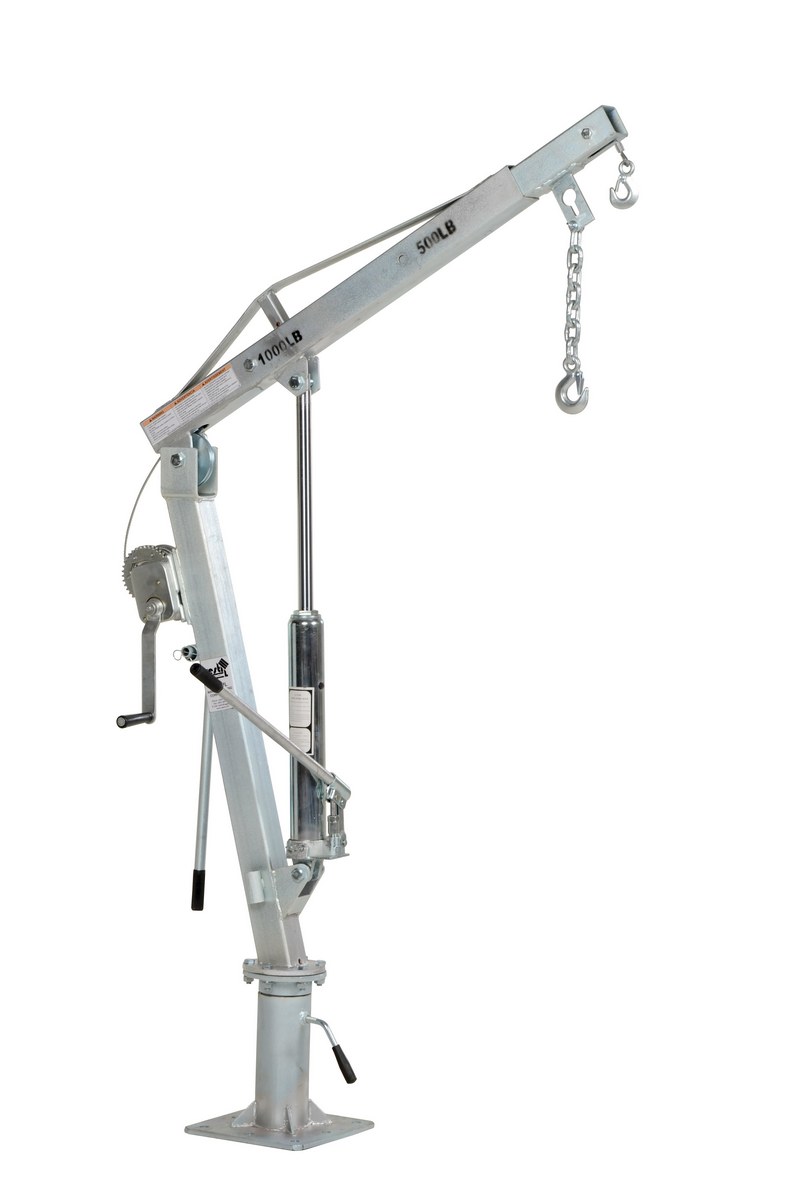

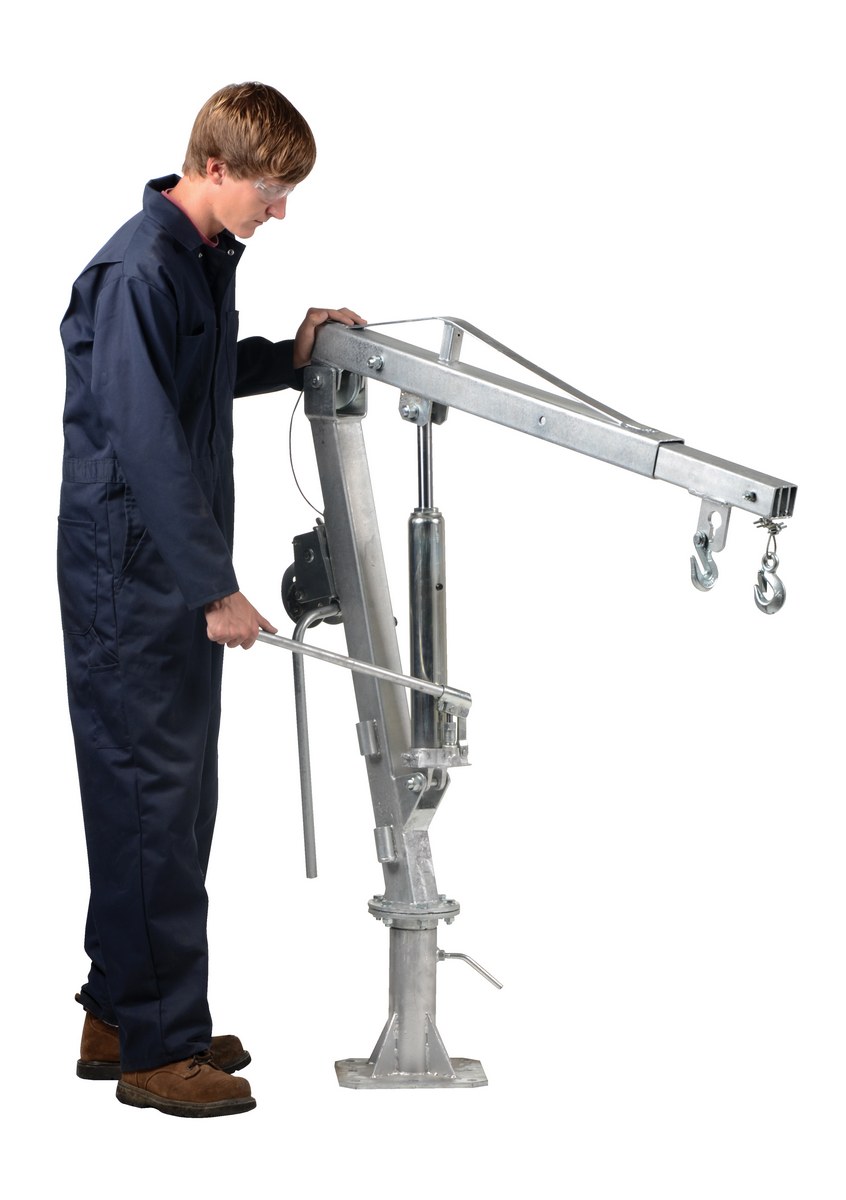

| HWTJ-2-G | Galvanized |
Extended Retracted |
500 1000 |
52" 30-1/2" |
0 to 86" 15-1/2 to 72" |
134 |
TODAY: $0.00 |
X
|

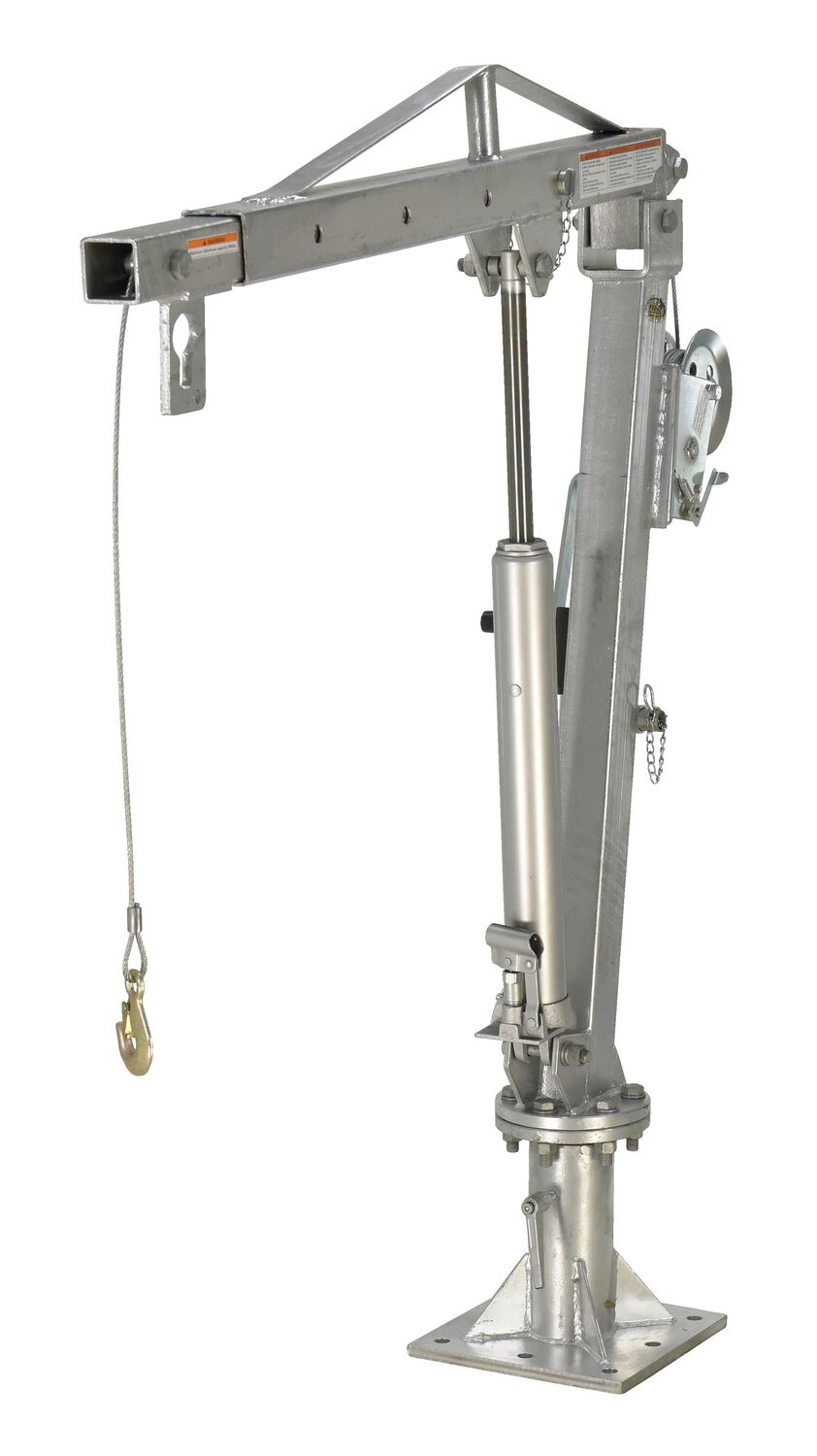

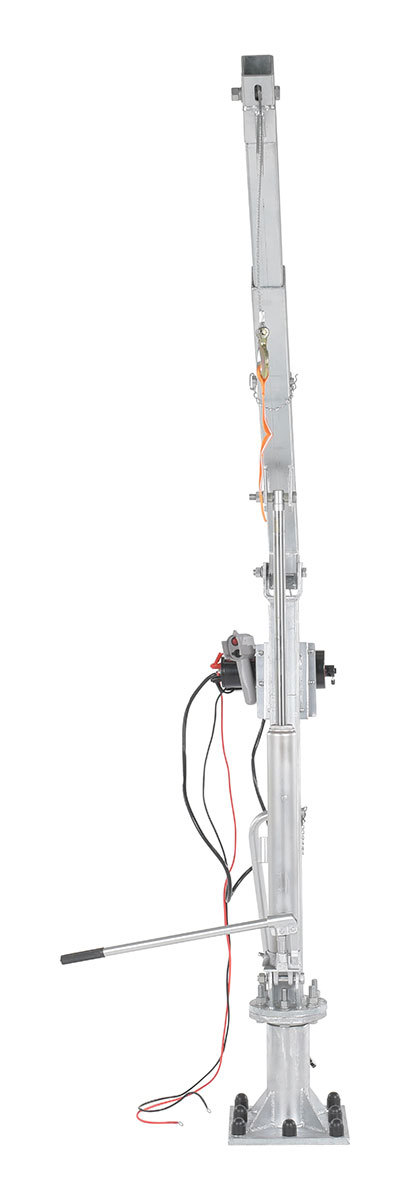

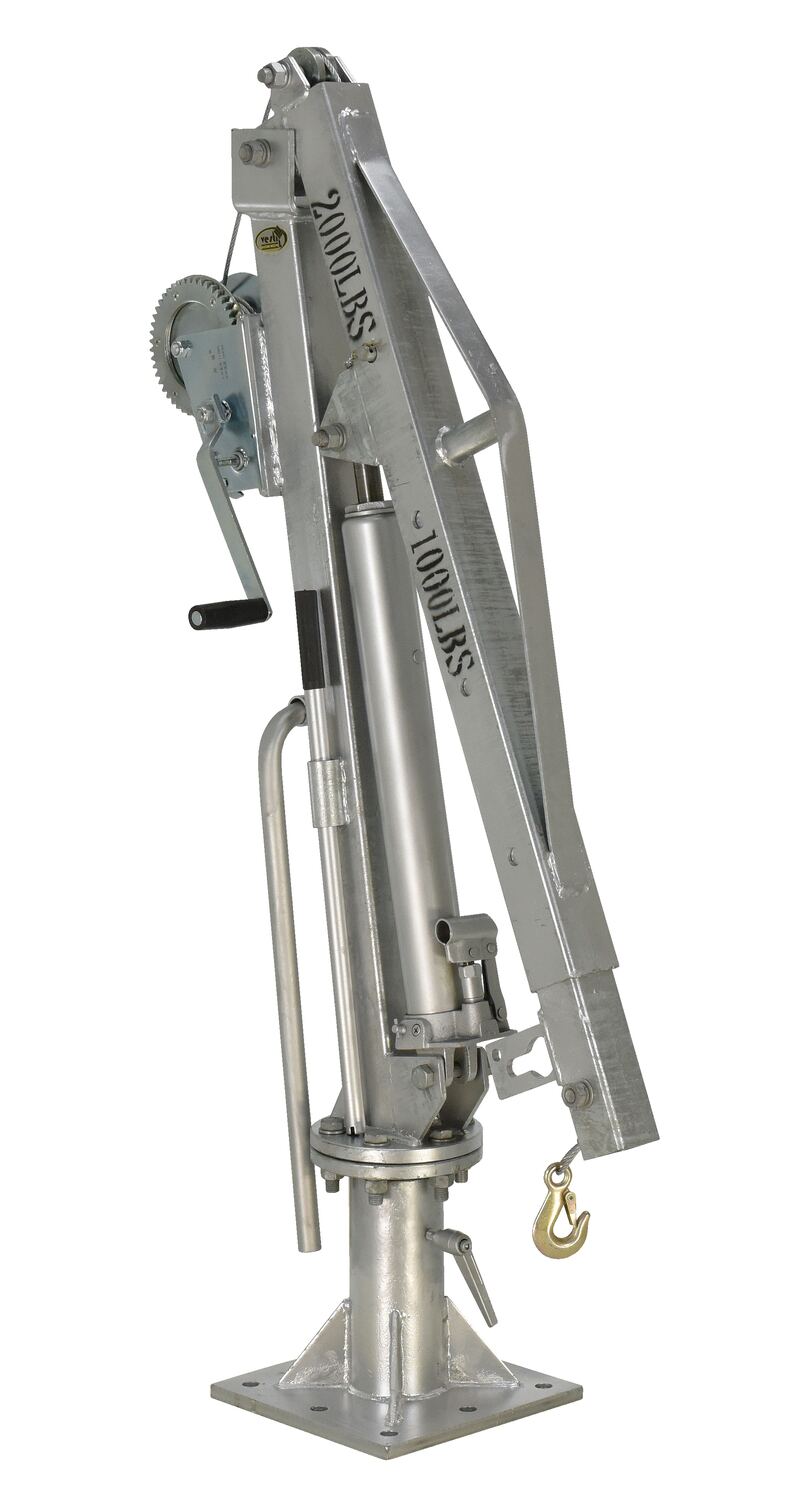

| HWTJ-4-G | Galvanized |
Extended Retracted |
1000 2000 |
52" 31" |
0 to 85-7/8" 15-1/2 to 74-1/2" |
218 |
TODAY: $0.00 |
X
|
'WINCH OPERATED TRUCK JIB CRANE'
- Finish: Painted Safety Yellow
-
Boom:
Extended
Retracted -
Cap. (lbs.):
500
1000 -
Boom Reach:
54"
30-1/4" -
Lift Range:
0 to 102"
10 to 89-1/2"
TODAY: $0.00
- Finish: Painted Safety Yellow
-
Boom:
Extended
Retracted -
Cap. (lbs.):
1000
2000 -
Boom Reach:
44"
30" -
Lift Range:
0 to 86-12"
13-1/2 to 77-1/2"
TODAY: $0.00
- Finish: Galvanized
-
Boom:
Extended
Retracted -
Cap. (lbs.):
500
1000 -
Boom Reach:
52"
30-1/2" -
Lift Range:
0 to 86"
15-1/2 to 72"
TODAY: $0.00
- Finish: Galvanized
-
Boom:
Extended
Retracted -
Cap. (lbs.):
1000
2000 -
Boom Reach:
52"
31" -
Lift Range:
0 to 85-7/8"
15-1/2 to 74-1/2"
TODAY: $0.00
