ELECTRIC POWERED FLOOR CRANES
Most standard items by Vestil Manufacturing, are in stock and ready for immediate shipment.
Custom orders are our specialty and fabrication services are available on most items.

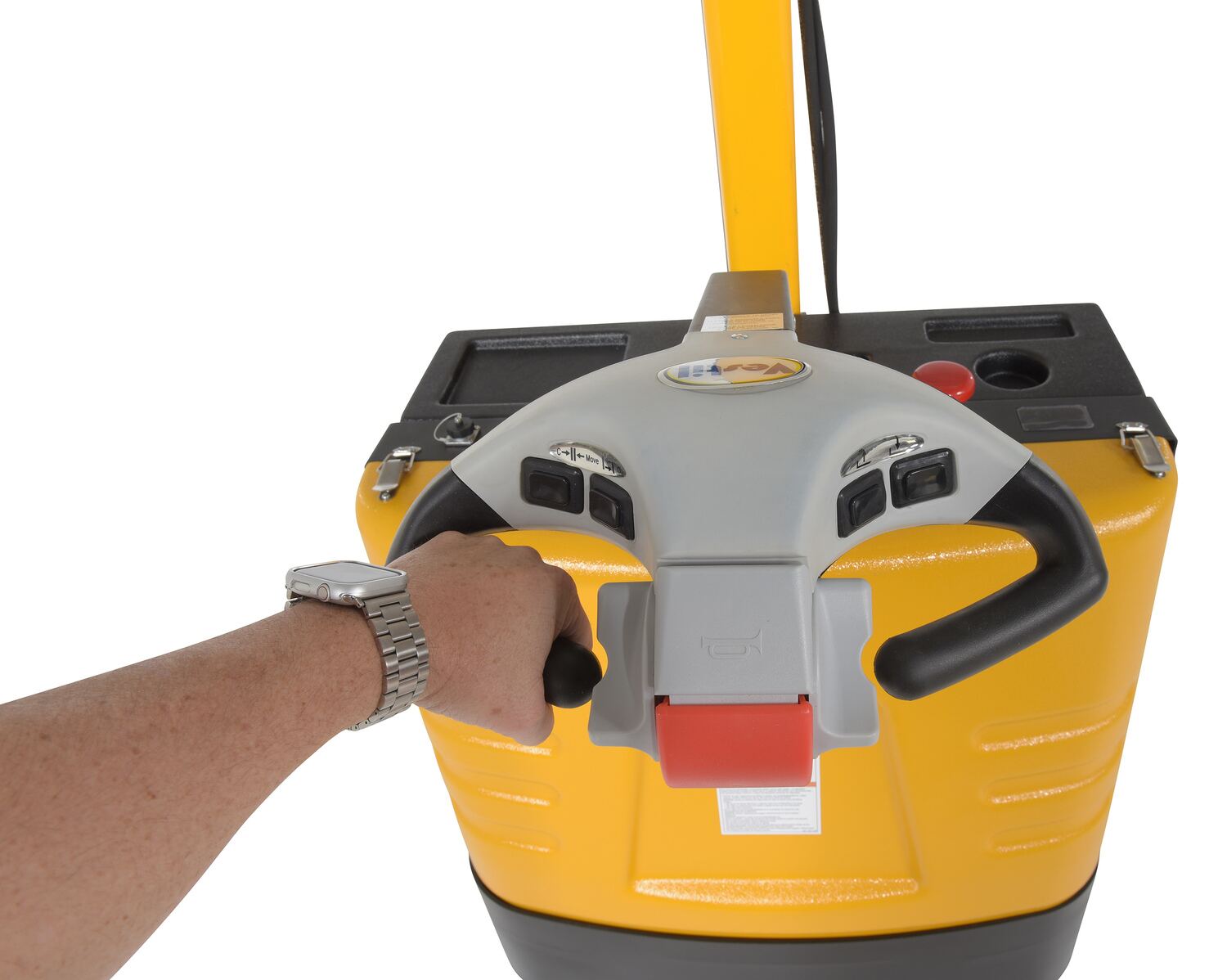

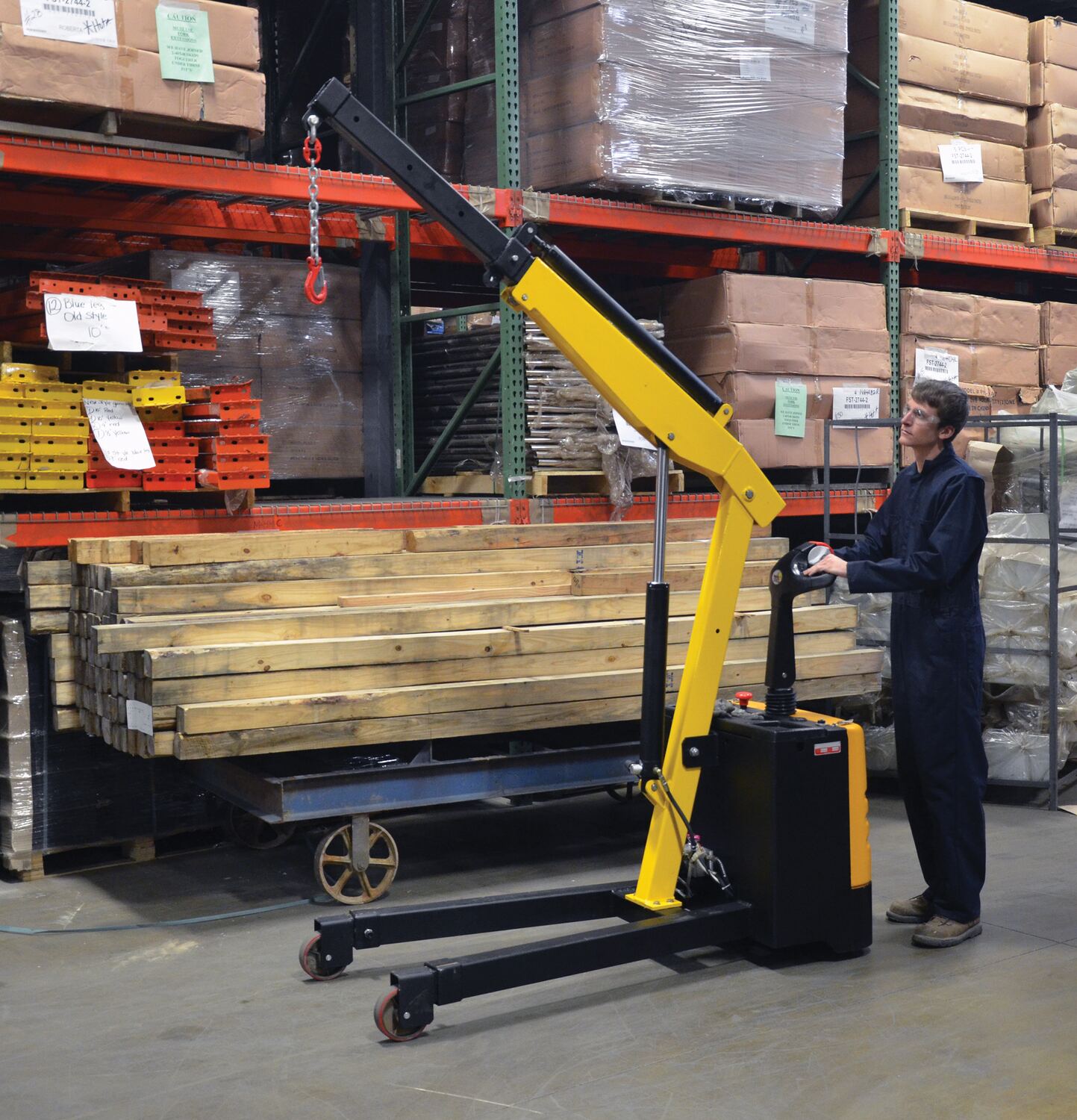

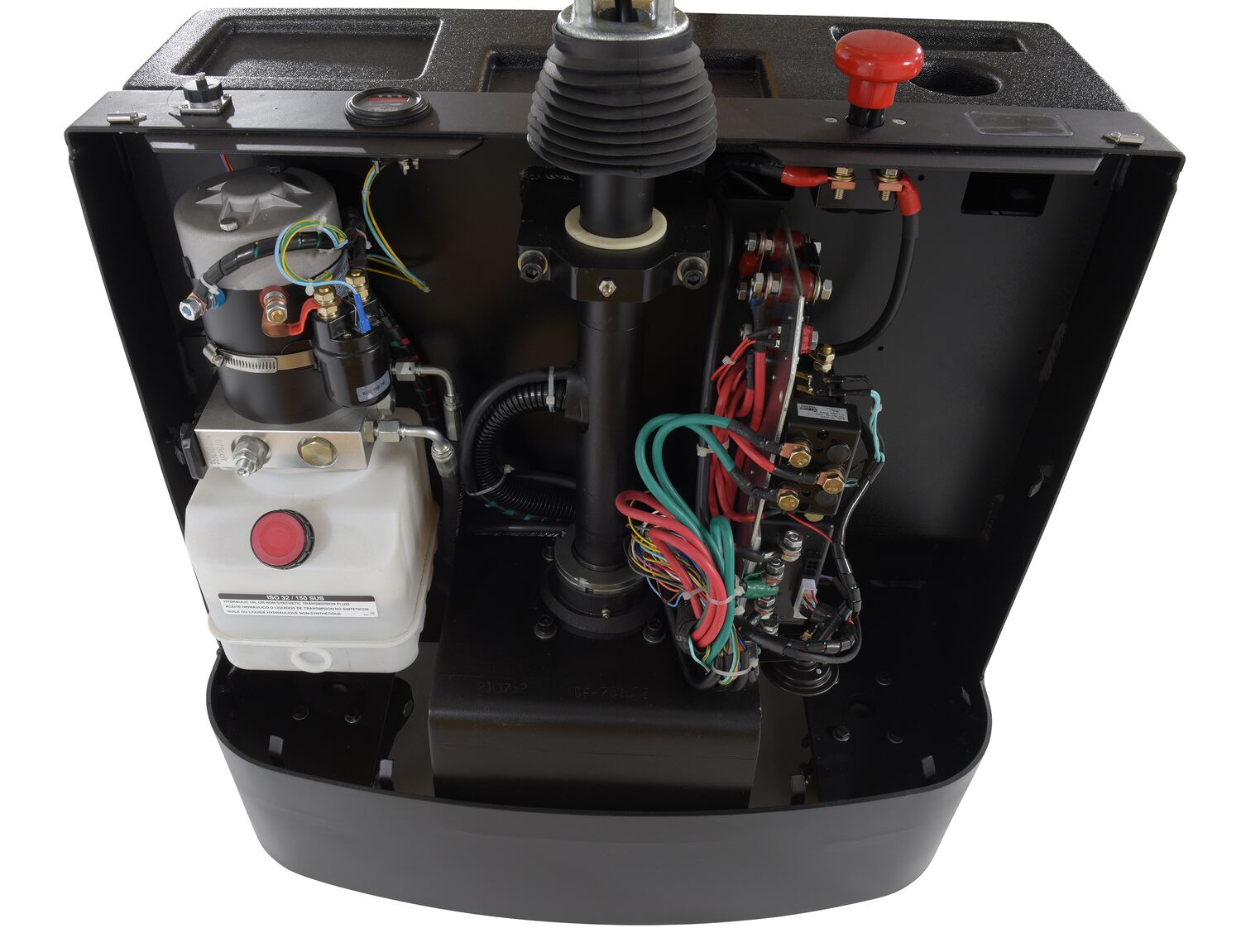

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two (2) 12V batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge -8 hours when used intermittently. Includes rigid hook with safety latch. FOB Shipping Point.

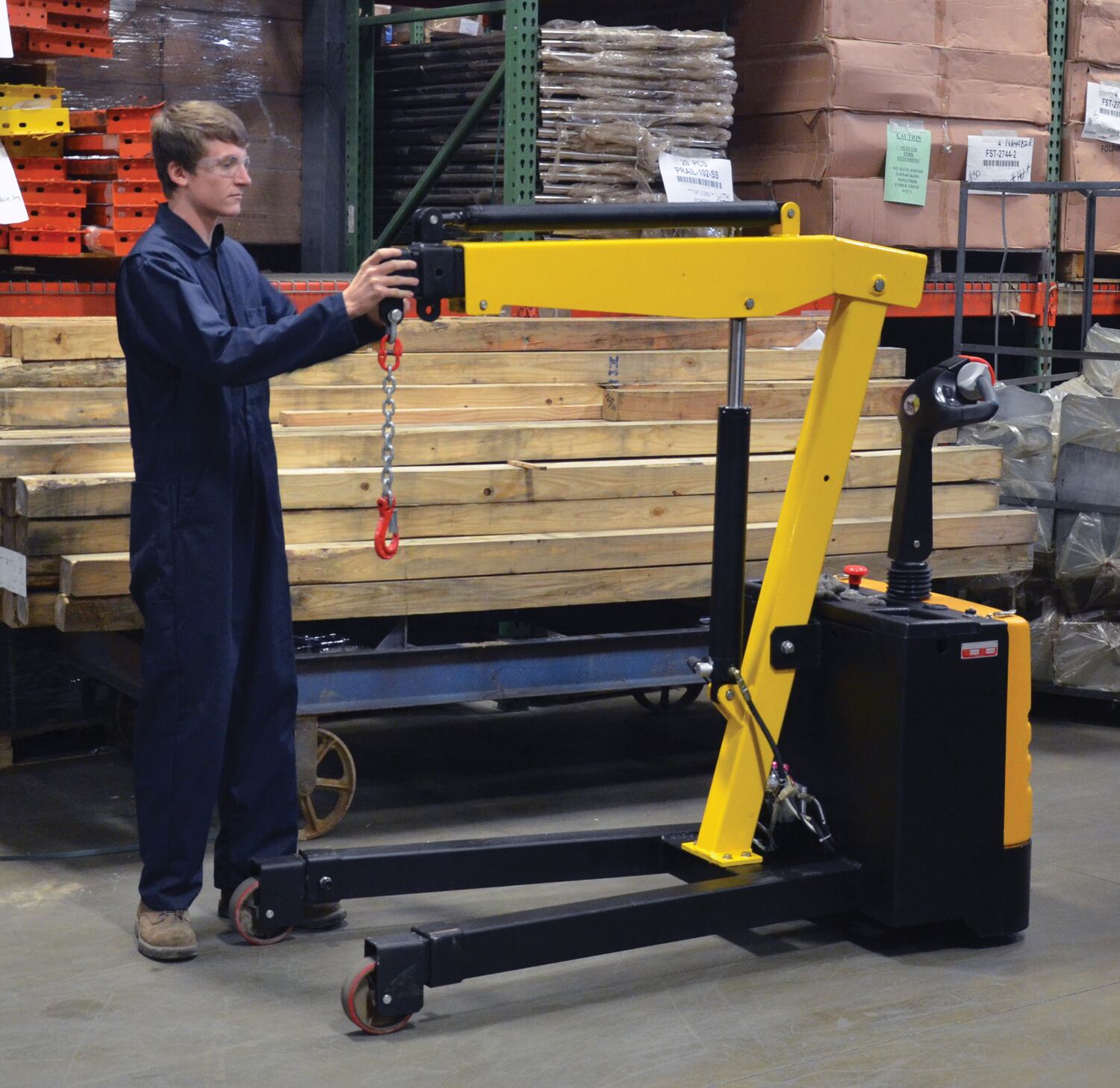

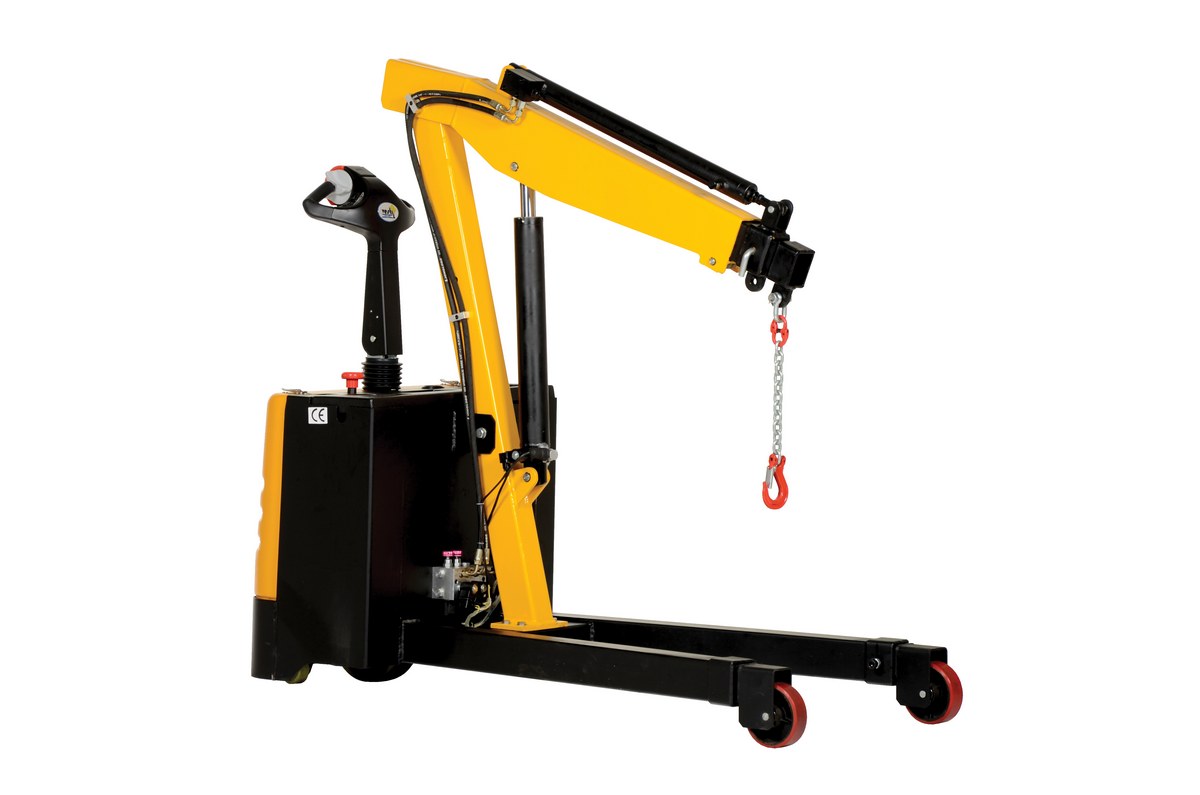

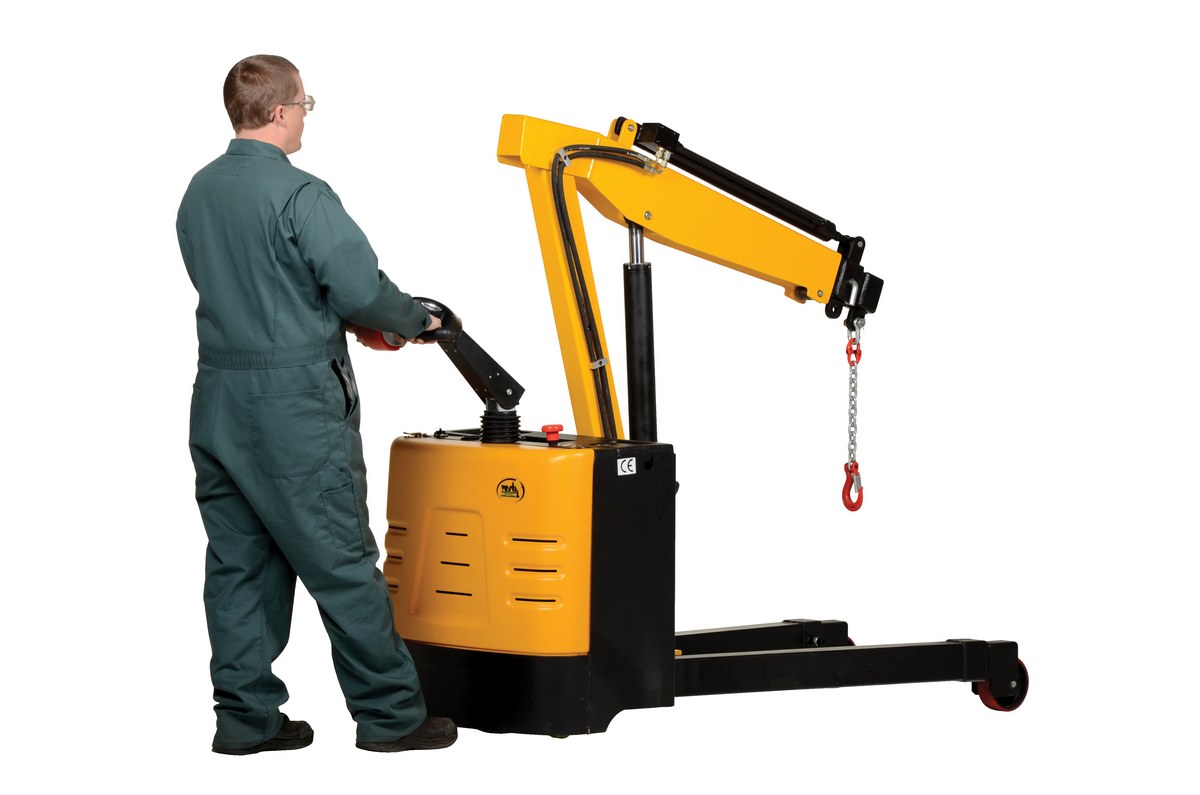

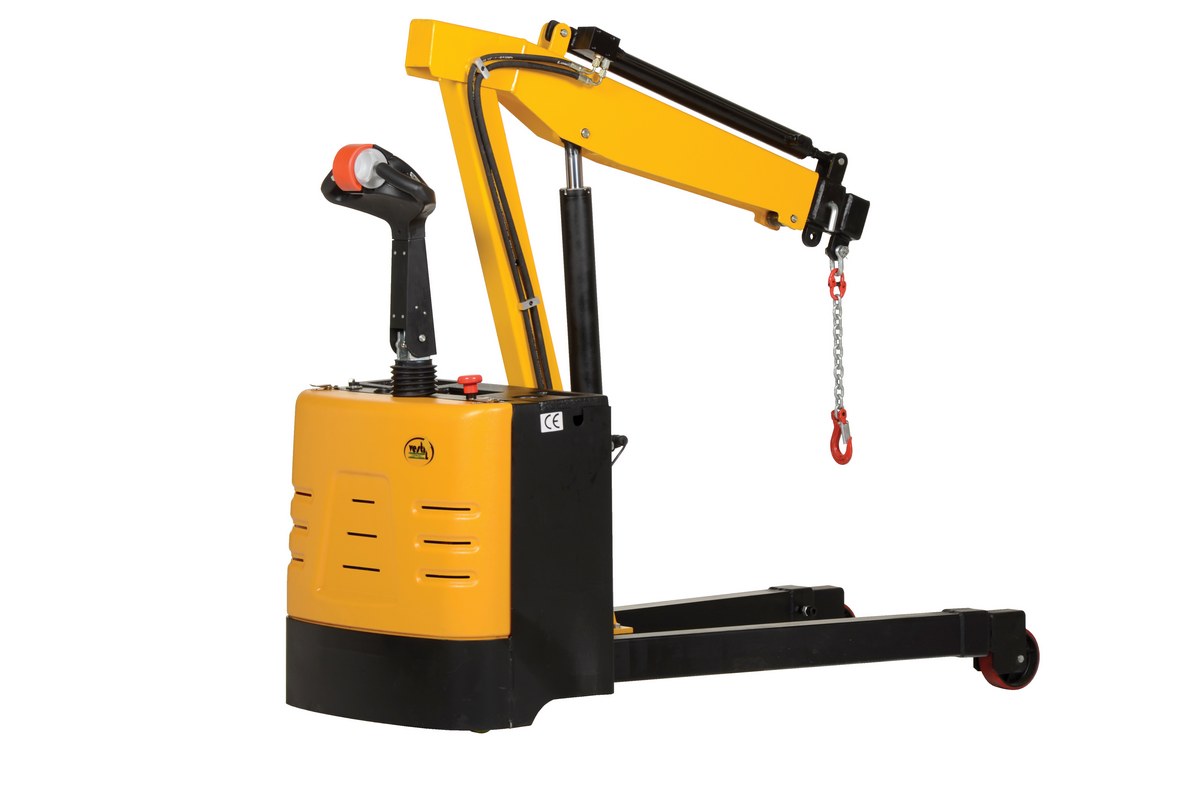

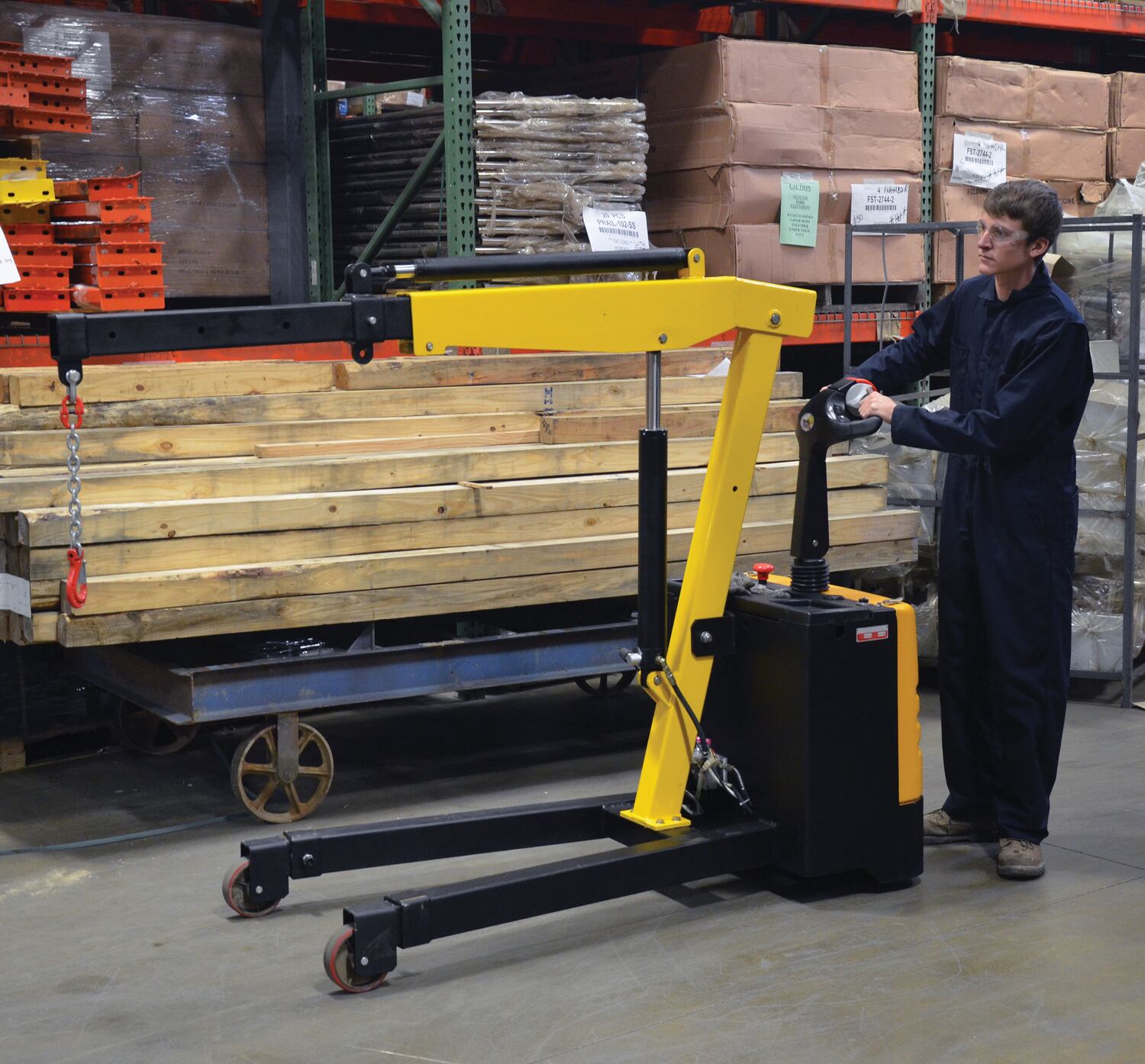

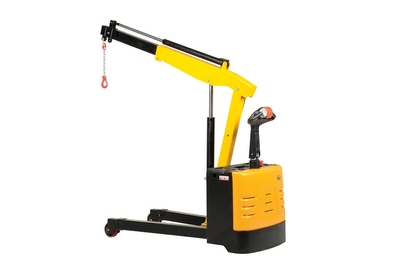

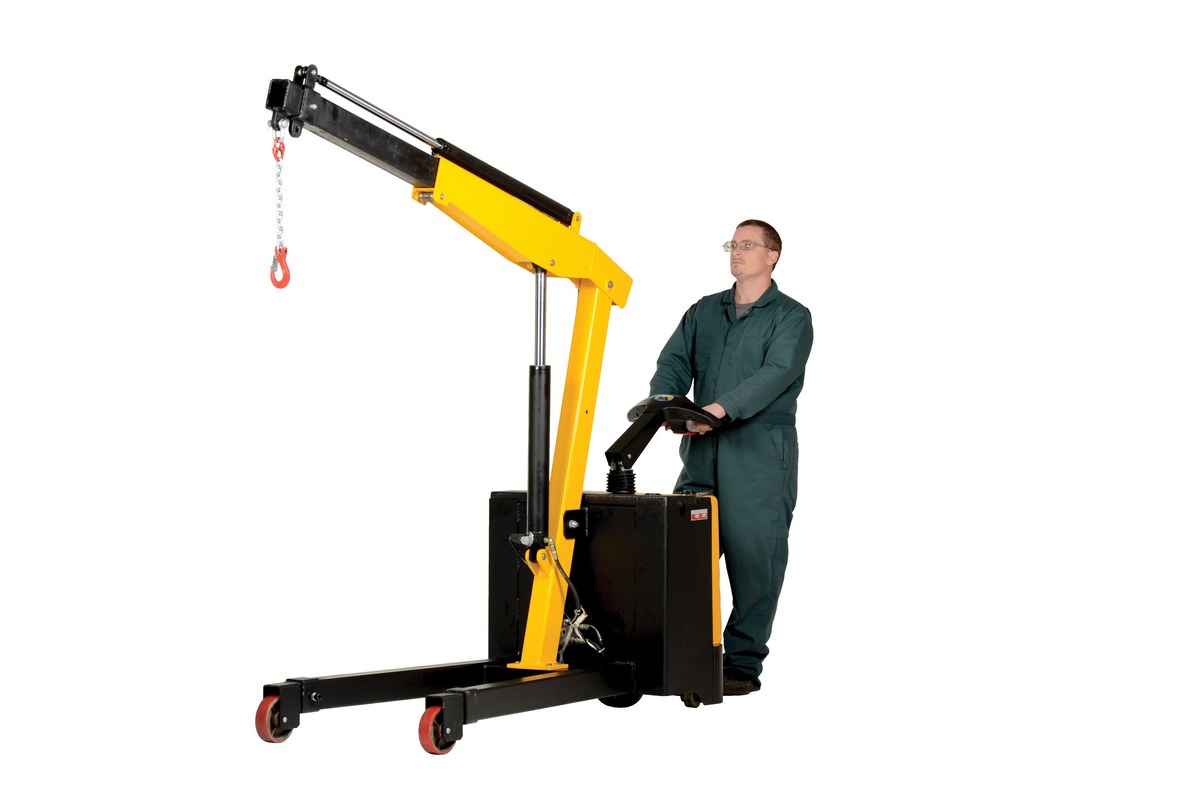

HEPFC-25 features adjustable length legs.

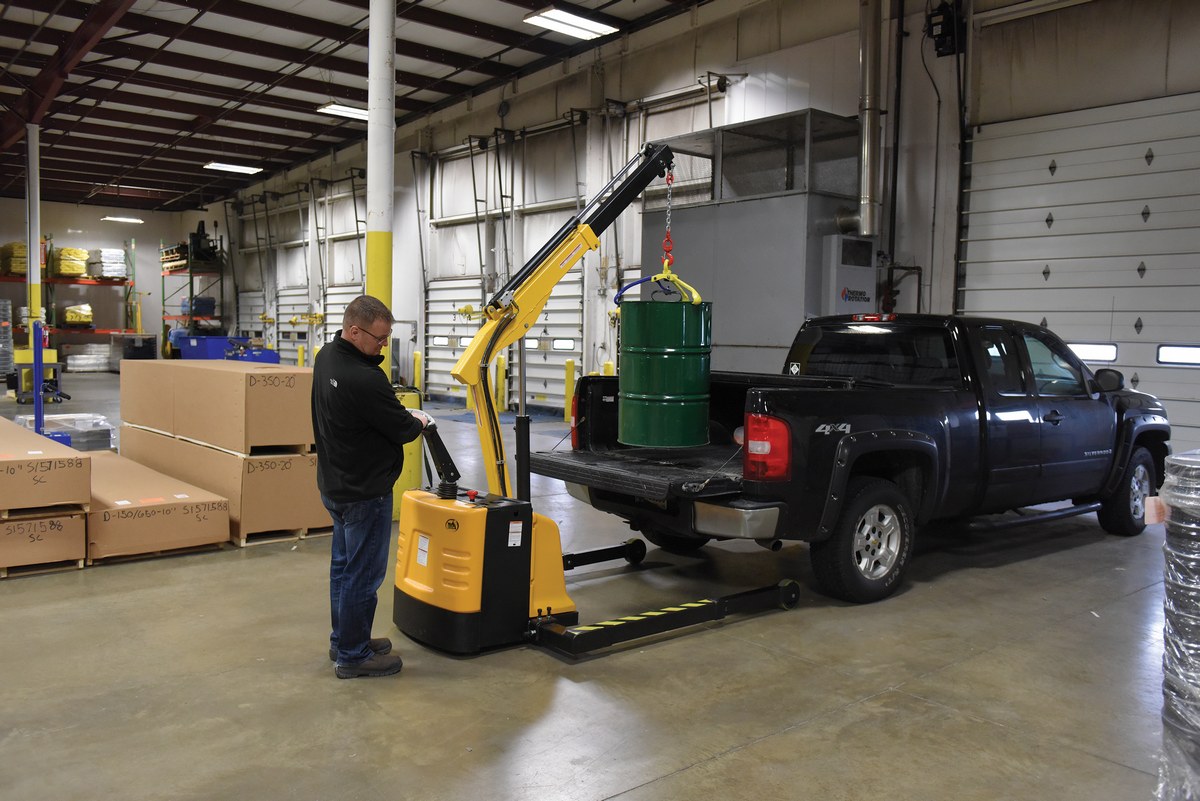

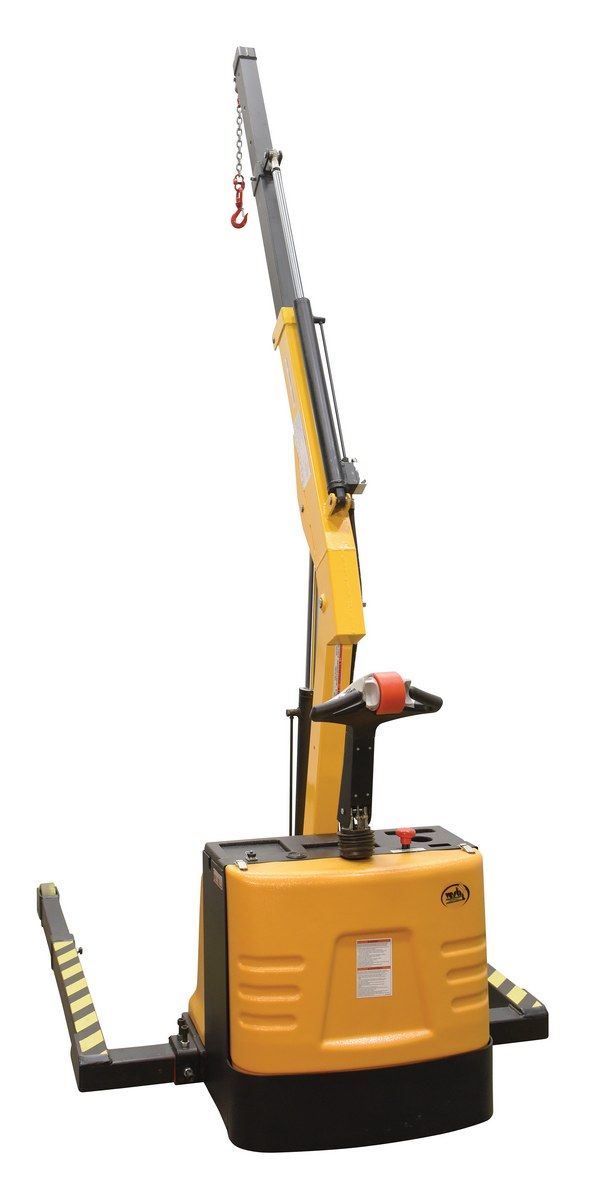

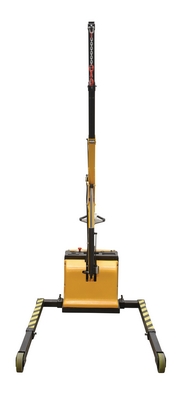

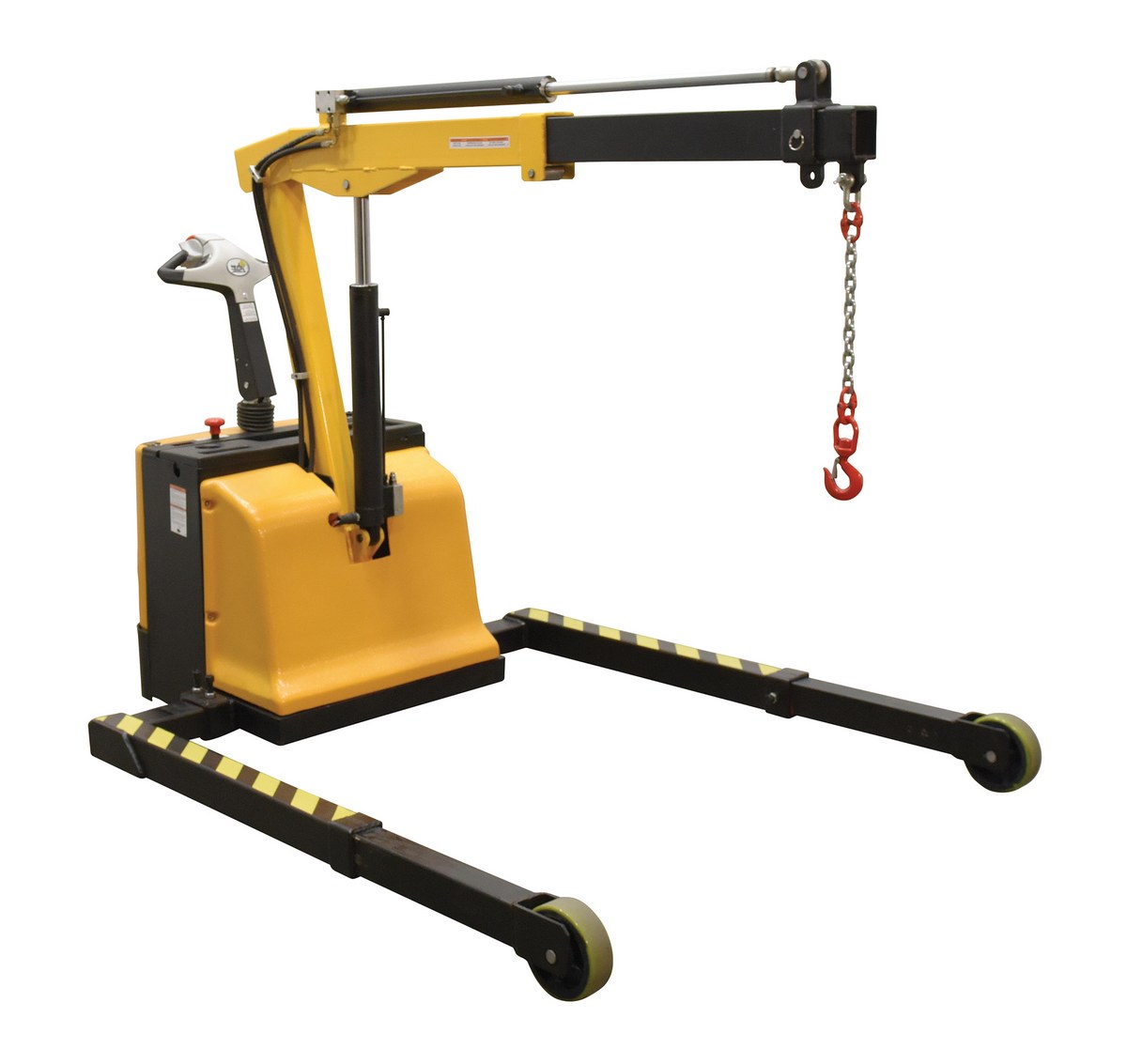

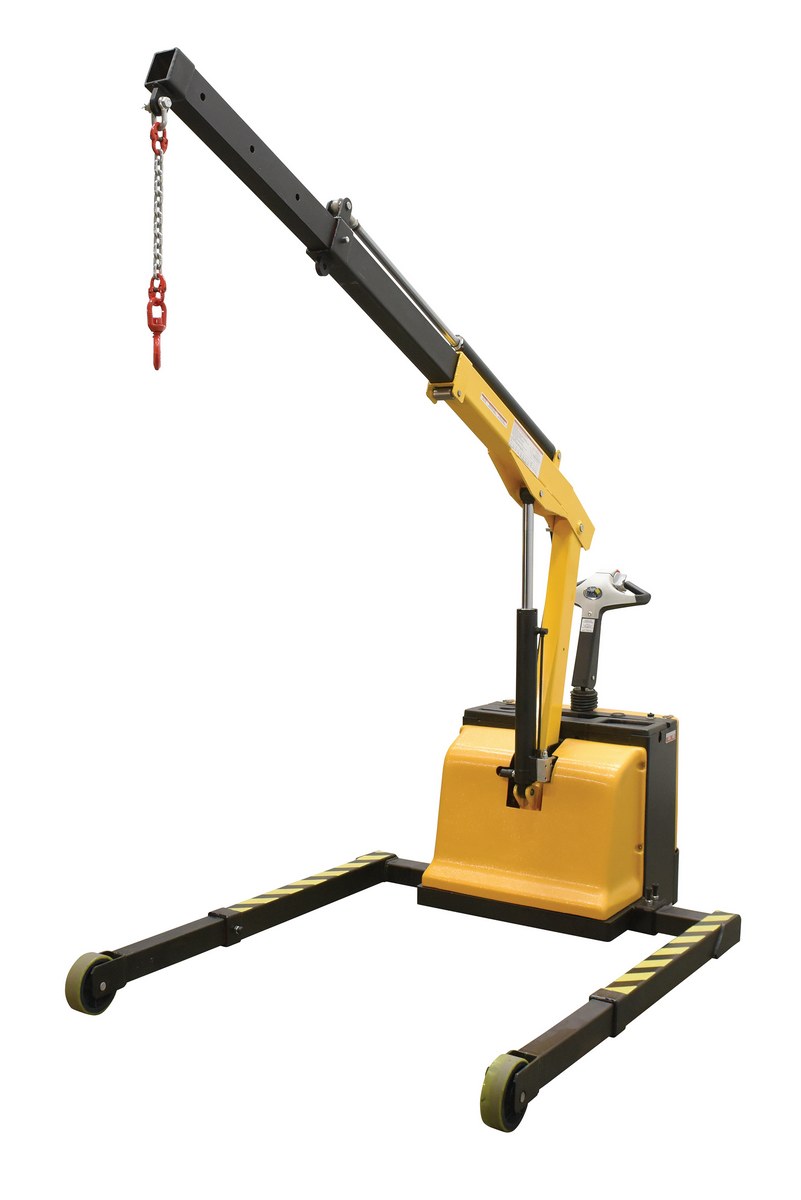

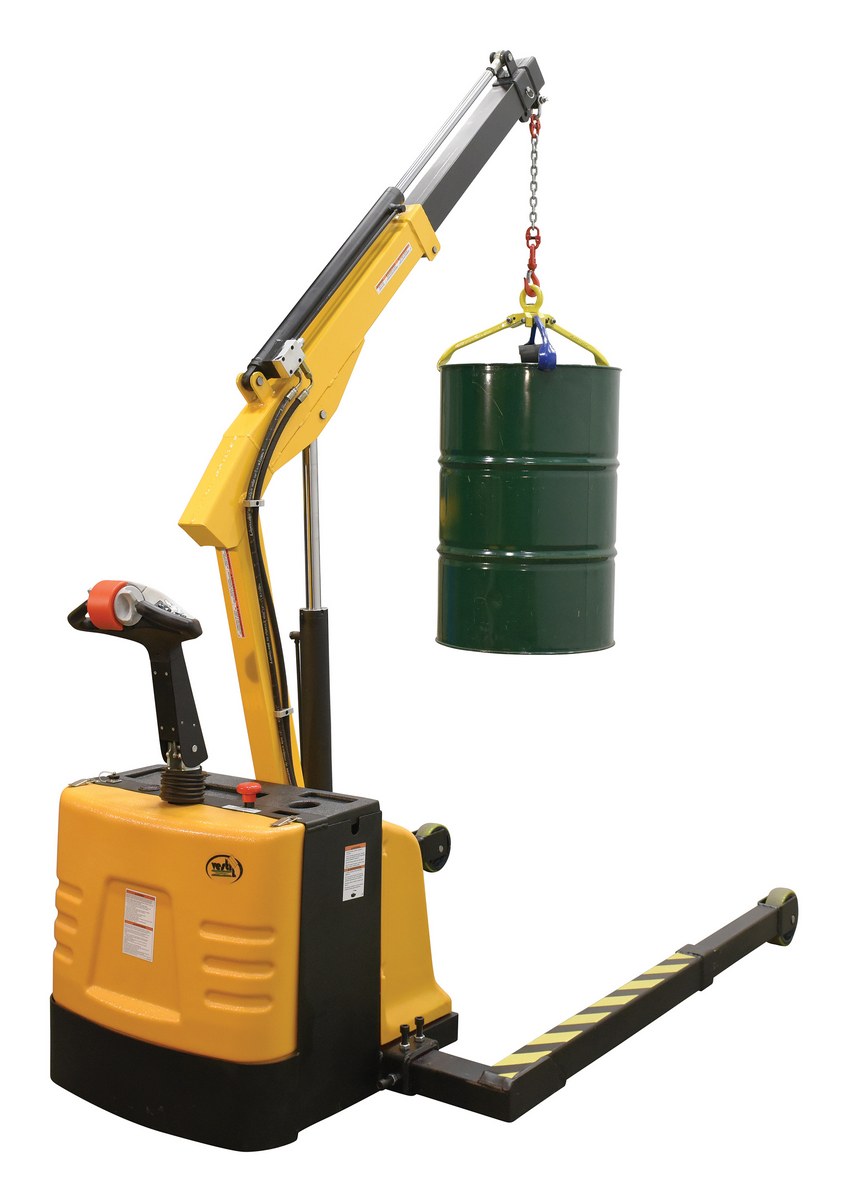

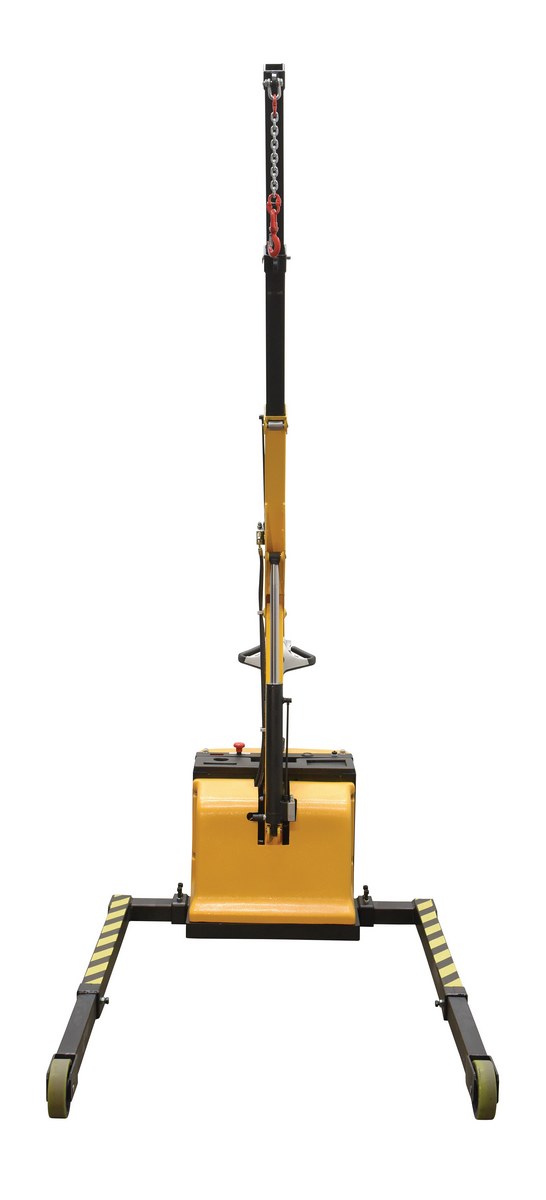

HEPFC-25-AA features adjustable length legs and adjustable width legs.

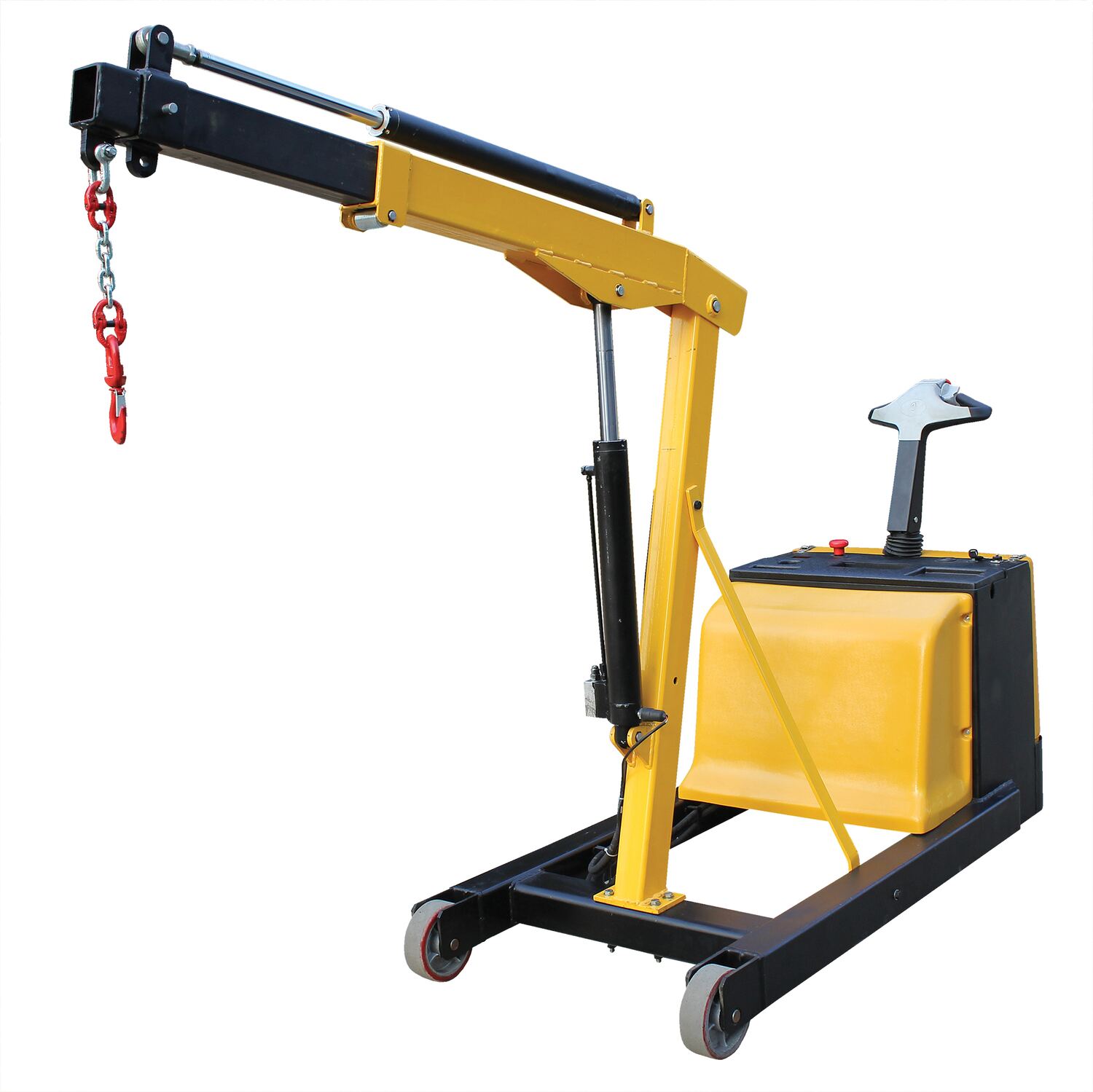

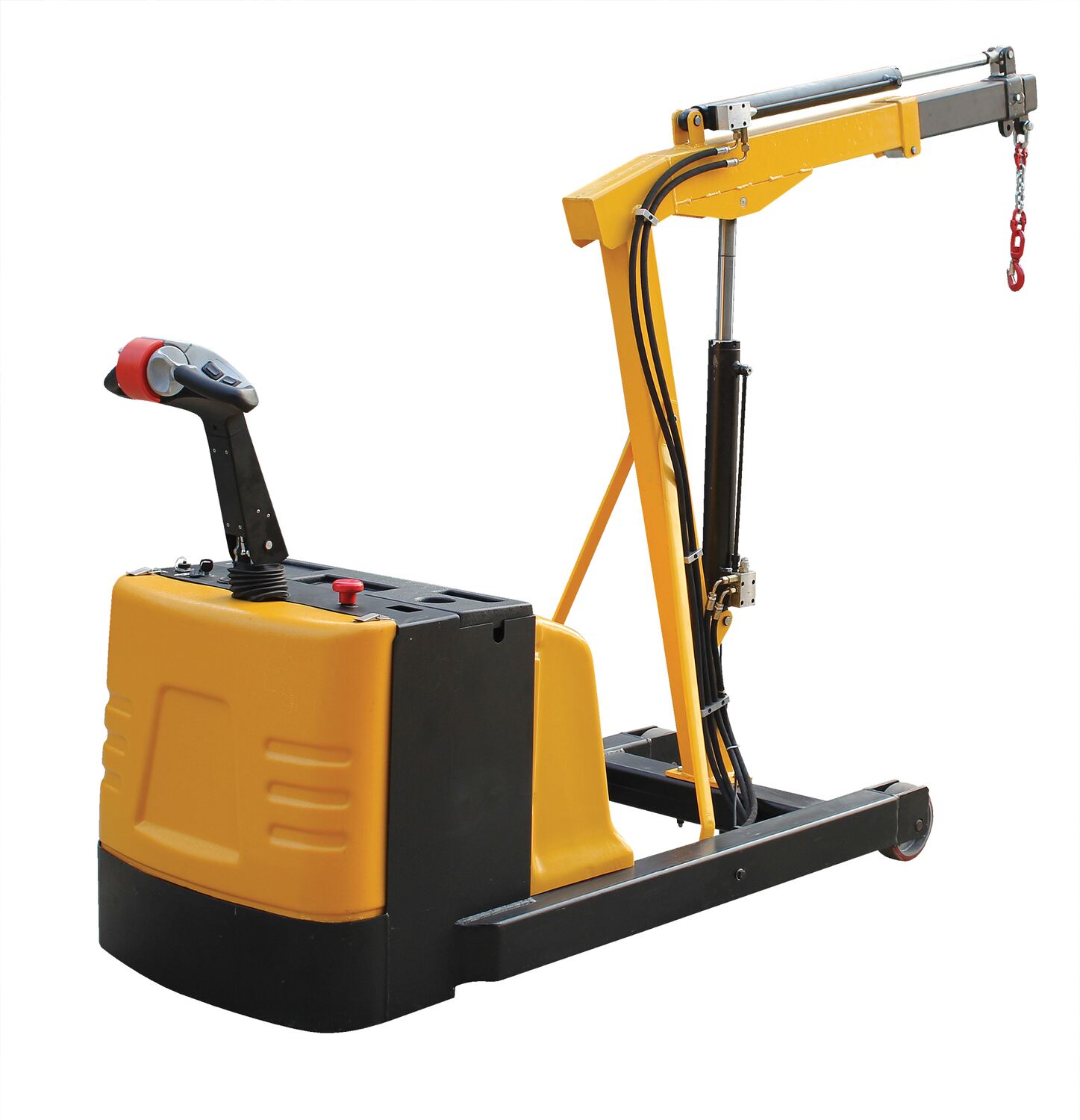

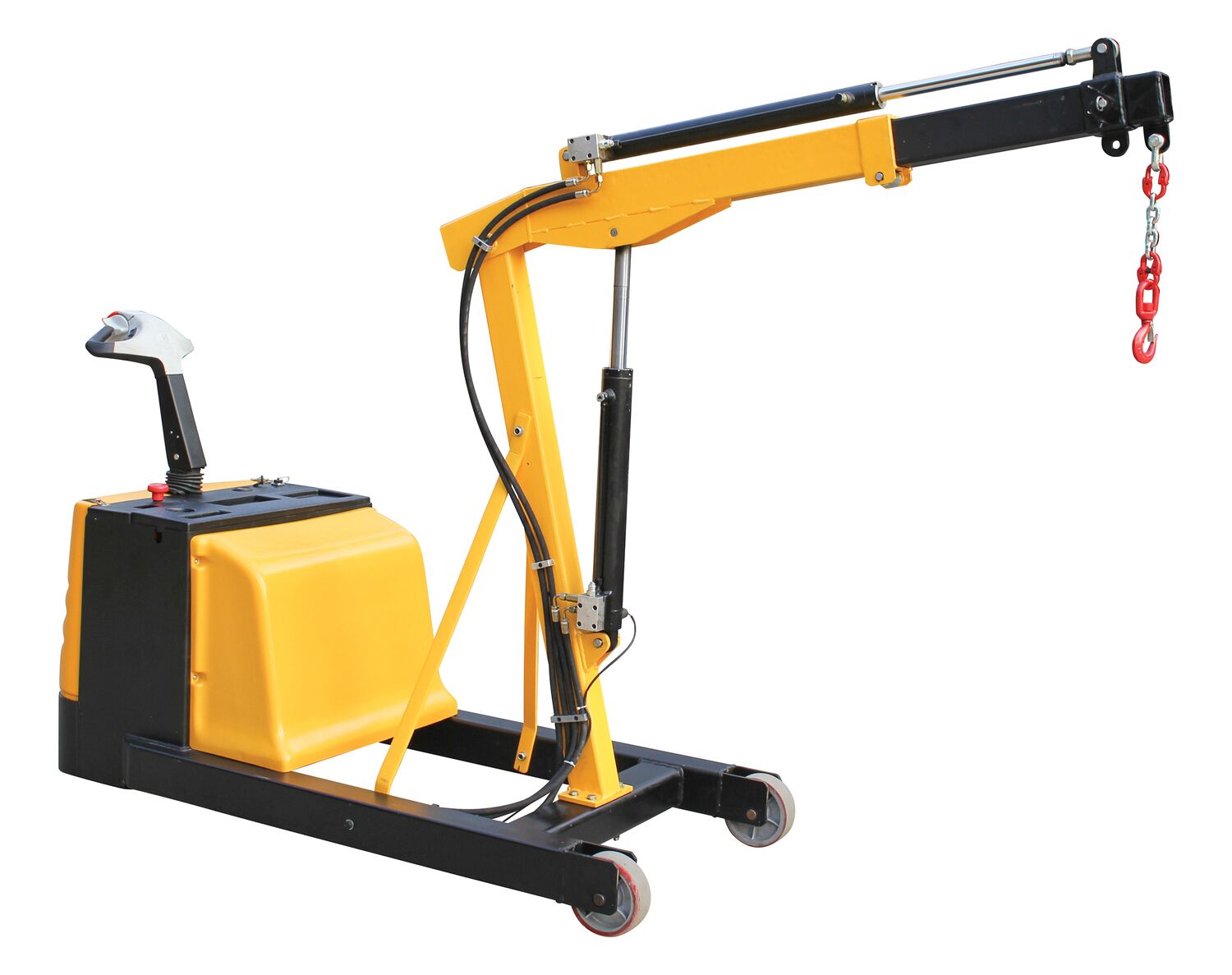

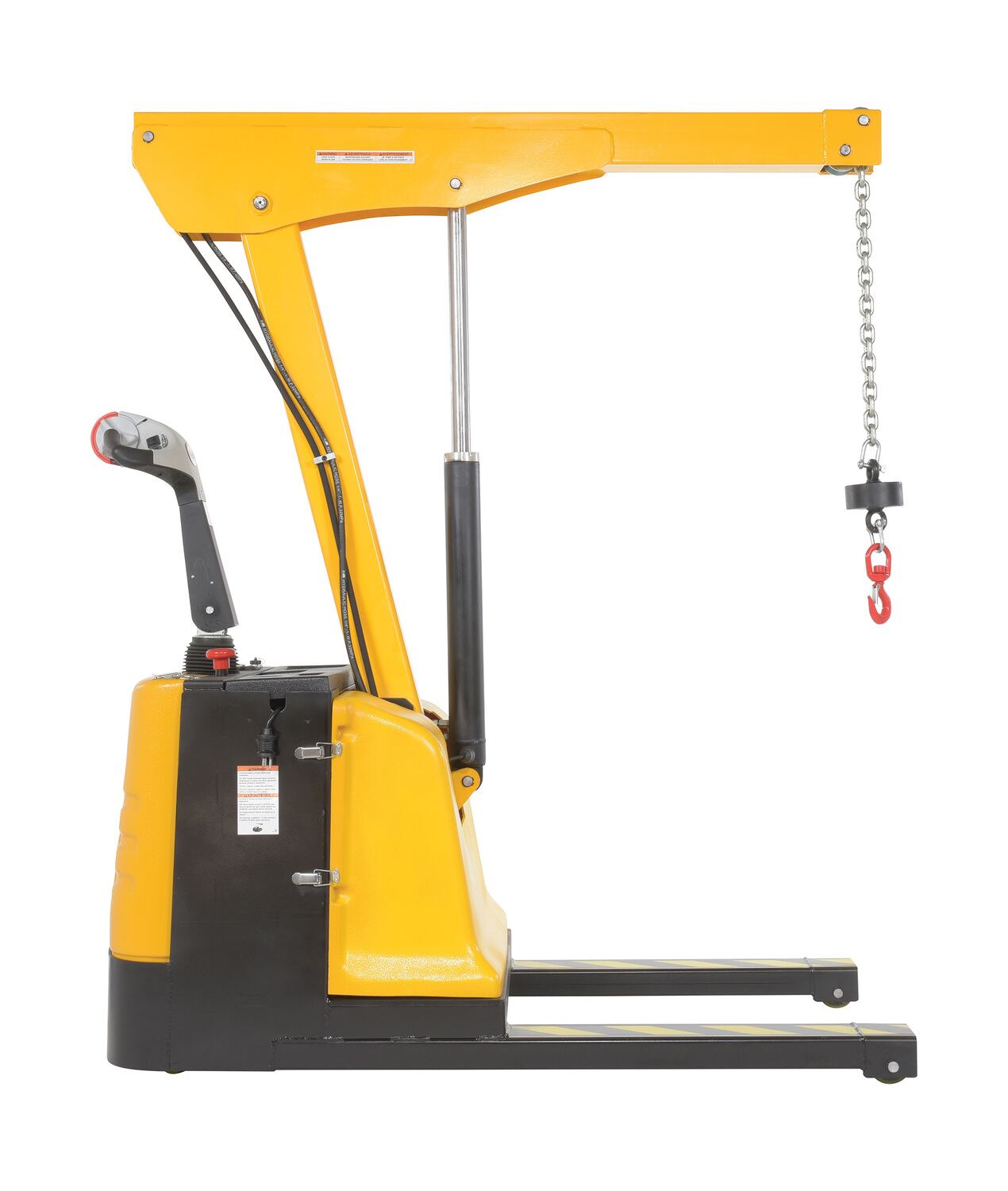

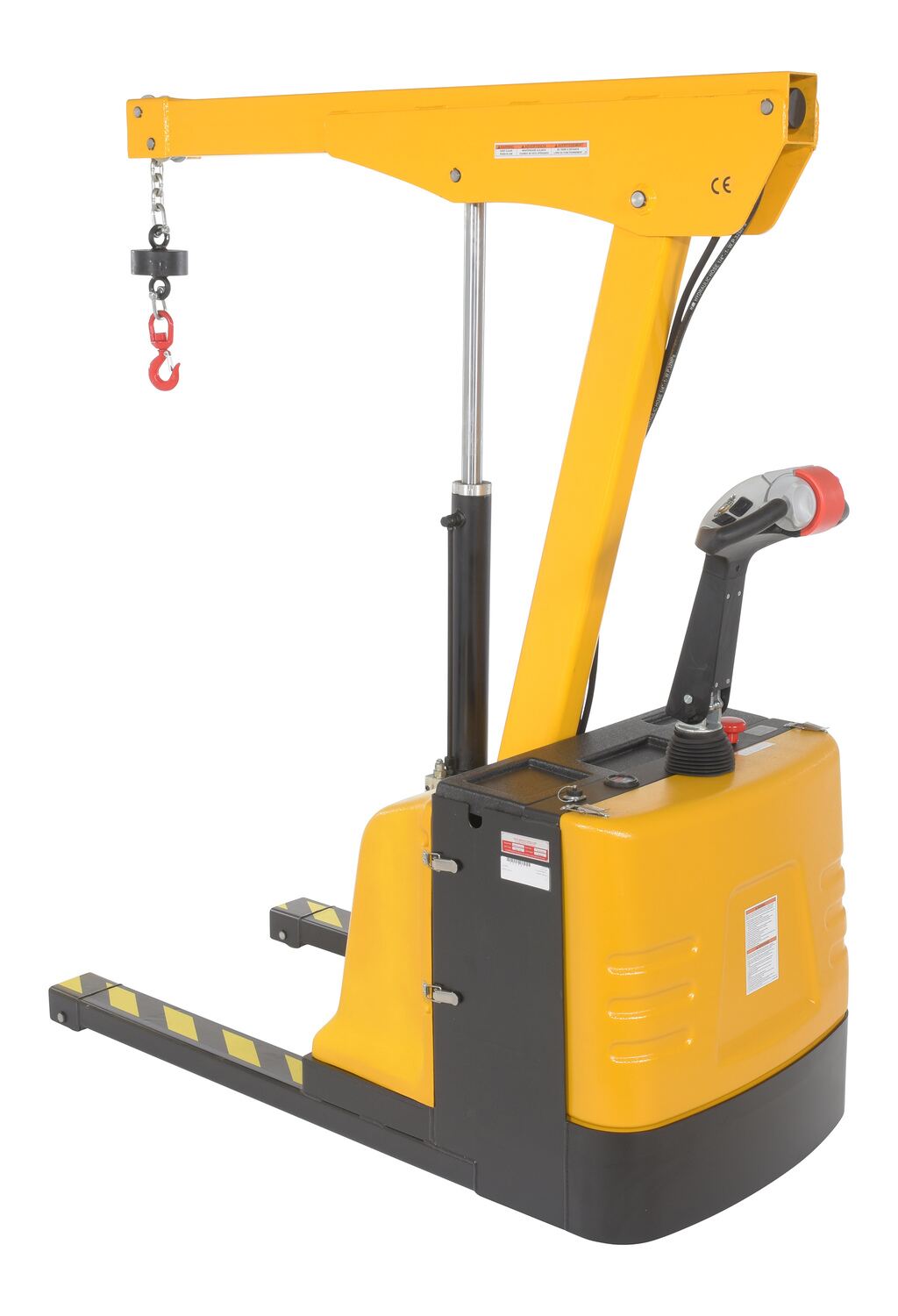

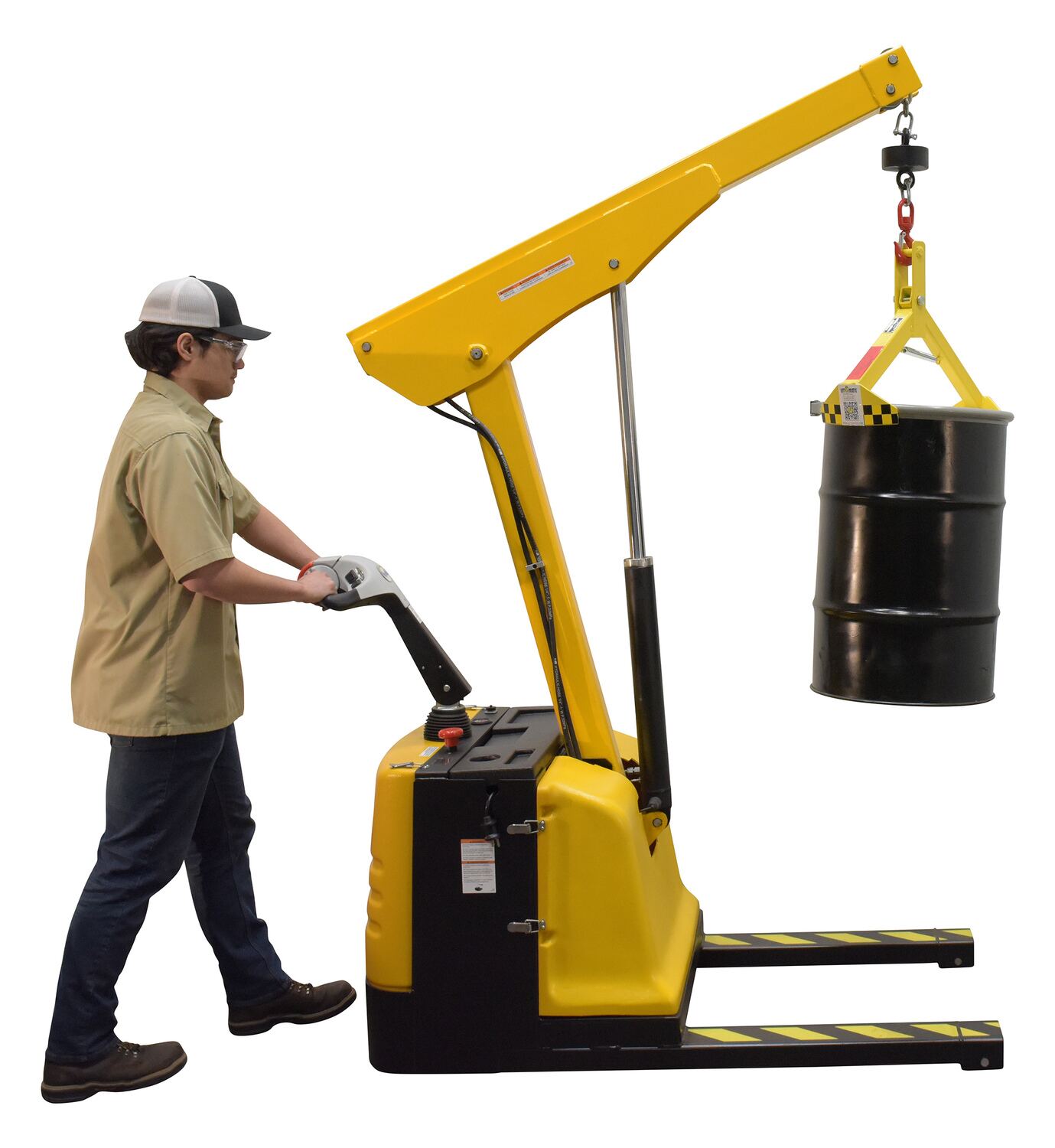

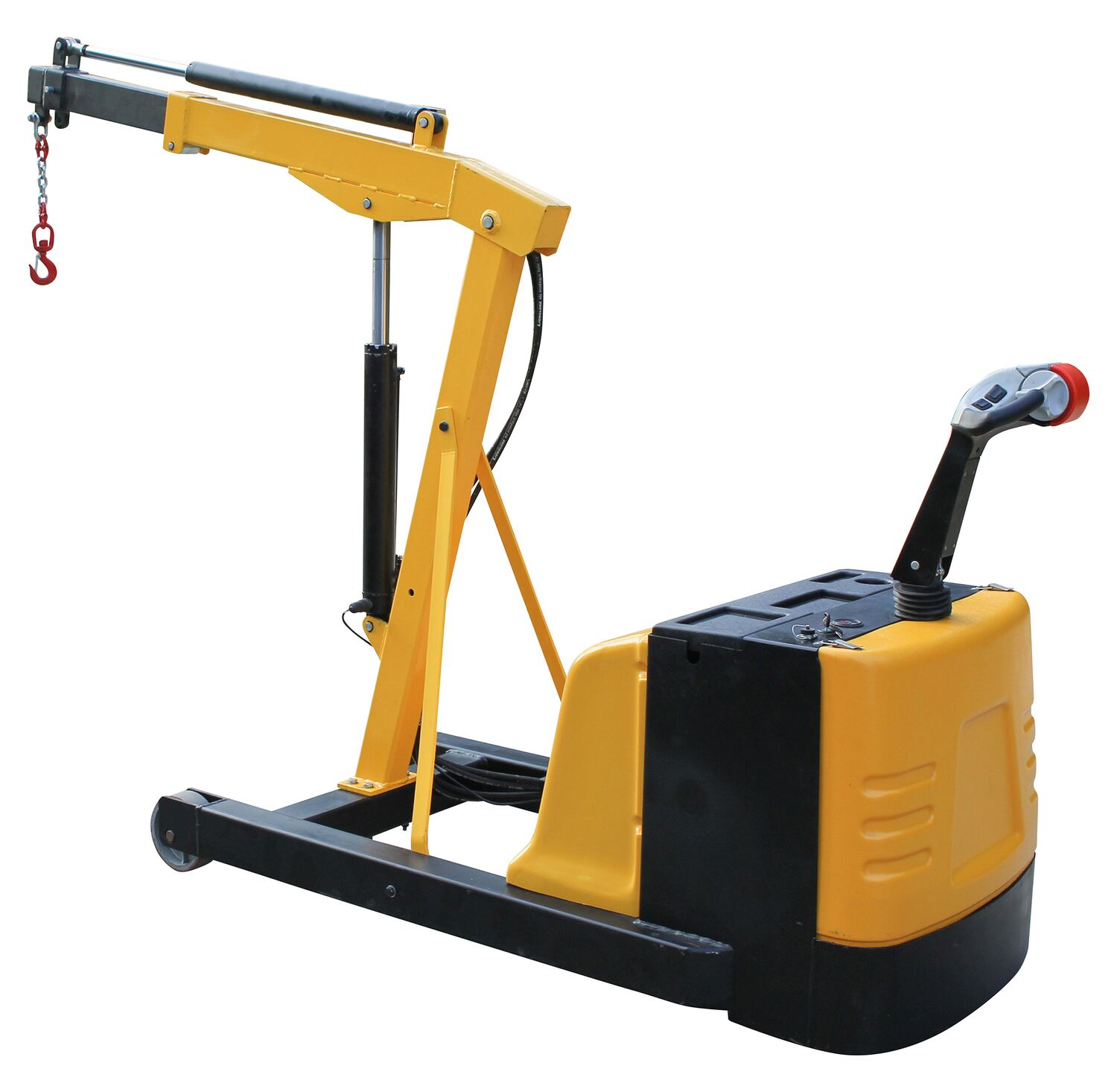

HEPFC-CB-15 features fixed legs and counter balance design.
/iframe>
'ELECTRIC POWERED FLOOR CRANES'
| Product No. | Description | Cap. Retracted (lbs.) |
Cap. Extended (lbs.) |
Lift Range Retracted |
Lift Range Extended |
Retracted Size W x L x H |
price | Quantity |
|---|---|---|---|---|---|---|---|---|
| HEPFC-25 | Floor Crane | 2500 | 600 | 44-1/4" | 97" | 30 x 80 x 63" |
TODAY: $0.00 |
X
|
| HEPFC-CB-15 | Floor Crane | 1500 | 400 | 44-1/4" | 97" | 33-7/8 x 107-1/2 x 68-3/4" |
TODAY: $0.00 |
X
|

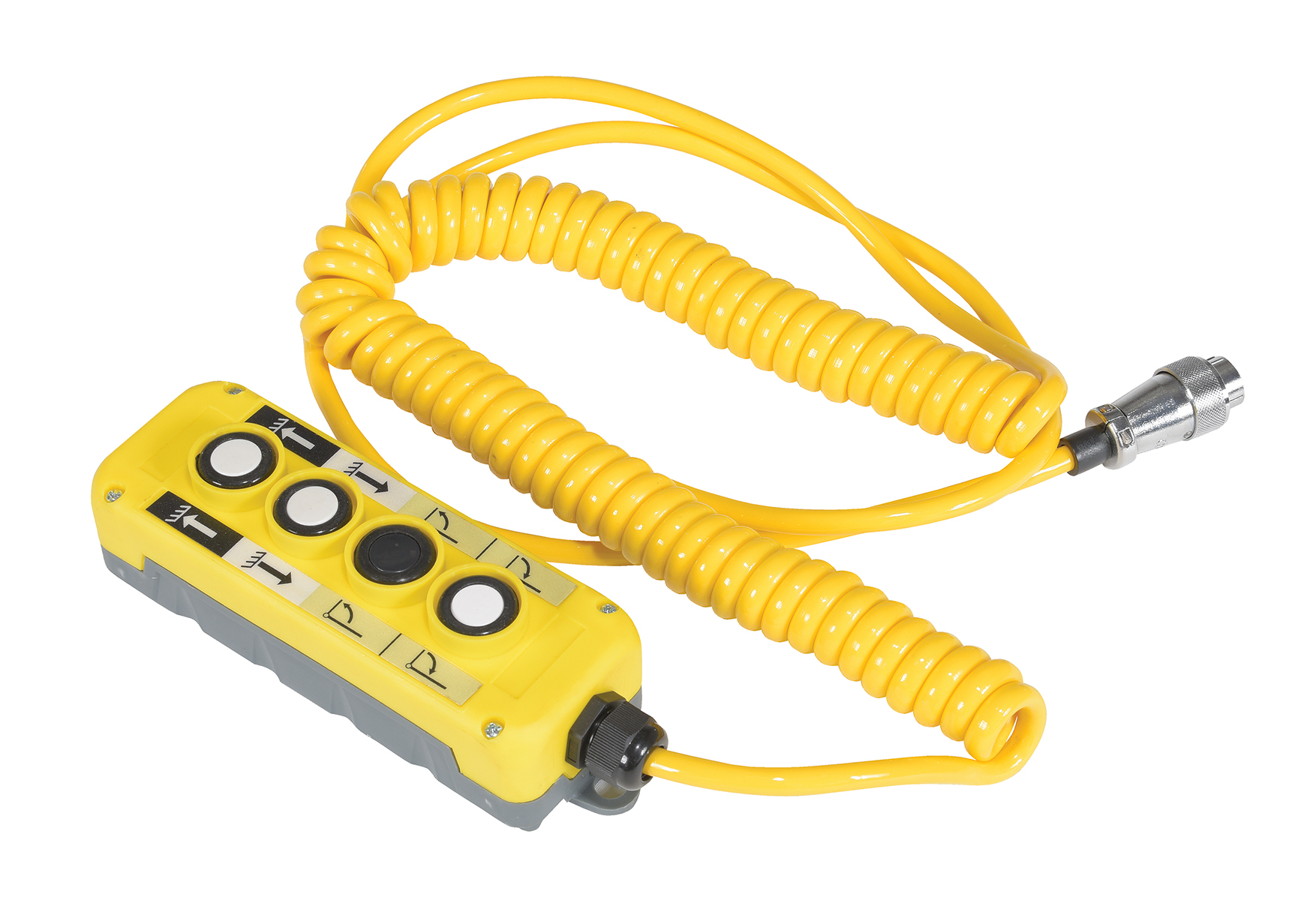

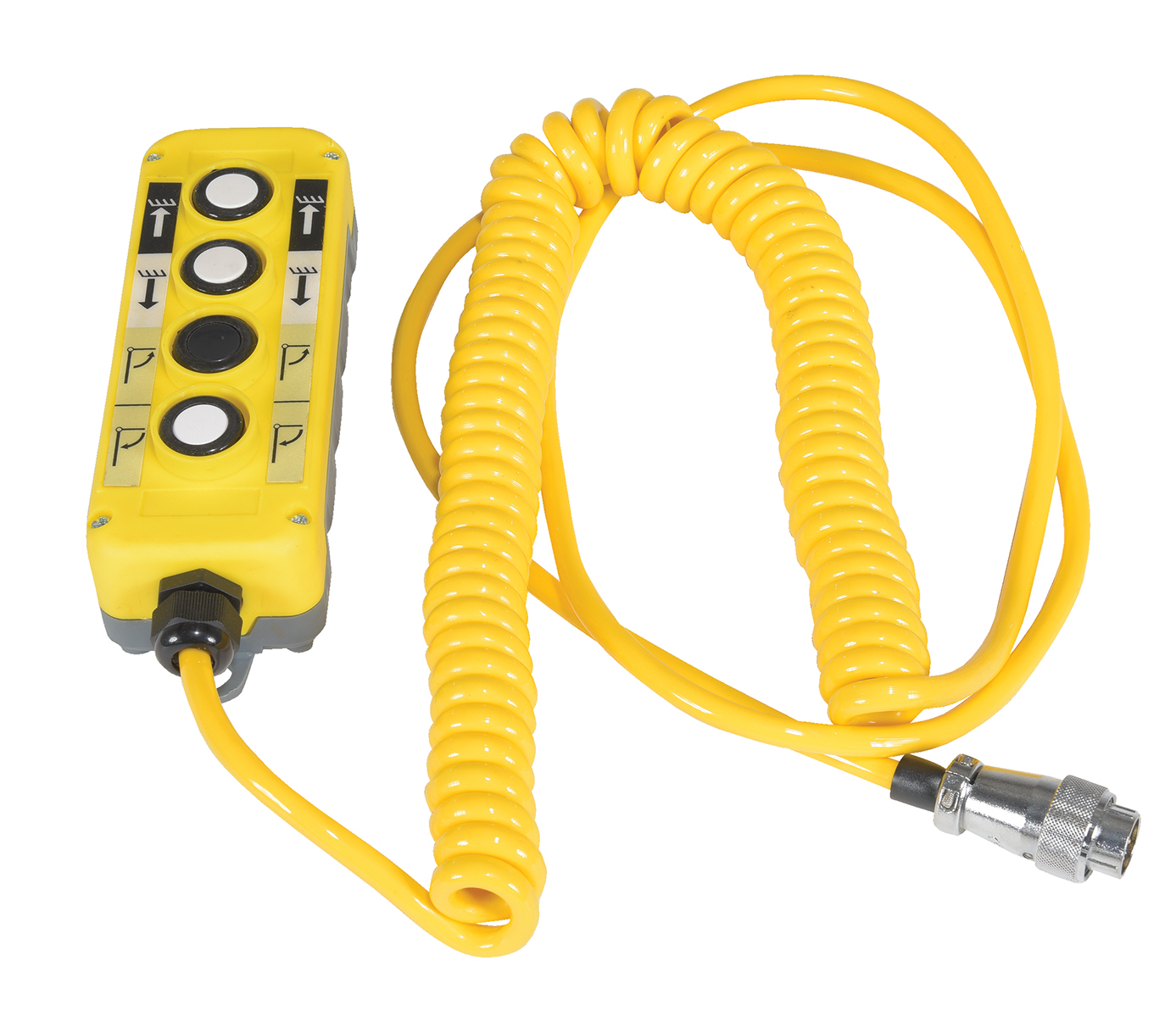

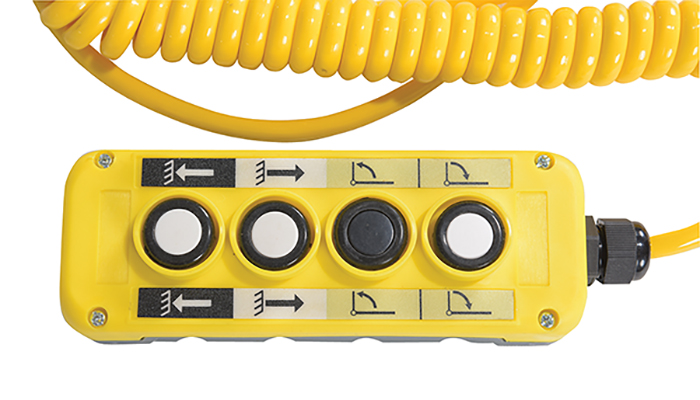

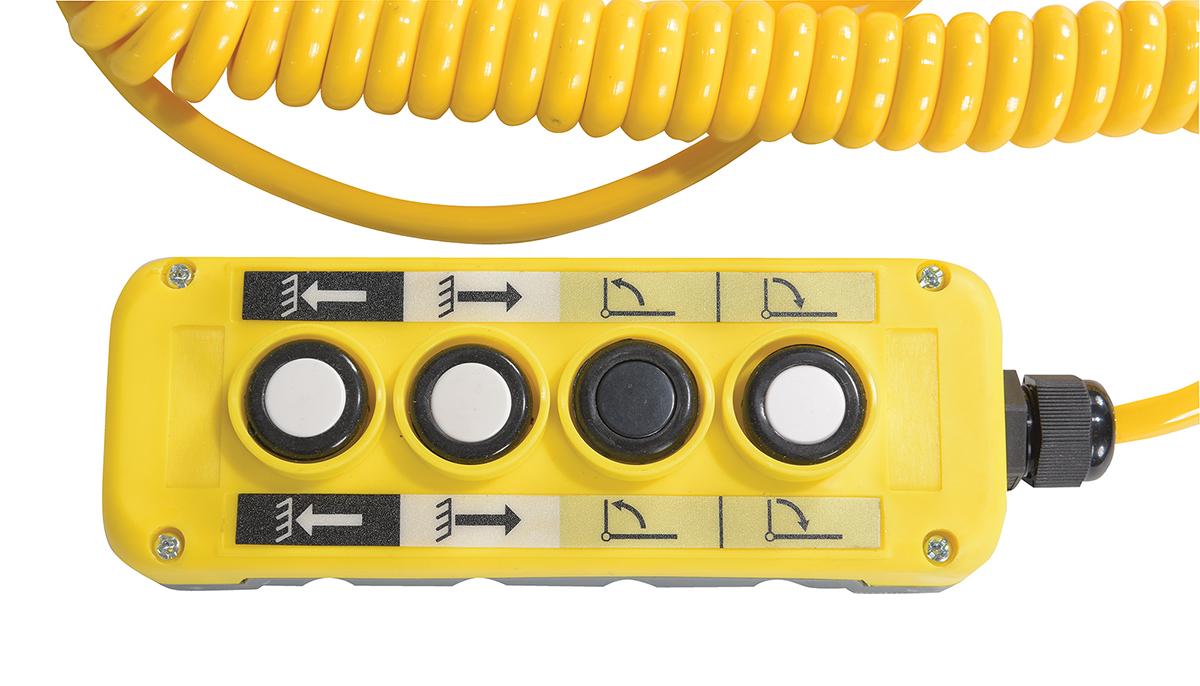

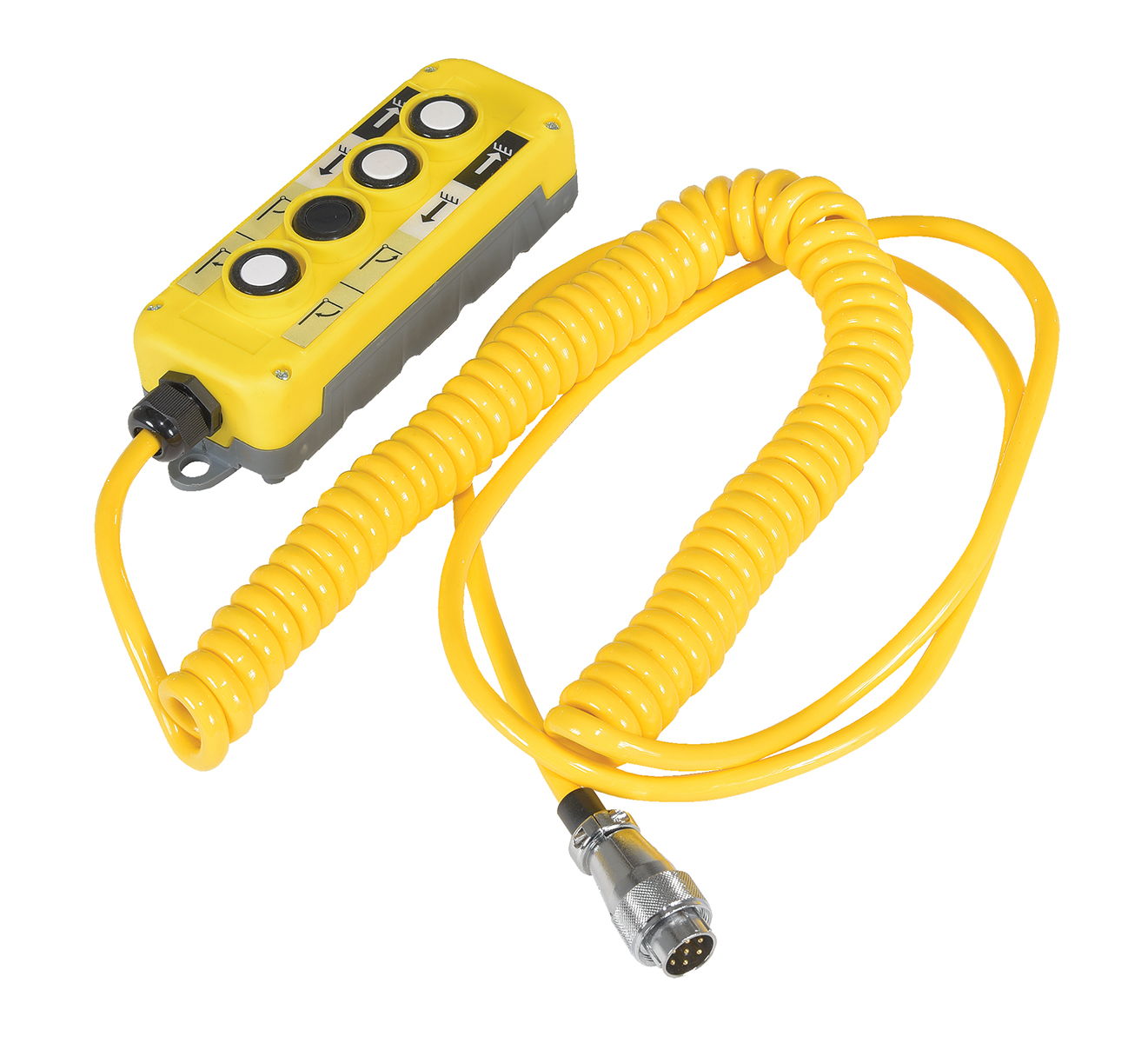

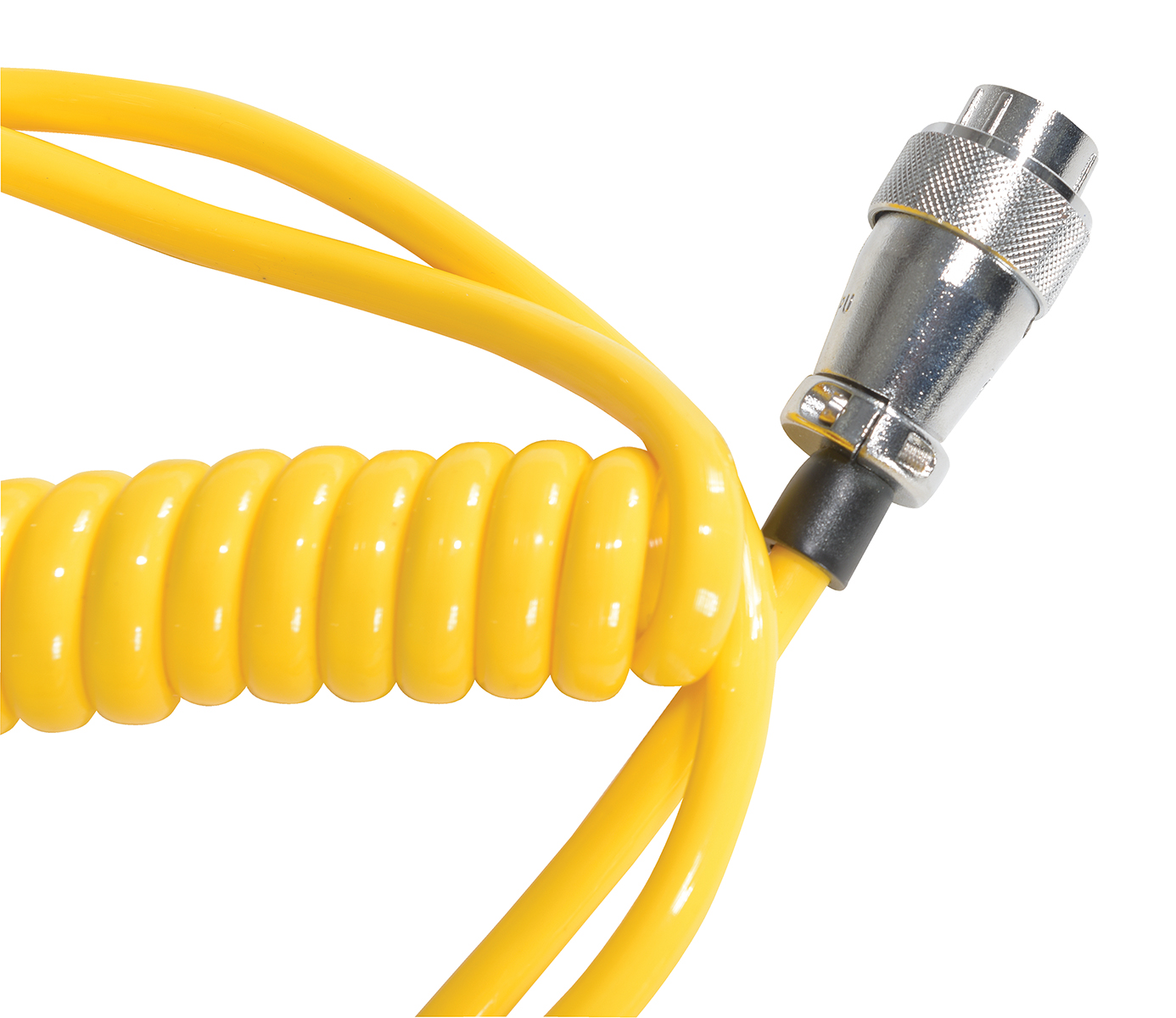

| HEPFC-HC | Optional Floor Crane Hand Control | - | - | - | - | - |
TODAY: $0.00 |
X
|
| HEPFC-25-AA | Floor Crane | 2500 | 600 | 44-1/4" | 97" | 43-1/4 x 79-1/8 x 67" |
TODAY: $0.00 |
X
|
'ELECTRIC POWERED FLOOR CRANES'
- Description: Floor Crane
- Cap. Retracted (lbs.): 2500
- Cap. Extended (lbs.): 600
- Lift Range Retracted: 44-1/4"
- Lift Range Extended: 97"
- Description: Floor Crane
- Cap. Retracted (lbs.): 1500
- Cap. Extended (lbs.): 400
- Lift Range Retracted: 44-1/4"
- Lift Range Extended: 97"
- Description: Optional Floor Crane Hand Control
- Cap. Retracted (lbs.): -
- Cap. Extended (lbs.): -
- Lift Range Retracted: -
- Lift Range Extended: -
- Description: Floor Crane
- Cap. Retracted (lbs.): 2500
- Cap. Extended (lbs.): 600
- Lift Range Retracted: 44-1/4"
- Lift Range Extended: 97"
