WELDING CYLINDER TORCH CARTS
Most standard items by Vestil Manufacturing, are in stock and ready for immediate shipment.
Custom orders are our specialty and fabrication services are available on most items.

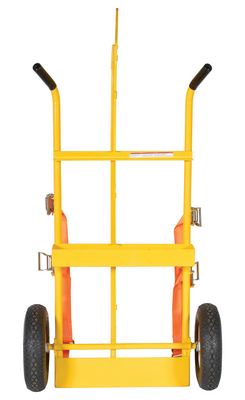

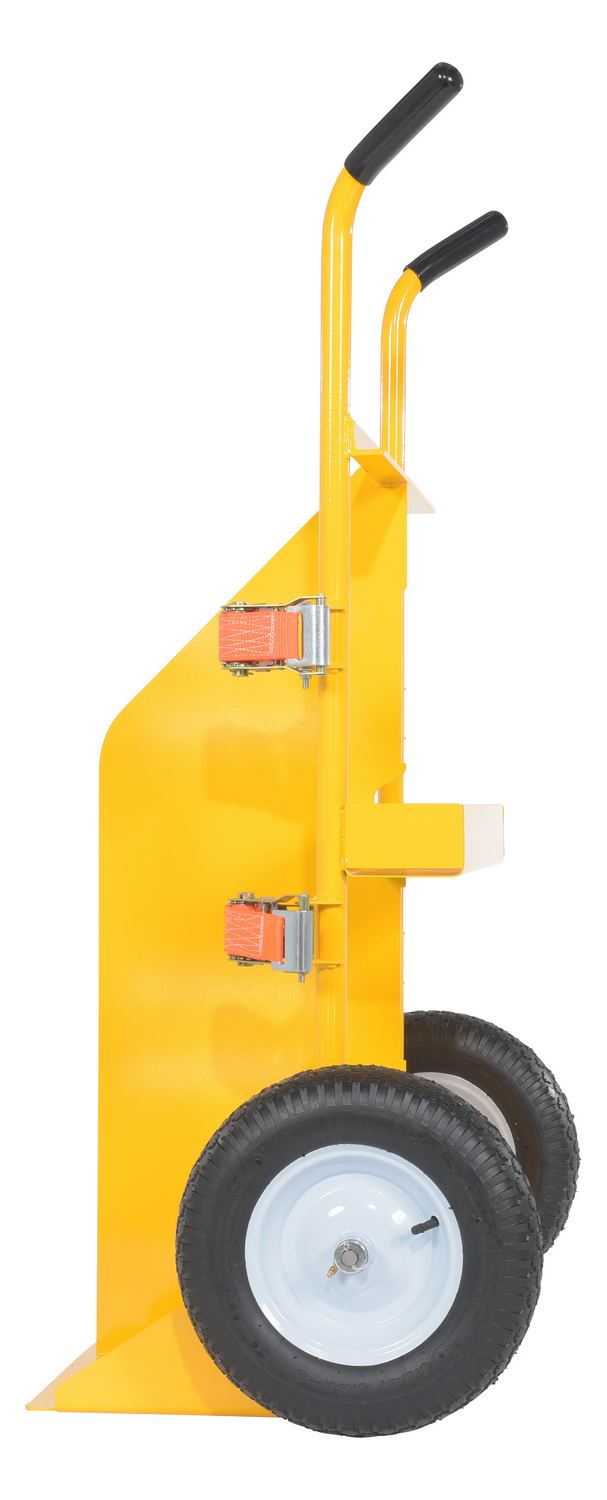

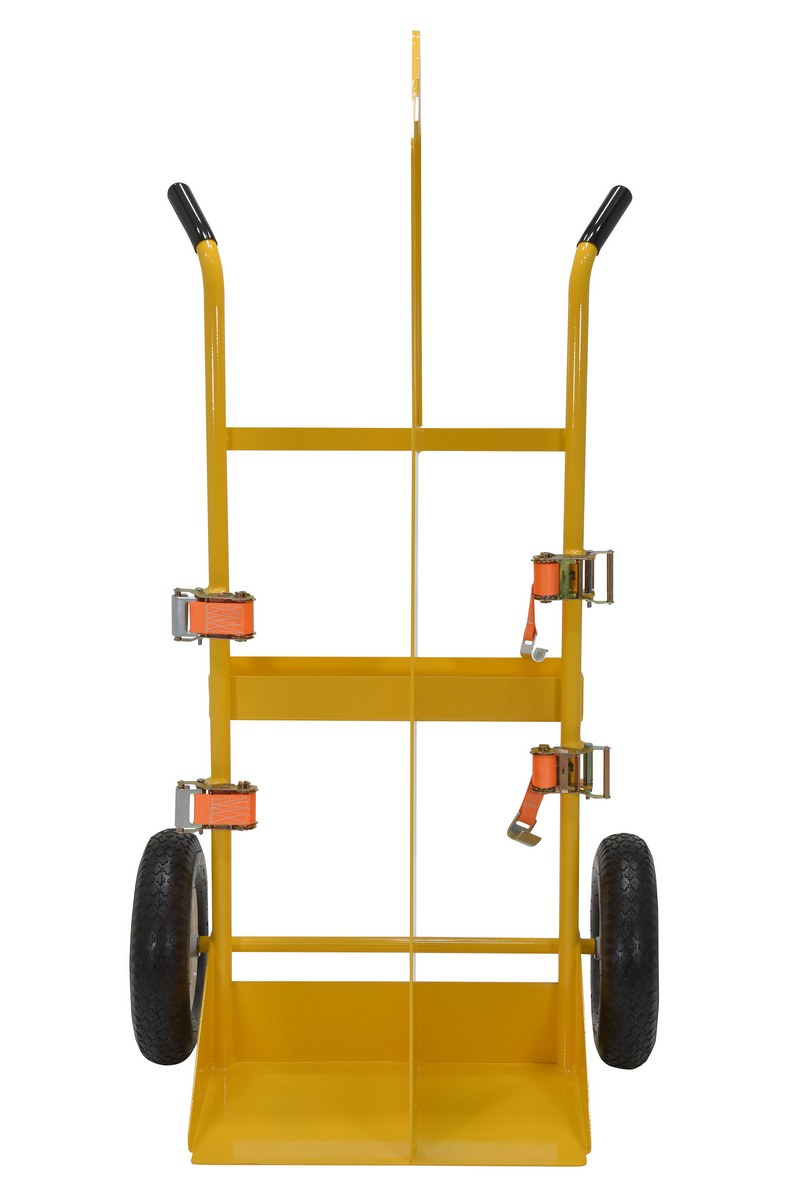

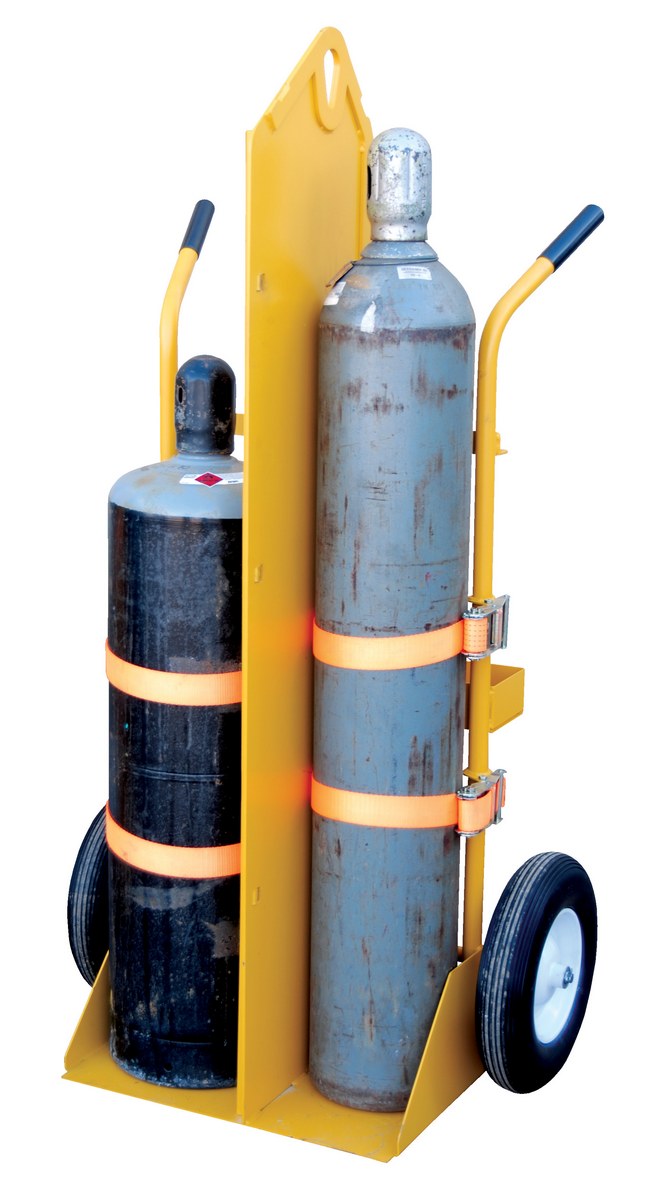

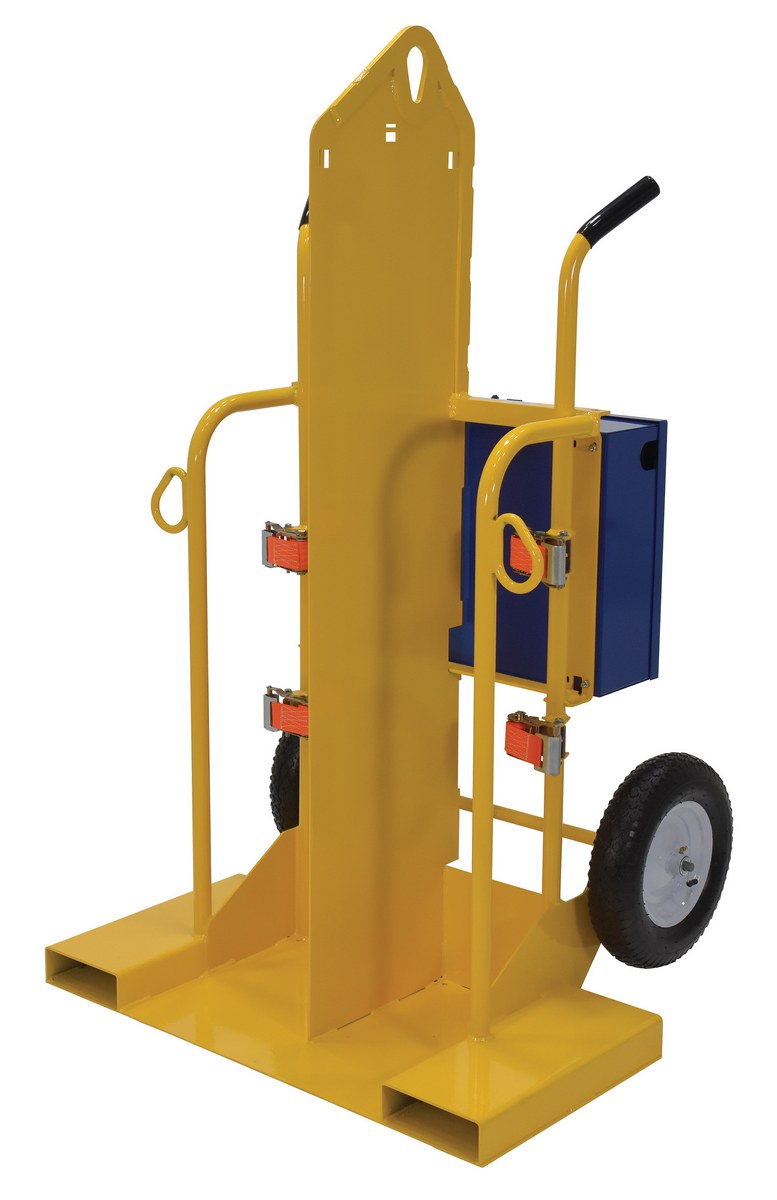

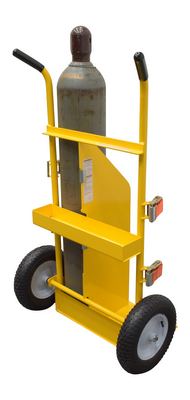

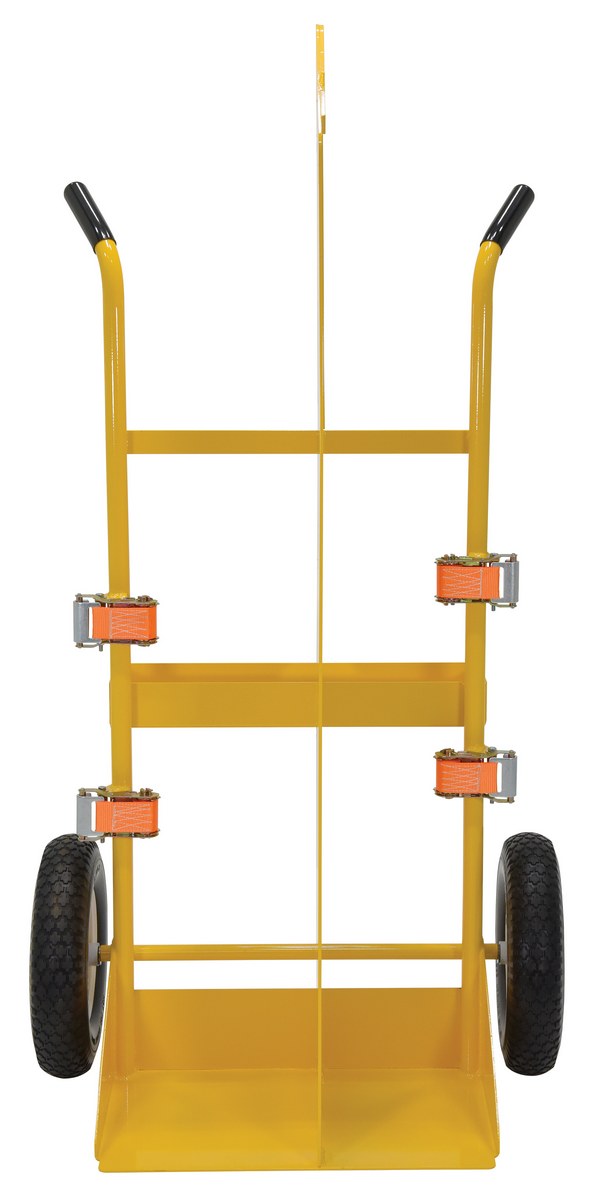

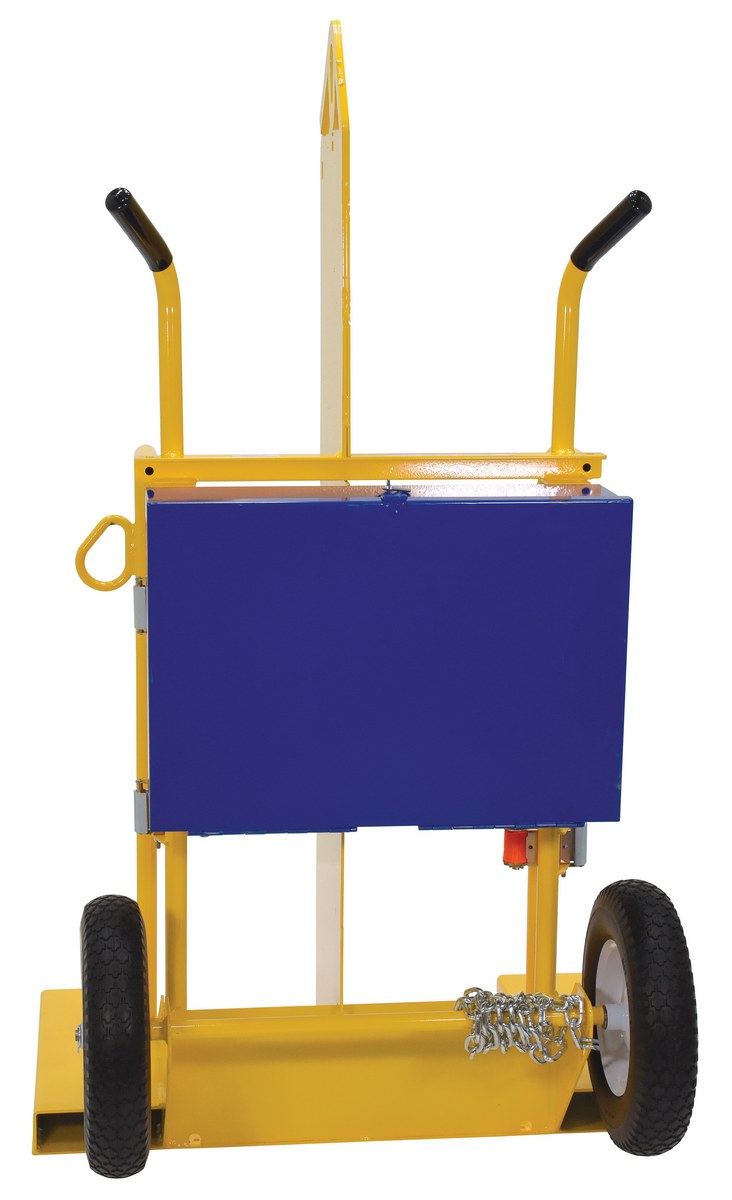

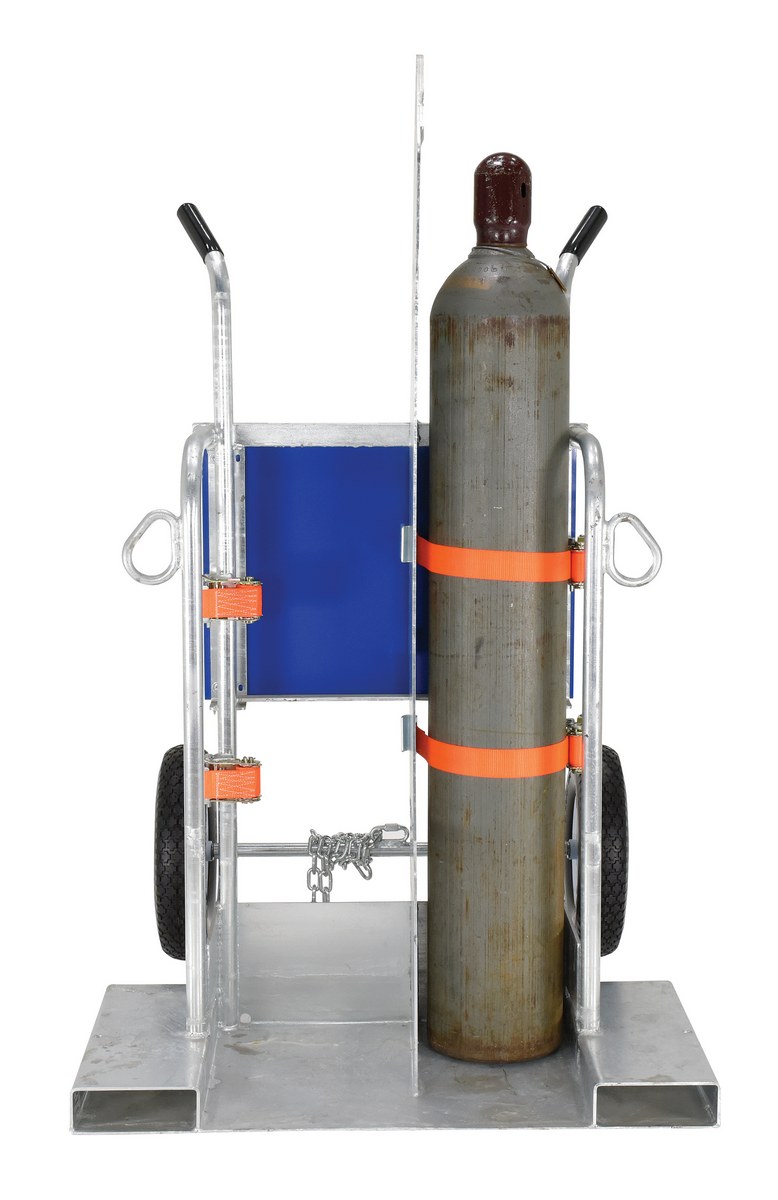

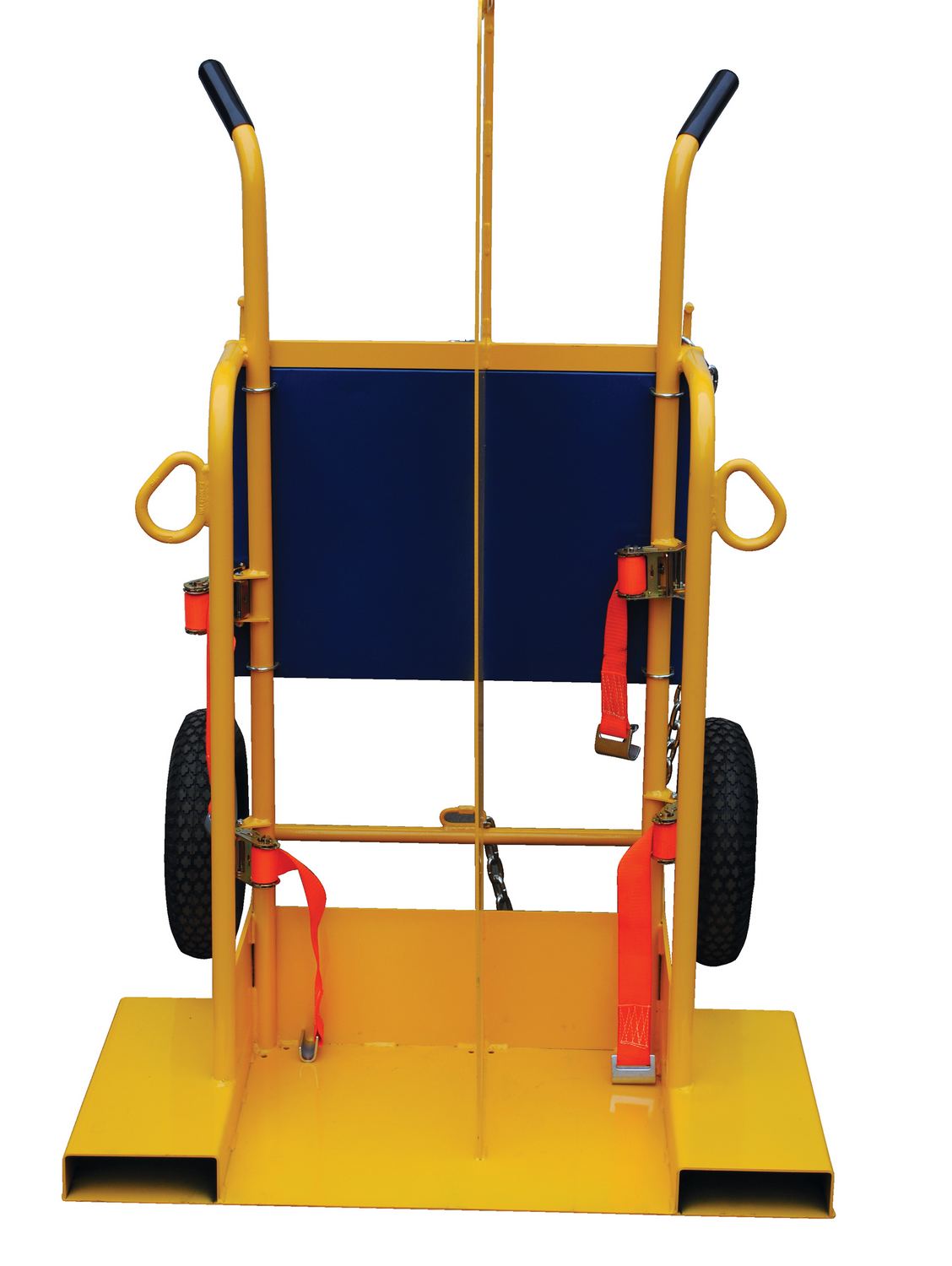

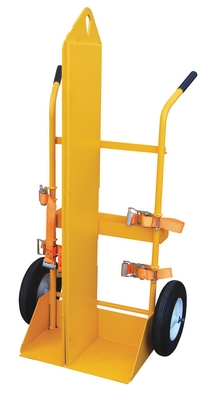

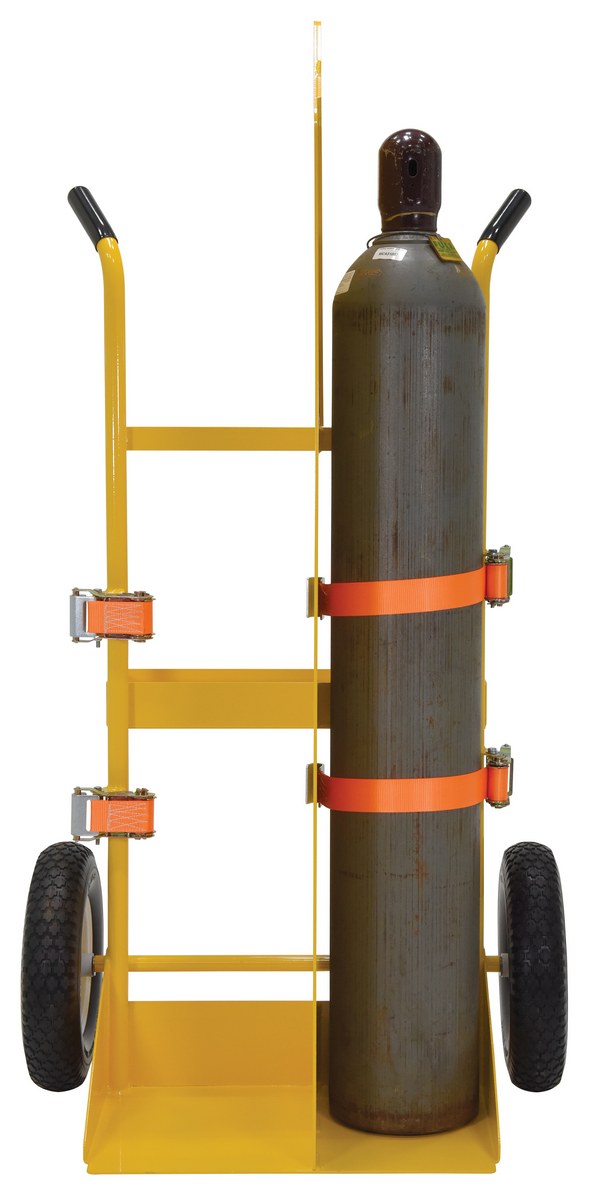

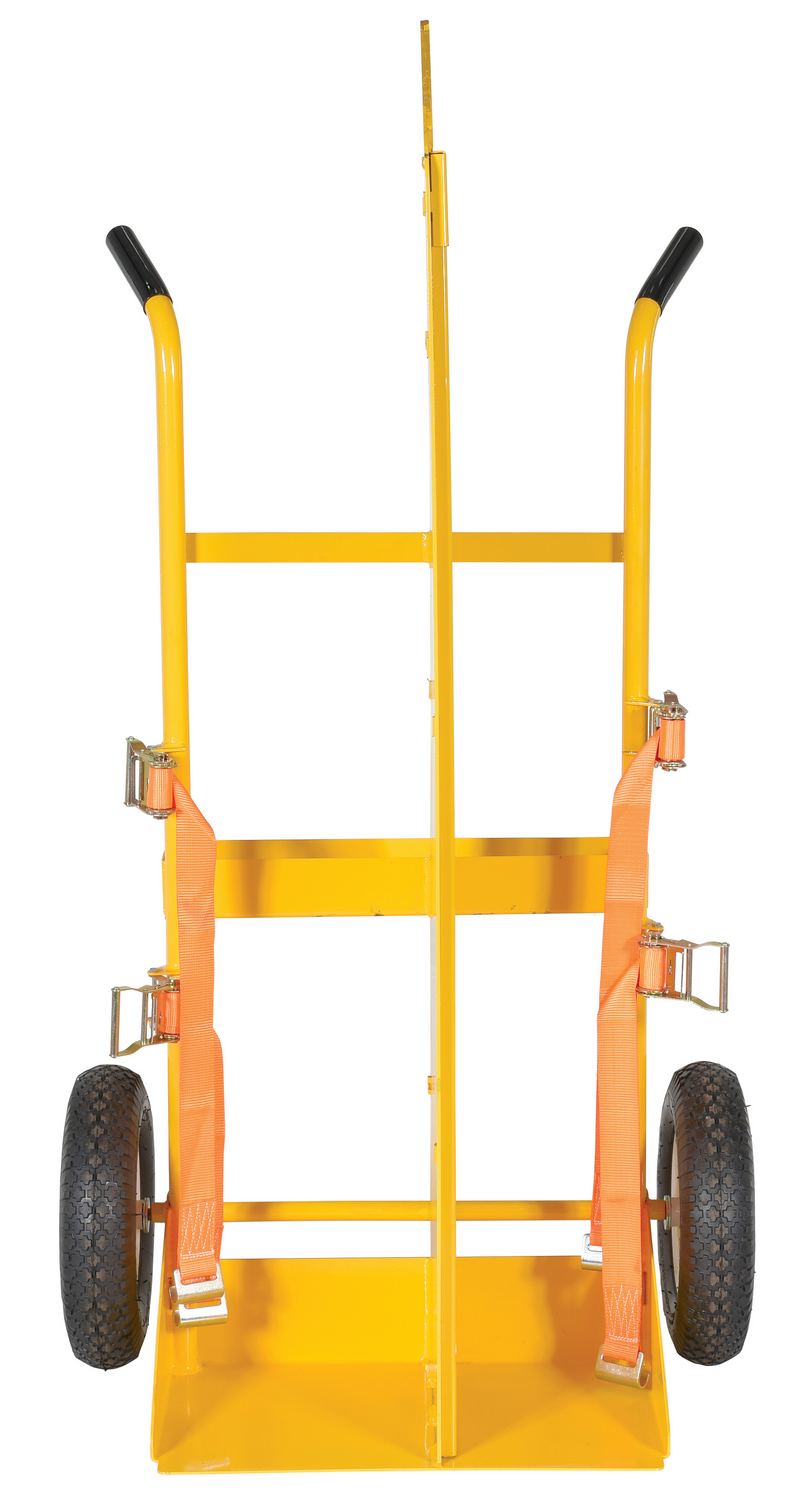

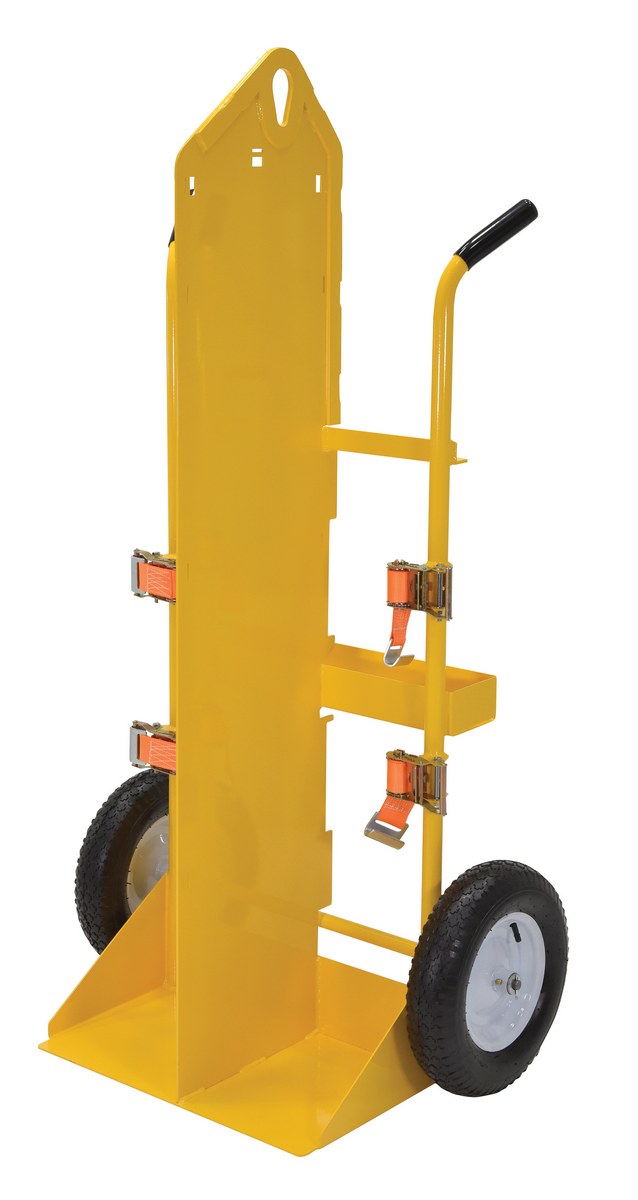

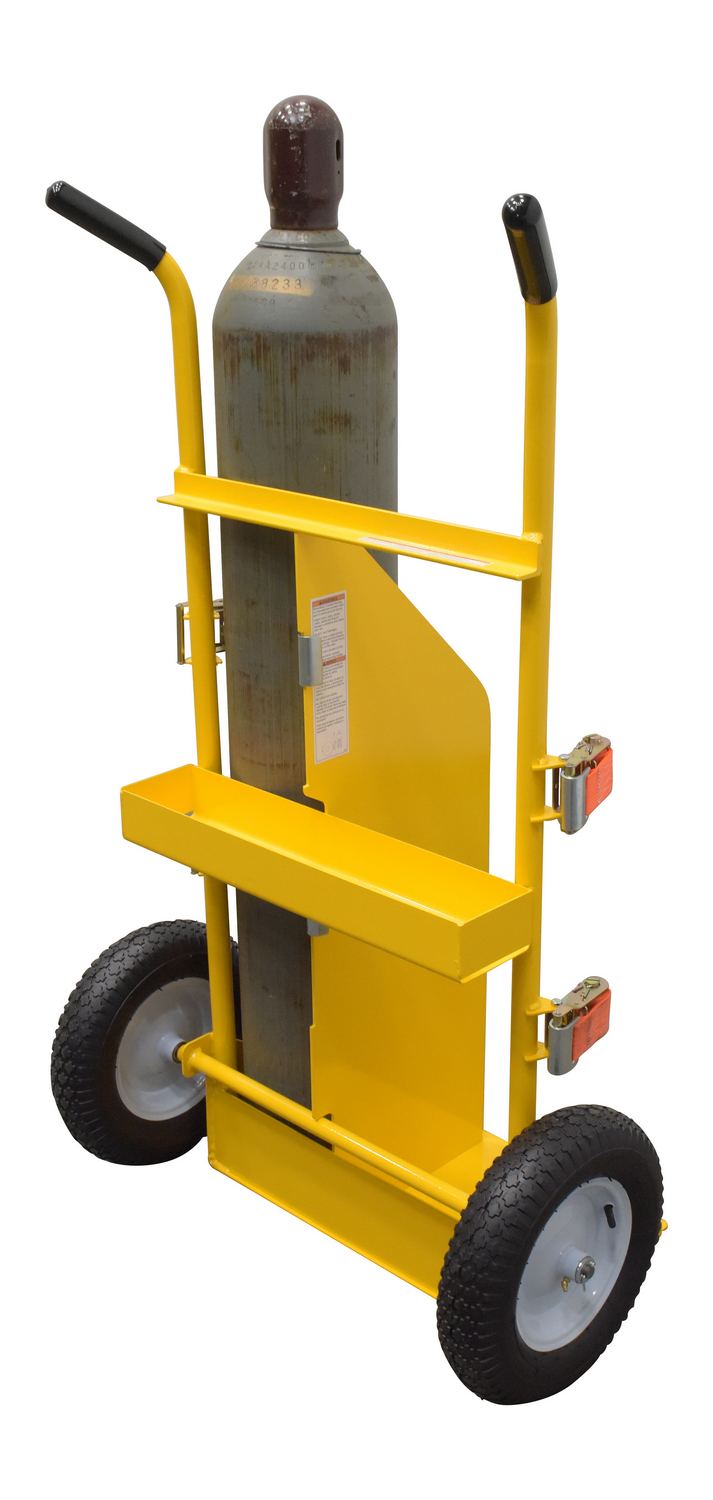

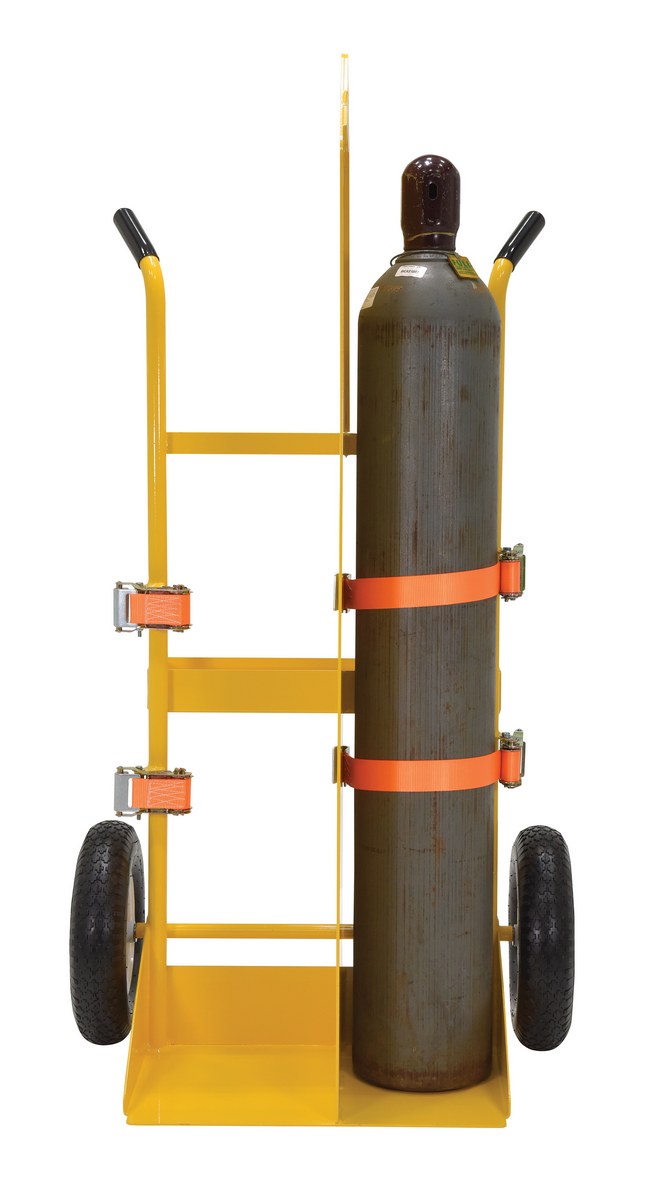

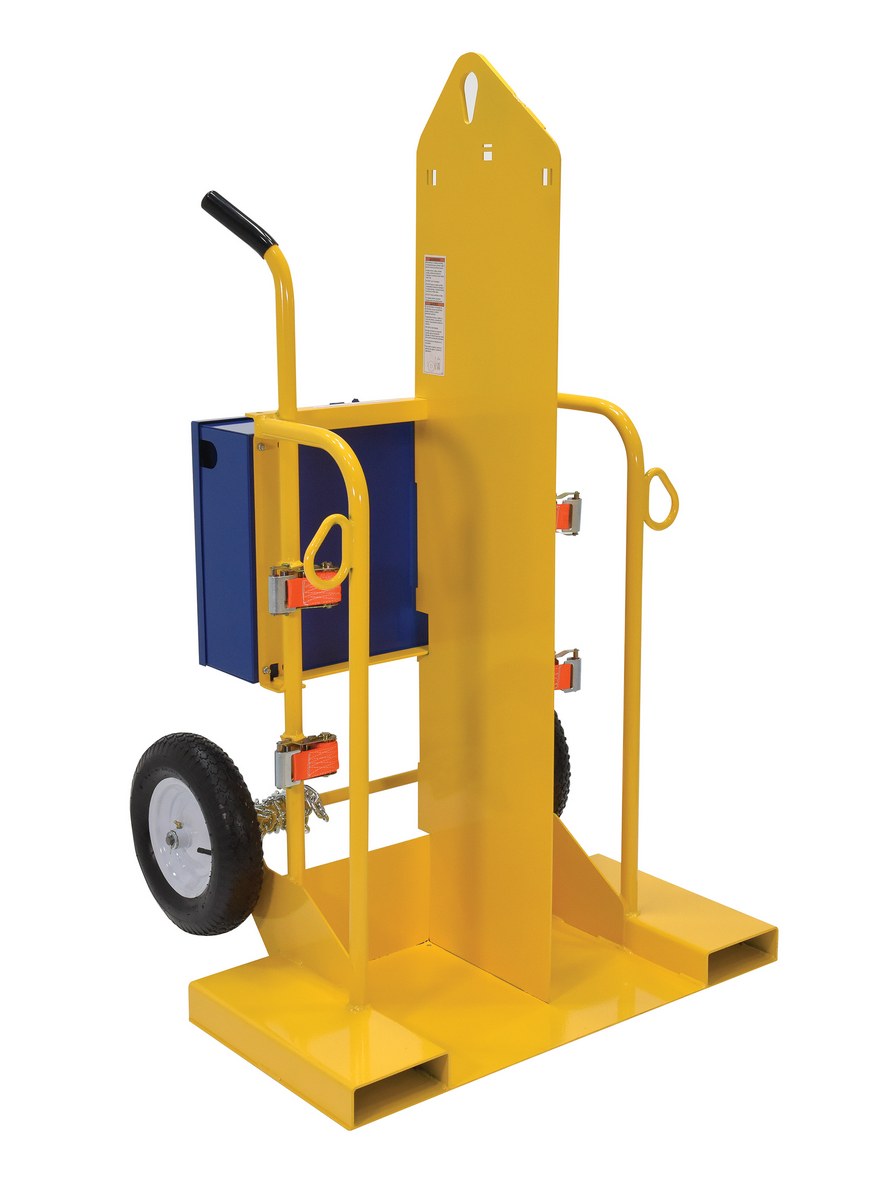

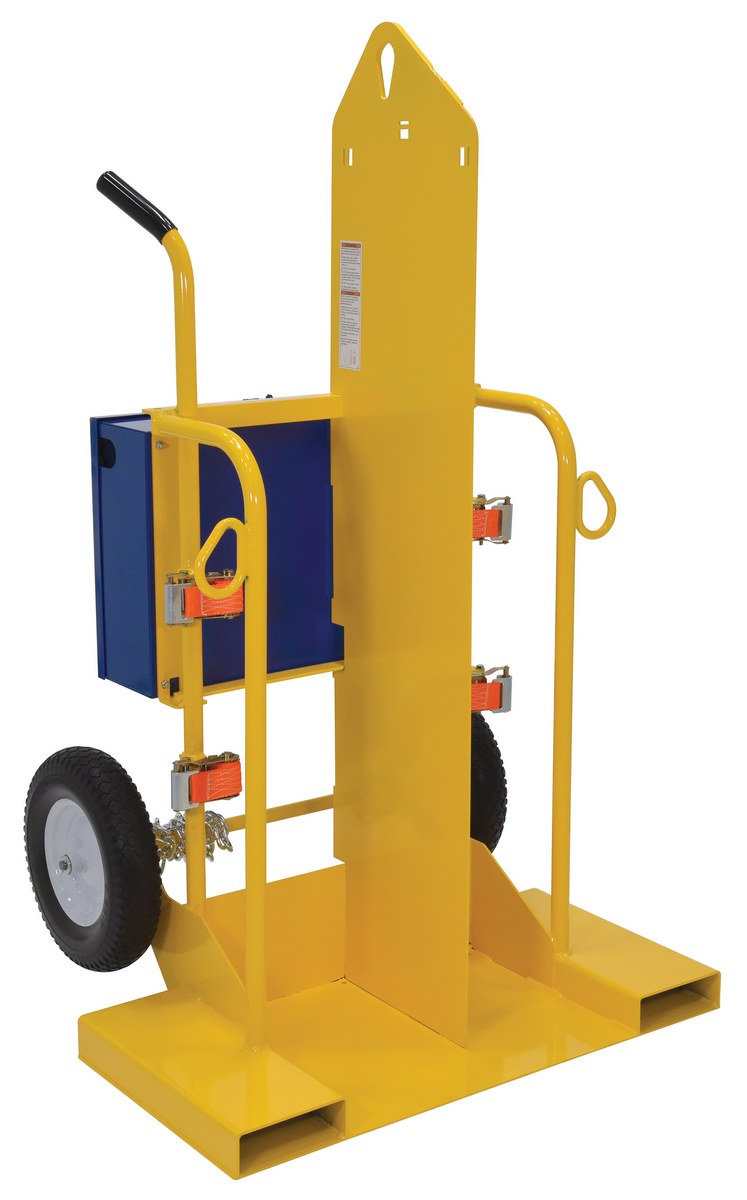

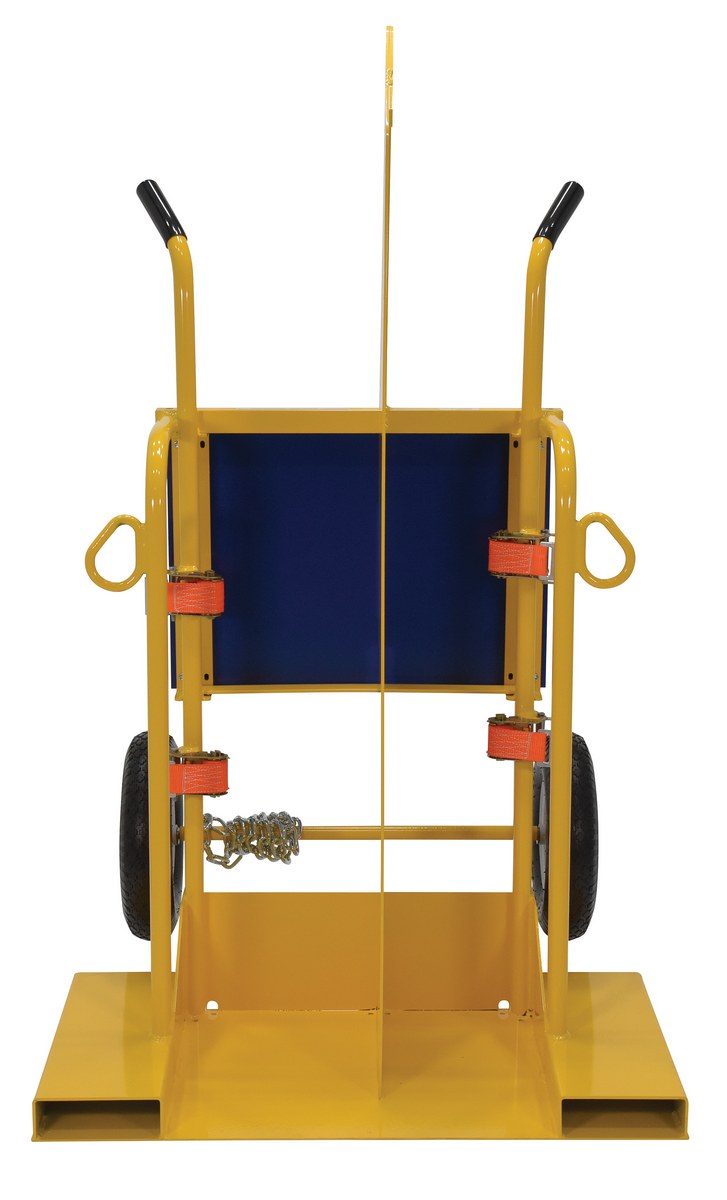

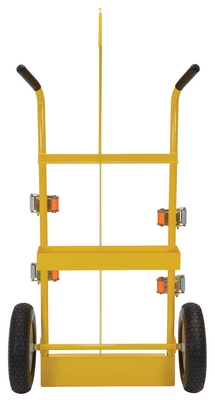

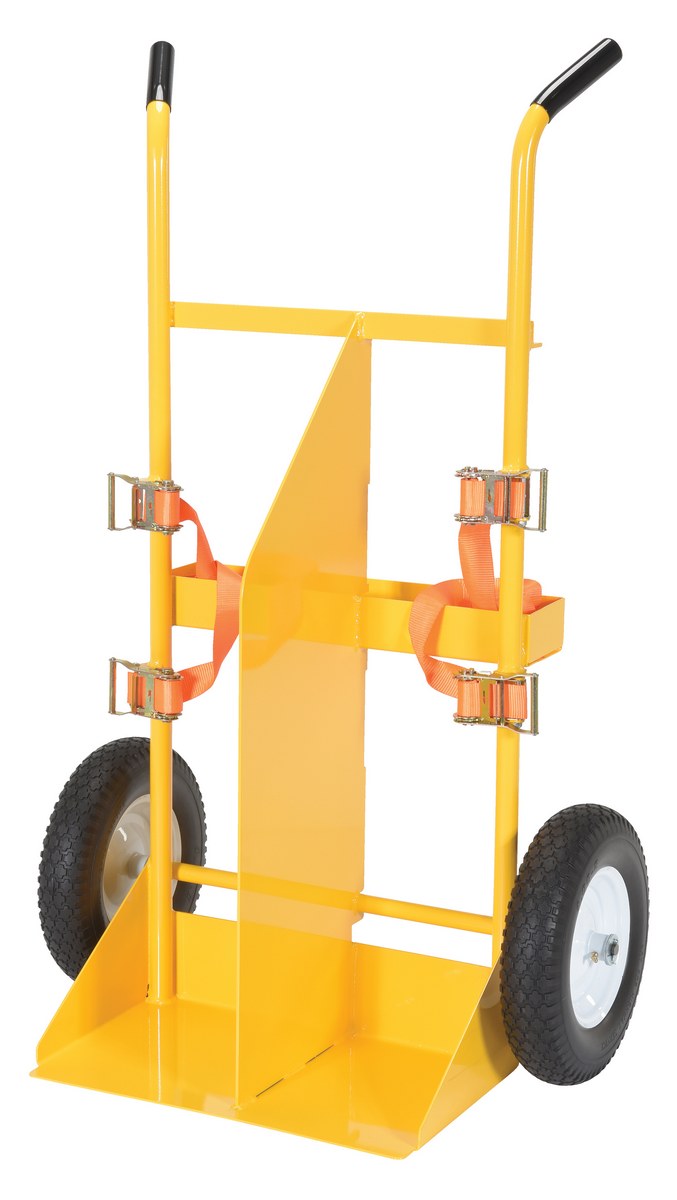

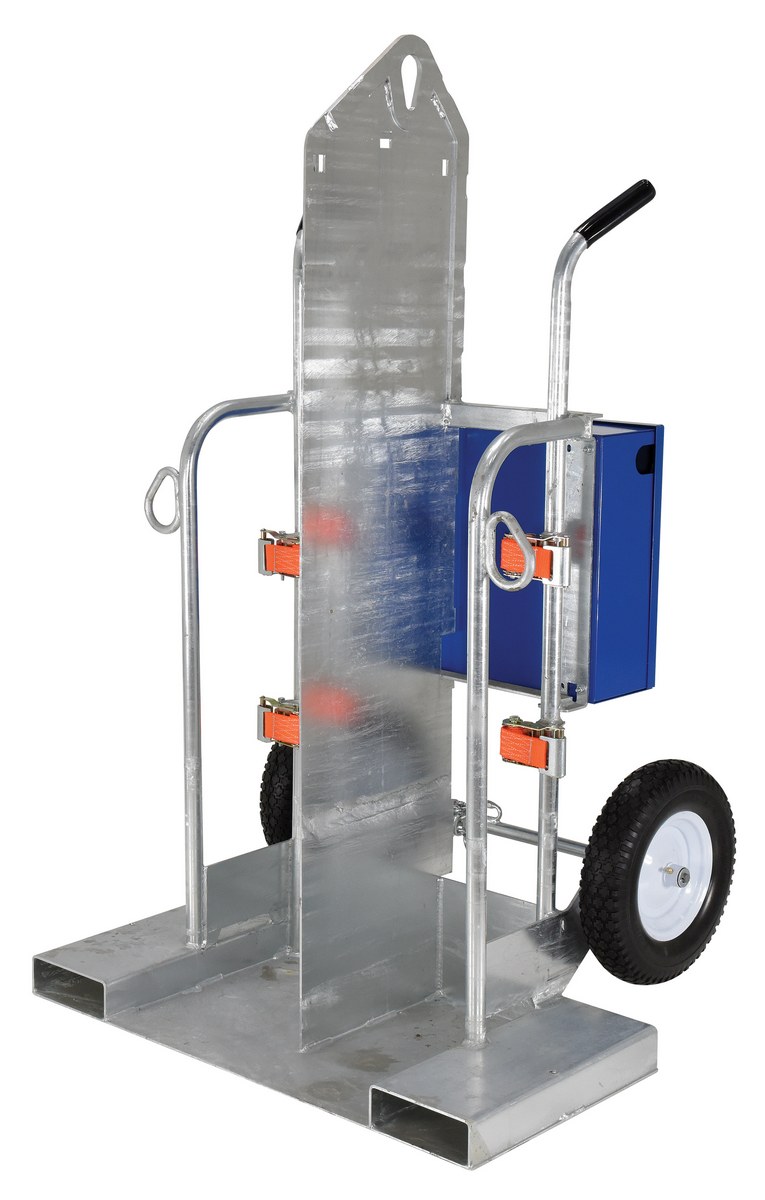

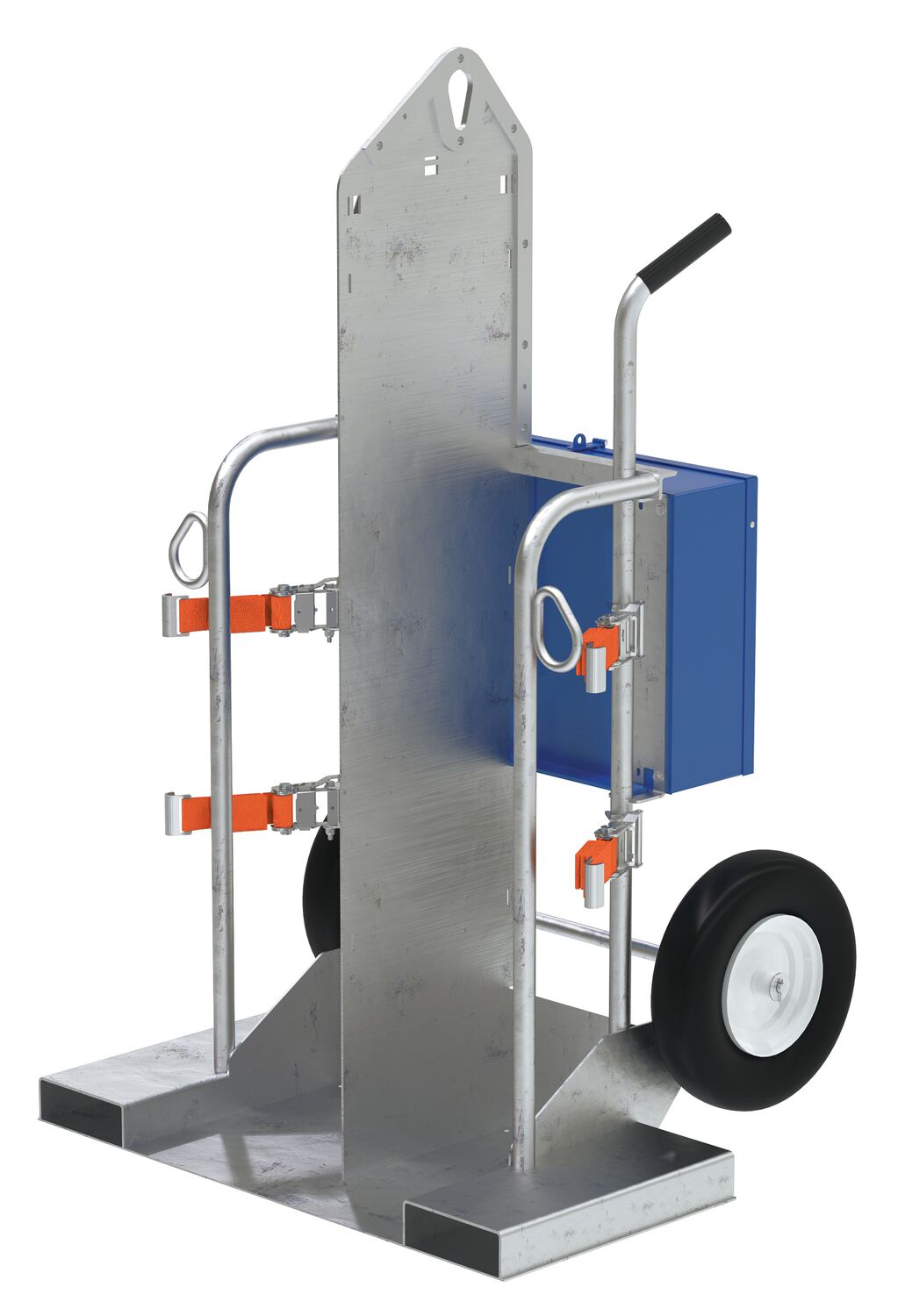

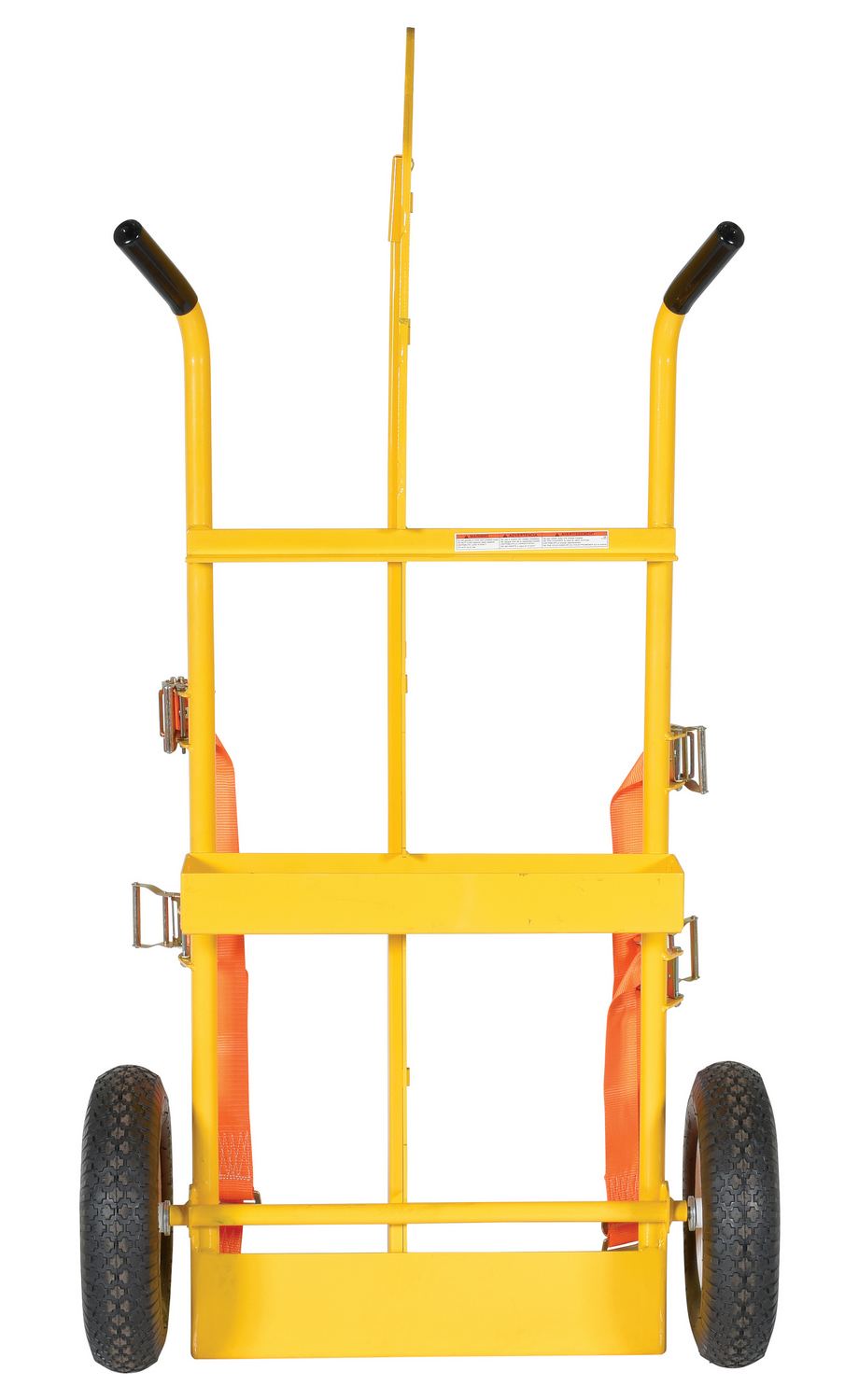

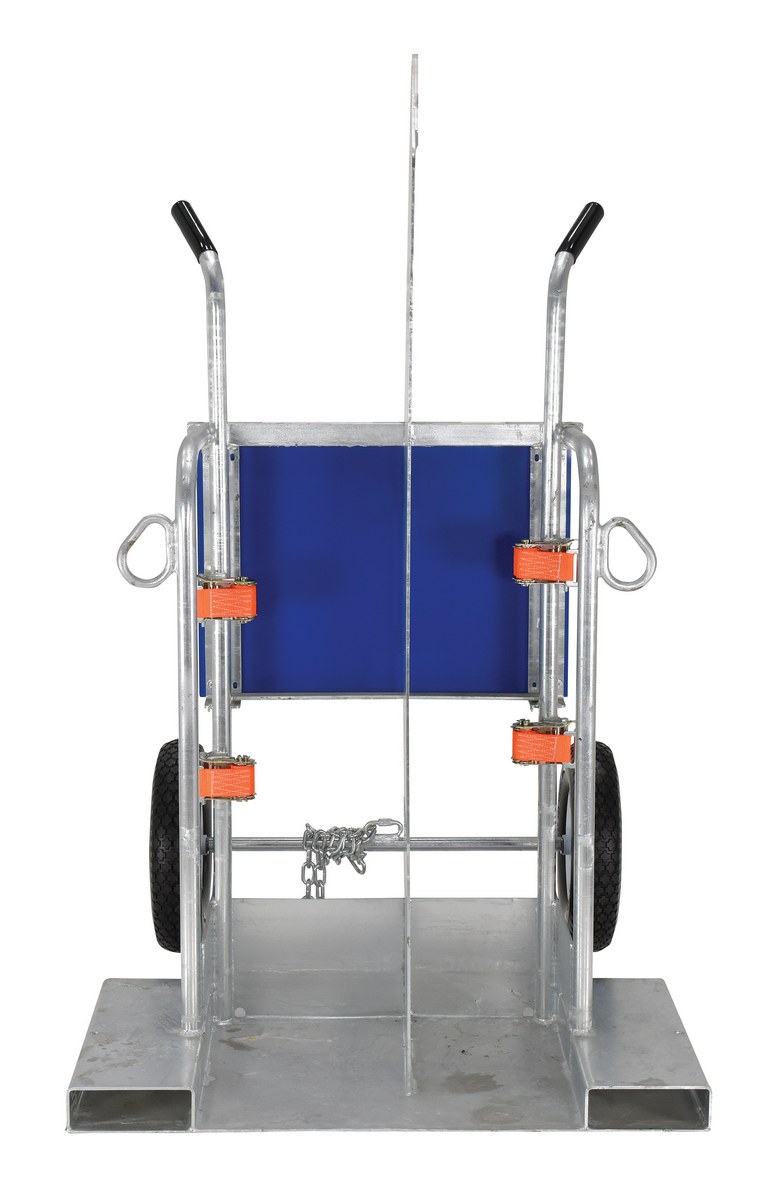

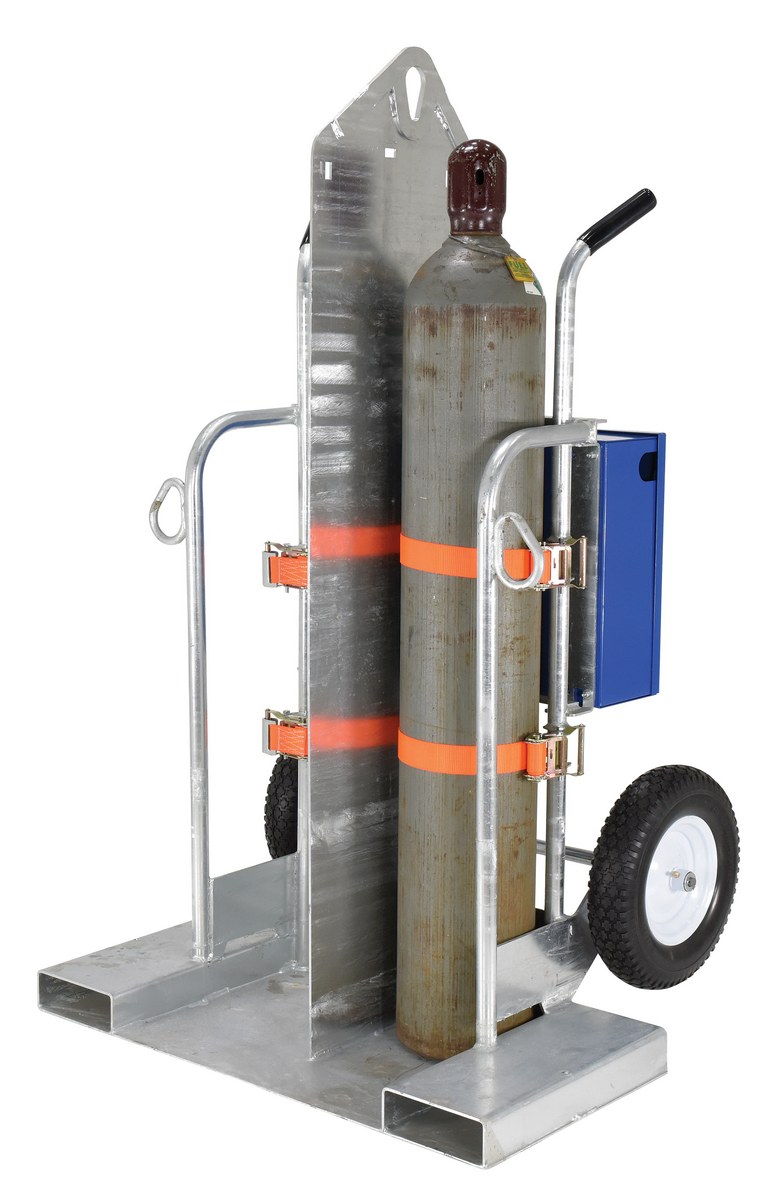

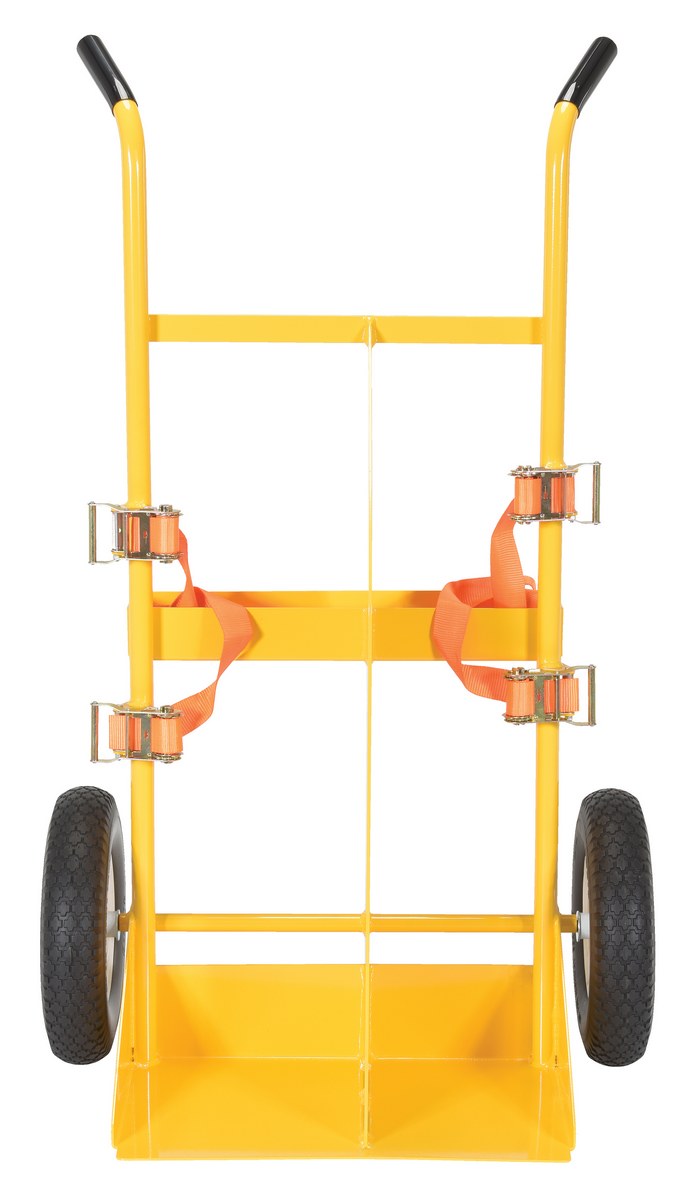

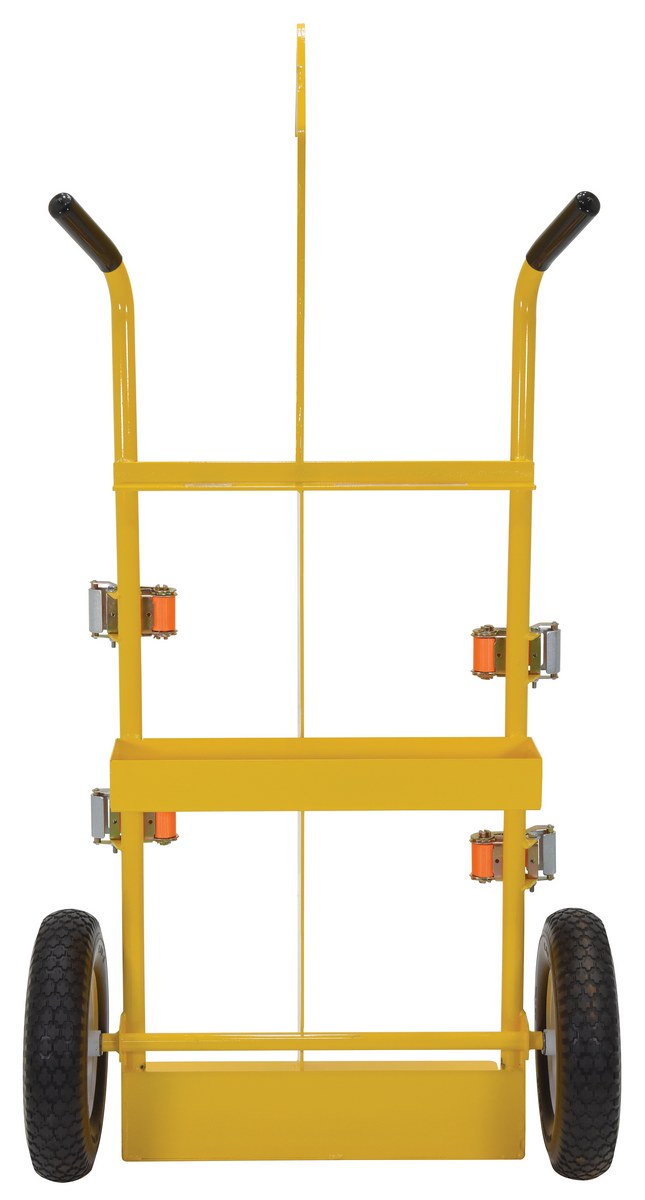

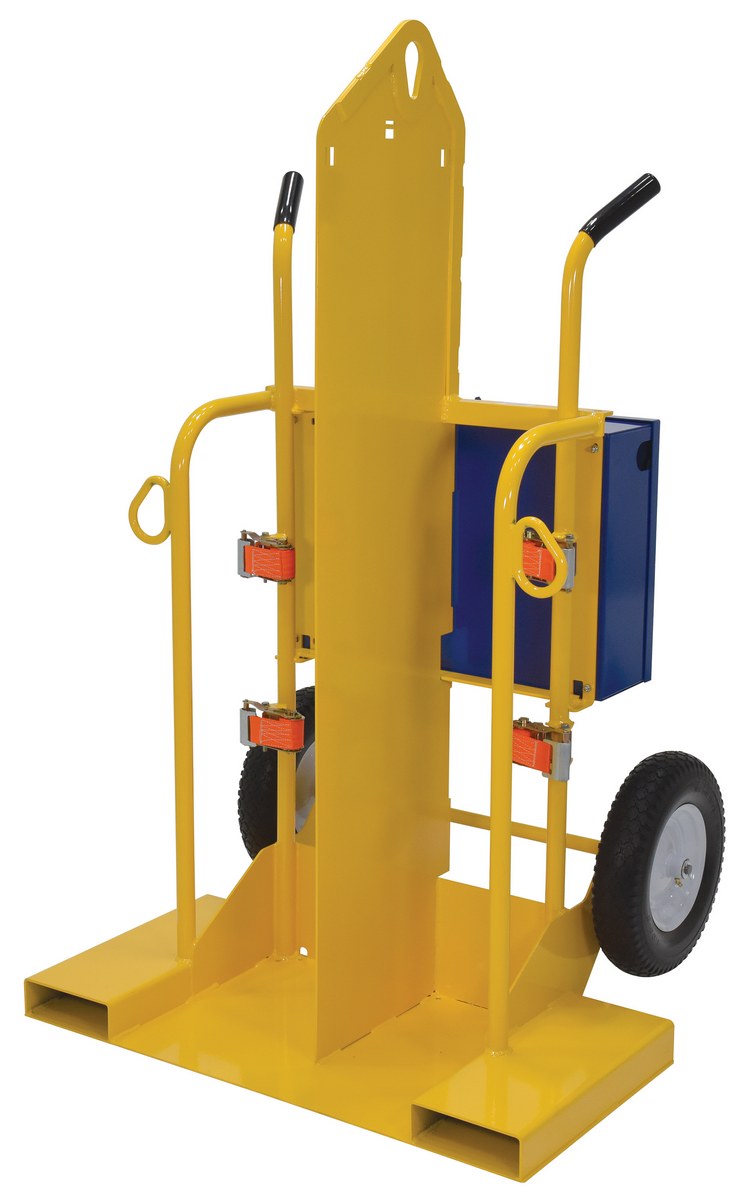

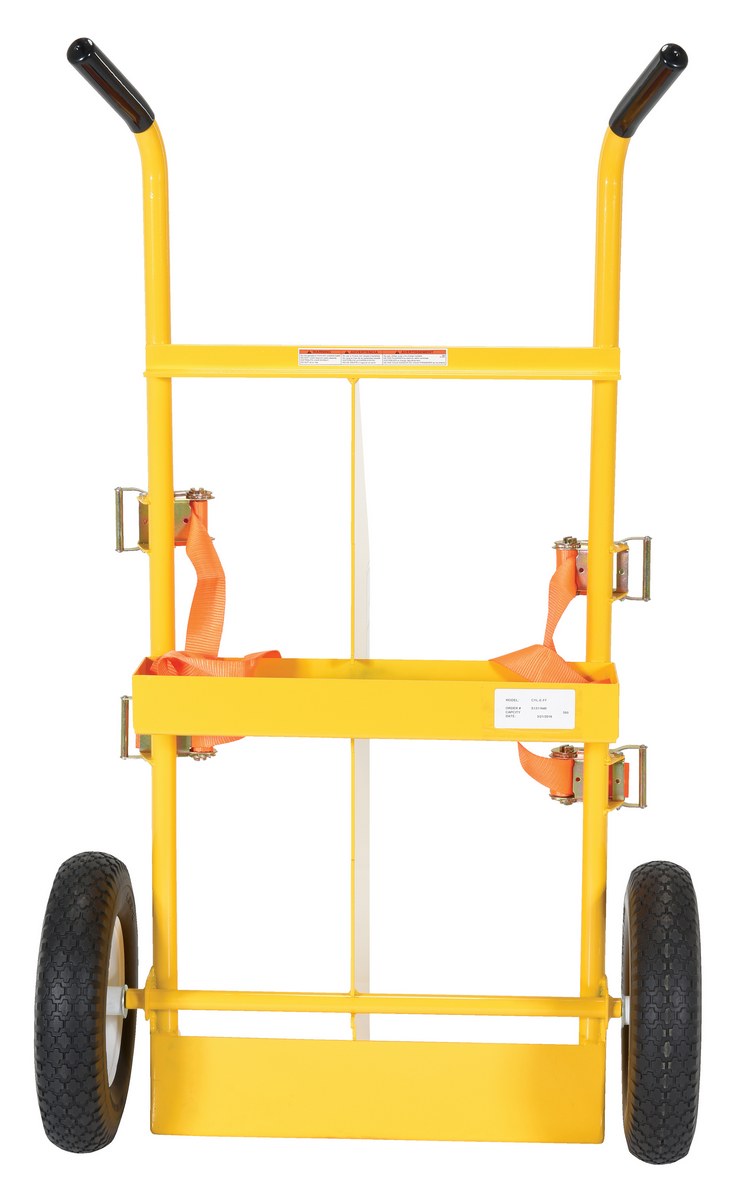

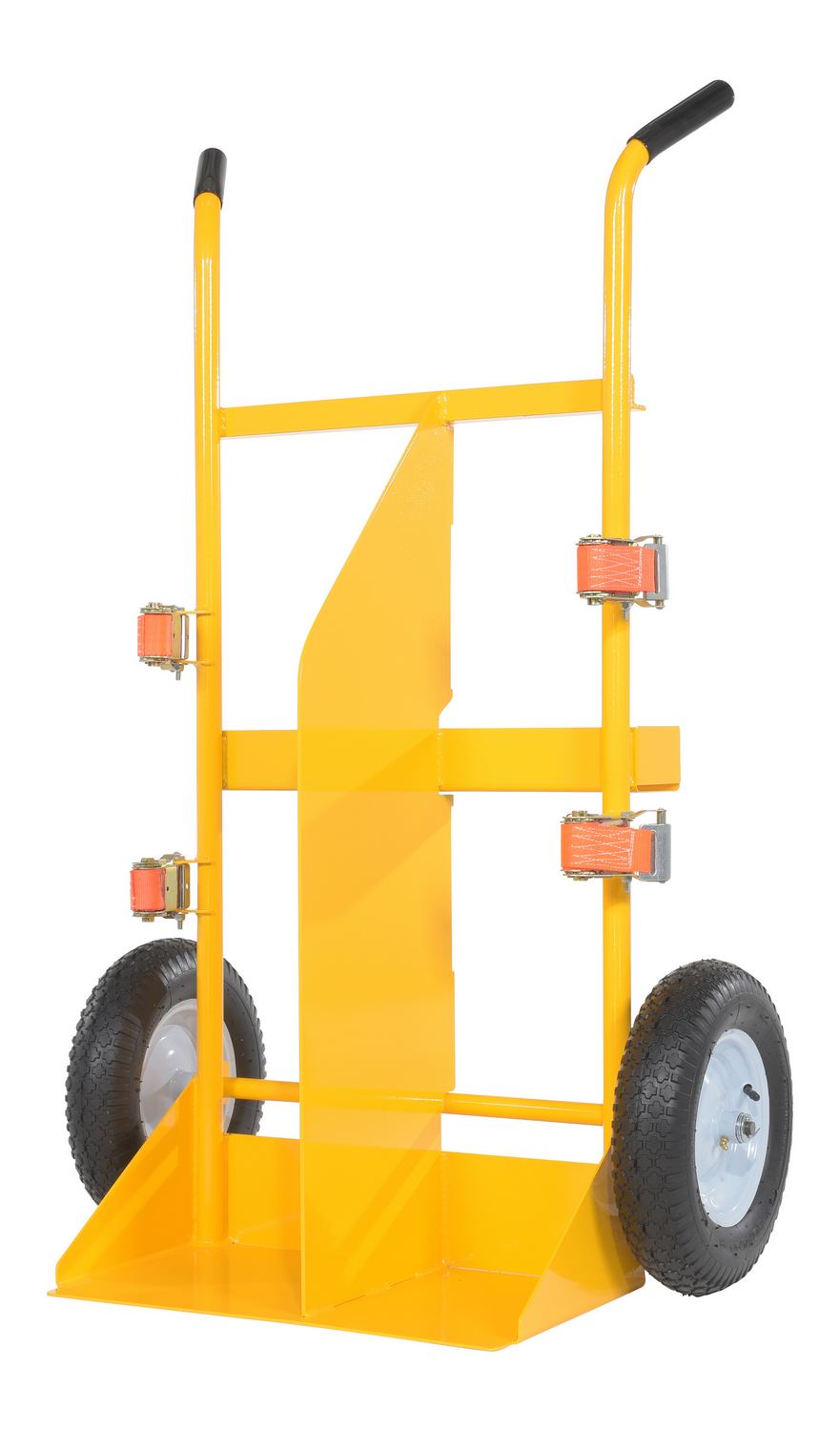

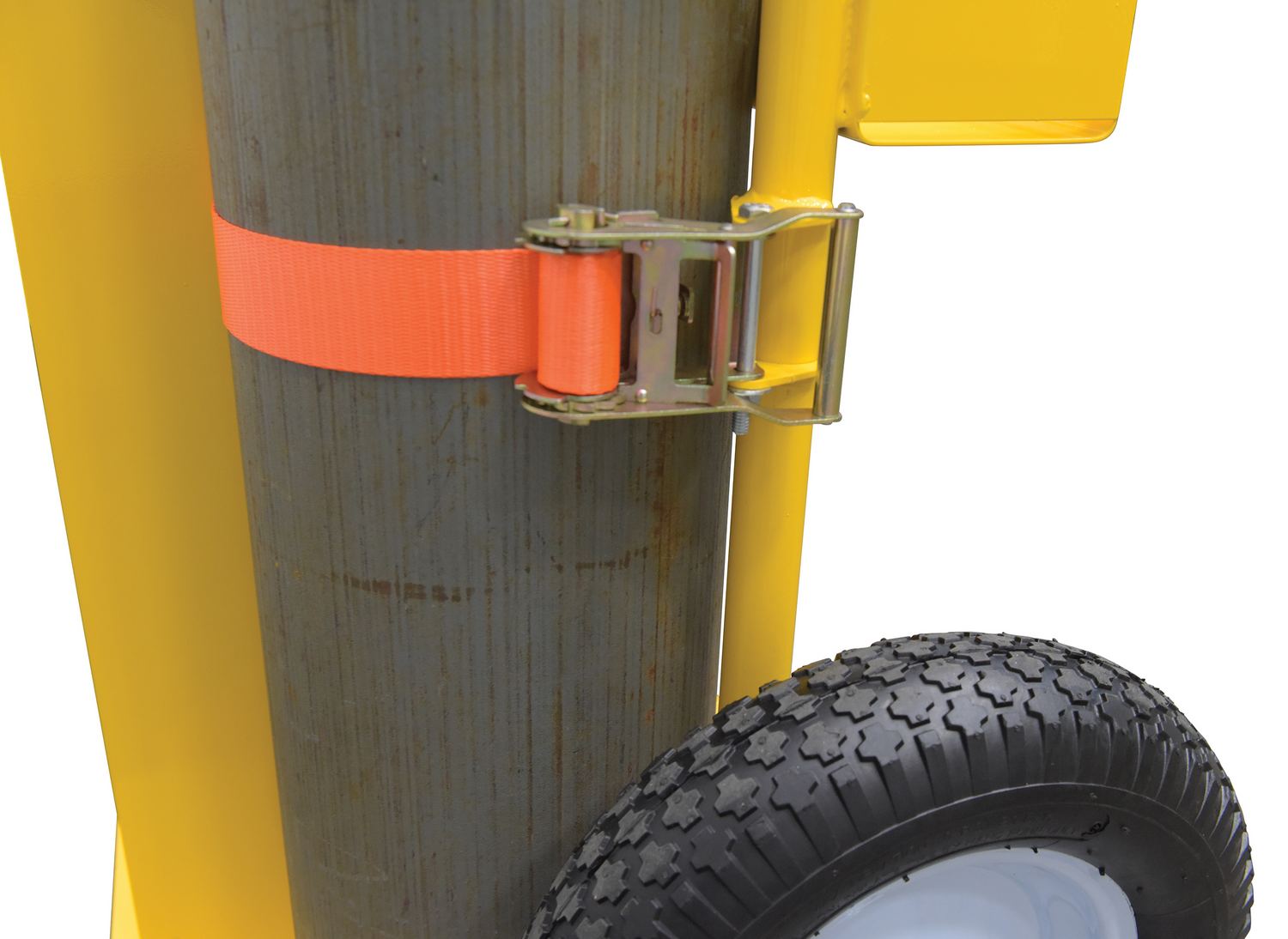

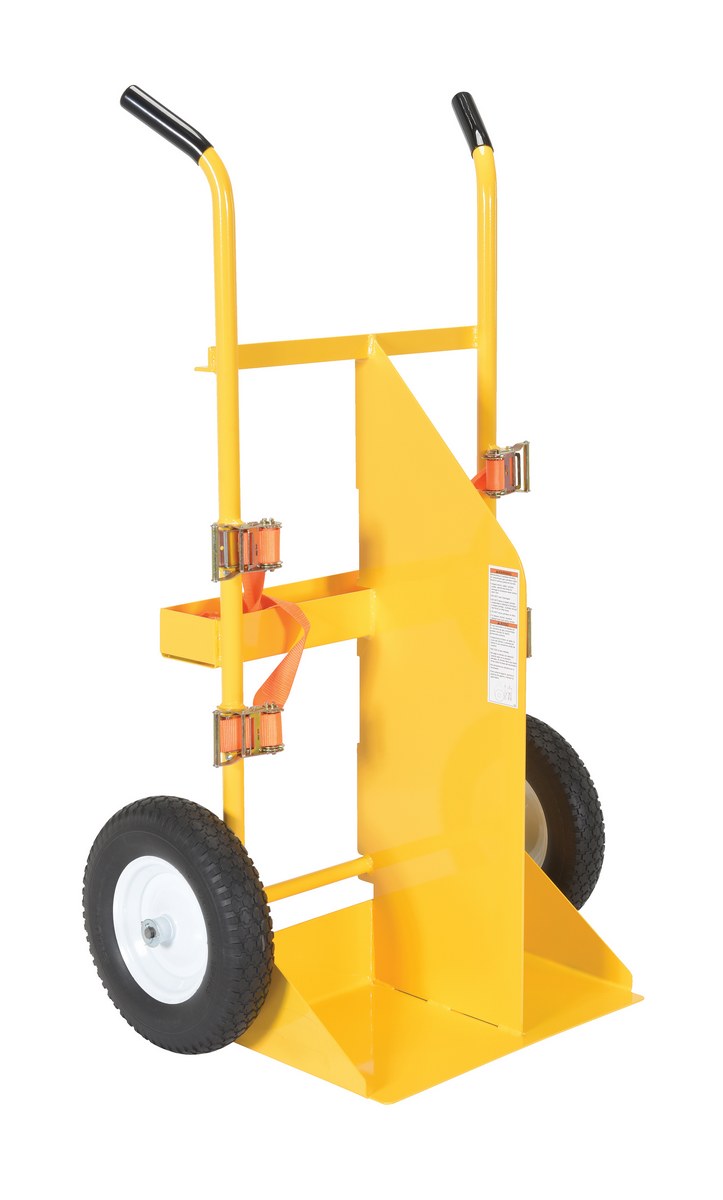

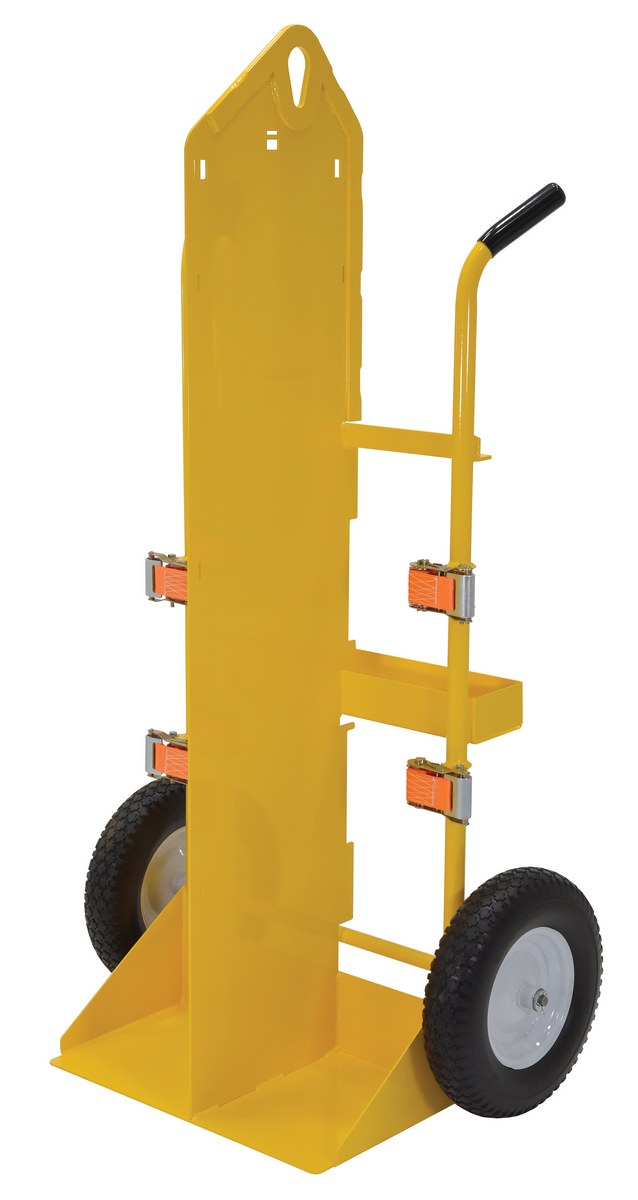

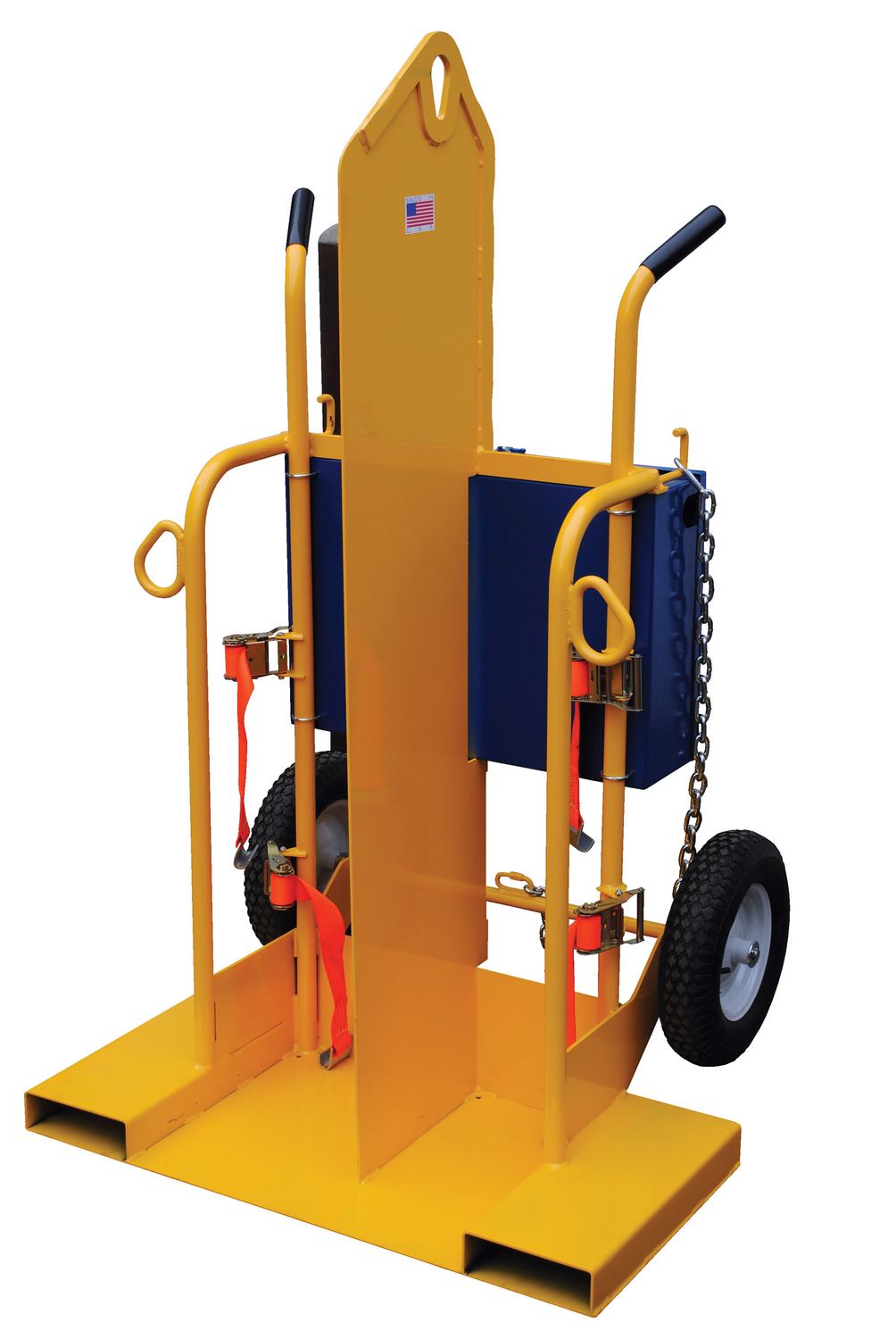

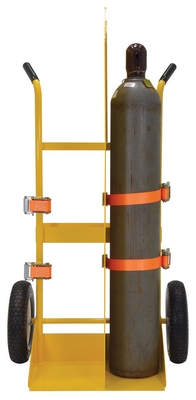

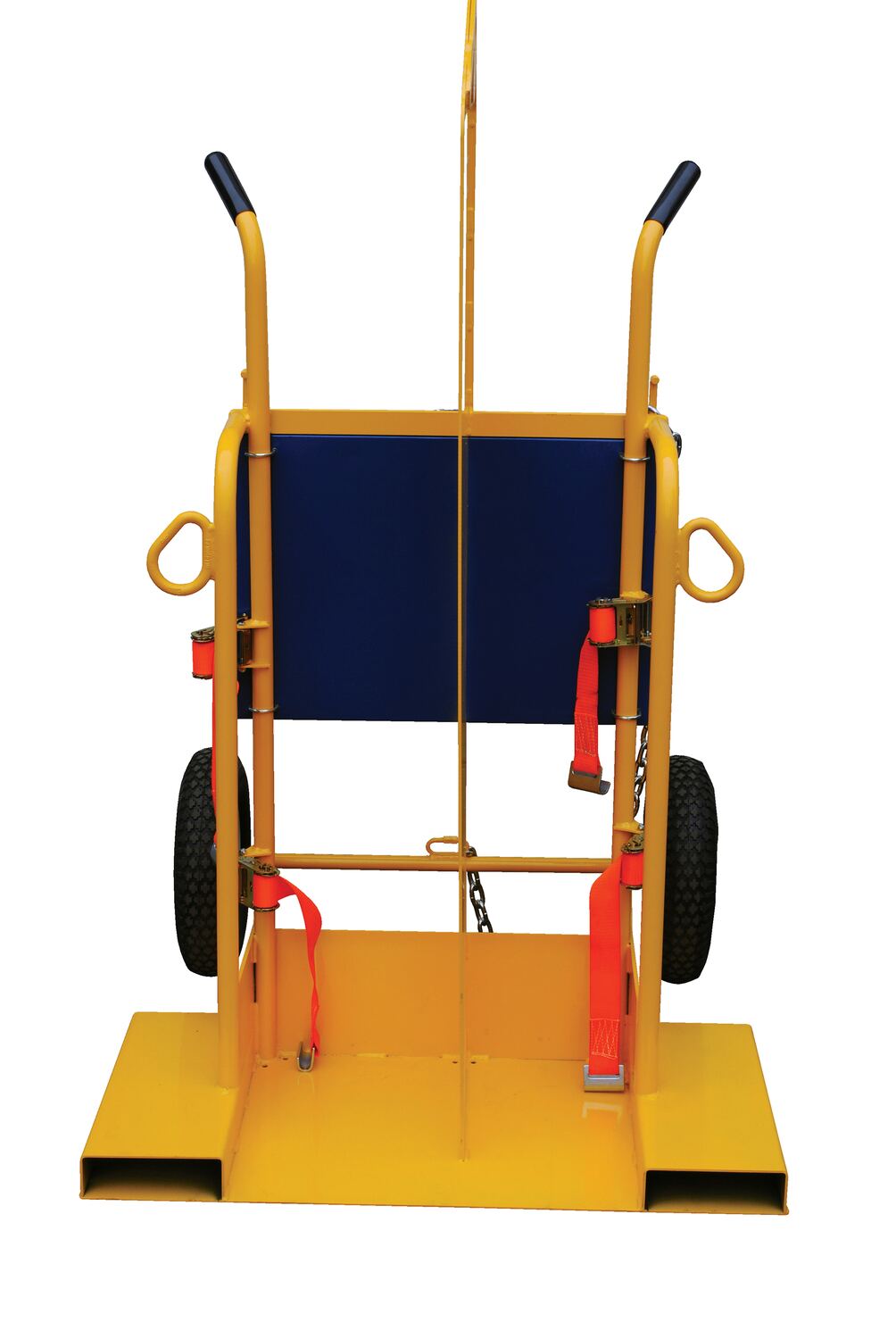

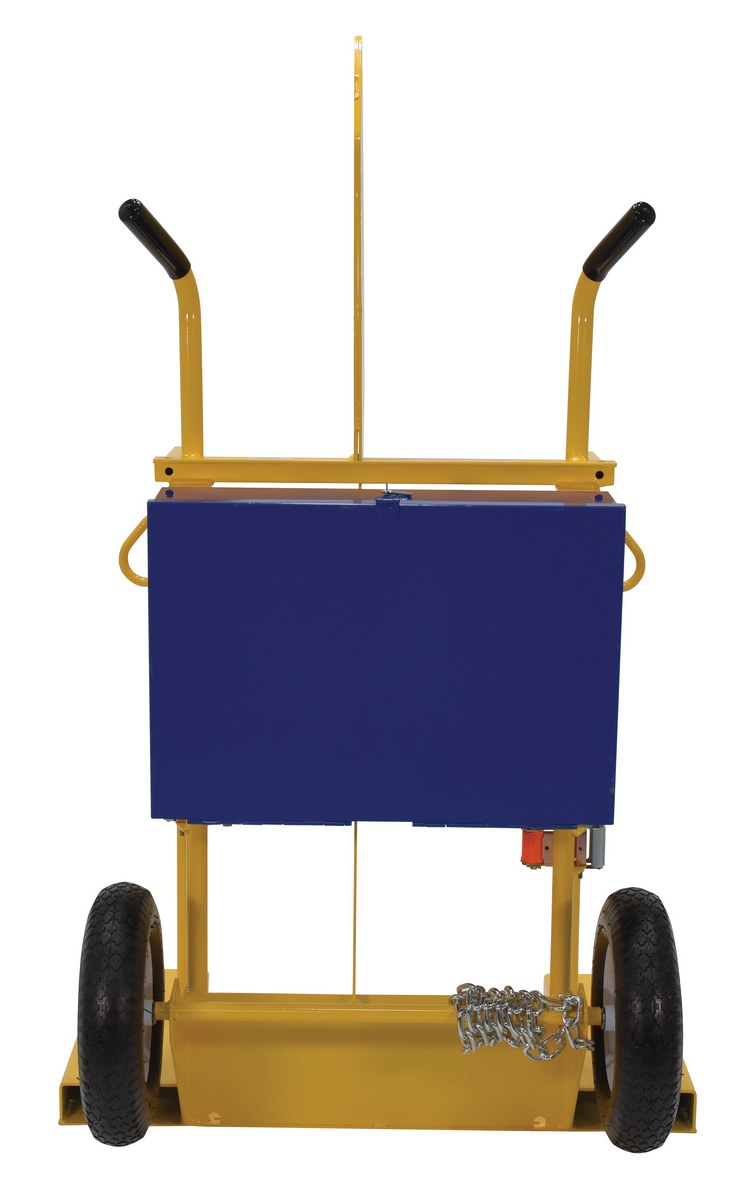

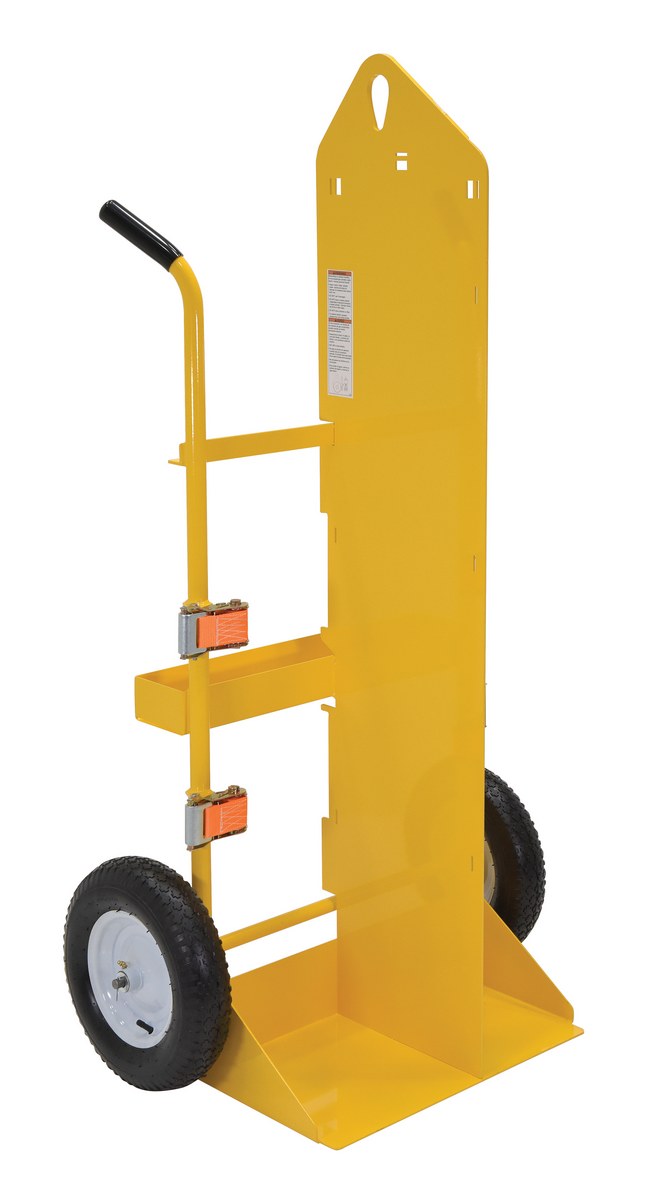

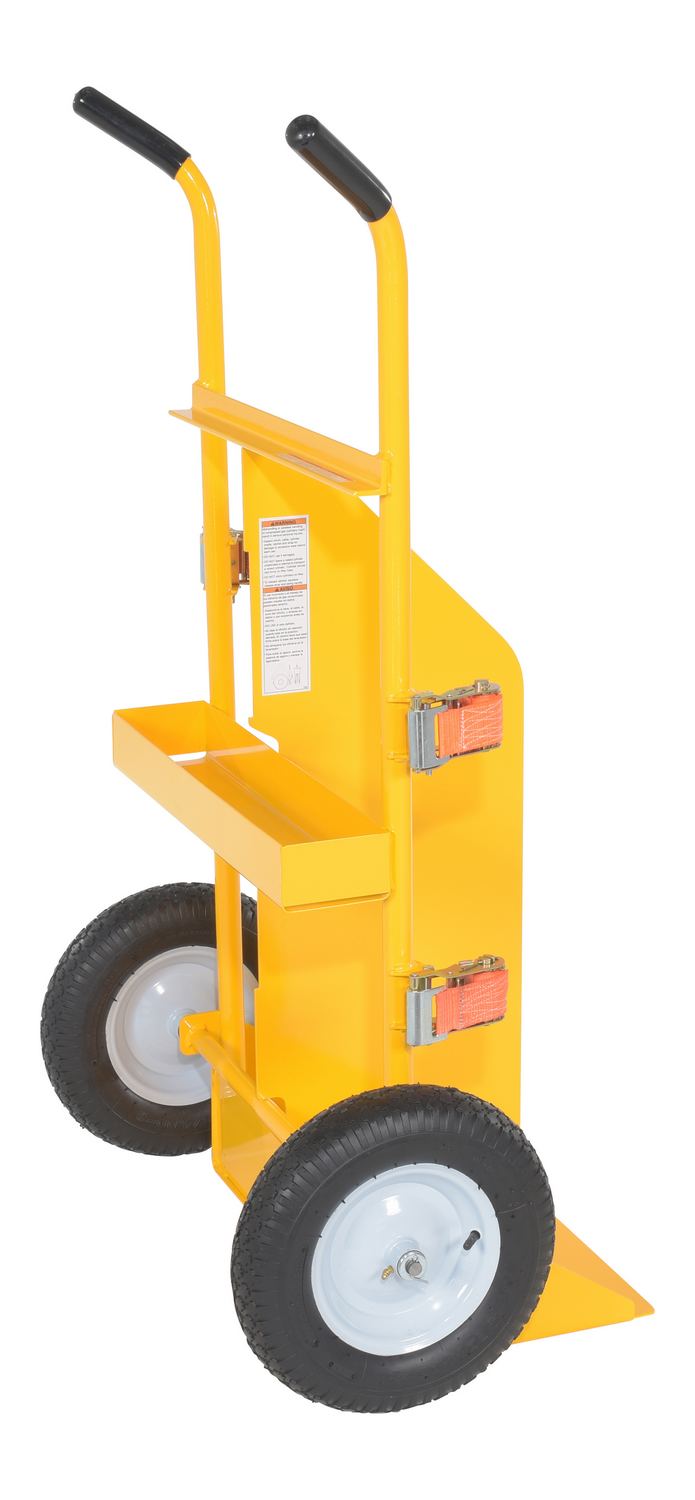

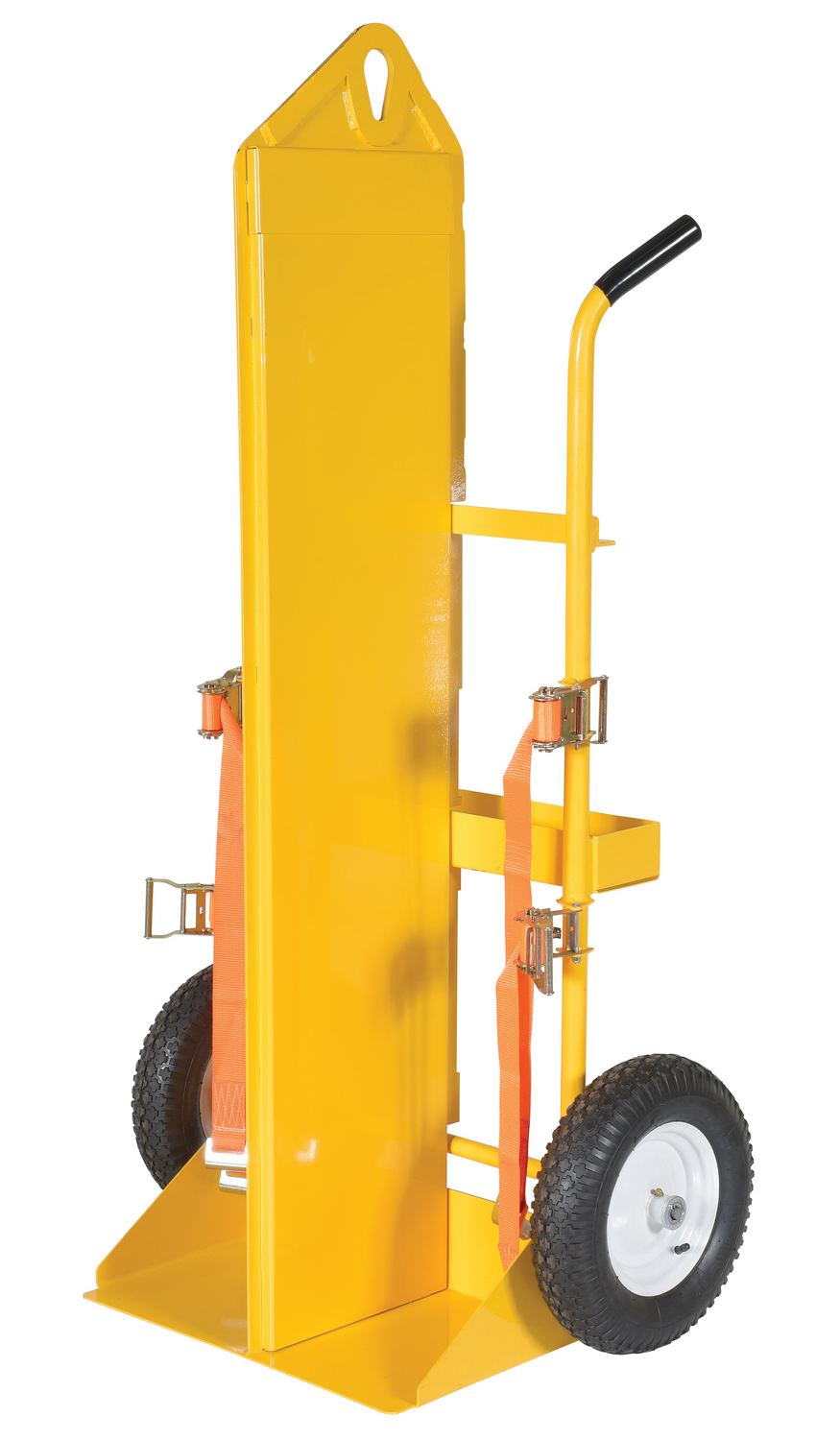

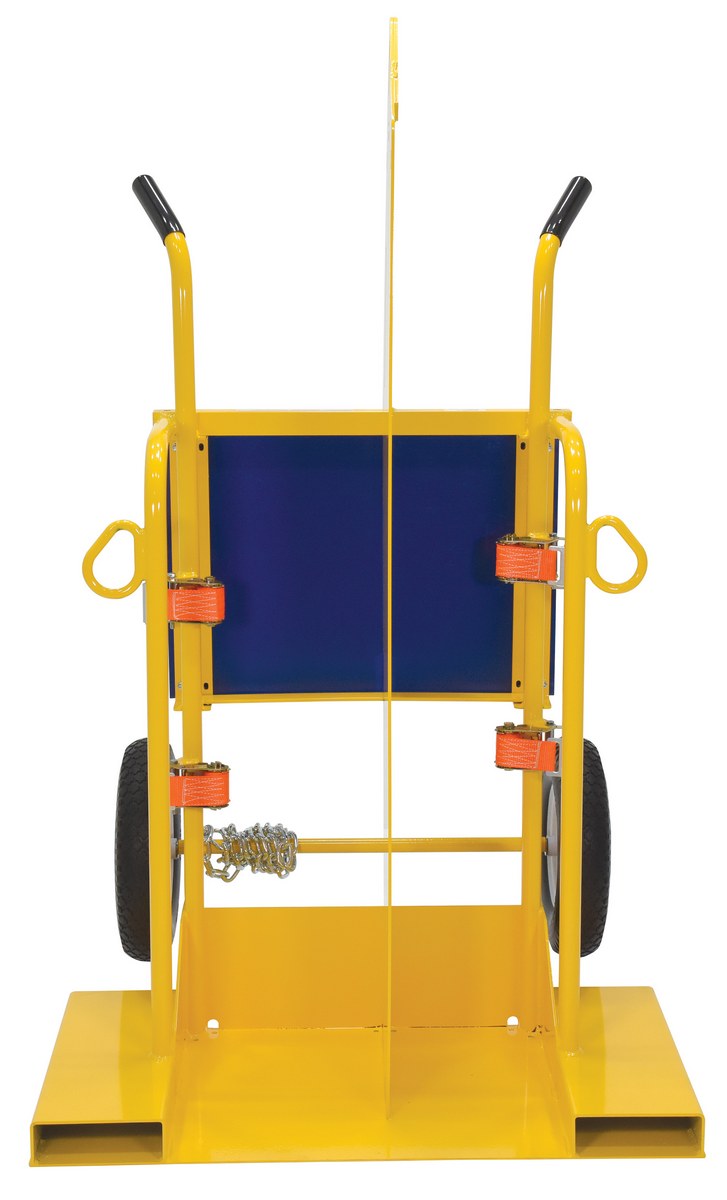

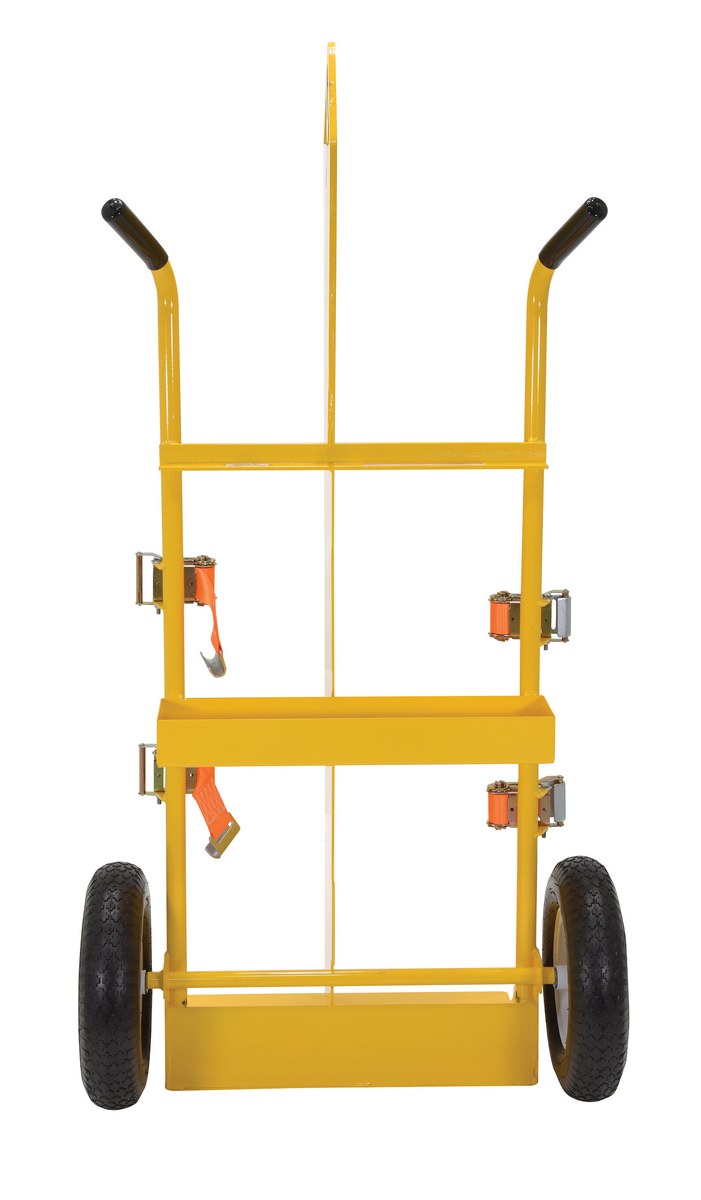

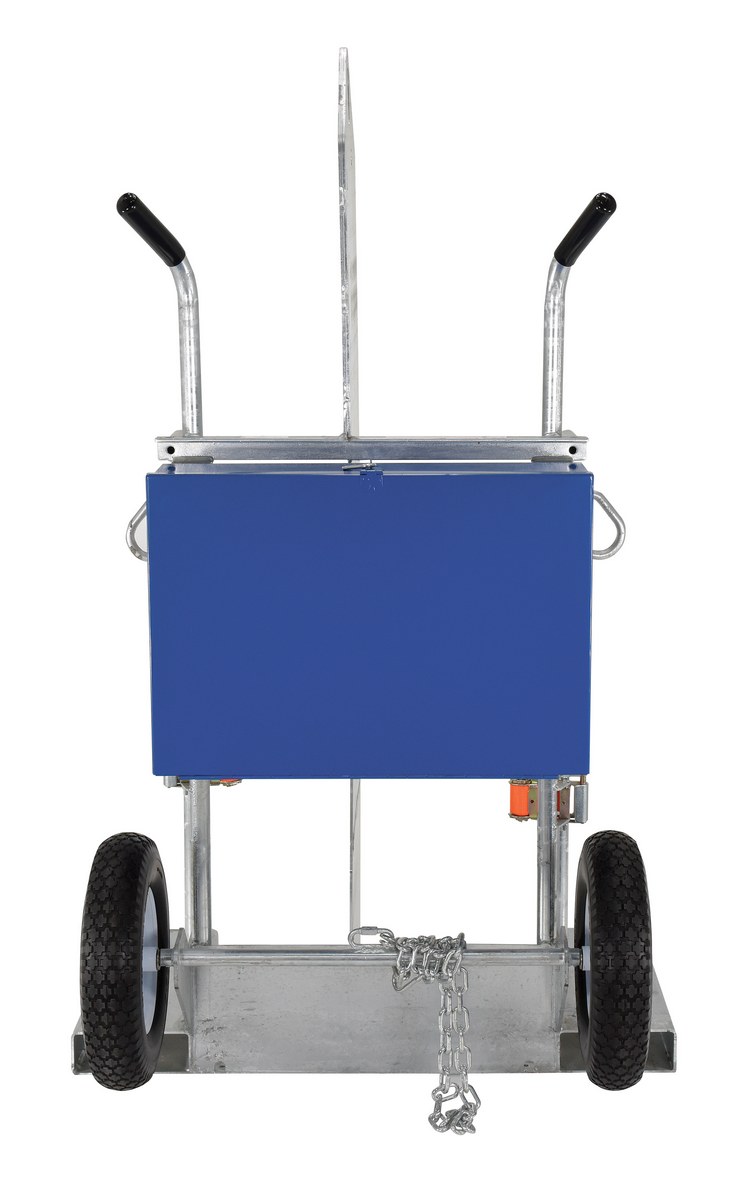

Designed for transporting cylinders and cutting torch. Includes two tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large 16" diameter wheels for tilt-n-go portability. Heavy-duty uniform capacity rating is 500 lbs. HCYL-2 models include lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Lifting eye is 2" max. diameter, material thickness is 7/16". Usable size of each fork pocket is 7-1/2"W x 2-9/16"H. Units with fire protection include 1/2" (approximately 13mm) marinite 1 material, which provides a 30 minute fire protection barrier as described by OSHA standards 1910.253 and 1926.350. All units include cutting torch box, overhead lifting eye, and fork pockets. FOB Shipping Point.
/iframe>
'WELDING CYLINDER TORCH CARTS'
| Product No. | Wheel Type |
Overall Size W x L x H |
Fire Protection | Wt. (lbs.) | price | Quantity |
|---|---|---|---|---|---|---|
| HCYL-2-FP | Pneumatic | 40-1/4 x 34-9/16 x 66-3/8" | Yes | 305 |
TODAY: $0.00 |
X
|
| HCYL-2 | Pneumatic | 40-1/4 x 34-9/16 x 66-3/8" | No | 282 |
TODAY: $0.00 |
X
|
| HCYL-2-FF | Foam Filled | 40-1/4 x 34-3/8 x 66-3/8" | No | 306 |
TODAY: $0.00 |
X
|
| HCYL-2-FP-FF | Foam-Filled | 40-1/4 x 34-3/8 x 66-3/8" | Yes | 336 |
TODAY: $0.00 |
X
|
'WELDING CYLINDER TORCH CARTS'
- Wheel Type: Pneumatic
- Overall Size W x L x H: 40-1/4 x 34-9/16 x 66-3/8"
- Fire Protection: Yes
- Wt. (lbs.): 305
- :
- Wheel Type: Pneumatic
- Overall Size W x L x H: 40-1/4 x 34-9/16 x 66-3/8"
- Fire Protection: No
- Wt. (lbs.): 282
- :
- Wheel Type: Foam Filled
- Overall Size W x L x H: 40-1/4 x 34-3/8 x 66-3/8"
- Fire Protection: No
- Wt. (lbs.): 306
- :
- Wheel Type: Foam-Filled
- Overall Size W x L x H: 40-1/4 x 34-3/8 x 66-3/8"
- Fire Protection: Yes
- Wt. (lbs.): 336
- :
