Air Lifting Bags

Air Lifting Bags, 22.7 tons, 22 in X 22 in
  • Availability: Typically ships in 3-5 days
Availability: Typically ships in 3-5 days
Need a Quote or
Have a question?

  • Serrated lifting surface on each side of the air bag helps prevent load slippage
  • Bright X is molded into each bag for easy center point placement
  • B22A through B74A bags come with side holes for attaching bags together
  • Reinforced edge protect the bag where damage often occurs
ORS Nasco - ORS
Air Lifting Bags
Product No. Air Req. @ 116 PSI Length [Nom] Lifting Height/Take-Up [Max] Lifting Height/Take-Up [Min] Material Operating Pressure [Max] price Quantity
720-B22A 10.45 cu ft 22 in 10.6 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B59A 46.8 cu ft 35 in 17.7 in 1.2 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X

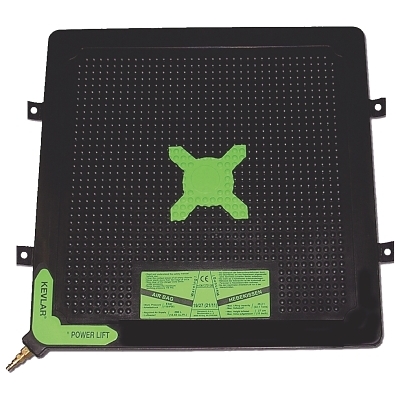

720-B14A 5.37 cu ft 18 in 8.6 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B35A 21.9 cu ft 27 in 14.1 in 1.2 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B11A 3.04 cu ft 15 in 7 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B46A 32.5 cu ft 31 in 16.5 in 1.2 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B1A 0.18 cu ft 6 in 2.7 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B3A 0.53 cu ft 9 in 3.1 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B28A 14.7 cu ft 24 in 11.8 in 1.2 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
720-B6A 1.48 cu ft 12 in 5.9 in 1.1 in 2-Ply Kevlar w/Neoprene 116 psi List Price: $0.00
TODAY: $0.00
X
Air Lifting Bags
  • Air Req. @ 116 PSI: 10.45 cu ft
  • Length [Nom]: 22 in
  • Lifting Height/Take-Up [Max]: 10.6 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 46.8 cu ft
  • Length [Nom]: 35 in
  • Lifting Height/Take-Up [Max]: 17.7 in
  • Lifting Height/Take-Up [Min]: 1.2 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 5.37 cu ft
  • Length [Nom]: 18 in
  • Lifting Height/Take-Up [Max]: 8.6 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 21.9 cu ft
  • Length [Nom]: 27 in
  • Lifting Height/Take-Up [Max]: 14.1 in
  • Lifting Height/Take-Up [Min]: 1.2 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 3.04 cu ft
  • Length [Nom]: 15 in
  • Lifting Height/Take-Up [Max]: 7 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 32.5 cu ft
  • Length [Nom]: 31 in
  • Lifting Height/Take-Up [Max]: 16.5 in
  • Lifting Height/Take-Up [Min]: 1.2 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 0.18 cu ft
  • Length [Nom]: 6 in
  • Lifting Height/Take-Up [Max]: 2.7 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 0.53 cu ft
  • Length [Nom]: 9 in
  • Lifting Height/Take-Up [Max]: 3.1 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 14.7 cu ft
  • Length [Nom]: 24 in
  • Lifting Height/Take-Up [Max]: 11.8 in
  • Lifting Height/Take-Up [Min]: 1.2 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00

  • Air Req. @ 116 PSI: 1.48 cu ft
  • Length [Nom]: 12 in
  • Lifting Height/Take-Up [Max]: 5.9 in
  • Lifting Height/Take-Up [Min]: 1.1 in
  • Material: 2-Ply Kevlar w/Neoprene
TODAY: $0.00
