Heavy-Duty Cantilever Racks

Heavy-Duty Cantilever Racks are completely adjustable cantilever rack eliminates storage problems.

Long, unwieldy stock is handled quickly and efficiently by forklift; instant accessibility to one piece or a full load.Arms are adjustable up and down the length of the upright wherever there are pre-drilled holes. To adjust align arms with pre-drilled holes and bolt in. All arms feature lips to prevent product from falling off. Uprights and arms are sold separately, not in pairs. Custom rack systems can be designed for your special application.

Single-Sided Heavy-Duty Cantilever Uprights
Product No. Height Base Arms to Use Capacity (lbs) Net Weight (lbs) price Quantity
HU-C-10-18 120" 31" 18" 24,700 288 List Price: $0.00
TODAY: $0.00
X
HU-C-8-18 96" 31" 18" 24,700 260 List Price: $0.00
TODAY: $0.00
X
HU-C-8-48 96" 61" 42"/48" 14,200/12,800 312 List Price: $0.00
TODAY: $0.00
X
HU-C-8-36 96" 49" 30"/36" 18,300/16,000 290 List Price: $0.00
TODAY: $0.00
X
HU-C-8-24 96" 37" 24" 21,500 270 List Price: $0.00
TODAY: $0.00
X
HU-C-14-48 168" 61" 42"/48" 13,700/12,400 430 List Price: $0.00
TODAY: $0.00
X
HU-C-14-36 168" 49" 30"/36" 17,600/15,400 410 List Price: $0.00
TODAY: $0.00
X
HU-C-14-24 168" 37" 24" 20,200 390 List Price: $0.00
TODAY: $0.00
X
HU-C-14-18 168" 31" 18" 23,400 380 List Price: $0.00
TODAY: $0.00
X
HU-C-12-48 144" 61" 42"/48" 13,900/12,500 390 List Price: $0.00
TODAY: $0.00
X
HU-C-10-24 120" 37" 24" 21,500 307 List Price: $0.00
TODAY: $0.00
X
HU-C-10-36 120" 49" 30"/36" 18,300/16,000 328 List Price: $0.00
TODAY: $0.00
X
HU-C-10-48 120" 61" 42"/48" 14,200/12,800 350 List Price: $0.00
TODAY: $0.00
X
HU-C-12-18 144" 31" 18" 24,400 340 List Price: $0.00
TODAY: $0.00
X
HU-C-12-24 144" 37" 24" 20,900 348 List Price: $0.00
TODAY: $0.00
X
HU-C-12-36 144" 49" 30"/36" 17,800/15,600 370 List Price: $0.00
TODAY: $0.00
X

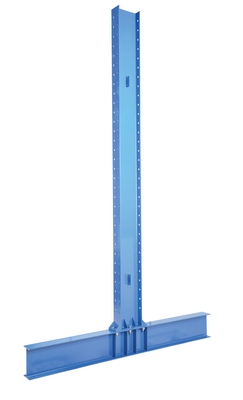

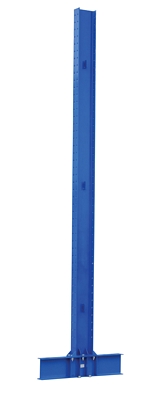

Double-Sided Heavy-Duty Cantilever Uprights
Product No. Height Base Arms to Use Capacity (lbs) Net Weight (lbs) price Quantity
HDU-C-12-24 144" 65" 24" 41,800 385 List Price: $0.00
TODAY: $0.00
X
HDU-C-12-36 144" 82" 30"/36" 35,600/31,200 430 List Price: $0.00
TODAY: $0.00
X
HDU-C-12-48 144" 106" 42"/48" 27,800/25,000 470 List Price: $0.00
TODAY: $0.00
X
HDU-C-14-18 168" 53" 18" 46,800 390 List Price: $0.00
TODAY: $0.00
X

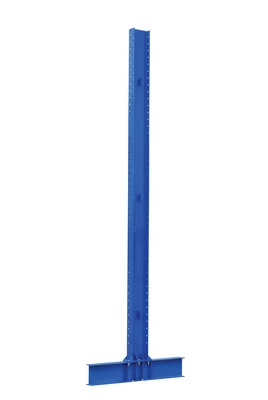

HDU-C-14-24 168" 65" 24" 40,400 426 List Price: $0.00
TODAY: $0.00
X
HDU-C-14-36 168" 82" 30"/36" 32,00/30,800 468 List Price: $0.00
TODAY: $0.00
X
HDU-C-14-48 168" 106" 42"/48" 27,400/24,800 510 List Price: $0.00
TODAY: $0.00
X
HDU-C-12-18 144" 53" 18" 48,800 350 List Price: $0.00
TODAY: $0.00
X
HDU-C-10-48 120" 106" 42"/48" 28,200/25,200 418 List Price: $0.00
TODAY: $0.00
X
HDU-C-8-18 96" 53" 18" 49,400 275 List Price: $0.00
TODAY: $0.00
X
HDU-C-8-24 96" 65" 24" 43,00 307 List Price: $0.00
TODAY: $0.00
X

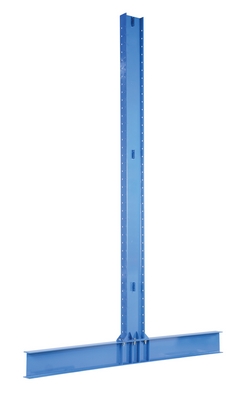

HDU-C-8-36 96" 82" 30"/36" 36,600/32,000 350 List Price: $0.00
TODAY: $0.00
X
HDU-C-8-48 96" 106" 42"/48" 28,400/25,600 390 List Price: $0.00
TODAY: $0.00
X
HDU-C-10-18 120" 53" 18" 49,200 300 List Price: $0.00
TODAY: $0.00
X
HDU-C-10-24 120" 65" 24" 42,600 335 List Price: $0.00
TODAY: $0.00
X
HDU-C-10-36 120" 82" 30"/36" 36,400/31,600 386 List Price: $0.00
TODAY: $0.00
X

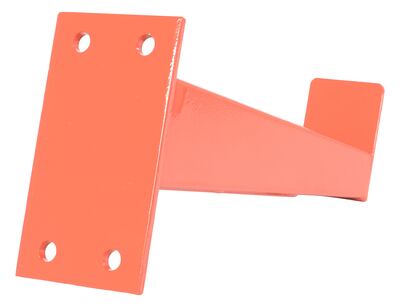

Straight Arms
Product No. Arm Length Uniform Capacity Per Arm (lbs) Weight (lbs) price Quantity
HSA-C-48 48" 1000 30 List Price: $0.00
TODAY: $0.00
X
HSA-C-42 42" 1100 27 List Price: $0.00
TODAY: $0.00
X
HSA-C-36 36" 1200 24 List Price: $0.00
TODAY: $0.00
X
HSA-C-30 30" 1500 22 List Price: $0.00
TODAY: $0.00
X

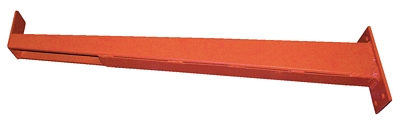

HSA-C-24 24" 2000 19 List Price: $0.00
TODAY: $0.00
X
HSA-C-18 18" 2500 16 List Price: $0.00
TODAY: $0.00
X

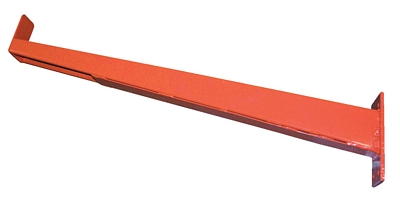

Inclined Arms
Product No. Arm Length Uniform Capacity Per Arm (lbs) Weight (lbs) price Quantity
HIA-C-36 36" 1200 24 List Price: $0.00
TODAY: $0.00
X
HIA-C-18 18" 2500 16 List Price: $0.00
TODAY: $0.00
X
HIA-C-24 24" 2000 19 List Price: $0.00
TODAY: $0.00
X
HIA-C-30 30" 1500 21 List Price: $0.00
TODAY: $0.00
X
HIA-C-48 48" 1000 30 List Price: $0.00
TODAY: $0.00
X
HIA-C-42 42" 1100 27 List Price: $0.00
TODAY: $0.00
X

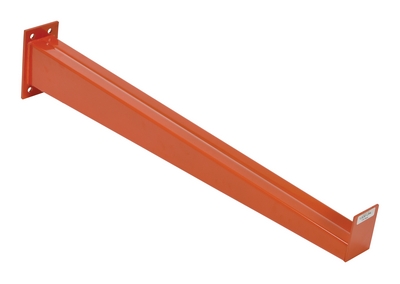

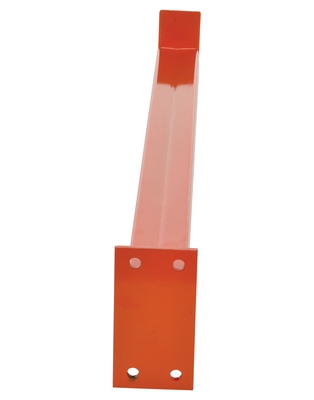

Heavy-Duty and Extra Heavy-Duty Arms
Product No. Arm Length Uniform Capacity Per Arm (lbs) Weight (lbs) price Quantity

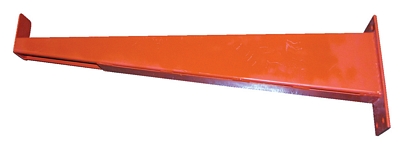

XHDSA-C-48 48" 2500 31 List Price: $0.00
TODAY: $0.00
X
HDSA-C-48 48" 1630 31 List Price: $0.00
TODAY: $0.00
X
XHDSA-C-42 42" 2900 29 List Price: $0.00
TODAY: $0.00
X
HDSA-C-42 42" 1865 29 List Price: $0.00
TODAY: $0.00
X
XHDSA-C-36 36" 3400 26 List Price: $0.00
TODAY: $0.00
X
HDSA-C-36 36" 2175 26 List Price: $0.00
TODAY: $0.00
X

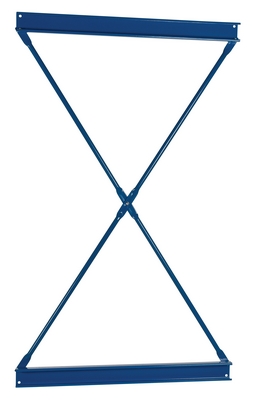

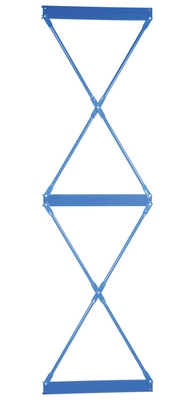

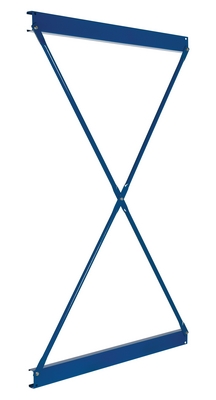

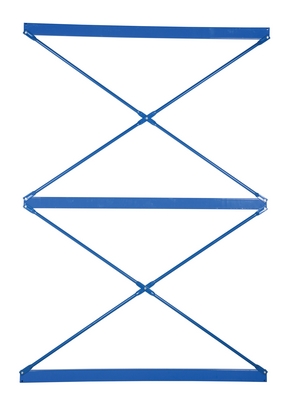

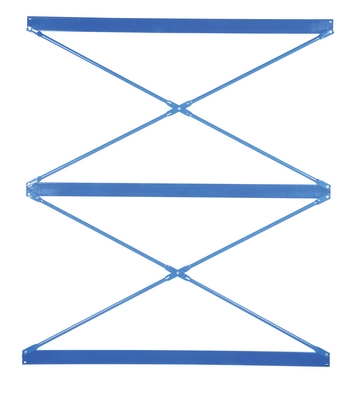

Brace Sets (includes two)
Product No. Upright Height Length Weight (lbs) price Quantity
HB-C-14-8 144-168" 96" 107 List Price: $0.00
TODAY: $0.00
X
HB-C-14-7 144-168" 84" 95 List Price: $0.00
TODAY: $0.00
X

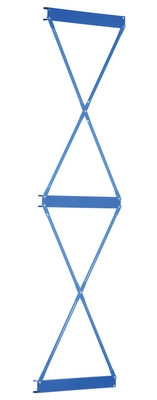

HB-C-14-6 144-168" 72" 84 List Price: $0.00
TODAY: $0.00
X
HB-C-14-5 144-168" 60" 64 List Price: $0.00
TODAY: $0.00
X
HB-C-14-4 144-168" 48" 54 List Price: $0.00
TODAY: $0.00
X
HB-C-14-3 144-168" 36" 44 List Price: $0.00
TODAY: $0.00
X
HB-C-8-8 96-120" 96" 69 List Price: $0.00
TODAY: $0.00
X
HB-C-8-7 96-120" 84" 61 List Price: $0.00
TODAY: $0.00
X
HB-C-8-6 96-120" 72" 54 List Price: $0.00
TODAY: $0.00
X
HB-C-8-5 96-120 60" 42 List Price: $0.00
TODAY: $0.00
X
HB-C-8-4 96-120" 48" 35 List Price: $0.00
TODAY: $0.00
X
HB-C-8-3 96-120" 36" 29 List Price: $0.00
TODAY: $0.00
X

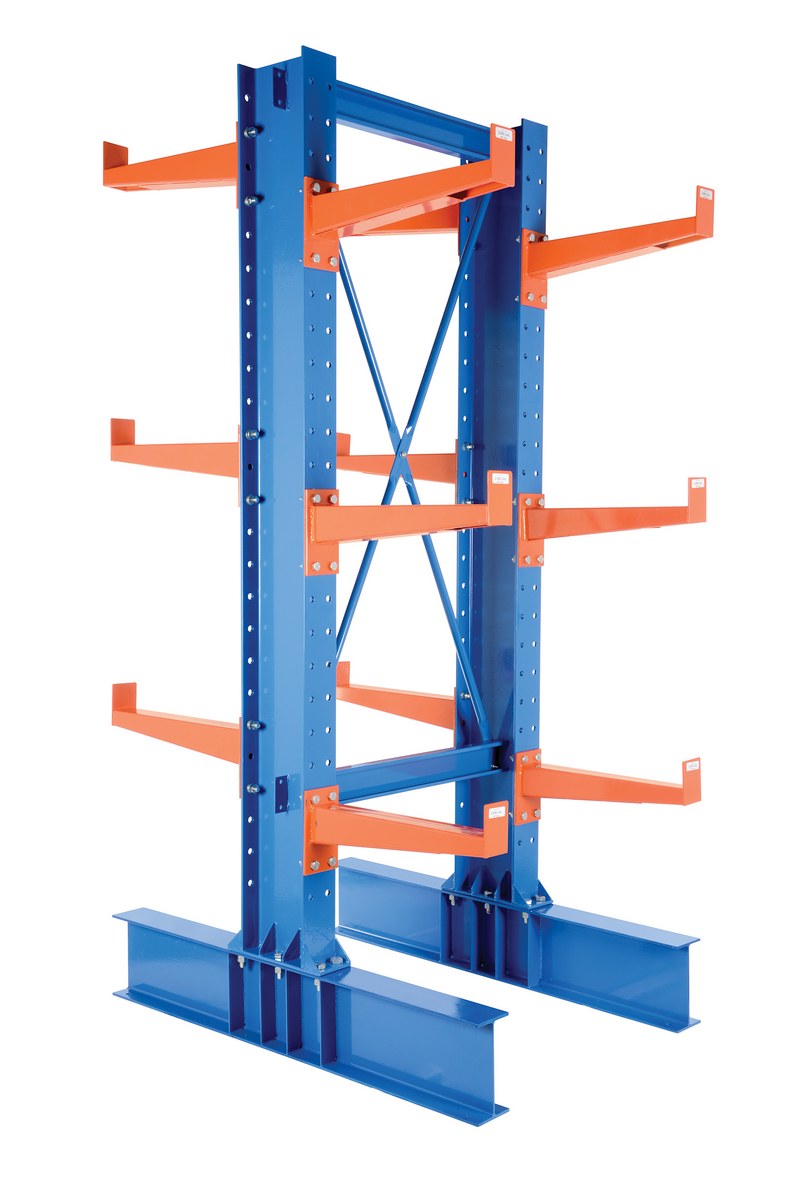

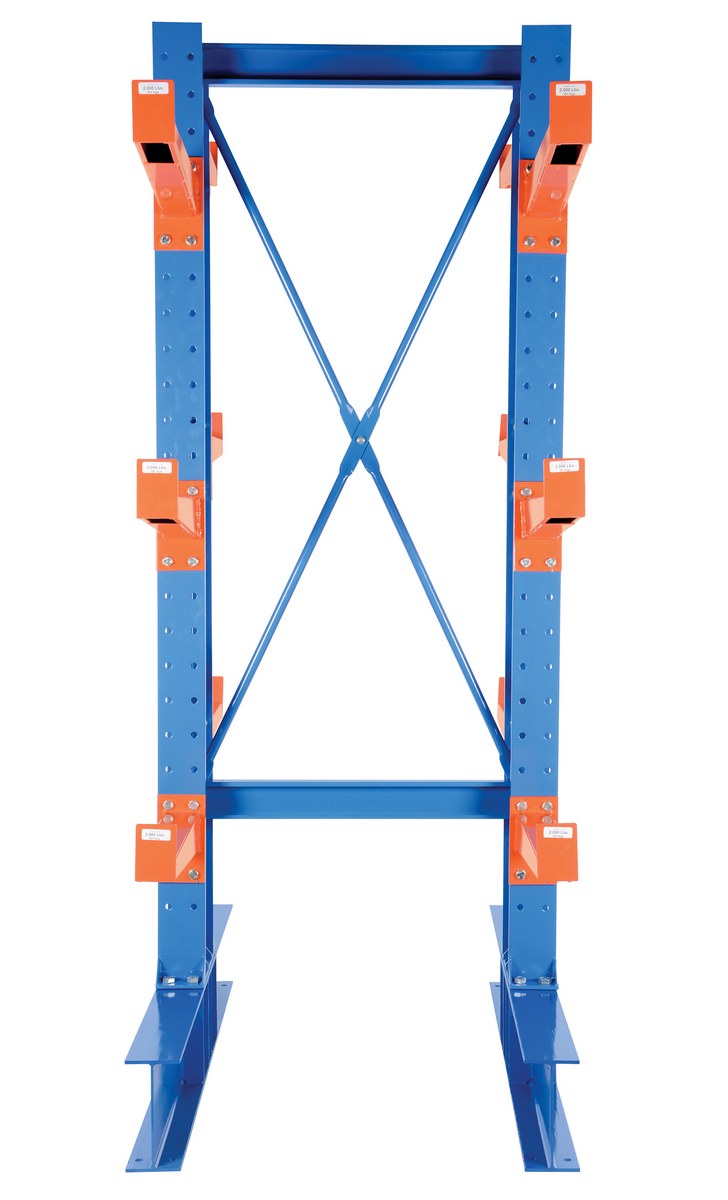

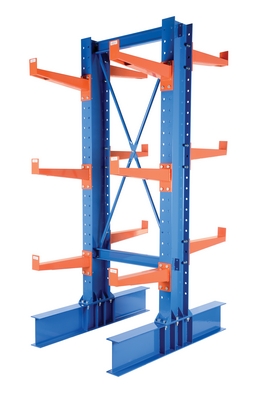

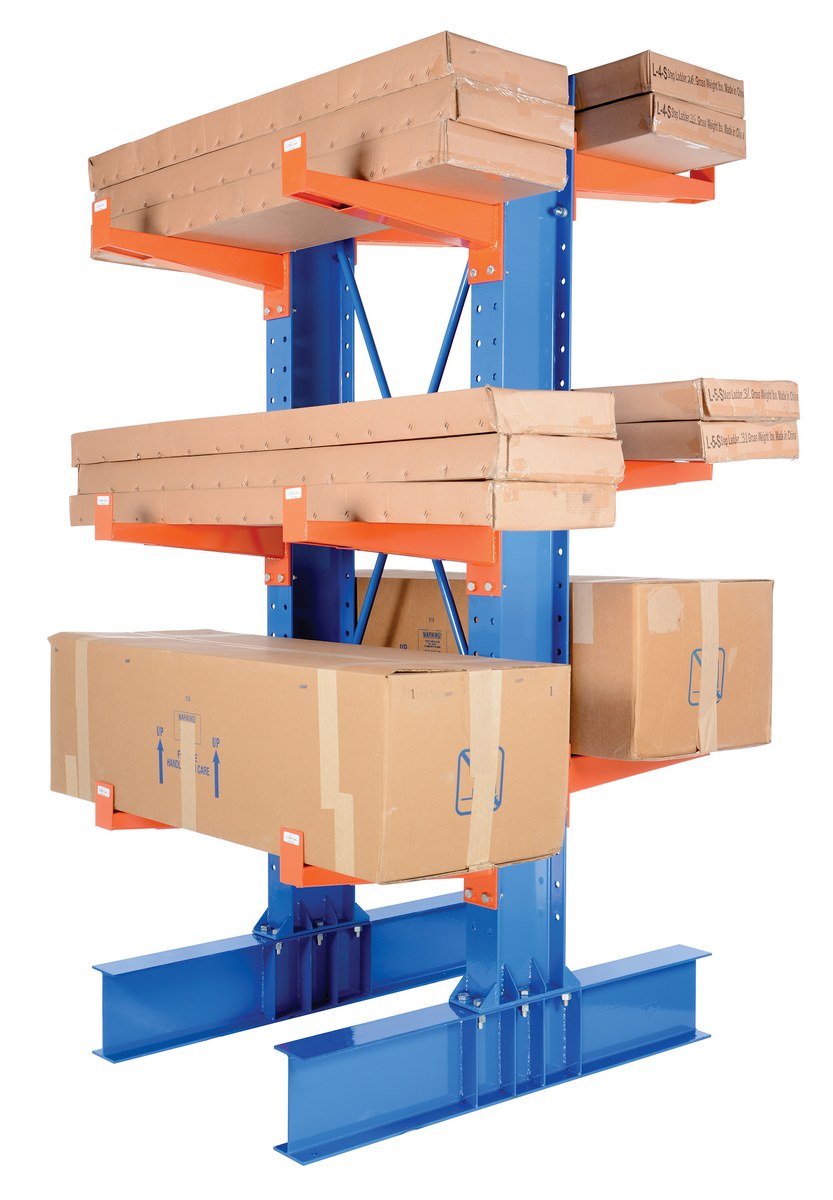

Heavy-Duty Cantilever Rack Sets
Product No. Package Contents Uniform Capacity Per Level (lbs) Weight (lbs) price Quantity

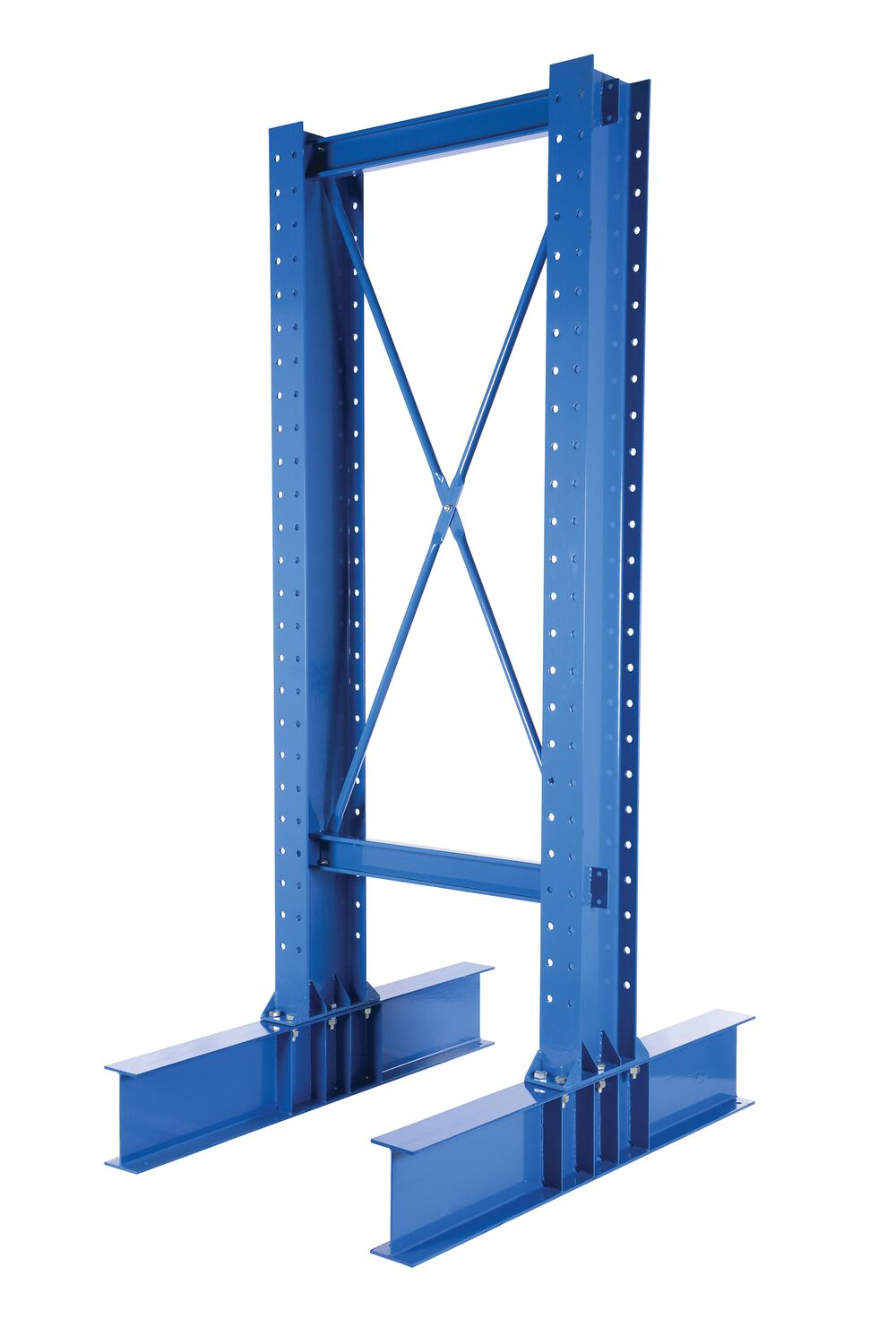

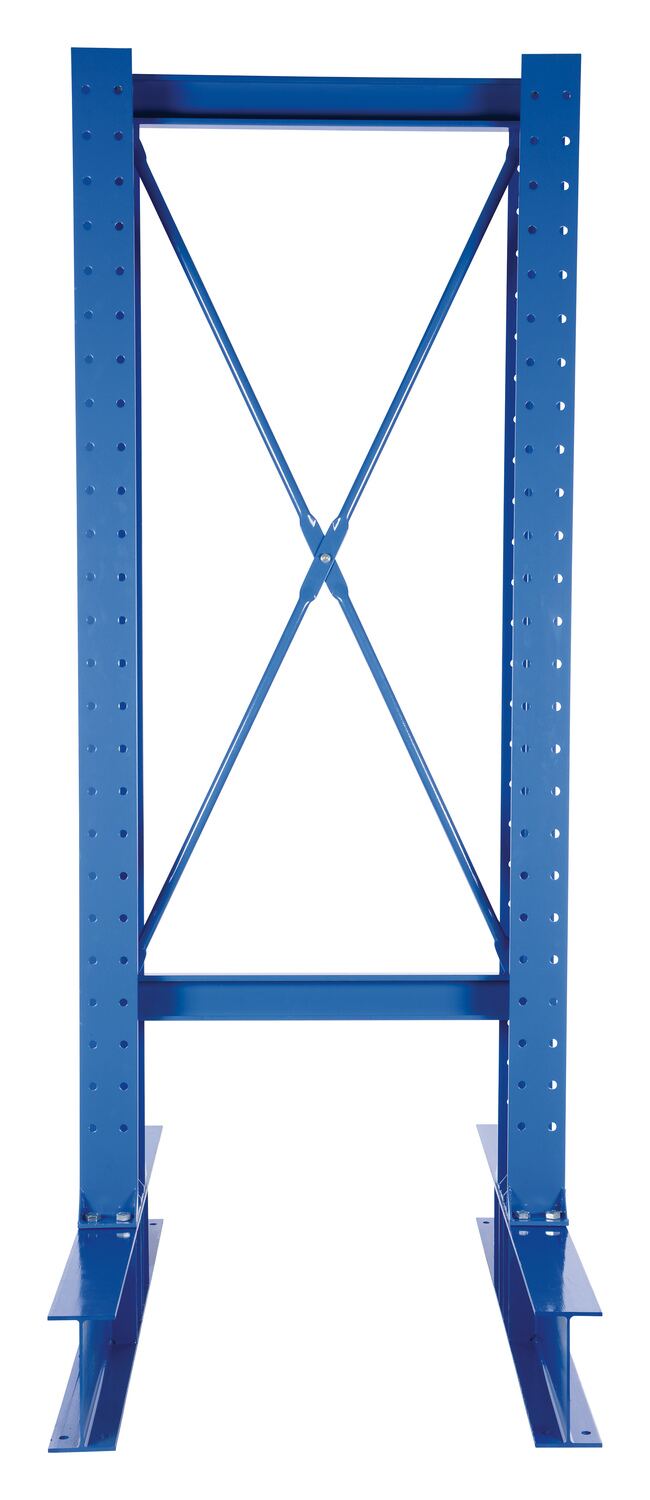

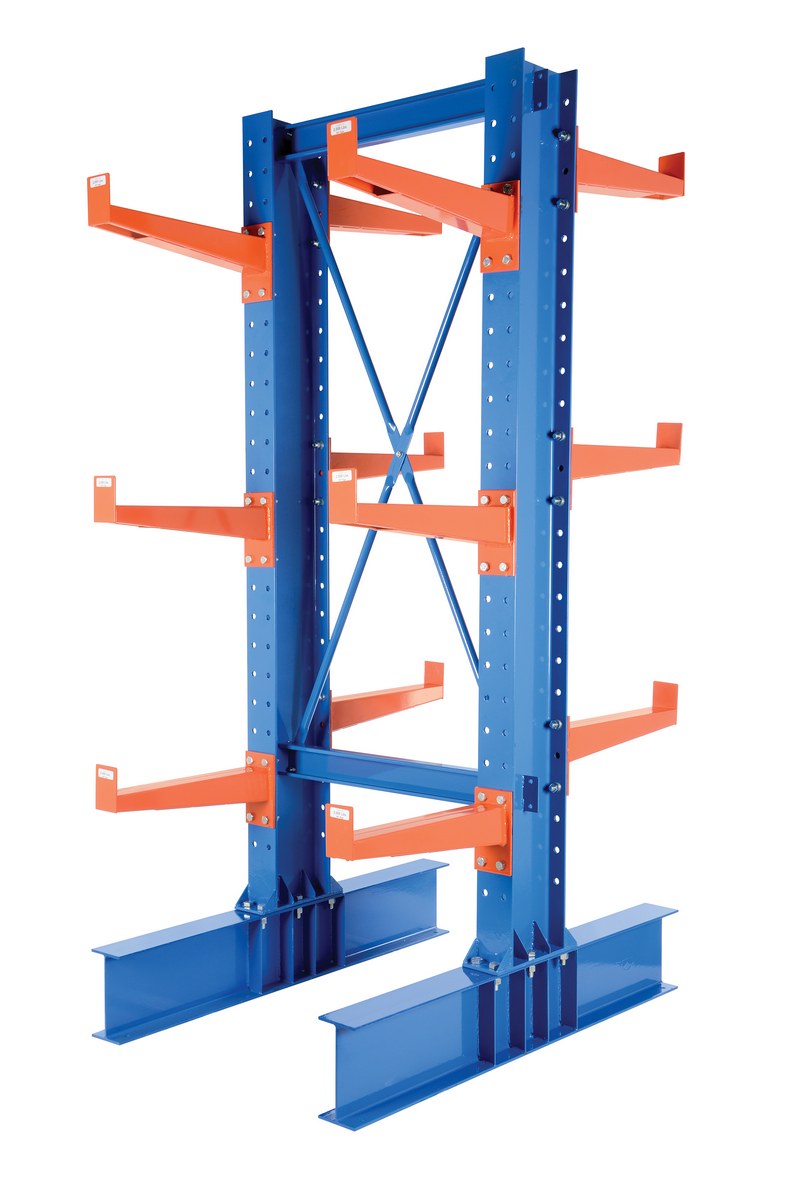

HDU-C-8-36-SET (2) HDU-C-8-36 8' High Double-Sided Uprights, (1) HB-C-8-6 Brace Set, (8) HSA-C-36 36" Arms 4800 1016 List Price: $0.00
TODAY: $0.00
X
HU-C-8-36-SET (2) HU-C-8-36 8' High Single-Sided Uprights, (1) HB-C-8-6 Brace Set, (4) HSA-C-36 36" Arms 2400 810 List Price: $0.00
TODAY: $0.00
X
HDU-C-8-24-SET (2) HDU-C-8-24 8' High Double-Sided Uprights, (1) HB-C-8-6 Brace Set, (8) HSA-C-24 24" Arms 8000 890 List Price: $0.00
TODAY: $0.00
X
Single-Sided Heavy-Duty Cantilever Uprights
  • Height: 120"
  • Base: 31"
  • Arms to Use: 18"
  • Capacity (lbs): 24,700
  • Net Weight (lbs): 288
TODAY: $0.00

  • Height: 96"
  • Base: 31"
  • Arms to Use: 18"
  • Capacity (lbs): 24,700
  • Net Weight (lbs): 260
TODAY: $0.00

  • Height: 96"
  • Base: 61"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 14,200/12,800
  • Net Weight (lbs): 312
TODAY: $0.00

  • Height: 96"
  • Base: 49"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 18,300/16,000
  • Net Weight (lbs): 290
TODAY: $0.00

  • Height: 96"
  • Base: 37"
  • Arms to Use: 24"
  • Capacity (lbs): 21,500
  • Net Weight (lbs): 270
TODAY: $0.00

  • Height: 168"
  • Base: 61"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 13,700/12,400
  • Net Weight (lbs): 430
TODAY: $0.00

  • Height: 168"
  • Base: 49"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 17,600/15,400
  • Net Weight (lbs): 410
TODAY: $0.00

  • Height: 168"
  • Base: 37"
  • Arms to Use: 24"
  • Capacity (lbs): 20,200
  • Net Weight (lbs): 390
TODAY: $0.00

  • Height: 168"
  • Base: 31"
  • Arms to Use: 18"
  • Capacity (lbs): 23,400
  • Net Weight (lbs): 380
TODAY: $0.00

  • Height: 144"
  • Base: 61"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 13,900/12,500
  • Net Weight (lbs): 390
TODAY: $0.00

  • Height: 120"
  • Base: 37"
  • Arms to Use: 24"
  • Capacity (lbs): 21,500
  • Net Weight (lbs): 307
TODAY: $0.00

  • Height: 120"
  • Base: 49"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 18,300/16,000
  • Net Weight (lbs): 328
TODAY: $0.00

  • Height: 120"
  • Base: 61"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 14,200/12,800
  • Net Weight (lbs): 350
TODAY: $0.00

  • Height: 144"
  • Base: 31"
  • Arms to Use: 18"
  • Capacity (lbs): 24,400
  • Net Weight (lbs): 340
TODAY: $0.00

  • Height: 144"
  • Base: 37"
  • Arms to Use: 24"
  • Capacity (lbs): 20,900
  • Net Weight (lbs): 348
TODAY: $0.00

  • Height: 144"
  • Base: 49"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 17,800/15,600
  • Net Weight (lbs): 370
TODAY: $0.00

Double-Sided Heavy-Duty Cantilever Uprights
  • Height: 144"
  • Base: 65"
  • Arms to Use: 24"
  • Capacity (lbs): 41,800
  • Net Weight (lbs): 385
TODAY: $0.00

  • Height: 144"
  • Base: 82"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 35,600/31,200
  • Net Weight (lbs): 430
TODAY: $0.00

  • Height: 144"
  • Base: 106"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 27,800/25,000
  • Net Weight (lbs): 470
TODAY: $0.00

  • Height: 168"
  • Base: 53"
  • Arms to Use: 18"
  • Capacity (lbs): 46,800
  • Net Weight (lbs): 390
TODAY: $0.00

  • Height: 168"
  • Base: 65"
  • Arms to Use: 24"
  • Capacity (lbs): 40,400
  • Net Weight (lbs): 426
TODAY: $0.00

  • Height: 168"
  • Base: 82"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 32,00/30,800
  • Net Weight (lbs): 468
TODAY: $0.00

  • Height: 168"
  • Base: 106"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 27,400/24,800
  • Net Weight (lbs): 510
TODAY: $0.00

  • Height: 144"
  • Base: 53"
  • Arms to Use: 18"
  • Capacity (lbs): 48,800
  • Net Weight (lbs): 350
TODAY: $0.00

  • Height: 120"
  • Base: 106"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 28,200/25,200
  • Net Weight (lbs): 418
TODAY: $0.00

  • Height: 96"
  • Base: 53"
  • Arms to Use: 18"
  • Capacity (lbs): 49,400
  • Net Weight (lbs): 275
TODAY: $0.00

  • Height: 96"
  • Base: 65"
  • Arms to Use: 24"
  • Capacity (lbs): 43,00
  • Net Weight (lbs): 307
TODAY: $0.00

  • Height: 96"
  • Base: 82"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 36,600/32,000
  • Net Weight (lbs): 350
TODAY: $0.00

  • Height: 96"
  • Base: 106"
  • Arms to Use: 42"/48"
  • Capacity (lbs): 28,400/25,600
  • Net Weight (lbs): 390
TODAY: $0.00

  • Height: 120"
  • Base: 53"
  • Arms to Use: 18"
  • Capacity (lbs): 49,200
  • Net Weight (lbs): 300
TODAY: $0.00

  • Height: 120"
  • Base: 65"
  • Arms to Use: 24"
  • Capacity (lbs): 42,600
  • Net Weight (lbs): 335
TODAY: $0.00

  • Height: 120"
  • Base: 82"
  • Arms to Use: 30"/36"
  • Capacity (lbs): 36,400/31,600
  • Net Weight (lbs): 386
TODAY: $0.00

Straight Arms
  • Arm Length: 48"
  • Uniform Capacity Per Arm (lbs): 1000
  • Weight (lbs): 30
  • :
  • :
TODAY: $0.00

  • Arm Length: 42"
  • Uniform Capacity Per Arm (lbs): 1100
  • Weight (lbs): 27
  • :
  • :
TODAY: $0.00

  • Arm Length: 36"
  • Uniform Capacity Per Arm (lbs): 1200
  • Weight (lbs): 24
  • :
  • :
TODAY: $0.00

  • Arm Length: 30"
  • Uniform Capacity Per Arm (lbs): 1500
  • Weight (lbs): 22
  • :
  • :
TODAY: $0.00

  • Arm Length: 24"
  • Uniform Capacity Per Arm (lbs): 2000
  • Weight (lbs): 19
  • :
  • :
TODAY: $0.00

  • Arm Length: 18"
  • Uniform Capacity Per Arm (lbs): 2500
  • Weight (lbs): 16
  • :
  • :
TODAY: $0.00

Inclined Arms
  • Arm Length: 36"
  • Uniform Capacity Per Arm (lbs): 1200
  • Weight (lbs): 24
  • :
  • :
TODAY: $0.00

  • Arm Length: 18"
  • Uniform Capacity Per Arm (lbs): 2500
  • Weight (lbs): 16
  • :
  • :
TODAY: $0.00

  • Arm Length: 24"
  • Uniform Capacity Per Arm (lbs): 2000
  • Weight (lbs): 19
  • :
  • :
TODAY: $0.00

  • Arm Length: 30"
  • Uniform Capacity Per Arm (lbs): 1500
  • Weight (lbs): 21
  • :
  • :
TODAY: $0.00

  • Arm Length: 48"
  • Uniform Capacity Per Arm (lbs): 1000
  • Weight (lbs): 30
  • :
  • :
TODAY: $0.00

  • Arm Length: 42"
  • Uniform Capacity Per Arm (lbs): 1100
  • Weight (lbs): 27
  • :
  • :
TODAY: $0.00

Heavy-Duty and Extra Heavy-Duty Arms
  • Arm Length: 48"
  • Uniform Capacity Per Arm (lbs): 2500
  • Weight (lbs): 31
  • :
  • :
TODAY: $0.00

  • Arm Length: 48"
  • Uniform Capacity Per Arm (lbs): 1630
  • Weight (lbs): 31
  • :
  • :
TODAY: $0.00

  • Arm Length: 42"
  • Uniform Capacity Per Arm (lbs): 2900
  • Weight (lbs): 29
  • :
  • :
TODAY: $0.00

  • Arm Length: 42"
  • Uniform Capacity Per Arm (lbs): 1865
  • Weight (lbs): 29
  • :
  • :
TODAY: $0.00

  • Arm Length: 36"
  • Uniform Capacity Per Arm (lbs): 3400
  • Weight (lbs): 26
  • :
  • :
TODAY: $0.00

  • Arm Length: 36"
  • Uniform Capacity Per Arm (lbs): 2175
  • Weight (lbs): 26
  • :
  • :
TODAY: $0.00

Brace Sets (includes two)
  • Upright Height: 144-168"
  • Length: 96"
  • Weight (lbs): 107
  • :
  • :
TODAY: $0.00

  • Upright Height: 144-168"
  • Length: 84"
  • Weight (lbs): 95
  • :
  • :
TODAY: $0.00

  • Upright Height: 144-168"
  • Length: 72"
  • Weight (lbs): 84
  • :
  • :
TODAY: $0.00

  • Upright Height: 144-168"
  • Length: 60"
  • Weight (lbs): 64
  • :
  • :
TODAY: $0.00

  • Upright Height: 144-168"
  • Length: 48"
  • Weight (lbs): 54
  • :
  • :
TODAY: $0.00

  • Upright Height: 144-168"
  • Length: 36"
  • Weight (lbs): 44
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120"
  • Length: 96"
  • Weight (lbs): 69
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120"
  • Length: 84"
  • Weight (lbs): 61
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120"
  • Length: 72"
  • Weight (lbs): 54
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120
  • Length: 60"
  • Weight (lbs): 42
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120"
  • Length: 48"
  • Weight (lbs): 35
  • :
  • :
TODAY: $0.00

  • Upright Height: 96-120"
  • Length: 36"
  • Weight (lbs): 29
  • :
  • :
TODAY: $0.00

Heavy-Duty Cantilever Rack Sets
  • Package Contents: (2) HDU-C-8-36 8' High Double-Sided Uprights, (1) HB-C-8-6 Brace Set, (8) HSA-C-36 36" Arms
  • Uniform Capacity Per Level (lbs): 4800
  • Weight (lbs): 1016
  • :
  • :
TODAY: $0.00

  • Package Contents: (2) HU-C-8-36 8' High Single-Sided Uprights, (1) HB-C-8-6 Brace Set, (4) HSA-C-36 36" Arms
  • Uniform Capacity Per Level (lbs): 2400
  • Weight (lbs): 810
  • :
  • :
TODAY: $0.00

  • Package Contents: (2) HDU-C-8-24 8' High Double-Sided Uprights, (1) HB-C-8-6 Brace Set, (8) HSA-C-24 24" Arms
  • Uniform Capacity Per Level (lbs): 8000
  • Weight (lbs): 890
  • :
  • :
TODAY: $0.00

Menu
